176 Ton Seyi Press • 72.8″ Wide 5.12″ Stroke Used High Speed Production Press

176

176
Ton
72.8″
Bed R-L
5.12″
Stroke

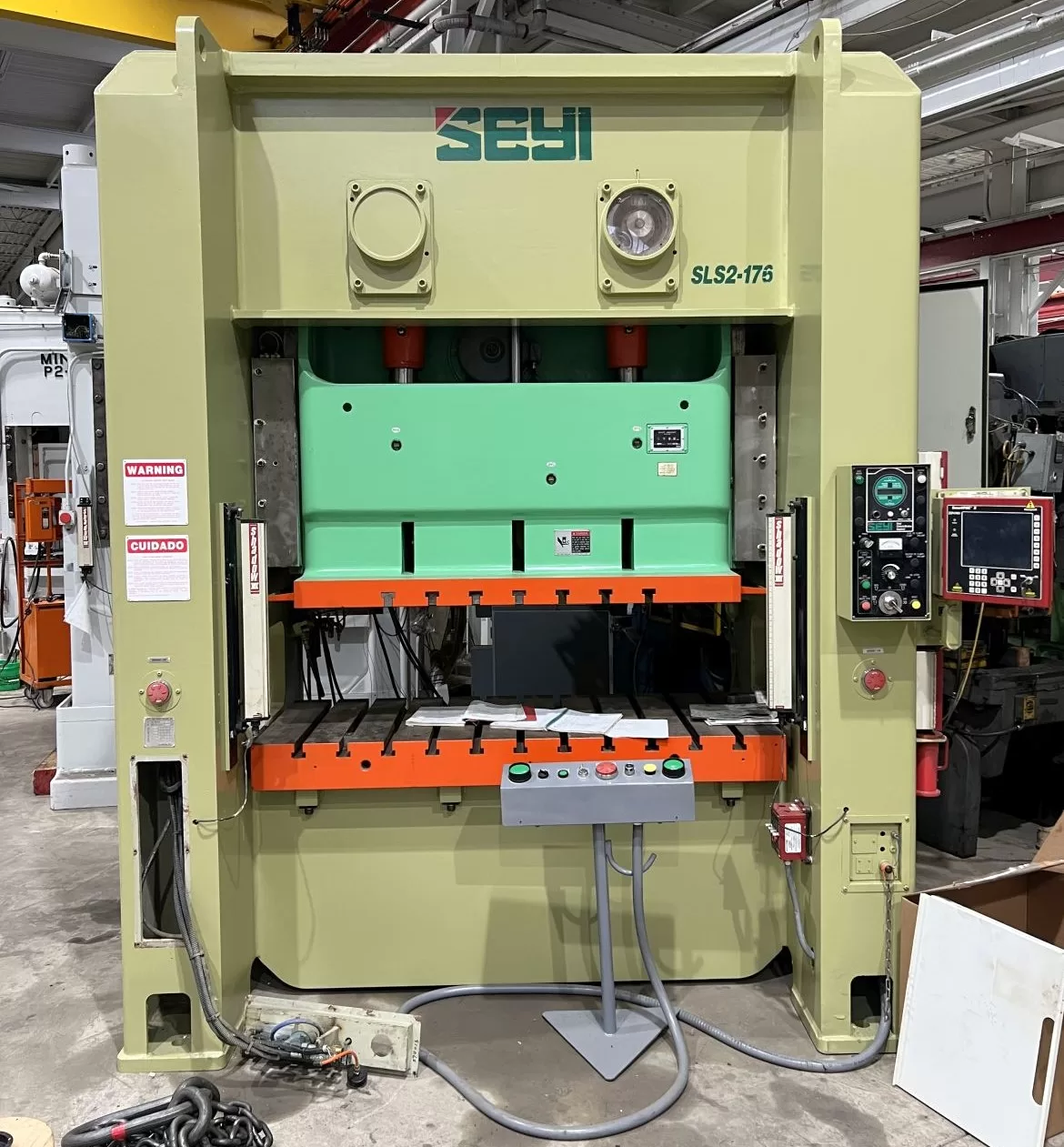

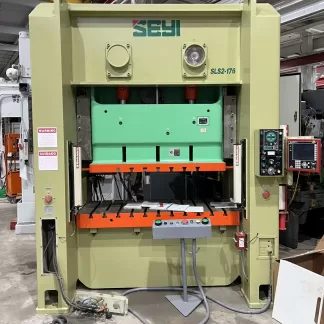

Seyi SLS2-176-H 176 Tons, 5.12″ Stroke, 15.75″ Shut Height, Approx. 72″ x 29″ Bed Area, 40-90 SPM, New in 2003

Machine #5569
(Jackson, MI Falahee Building)

Machine Specifications

Used 176 Ton Press for Sale • High Speed Production Press

Model: SLS2-176-H
Year: 2003
Condition: Excellent!
Location: Jackson, MI Falahee Building
Reference: Machine #5569

CAPACITY 176 TONS
STROKE 5.12″
MAX. SHUT HEIGHT 15.75″
BED AREA 72.83″ X 29.92″ (RL X FB)
RAM AREA 61.42″ X 25.59″ (rL X FB)
BOLSTER PLATE 72.83″ X 29.92″ (RL X FB) X 6.3″ THICK
SPEED 40-90 SPM (STROKES PER MINUTE)
RAM ADJUSTMENT 3.94″
DISTANCE BETWEEN UPRIGHTS 75″
FLOOR TO BED 31″ – 37.25″ FROM FLOOR TO BOLSTER
WINDOW SIZE 26″ X 13.5″ (WIDE X HIGH)
CLUTCH SEYI AIR CLUTCH
ELECTRICS 20 HP 220/440V-3-60 MOTOR 50/25 AMPS | 1760 RPM
CONTROLS DELTA VFD-B AC MOTOR DRIVE – OMRON G3F-203SN RELAYS
APPROX. DIMENSIONS 115″ X 104″ (RL X FB) X 147″ HIGH
APPROX. WEIGHT
Equipped With
Note
Location This used 176 Ton Seyi Press is located in our Jackson, MI Falahee Building
