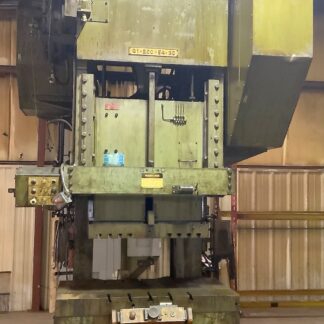

200 Ton Federal Press • 72″ Wide 3″ Stroke Used High Speed Production Press

200

200
Ton
72″
Bed R-L
3″
Stroke

Federal S2-200-72-36 3″ Stroke, 29-1/2″ Shut Height, 72″ x 36″ Bed, 50-170 SPM, Reconditioned, Under Power

Machine #4196
(Columbia, TN Warehouse)

Machine Specifications

Used 200 Ton Press for Sale • High Speed Production Press

Model: S2-200-72-36
Year: 1985
Condition: Very Good
Location: Columbia, TN Warehouse
Reference: Machine #4196

CAPACITY 200 TON
STROKE 3″
SHUT HEIGHT TO BED 29-1/2″ (SDAU)
BED AREA 72″ RL X 36″ FB
STROKES PER MINUTE 50 – 170 SPM
RAM ADJUSTMENT 8″ (MOTORIZED)
RAM AREA 72″ RL X 36″ FB (T-SLOTTED)
BOLSTER SIZE 6-1/2″ X 72″ RL X 36″ FB(T-SLOT)
WINDOW SIZE 20″ FB X 18″ H
DIST UPRIGHTS / FLOOR TO BED 78″ / 38″
CLUTCH AIR CLUTCH & BRAKE
ELECTRICS 50 HP 1800 RPM 240/480V-3-60 EDDY CURRENT MOTOR & RELAY PRESS CONTROL
APPROX DIMENSIONS 15’6″ H X 11’10” W X 7′ FB
APPROX WEIGHT 75,000 LBS.
Equipped With STEEL FRAME CONSTRUCTION TIE ROD, KEYED FRAME (4) AIR COUNTERBALANCES FLOOR STANDING BASE MOTORIZED RAM ADJUSTMENT RECIRCULATING OIL LUBRICATION SYSTEM *** BLANCHARD GROUND BOLSTER PLATE ***
Note
Location This used 200 Ton Federal Press is located in our Columbia, TN Warehouse
