220 Ton Komatsu Press • Used 220 Ton Press

220

220
Ton
94.5″
Bed R-L
5.91″
Stroke

Komatsu OBW200-2 5.91″ STR, 19.69″ SH OB, 94.5X33.46, 30-65 SPM, 4.72″ ADJ, With 11.8″ Wide, 48″ OD, 20″ ID, Year 1988, 2 in Stock!

Machine #4916
(Jackson, MI Warehouse)
Machine: 4916 Machine Categories: , Manufacturer:

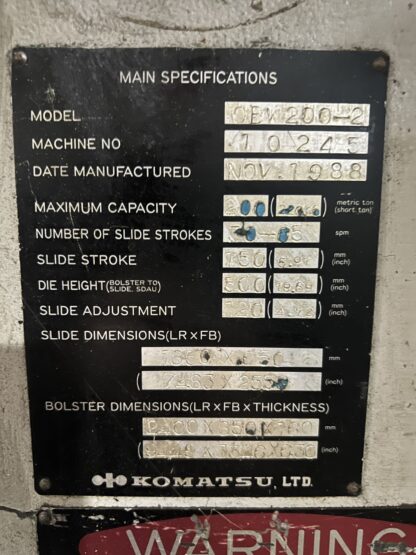

Machine Specifications

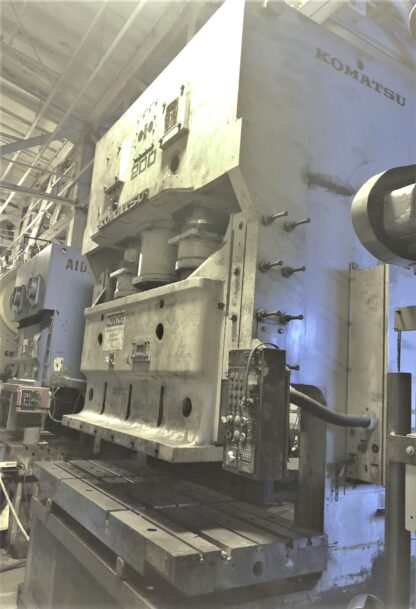

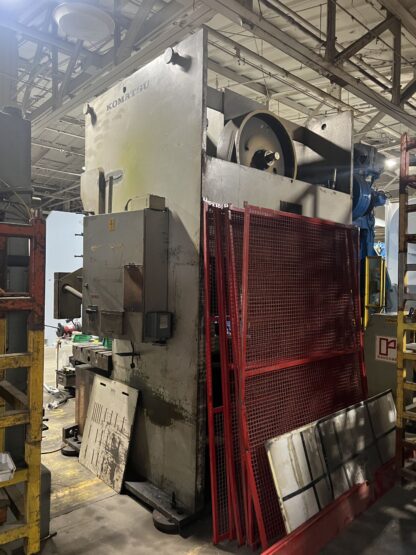

Used 220 Ton Press for Sale • Gap Frame, Double Crank Press

Model OBW200-2 (1988)
Serial 10245
Condition: Very Good
Contact: Jackson, MI Warehouse #4916

CAPACITY 220 US TON
STROKE 5.91″
MAX SHUT HEIGHT 19.69″ SDAU OVER BOLSTER
BED AREA 94.5″ RL X 33.46″ FB
SPEED 30 – 65 SPM
RAM ADJUSTMENT 4.72″ MOTORIZED

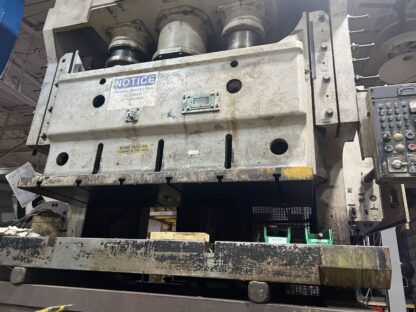

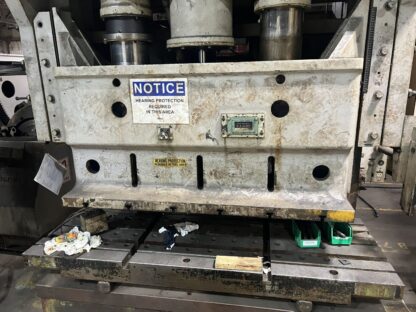

RAM AREA 73″ RL X 26″ FB (T SLOTTED)
BOLSTER PLATE 6″ H X 94″ RL X 33.5″ FB (T SLOTTED)
DIST UPRIGHTS / FLOOR TO BED 75″ / 39.5″
CLUTCH KOMATSU AIR CLUTCH / BRAKE COMBINATION

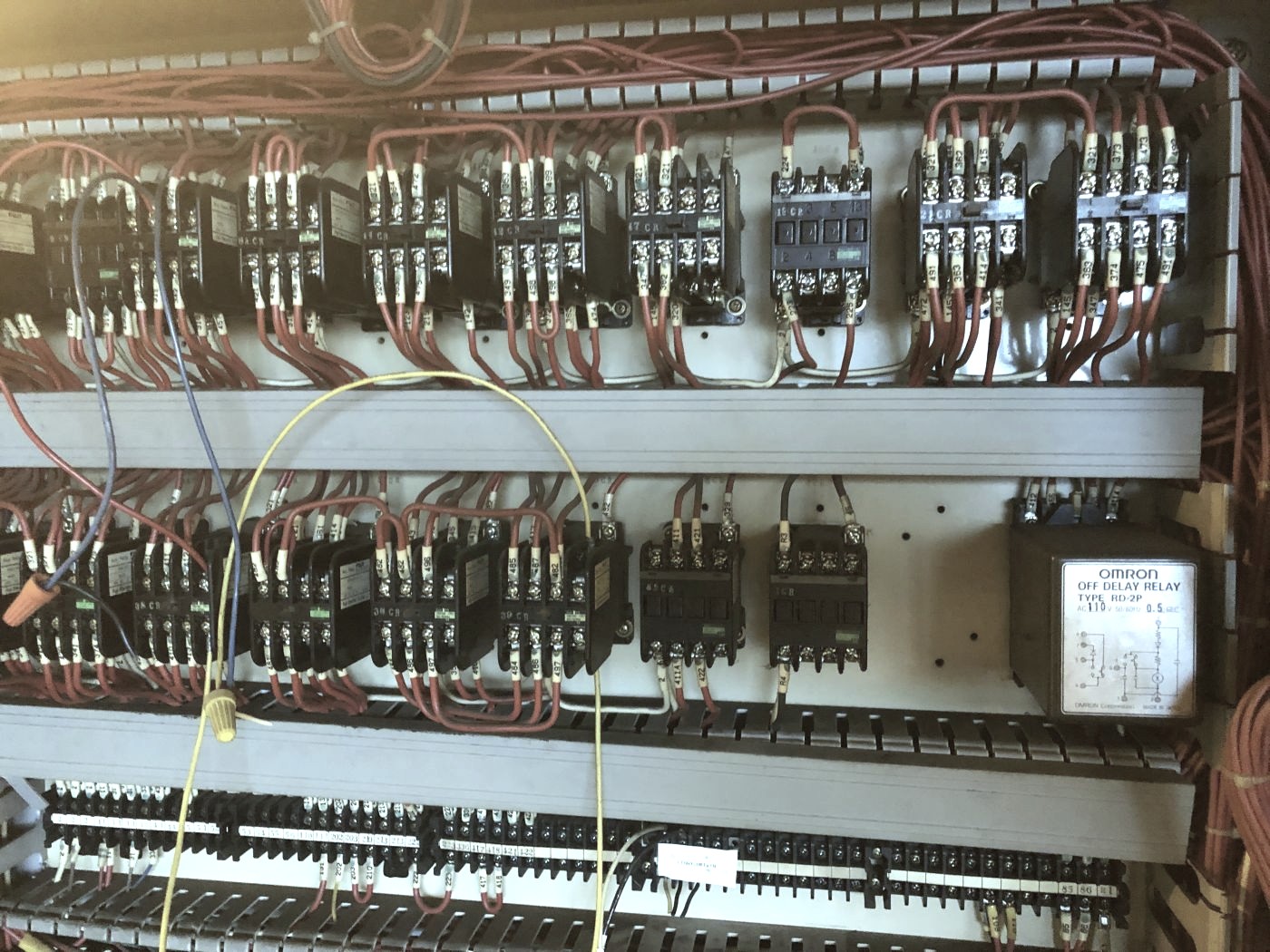

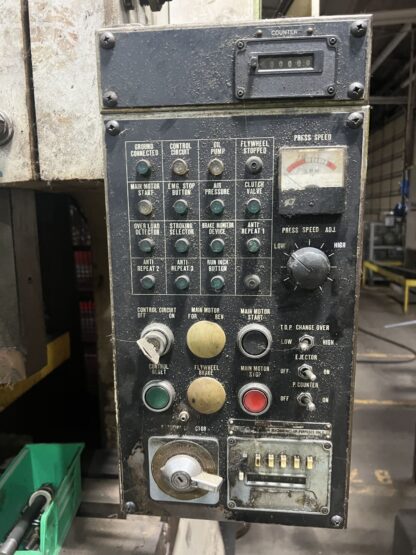

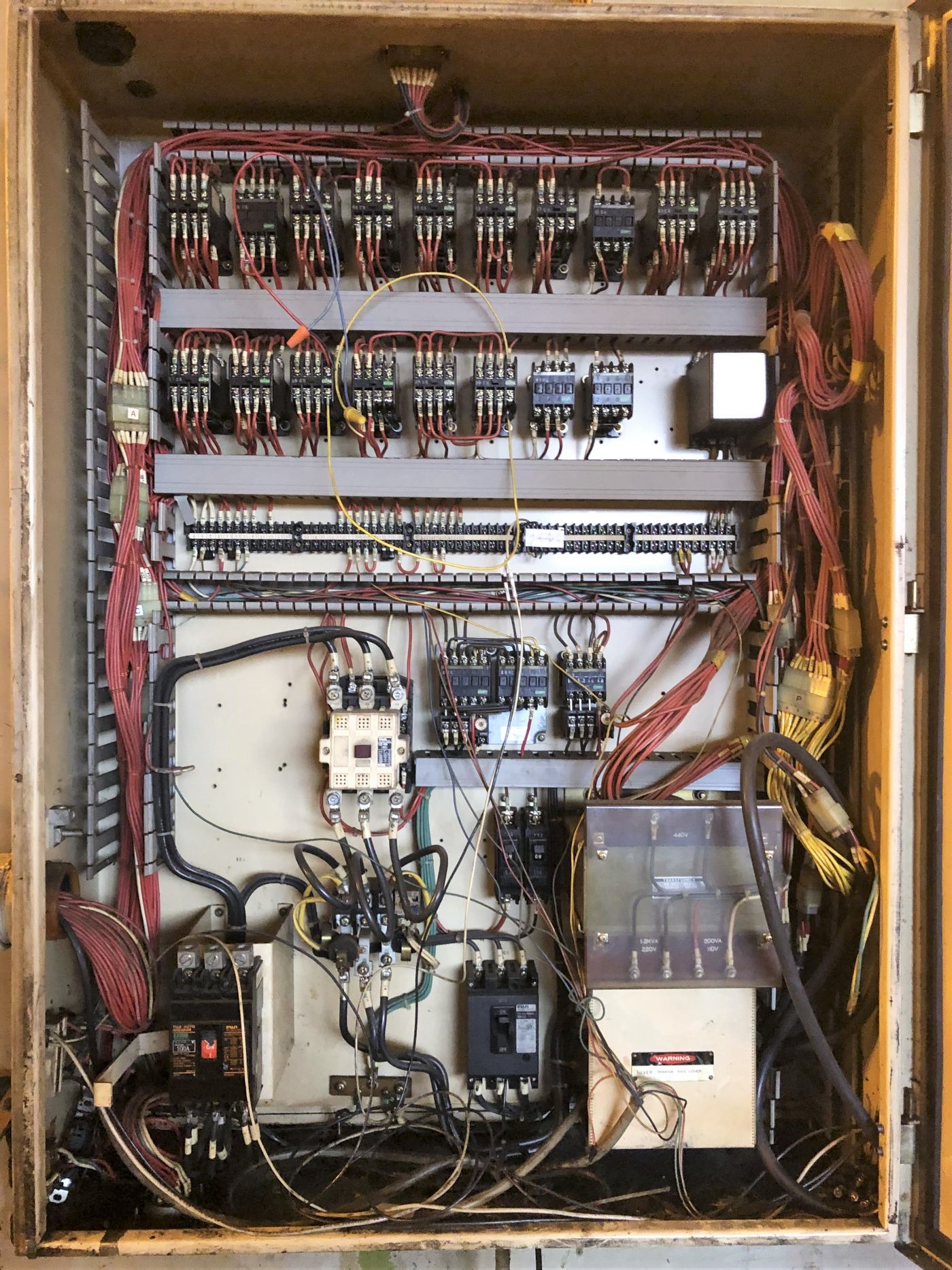

ELECTRICS 25 HP 1800 RPM 240/480V-3-60 EDDY CURRENT MOTOR & KOMATSU RELAY CONTROL
APPROX DIMENSIONS 13′ H X 9′ RL X 8′ FB
APPROX WEIGHT 59,400 LBS
MAX UPPER DIE WEIGHT 4,470 LBS
Orii Motorized Reel 3,300 LB. x 11.8″ Wide Orii Reel
Reel Dims 4′ High x 4′ x 4’10”
Equipped With Hydraulic Overloads, Air Counterbalanced Ram
Note
Location This used Gap Frame, Double Crank Press is located in our Jackson, MI Warehouse
