300 Ton Warco Press • Used 300 Ton Press

300

300
Ton
72″
Bed R-L
6″
Stroke

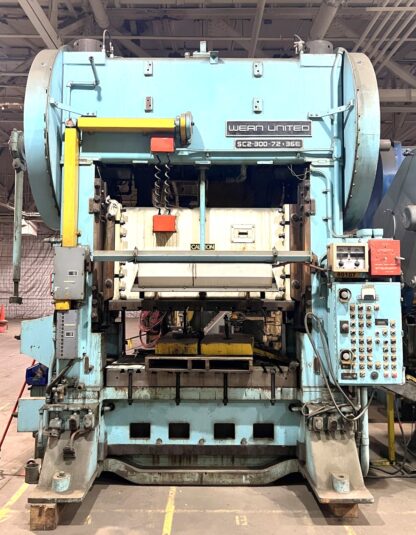

Warco SC2-300-72-36 6″ Str, approx. 36″ Sh.Ht., 72″ x 36″ Bed, 30-60 SPM, 25″ Windows

Machine #3482
(Jackson, MI Falahee Building)

Machine Specifications

Used 300 Ton Press for Sale • Straight Side Double Crank Press

Model SC2-300-72-36 (1980)
Serial 37603
Condition: Very Good
Contact: Jackson, MI Falahee Building #3482

CAPACITY 300 TON AT 1/4″
STROKE 6″
MAX. SHUT HEIGHT TO BED APPROX. 36″ SDAU
BED AREA 72″ RL X 36″ FB (36″ FLOOR TO BED)
SPEED 30-60 SPM – VARIABLE
RAM AREA(W/8 PT. GIBBING) 72″ RL X 36″ FB T-SLOTTED
RAM ADJUSTMENT 6″ MOTORIZED ADJUSTMENT
BOLSTER SIZE 6-3/4″ X 72″ RL X 36″ FB T-SLOTTED
WINDOW SIZE 25″ WIDE
DISTANCE BET. UPRIGHTS/GIB 82″ RL-UPRIGHTS/76″ RL-GIBS
CLUTCH AIR CLUTCH AND BRAKE
ELECTRICS EATON EDDY CURRENT VARI-DRIVE 220/440 VOLT PEDESTAL CONTROLS
APROX. DIMENSIONS/WEIGHT 16′ HIGH,13’10” RL,9’6″ FB/*78,540 LBS
Equipped With FLOOR STANDING BASE TWIN DRIVE(IN OIL)-SINGLE BACK GEARED RECIRCULATING LUBRICATION SYSTEM HYD.TIE RODS-STEEL FRAME CONSTRUCTION LINK BRAKE MONITOR
Note
Location This used Straight Side Double Crank Press is located in our Jackson, MI Falahee Building
