Machine Specifications

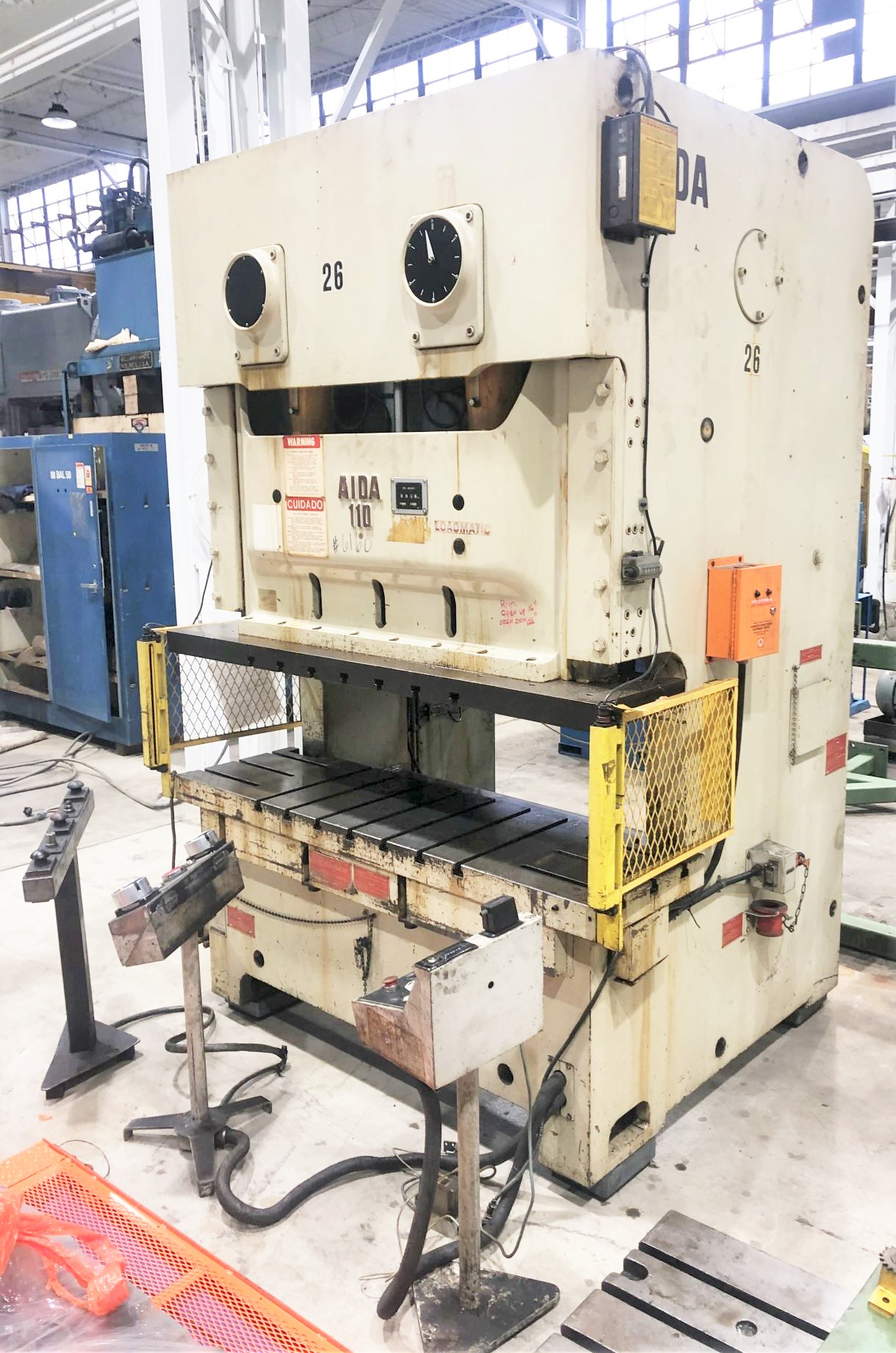

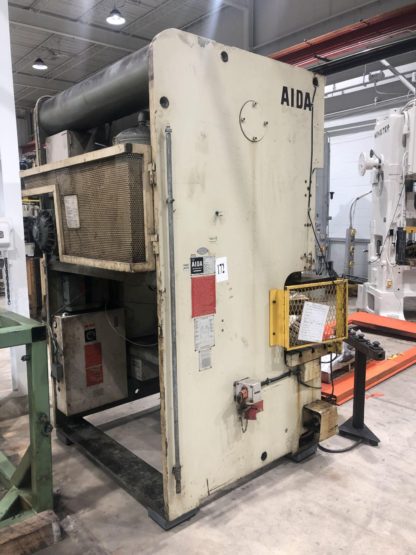

Gap Frame Double Crank Press for Sale
Manufacturer: Aida
Model: Aida NC2-110(1) Press
Condition: Expected Operational
Location: Jackson, MI Cooper Building
Year: 1985
Machine #: 6160
Buy Now: $

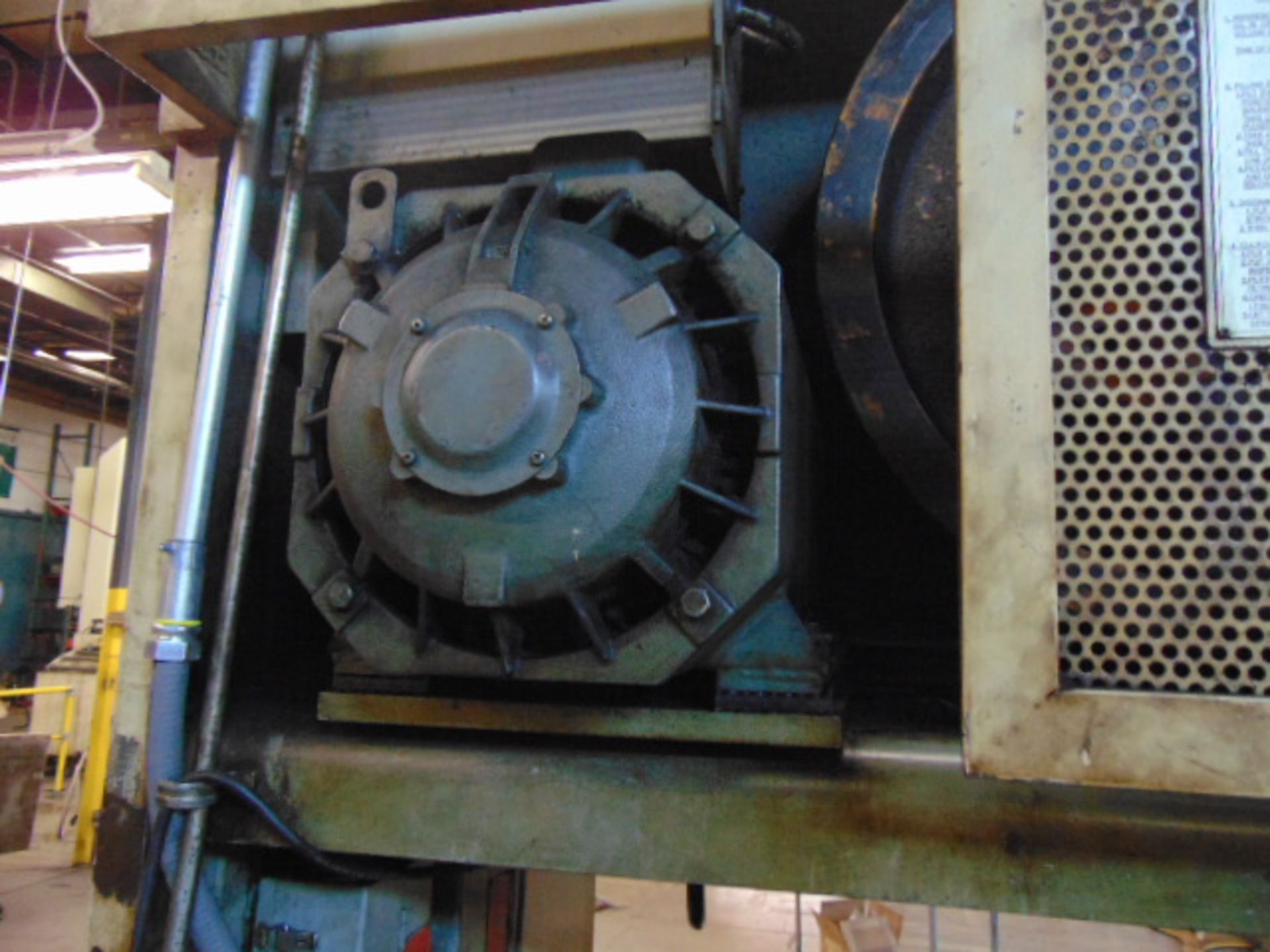

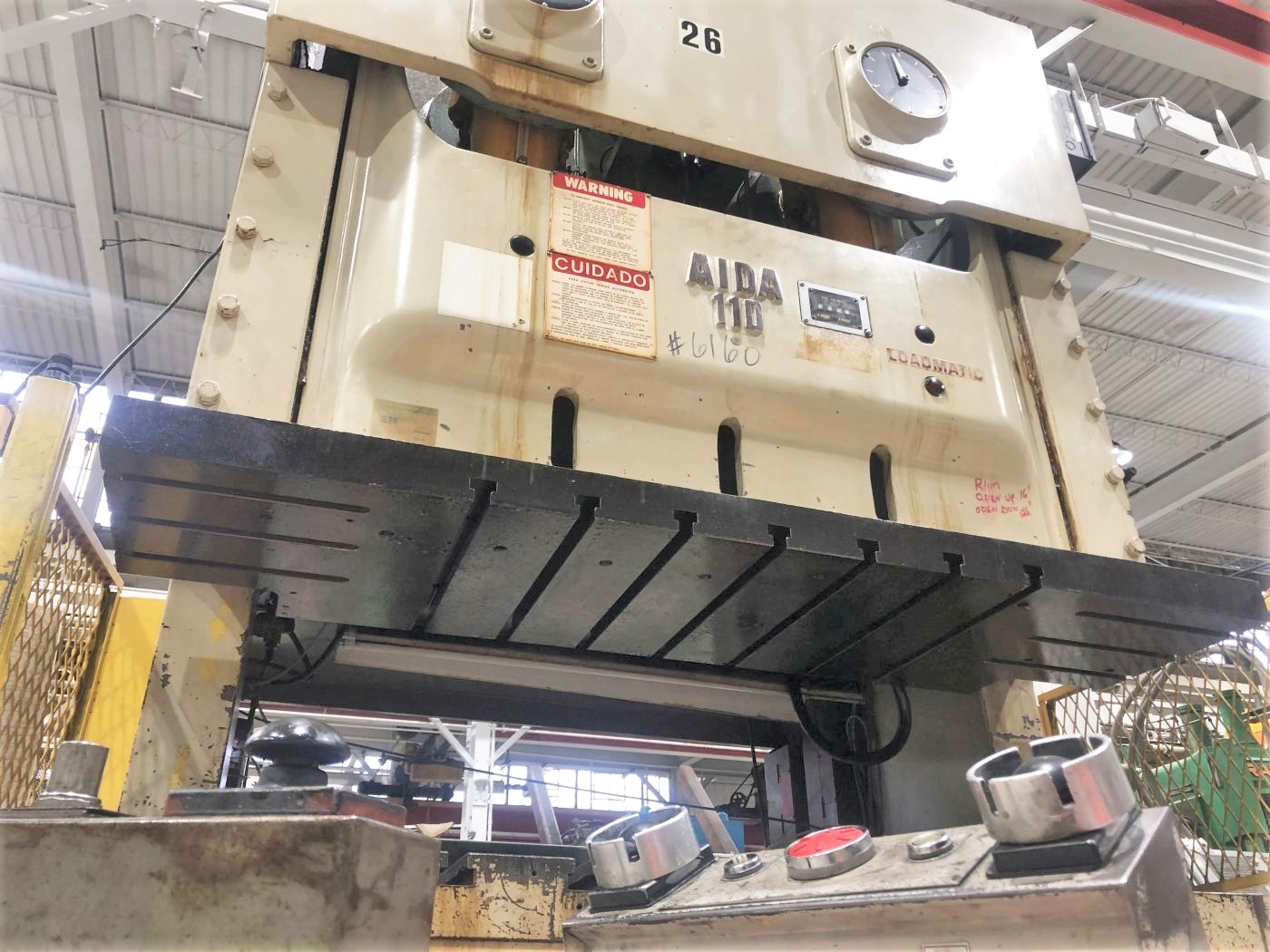

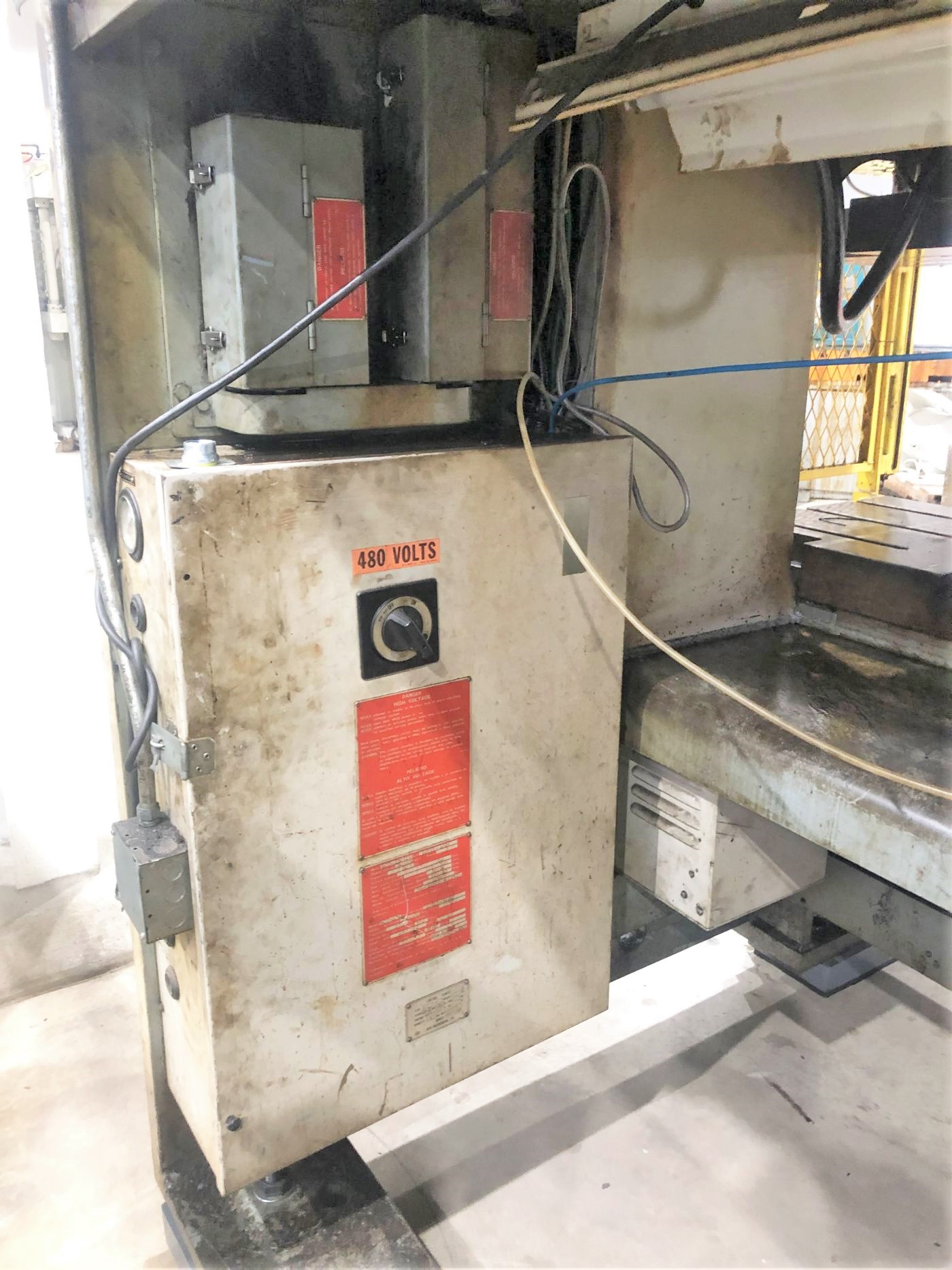

| CAPACITY | 121 US TONS | STROKE | 4.33″ | MAX SHUT HEIGHT OVER BOLSTER | 13.7″ | BED AREA | 74″ X 20.4″ (RL X FB) | BOLSTER PLATE | 74″ X 20.4 (RL X FB) X 3.5″ THICK | RAM AREA | 53.5″ X 20.4″ (RL X FB) | RAM BOLSTER PLATE | 74″ X 16.125″ (RL X FB) X 3″ THICK | RAM ADJUSTMENT | 3.54″ | SPEED | 50-100 STROKES PER MINUTE | DISTANCE BETWEEN UPRIGHTS | 58″ | FLOOR TO BED HEIGHT | 32.375″ | CLUTCH | AIDA AIR CLUTCH AND AIR BRAKE COMBINATION | PRESS CONTROLS | RELAY LOGIC CONTROLS WITH TELEMECANIQUE CONTACTORS & GE RELAY LOGIC | ELECTRICAL | 15 HP MOTOR / YASKAWA VS MOTOR 230/460V | 36 / 18 AMPS -> 45 / 27.5 FULL LOAD AMPS | APPROX. DIMENSIONS | 91″ X 72″ (RL X FB) X 118″ HIGH | APPROX. WEIGHT | __ | Equipped With | Hydraulic Overloads | Note | 1,210 LBS. MAX. UPPER TOOL WEIGHT, 64 MAX PSI AIR PRESSURE |
|---|---|
| Location | This used press is located in our Jackson, MI Cooper Building |
