150 Ton Bliss Press • Used Bliss S2-150-60-30 Press

150

150
Ton
60″
Bed R-L
5″
Stroke
Speed: 60 SPM
New in 1

1

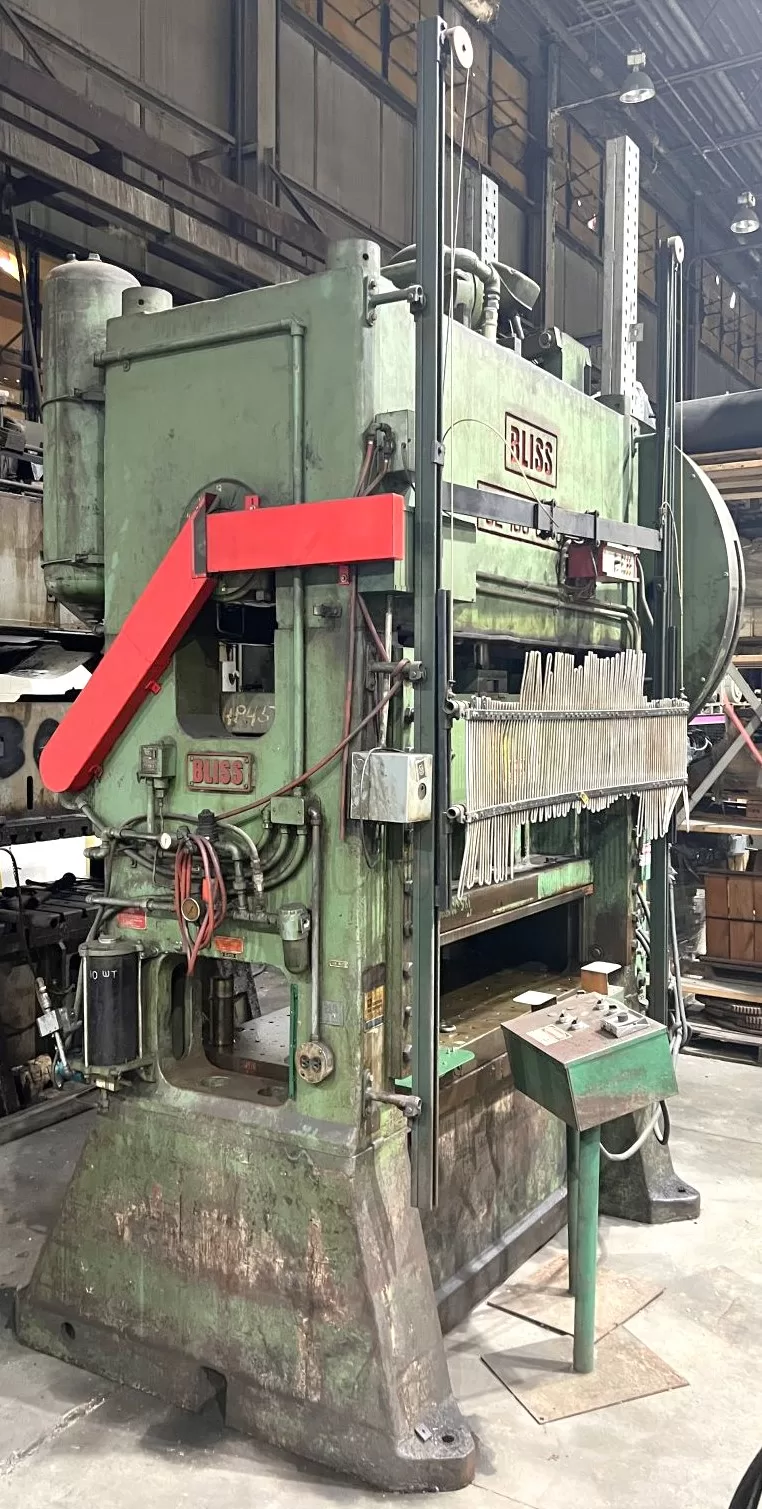

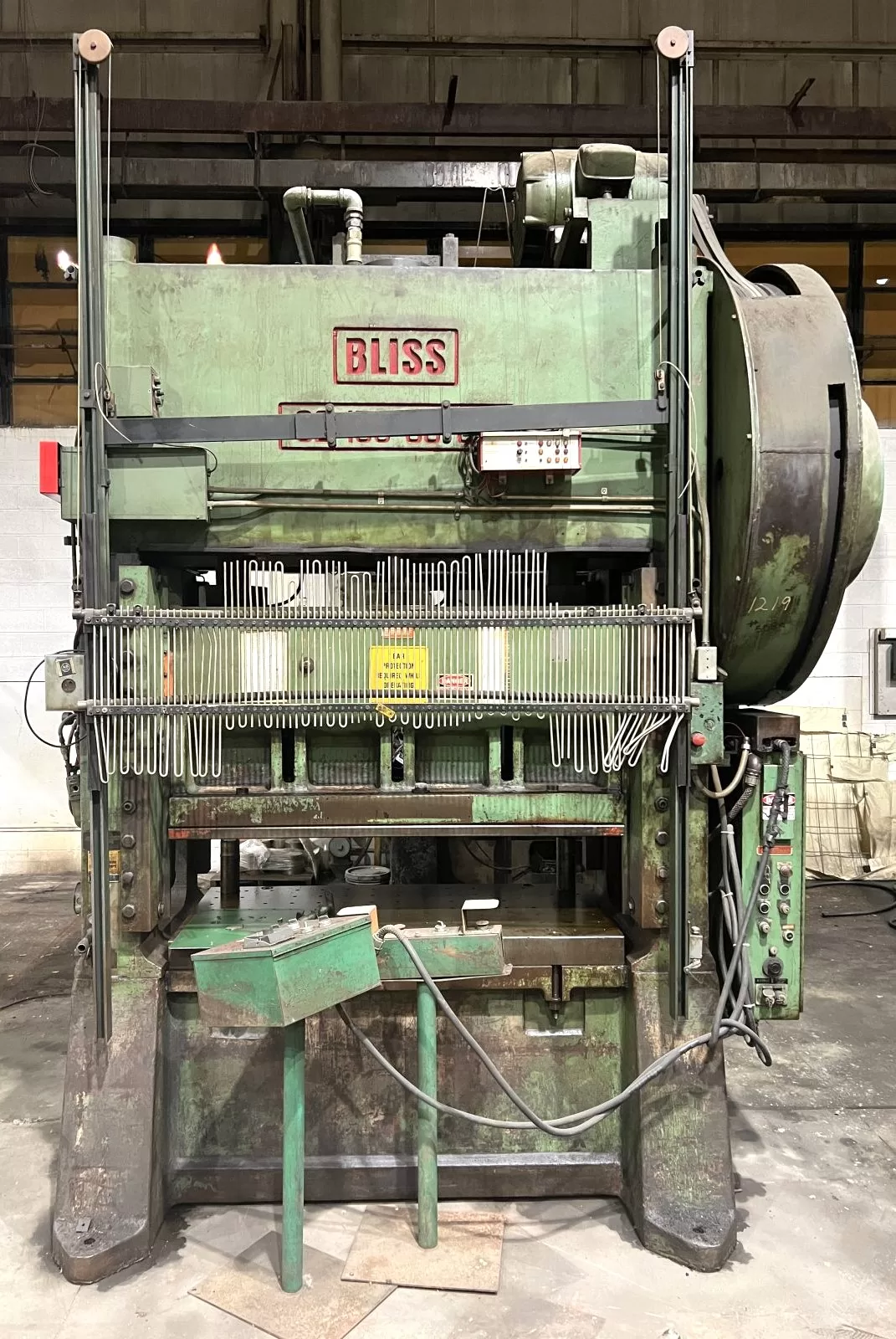

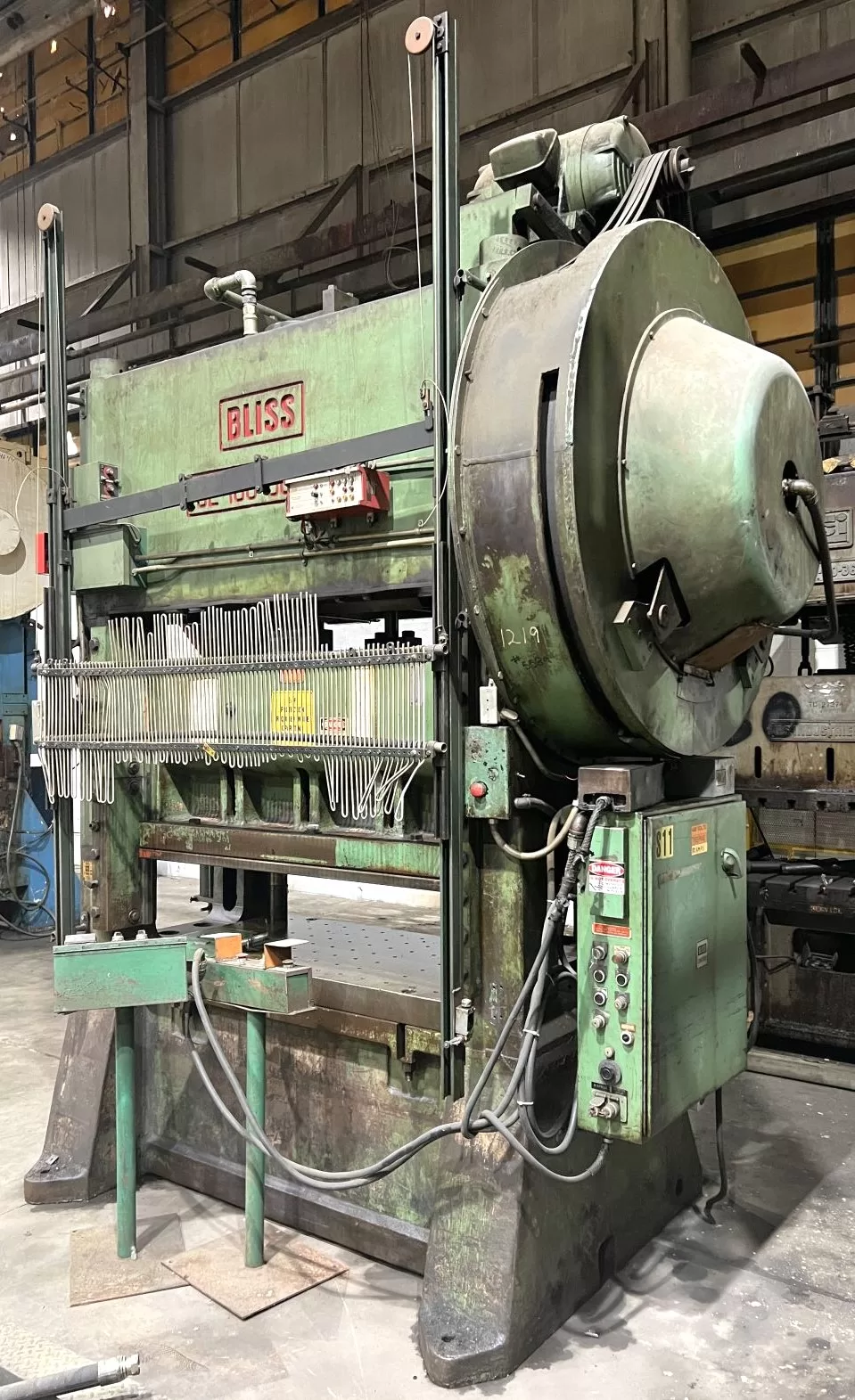

150 Ton Used Press – Straight Side Press
Model: Bliss S2-150-60-30
5″ Str, 15″ SH, 60″ x 30″ Bed, 60 SPM, 8″ ADJ, 4″ Bolster

Stamping Presses for Sale
Used Bliss Mechanical Press with Air Clutch
Machine #5589
Jackson, MI Falahee Building
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Bliss
Model: Bliss S2-150-60-30 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1968
Machine #: 5589
Buy Now: $





capacity 150 ton
stroke 5″
max shut height to bed 15″ SDAU
bed area 60″ X 30″ (RL X FB)
SPEED 60 SPM
RAM AREA 60″ X 30″ (RL X FB)
RAM ADJUSTMENT 8″ MOTORIZED
BOLSTER SIZE 60″ X 30″ (RL X FB) X 4″ THICK SOLID BOLSTER PLATE
WINDOW SIZE 19″ WIDE X 15″ HIGH
DISTANCE BETWEEN UPRIGHTS 60.5″
CLUTCH bliss air clutch and brake
PRESS CONTROLS BLISS RELAY LOGIC CONTROLLER WITH GLC 4400 LUBE CONTROL
ELECTRICS 15 hp 720 rpm motor
APPROX. DIMENSIONS 119″ X 80″ (RL X FB) X 160″ HIGH
APPROX. WEIGHT 30,000 LBS.
Equipped With KNOCKOUT BAR HOLES IN RAM TRABON LUBE SYSTEM SINGLE END DRIVE FLOOR STANDING
Note __
Location This Used Press is Located in Our Jackson, MI Falahee Building
