150 Ton Minster Press • Used Minster E2-150-60X48 Press

150

150
Ton
60″
Bed R-L
10″
Stroke
Speed: 40-80 SPM
New in 1986

1

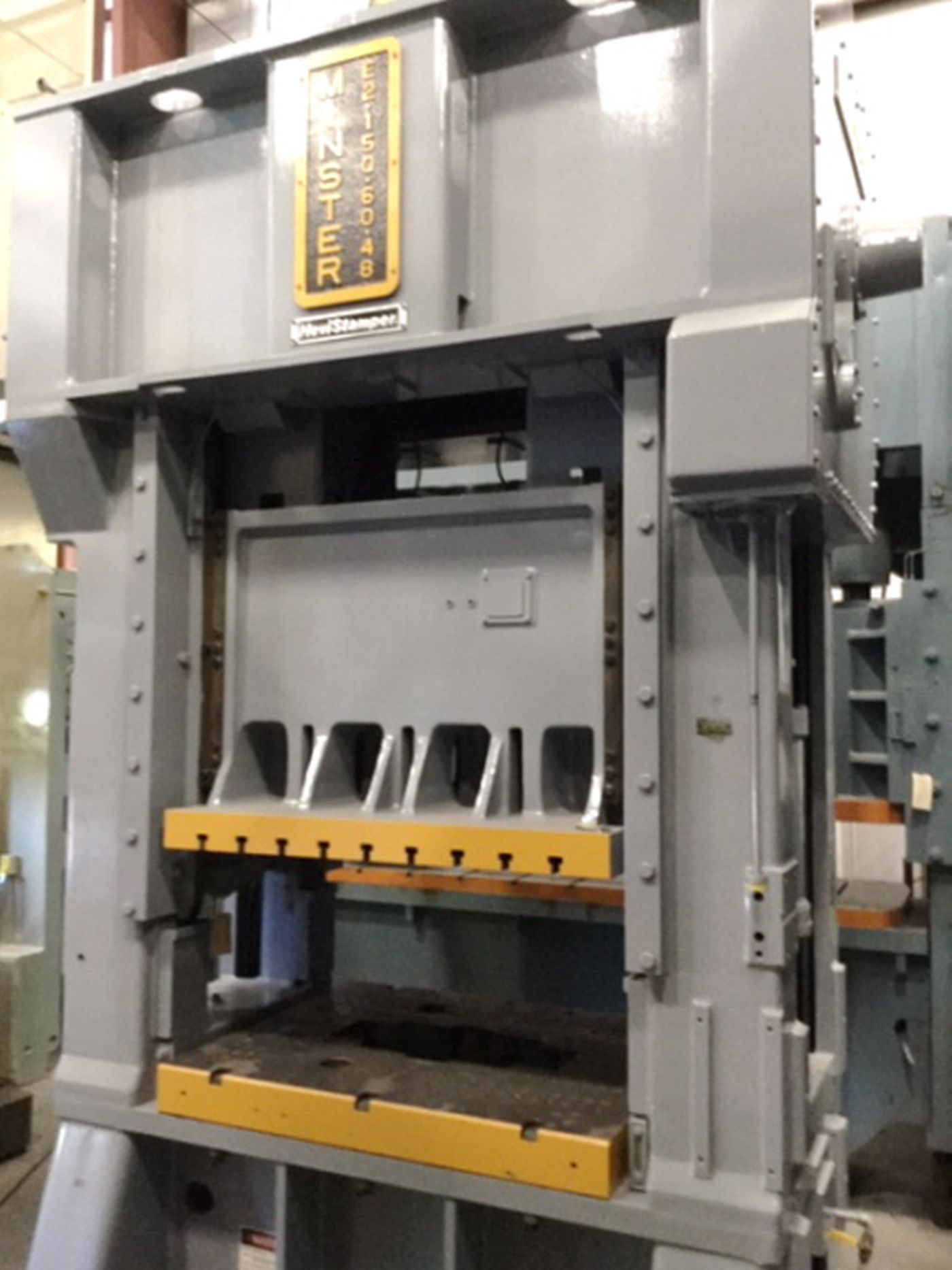

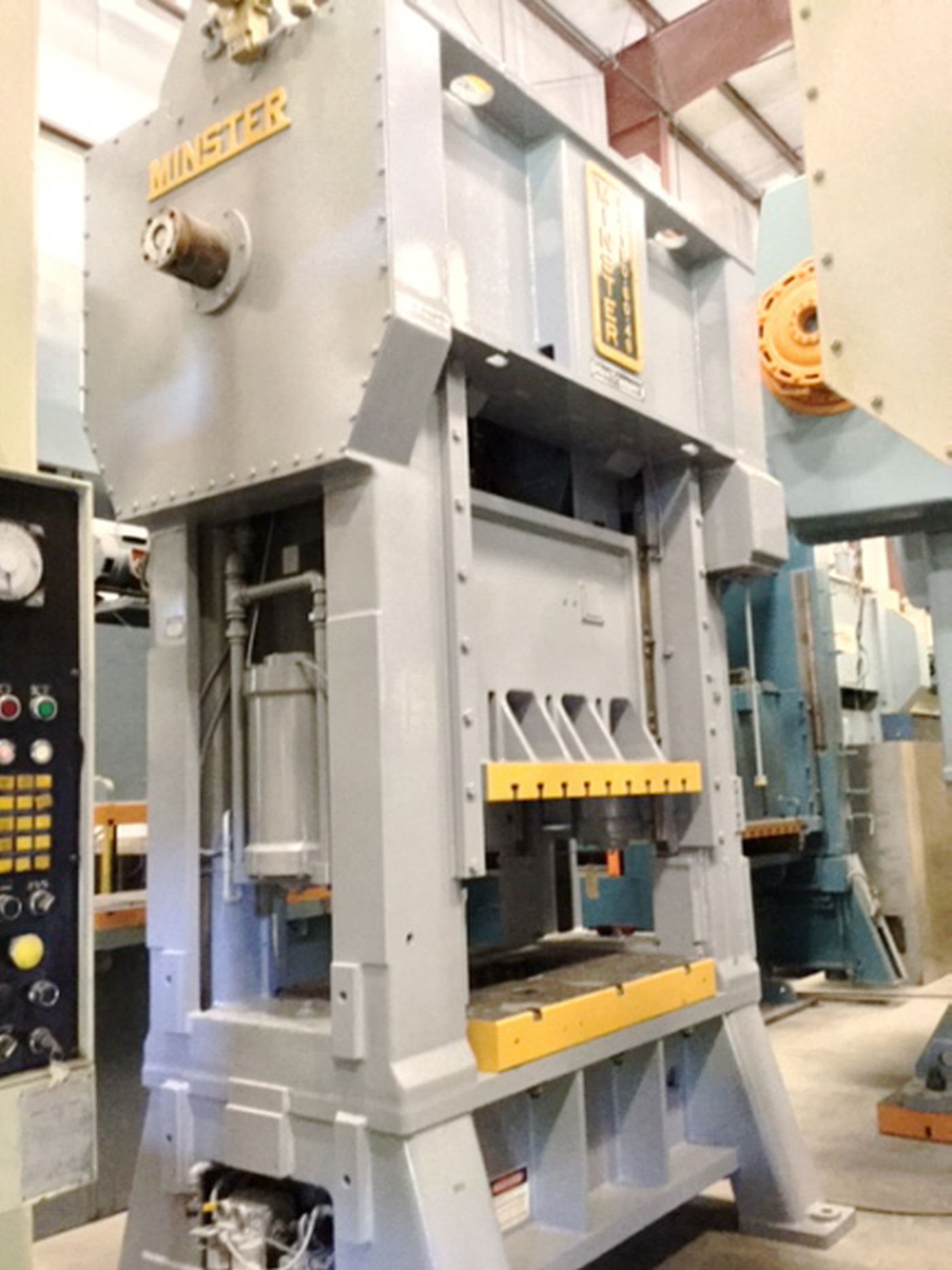

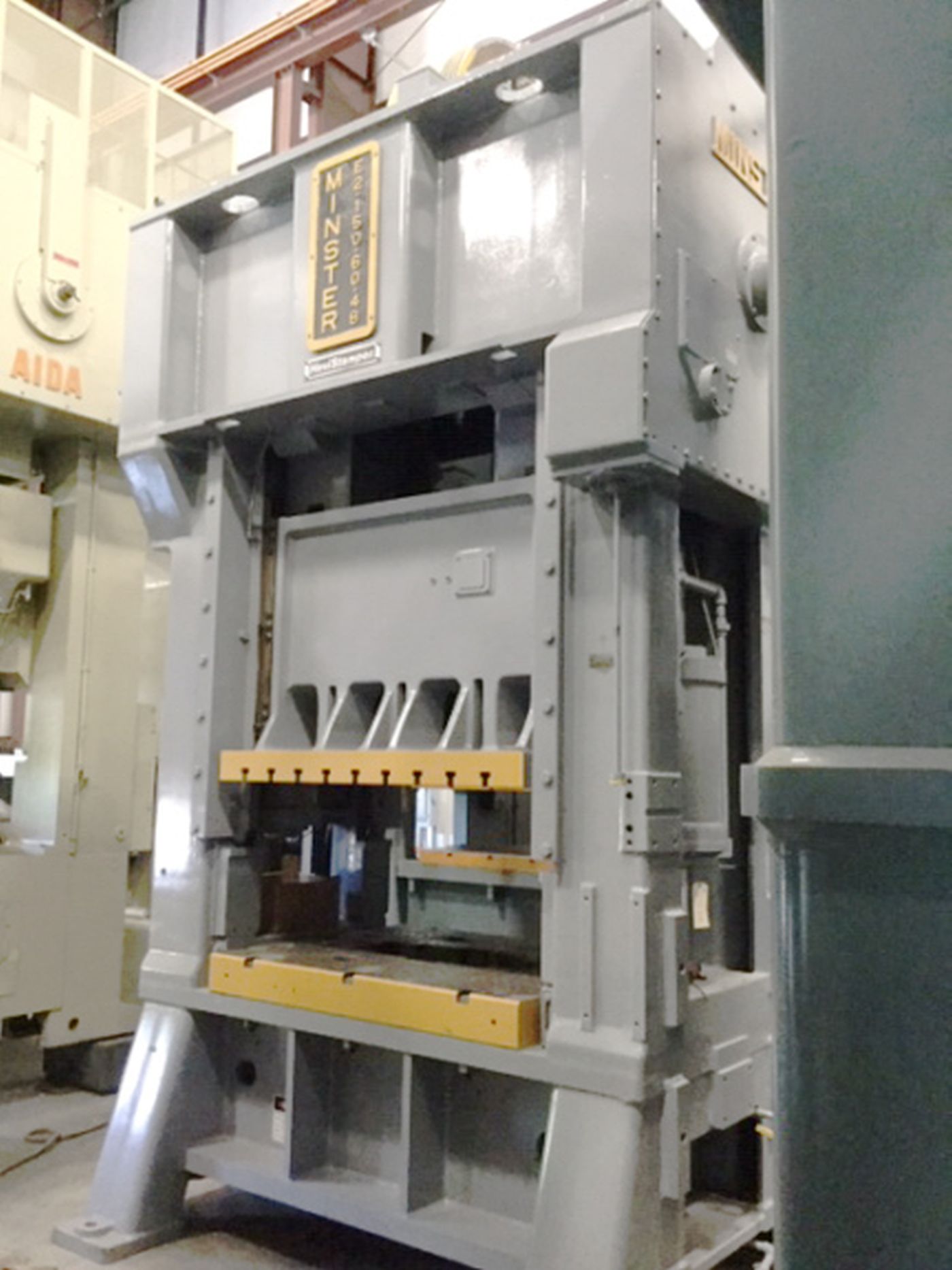

150 Ton Used Press – Straight Side Press
Model: Minster E2-150-60X48
10″ STR, 33″ SH, 60X48 BED, 0-80 SPM, 10″ ADJ, PRICE CUT

Stamping Presses for Sale
Used Minster Mechanical Press
Machine #5374
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Minster
Model: Minster E2-150-60X48 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1986
Machine #: 5374
Buy Now: $





CAPACITY 150 TONS
STROKE 10″
MAX SHUT HEIGHT TO BED 33″ (SDAU)
BED AREA 60″ RL X 48″ FB
SPEED 40 – 80 SPM
RAM ADJUSTMENT 10″ (MOTORIZED)
RAM AREA 60″ RL X 48″ FB
BOLSTER PLATE 6″ H X 60″ RL X 48″ FB
DIST UPRIGHTS / FLOOR TO BED 61-1/8″ / 32″
WINDOW SIZE 27″ FB X 15.5″ H
CLUTCH MINSTER AIR CLUTCH / BRAKE COMBINATION

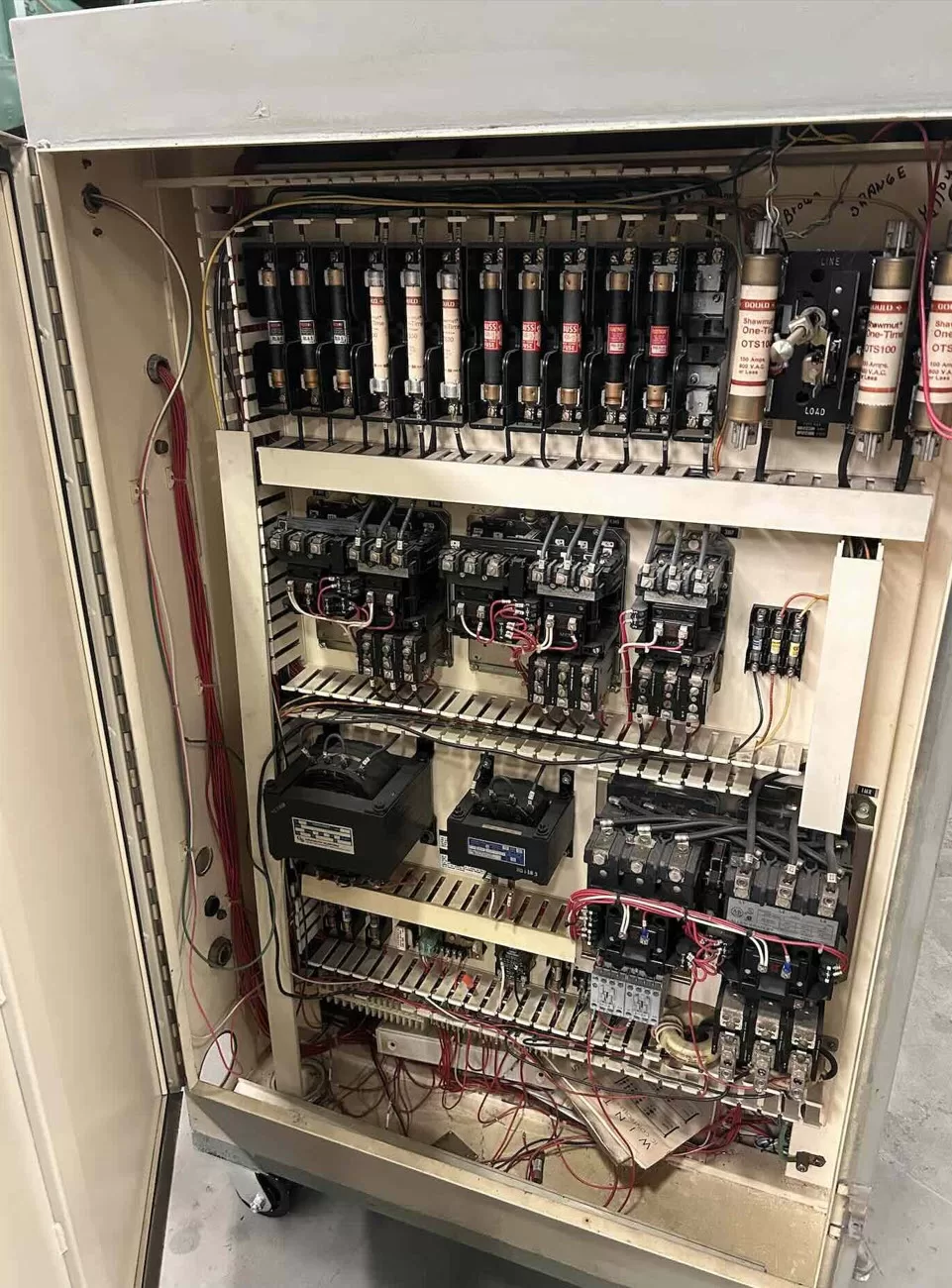

ELECTRICS 30 HP 1750 RPM 240/480V-3-60 MOTOR & relay CONTROL INCLUDED
APPROX DIMENSIONS 17.5′ H X 10′ 6″ RL X 6’6″ FB
APPROX WEIGHT 60,000 LBS
Equipped With TIE ROD FRAME CONSTRUCTION, DUAL AIR COUNTERBALANCES, FLOOR STANDING BASE AUTOMATIC LUBRICATION SYSTEM
Note We have 3 of these presses in stock!!!
Location This used press is located in our Columbia, TN Warehouse
