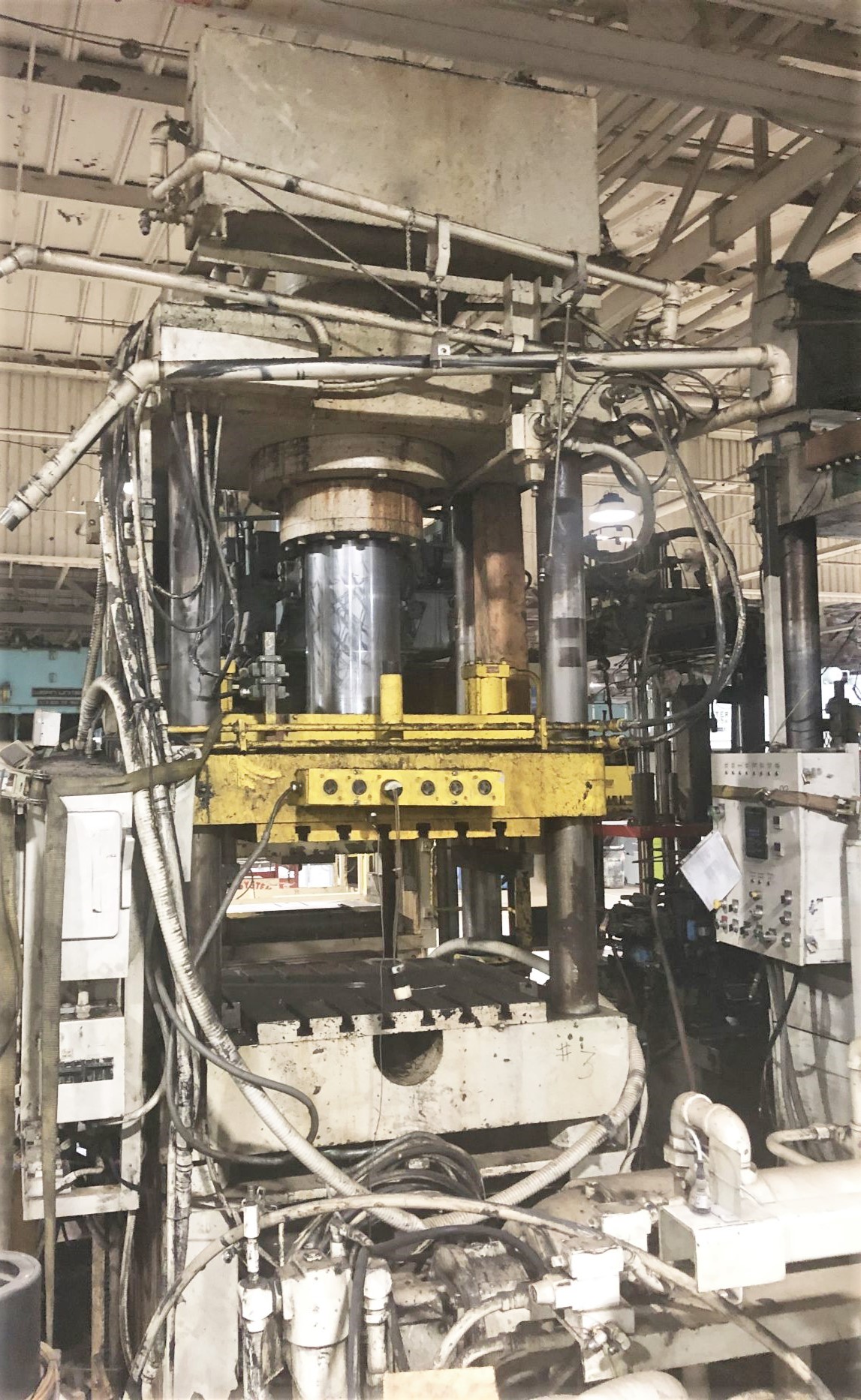

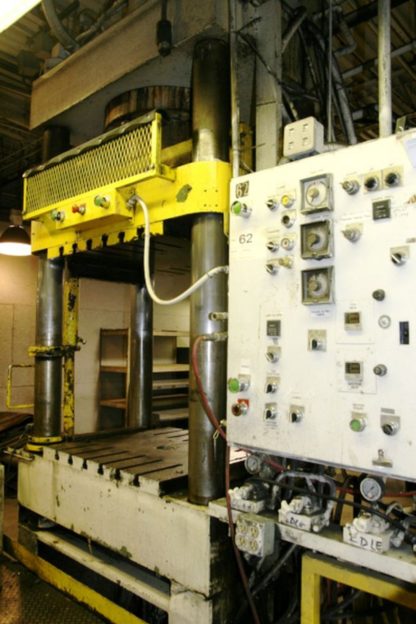

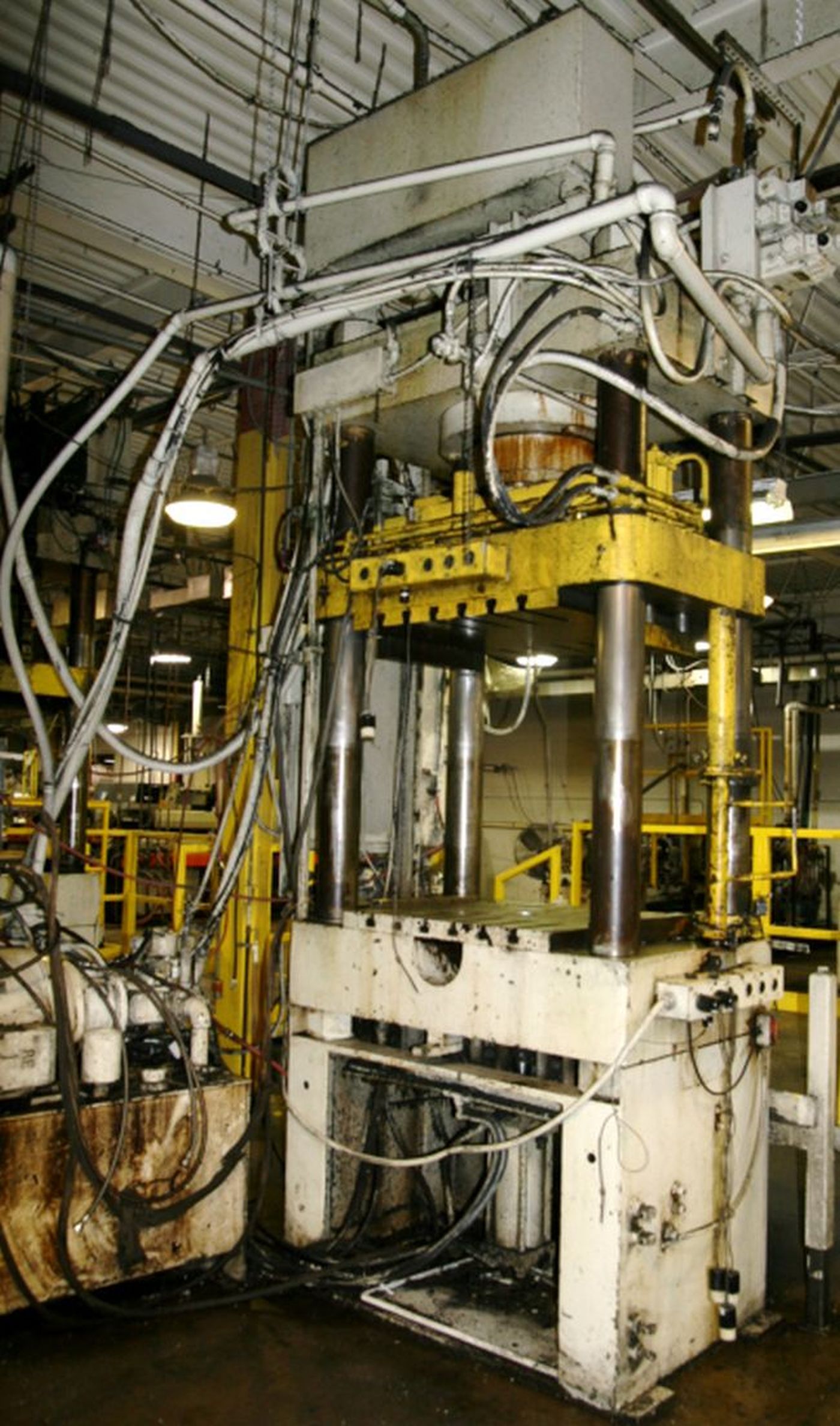

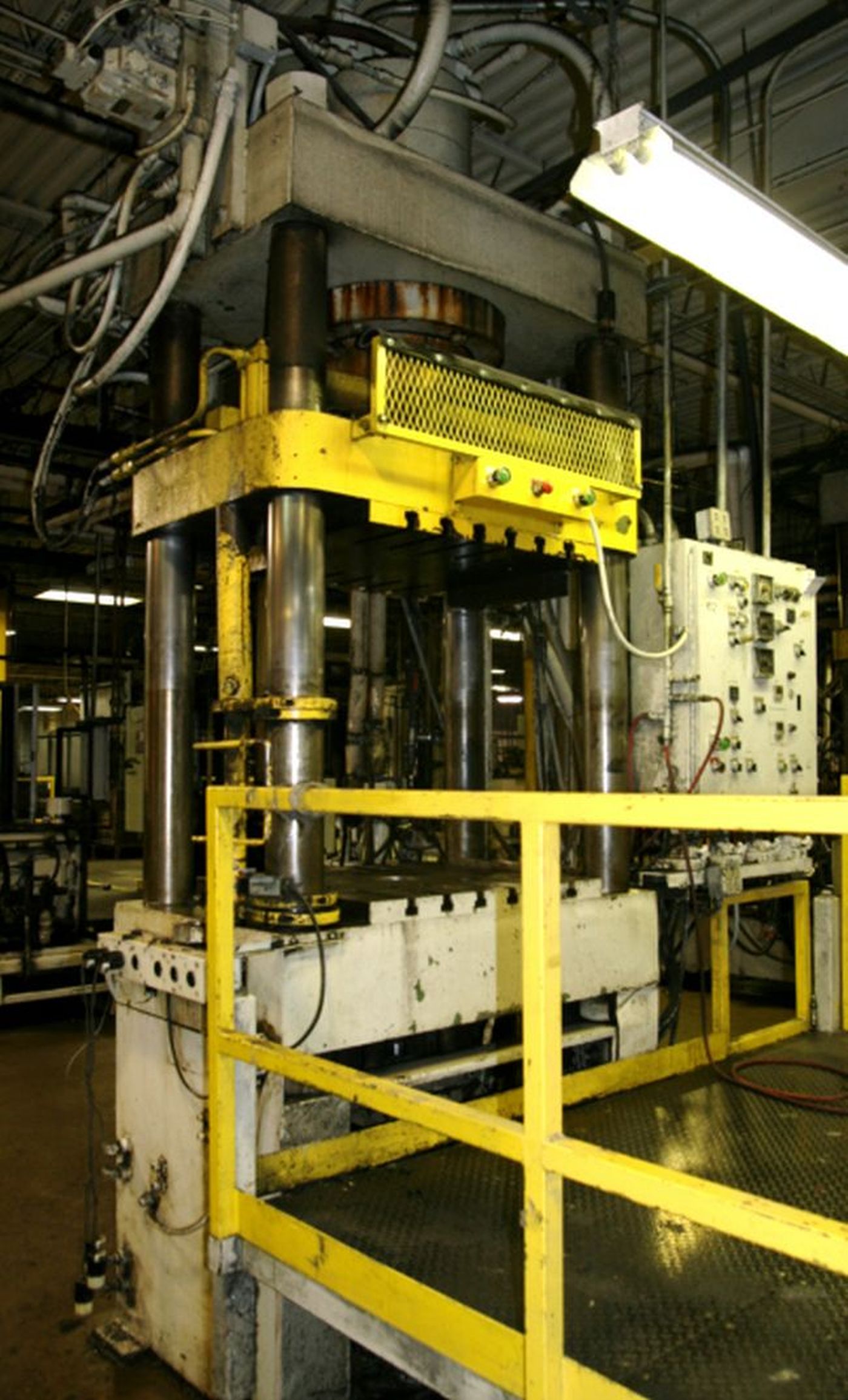

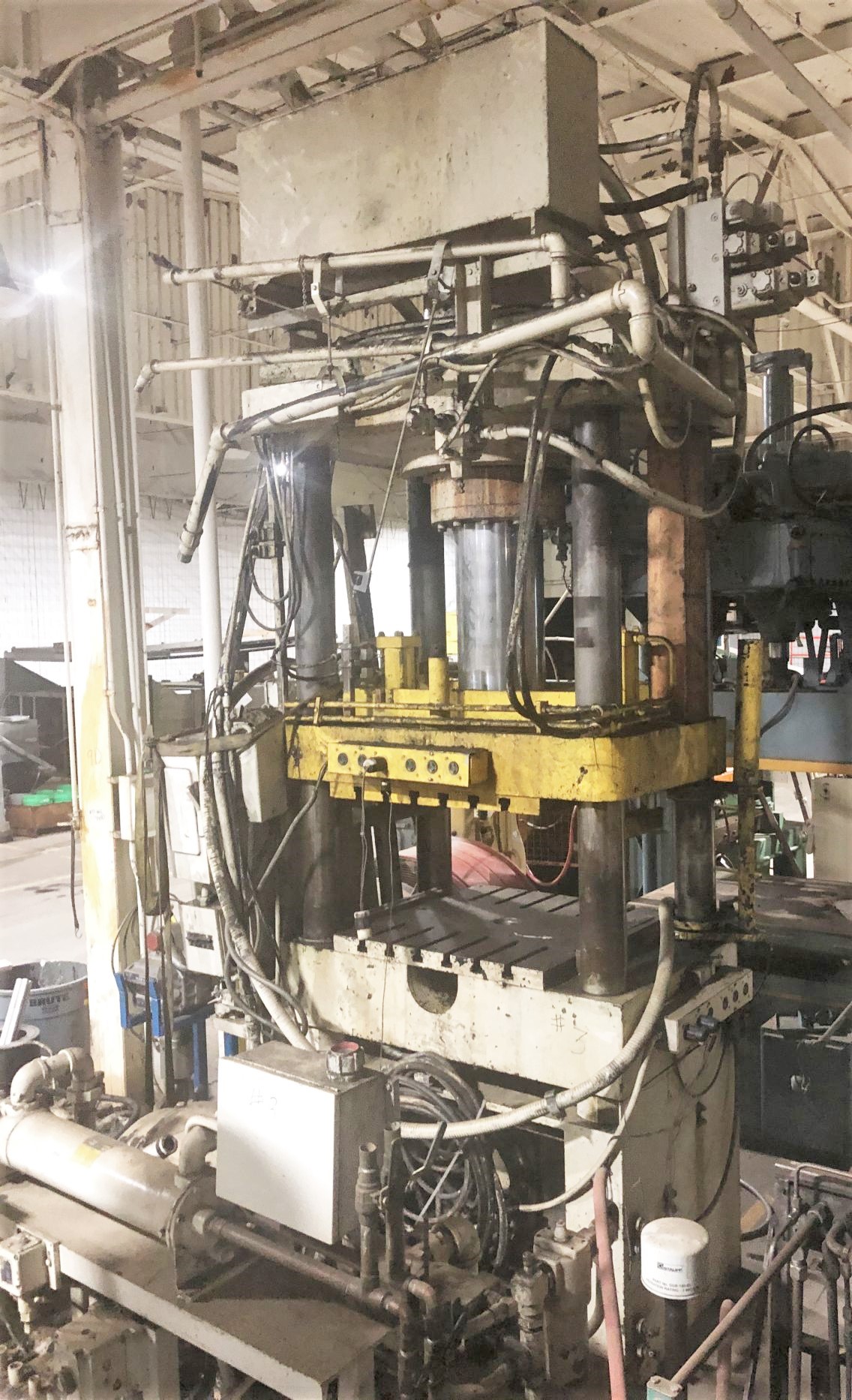

220 Ton Rodgers 4-Post Used Press • 220 Ton Hydraulic Press

220

220
Ton
58″
Bed R-L
24″
Stroke

Rodgers Transfer Compression Molding 18-24″ Stroke, 42″X36″ Bed, Bottom Transfer Cylinder w/12″ Stroke, Mold Heaters

Machine #4348
(Jackson, MI Falahee Building)

Machine Specifications

Used 220 Ton Press for Sale • Hydraulic Press

Model Transfer Compression Molding (1981)
Serial
Condition: Very Good
Contact: Jackson, MI Falahee Building #4348

MAX. CAPACITY 220 TON @ 1700 PSI – 2 PRESSES IN STOCK
MAX. STROKE APPROX. 18″-24″
MAX. DAYLIGHT TO BED 48″ (43-1/2″ BETWEEN BOLSTERS)
OVERALL BED & RAM AREA 58″ RL X 36″ FB (3-1/2″ HOLE IN BED)
DISTANCE BETWEEN POSTS 42″ RL X 21″ FB
BOLSTER PLATE SIZES (2) 2-1/4″ X 36″ RL X 35″ FB(BED/RAM)
FLOOR TO BED 51-1/2″
POST SIZE 6″ DIA.
CYLINDER SIZE APPROX. 18″ DIA. BORE

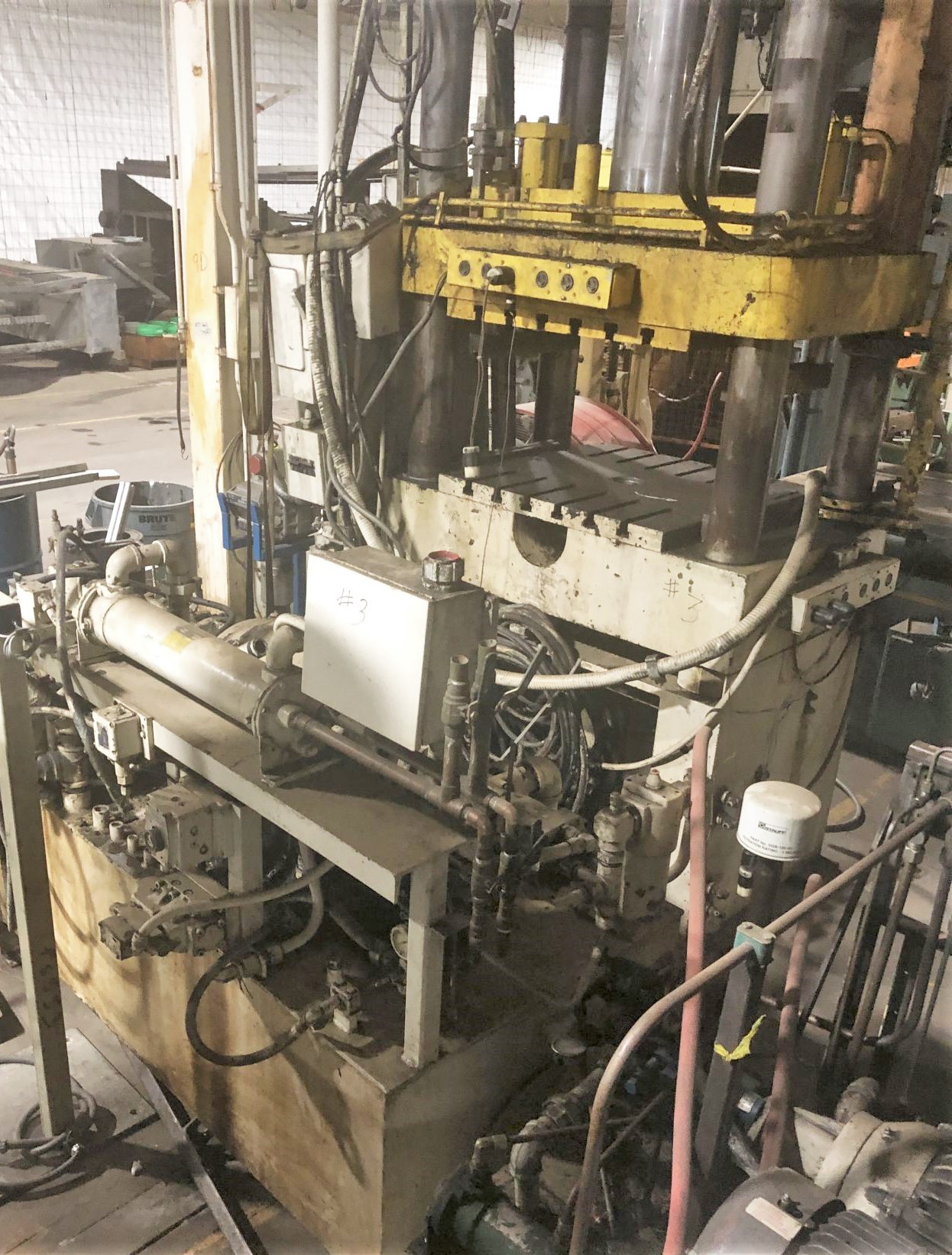

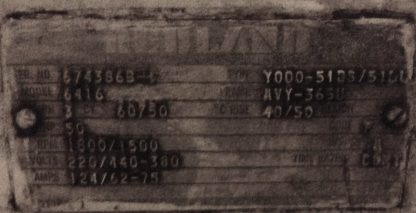

HYDRAUlICS (FLOOR MOUNTED) 50 HP, 220/440 V DOUBLE END MOTOR VICKERS VANE PUMPS PVE27L222C25Y21

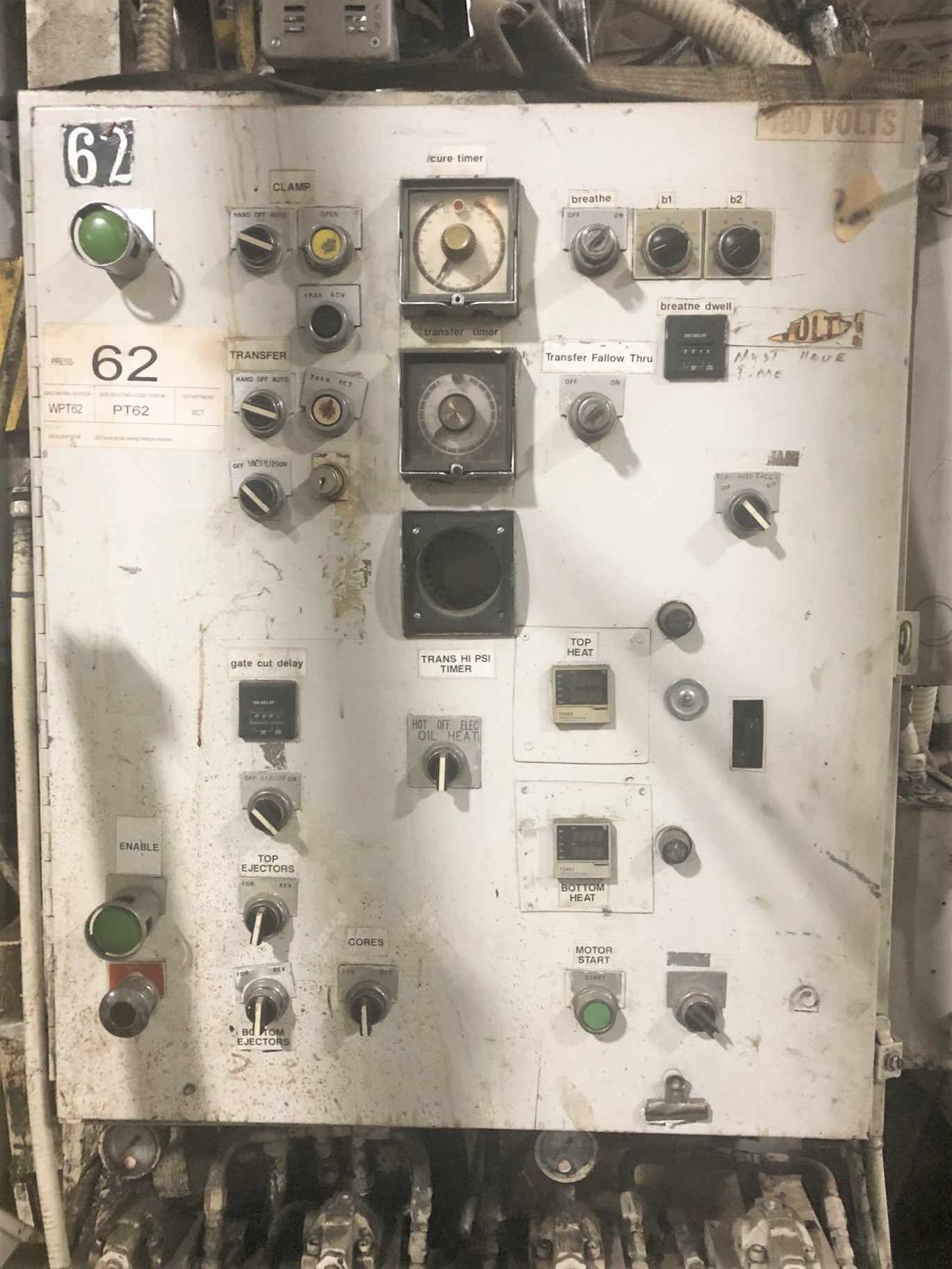

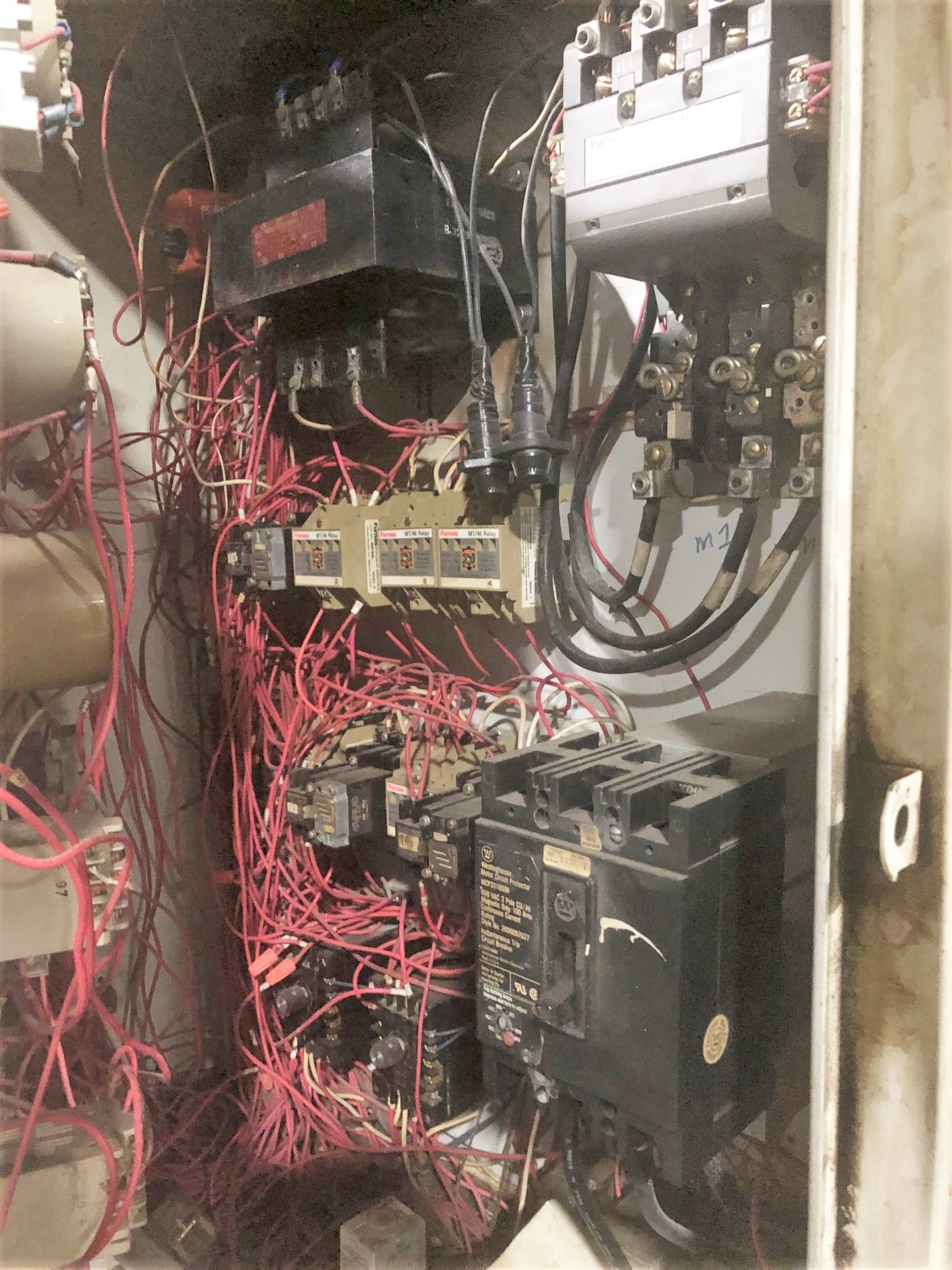

ELECTRICS RELAY LOGIC CONTROLS
OVERALL DIMENSIONS/WEIGHT 14′ HIGH, 7′ RL, 6′ FB/40,000 LBS.
Equipped With *BOTTOM TRANSFER CYLINDER-12″ STROKE **TOP & BOTTOM EJECTORS ***WITH MOLD HEATERS TOP & BOTTOM FLOOR STANDING BASE SAFETY LATCH ON RAM
Note 2 IN STOCK (4349)
Location This used Hydraulic Press is located in our Jackson, MI Falahee Building
