30 Ton Press for Sale • Used Wabash G302H-15-ASTM

30

30
Ton
15″
Bed R-L
6″
Stroke

New in 1996

1

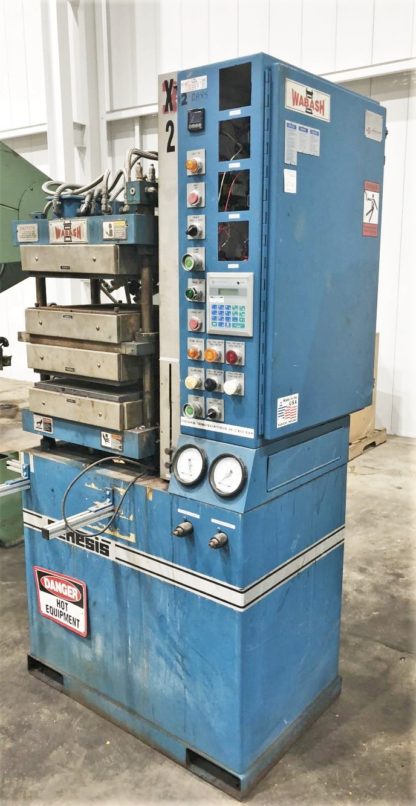

Used Heated Platen Press
Model: Wabash G302H-15-ASTM
6″ Stroke, 20″ Daylight, 15″ x 15″ Heated Platens up to 175 Deg. Celsius (at least), Updated Controls & Timer

Buy Now: $
Compression Molding Preses for Sale
Wabash Hydraulic Press
Machine #5356
(Jackson, MI Cooper Building)

Machine Specifications

Used Heated Platen Press for Sale

Press Model: Wabash G302H-15-ASTM
Condition: Very Good
Location: Jackson, MI Cooper Building #5356
Year: 1996
Reference: Machine #5356
Buy Now: $




CAPACITY 30 TONS @ 2120 PSI
MAX. STROKE 6″ UP ACTING STROKE
MAX. DAYLIGHT 20″
OVERALL BED & RAM AREA
DISTANCE BETWEEN POSTS
SPEEDS TBD
USABLE BED AREA 15″ X 15″ (RL X FB)
HEATED PLATEN SIZE 15″ X 15″ (RL X FB) 4 PLATENS, 2 OPENINGS (platens are not guaranteed)
PLATENS HEAT UP TO AT LEAST 175 DEG. CELSIUS (347 DEG F)
CYLINDER SIZE 5″ DIA.
POSTS SIZE 1″ DIA.
HYDRAULICS 90 GALLON CAPACITY MOBIL DTE-26 OIL 25 GPM / 12 GPM
ELECTRICS 15 HP MOTOR 1800 RPM OMRON TIMER

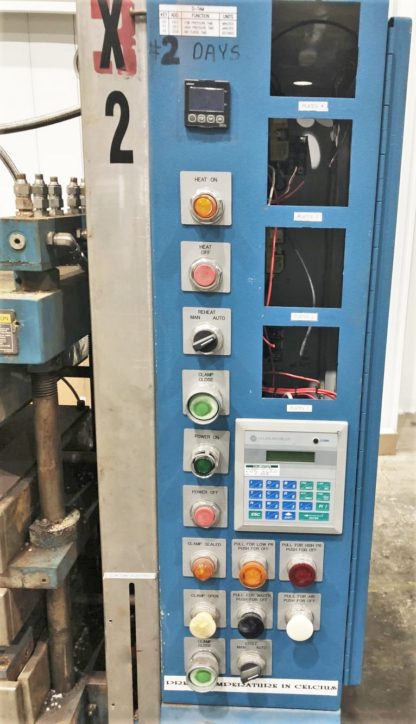

CONTROLS ALLEN BRADLEY SLC 500 PLC PROGRAMMABLE CONTROLLER / WEST PRO-EC44 CONTROLS
APPROX. DIMENSIONS 43″ X 44″ (RL X FB) X 76″
APPROX. WEIGHT APPROX. 5,000 LBS.
Equipped With __
Note NEW WEST PRO-EC44 CONTROLS UPDATED IN 2015
Location This used 30 Ton Wabash Press is located in our Jackson, MI Cooper Building
