300 Ton Komatsu Press • Used Komatsu E2G300U Press

300

300
Ton
110.2″
Bed R-L
10.2″
Stroke
Speed: 30-60 SPM
New in 1990

1

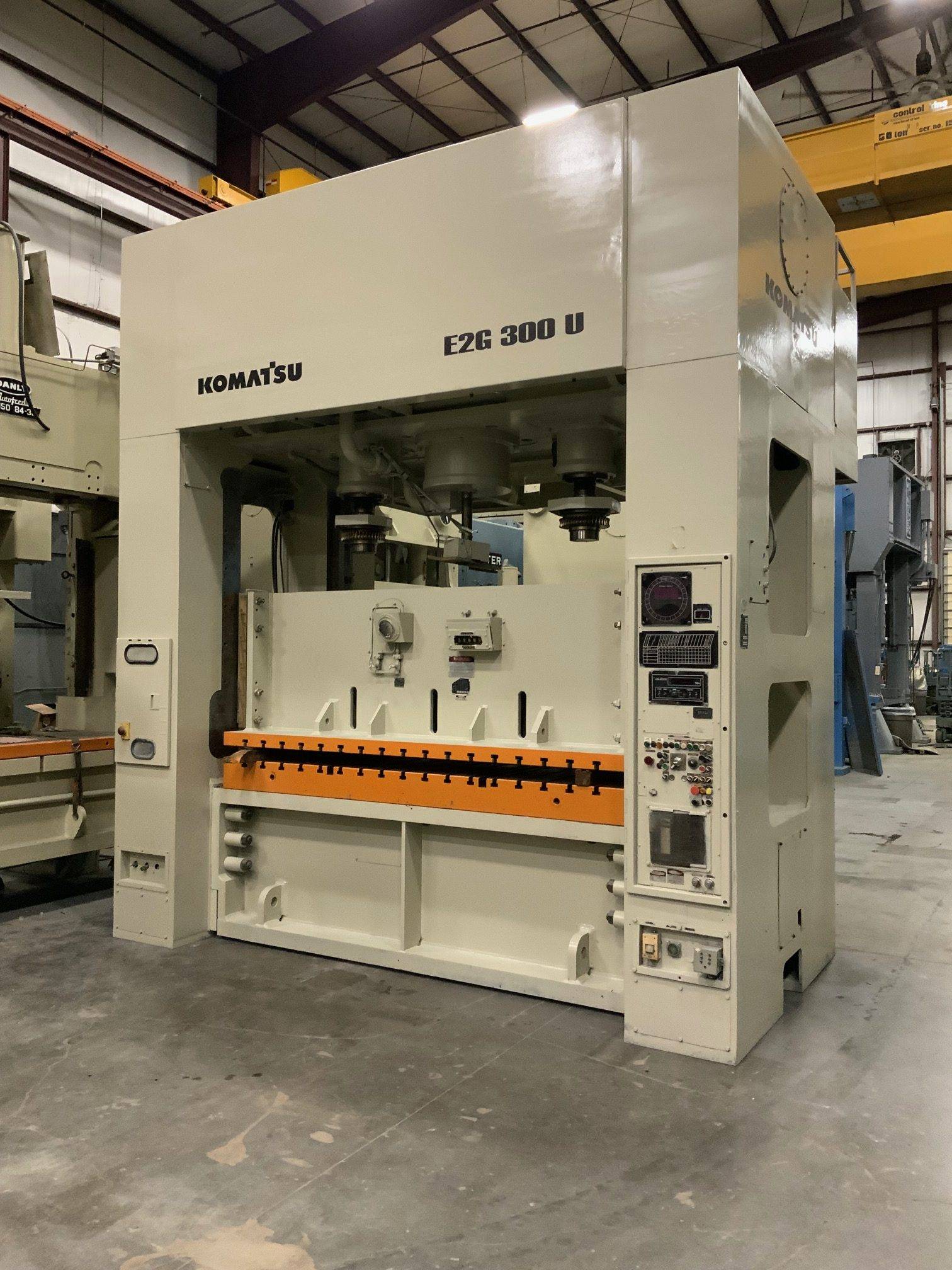

300 Ton Used Press – Straight Side Press
Model: Komatsu E2G300U
10.2″ Stroke, 20.1″ Die Height over Bolster, 110″ x 55″ Bed Area, 30-60 SPM, 6.3″ Ram Adjustment

Straight Side Double Crank Press for Sale
Used Komatsu Stamping Press (Mechanical)
Machine #6143
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Komatsu
Model: Komatsu E2G300U Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1990
Machine #: 6143
Buy Now: $





capacity 300 us ton
stroke 10.2″
max shut height 20.1″ (sdau) – over 7.5″ bolster
bed area 110″ X 55″ (rl x FB)
speed 30 – 60 spm (VARIABLE)
ram adjustment 6.3″ (motorized)
ram area 110″ rl x 55″ fb (t-slotted)
WINDOW SIZE 36″ w x 28.5″ h
BOLSTER SIZE 7.5″ H X 110″ RL X 55″ FB (t-slotted)
DIST UPRIGHTS / FLOOR TO BED 110″ / 38″
CLUTCH komatsu wet clutch / brake combination
ELECTRICS 50 hp 1750 rpm 240/480v-3-60 eddy current motor & new cieco 1100R6 PRESS control for RECONDITIONED price
APPROX. DIMENSIONS 190″ h (without railing) x 14′ rl x 9′ fb
APPROX. WEIGHT 125,000 lbs
Equipped With hydraulic overload system, air counterbalance, heavy-duty fabricated design, single piece fabricated slide w/reinforced plate construction, wide windows for transfer & progressive die applications, precision plunger guide design, hardened & ground helical gears w/splined connections, & flywheel brake
Note __
Location This Used Press is Located in Our Columbia, TN Warehouse
