400 Ton Bliss Used Press for Sale • Bliss SC2-400 Press

400

400
Ton
96″
Bed R-L
18″
Stroke

New in 1988

Rebuilt Backshaft
Straight Side Used Press

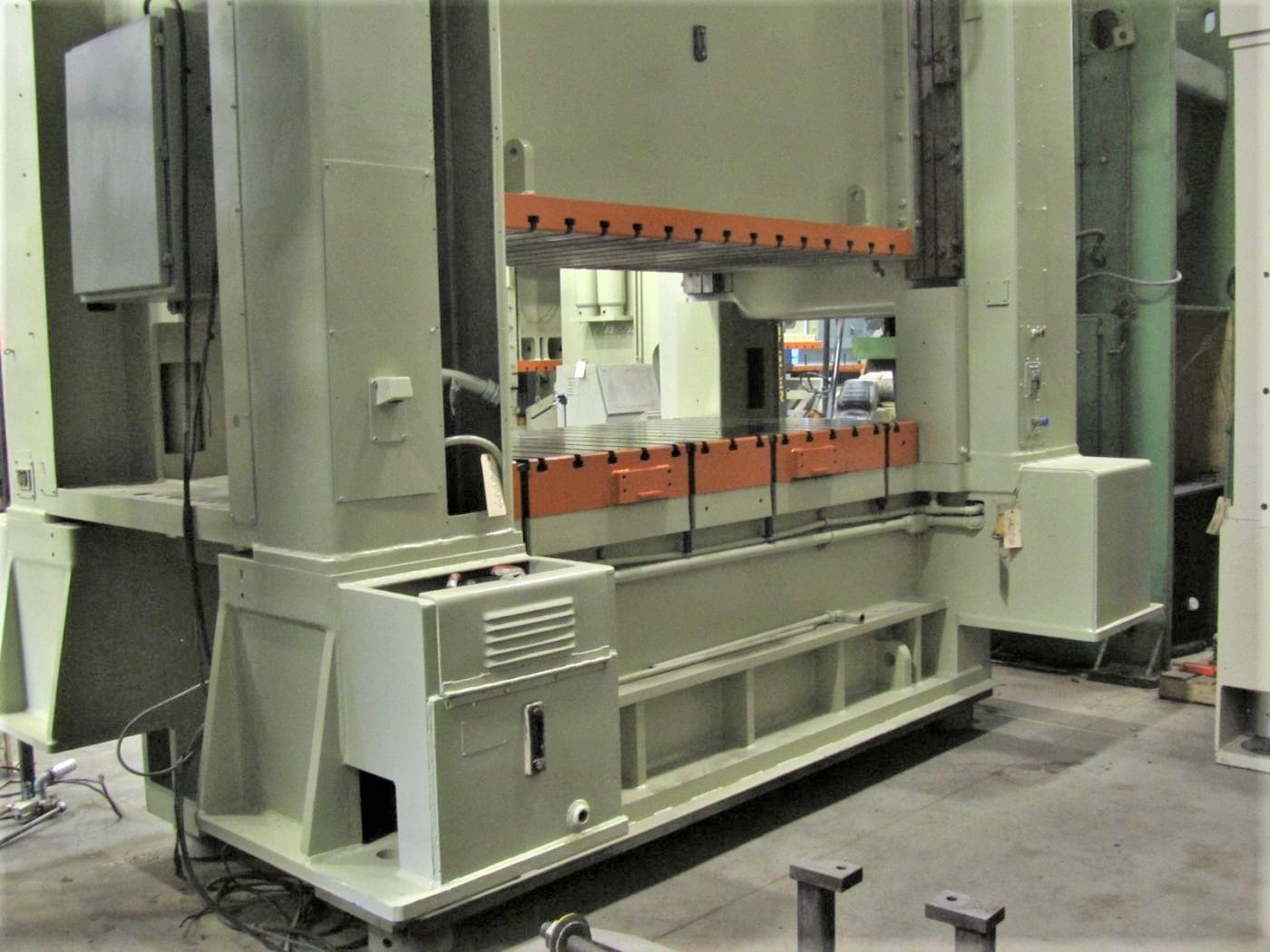

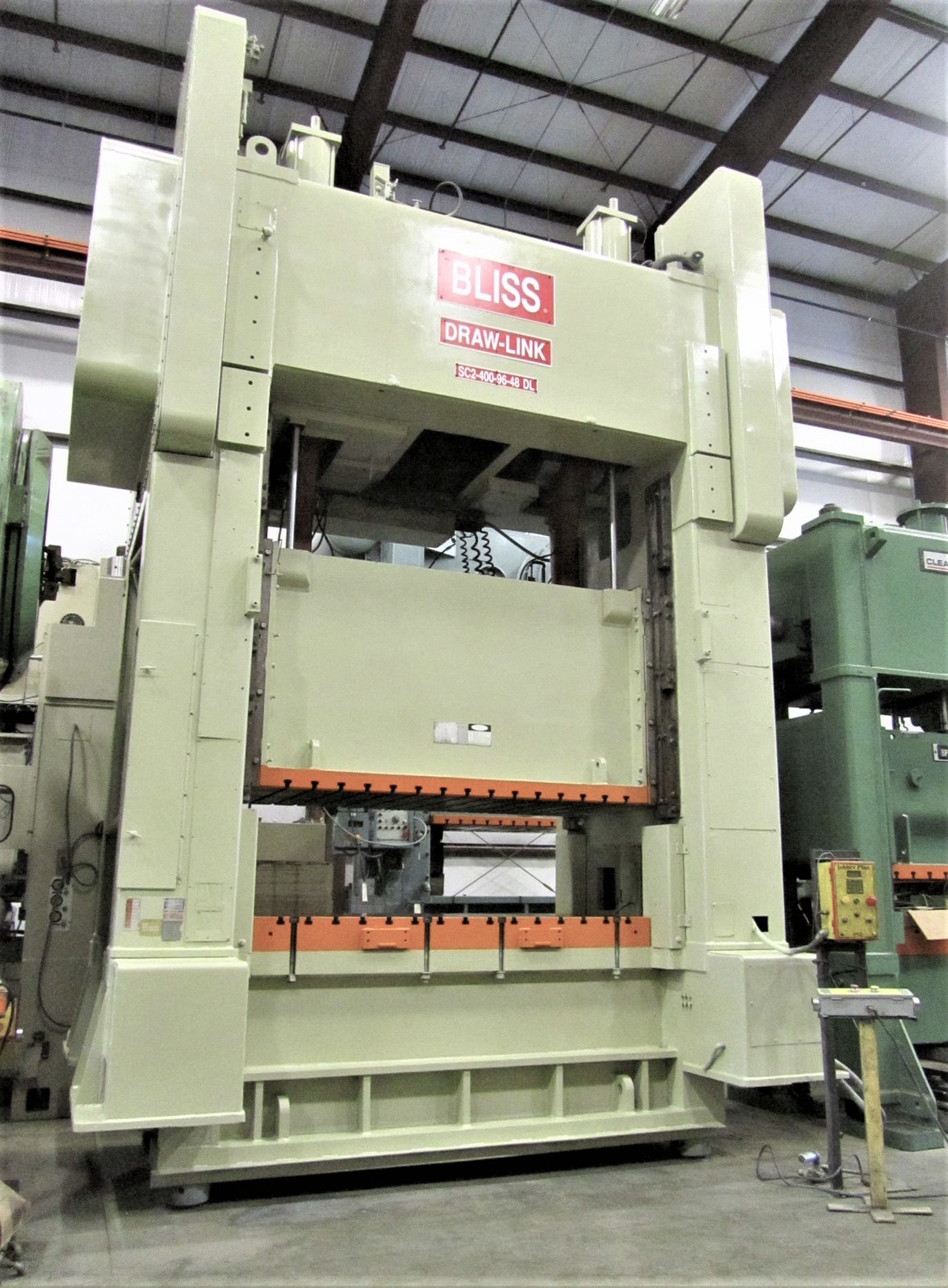

Model: Bliss SC2-400
18″ Str, 43.5″ SH, 96×48″ Bed, 20-40 SPM, 38″ WW, UNDER POWER, PRICE CUT

Stamping Presses for Sale
Used Bliss Mechanical Press
Machine #4789
(Columbia, TN Warehouse)
Sale Price: $

Machine Specifications

Straight Side Used Press for Sale

Manufacturer: Bliss
Bliss Model: SC2-400-96-48 DL
Condition: In Process
Location: Columbia, TN Warehouse
Year: 1988
Machine #: 4789
Buy Now: $





capacity: 400 TON (1/2″ ABOVE BOTTOM)
STROKE: 18″
SHUT HEIGHT TO BED: 43-1/2″ (SDAU)

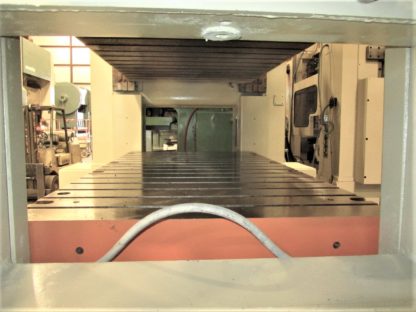

BED AREA: 96″ RL X 48″ FB
RAM ADJUSTMENT: 10″ (MOTORIZED)
SPEED: 20 – 40 SPM (VARIABLE)
RAM AREA: 96″ RL X 48″ FB (T-SLOTTED)
BOLSTER SIZE: 7-1/4″ X 96″ RL X 48″ FB (T-SLOTTED)
WINDOW SIZE: 38″ FB X 20″ H
CLUTCH: BLISS AIR CLUTCH & BRAKE.
ELECTRICS: 75 HP EDDY-CURRENT DRIVE MOTOR & CONTROL PANEL. 460V-3-60.
APPROX DIMENSIONS: 23′ H X 15’8″ RL X 9′ FB
approx weight: 140,000 LBS.
Equipped With BLANCHARD GROUND BOLSTER, CLEANED & PAINTED, STEEL FRAME CONSTRUCTION, TIE ROD, (4) AIR COUNTERBALANCES, TWIN DRIVE, HYDRAULIC TIE ROD NUTS, GEARS IN OIL, OIL LUBRICATION SYSTEM, HYDRAULIC OVERLOADS, ISOLATION PADS. BACKSHAFT FULLY REBUILT.
Note __
Location This used press is located in our Columbia, TN Warehouse
