650 Ton Press for Sale • Used Accudyne

650

650
Ton
96″
Bed R-L
16″
Stroke

New in 1998

1
Used Heated Platen Press
Model: Accudyne
16″ Str, 30″/8″ DL, 72″ x 42″ Usable Bed, AB PLC 2018!(3) 72″ x 36″ Electric Heated Platens 600 Deg F

Buy Now: $
Compression Molding Preses for Sale
Accudyne Hydraulic Press
Machine #5463
(Jackson, MI Falahee Building)

Machine Specifications

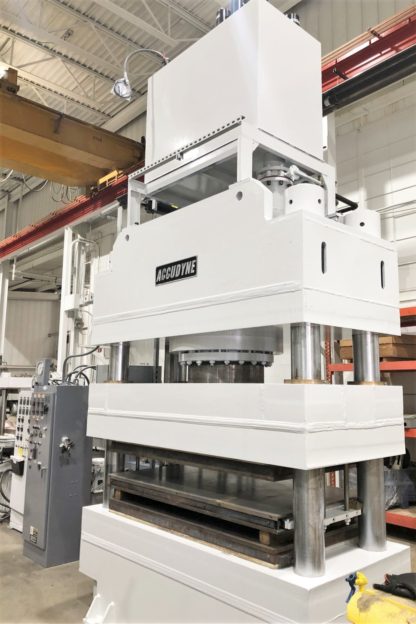

Used Heated Platen Press for Sale

Press Model: Accudyne
Condition: Excellent
Location: Jackson, MI Falahee Building #5463
Year: 1998
Reference: Machine #5463
Buy Now: $




CAPACITY 650 TONS AT 3,000 PSI
STROKE 16″
DAYLIGHT 30″
OVERALL BED AREA 96″ X 42″ (RL X FB)
USABLE BED & RAM AREA 77″ X 42″ (RL X FB)
DISTANCE BETWEEN POSTS 77″ X 19″ (RL X FB)
ELECTRIC HEATED PLATENS (3) 72″ X 36″ (2 OPENINGS) UP TO 600 DEG F
SPEEDS 500 DOWN / 5-60 PRESSING / 100 RETURN IPM
FLOOR TO BED 31″
CYLINDERS 24″ BORE-MAIN, 2-8″ BORE PULL BACK
POST SIZE 11″ DIA (CHROMED)

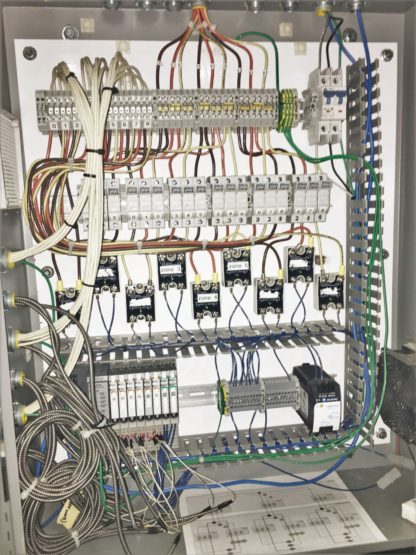

PRESS CONTROLS UPDATED ALLEN BRADLEY PLC, ETHERnET CONTROL, AND HEATED PLATEN CONTROLS
HYDRAULICS VICKERS PISTON PUMP #PVH5701C-RSF-1S 10 IC25-31, 20 GPM, 200 GAL. TANK
ELECTRICAL HEATERS TOTAL WATTS 71,000 200 AMPS | 40 HP 230/460-3-60 MAIN MOTOR
APPROX. DIMENSIONS 8’3″ X 5’6″ (RL X FB) X 16’2″ HIGH
APPROX. WEIGHT 71,000 LBS
Equipped With *(3) 72″ X 36″ ELECTRICALLY HEATED PLATENS (2-OPENINGS) FLOOR STANDING BASe
Note __
Location This used 650 Ton Accudyne Press is located in our Jackson, MI Falahee Building
