75 Ton PHI Used Press for Sale • PHI 75R Press

75

75
Ton
30″
Bed R-L
8″
Stroke

New in 1989

1

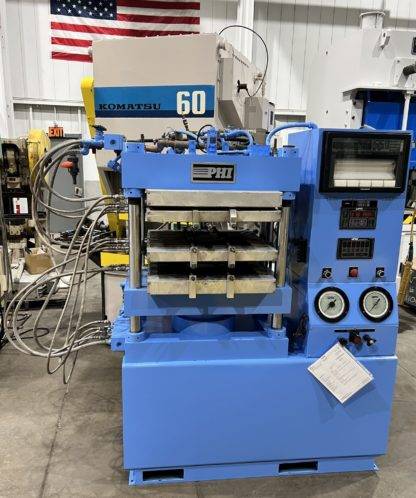

Heated Platen Press
Model: PHI 75R
Upacting 8″ Stroke, 12″ Daylight, 600 Deg. F Heated Platens

Compression Molding Preses for Sale
Used PHI Hydraulic Press
Machine #6089
Jackson, MI Cooper Building
Sale Price: $

Machine Specifications

Heated Platen Press for Sale

Manufacturer: PHI
Model: PHI 75R2418S-4HCS-P-YS8R Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1989
Machine #: 6089
Buy Now: $





CAPACITY 75 TONS AT 3,000 PSI
STROKE 8″
DAYLIGHT 12″ (WITH 3″, 2.25″ 2.25″, 3″ PLATENS THAT CAN BE REMOVED)
OVERALL BED & RAM AREA 35″ X 19″ (RL X FB)
DISTANCE BETWEEN POSTS 28″ X 12″ (RL X FB)
HEATED PLATENS 24.5″ X 18.5″ (RL X FB) PLATENS APPROX. 600 DEG F (WATER COOLED) – 3 OPENINGS
USABLE BED AREA 28″ X 19″ (RL X FB)
FLOOR TO BED 47.625″
RAM ROD SIZE APPROX. 6″ DIA.
CYLINDER SIZE 8″ DIA. BORE
4 COLUMN / POSTS SIZE 2.5″ DIA.
SPEEDS APPROX. 56 IPM CLOSING
PRESS CONTROLS PHI DT 5500 PRESS CONTROLLER WITH PHI DT5000 CONTROLLER FOR PLATENS
HYDRAULICS __
ELECTRICAL 480V 48 AMPS
OVERALL DIMENSIONS 92″ X 44″ (RL X FB) X 80″ HIGH
APPROX. WEIGHT 3,700 LBS.
Equipped With Yokogawa Chart Recorder, 3 Openings In Platens, Digital Temperature Controllers, Digital Cycle Timer
Note __
Location This used press is located in our Jackson, MI Cooper Building
