Description

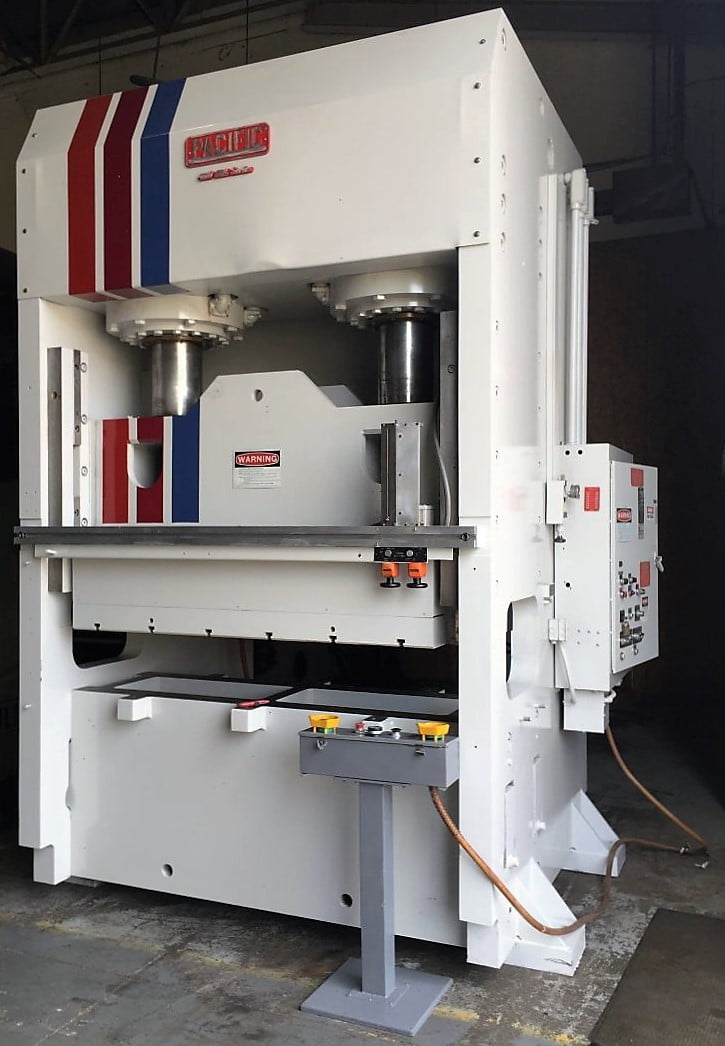

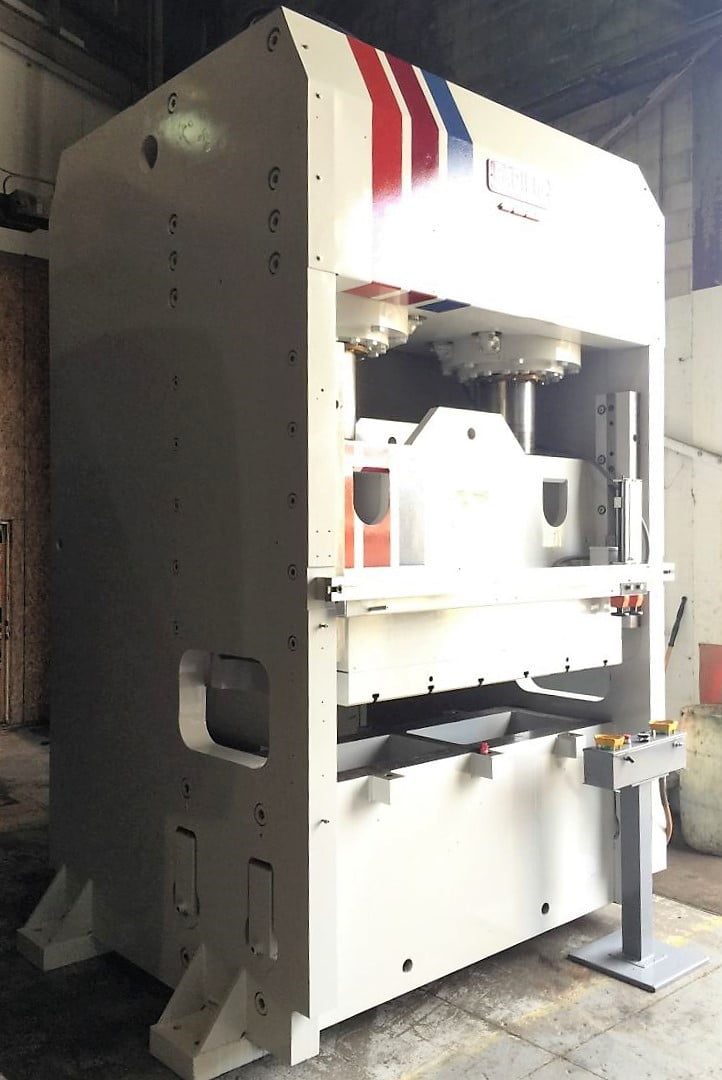

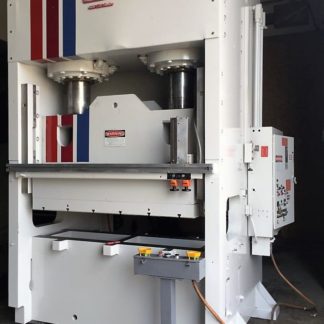

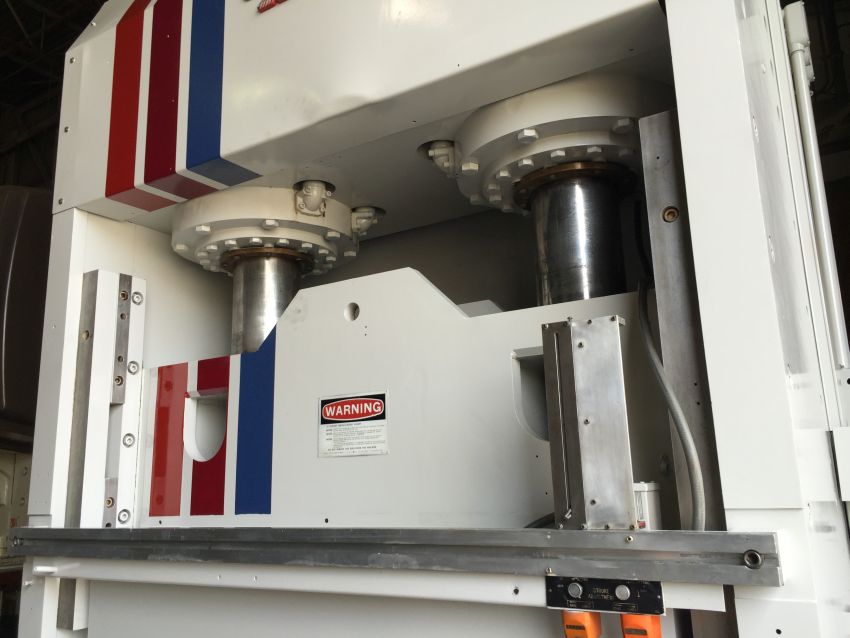

Gib-Guided Press • Used 500 Ton Press for Sale
Model: Pacific 400 OBL-6 Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year: 1984
Machine #: 4849
Buy Now: $
| CAPACITY | 500 TON | PUNCHING CAPACITY | 400 TON | MAXIMUM STROKE | 12" | DAYLIGHT TO BED | 8" TO 20" | BED AREA | 78" X 36" (RL X FB) | BOLSTER PLATE | 78" X 36" (RL X FB) X 5" Thick | RAM AREA | 78" X 36" (RL X FB) | RAM SPEEDS (INCHES PER MINUTE) | RAPID ADVANCE 372 | PRESSING 128 | SLOW PRESSING 35 | RETURN 197 | WINDOW SIZE | 24" X 16" SIDE WINDOWS | CYLINDER SIZE | APPROX 8" - 226.98 IN2 | FLOOR TO BED | 41.5" | PRESS CONTROLS | WINTRiSS CONTROLS | HYDRAULICS | VICKERS PUMP 4535V60A25 | ELECTRICAL | 60HP 460V-3-60 MOTOR 1800 RPM 60 HZ | APPROX. DIMENSIONS | 9'1" X 8'2" (RL X FB) X 12'1" HIGH | APPROX WEIGHT | 71,000 LBS. | Equipped With | DUAL RAM STEEL FRAME DESIGN FLOOR STANDING 3" BORE 2" STROKE KNOCKOUT CYLINDER | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
