Description

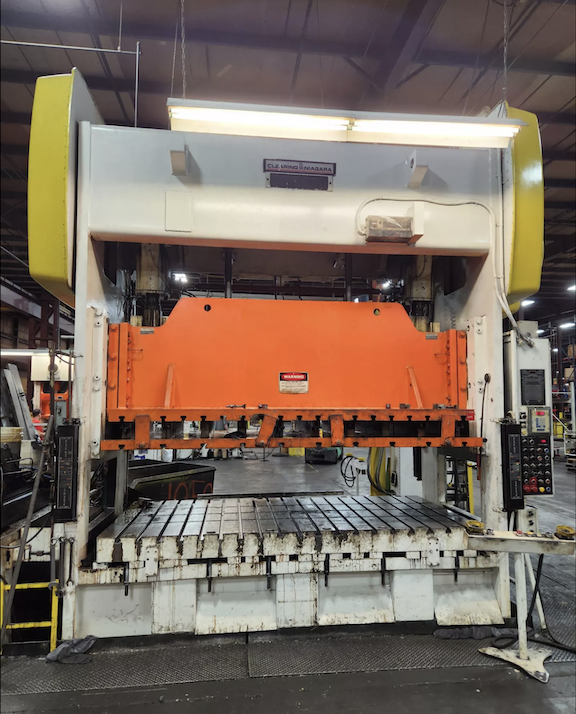

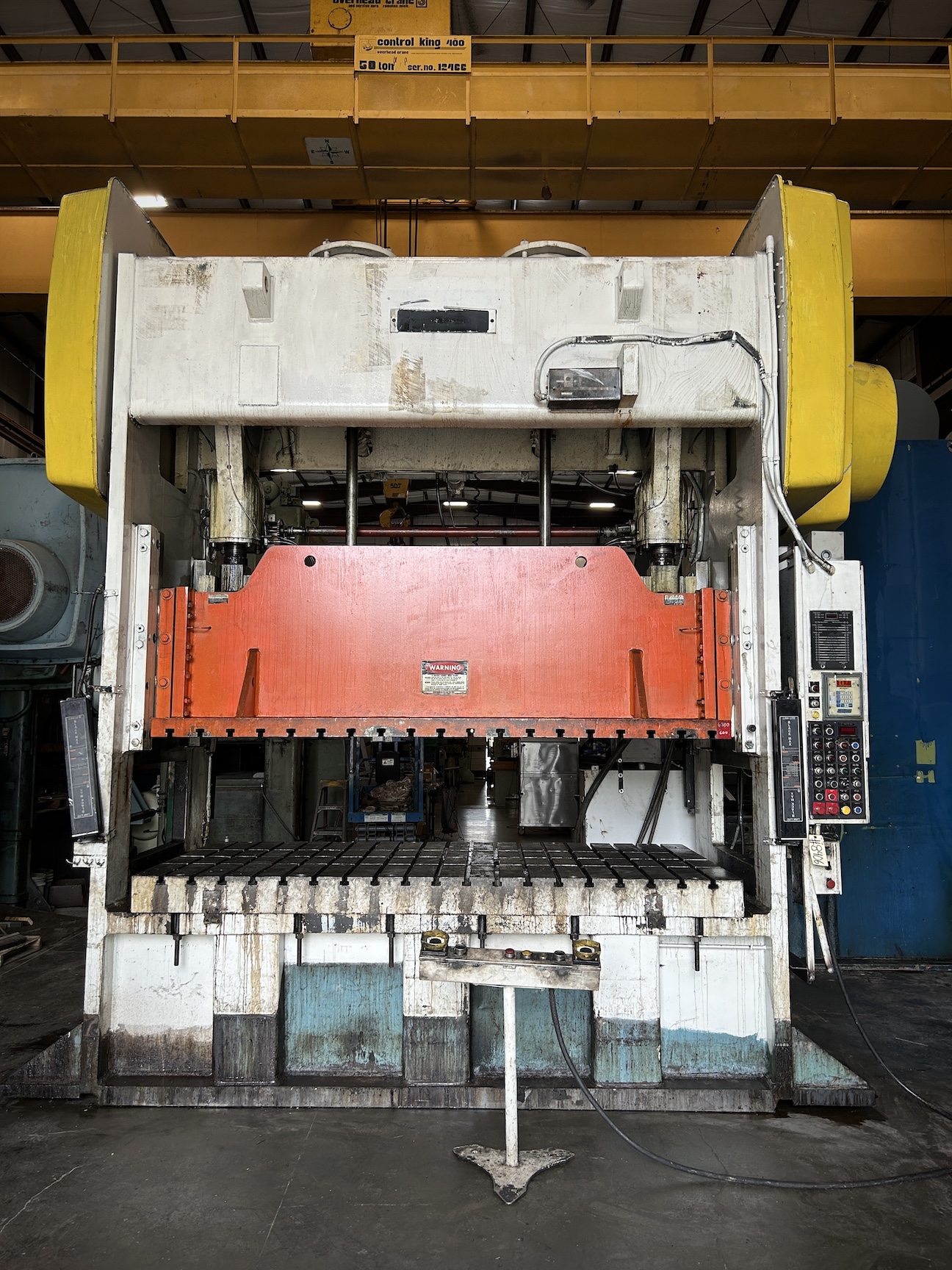

Wide Bed Mechanical Press • Used 440 Ton Press for Sale

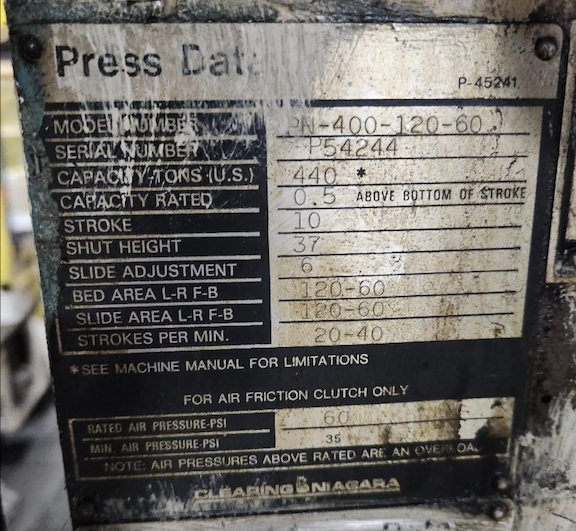

Model: Clearing Niagara PN-400-120-60 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1995
Machine #: 8406
Buy Now: $

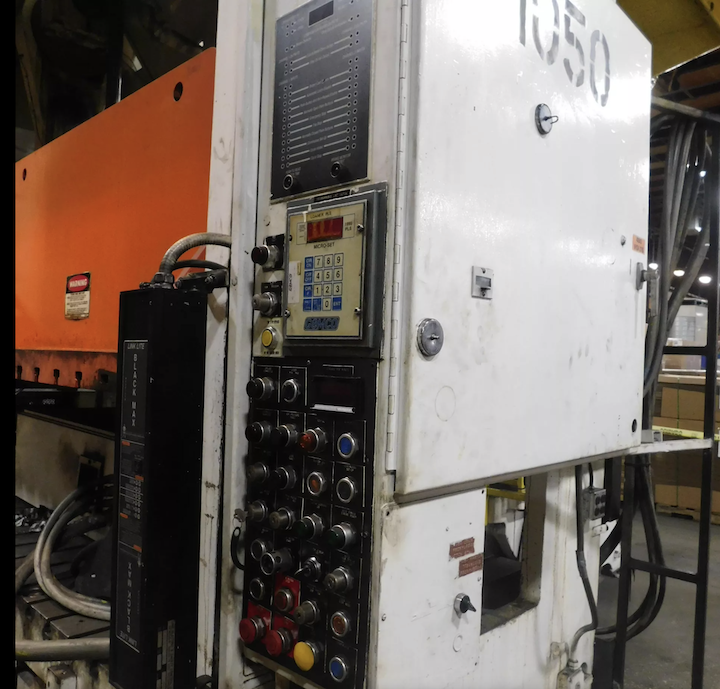

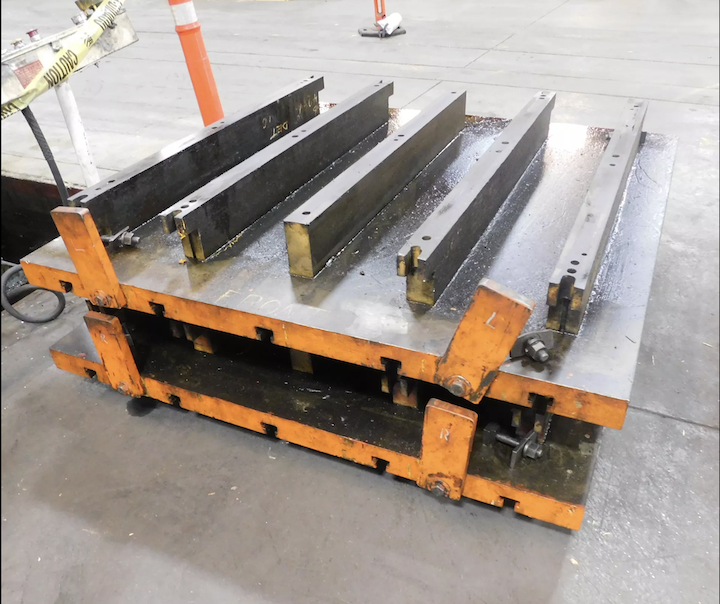

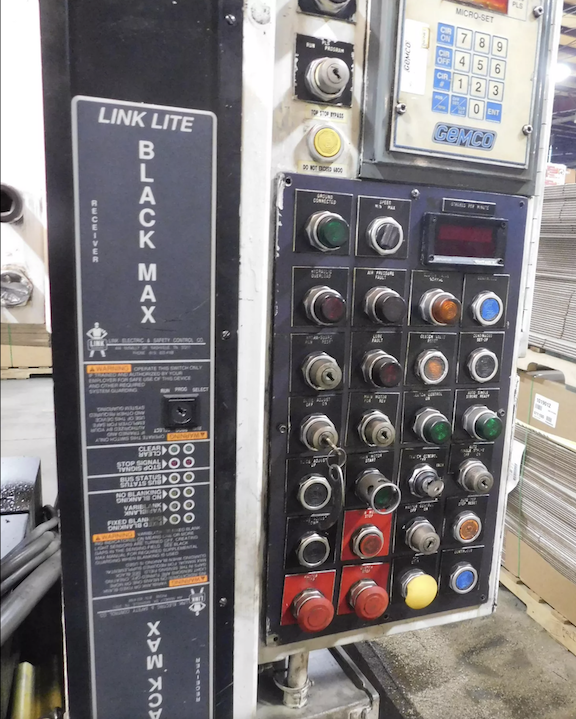

| capacity | 440 us tons | stroke | 10" | max shut height to bed | 37" sdau | bed area | 120" x 60" (rl x fb) | speed | 20 - 40 spm | slide adjustment | 6" motorized | slide area | 120" x 60" (rl x fb) T-SLOTTED | bolster plate | 5" h x 120" rl x 60" fb T-SLOTTED | distance between uprights | 120" | distance floor to bed | 32" | window size | 26" w x 9" h | clutch | niagara air clutch & brake | electrics | 40 hp 1750 rpm 480v-3-60 & link 501 press control | approx dimensions | 212" h x 205" rl x 102" fb | approx weight | 98,500 lbs. | Equipped With | rigid fabricated steel frame, reinforced box-type bed & slide, long gibbing & laminated nonmetallic ways, dual air counterbalances, low inertia steel gearing, twin end drive, automatic lubrication, automatic flywheel brake | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
