Description
Heated Platen Press • Used 100 Ton Press for Sale
- Machine #
- 8450
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- Year Unknown
- Model
- Wabash 100-1515-2TM
Buy Now: $
| MAX. CAPACITY | 100 Tons |
|---|---|
| MAX. STROKE | 7" |
| Daylight RANGE | 10.5" to 20" |
| OVERALL BED / RAM AREA | 28" x 18" (RL x FB) |
| DISTANCE BETWEEN POSTS | 19" x 9.5 (RL x FB) |
| USABLE BED AREA | 19" x 18" (RL x FB) |

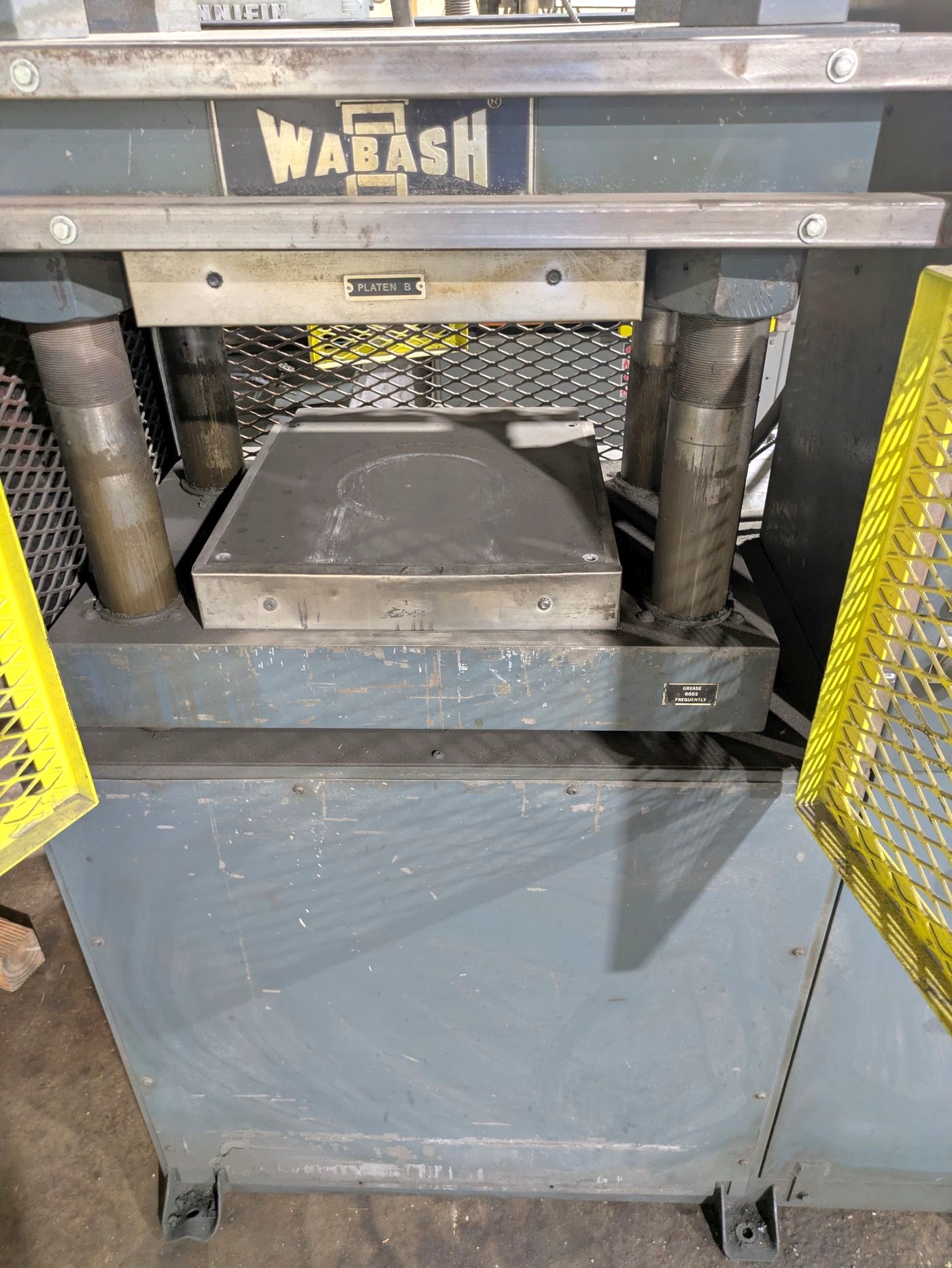

| ELECTRIC HEATED PLATENS | 15" x 15" (RL x FB) x 2.5" - 3,000 WATTS EACH |
| CYLINDER SIZE | 10" Dia. Bore |
| RAM ROD SIZE | __ |
| POSTS / 4 COLUMNS SIZE | 3" Dia. |
| FLOOR TO BED HEIGHT | 42.5" |

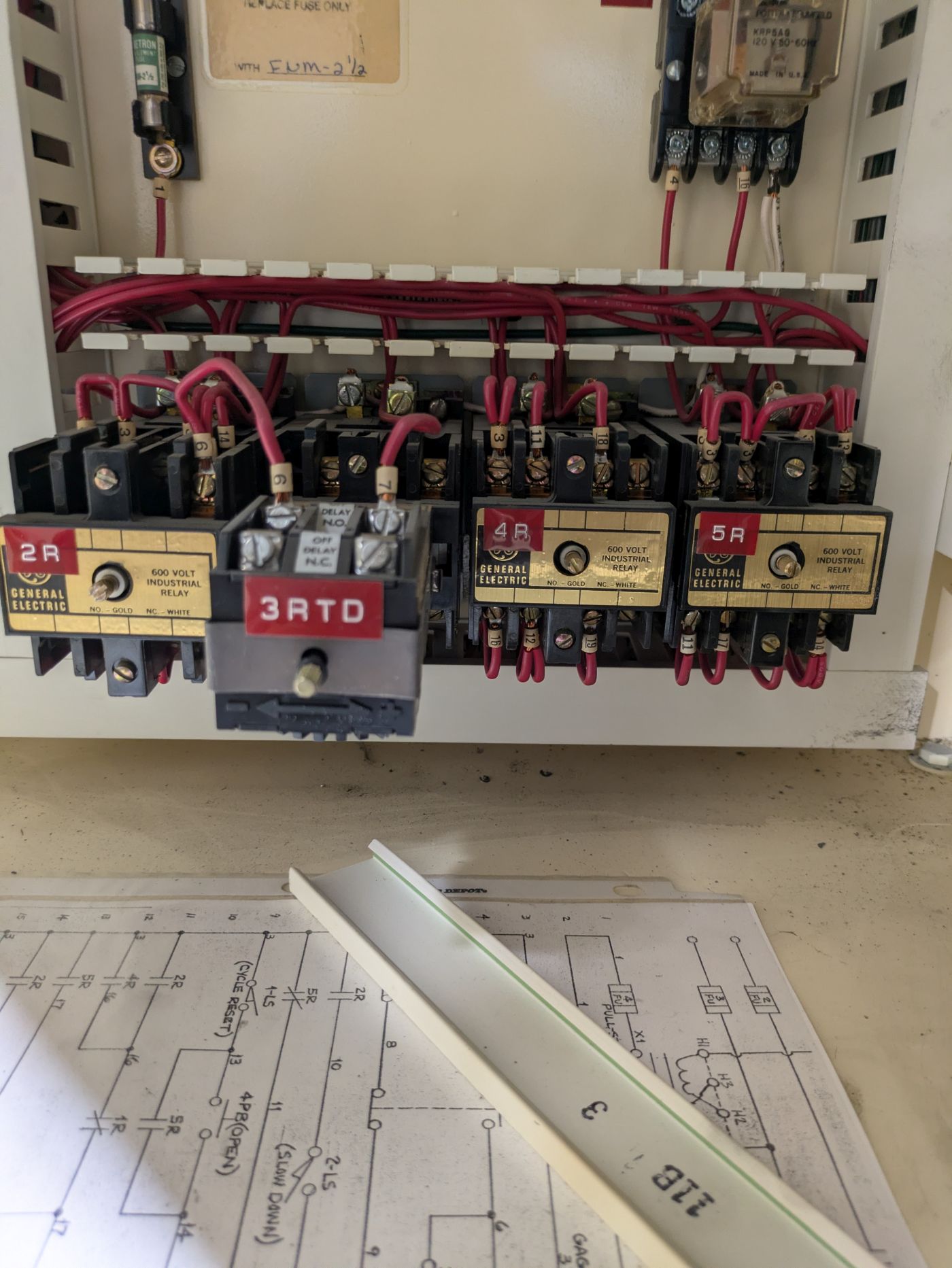

| PRESS CONTROLS | GE Relay Logic Control System |
| HYDRAULIC SYSTEM | REXROTH APF1R4-10/1.60-700 HYDRAULIC PUMP |
| ELECTRIC MOTOR | 3 HP 230/460V-3-60 Lincoln A.C. MOTOR | 8.4 / 4.2 AMPS |
| ELECTRICAL NOTE | 35 FULL LOAD AMPS / PLATENS WIRED FRO 230V |
| APPROX. DIMENSIONS | 56" x 40" (RL x FB) x 68" Tall |
| WEIGHT | APPROX. 7,000 LBS. |
| Equipped With | __ |
| Note | HEATED PLATENS ARE WIRED FOR 230V ONLY |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
