Description

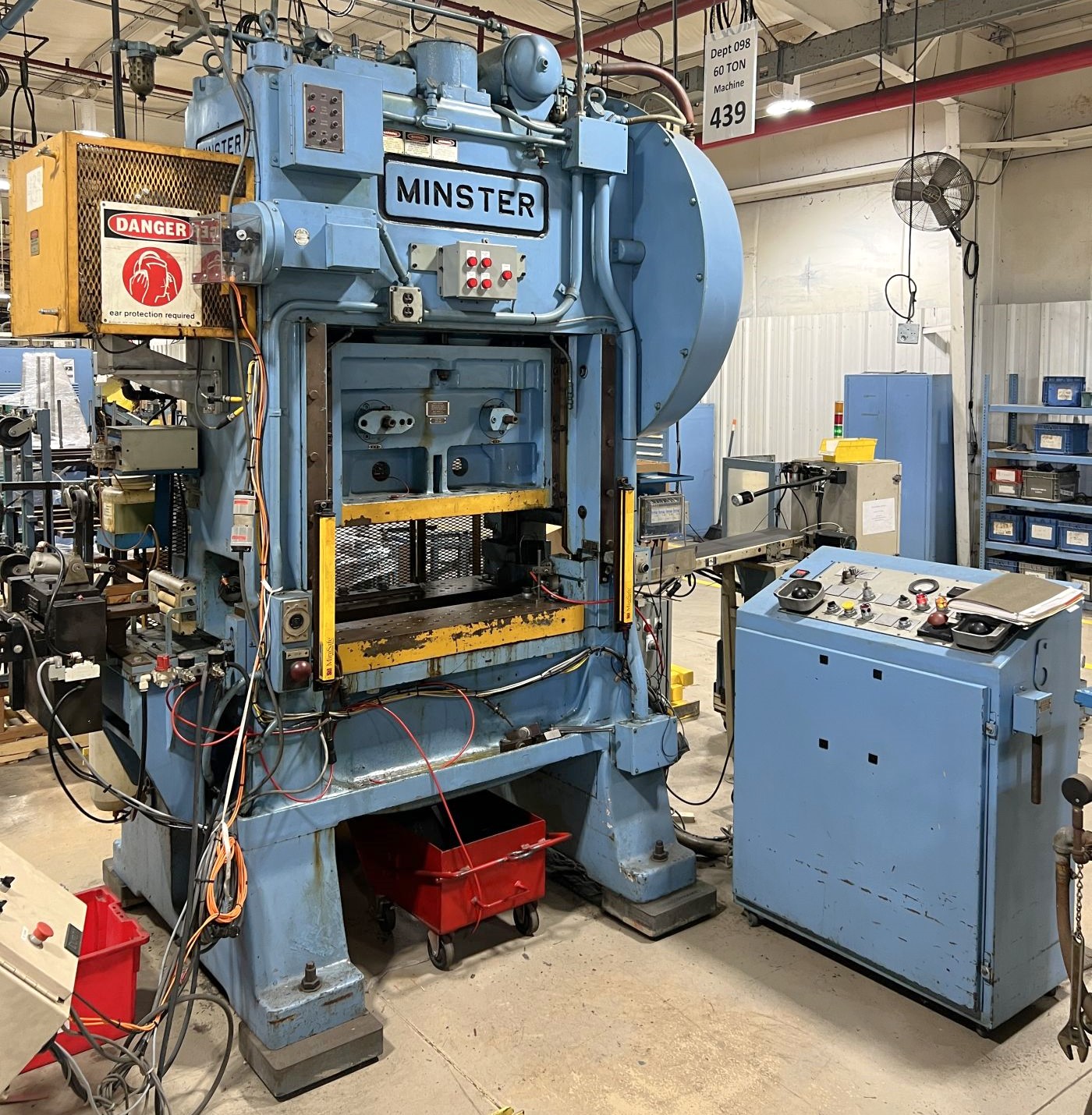

Straight Side Press • Used 60 Ton Press for Sale
- Machine #
- 8068
- Condition
- Very Good
- Location
- Jackson, MI Falahee Building
- Year
- 1976
- Model
- Minster P2-60-36
Buy Now: $
| CAPACITY | 60 TONS |
|---|---|
| STROKE | 3" |
| MAX. SHUT HEIGHT TO BED | 13.5" SDAU |

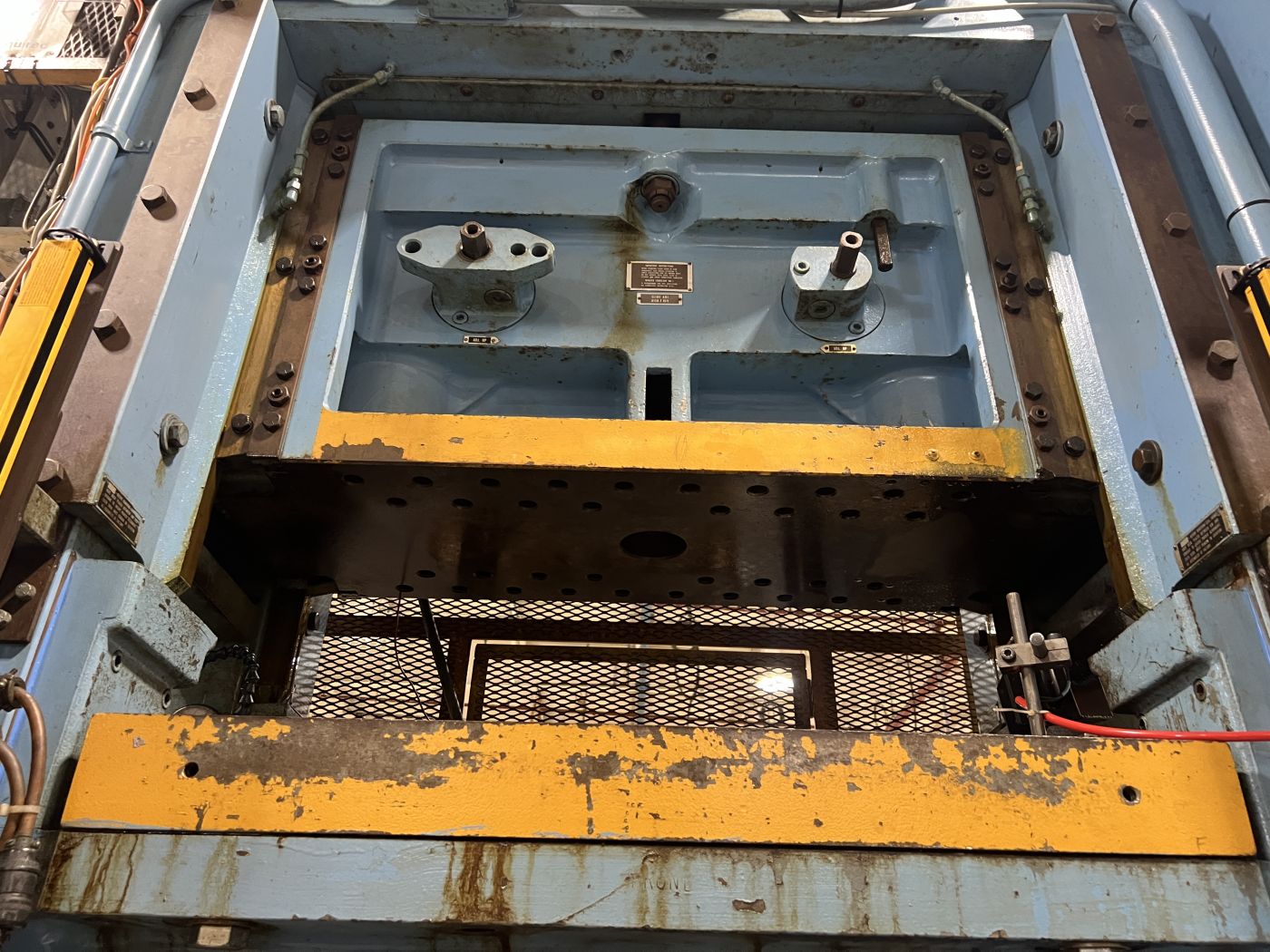

| BED AREA | 36" X 26" (RL X FB) |
| SLIDE AREA | 36" X 15" (RL X FB) WITH 8 POINT GIBBING |
| SPEED | 80-240 SPM EDDY CURRENT VARI-SPEED |
| slide adjustment | 3" MANUAl |
| BOLSTER SIZE | 36" X 26" (RL X FB) X 3.5" HIGH WITH 36" X 6" HOLE THROUGH CENTER |
| WINDOW SIZE | 12" WIDE |
| FLOOR TO BED HEIGHT | 35" |
| DISTANCE BETWEEN UPRIGHTS | 41" |
| DISTANCE BETWEEN GIBBS | 38" |
| AIR CLUTCH | MINSTER AIR CLUTCH / BRAKE combination |
| PRESS CONTROLS | MINSTER CONTROLS |
| ELECTRIC MOTOR | 10 HP 230/460V-3-60 EATON ADJUSTO SPEED MOTOR |
| APPROX. DIMENSIONS | 102" X 48" (RL X FB) X 114" HIGH |
| APPROX. WEIGHT | 14,500 lbs |
| Equipped With | TIE ROD CAST IRON CONSTRUCTION, RECIRCULATING OIL LUBRICATION, FLYWHEEL DRIVE, AIR COUNTERBALANCES FOR SMOOTHER OPERATION AND ACCURACY |
| Note | SERVO FEEDER SOLD SEPARATELY, 1,080 LBS. UPPER DIE WEIGHT CAPACITY |
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
