Description

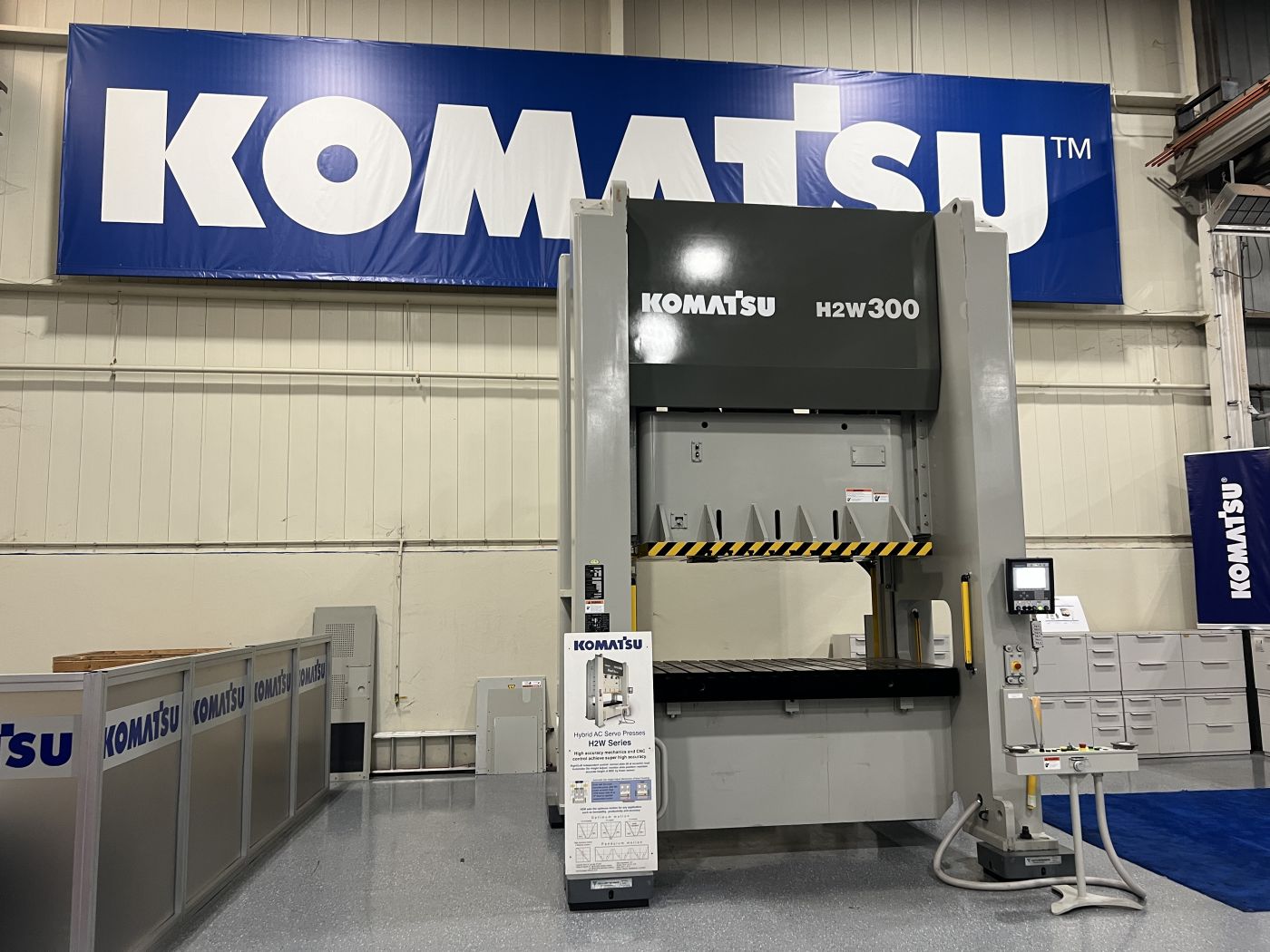

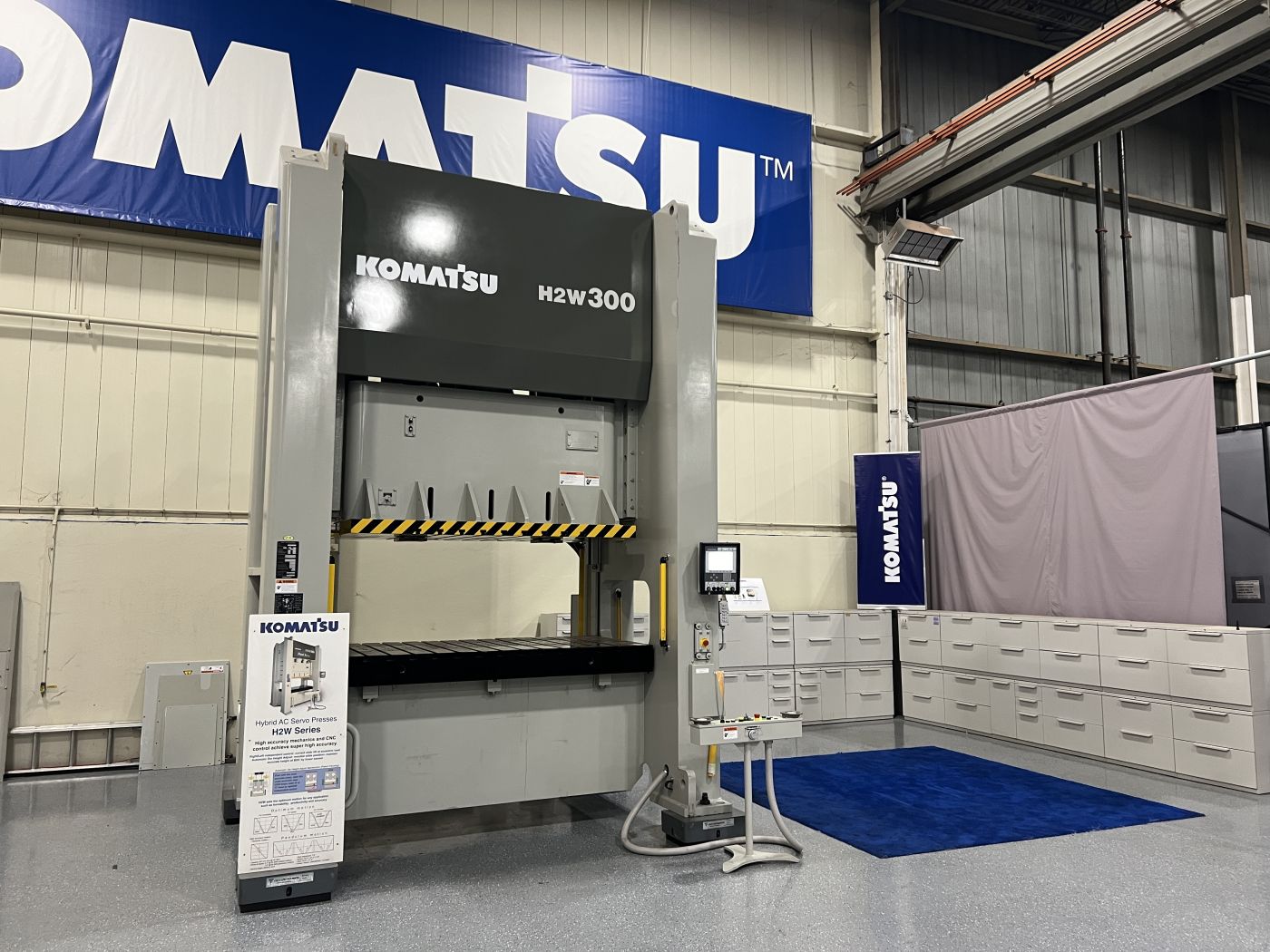

New Servo Press • New 330 Ton Press for Sale
- Machine #
- 7067
- Condition
- New
- Location
- Warehouse on Location
- Year
- 2026
- Model
- Komatsu H2W300-S
Buy Now: $
| MAX. CAPACITY | 330 US TONS |
|---|---|
| MAX. STROKE | 0 - 11.8" ADJUSTABLE STROKE |
| MAX. SHUT HEIGHT TO BOLSTER | 23.6 |
| BED AREA | 94.5" X 47.2" (RL X FB) |
| BOLSTER PLATE | 94.5" X 47.2" (RL X FB) X 7.9" THICK T-SLOTTED PLATE |
| RAM / SLIDE AREA | 82.7" X 47.2" (RL X FB) |
| RAM / SLIDE ADJUSTMENT | 7.9" |
| SPEEDS | 0-40 SPM ROATATION | 0-49 SPM PENDULUM |
| WINDOW SIZE | 47.2" WIDE X 20.9" HIGH |
| FLOOR TO BOLSTER HEIGHT | 45.3" |
| PRESS CONTROLS | KOMATSU SIT IV Control System (PRECISE DIGITAL DATA) |
| ELECTRIC SERVO MOTOR | TWO 60 KW SERVO MOTORS |
| APPROX. DIMENSIONS | 125.6" X 123.7" (RL X FB) X 181.7" HIGH |
| APPROX. WEIGHT | __ |
| Equipped With | SYMMETRICAL UNITIZED FRAME, ACCURACY WITHIN MICRONS, TWO INDEPENDENT SERVO DRIVE SYSTEM WITH TILT CORRECTION, Plunger Guide System, EFFICIENT DRIVE SYSTEM & CONTROL, dependable hydraulic overload PROTECTION, Auto Die Height Adjustment, Air Counterbalance System |
| Note | THIS PRESS IS DESIGNED WITH A Linear GLASS Scale |
| Location | This New Press is Located in Our Warehouse on Location |
