Description

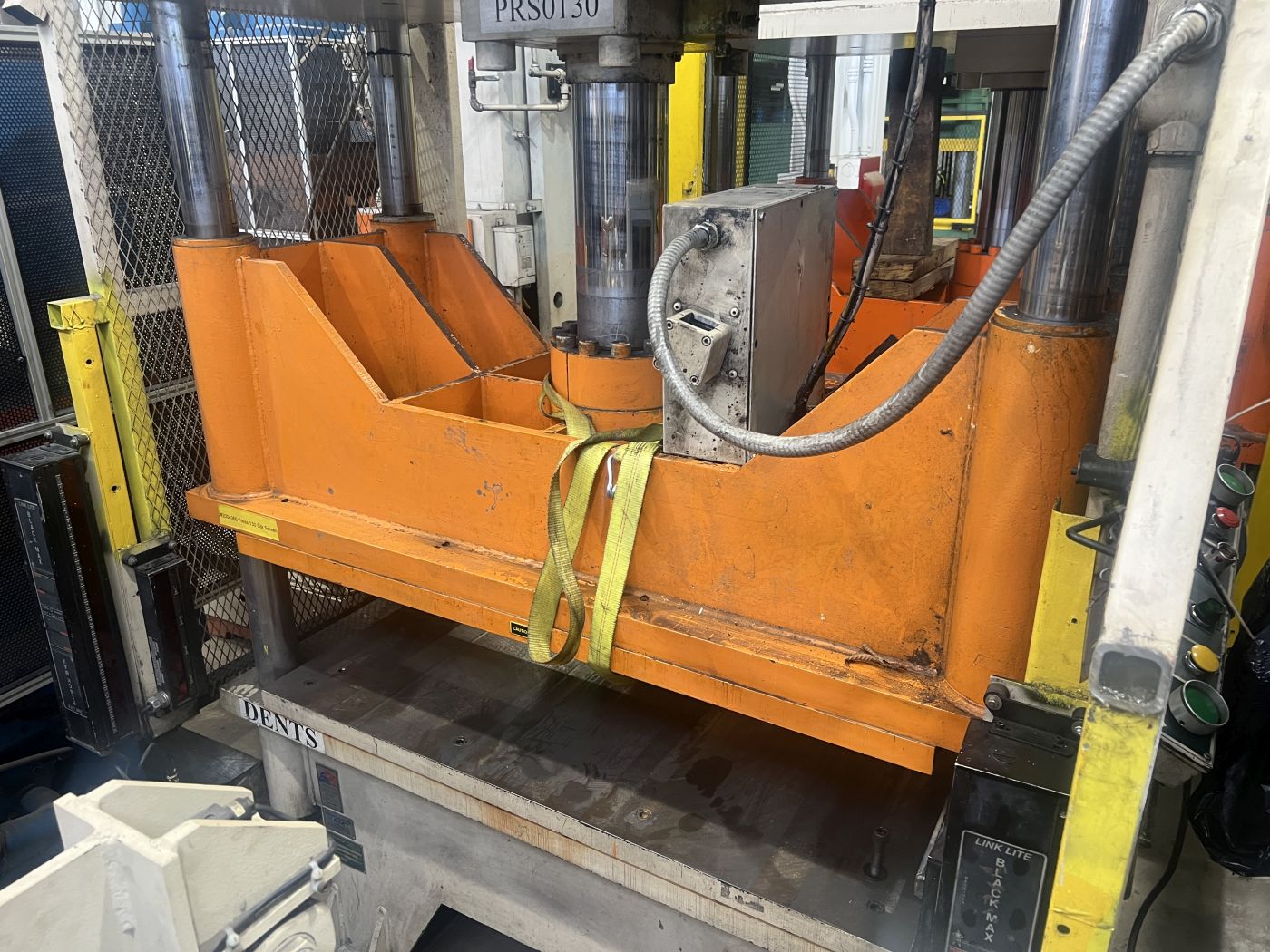

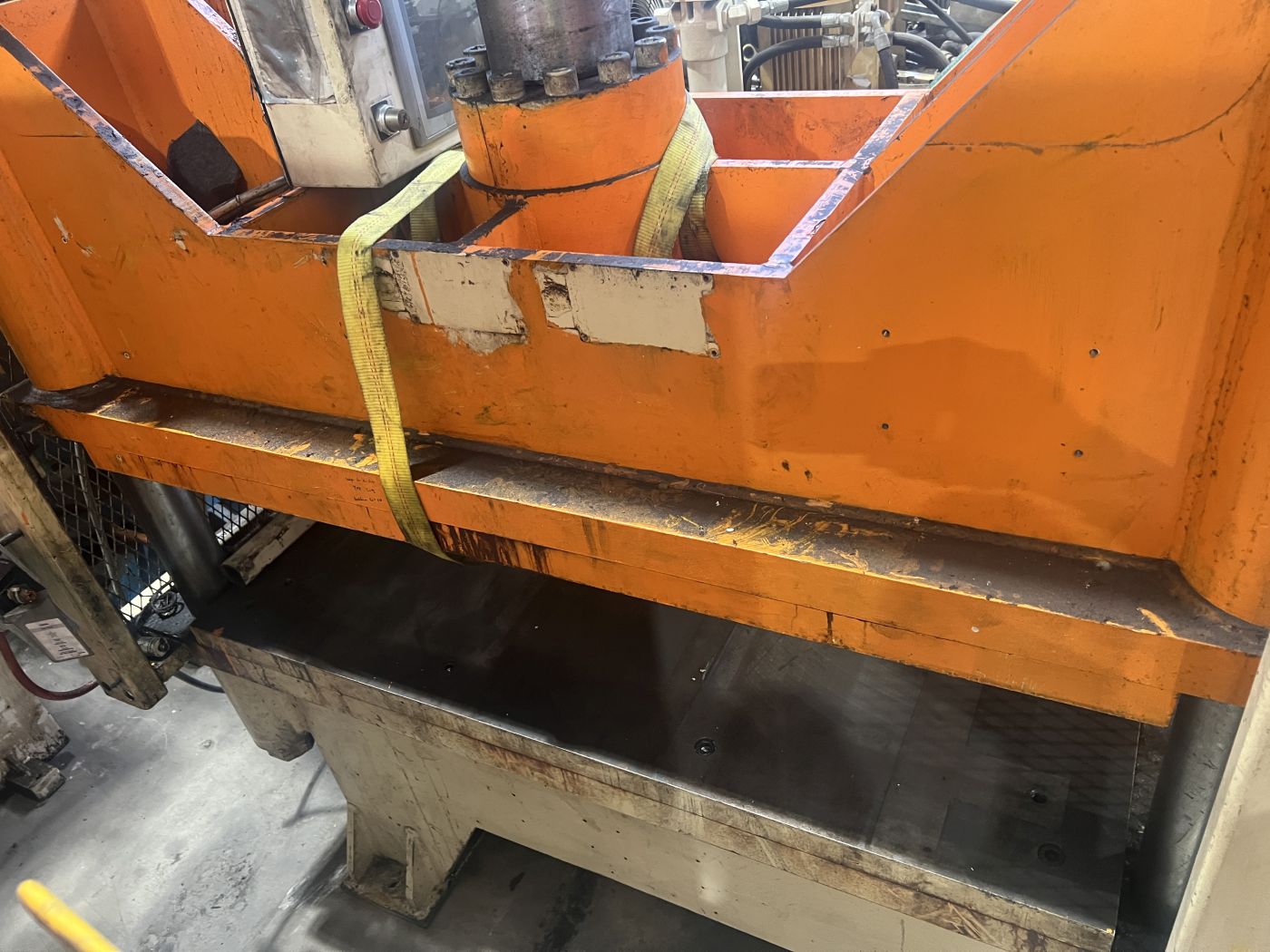

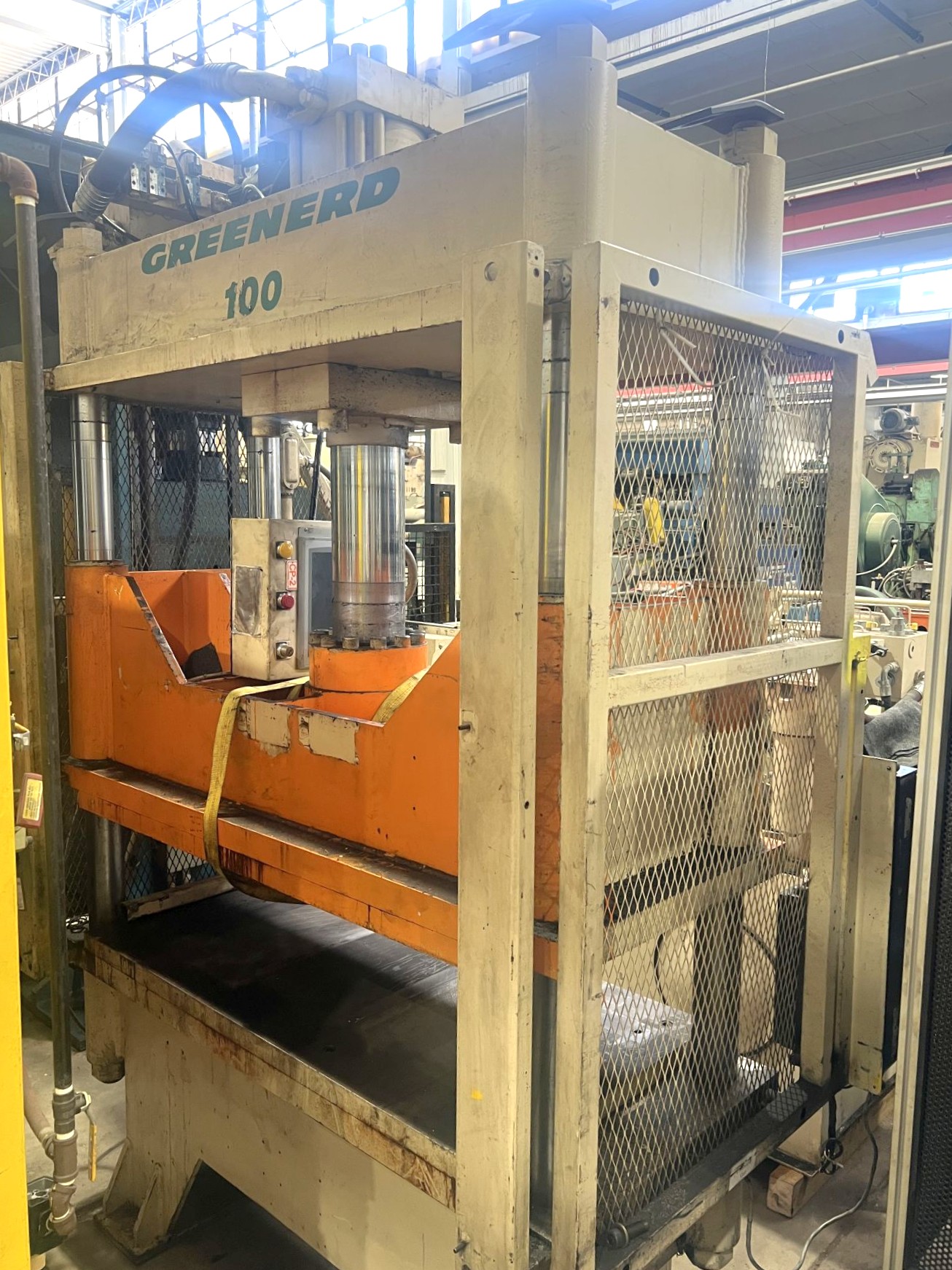

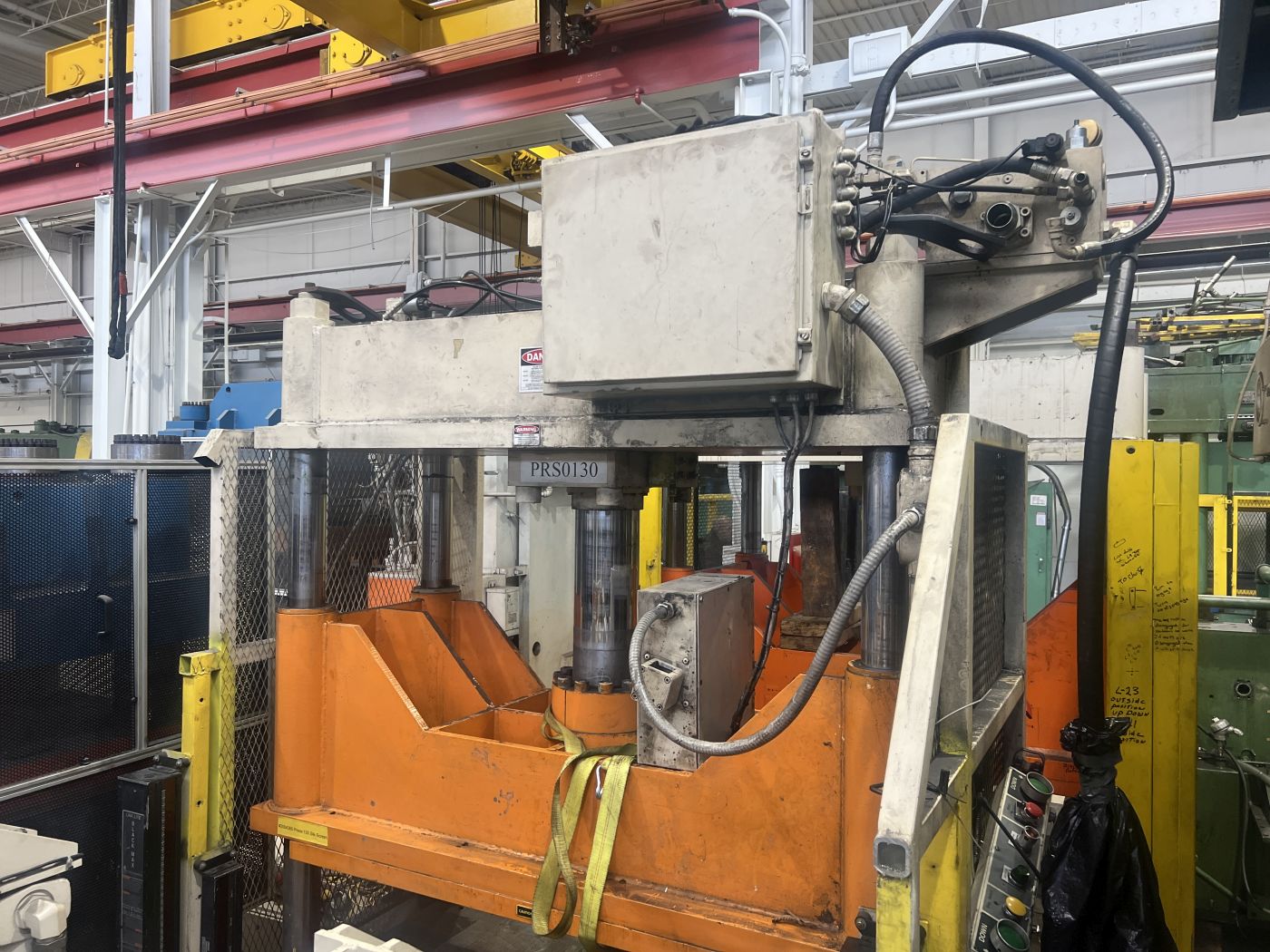

4 Column Hydraulic Press • Used 100 Ton Press for Sale
- Manufacturer
- Greenerd›
- Machine #
- 8840
- Condition
- Very Good
- Location
- Jackson, MI Cooper BuildingDirectionsMap
- Year
- 2005
- Model

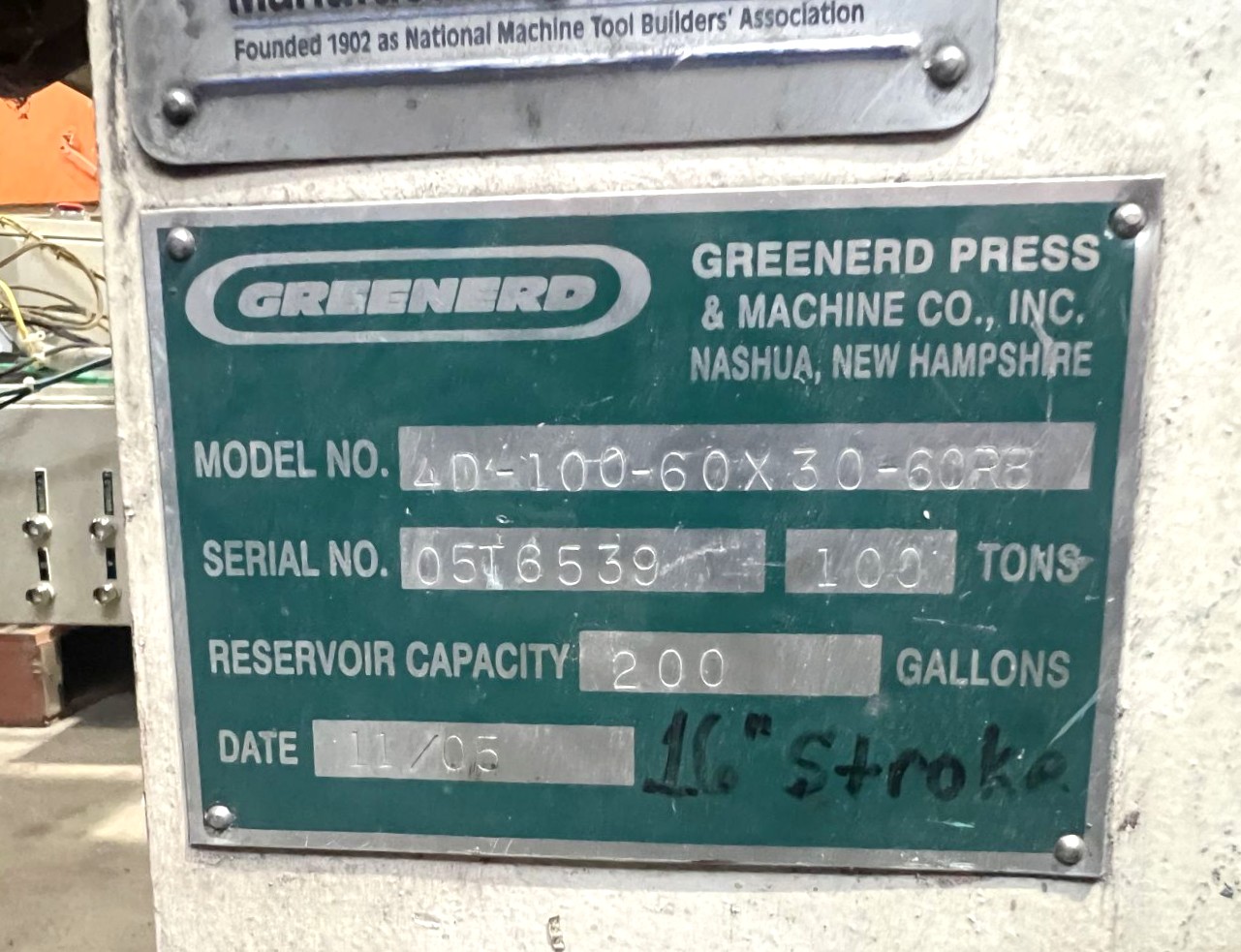

- Greenerd 4D-100-60x30-60R8
Buy Now: $
| MAX. CAPACITY | 100 TONS AT 2,546 PSI |
|---|---|
| MAX. STROKE | APPROX. 14-15" |
| MAX. DAYLIGHT | 30" |
| OVERALL BED & RAM AREA | 74" X 30" (RL X FB) |
| DISTANCE BETWEEN POSTS | 61" X 18" (RL X FB) |
| USABLE BED & RAM AREA | 61" X 30" (RL X FB) |
| BOLSTER PLATE | 60" X 30" (RL X FB) X 2" THICK |
| SPEEDS | __ |
| CYLINDER SIZE | 10" DIA. BORE |
| RAM ROD SIZE | 6.75" DIA. |
| POSTS / 4 COLUMNS SIZE | 4" DIA. |
| FLOOR TO BED HEIGHT | 32" |
| PRESS CONTROLS | __ |

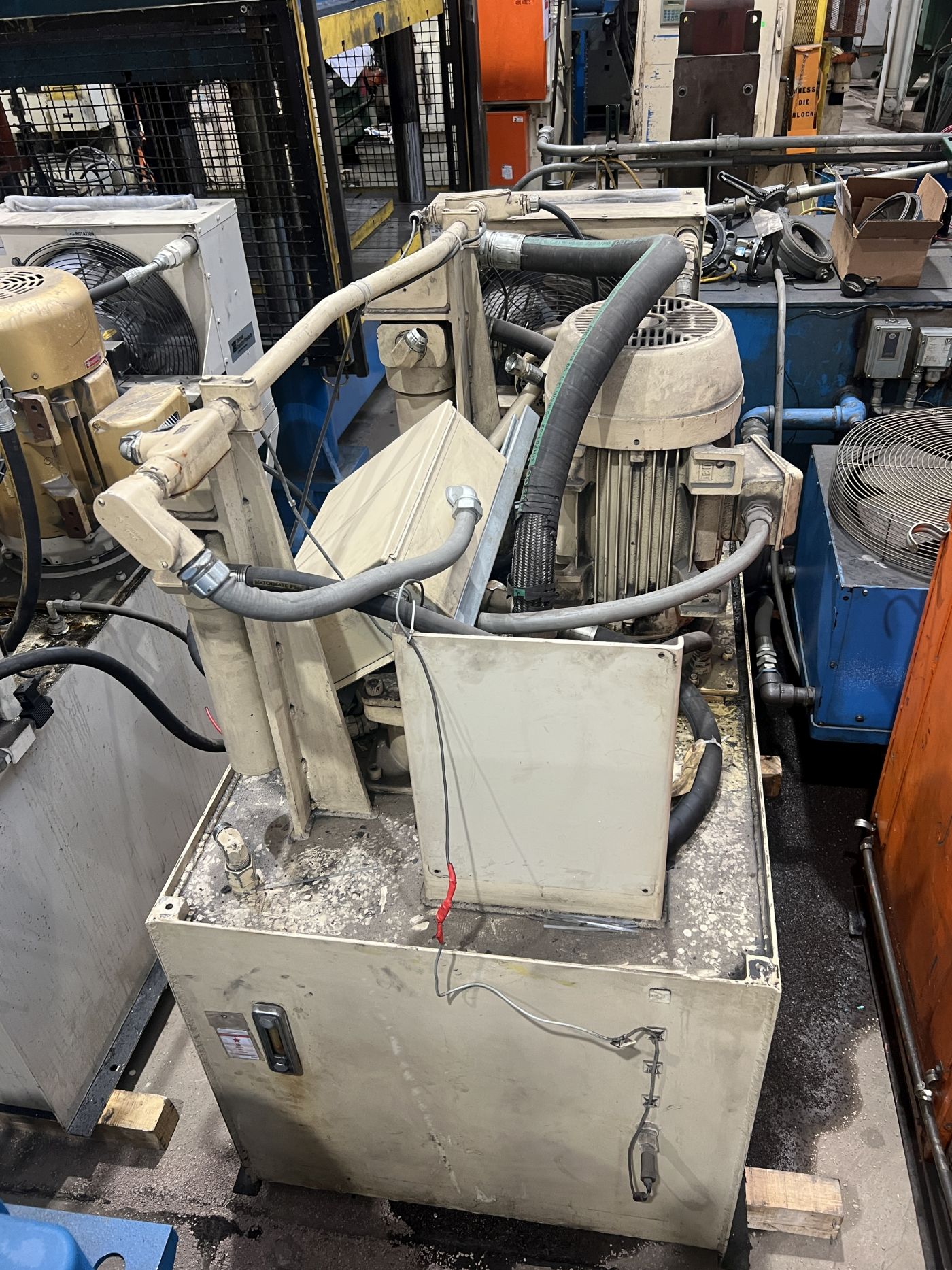

| HYDRAULIC SYSTEM | 200 GALLON HYDRAULIC OIL RESERVOIR |

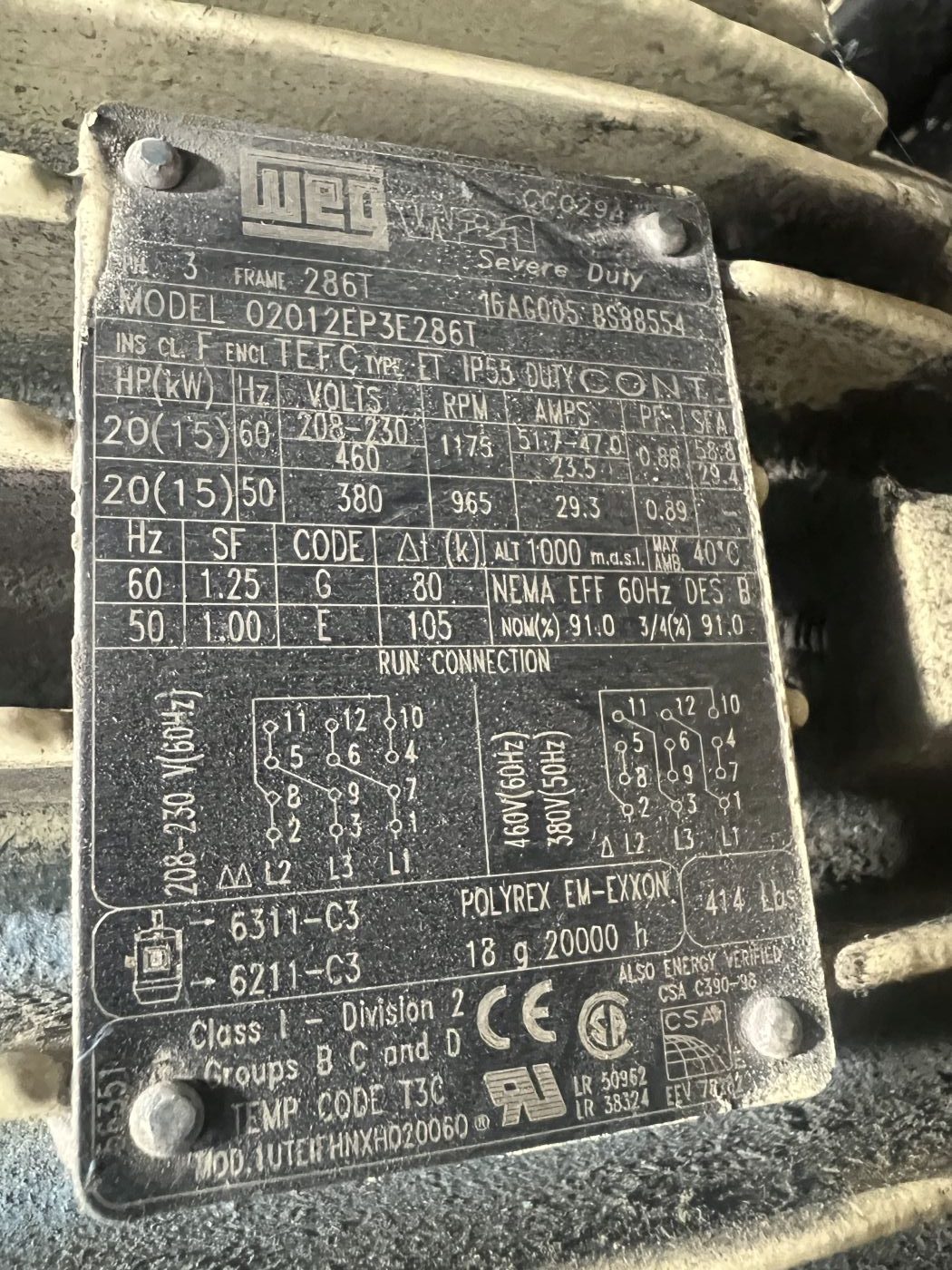

| ELECTRIC MOTOR | 20 HP 208-230/460V-3-60 WEG W21 MOTOR | 51.7-47/23.5 AMPS |
| APPROX. DIMENSION OF PRESS | 80" X 60" (RL X FB) X 119" HIGH |
| APPROX. DIMENSIONS OF HYDRAULIC SYSTEM | 46" X 60" (RL X FB) X 40" HIGH |
| APPROX. WEIGHT | 28,000 LBS. |

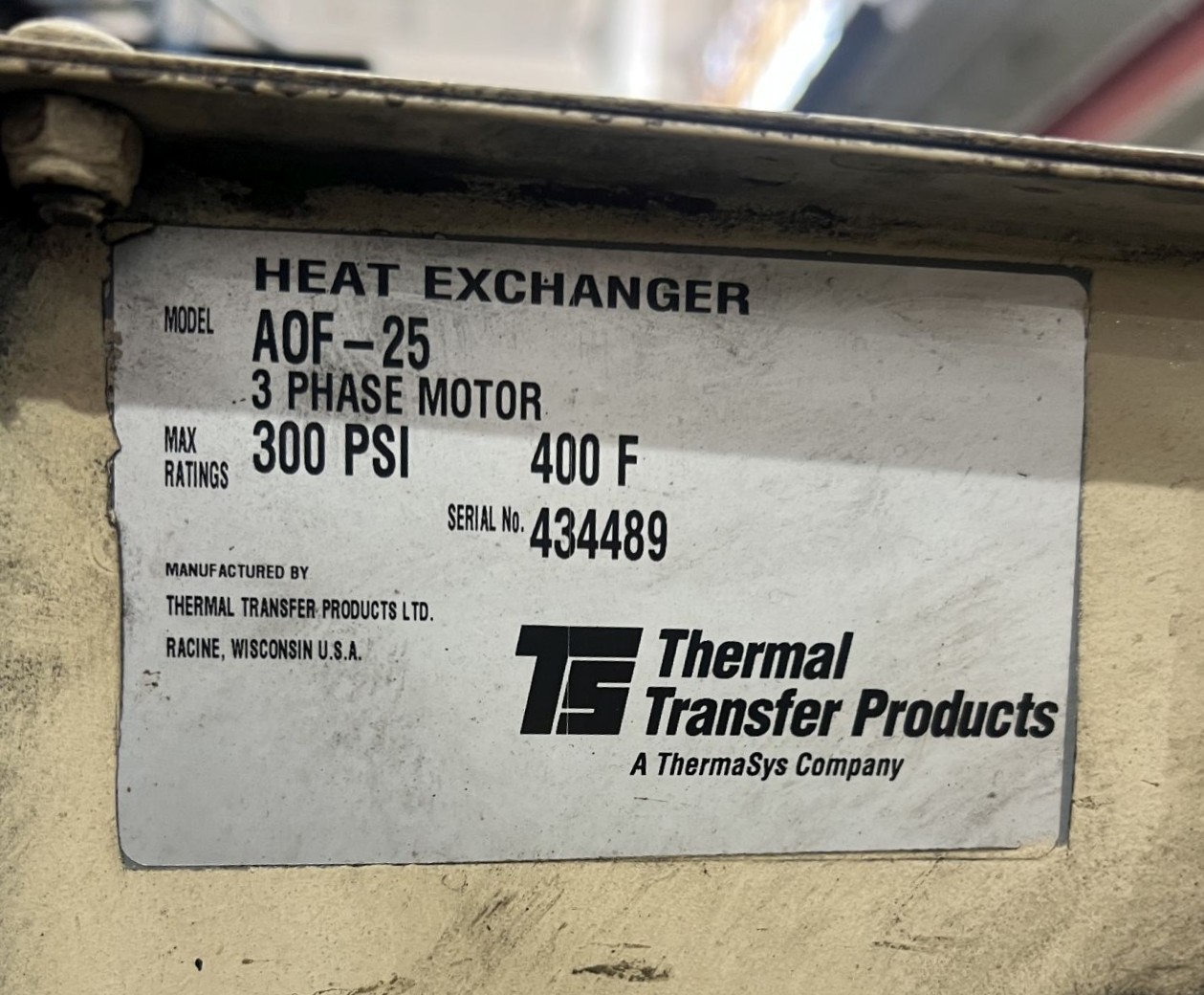

| Equipped With | THERMAL TRANSFER PRODUCTS FIN TYPE HEAT EXCHANGER MODEL AOF-25 (300 PSI 400 F) AIR COOLED SYSTEM |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
