Description

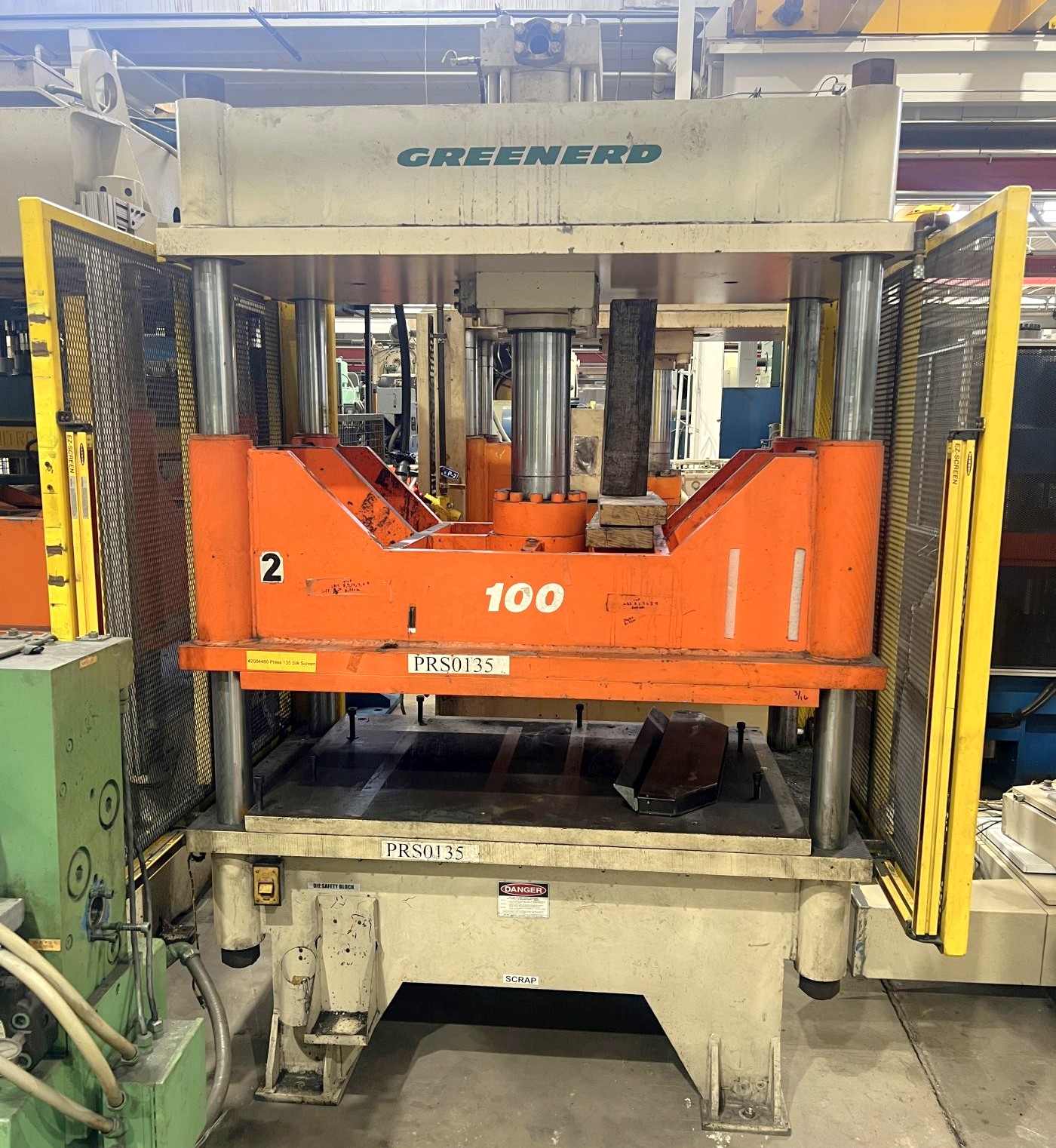

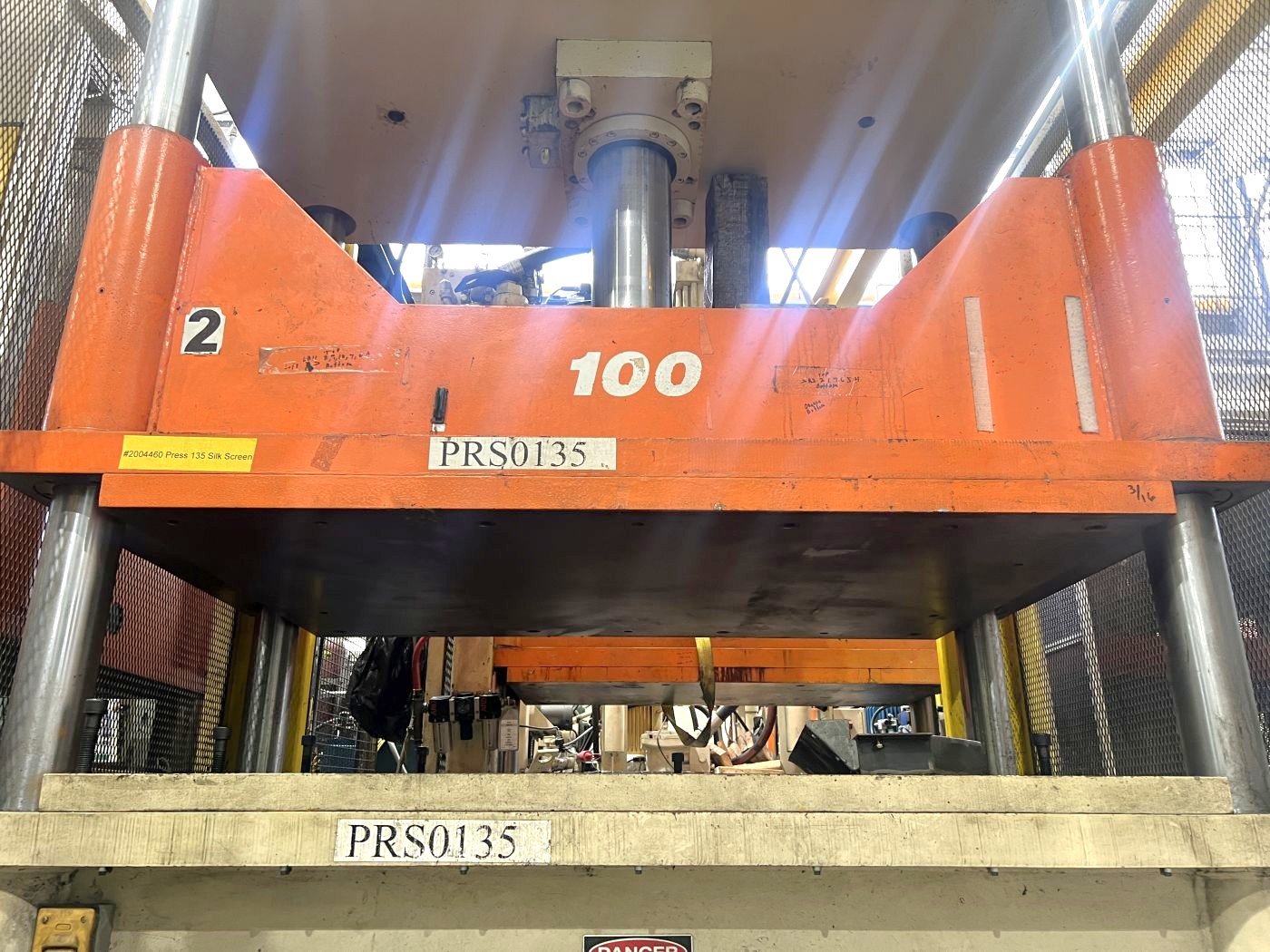

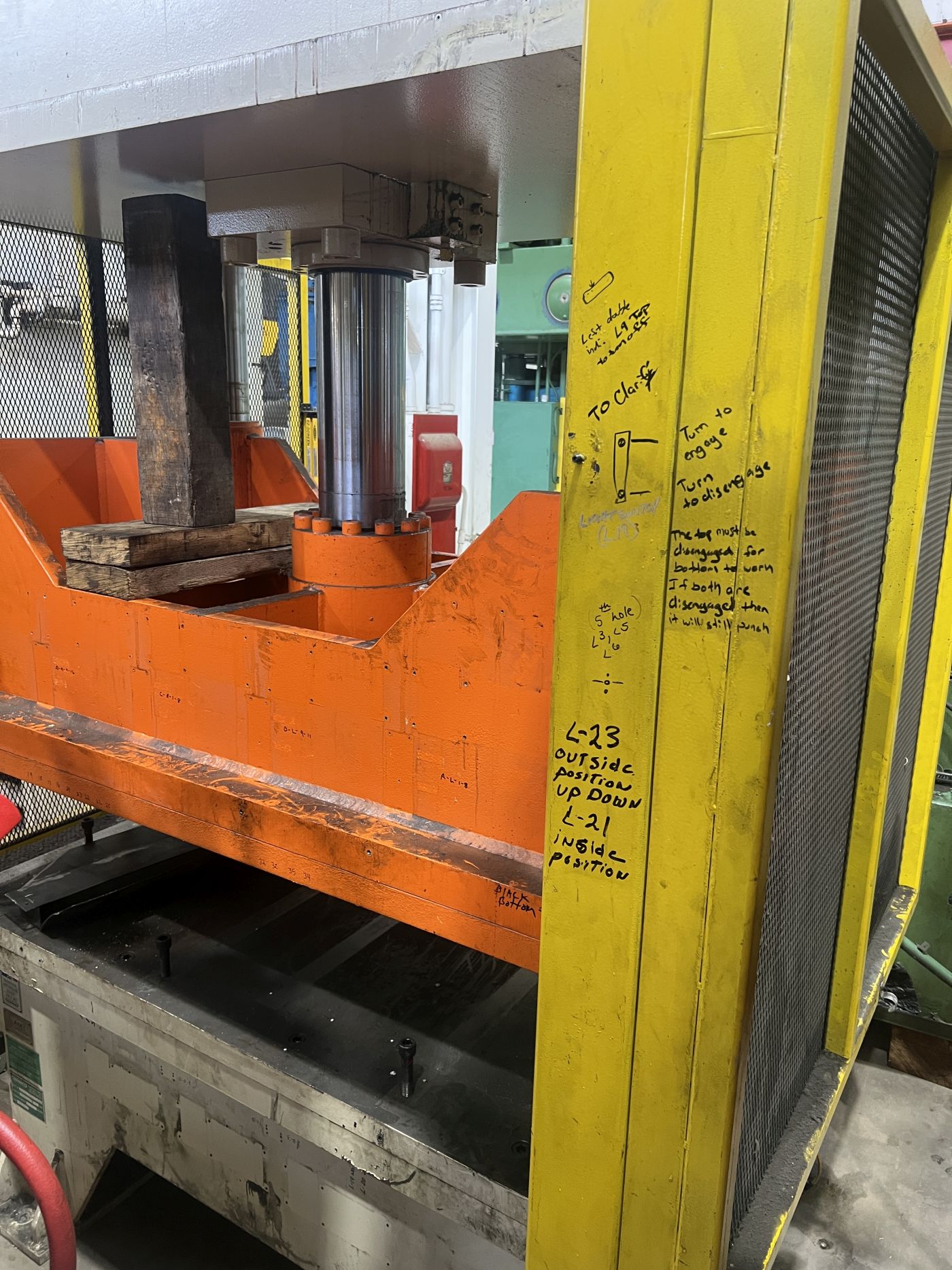

4 Column Hydraulic Press • Used 100 Ton Press for Sale
- Manufacturer
- Greenerd›
- Machine #
- 8841
- Condition
- Very Good
- Location
- Jackson, MI Cooper BuildingDirectionsMap
- Year
- 2011
- Model

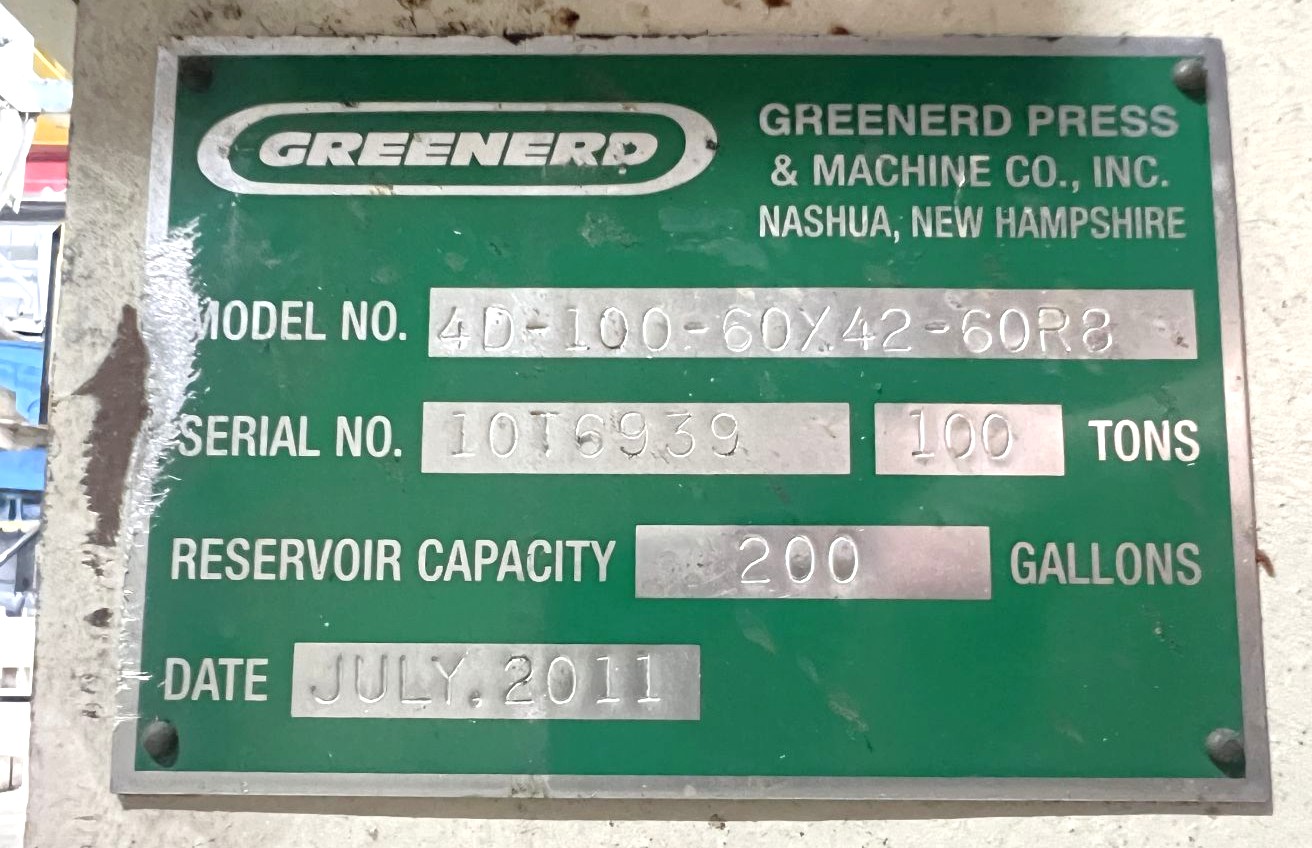

- Greenerd 4D-100-60x42-60R8
Buy Now: $
| MAX. CAPACITY | 100 TONS AT 2,546 PSI |
|---|---|
| MAX. STROKE | 16" |
| MAX. DAYLIGHT | 30" |
| OVERALL BED & RAM AREA | __ |
| DISTANCE BETWEEN POSTS | 60" |

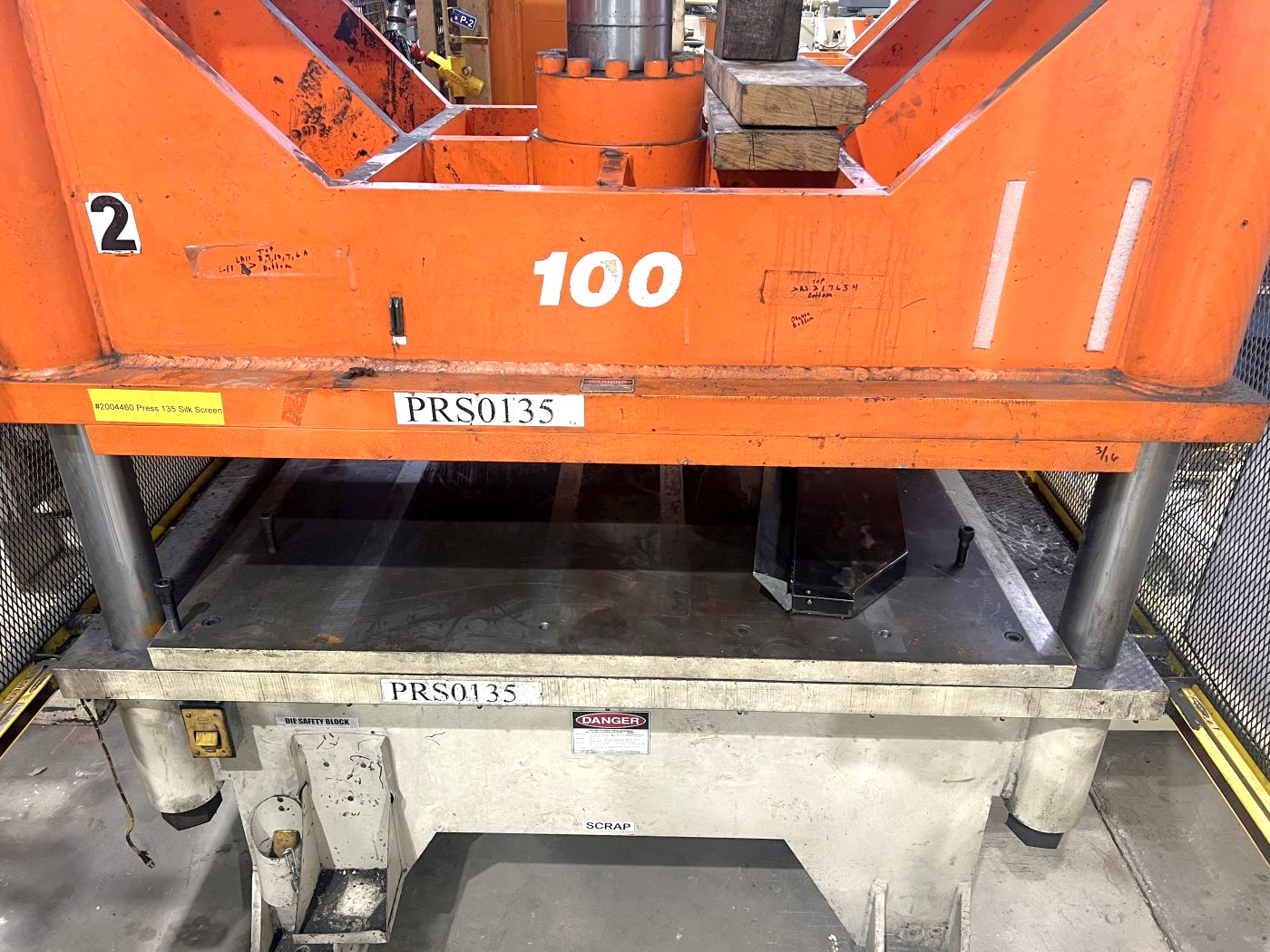

| USABLE BED & RAM AREA | 60" X 42" (RL X FB) |
| BOLSTER PLATE | 60" X 42" (RL X FB) X 2" THICK - 4X 2/4-10 UNC - 2B ~1.50 HOLES |
| SPEEDS | 408 CLOSING / 24 PRESSING / 392 OPENING - INCHES PER MINUTE |
| CYLINDER SIZE | 10" DIA BORE |
| RAM ROD SIZE | 7" DIA. |
| POSTS / 4 COLUMNS SIZE | APPROX. 4" DIA. |
| FLOOR TO BED HEIGHT | 34" |

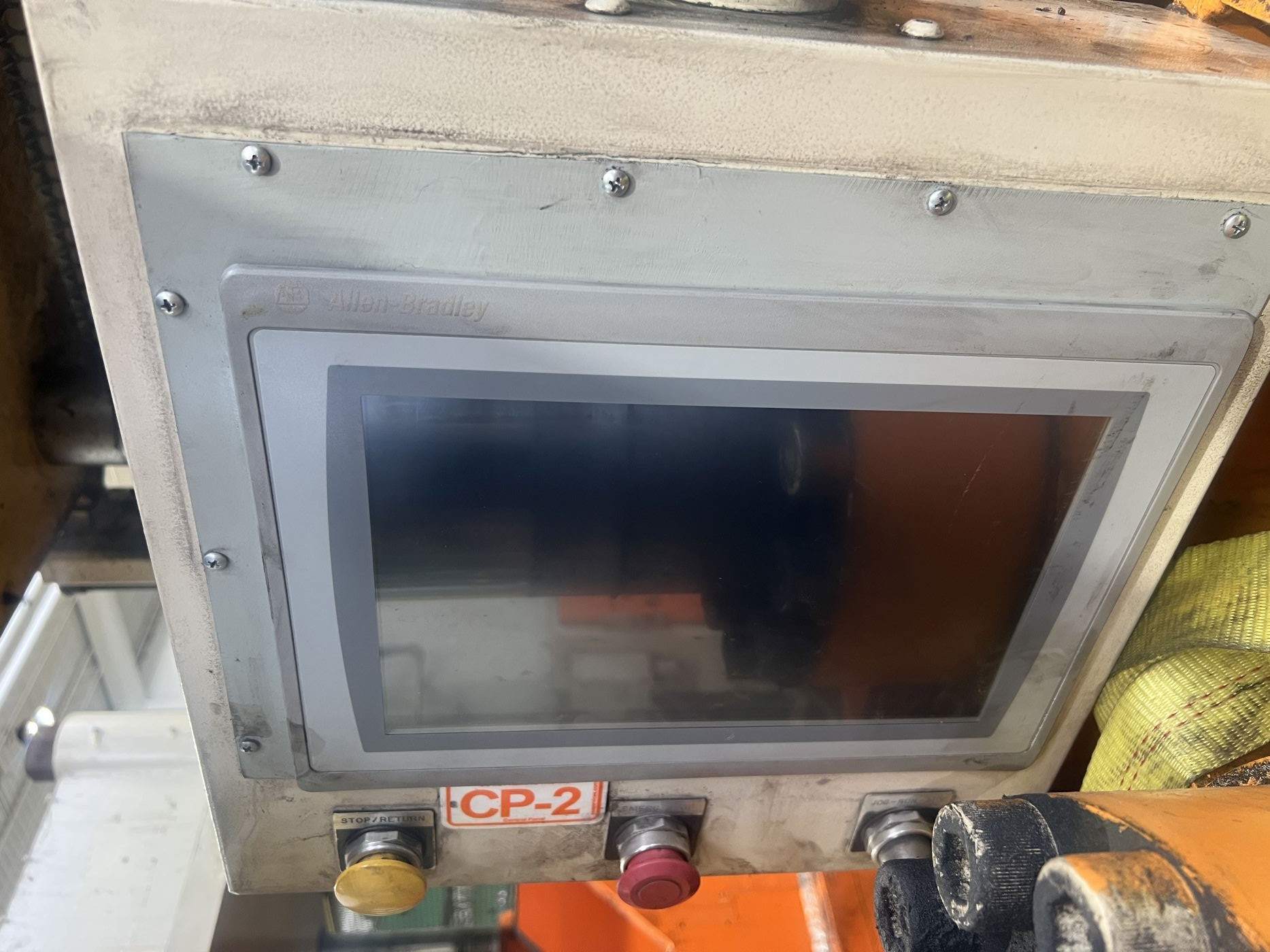

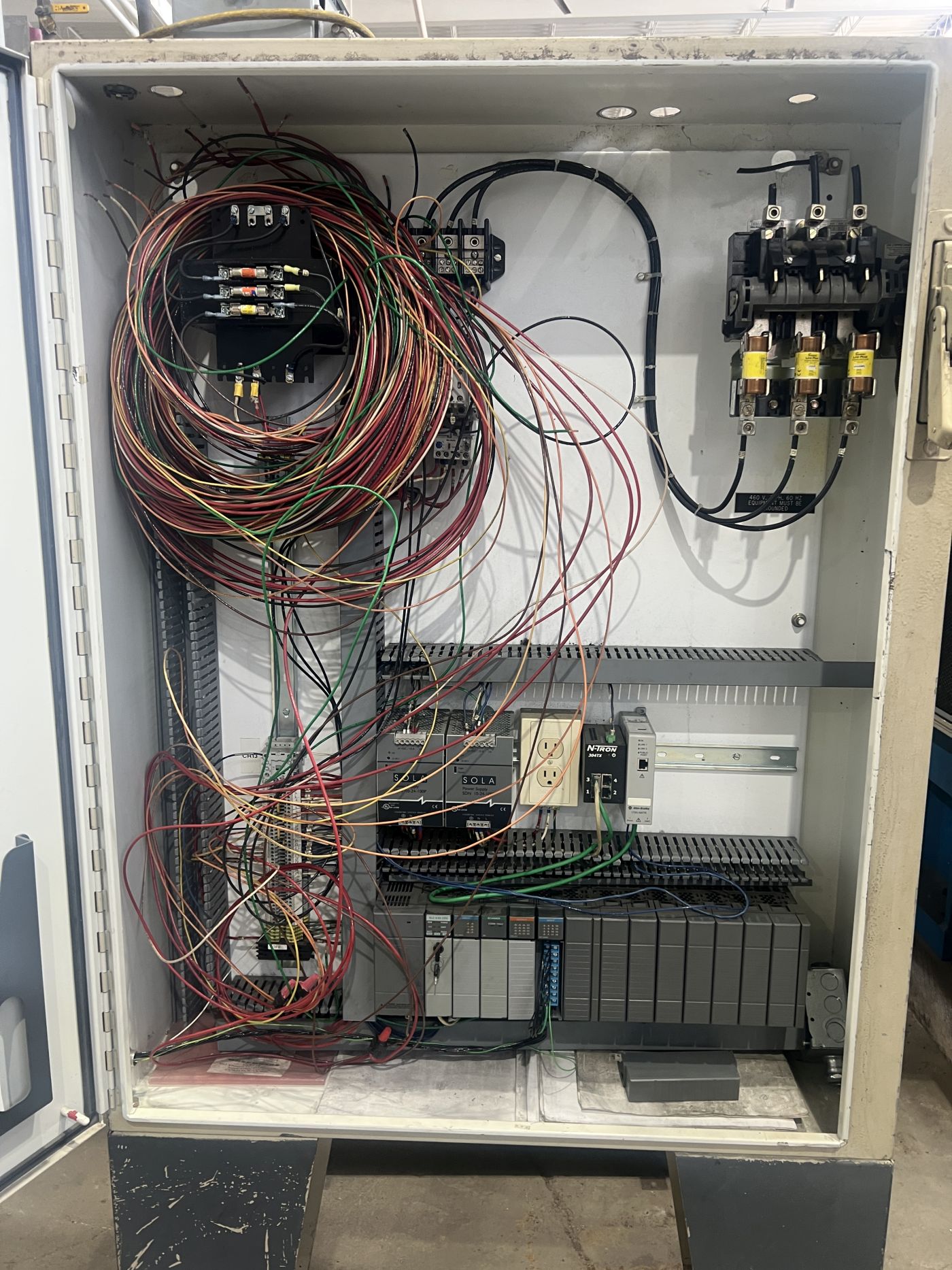

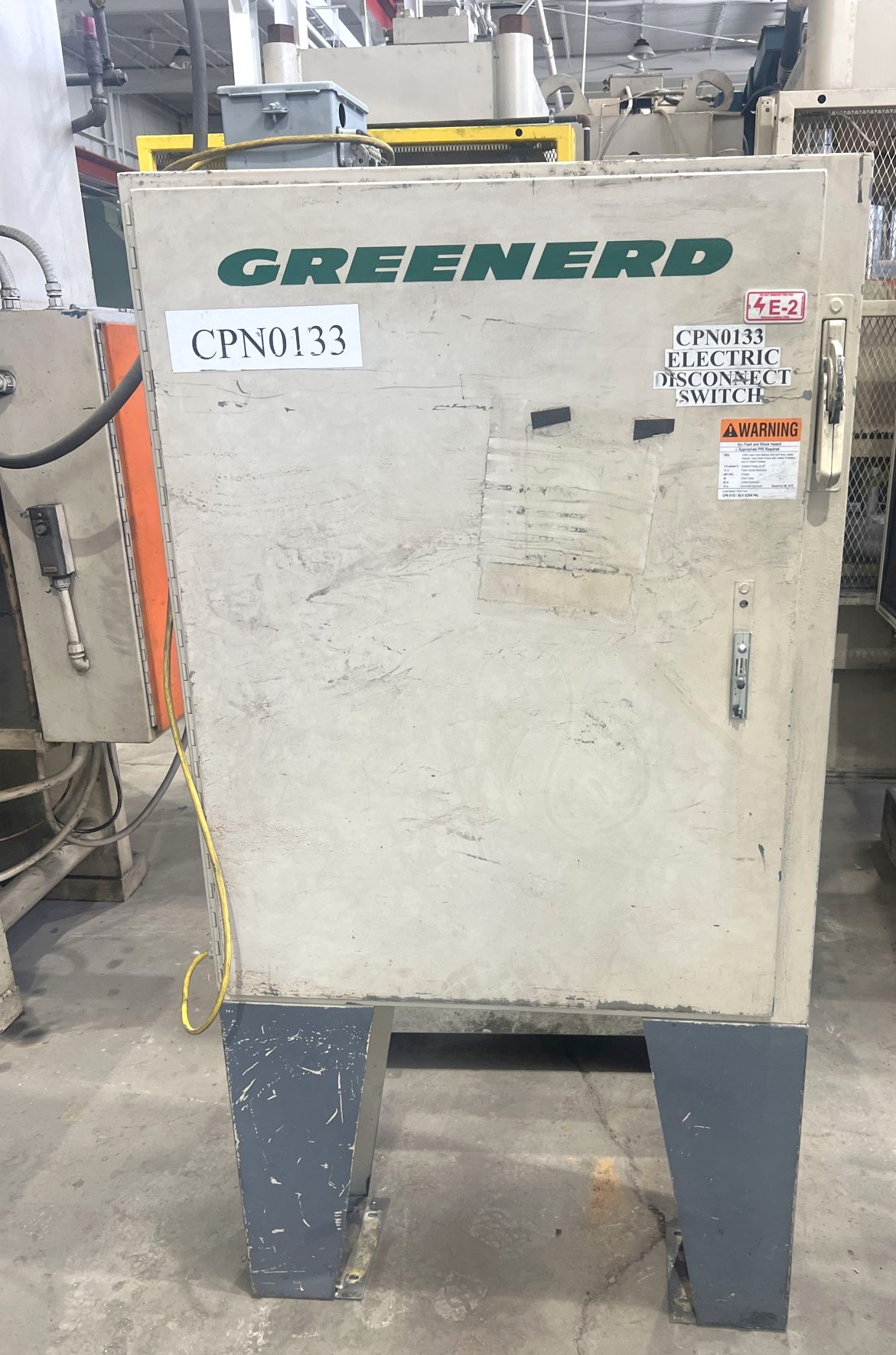

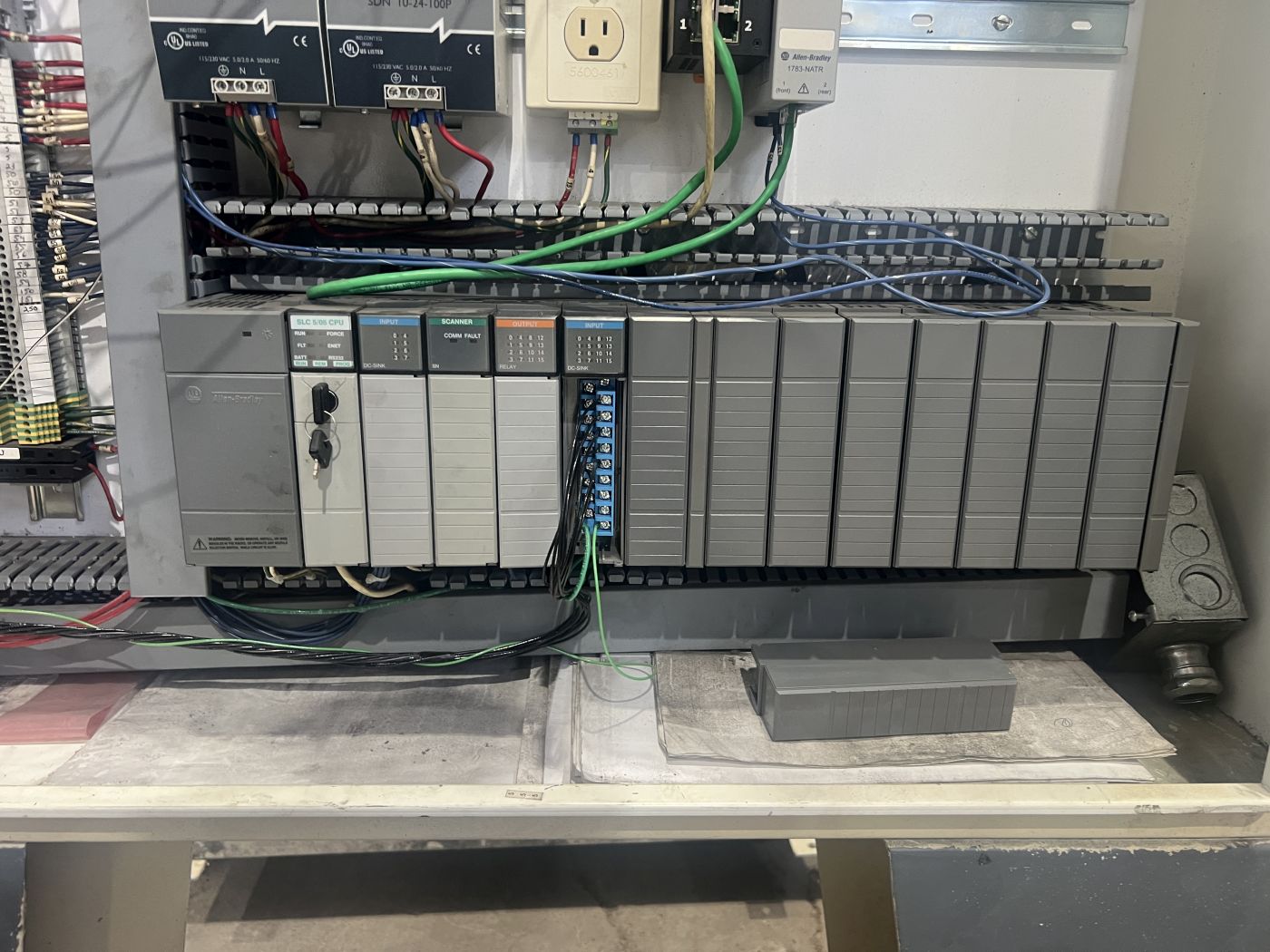

| PRESS CONTROLS | ALLEN-BRADLEY SLC-505 CONTROLLER |

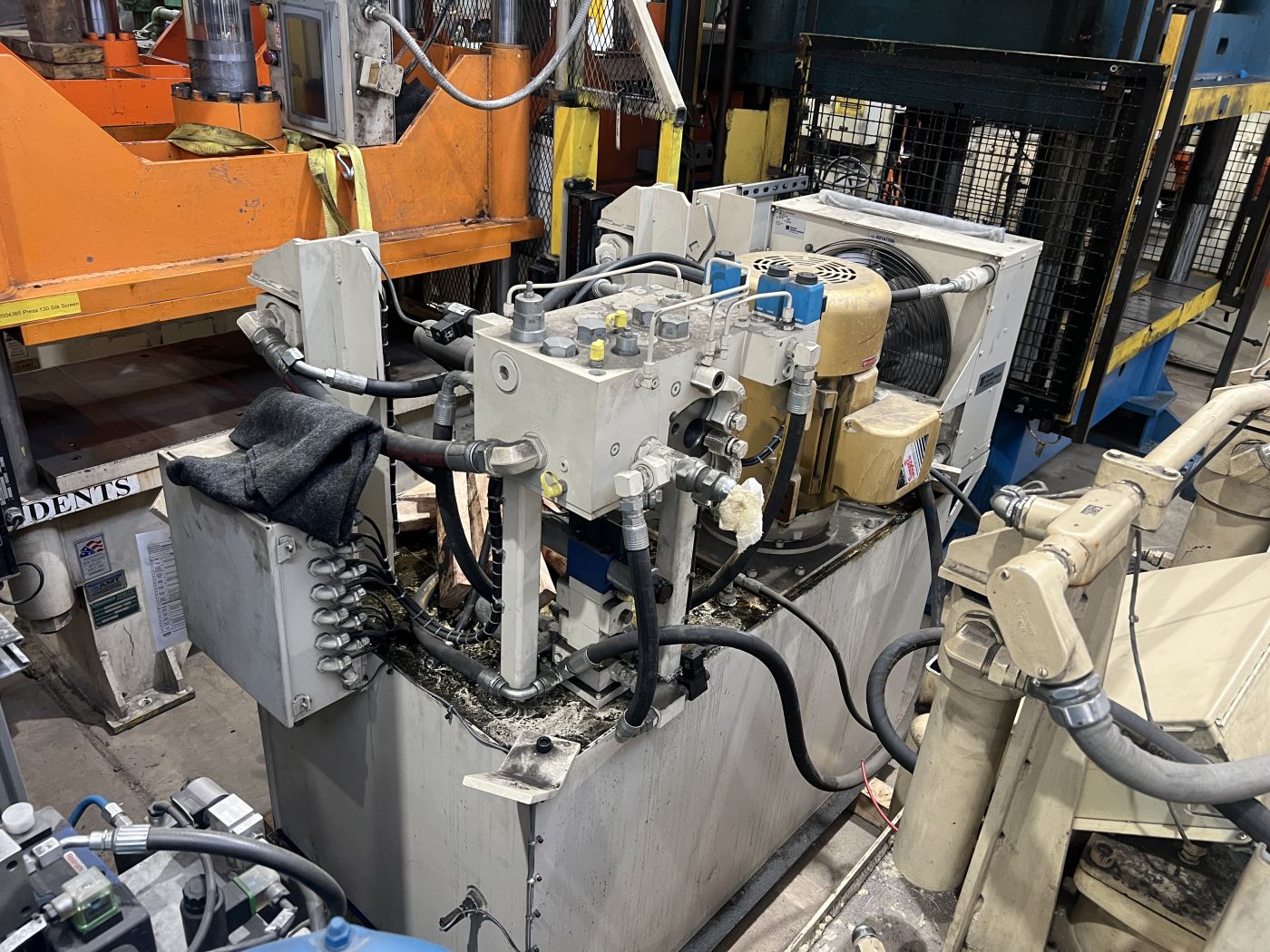

| HYDRAULIC SYSTEM | T67EC-062-008-1R00-B1 DENISON PUMP - 200 GALLON HYDRAULIC OIL RESERVOIR |

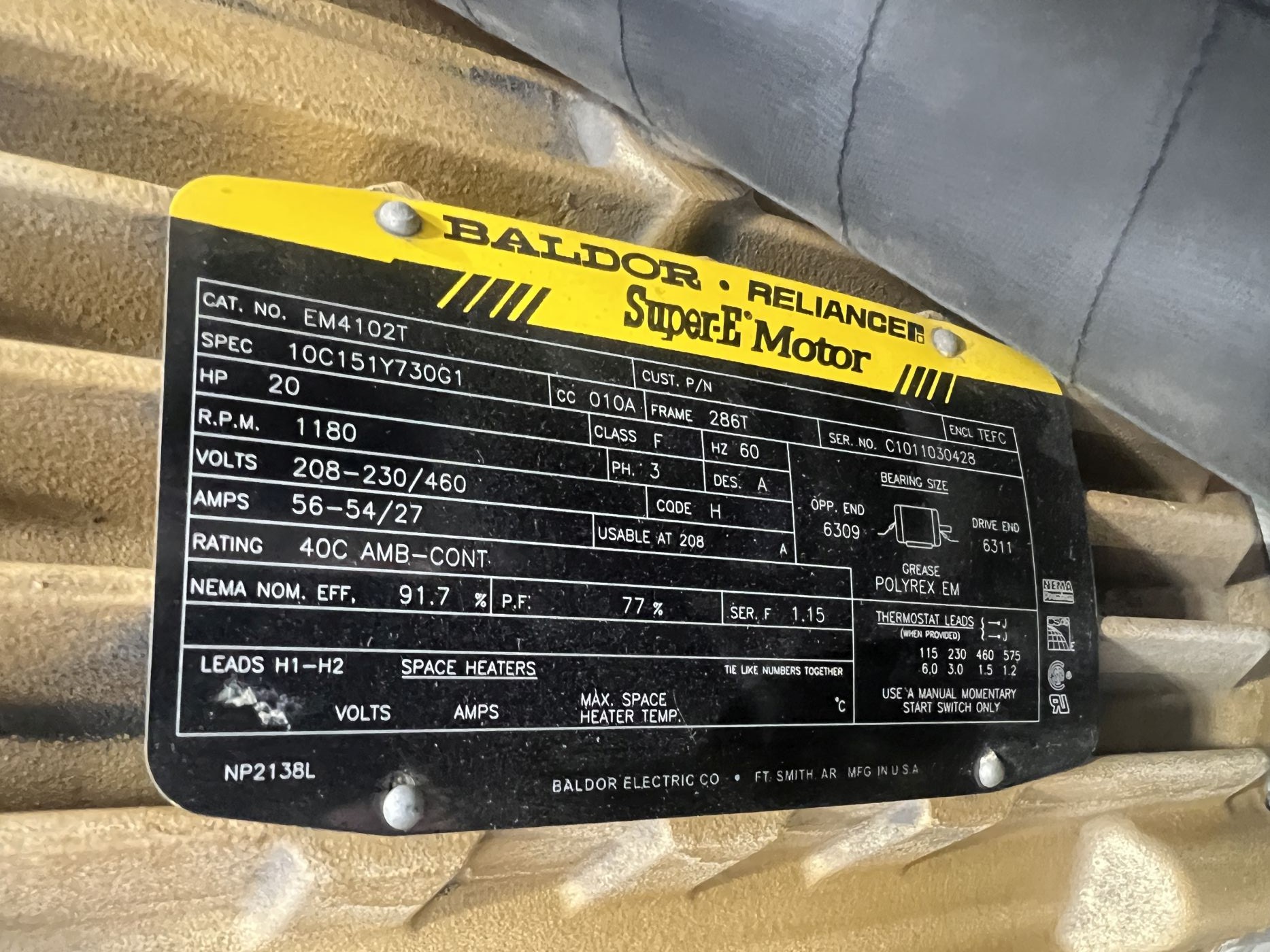

| ELECTRIC MOTOR | 20 HP 208-230/460v-3-60 BALDOR RELIANCE SUPER-E MOTOR | 56-54/27 AMPS |
| APPROX. DIMENSION OF PRESS | 80" X 72" (RL X FB) X 119" HIGH |
| APPROX. DIMENSIONS OF HYDRAULIC SYSTEM | 46" X 60" (RL X FB) X 40" HIGH |
| APPROX. WEIGHT | 30,500 LBS. |

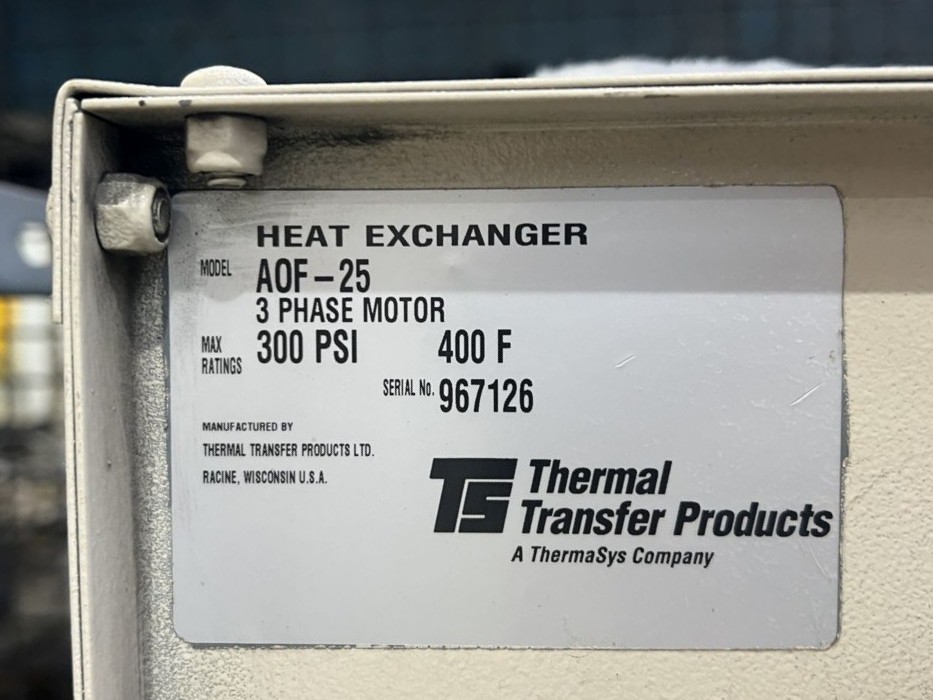

| Equipped With | THERMAL TRANSFER PRODUCTS FIN TYPE HEAT EXCHANGER MODEL AOF-25 (300 PSI 400 F) AIR COOLED SYSTEM |
| Note | PUMP AND MOTOR ARE FROM PRINTS, NOT CONFIRMED ON THE PRESS YET |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
