Description

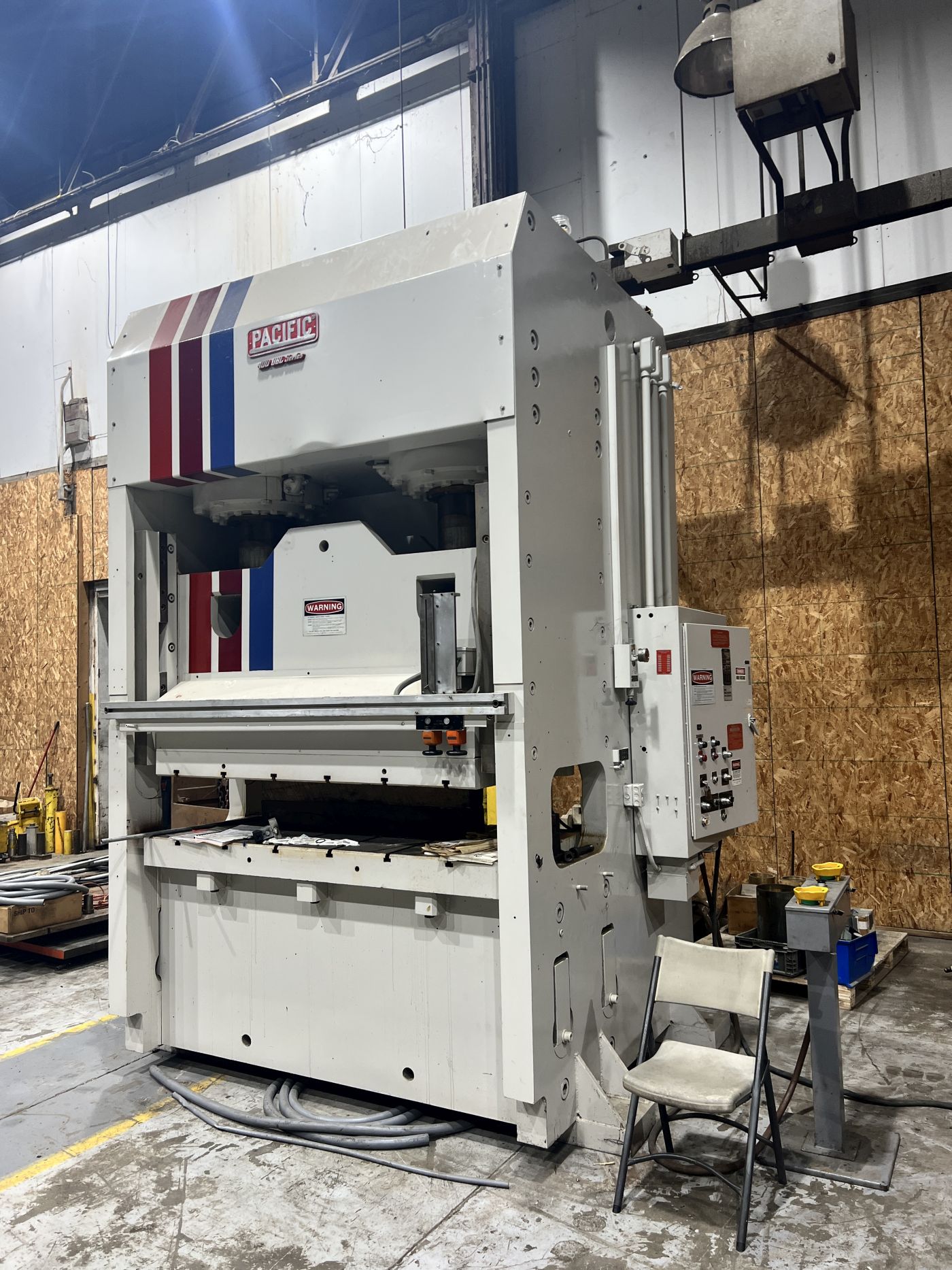

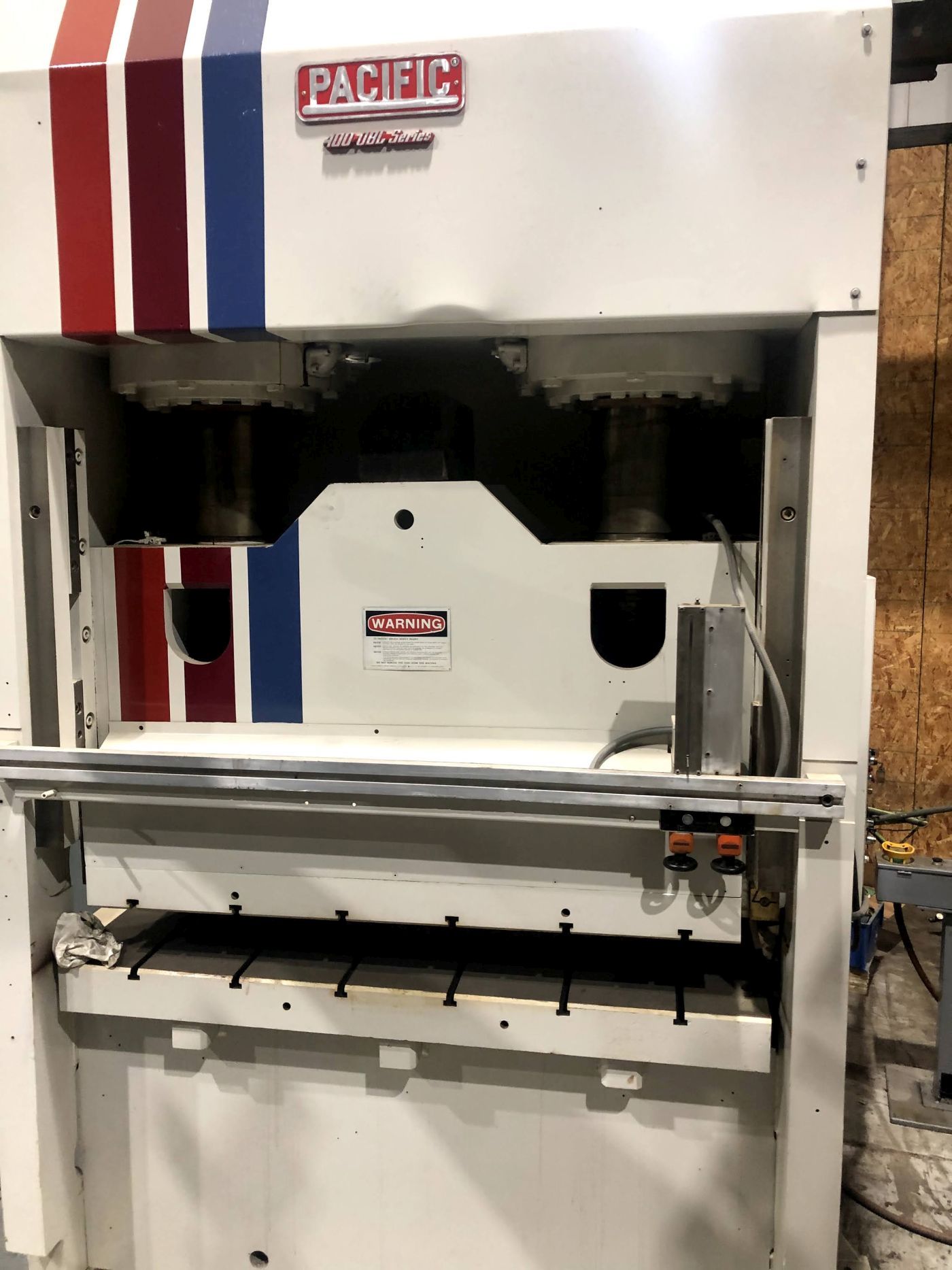

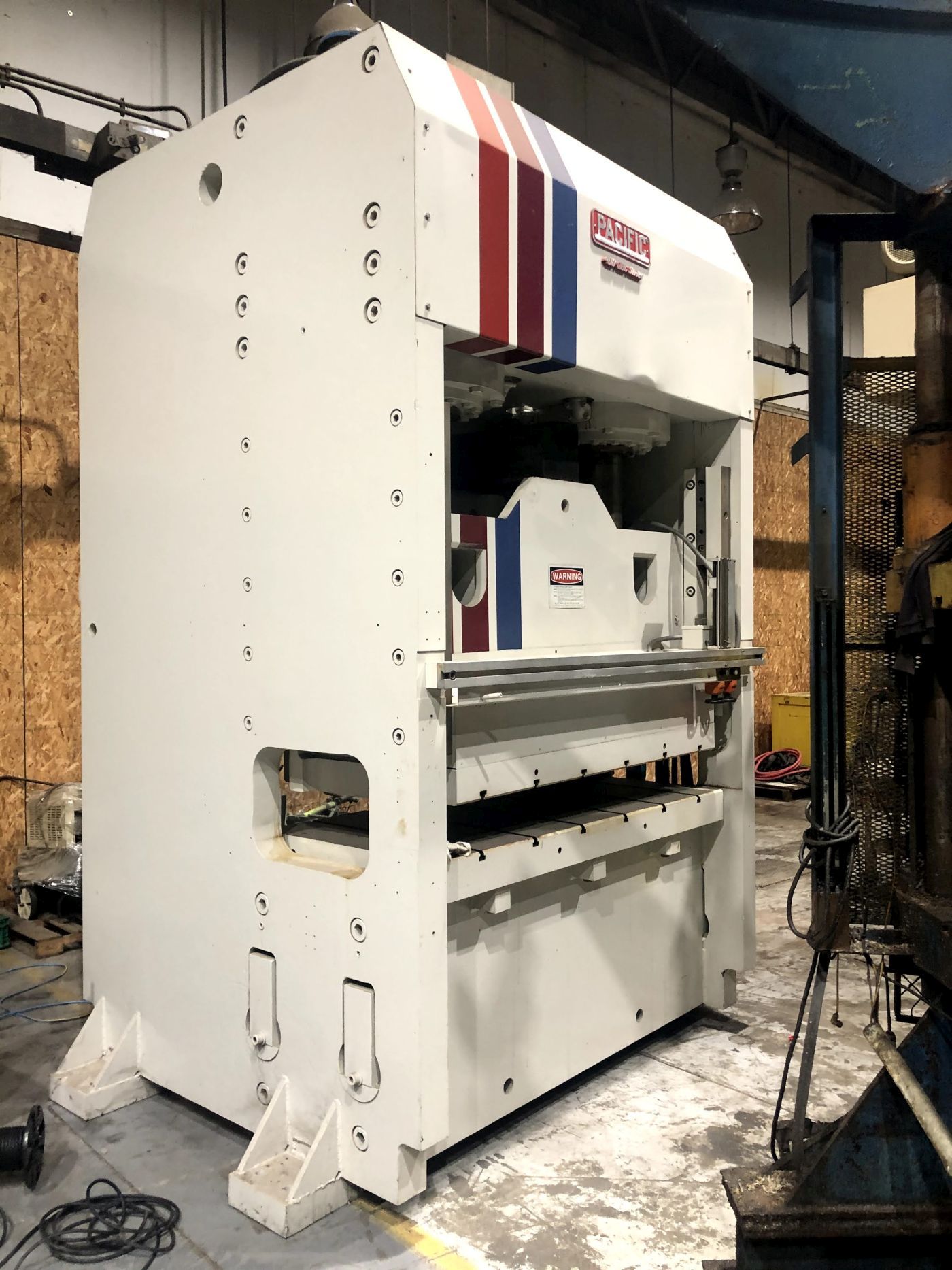

Gib-Guided Press • Used 500 Ton Press for Sale
- Machine #
- 4849
- Condition
- Very Good
- Location
- Jackson, MI Falahee Building
- Year
- 1984
- Model
- Pacific 400 OBL-6
Buy Now: $
| CAPACITY | 500 TON |
|---|---|
| PUNCHING CAPACITY | 400 TON |
| MAXIMUM STROKE | 12" |
| DAYLIGHT TO BED | 8" TO 20" |
| BED AREA | 78" X 36" (RL X FB) |
| BOLSTER PLATE | 78" X 36" (RL X FB) X 5" Thick |
| RAM AREA | 78" X 36" (RL X FB) |
| RAM SPEEDS (INCHES PER MINUTE) | RAPID ADVANCE 372 | PRESSING 128 | SLOW PRESSING 35 | RETURN 197 |
| WINDOW SIZE | 24" X 16" SIDE WINDOWS |
| CYLINDER SIZE | APPROX 8" - 226.98 IN2 |
| FLOOR TO BED | 41.5" |

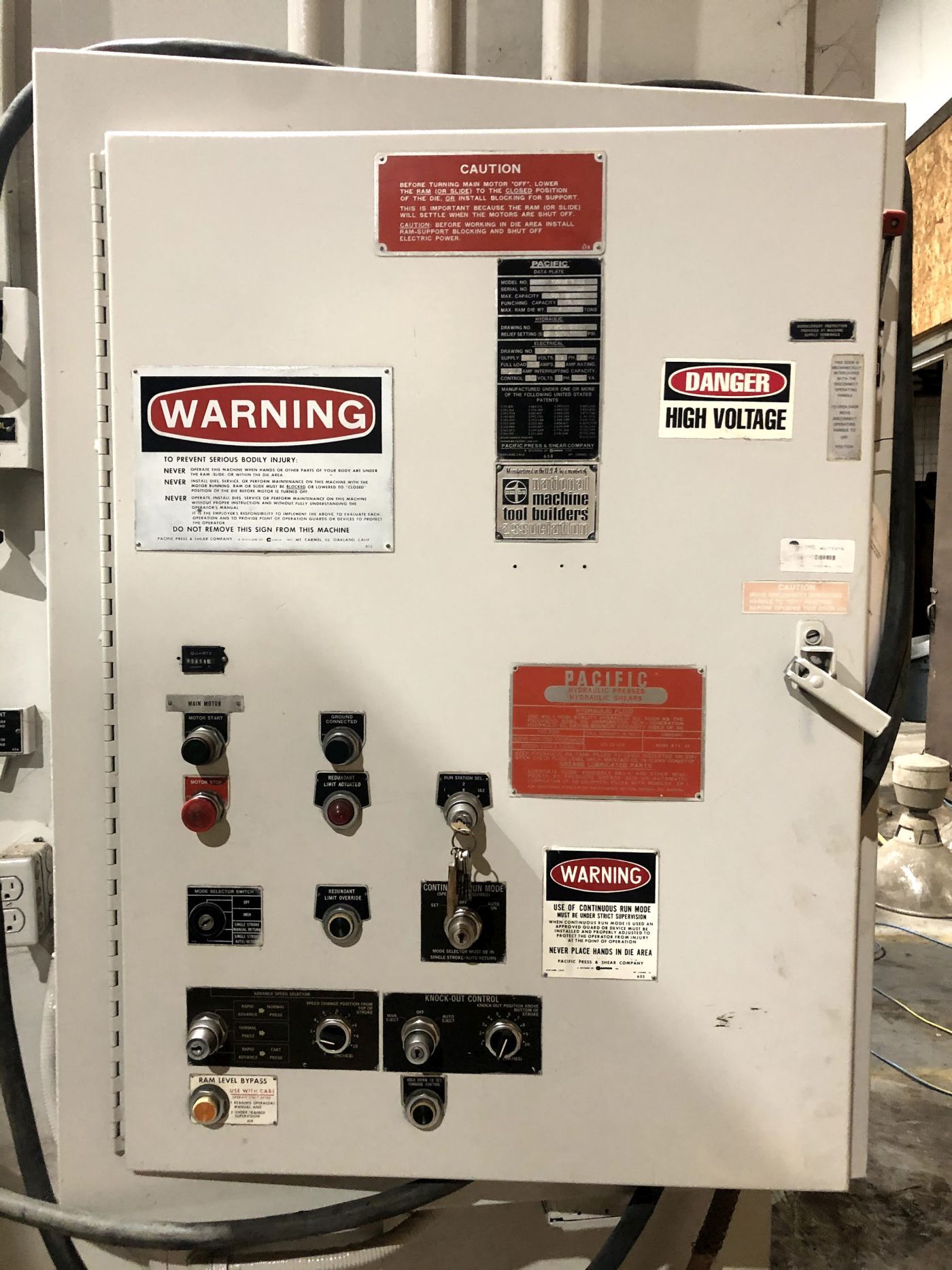

| PRESS CONTROLS | WINTRiSS CONTROLS |
| HYDRAULICS | VICKERS PUMP 4535V60A25 |
| ELECTRICAL | 60HP 460V-3-60 MOTOR 1800 RPM 60 HZ |
| APPROX. DIMENSIONS | 9'1" X 8'2" (RL X FB) X 12'1" HIGH |
| APPROX WEIGHT | 71,000 LBS. |
| Equipped With | DUAL RAM STEEL FRAME DESIGN FLOOR STANDING 3" BORE 2" STROKE KNOCKOUT CYLINDER |
| Note | __ |
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
