Straight Side Press • Used 330 Ton Press for Sale
Model: Aida PMX(1)-L2-300H(1) Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1985
Machine #: 4304
Buy Now: $149,500

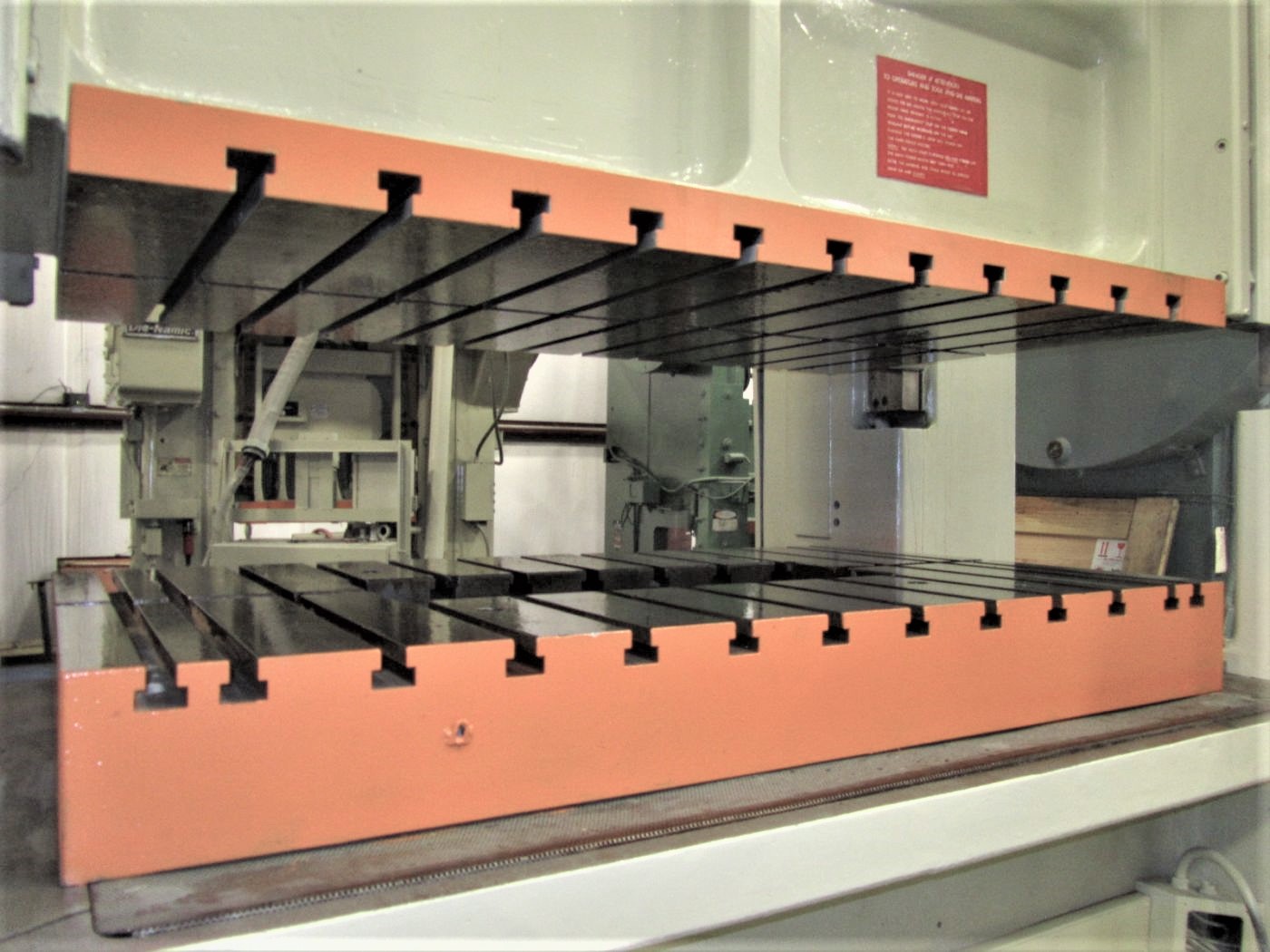

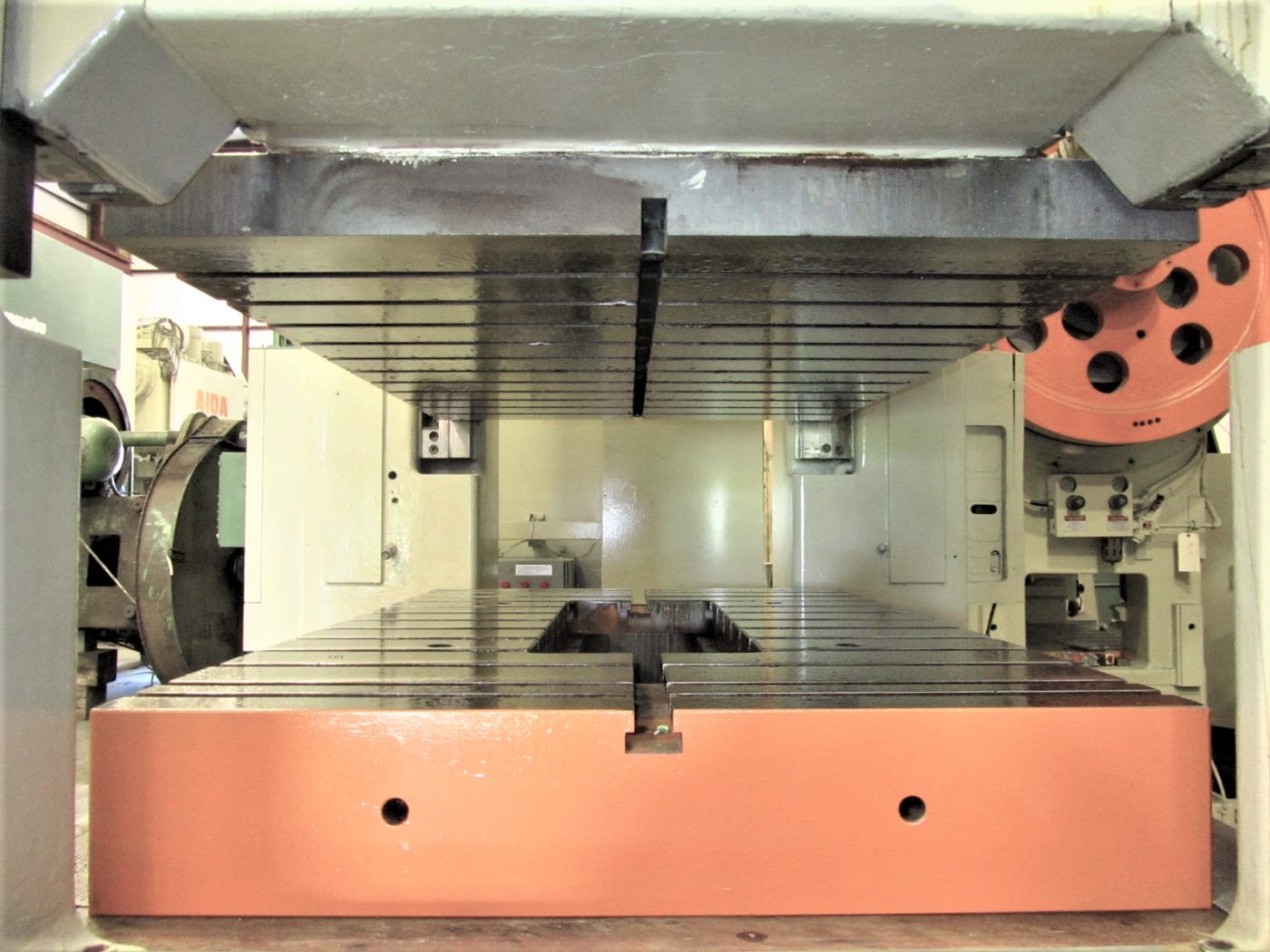

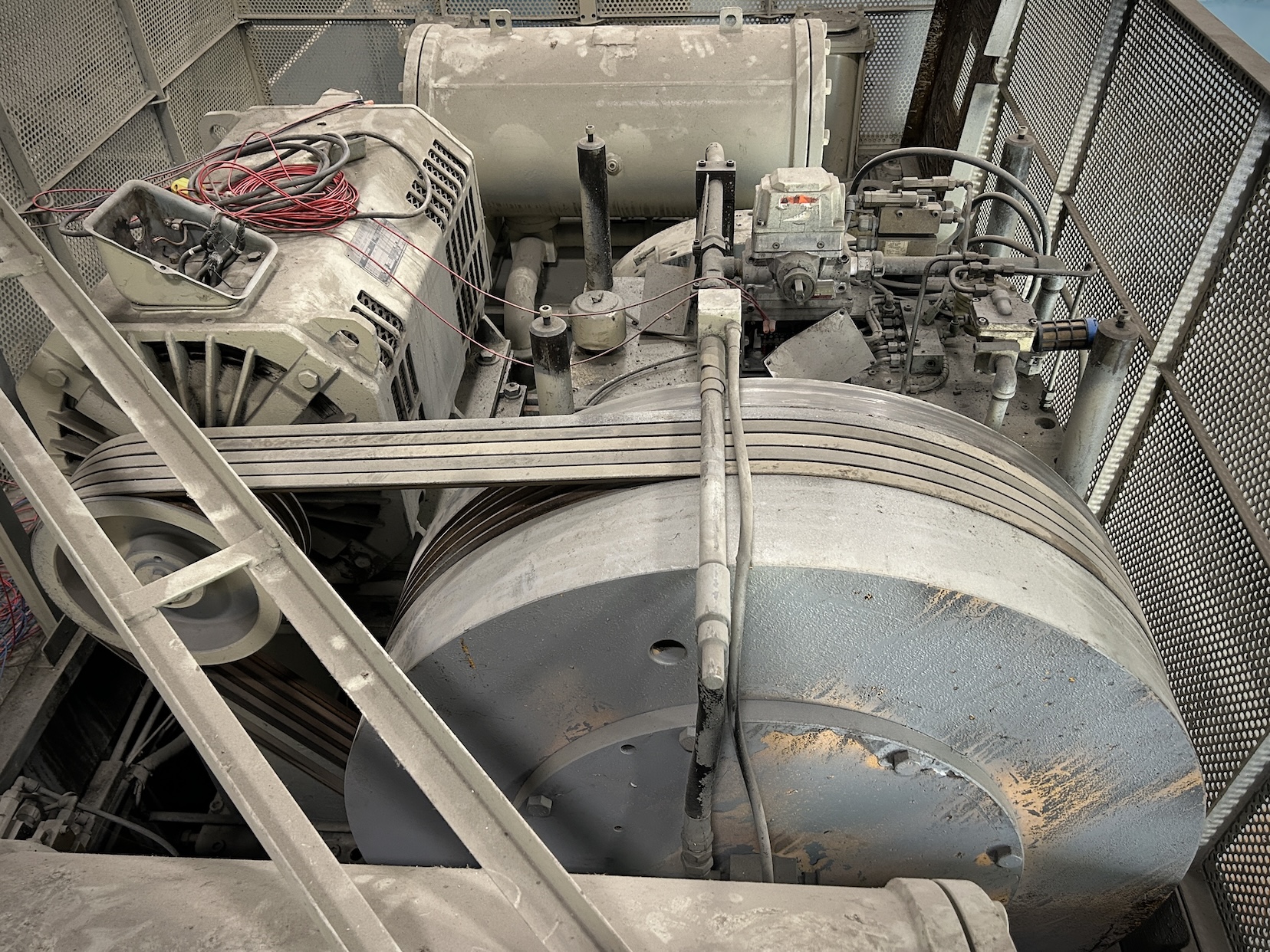

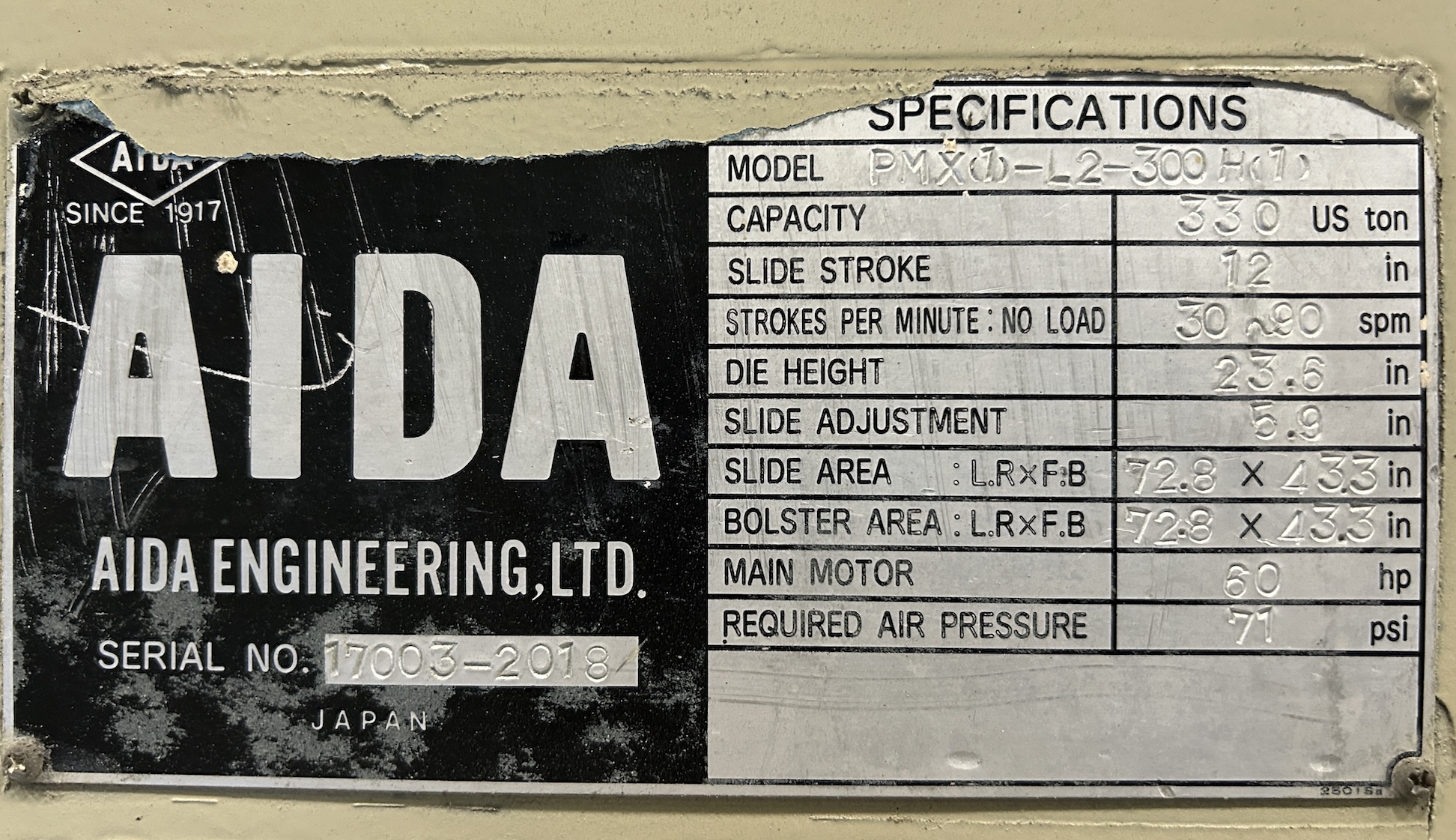

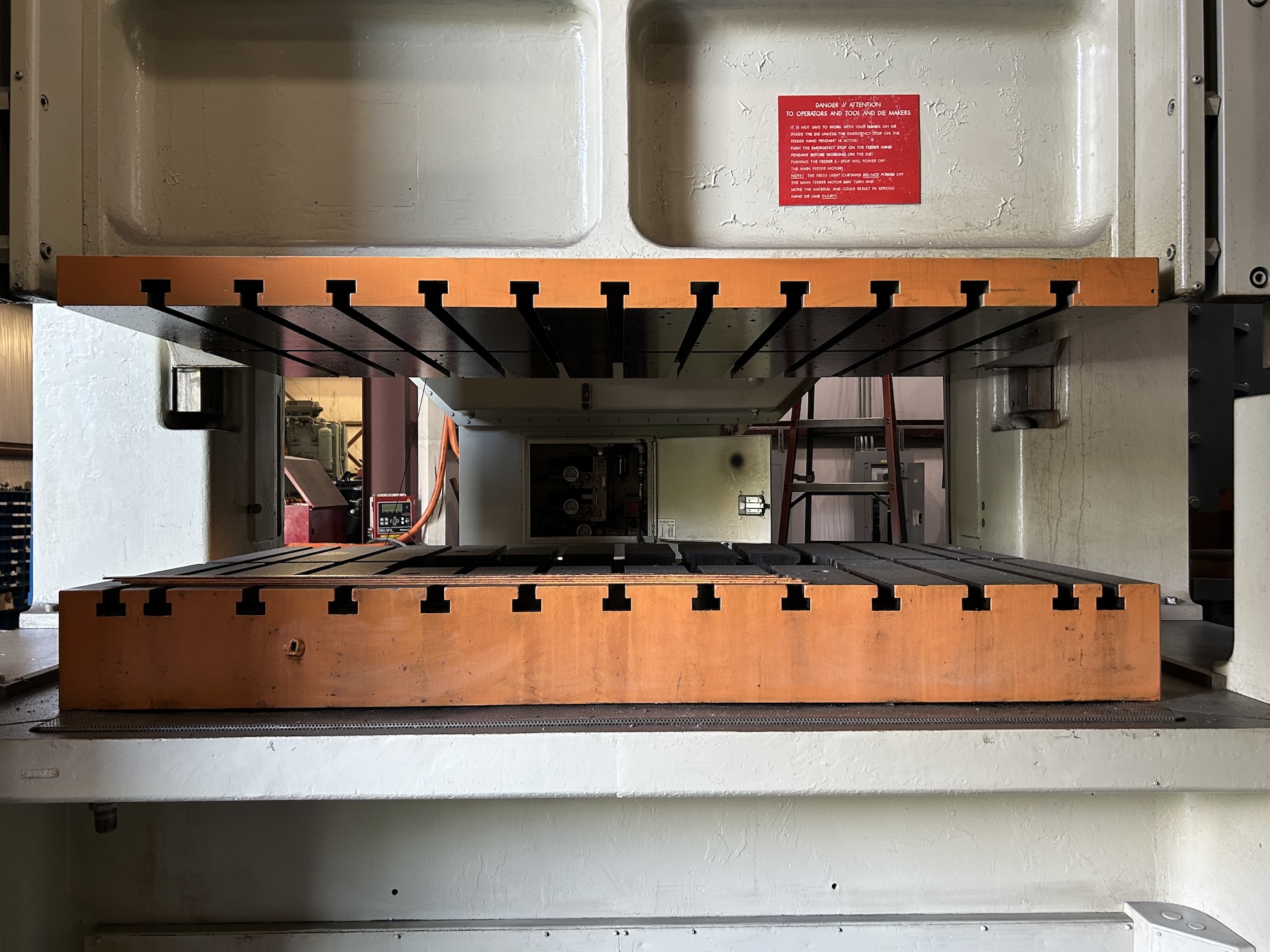

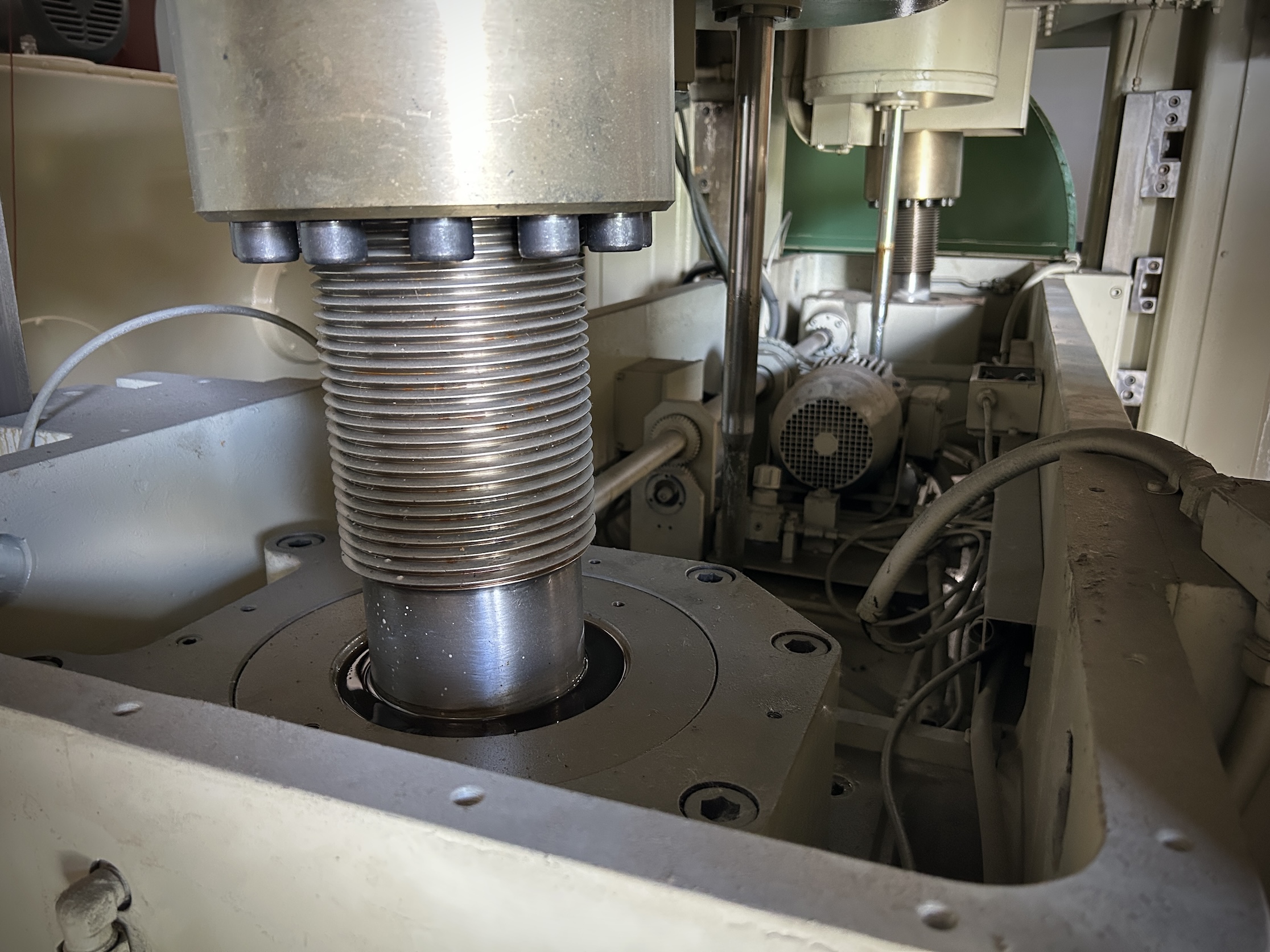

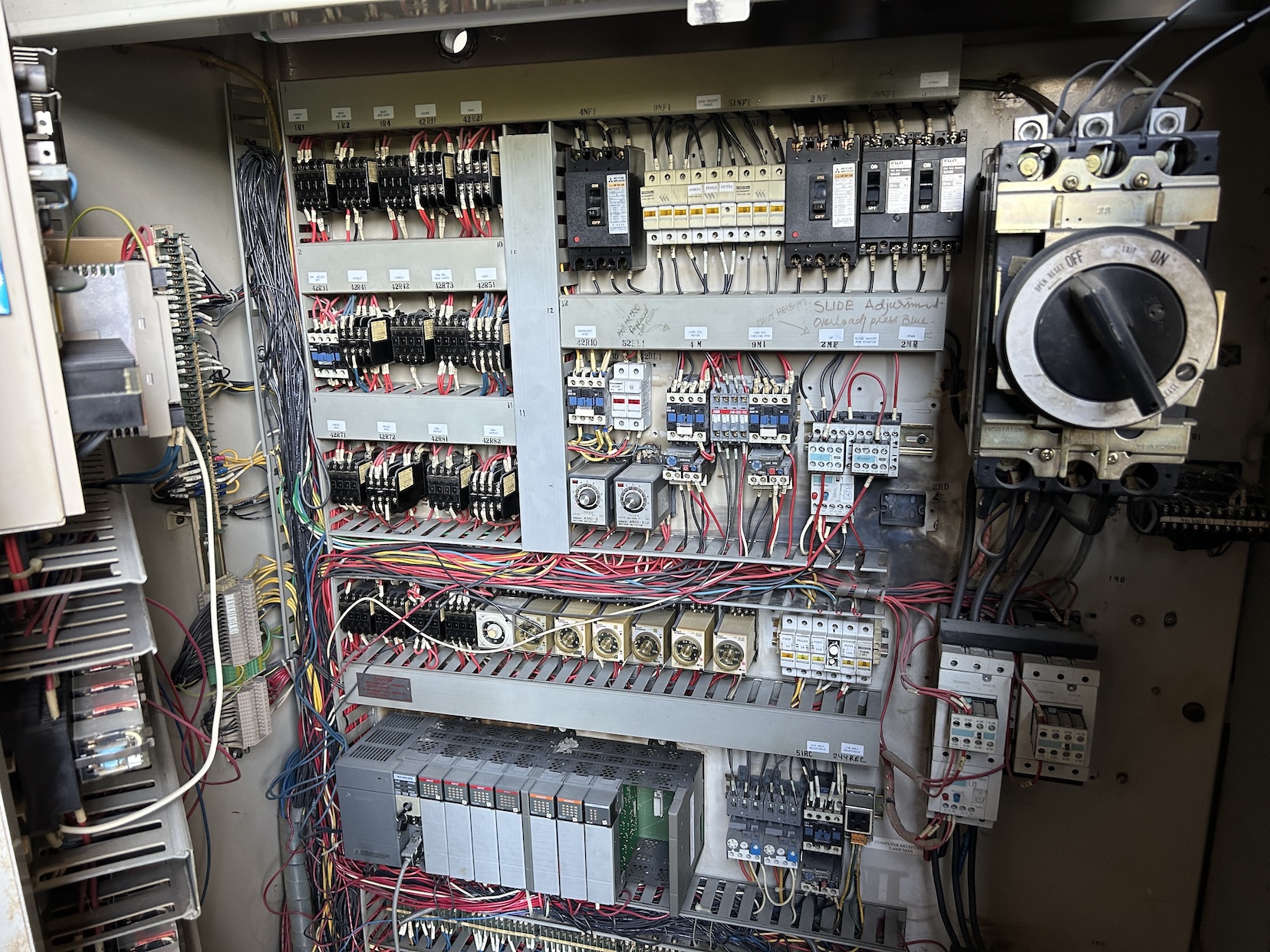

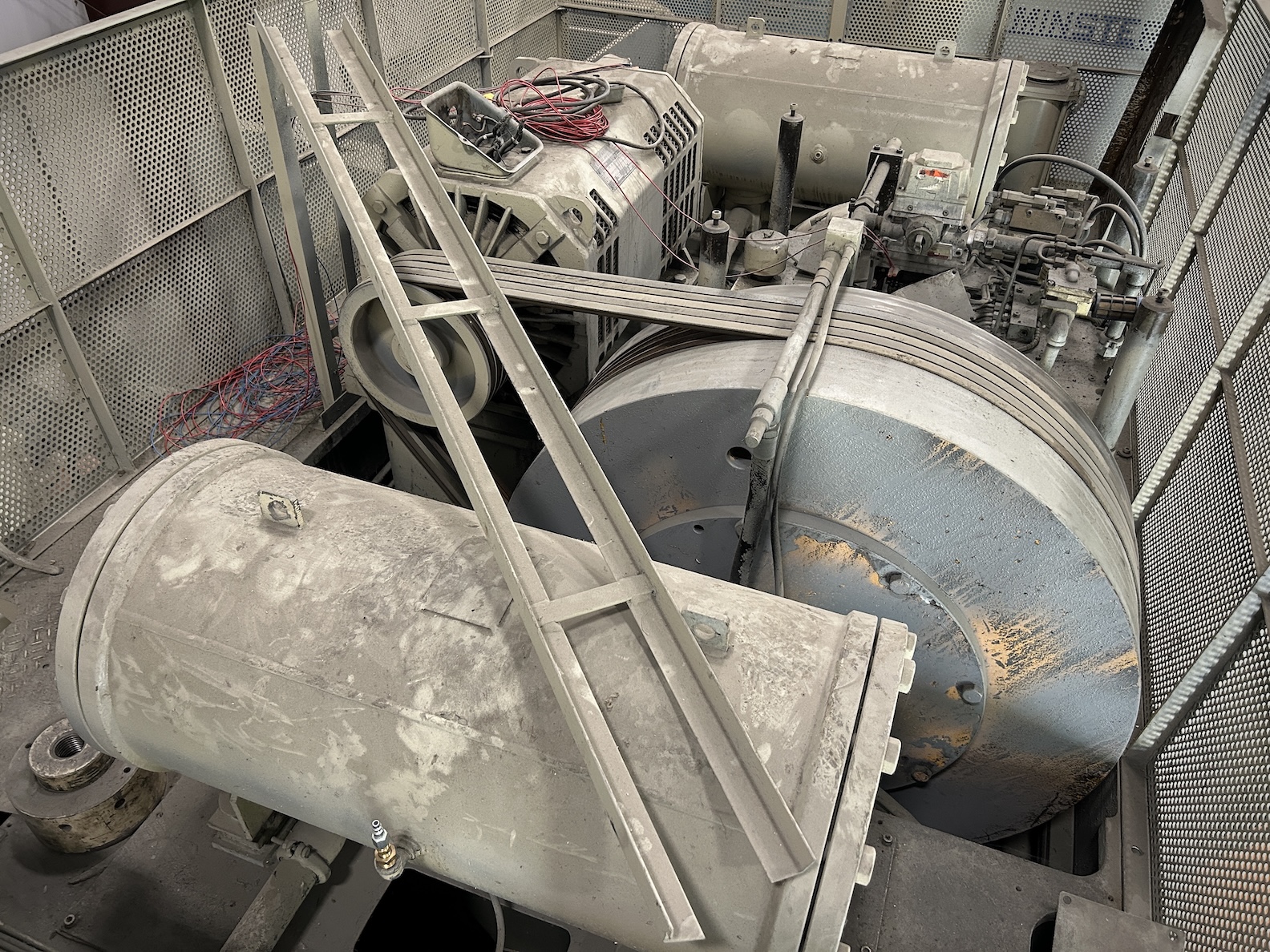

| CAPACITY | 330 TON US TONS | STROKE | 12" | MAX. SHUT HEIGHT TO BED | 31.4" SDAU (23.6" OVER BOLSTER) | BED AREA | 72.8" X 43.3" (RL X FB) 86" X 58" OVERALL | SPEED | 30 - 90 SPM | slide area | 72.8" RL X 36" FB (W/8 PT. GIBBING) | slide adjustment | 5.9" MOTORIZED | BOLSTER SIZE | 7.8" X 72.8" RL X 43.3" FB (T-SLOTTED) | DIST. UPRIGHTS / FLOOR TO BED | 86" / 54" (WITH ISOLATION PADS) | WINDOW SIZE | 36" WIDE | CLUTCH | AIDA AIR CLUTCH & BRAKE | ELECTRICS | 60 HP 1750 RPM 575V-3-60 MOTOR & CONTROLS | APPROX. DIMENSIONS | 234" H X 162" RL X 104" fb (WITH ISOLATION PADS) | APPROX. WEIGHT | 130,000 LBS | Equipped With | Blanchard ground bolster, rebuilt HYDRAULIC OVERLOADS, REBUILT SLIDE, progressive link motion drive, ball type suspension points, forged eccentric shafts, dynamic balancing of slide & upper die, wide connection spacing, very low deflection tie rod frame, 8-point gibbing | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
