330 Ton Aida Used Press for Sale • Aida PMX Press

330

330
Ton
72.8″
Bed R-L
7.87″
Stroke

New in 1997

1
Straight Side Used Press
Model: Aida PMX
7.87″ STR, 21.65″ SH OB, 73X39 BED, 40-100 SPM, 3.94″ ADJ, RECONDITIONING NOW, UNDER POWER

High Speed Presses for Sale

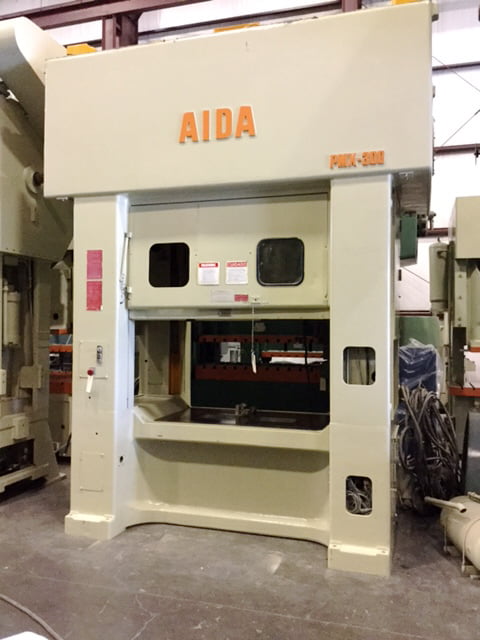

Used Aida Stamping Press (Mechanical)
Machine #5028
(Columbia, TN Warehouse)
Sale Price: $

Machine Specifications

Straight Side Used Press for Sale

Manufacturer: Aida
Aida Model: PMX-L2-300(1)-185-88
Condition: In Process
Location: Columbia, TN Warehouse
Year: 1997
Machine #: 5028
Buy Now: $




CAPACITY 330 US TONS
STROKE 7.87″
MAX SHUT HEIGHT 21.65″ OVER BOLSTER
BED AREA 72.83″ RL X 39.37″ FB
SPEED 40 – 100 SPM
RAM ADJUSTMENT 3.94″
RAM AREA 72.83″ RL X 34.65″ FB (T SLOT)
BOLSTER PLATE 7.87″ H X 72.83″ RL X 39.37″ FB
DIST UPRIGHTS / FLOOR TO BED 86″ / 54″ WITH ISOLATION PADS
WINDOW SIZE 35-1/2″ W
CLUTCH AIDA AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 50 HP 1800 RPM 240-3-60 EDDY CURRENT MOTOR & AIDA RELAY CONTROL
APPROX DIMENSIONS 19′ H X 11.5′ RL X 10′ FB
APPROX WEIGHT 110,000 LBS
Equipped With TIE ROD FRAME CONSTRUCTIONS, AIR COUNTERBALANCED RAM
Note __
Location This used press is located in our Columbia, TN Warehouse
