40,000 lb x 96″ W Bushman Coil Upender

144

40,000
Coil Capacity
96
Coil Width
96
Coil O.D.

New in 2004

1
Model CR40000
96″ O.D., 96″ Wide

Bushman Material Handling Machine for Sale
Used Upender
Machine #6939
Columbia, TN Warehouse
Starting Price: $
Machine: 6939 Categories: , Manufacturer:

Machine Specifications

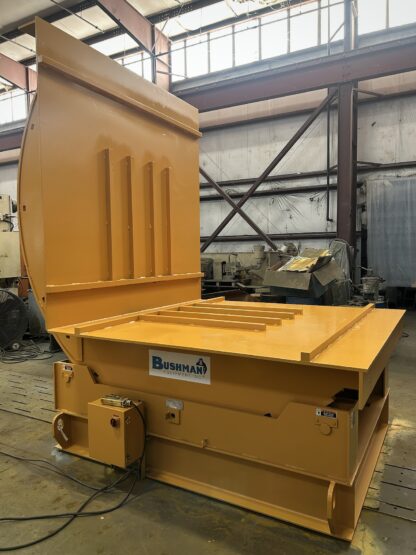

Used Tilter for Sale

Bushman Model: CR40000
Condition: Very Good
Location: Columbia, TN Warehouse #6939
Year: 2004
Buy Now: $





COIL CAPACITY 40,000 LBS.
MAX. CENTER OF LOAD 12.75″ FROM CENTER OF ROTATION
MAX COIL WIDTH 96″
MAX COIL O.D. 96″
PLATFORM SIZE 96″ X 96″ X 96″
COIL HEIGHT 96″
TABLE ROTATION 90 DEGREES (35 SECONDS WITH LIMIT SWITCH STOPS & MECHANICAL STOPS)
ELECTRIC MOTOR 7.5 HP 1750 rpm 240/480v-3-60 brake motor & gear reducer drive WITH DOUBLE OUTPUT PINION & GEAR TO SPROCKET & ROLLER CHAIN ON O.D.
APPROX. DIMENSIONS shipping dimensions when v is near floor 96″ h x 98″ w x 148″ l
APPROX. WEIGHT 22,000 lbs

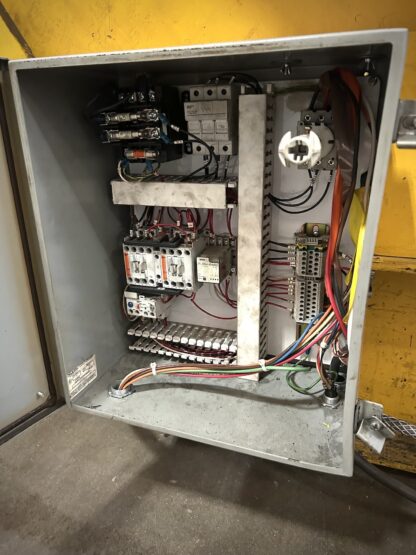

Equipped With pendant control, heavy welded steel frame construction, limit switches, two locking pins for shipping, floor standing
Note __
Location This Used Bushman CR40000 Tilter is located in our Columbia, TN Warehouse

Looking for a complete feed line? We can easily piece one together for you.
