700 Ton Standard Press • Used Standard DCSS700 Press

700

700
Ton
55"
Bed R-L
12"
Stroke
Speed: - SPM
Model: DCSS700 Standard

1
Year: 2003
12" Maximum Stroke, 21" Daylight, 55" x 40" Bed Area

High Performance Hydraulic Press for Sale
Used Industrial Hydraulic Presses
Used Standard Hydraulic Press for Sale
Machine #8516
**On Location**
Sale Price: $
Machine #: 8516 Categories: , , Manufactuer:

Description

High Performance Hydraulic Press • Used 700 Ton Press for Sale

Model: Standard DCSS700 Press
Condition: Very Good
Location: **On Location**
Year: 2003
Machine #: 8516
Buy Now: $





forming capacity 700 ton
punching capacity 350 ton
ram size 40" X 38" (RL X FB)
bed size 55" X 40" (RL X FB)
FLOOR TO BED HEIGHT 41"
distance between housings 55"
max stroke length 12"
max daylight 21"
closed height (minimum) 9"
speeds fast approach - 65 ipm / pressing - 15 ipm / return - 87 ipm
PRESS CONTROLS __
hydraulic SYSTEM __
ELECTRIC MOTOR 100 HP
approx dimensions 96" X 120" (RL X FB) X 240" HIGH
approx weight 115,000 lbs.

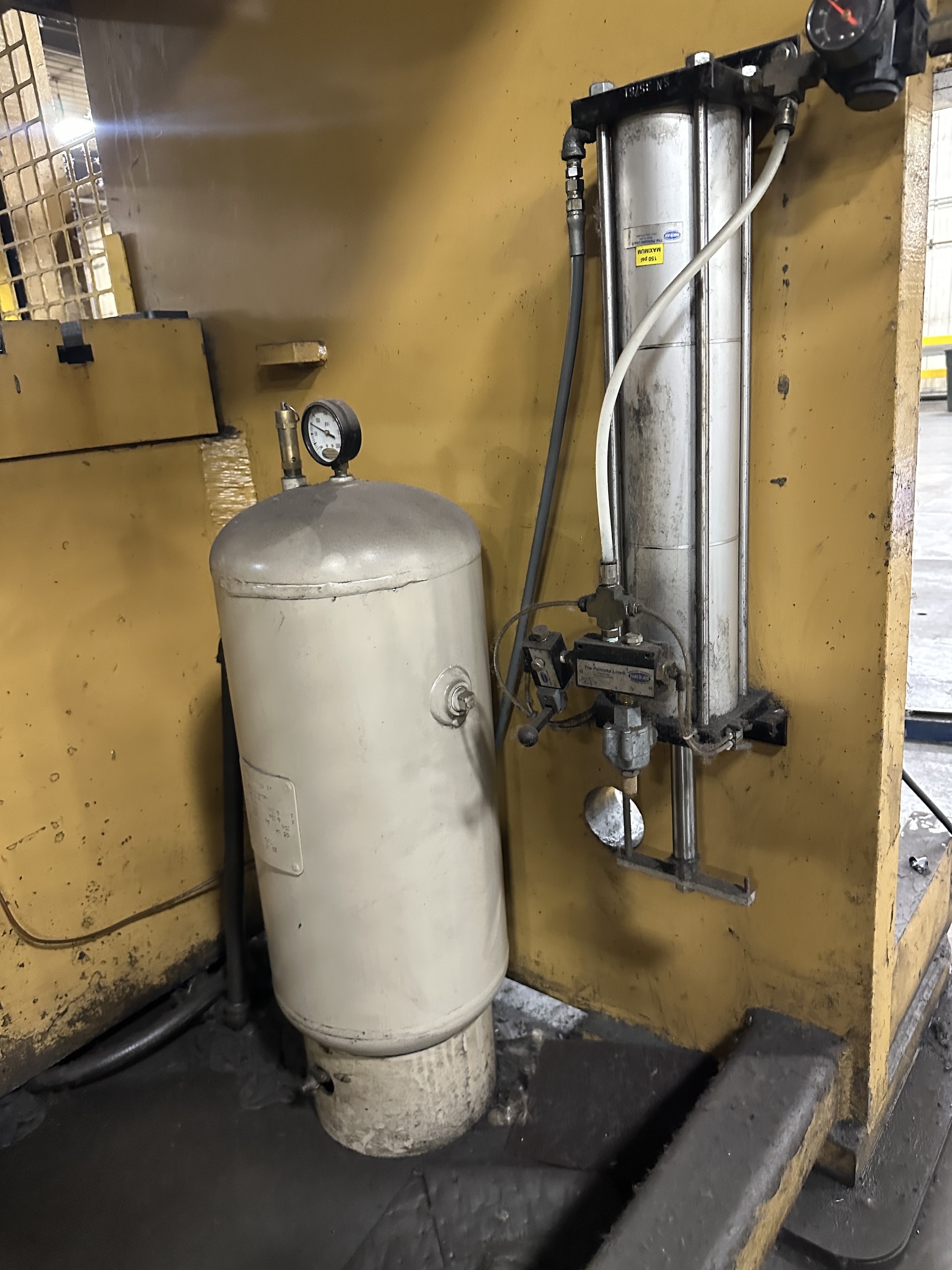

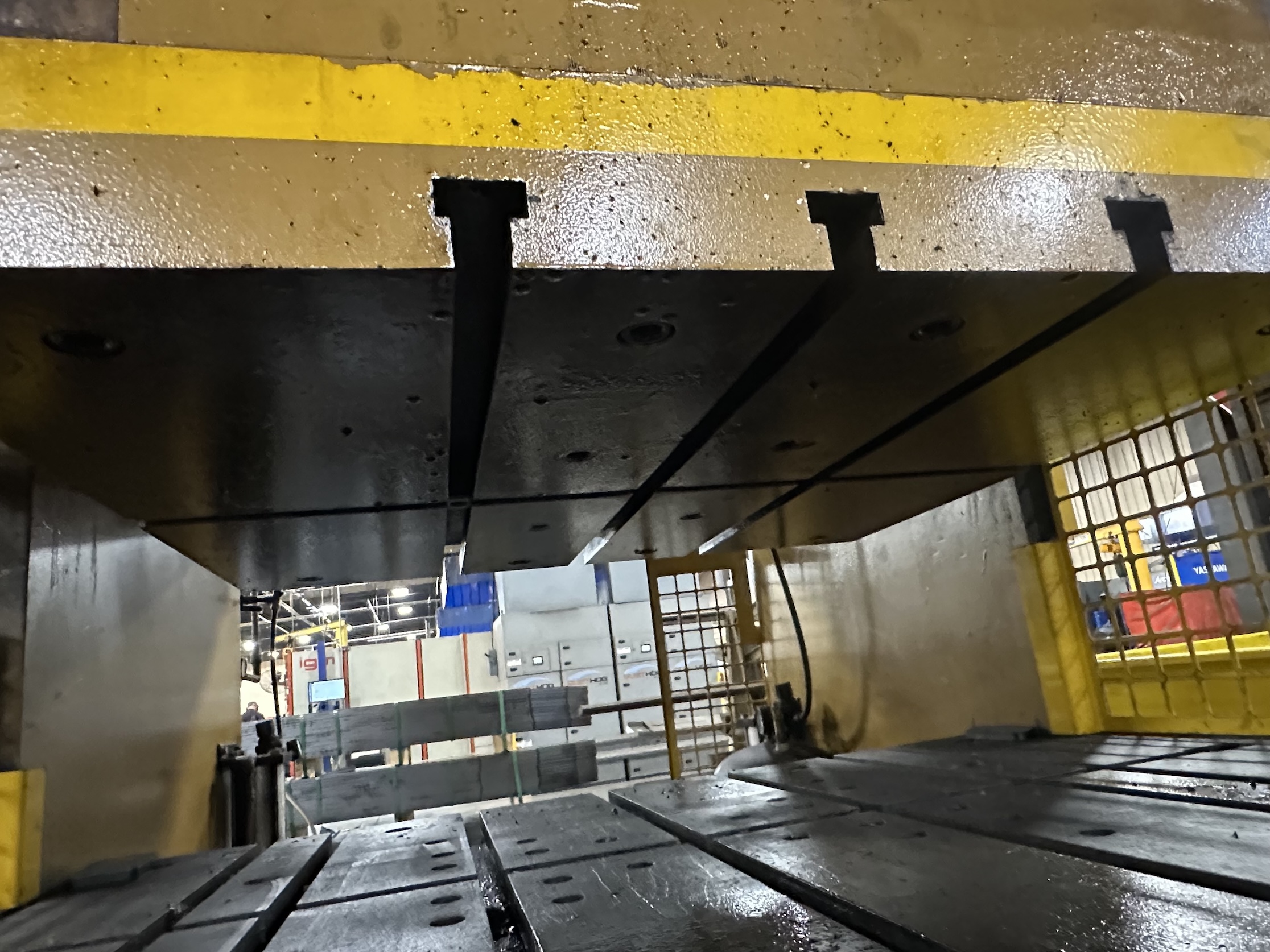

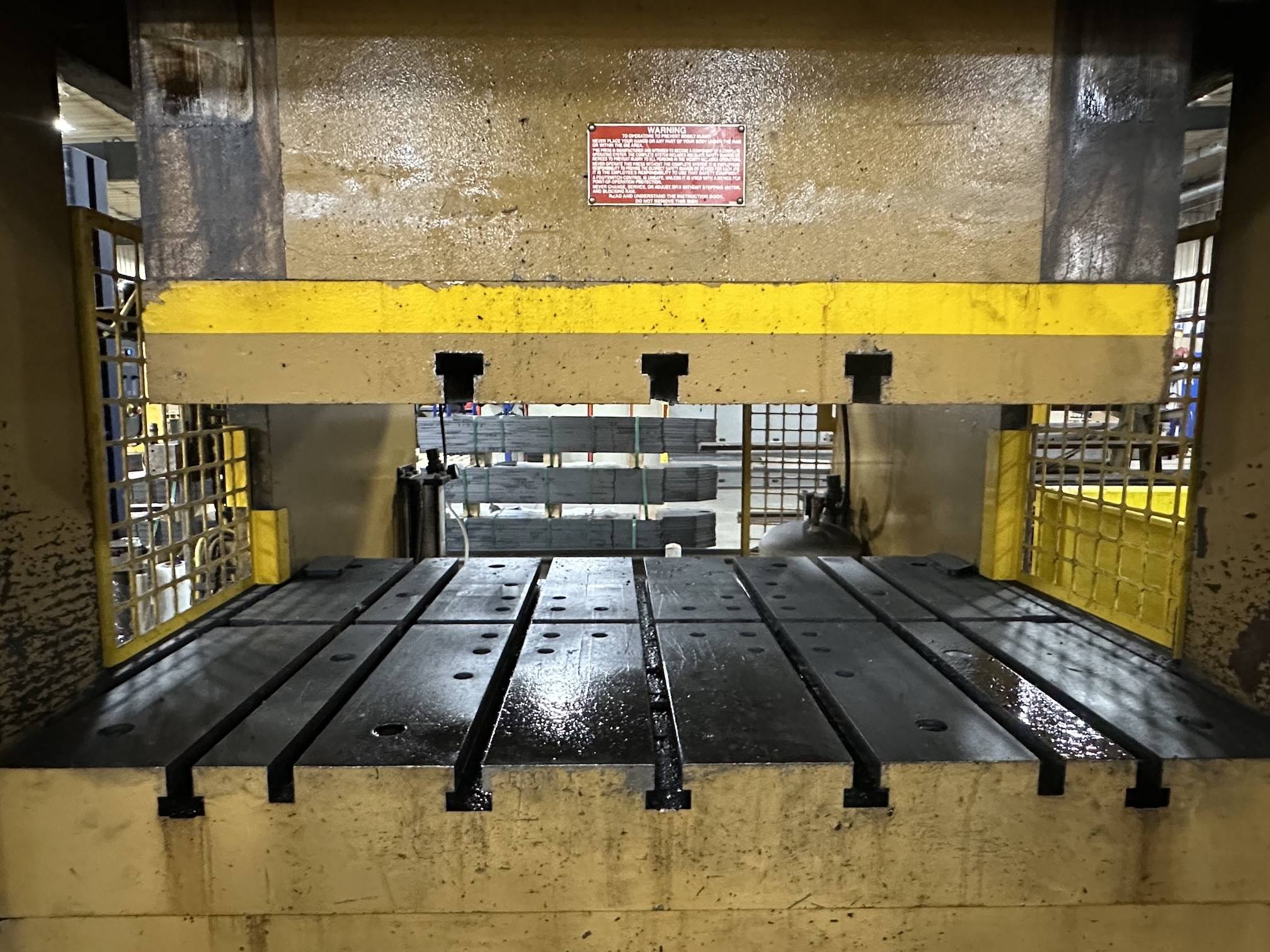

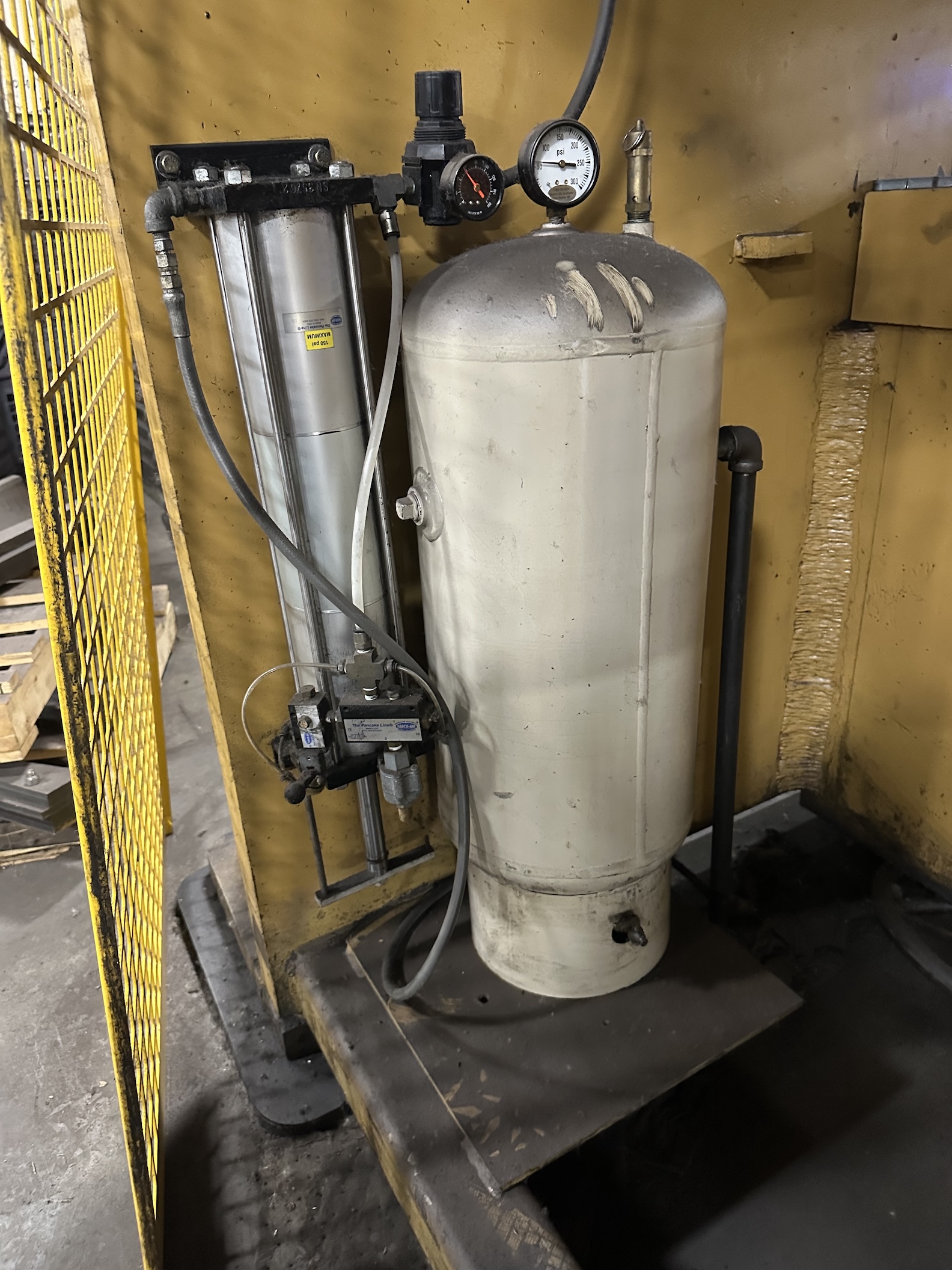

Equipped With air counterbalance cylinders, removable bed & bed plates with t-slots, removable ram plate. press was remanufactured in 2008.
Note __
Location This Used Press is Located in Our **On Location**
