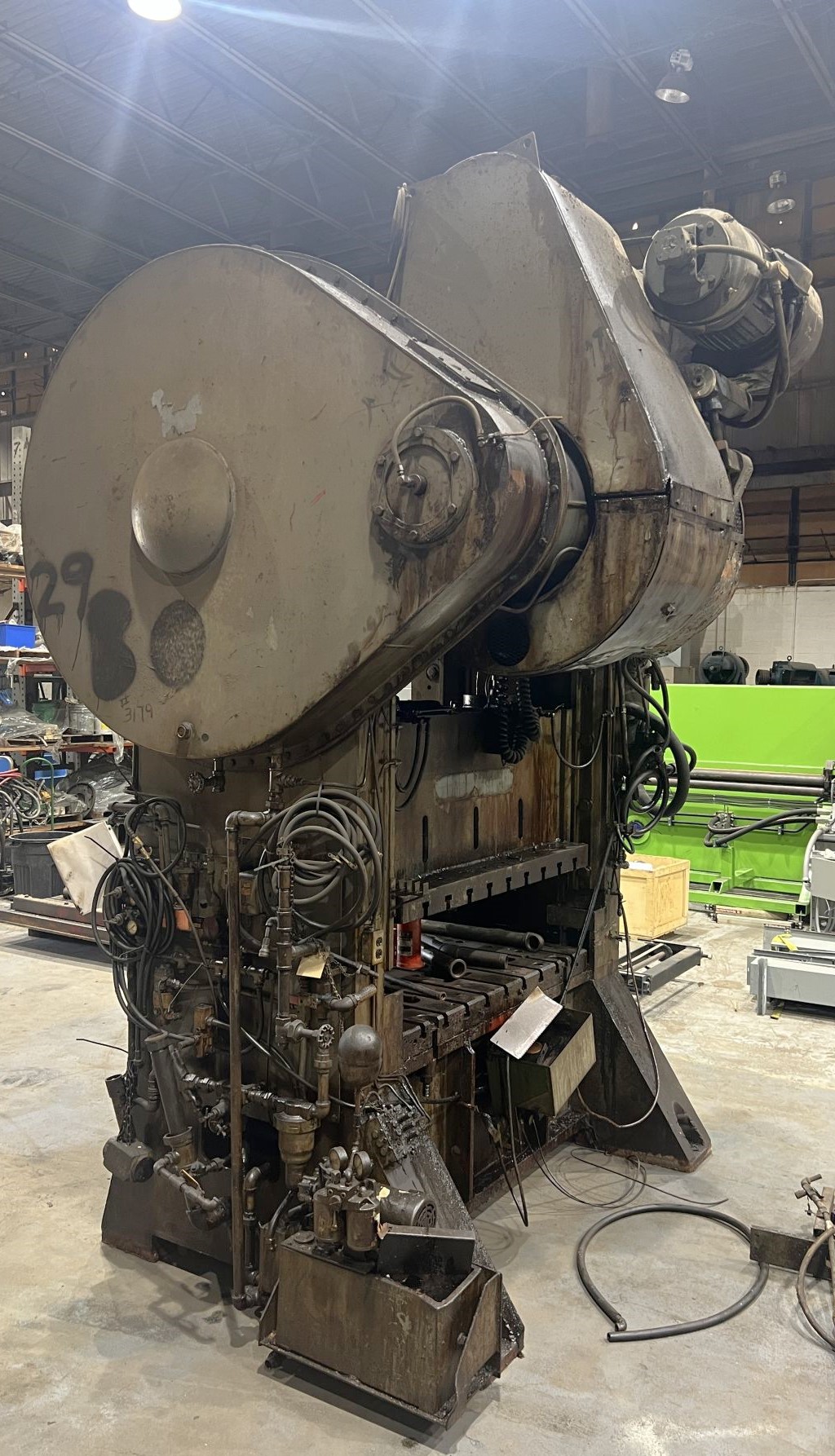

100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 2
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 3
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 4
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 5
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 6
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 7
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 8
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 9
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 10
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 11
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 12
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 13
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 14
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 15
100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press - Image 16

100 Ton U.S.I. Clearing Press • Used U.S.I. Clearing S2-100-60-36 Press

100

100
Ton
60" x 36"
Bed RL x FB
8"
Stroke
Speed: 40-80 SPM
Speed range
Model: S2-100-60-36 U.S.I. Clearing

1
Year: 1
8" Stroke, 20" Shut Height, 60" x 36" Bed, 40-80 SPM, Air Clutch, Cushion in Bed of Press

Straight Side Press for Sale
Used Stamping Presses
Used U.S.I. Clearing Mechanical Press for Sale
Machine #3179
Jackson, MI Falahee Building
Sale Price: $9,950
Machine #: 3179 Categories: , , , Manufacturer:

Description

Straight Side Press • Used 100 Ton Press for Sale

Machine #
3179
Condition
Very Good
Location
Jackson, MI Falahee Building
Year
Year Unknown
Model
U.S.I. Clearing S2-100-60-36
Buy Now: $9,950

CAPACITY 100 TON
STROKE 8"
MAX. SHUT HEIGHT TO BED 20" SDAU
BED AREA 60" X 36" (RL X FB)
SPEED 40 - 80 SPM W/REEVES DRIVE
slide area 60" RL X 36" FB T-SLOTTED
slide adjustment 6" MOTORIZED
BOLSTER SIZE 60" X 36" (RL X FB) X 4" THICK T-SLOTTED BOLSTER PLATE
WINDOW SIZE 19" WIDE X 15" HIGH
CLUTCH CLEARING AIR CLUTCH AND BRAKE

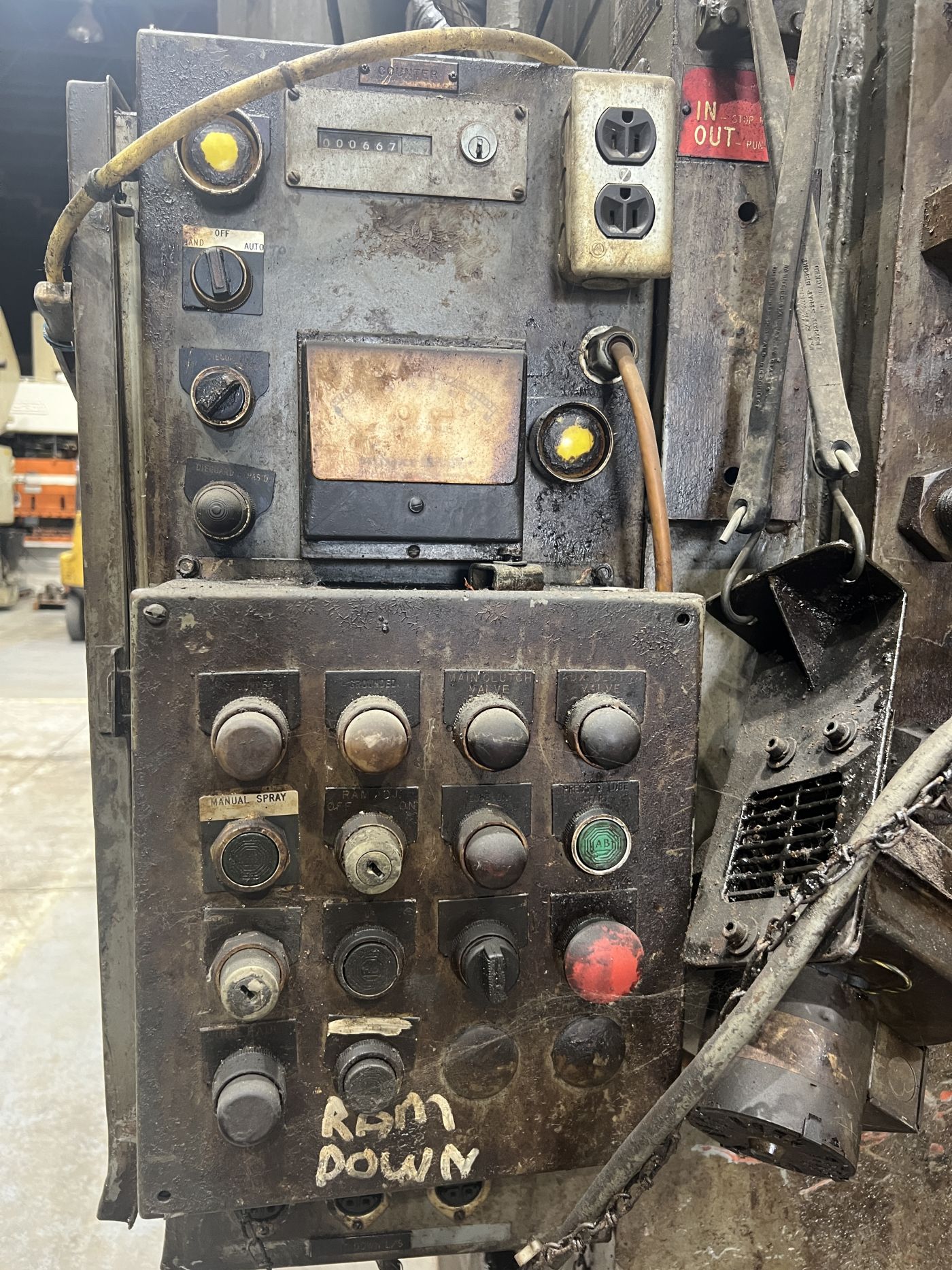

ELECTRICS VARIABLE SPEED DRIVE AND CONTROLS
APPROX. DIMENSIONS 110" X 84" (RL X FB) X 152" HIGH
APPROX. WEIGHT 31,000 LBS.
Equipped With AIR CUSHIONS IN BASE, TIE ROD STEEL FRAME CONSTRUCTION, SINGLE BACK GEARED - SINGLE END DRIVE, FLOOR STANDING BASE, RECIRCULATING LUBRICATION SYSTEM
Note __
Location This Used Press is Located in Our Jackson, MI Falahee Building
