Description
Used Complete Feedline for Sale
COE Model: CPR-P0-2512 / CPPS-225-12 / CPRE-M12PLUS
Condition: Very Good
Location: Columbia, TN Warehouse #8419
Year: Year Unknown
Buy Now: $

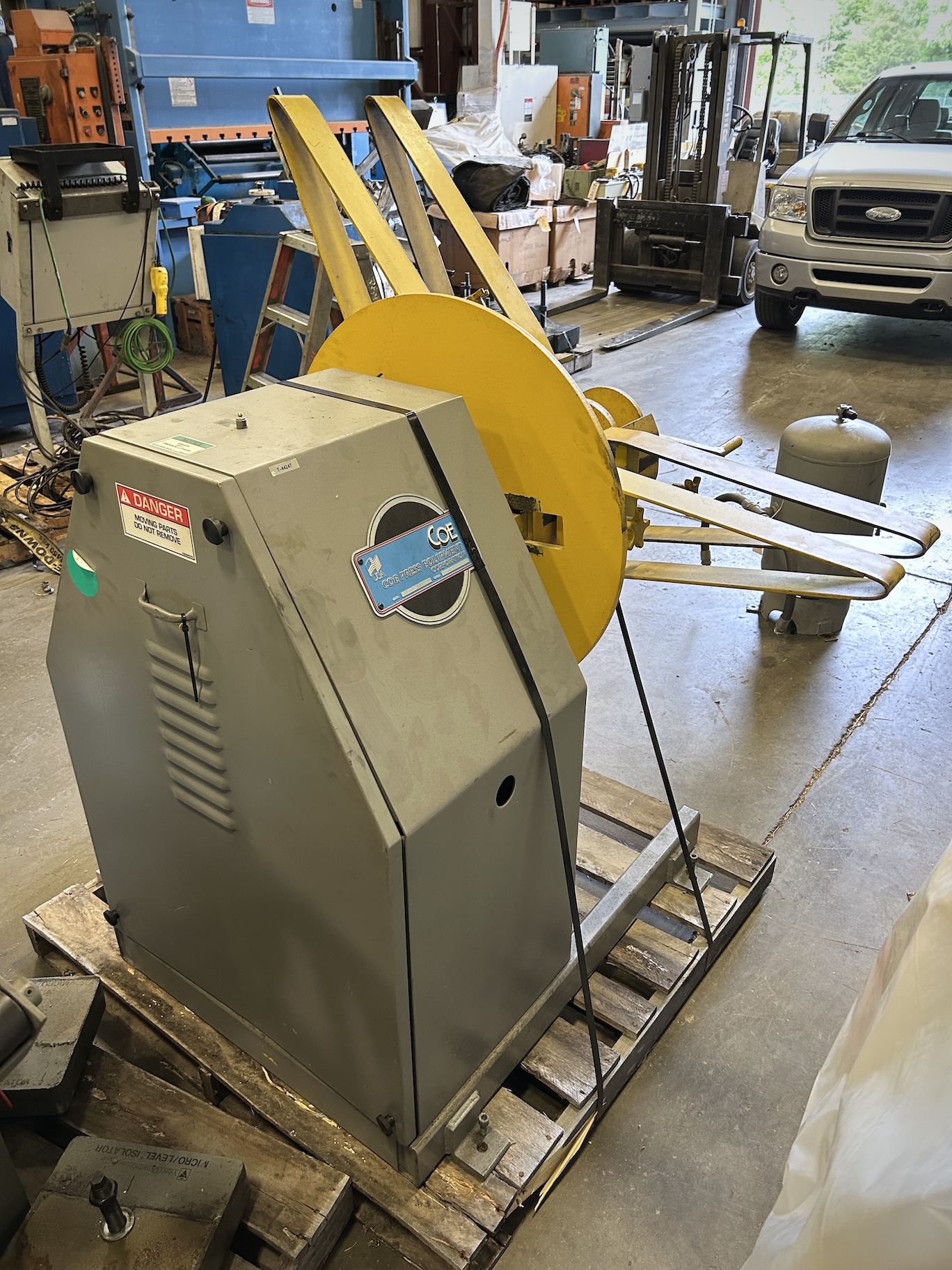

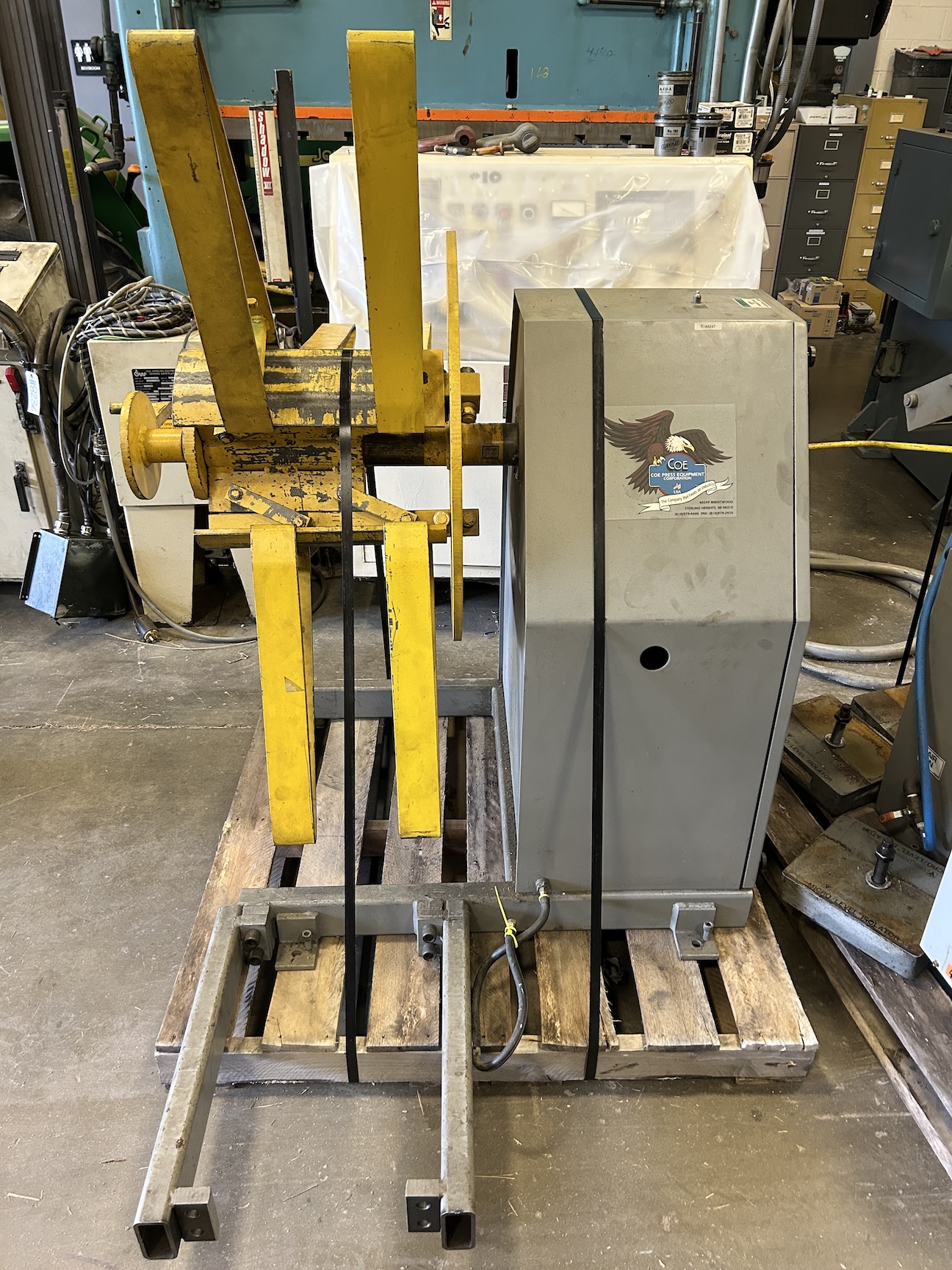

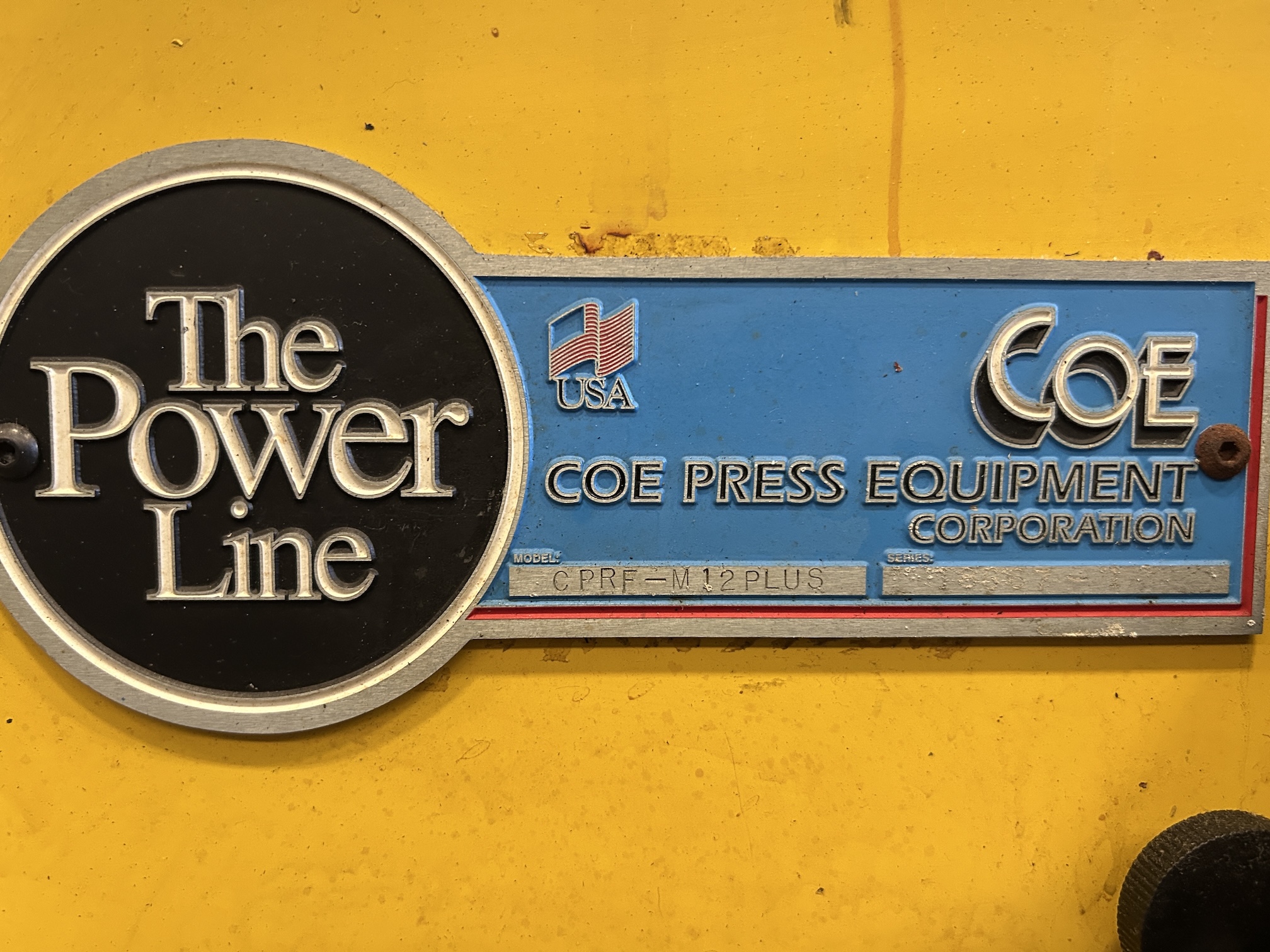

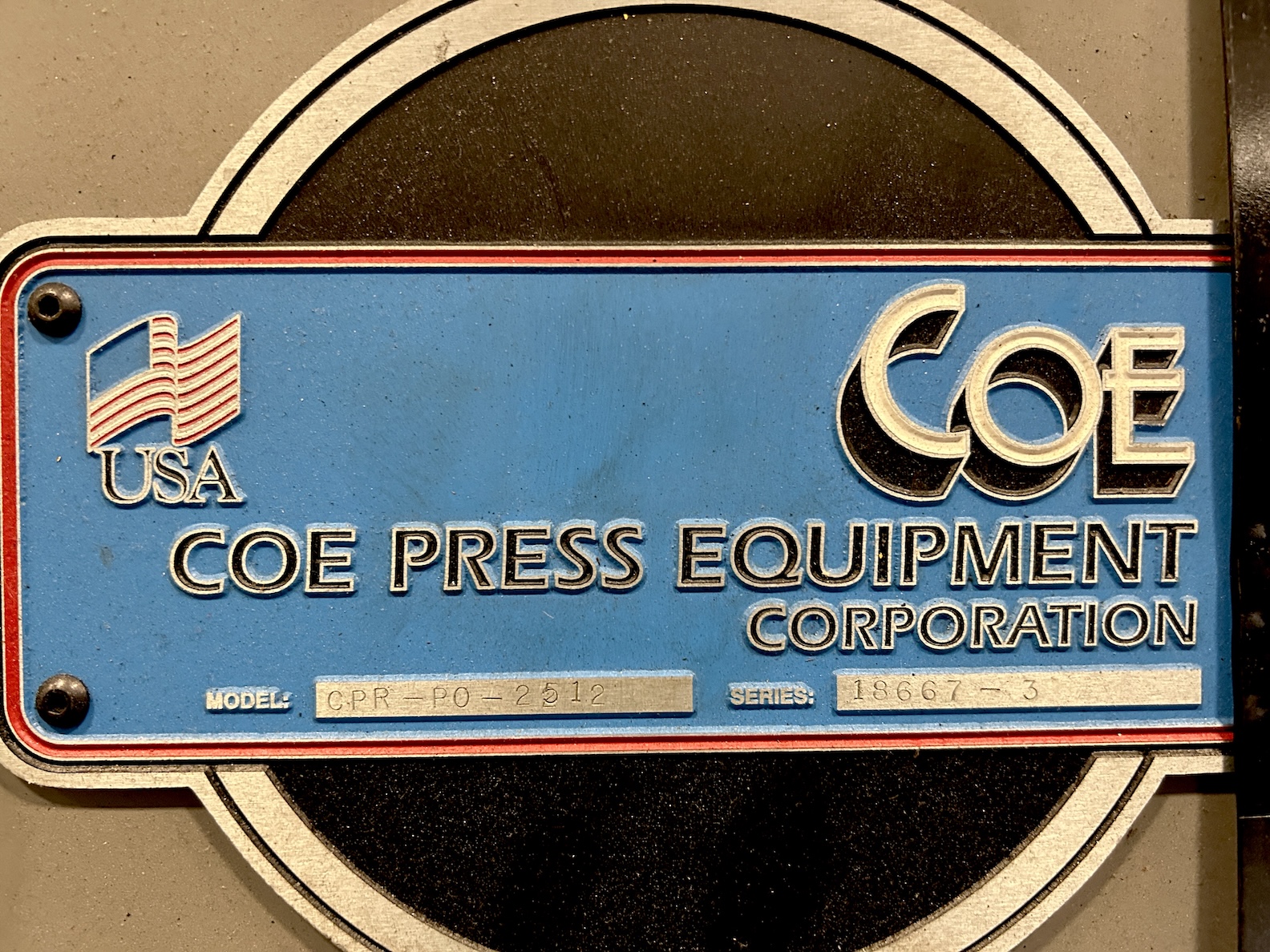

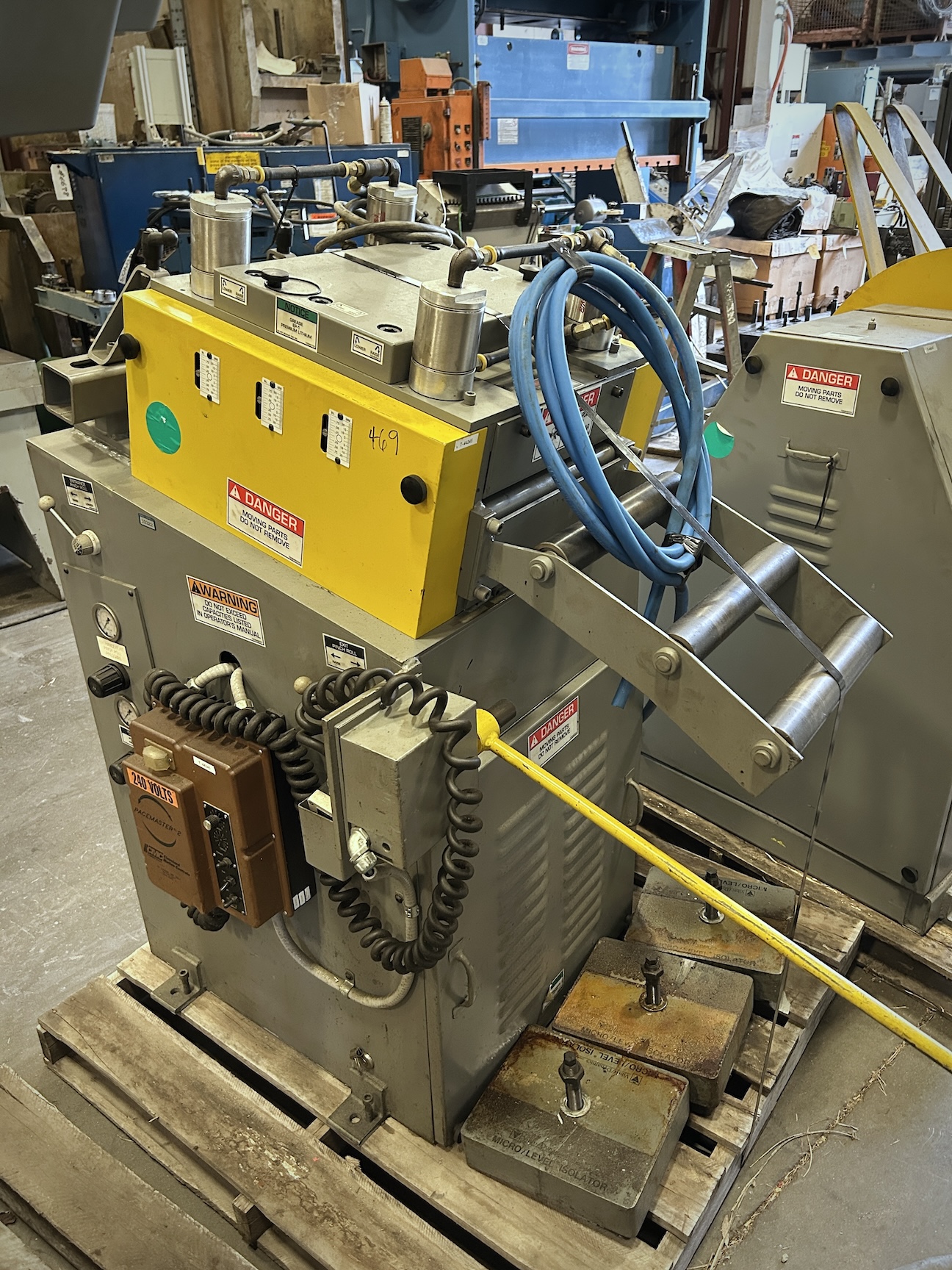

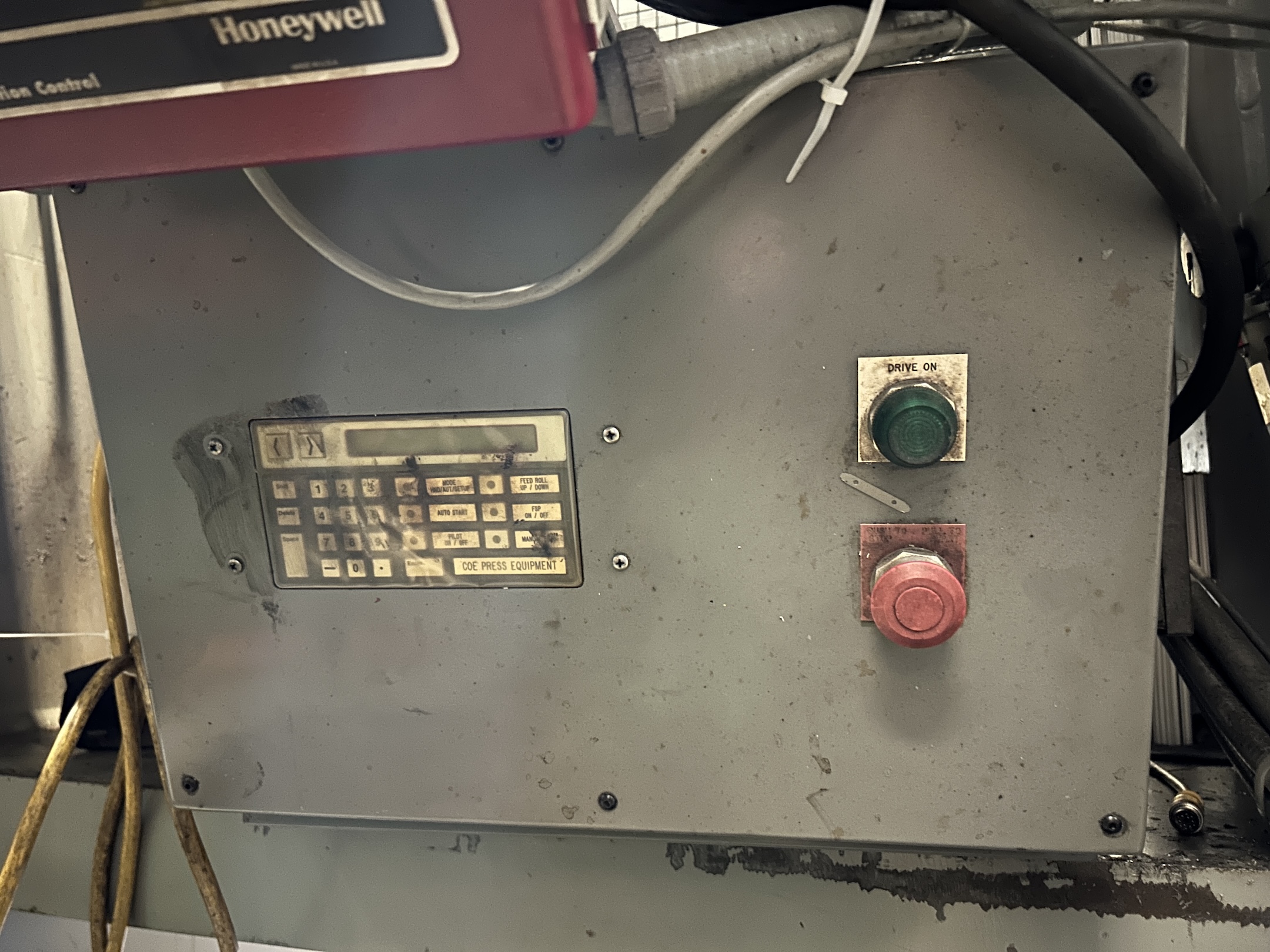

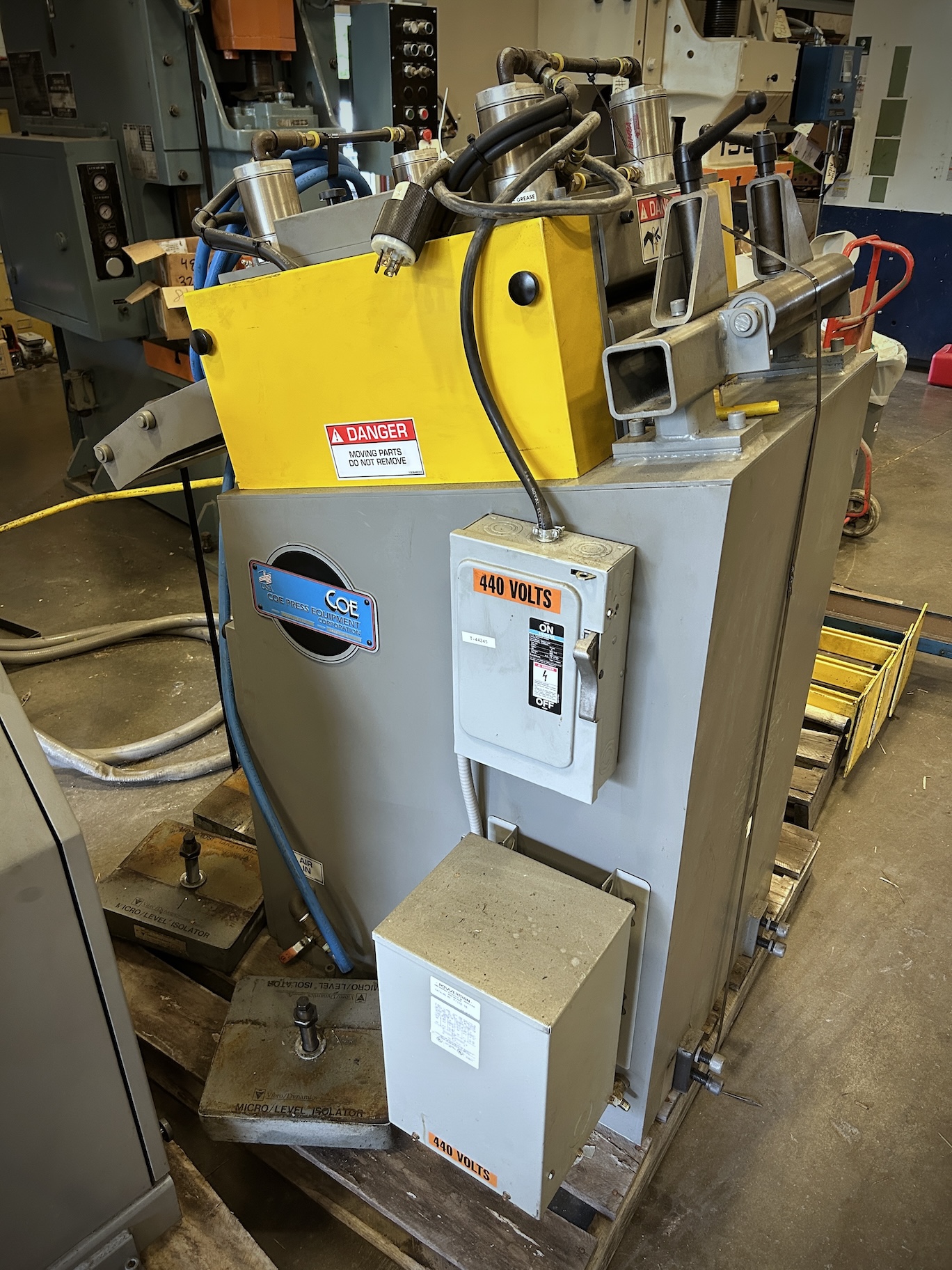

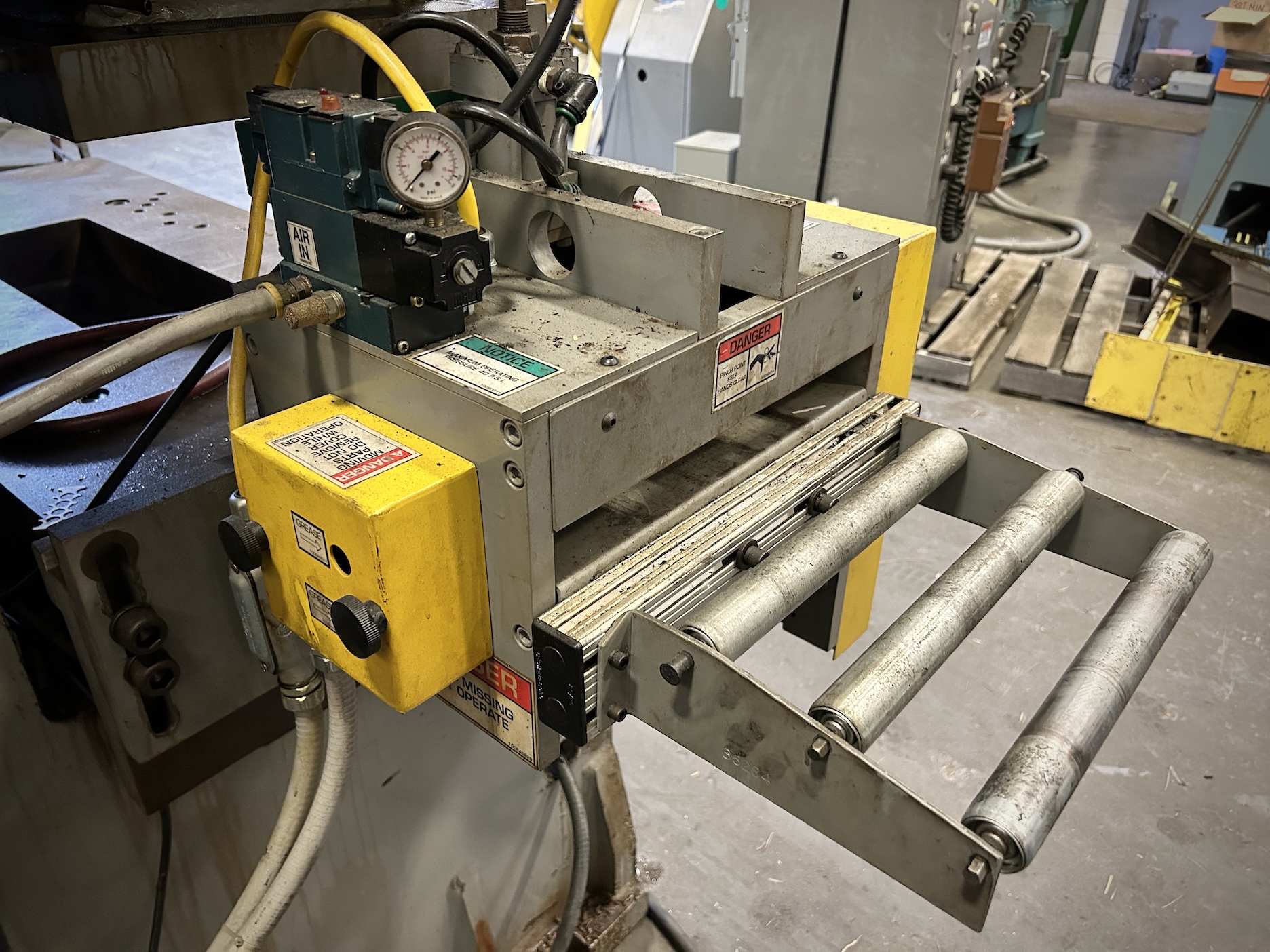

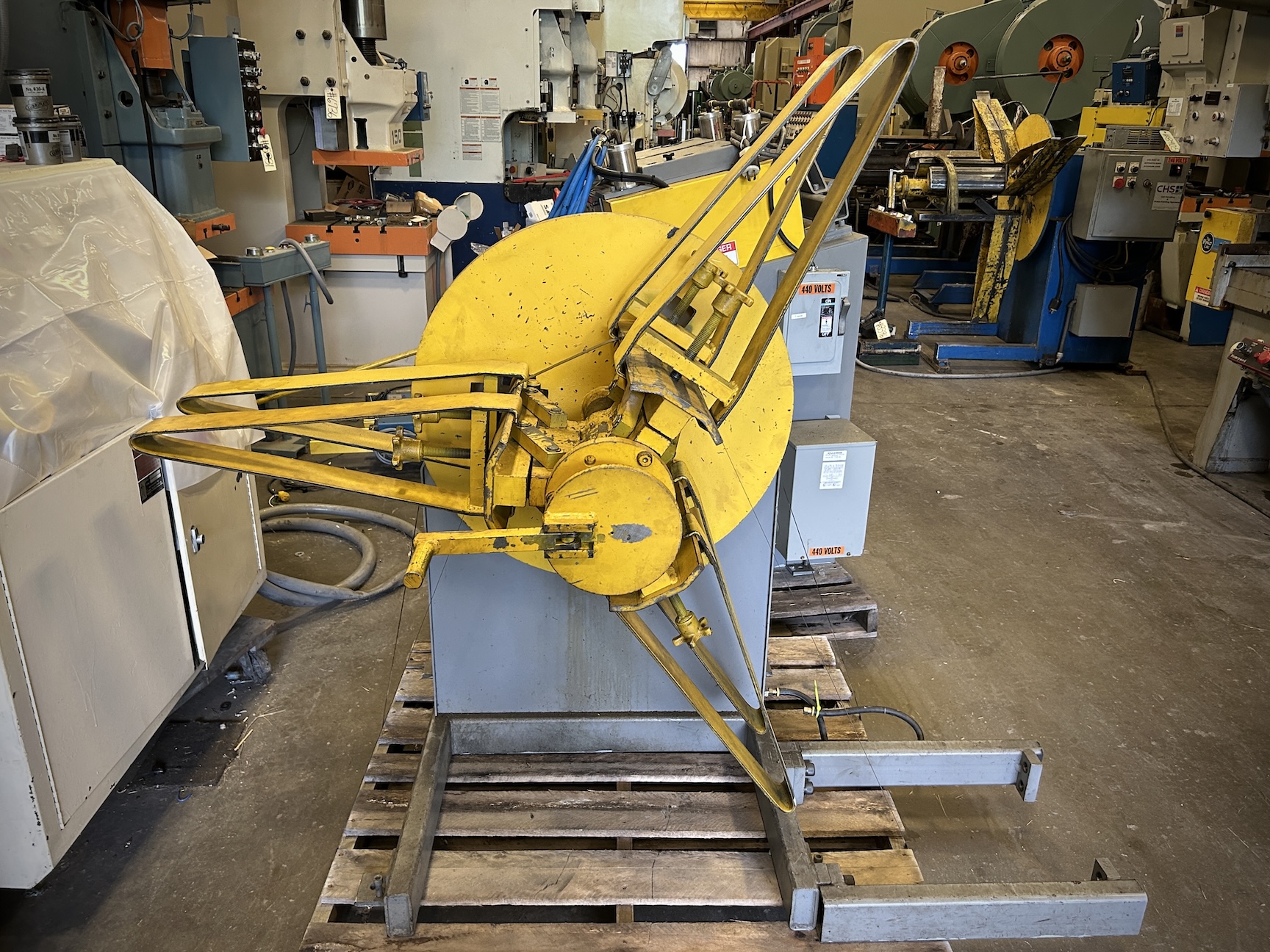

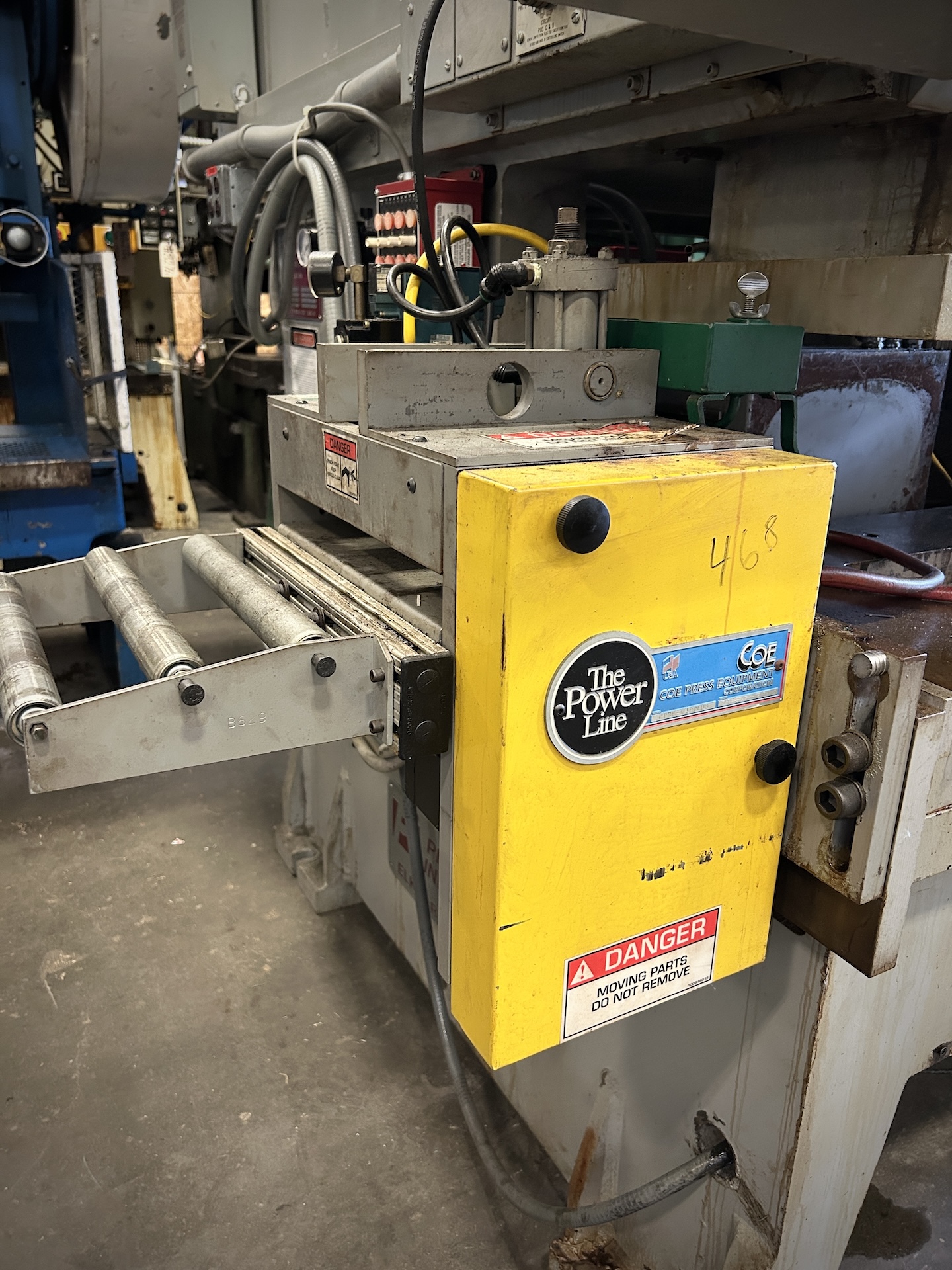

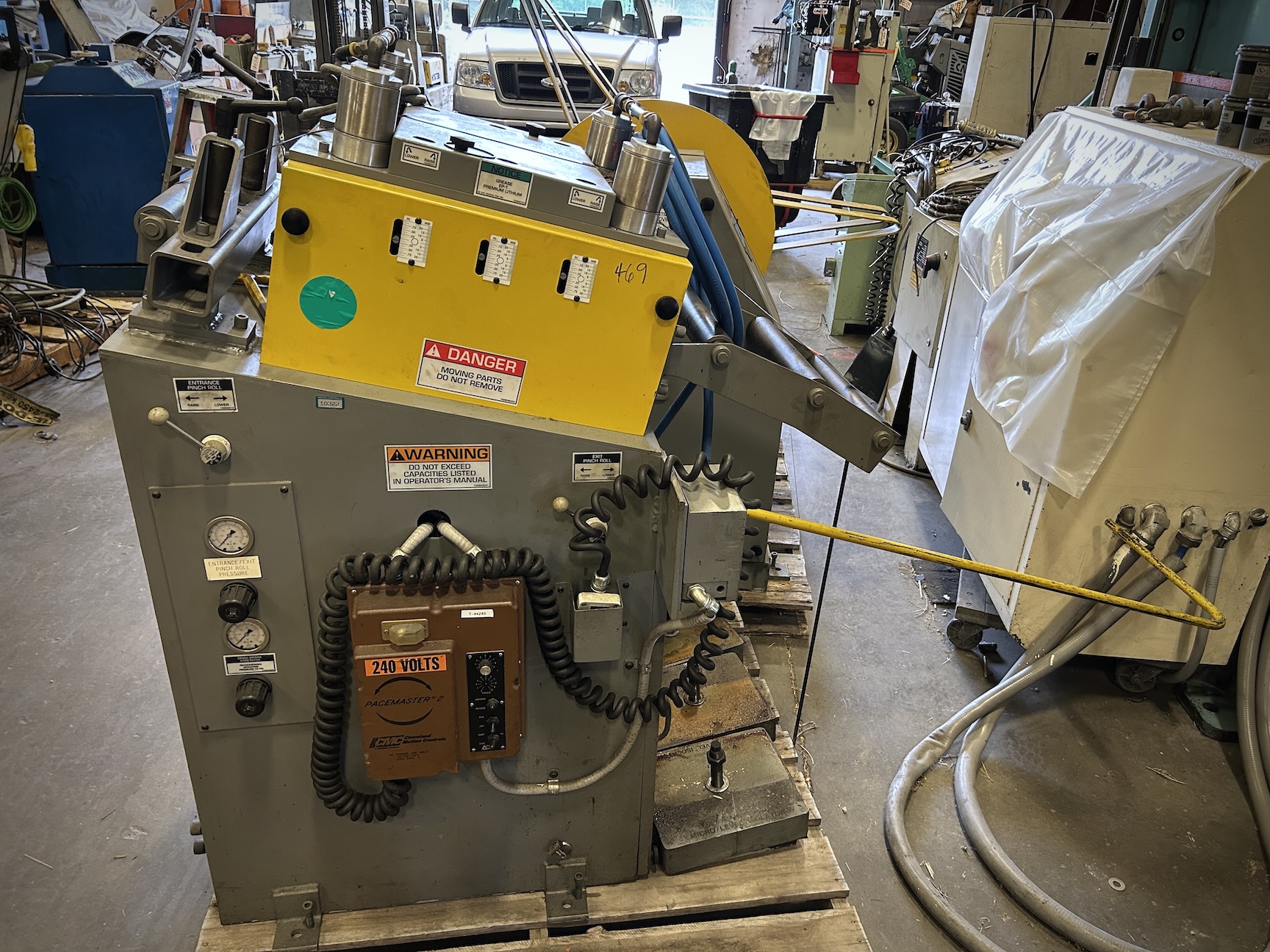

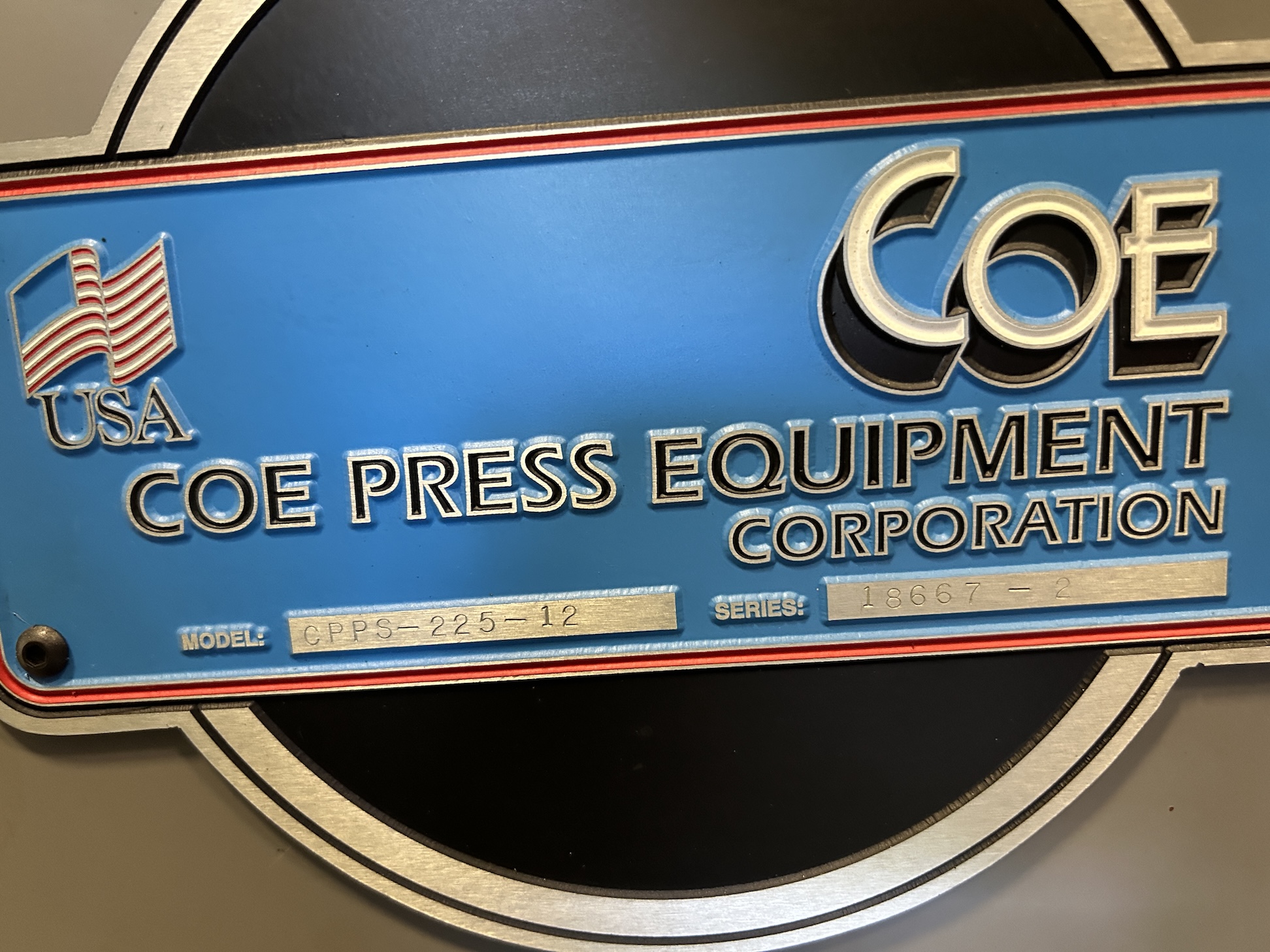

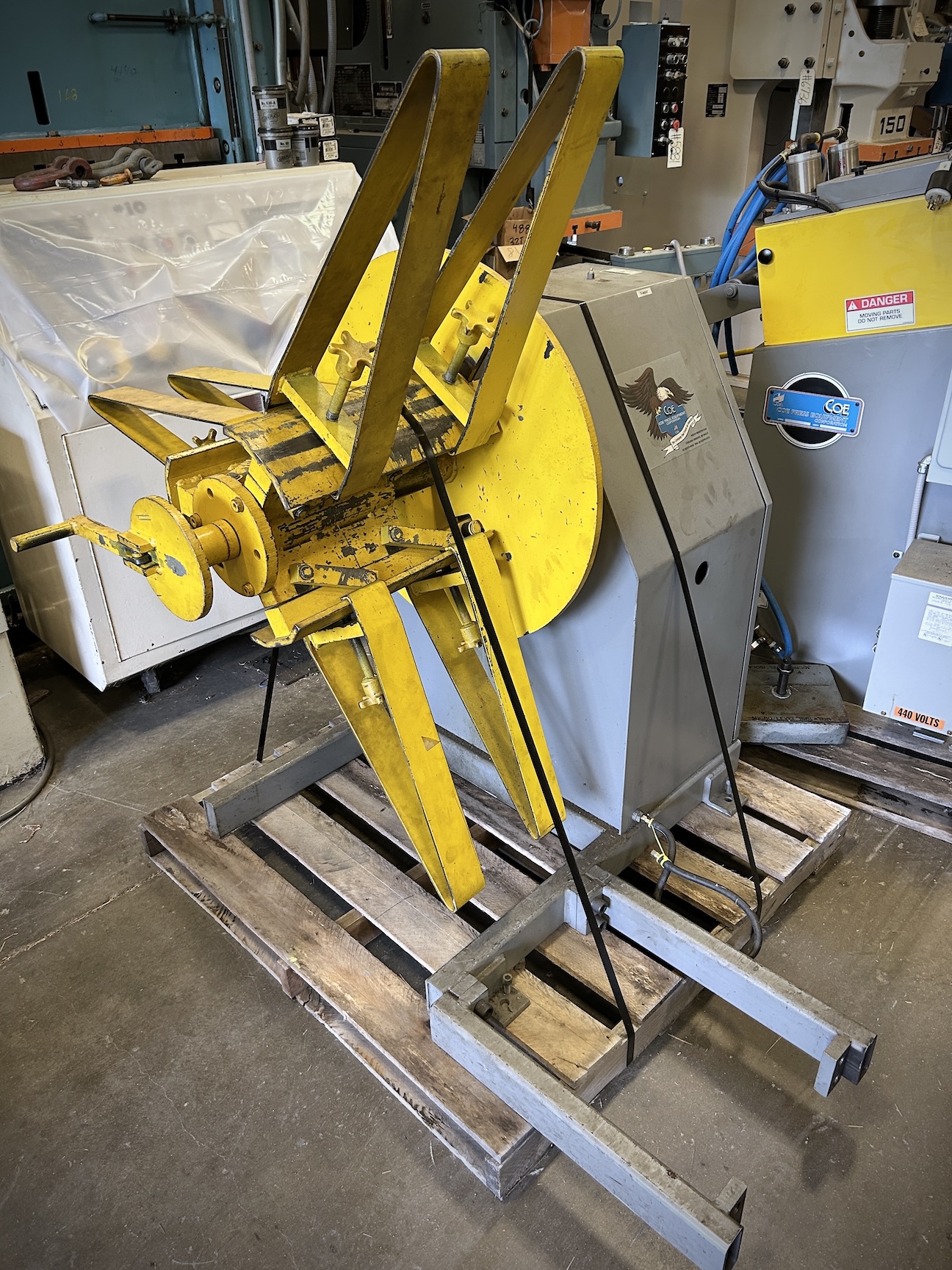

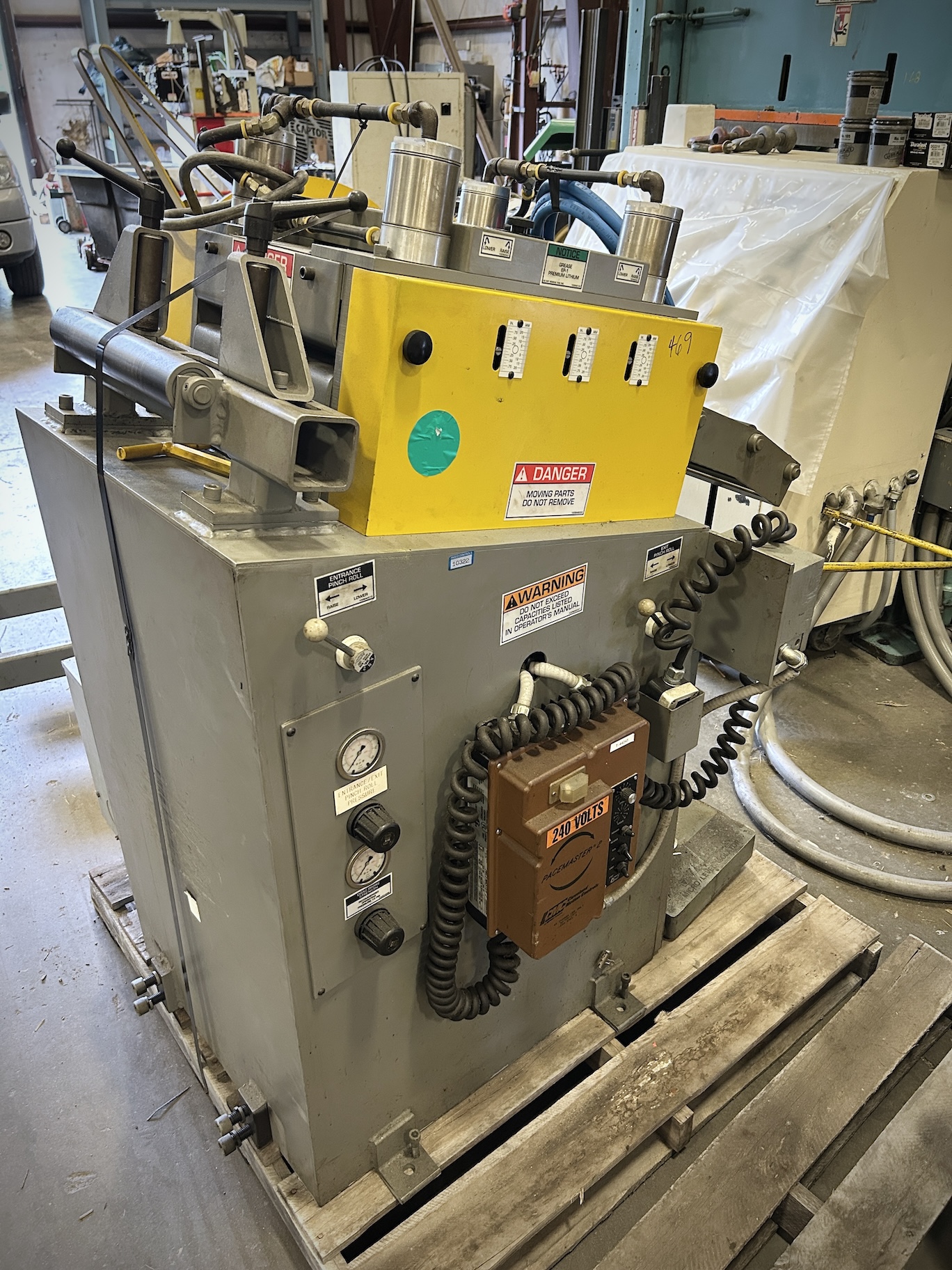

| non motorized coil reel | coe model cpr-p0-2512 s/n 18667-3 | capacity | 12" wide x 2,500 lbs | max coil od | 54" | coil id | 16 - 21" | heavy duty backplate diameter | 80" h x 67" rl x 64" fb | approx dimensions | 1,200 lbs | approx weight | 7-roll powered straightener | coe model cpps-225-12 s/n 18667-2 | capacity | 12" wide x .020"-.090" thick | max speed | 125 fpm | number of rolls | 7 (4 over 3) | straightening rolls | 2.25" od | pinch & exit rolls | 3" od | electrics | 3 hp motor w/dc drive | approx dimensions | approx weight | servo feeder | coe model cpre-m12plus s/n 18667-1 | max thickness @ full width | .125" th x 12" wide | maximum velocity | 392 fpm | max acceleration | 80 fps | standard drive ratio | 3.0:1 | approx dimensions | __ | approx weight | Equipped With | reel: steel fabricated cabinet, 3 pad mandrel, 3 coil keepers, manual expansion, & air brake straightener: independent roll adjustment, pneumatic pinch rolls adjustment straightener: slide & camp edge guides for accurate material alignment, worm gear adjustment of upper straightener rolls, remote jog pendant for material threading servo feed: high performance ac brushless servo motor, low inertia high torque servo motor & drive, precision cluster gear driven upper feed roll, press mount bracket with +/-3" adjustment | Note | __ |
|---|---|
| Location | This Used COE CPR-P0-2512 / CPPS-225-12 / CPRE-M12PLUS Complete Feedline is located in our Columbia, TN Warehouse |
