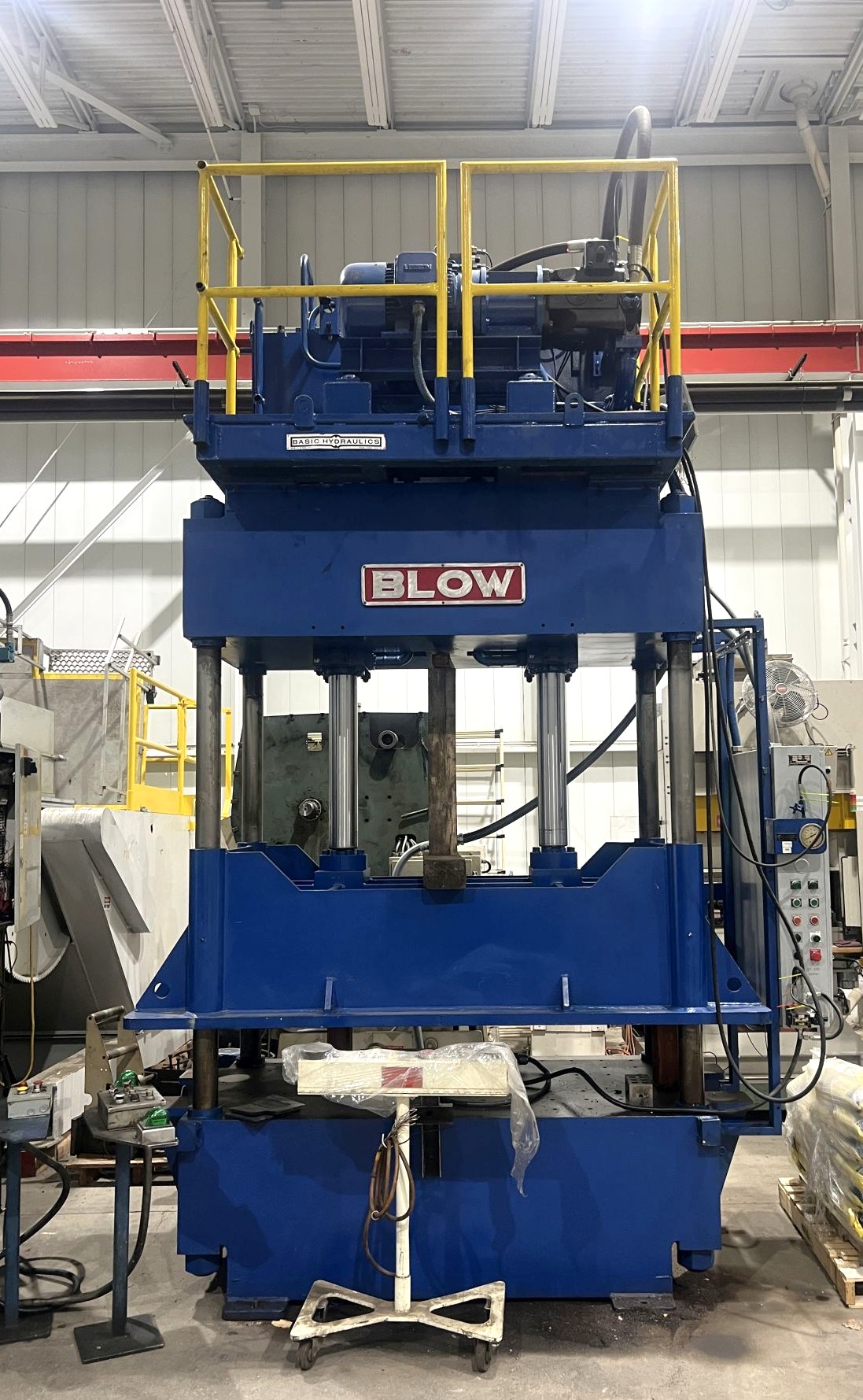

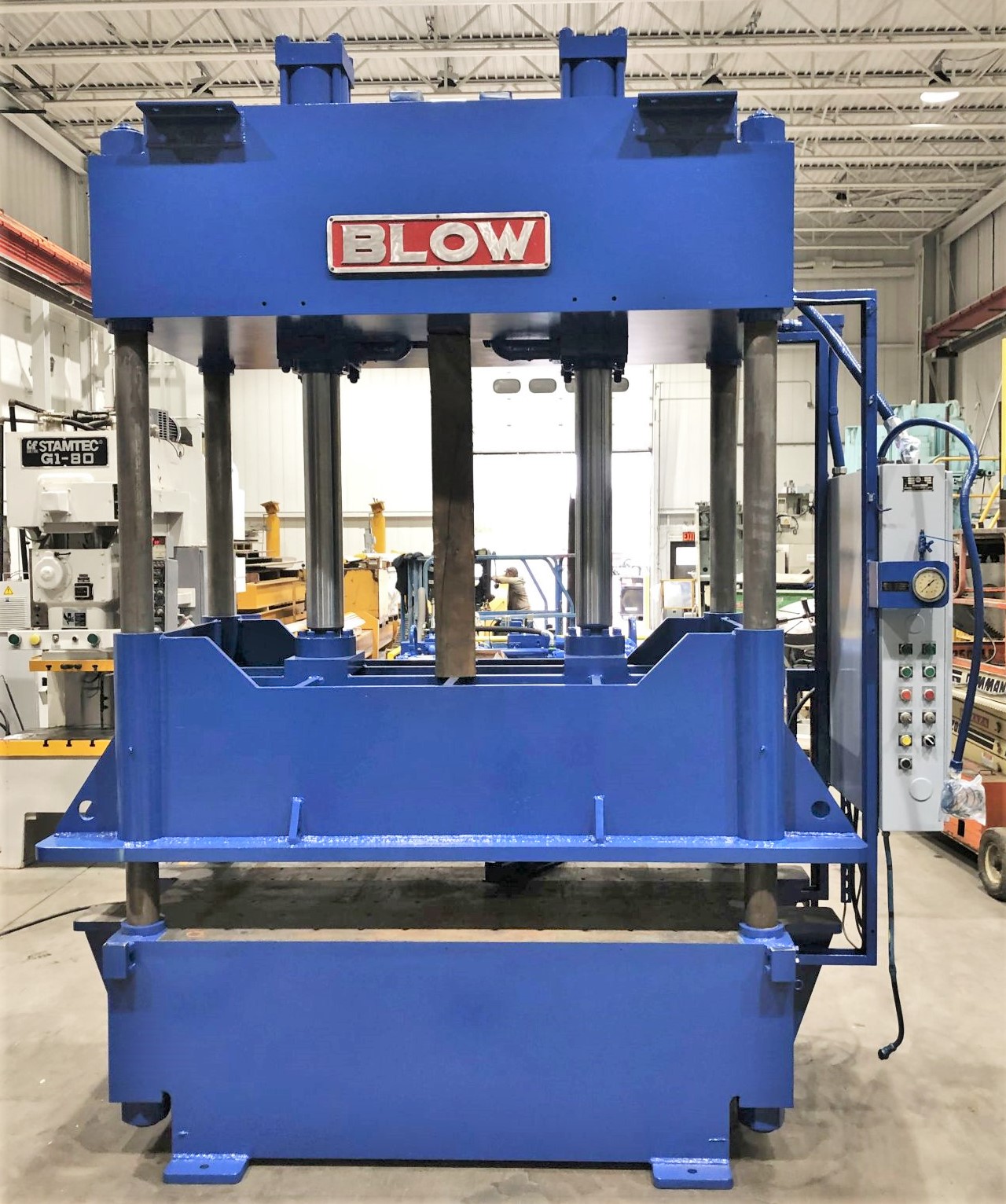

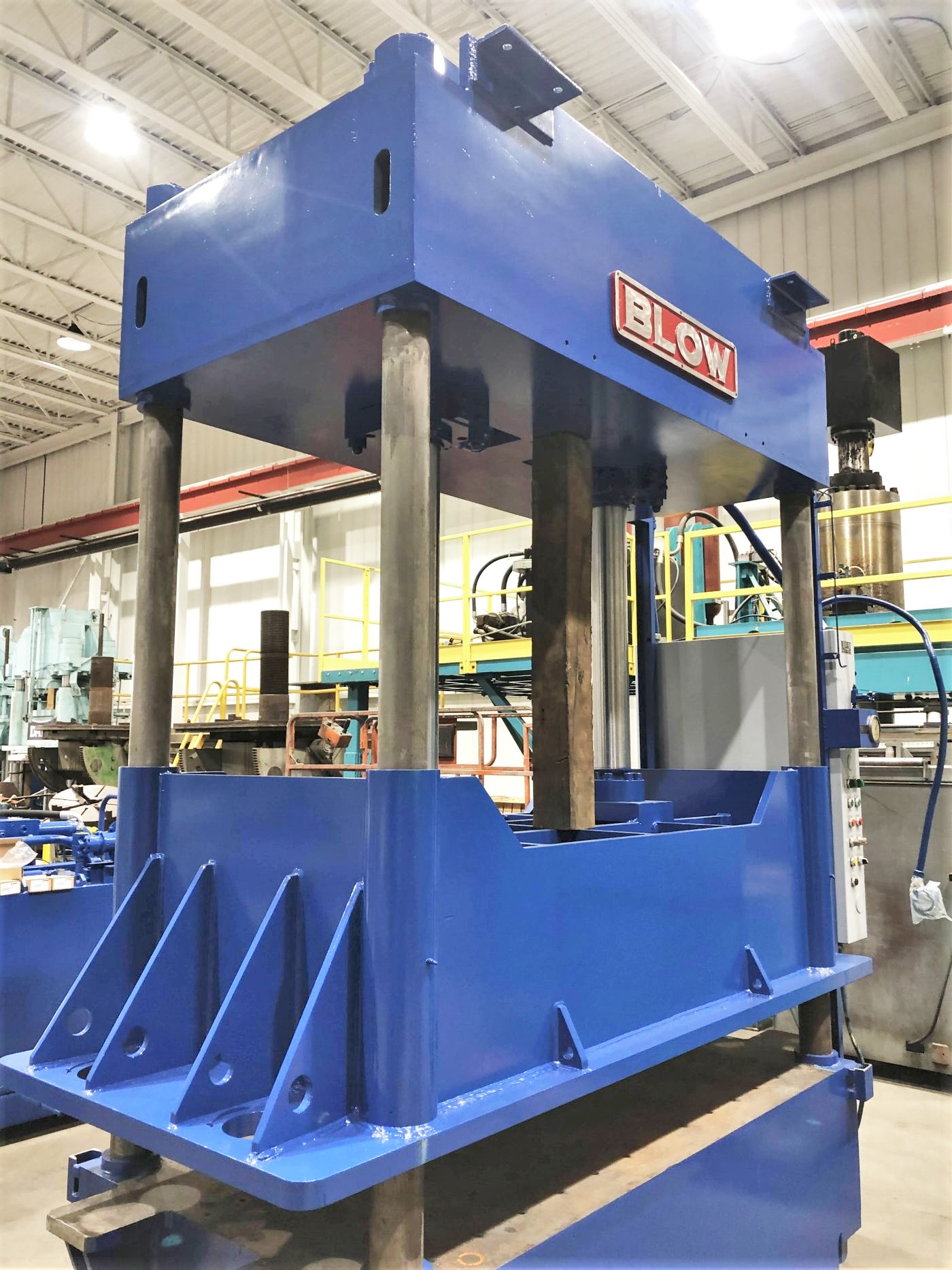

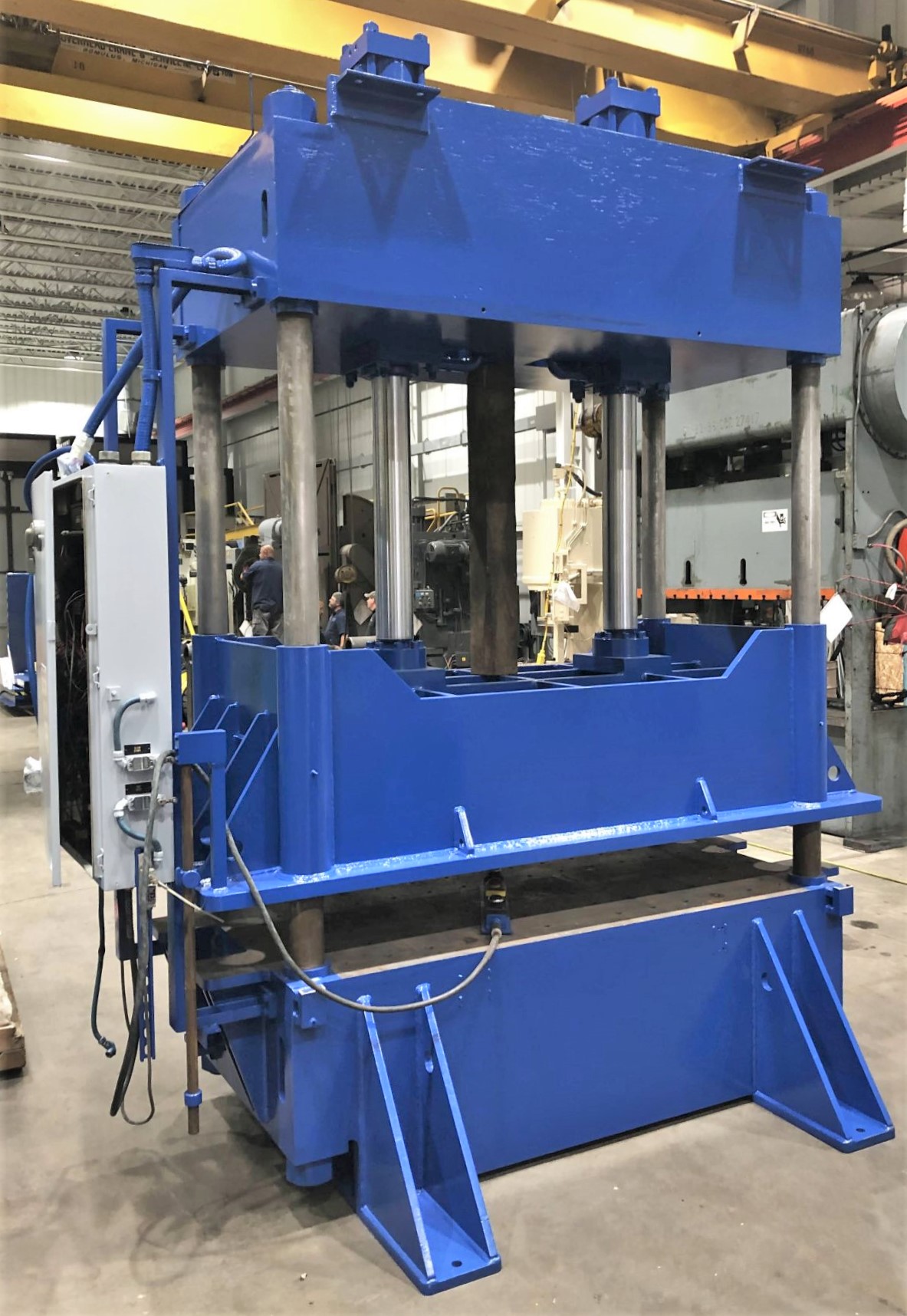

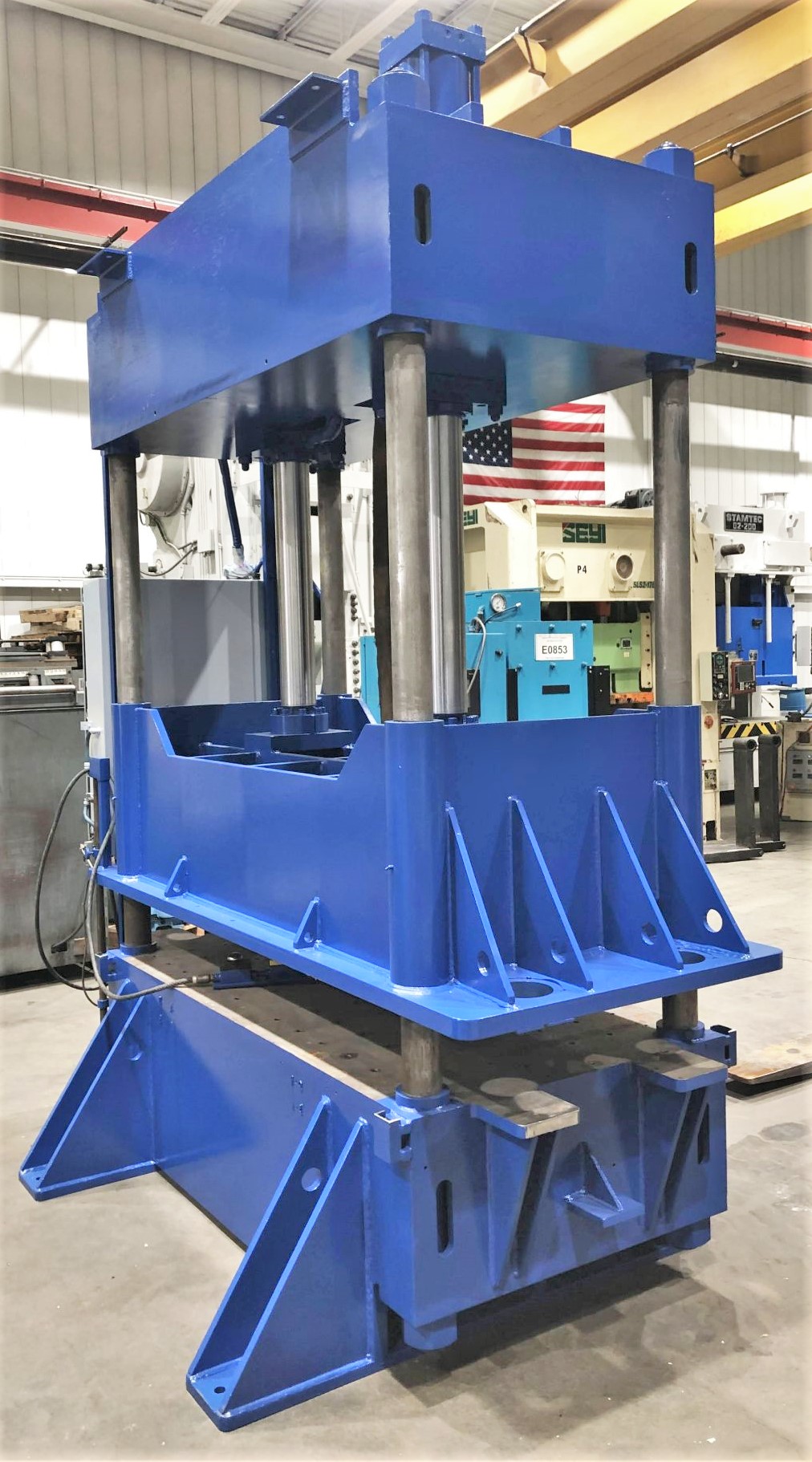

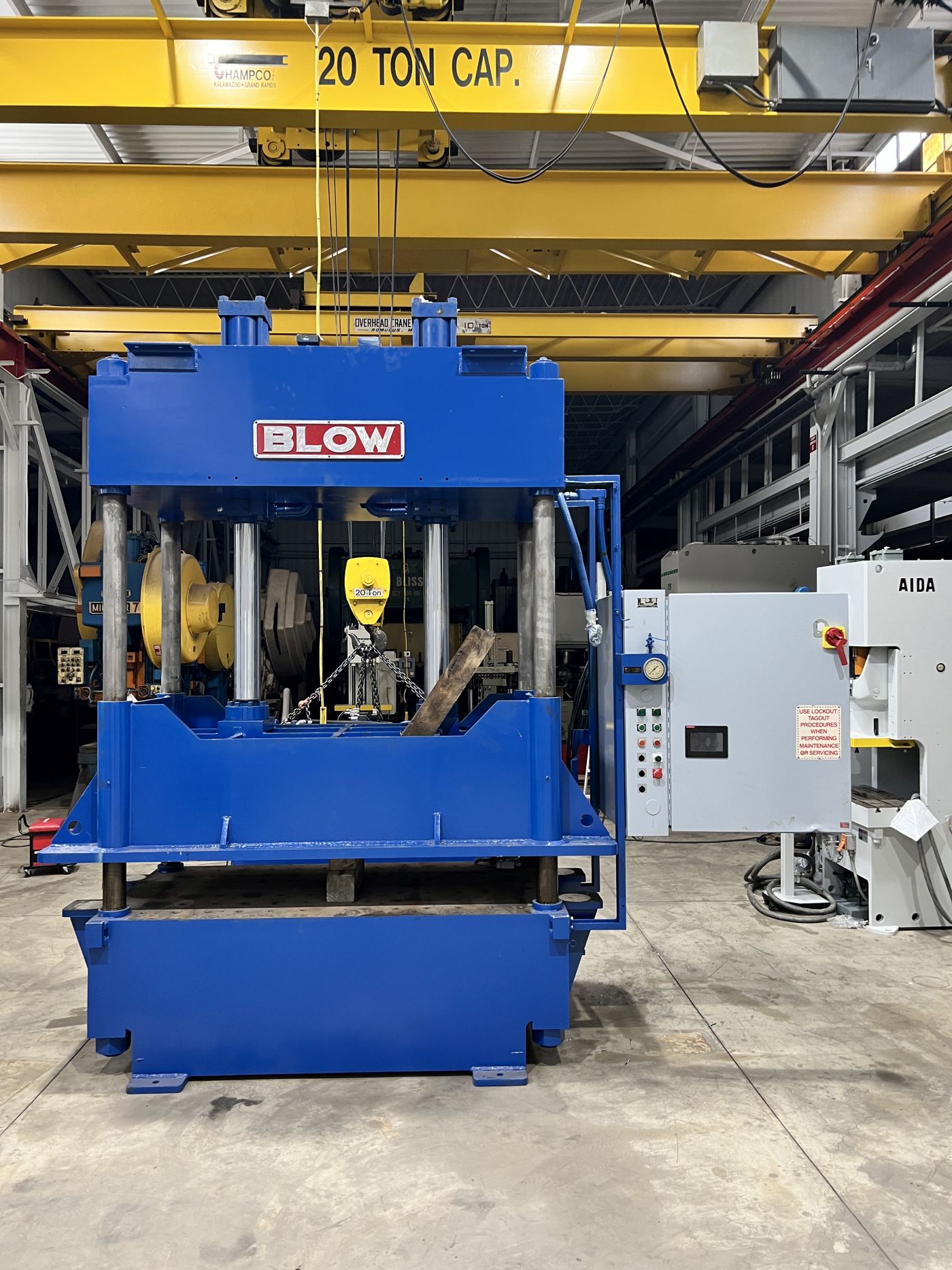

High Speed High Tonnage Press • Used 200 Ton Press for Sale
Model: Blow Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1994
Machine #: 8221
Buy Now: $

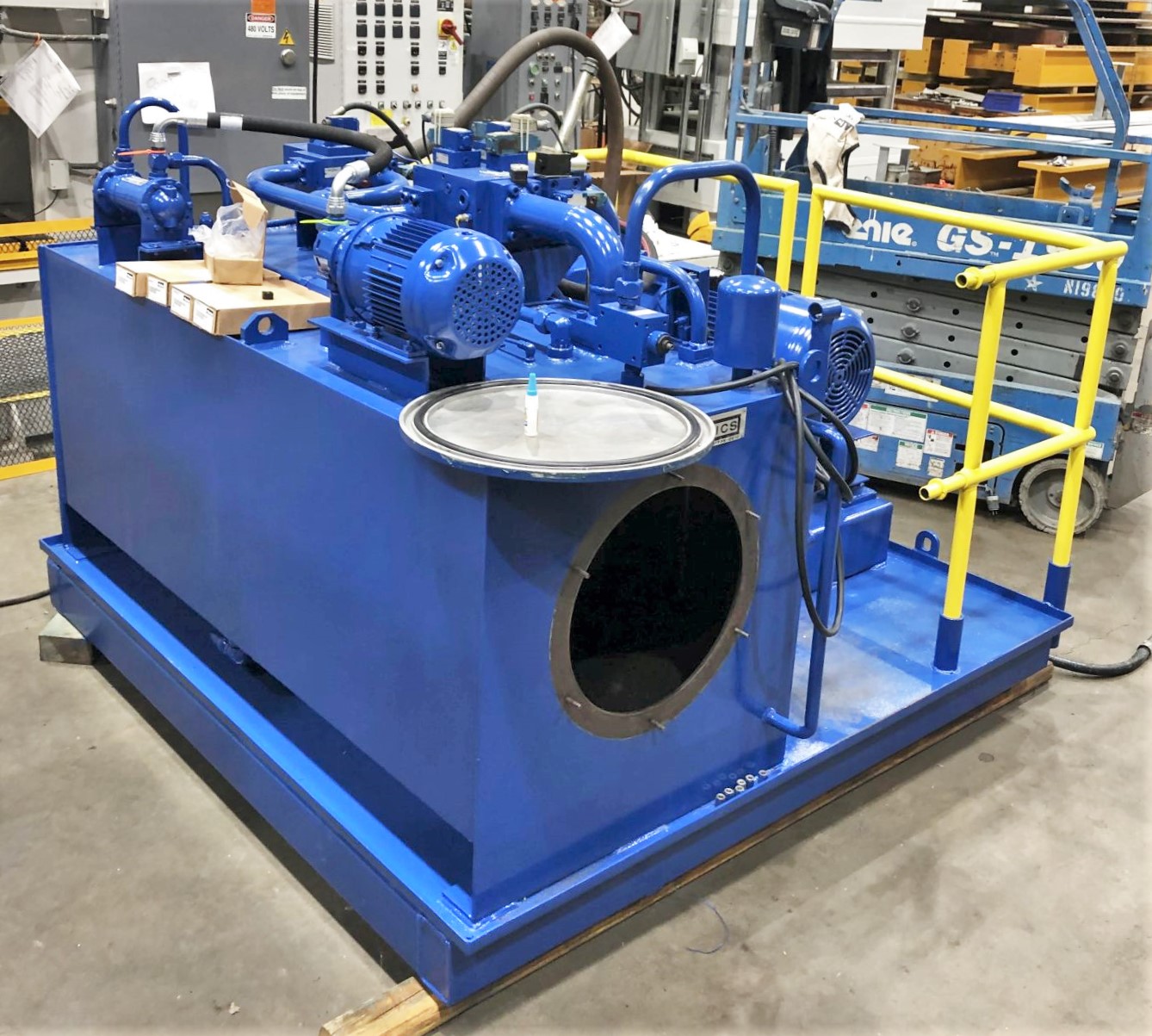

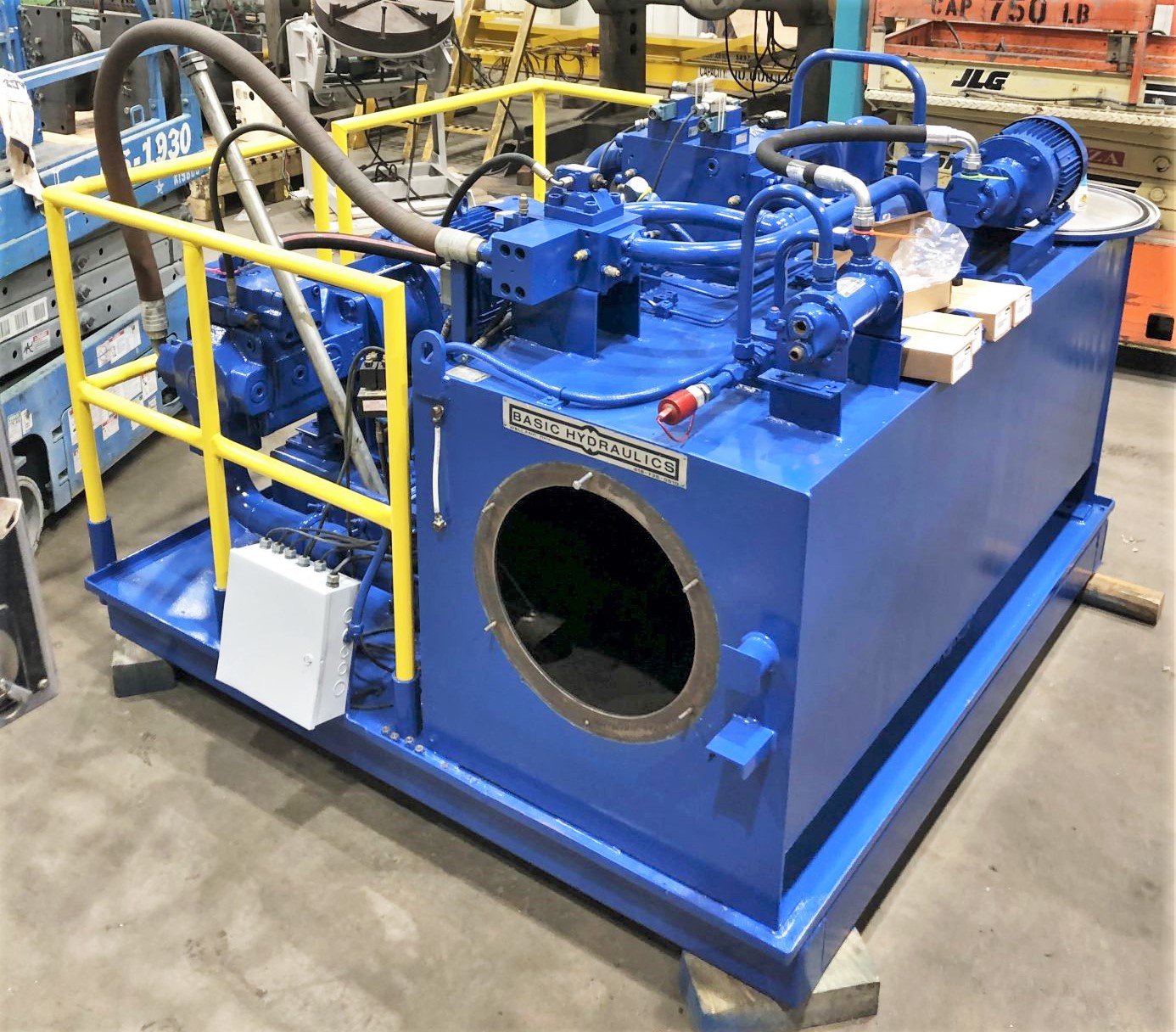

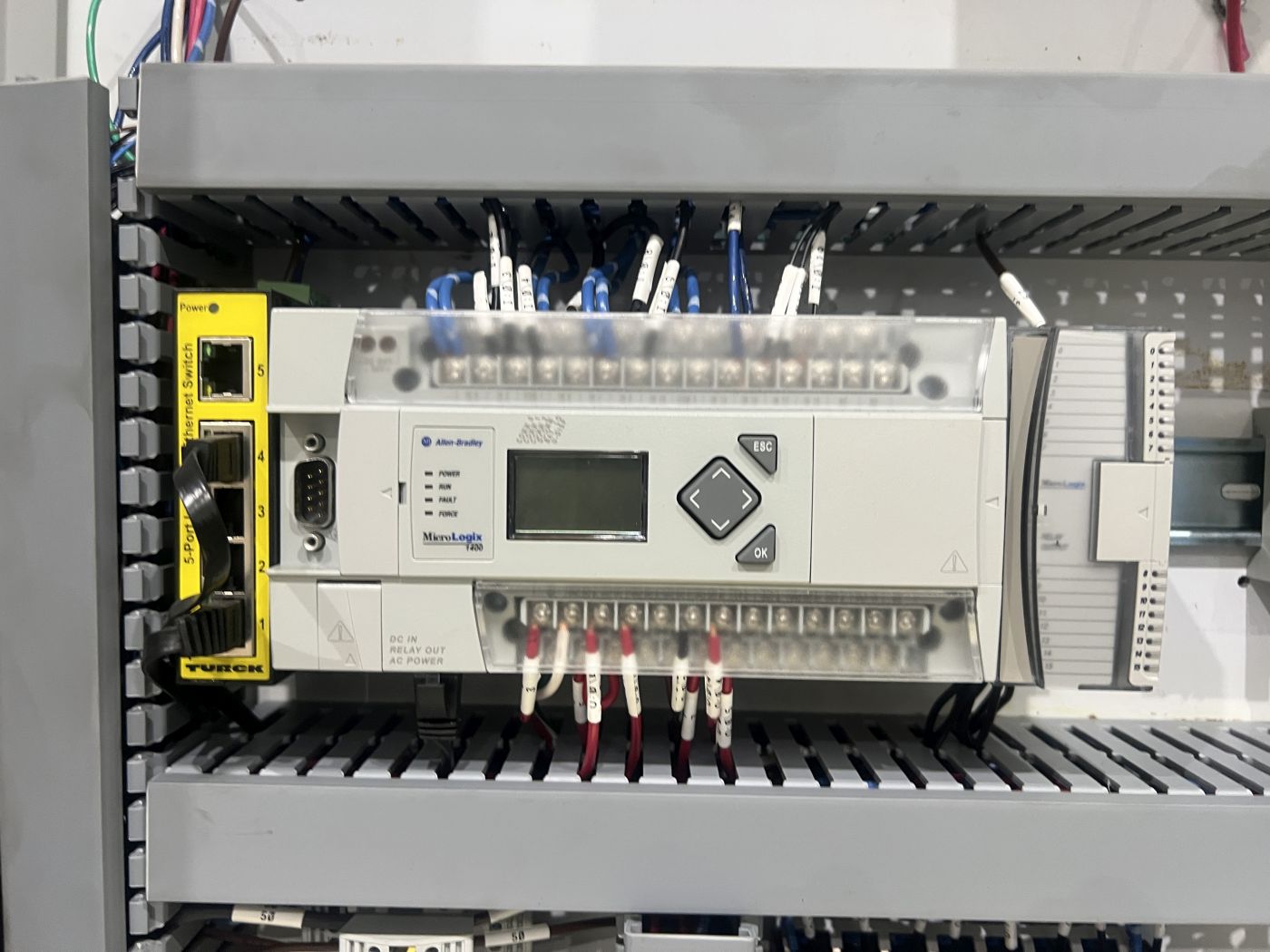

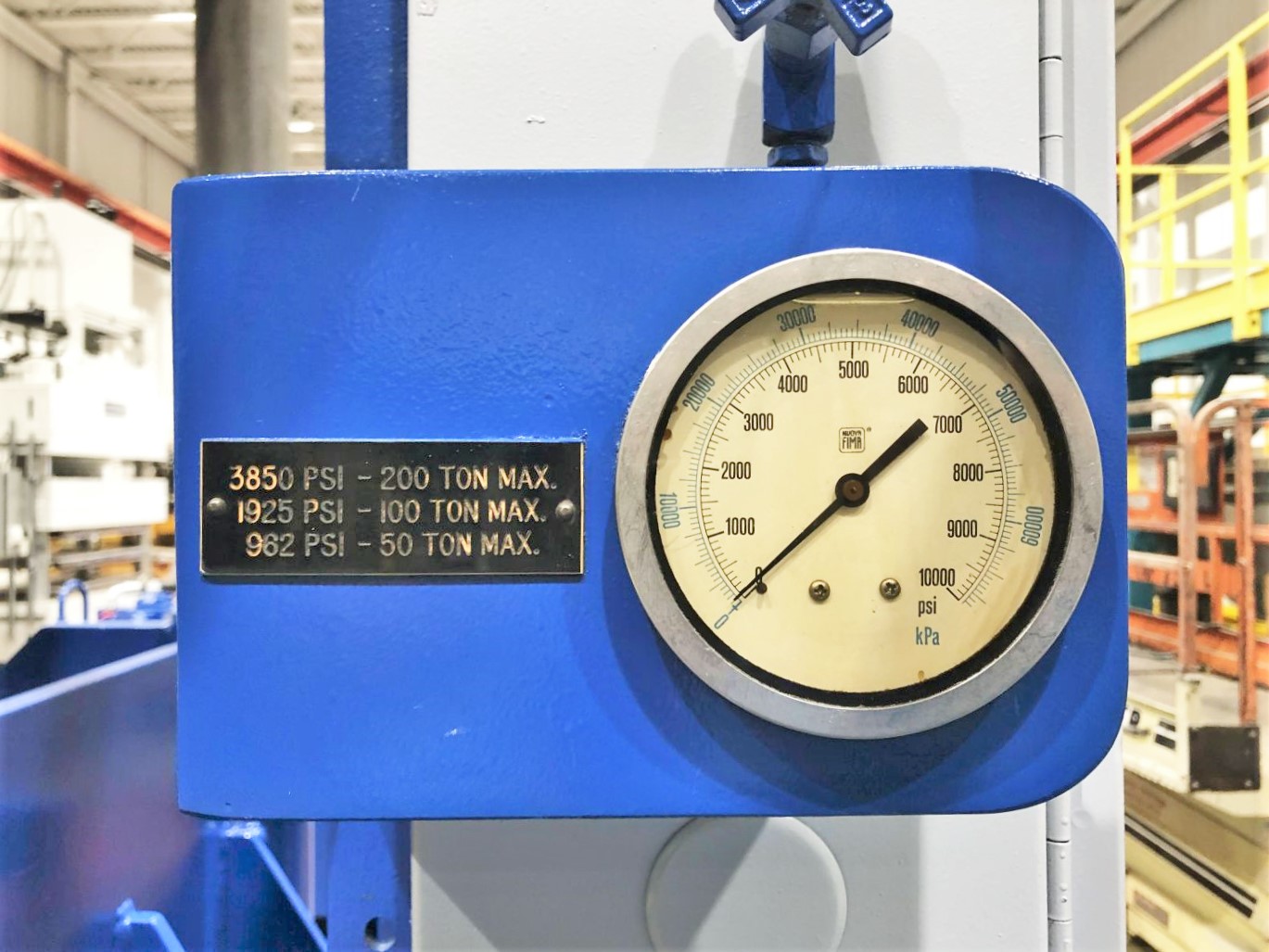

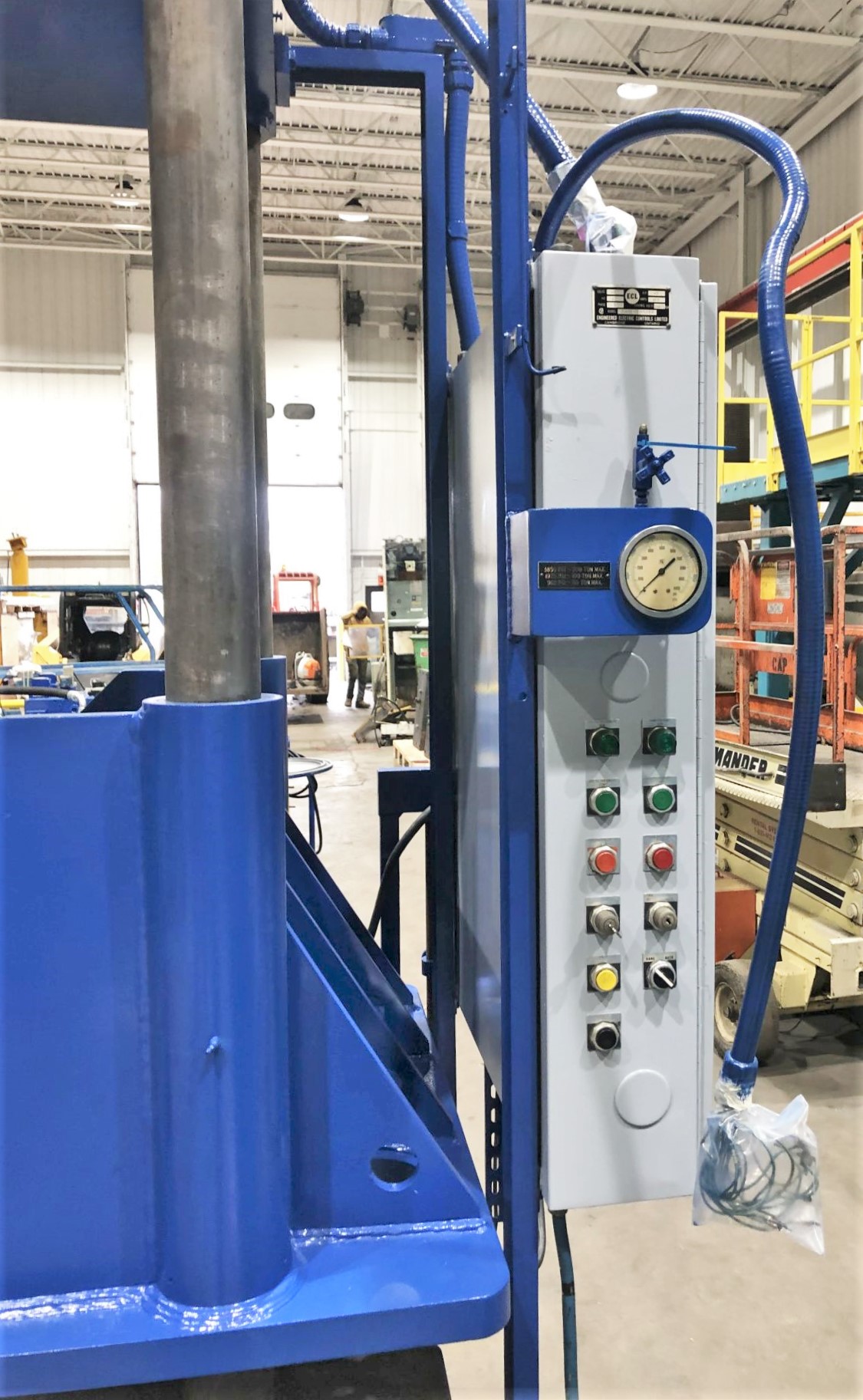

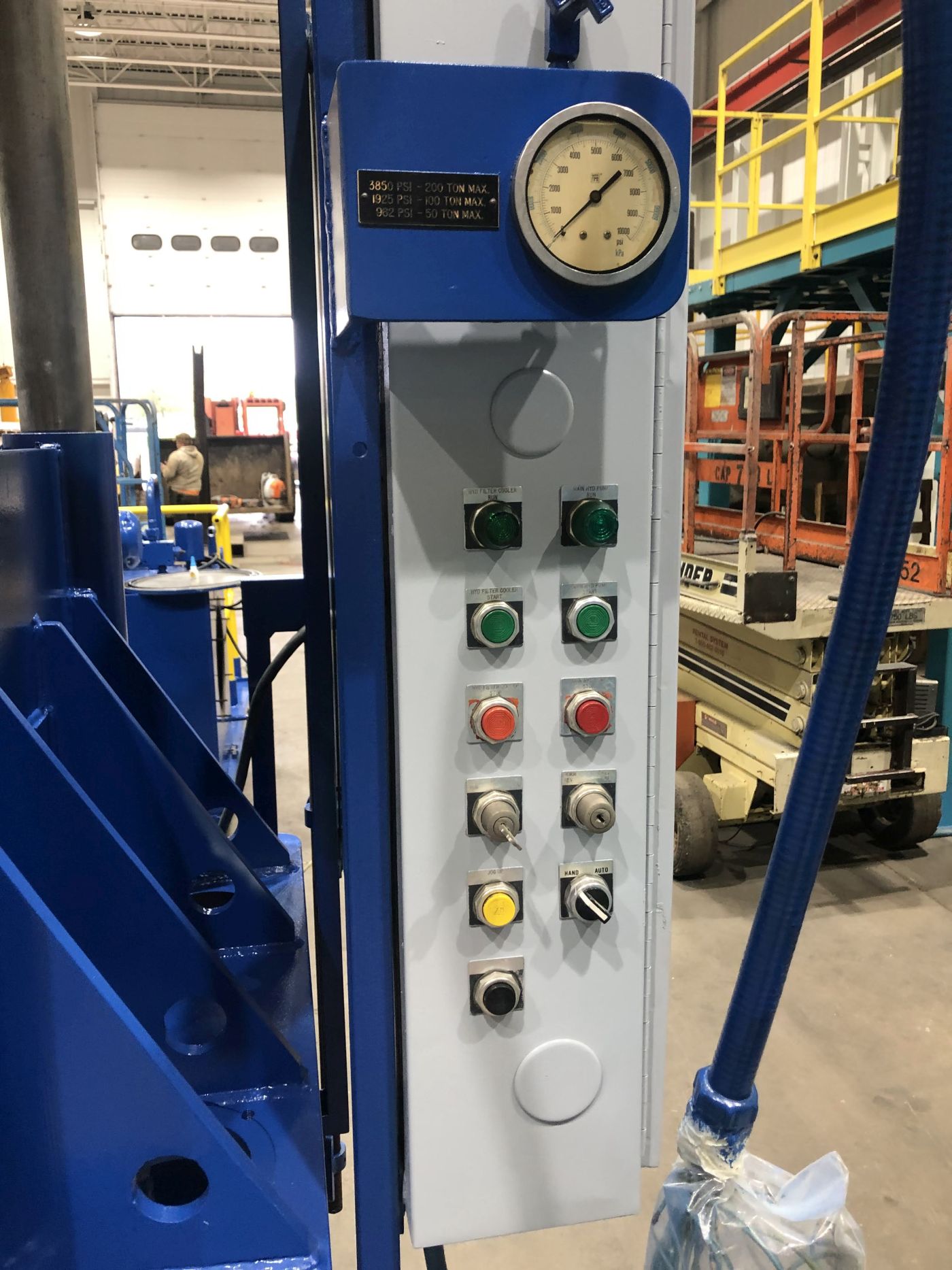

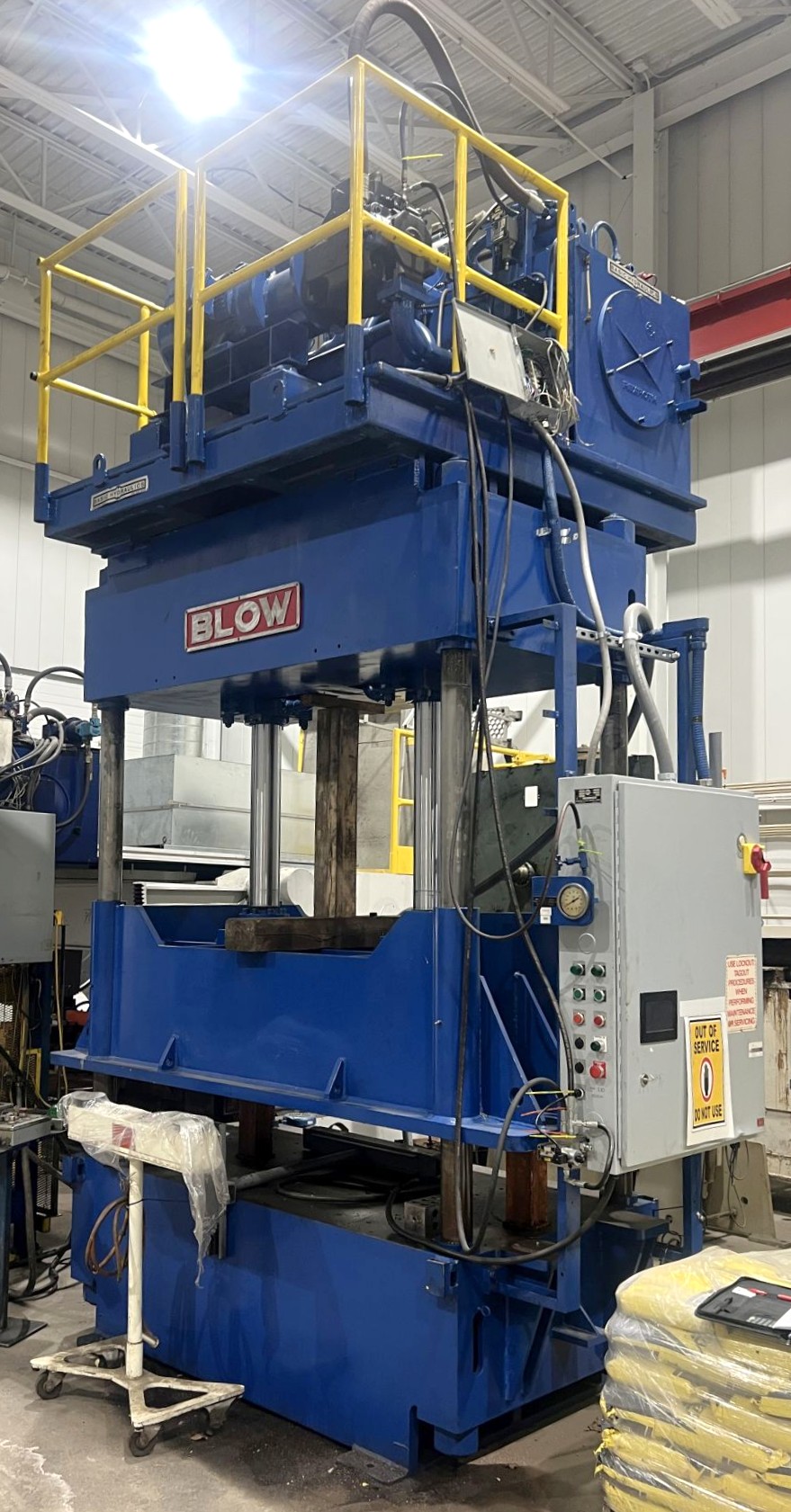

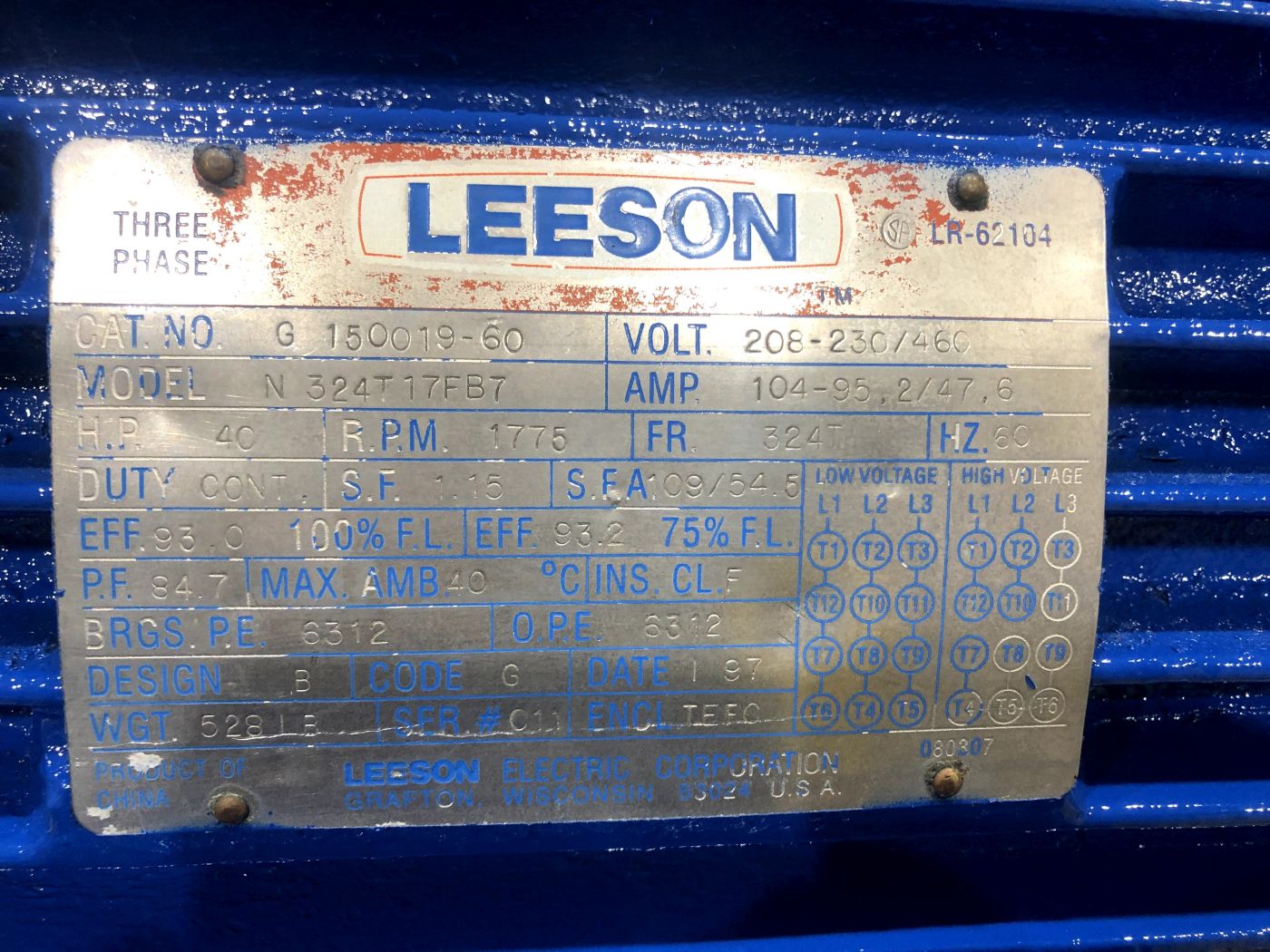

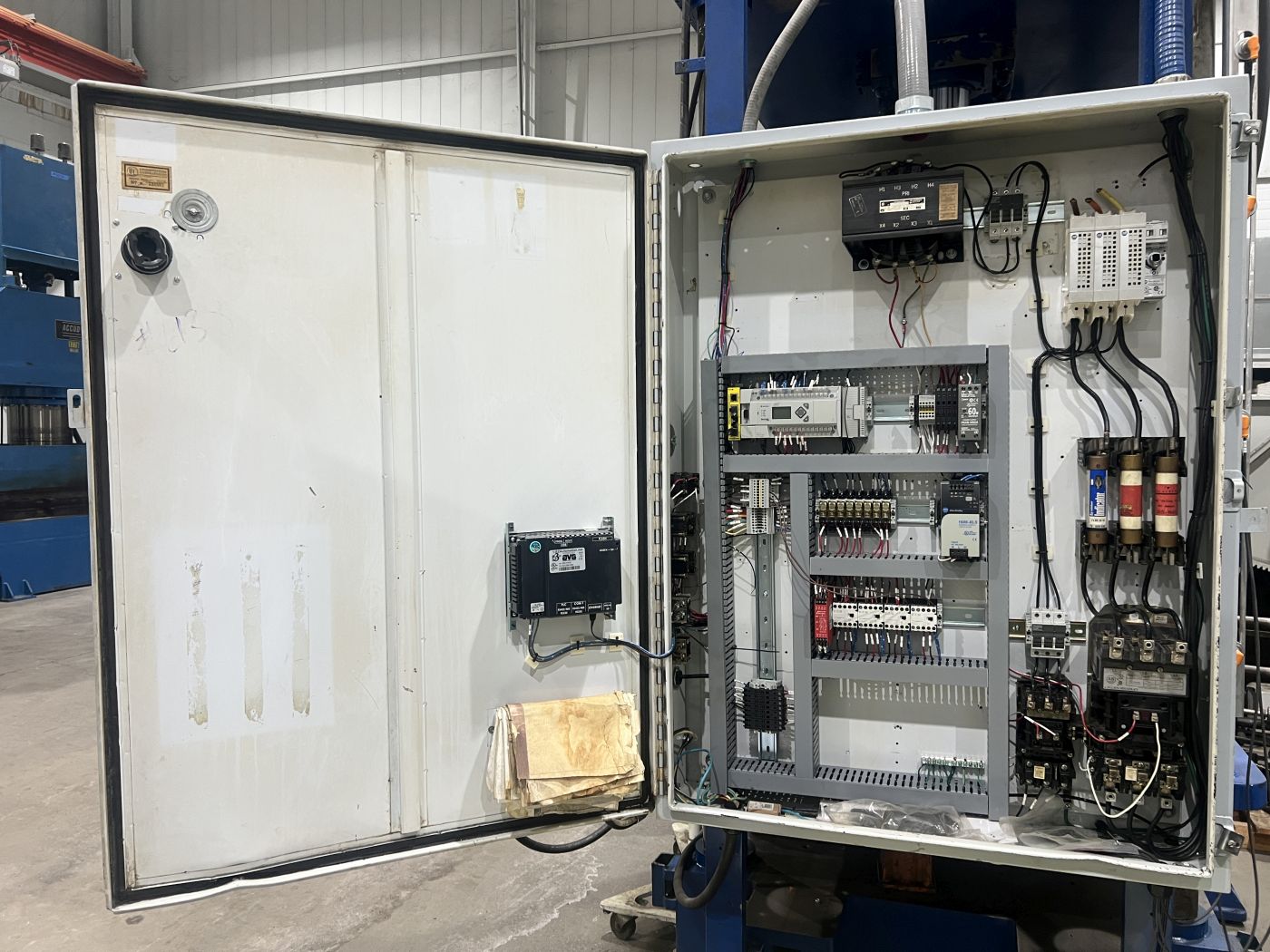

| MAX. CAPACITY | 200 TONS AT 3,850 PSI | MAX. STROKE | APPROX. 30" (MIGHT BE 35") | MAX. DAYLIGHT | 44.75" | OVERALL BED AREA | 106" X 45.75" (RL X FB) | OVERALL RAM / SLIDE AREA | 108" X 46.5" (RL X FB) | DISTANCE BETWEEN POST COLLARS | 76.5" X 31.75" (RL X FB) | DISTANCE BETWEEN POSTS | 78" X 33.25" (RL X FB) | USABLE BED AREA | 76.5" X 45.75" (RL X FB) OR 106" X 33.25" (RL X FB) | RAM ROD SIZES | (2) 5.25" DIA. | CYLINDER SIZES | (2) APPROX. 8.25" DIA. BORE | POSTS / 4 COLUMNS SIZE | 4" DIA. | FLOOR TO BED HEIGHT | 30" | PRESS CONTROLS | UPDATED ALLEN-BRADLEY MICROLOGIX 1400 WITH TOUCHSCREEN CONTROLLER | HYDRAULICS | REXROTH AA4VSO250DRG HYDRAULIC PUMP 22R-PKD63N00 | 264 GAL. RESERVOIR | ELECTRIC MOTOR | 40 HP 208-230/460V-3-60 LEESON MOTOR | 104-95.2/46.6 AMPS | OVERALL DIMENSIONS | 125" X 92" (RL X FB) X 206" HIGH WITH HYDRAULIC UNIT MOUNTED ON TOP | OVERALL WEIGHT | APPROX. 40,000 LBS. | Equipped With | __ | Note | RECIRCULATING PUMP SEAL HAS BEEN INSTALLED (MISSING IN VIDEO) |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
