300 Ton Blow Press • Used Blow SC2-300-84-42 Press

300

300
Ton
84″
Bed R-L
10″
Stroke
Speed: 30-60 SPM
New in 1997

1

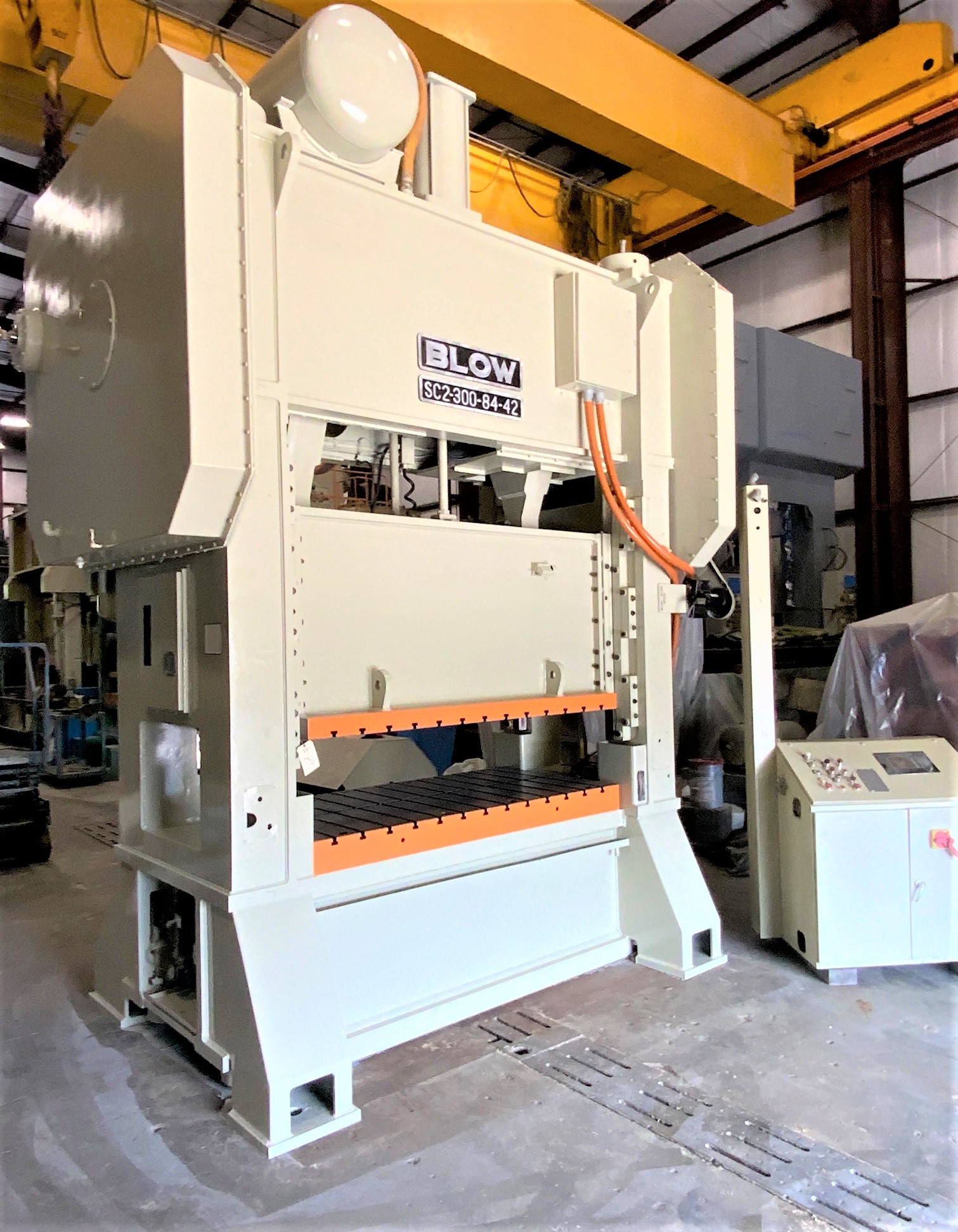

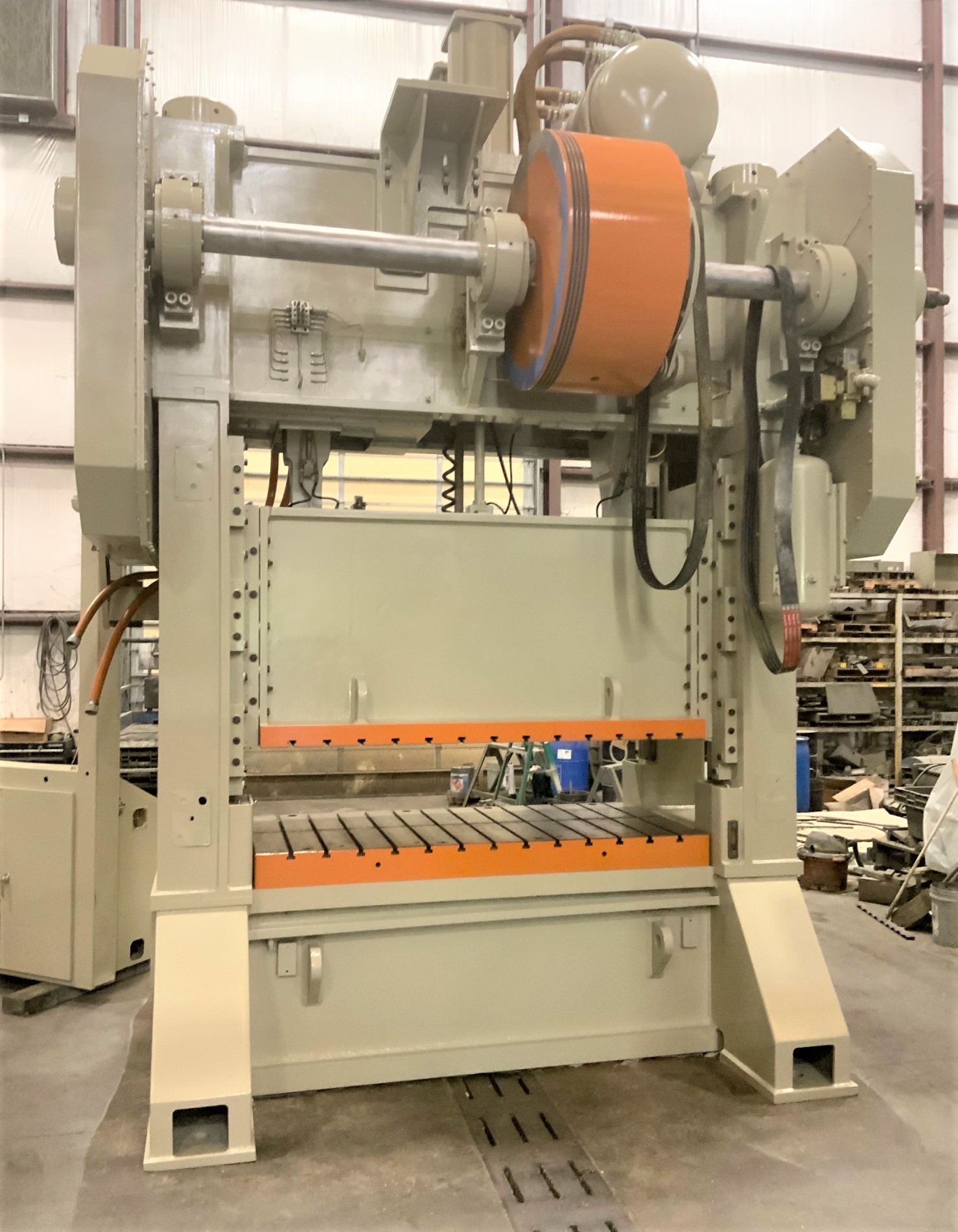

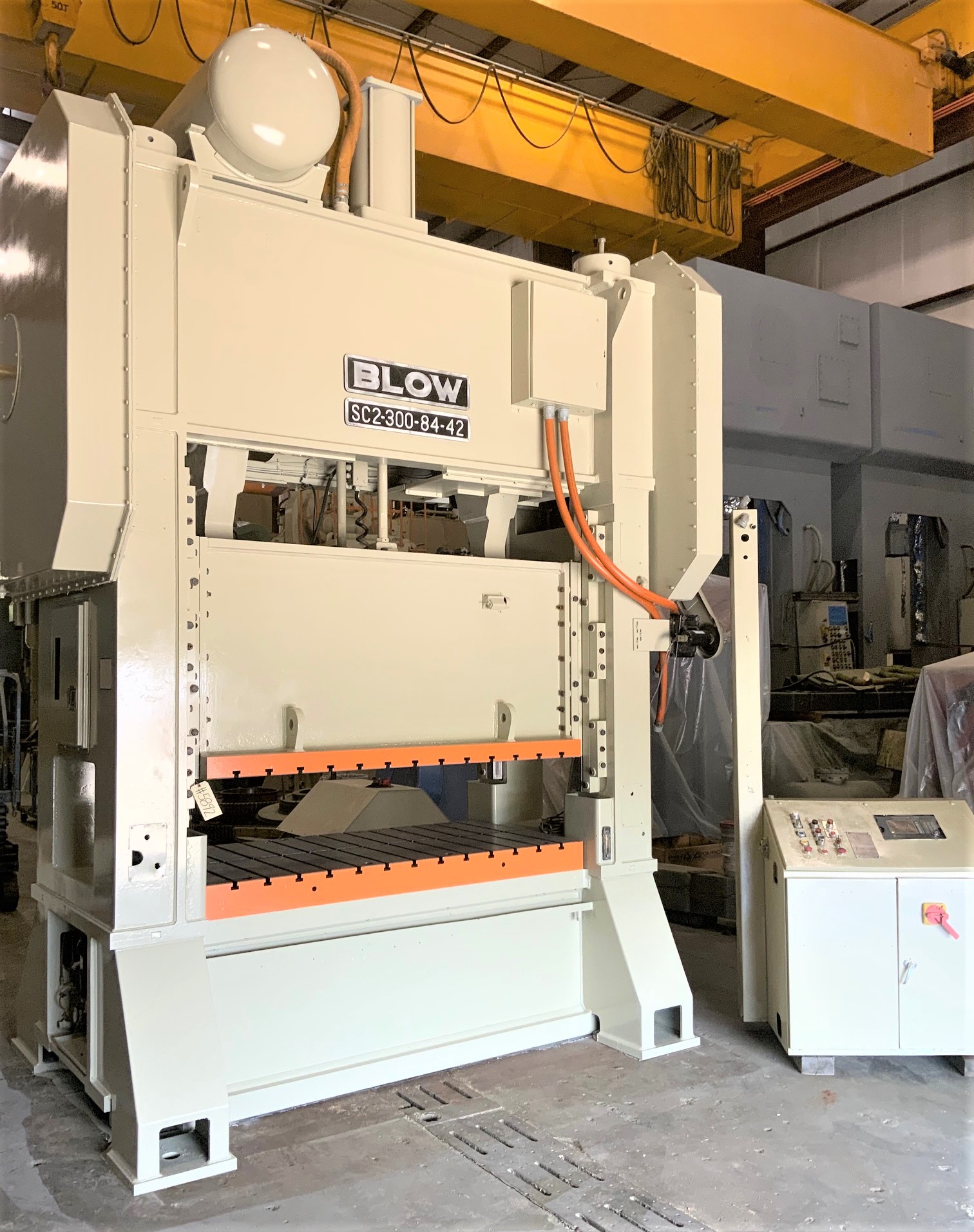

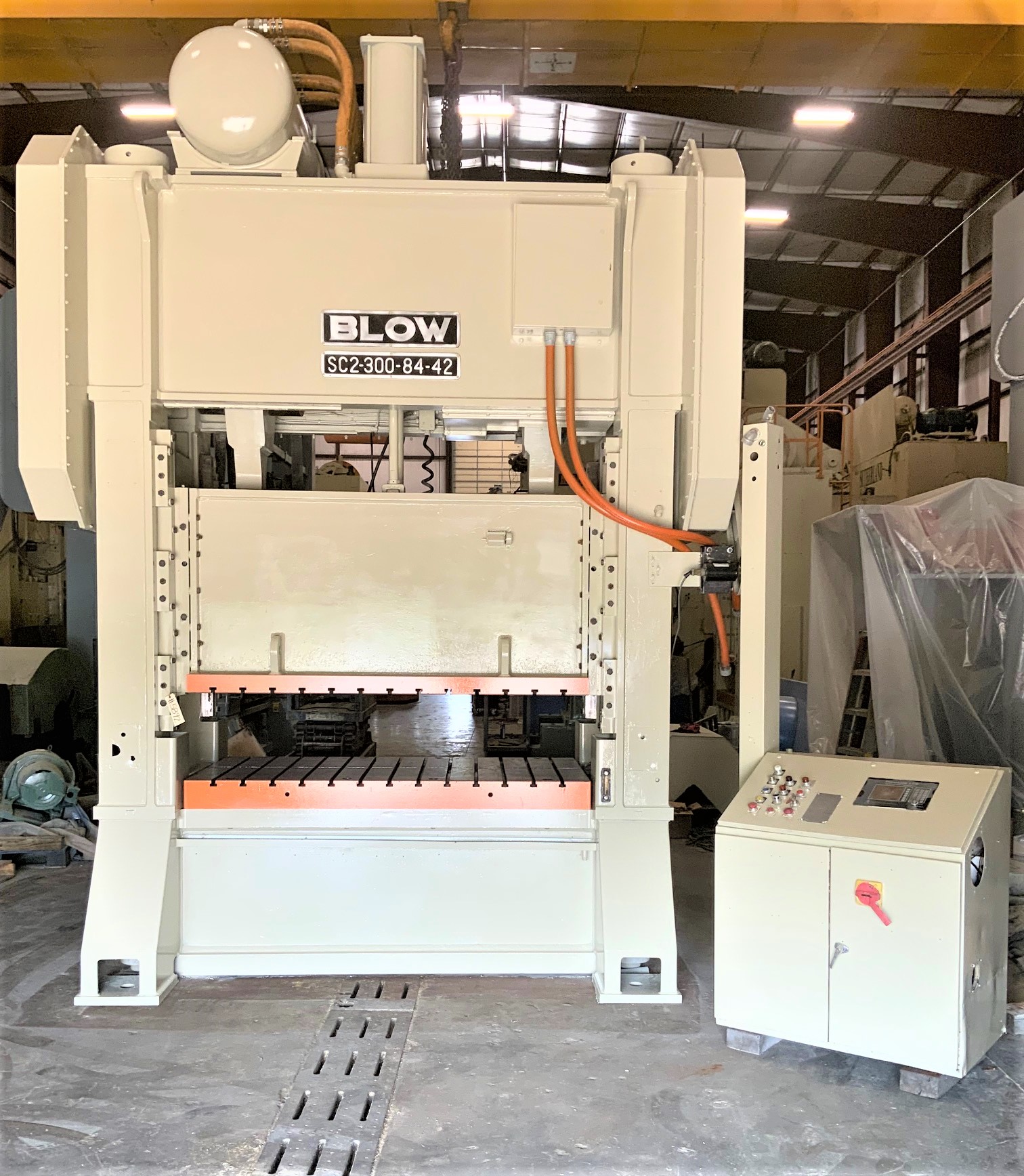

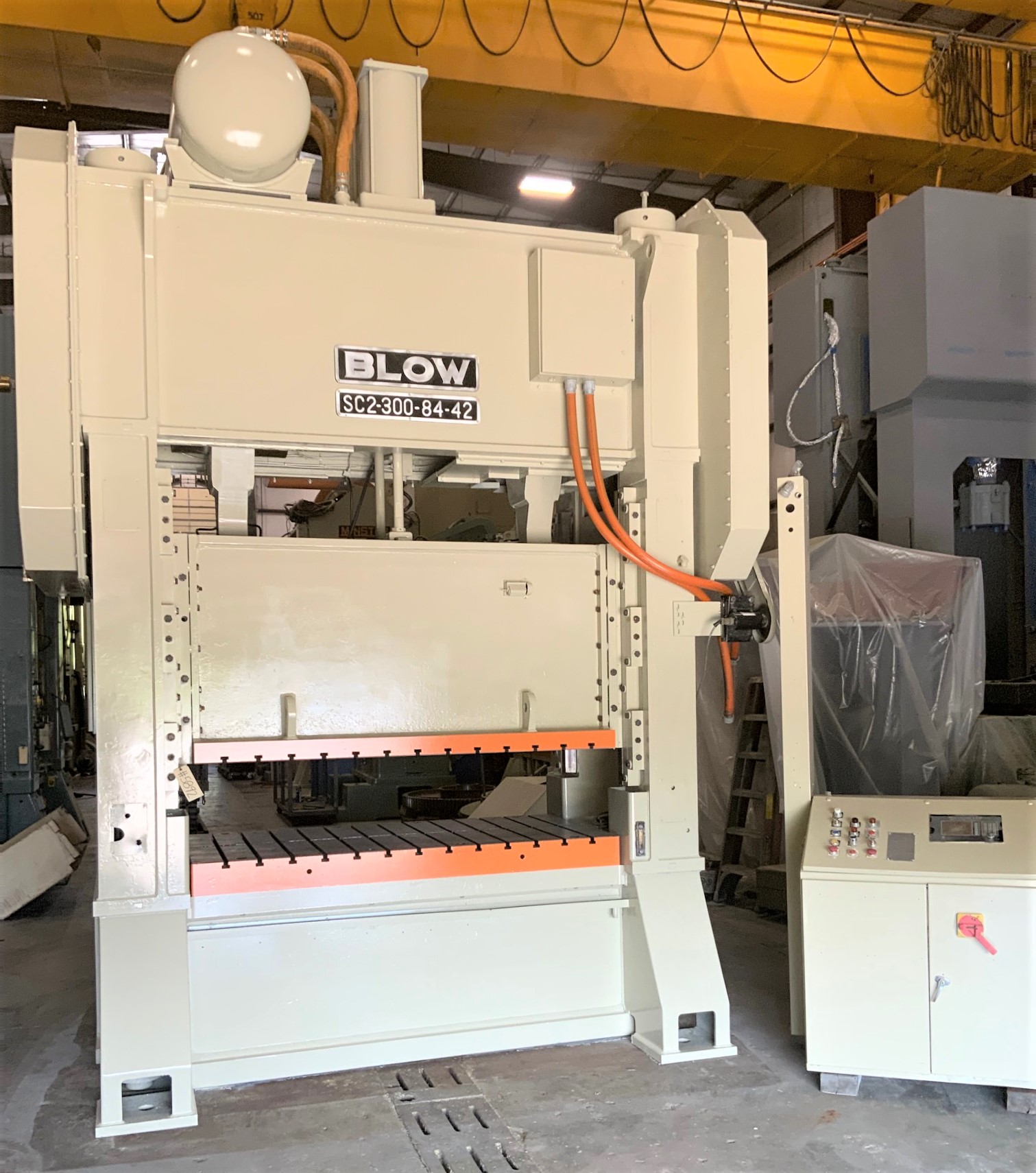

300 Ton Used Press – Straight Side Press
Model: Blow SC2-300-84-42
10″ STR, 21″ DIE SPACE, 84X42 BED, 30-60 SPM, 10″ ADJ

Straight Side Double Crank Press for Sale
Used Blow Stamping Press (Mechanical)
Machine #5892
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SC2-300-84-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1997
Machine #: 5892
Buy Now: $





capacity 300 tons
stroke 10″
max shut height 21″ (sdau) – over bolster
bed area 84″ rl x 42″ fb
speed 30 – 60 spm
ram adjustment 10″ (motorized)
ram area 84″ rl x 42″ fb (t-slot)
bolster plate 6″ h x 84″ rl x 42″ fb (t-slot)
dist uprights / floor to bed 85″ / 36″
window size 26″ w x 21″ h
clutch combination air clutch / brake
electrics NEW TOSHIBA 50 hp 1750 rpm 480v-3-60 motor & EXISTING omnilink press control. will provide new TECO A510 vfd for reconditioned price.
approx dimensions 196″ h x 12′ rl x 8′ fb
approx weight __
Equipped With DUAL AIR COUNTERBALANCES, SINGLE BACK GEARED, TWIN GEAR DESIGN, FLOOR STANDING, AUTOMATIC RECIRCULATING LUBRICATION SYSTEM
Note __
Location This used press is located in our Columbia, TN Warehouse
