Machine Specifications
OBI Press for Sale
Manufacturer: South Bend Johnson

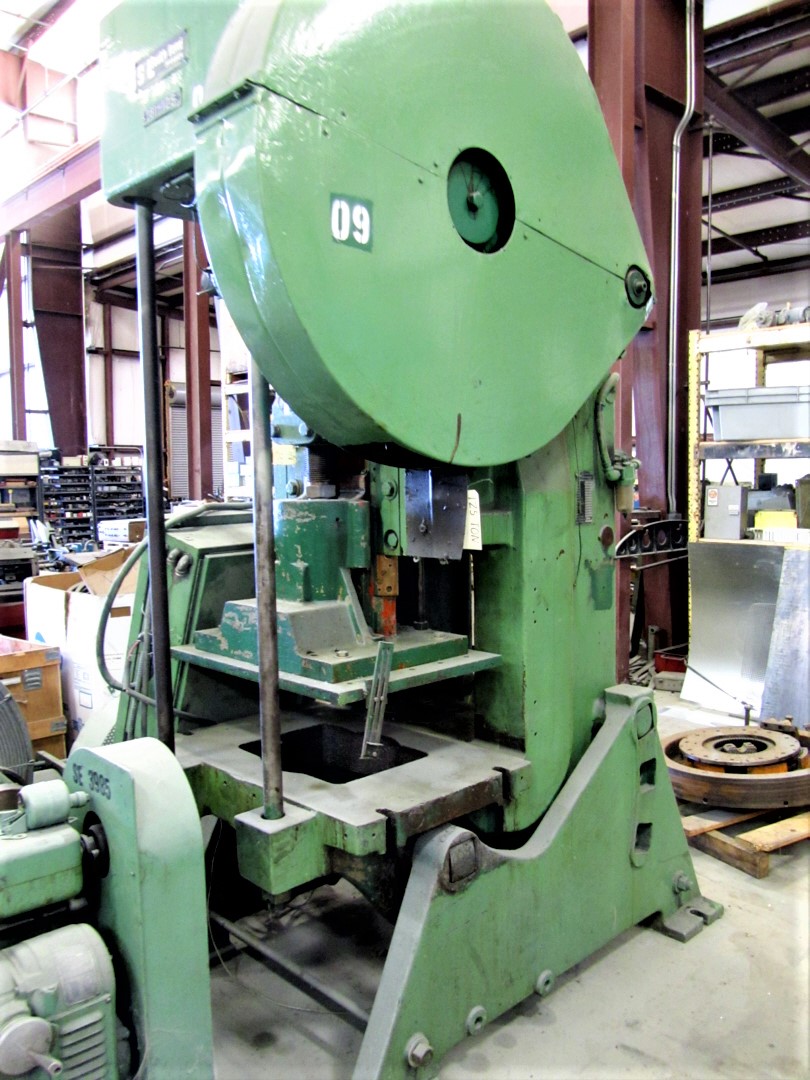

Model: South Bend Johnson 125BG-AC Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1991
Machine #: 4089
Buy Now: $17,500
| CAPACITY | 125 TON | STROKE | 6″ | MAX SHUT HEIGHT TO BED | 15-5/8″ | BED AREA | 42″ X 27″ (RL X FB) | SPEED | 40 SPM | RAM AREA | 28″ RL X 21″ FB (FLANGED) | RAM ADJUSTMENT | 4″ (MANUAL) | BOLSTER | NONE | THROAT DEPTH | 15-1/2″ | CLUTCH | AIR CLUTCH AND BRAKE | ELECTRICS | 15 HP MOTOR, 1180 RPM, 208-230/460V 60HZ-3P, MOTOR & CONTROLS | APPROX DIMENSIONS | 11’5′ H X 6′ RL X 7′ FB | APPROX WEIGHT | 25,000 LBS | Equipped With | CAST IRON FRAME CONSTRUCTION AIR COUNTERBALANES ON RAM OIL LUBRICATION SYSTEM REMOVEABLE TIE RODS FLOOR STANDING BASE | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
