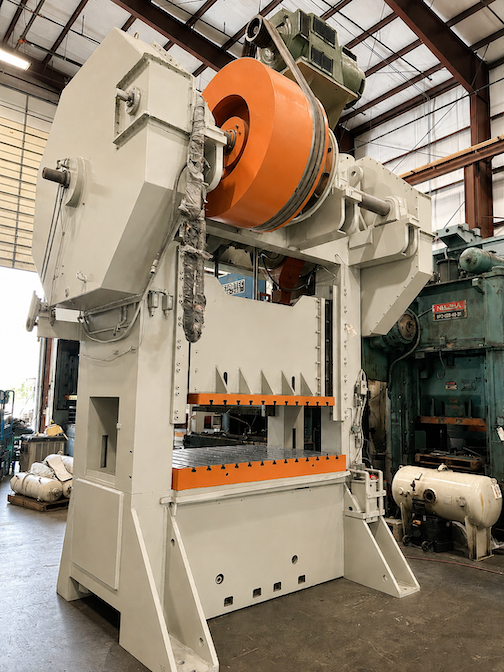

400 Ton Blow Press • Used Blow SD-400-84-54 Press

400

400
Ton
84″
Bed R-L
12″
Stroke
Speed: 24-42 SPM
New in 1

1

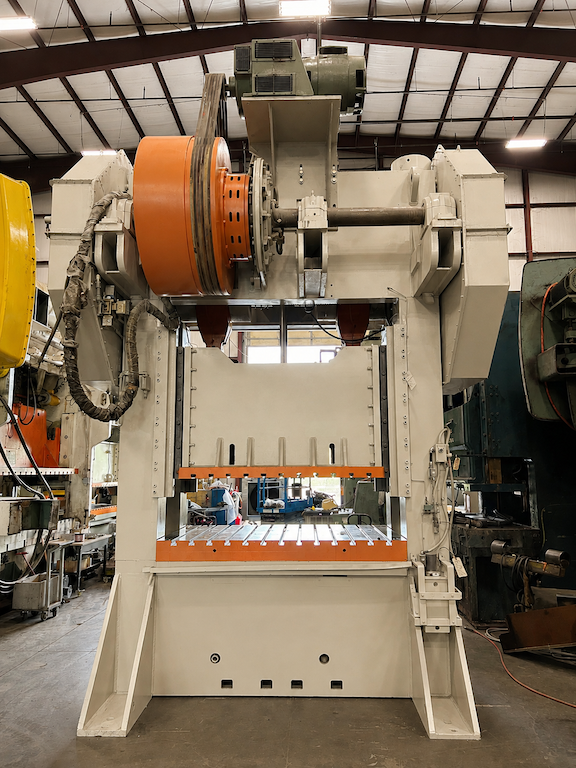

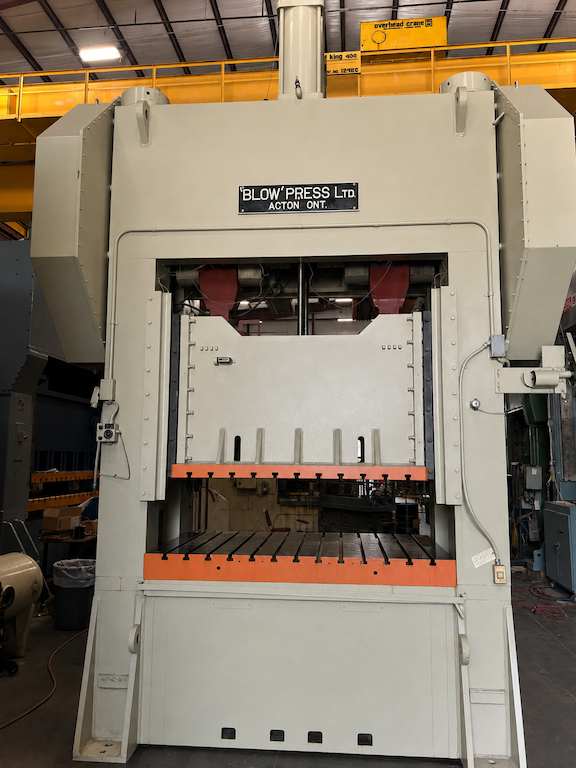

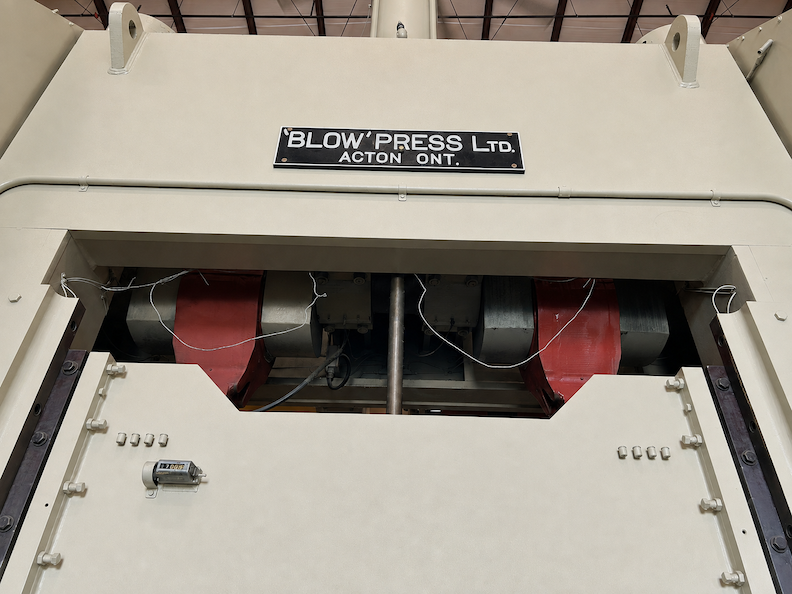

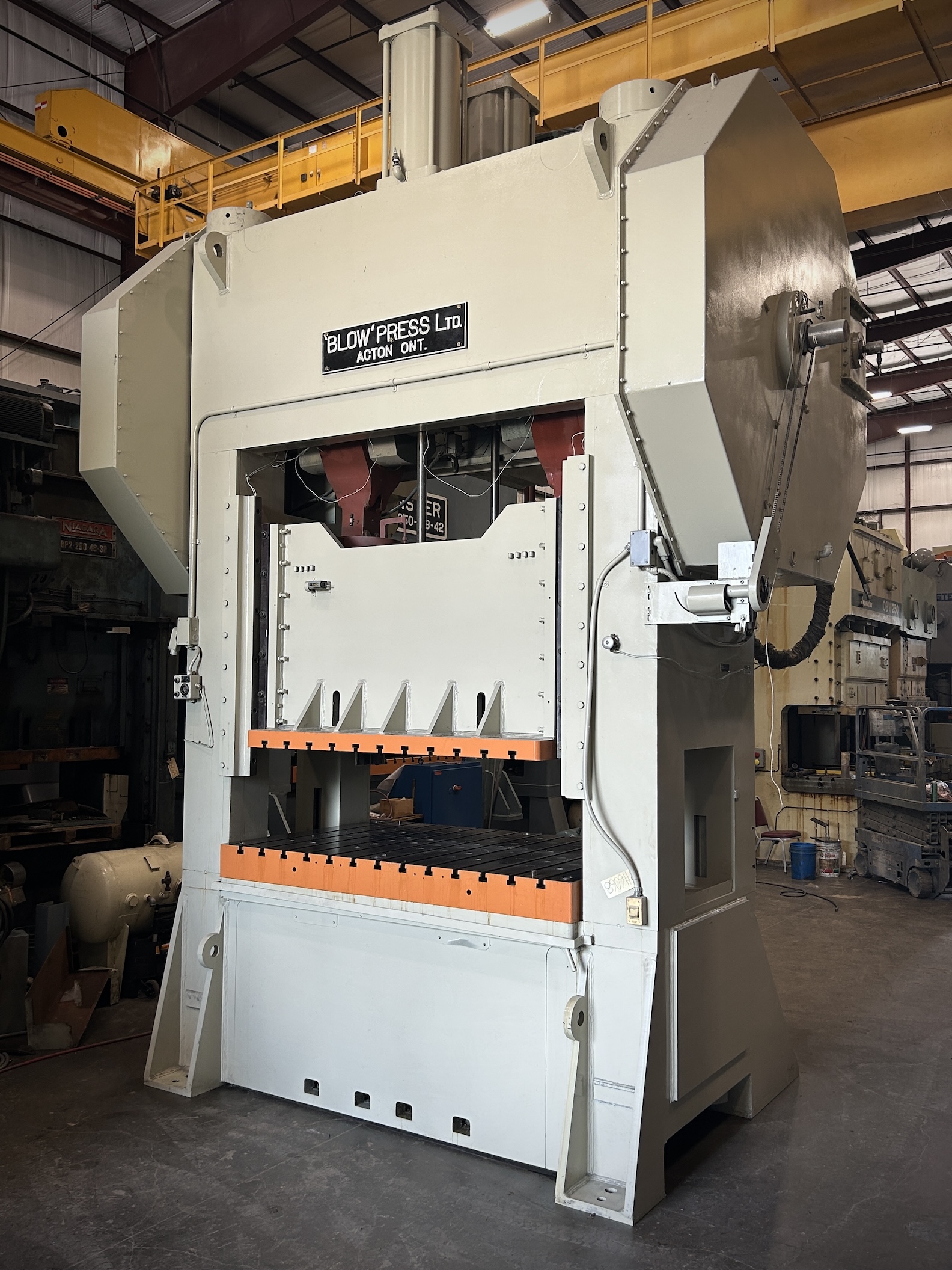

400 Ton Used Press – Straight Side Press
Model: Blow SD-400-84-54
12″ STR, 23″ SH OVER BOLSTER, 84X54 BED, 24-42 SPM, 10″ ADJ

Straight Side Double Crank Press for Sale
Used Blow Stamping Press (Mechanical)
Machine #6068
Columbia, TN Warehouse
Sale Price: $195,000

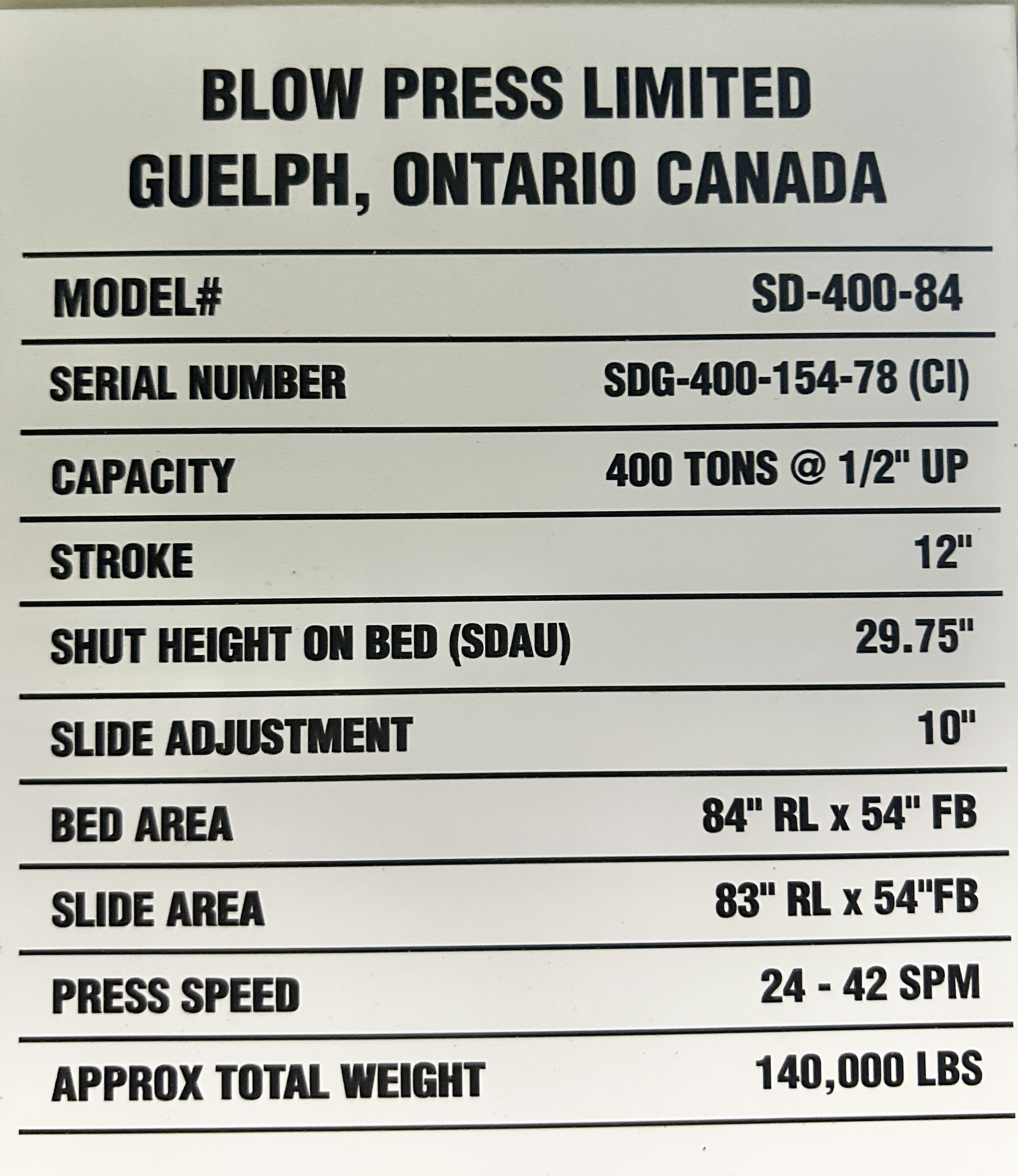

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SD-400-84-54 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1978
Machine #: 6068
Buy Now: $195,000





CAPACITY 400 TONS
STROKE 12″
max die height 23″ OVER 6.75″ h BOLSTER
BED AREA 84″ RL X 54″ FB
SPEED 24 – 42 SPM
RAM ADJUSTMENT 10″ (MOTORIZED)
RAM AREA 83″ RL X 54″ FB (REBUILT)

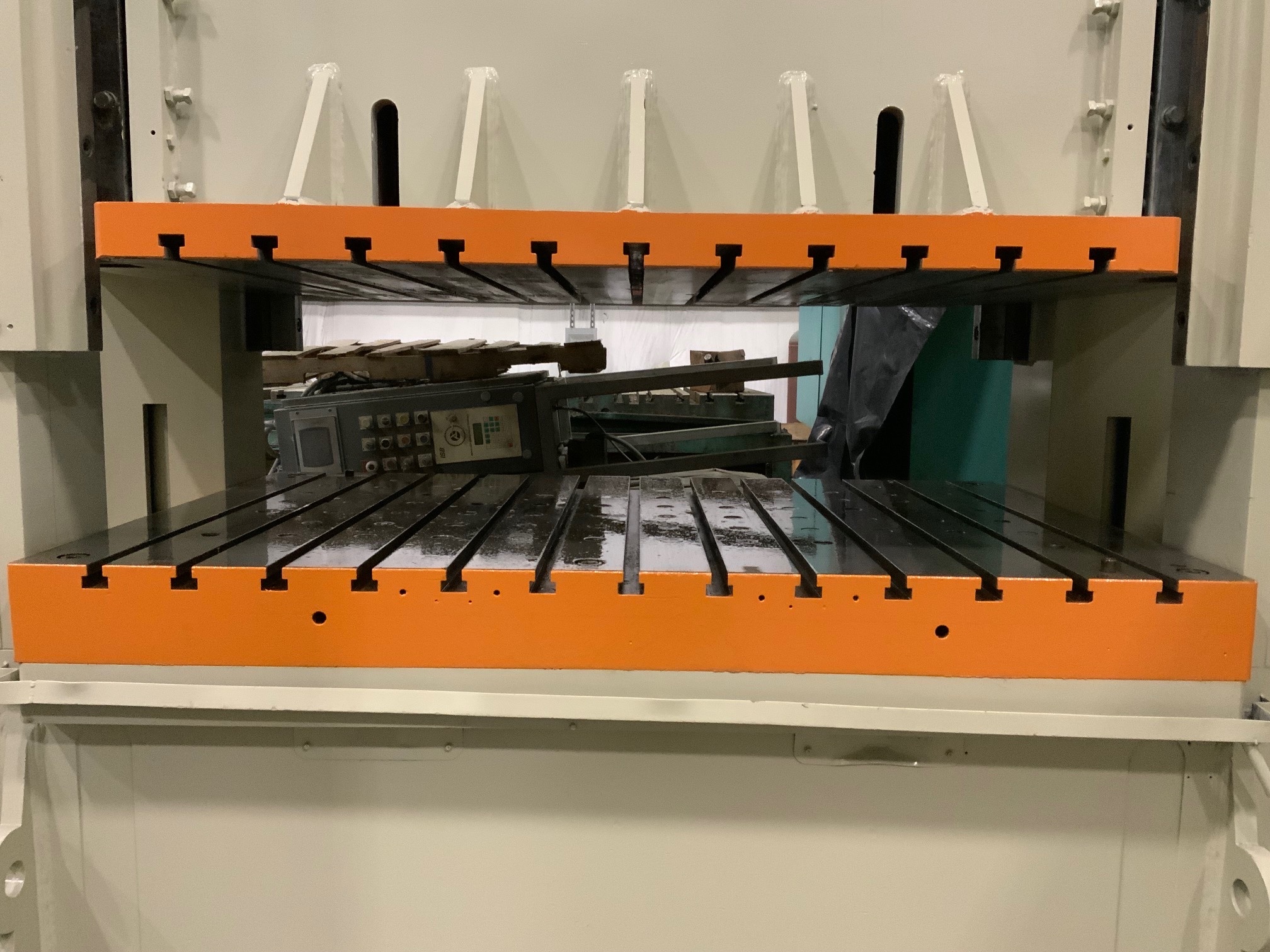

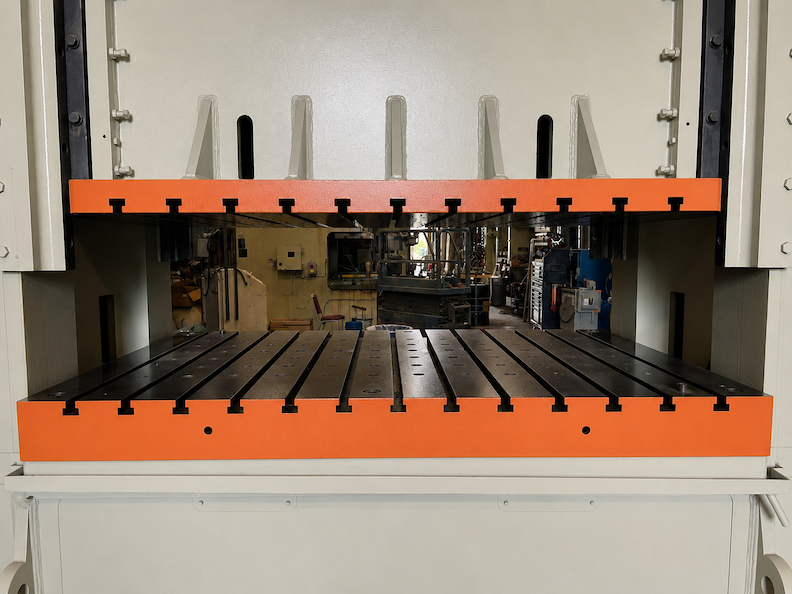

BOLSTER PLATE 6.75″ H X 84″ RL X 54″ FB
DIST UPRIGHTS / FLOOR TO BED 84″ / 43″

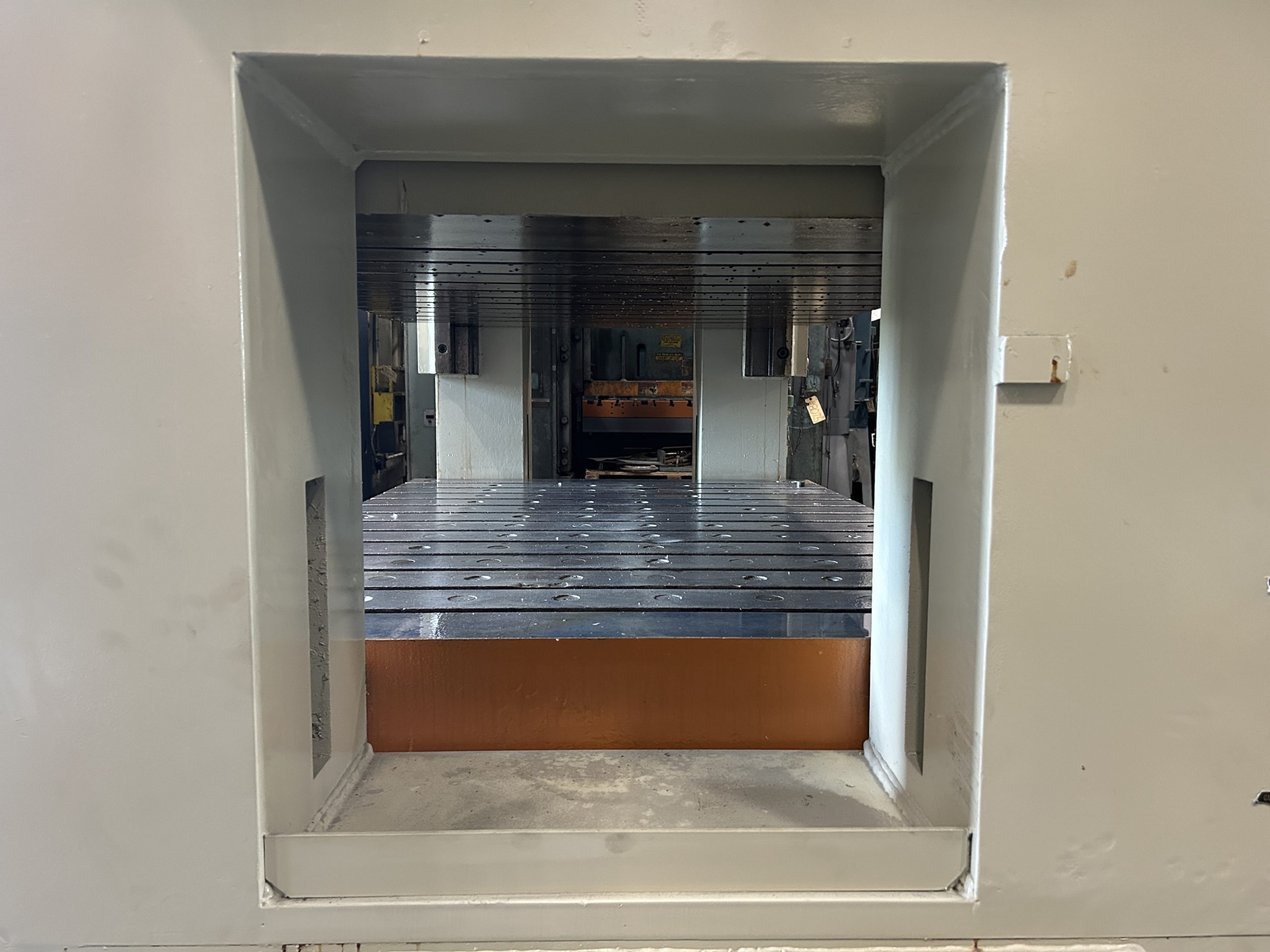

WINDOW SIZE 24.5″ W X 28″ H
CLUTCH AIR CLUTCH / BRAKE COMBINATION
ELECTRICS 60 HP 1750 RPM 575V-3-60 EDDY CURRENT MOTOR & EXISTING RELAY BASED CONTROL.
APPROX DIMENSIONS 18′ H X 13′ RL X 9.5′ FB
APPROX WEIGHT 140,000 LBS

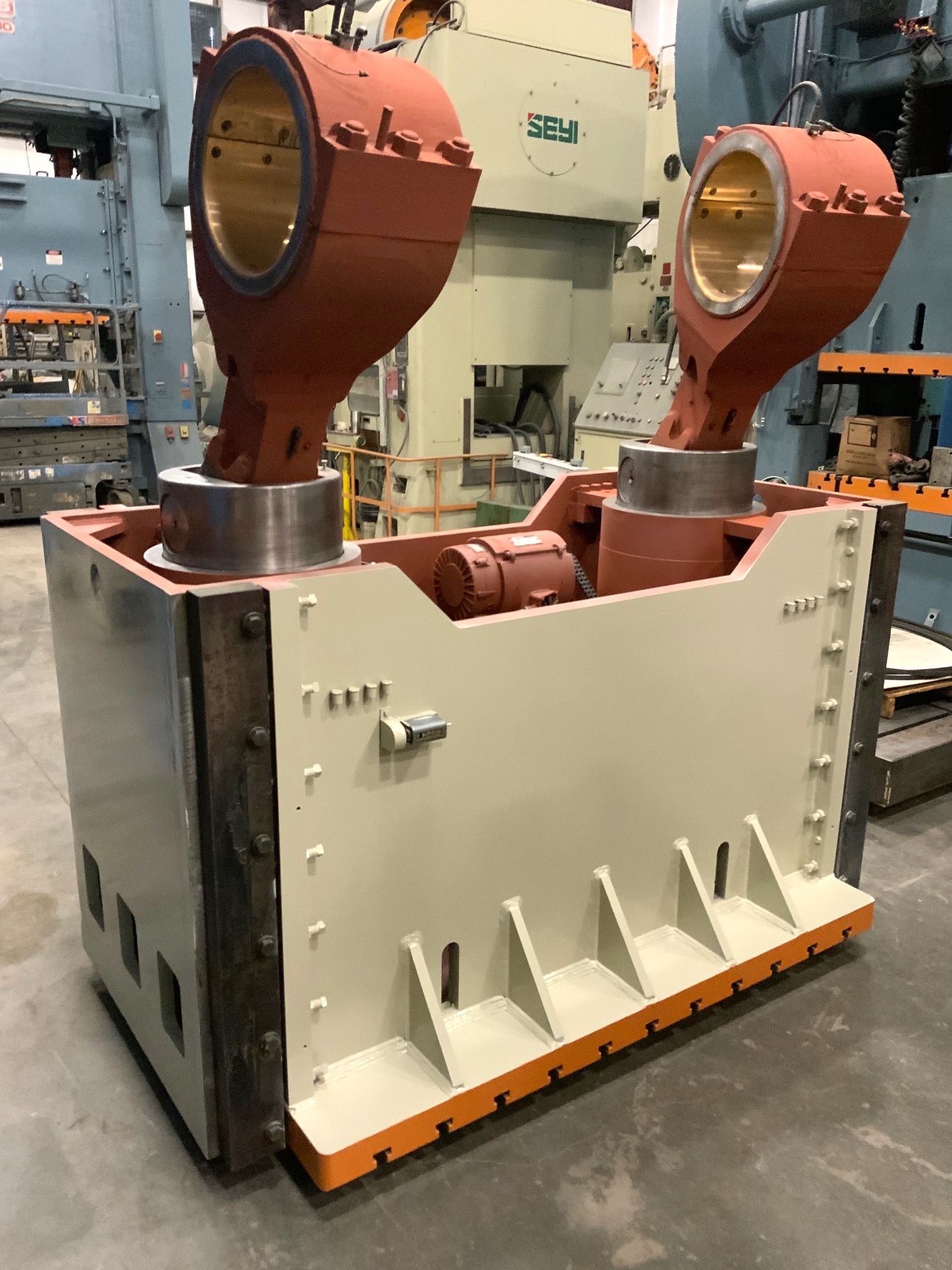

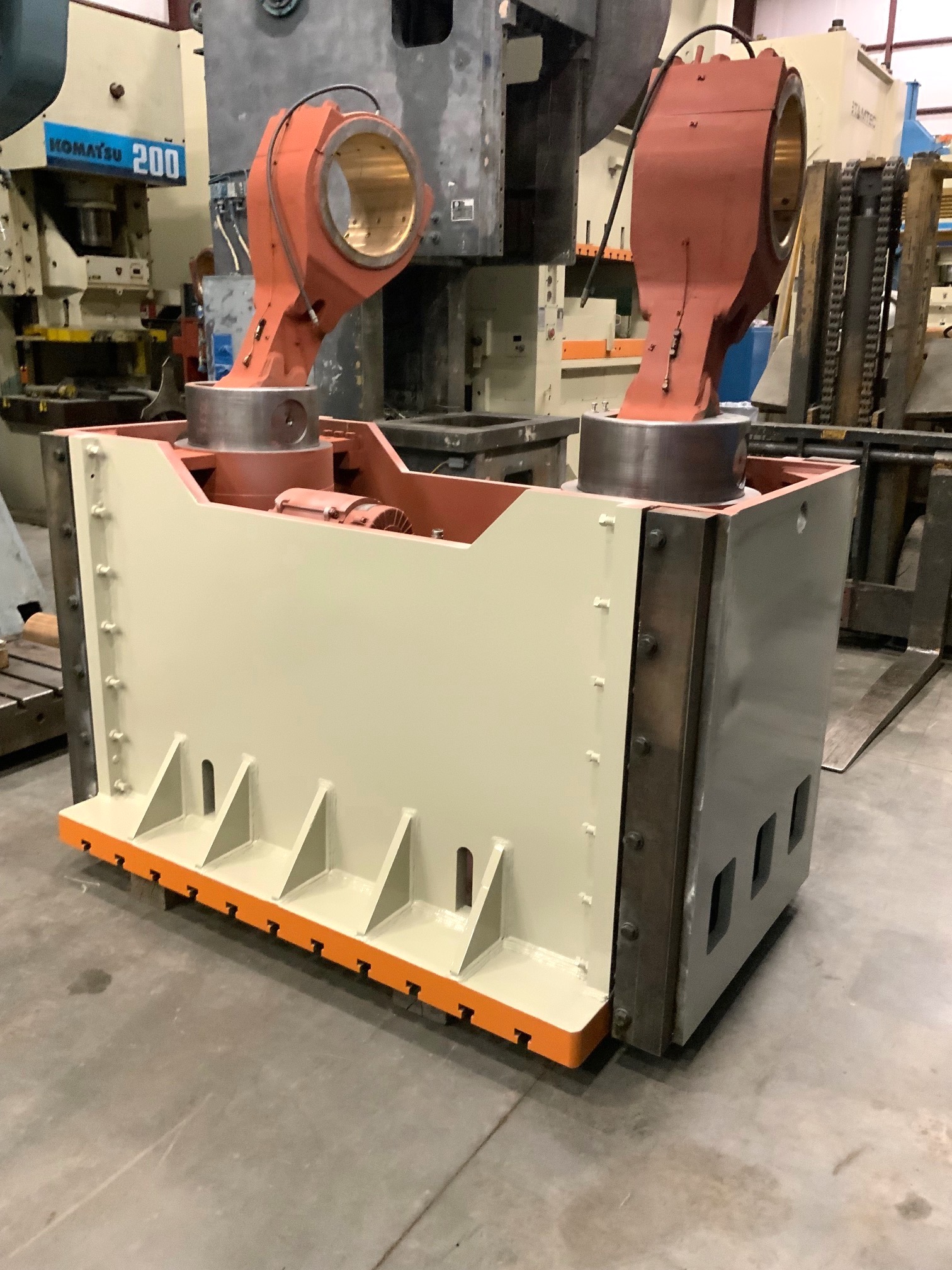

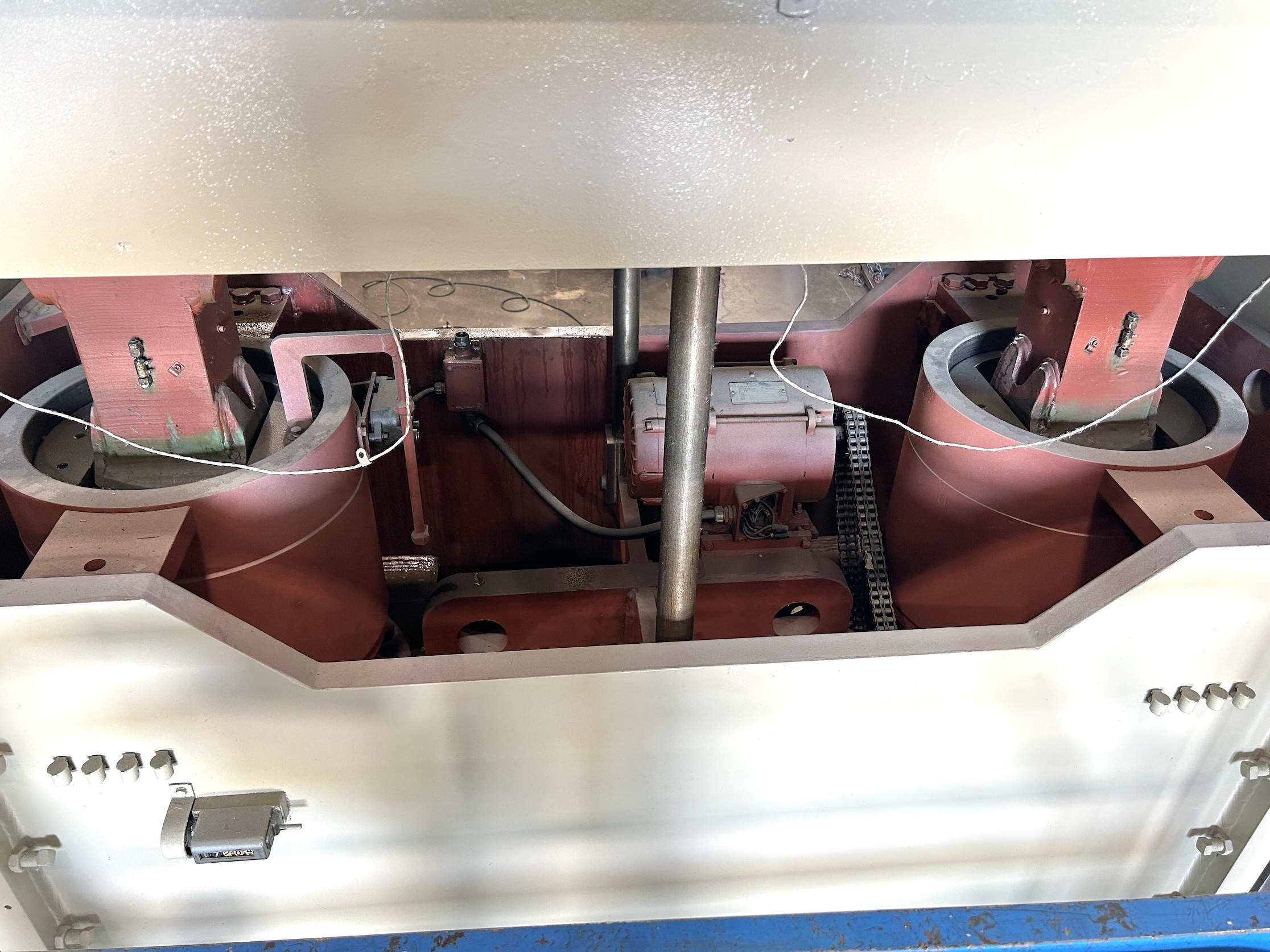

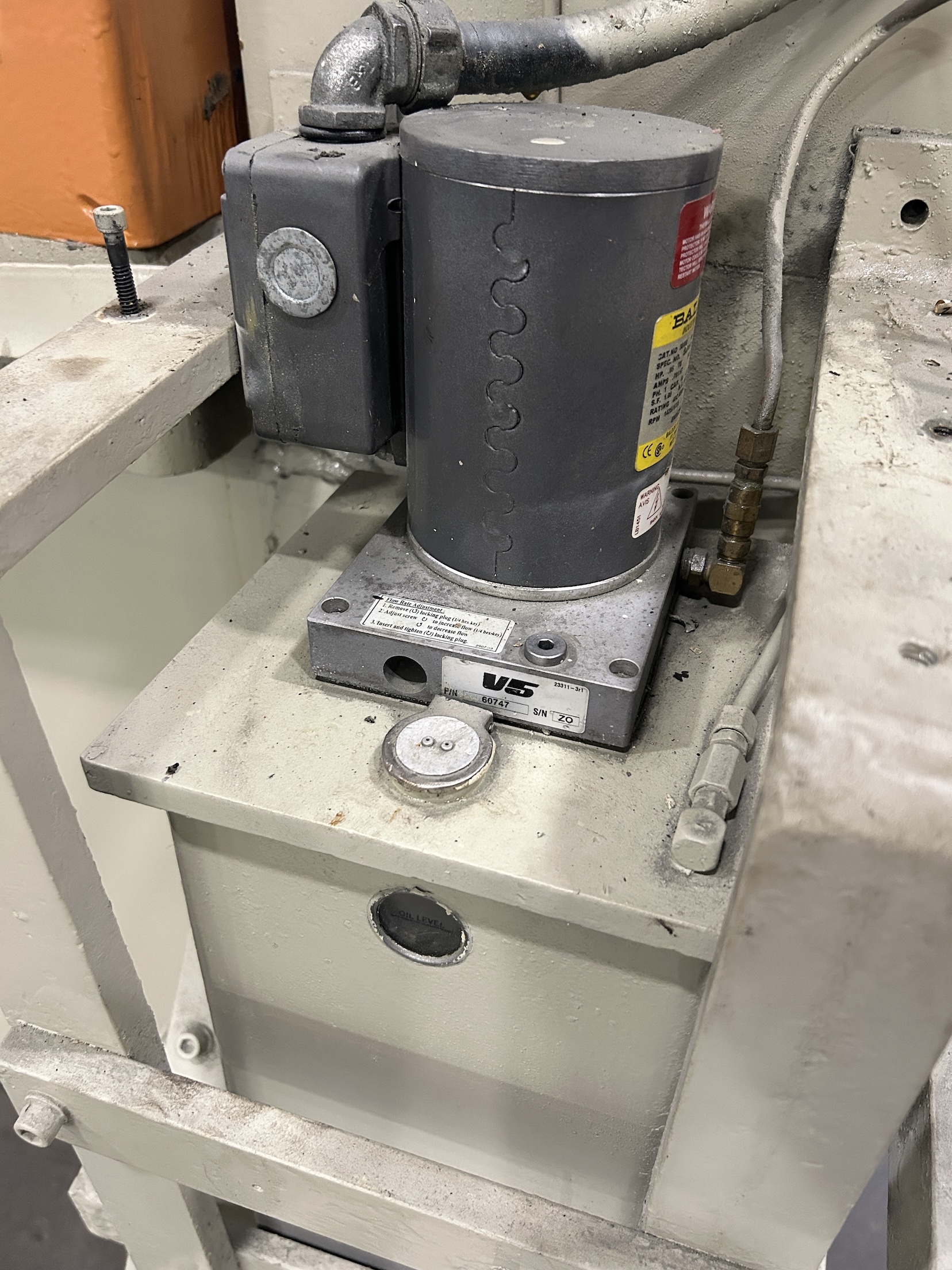

Equipped With DUAL AIR COUNTERBALANCED RAM FLOOR STANDING, TIE ROD CONSTRUCTION BIJUR AUTOMATIC LUBRICATION SYSTEM HYDRAULIC TIE ROD NUTS TWO AIR CUSHIONS IN BED. 31 TONS EACH. 6″ STROKE. REBUILT RAM. squared, FACED & NEW WRIST PIN BUSHINGS. closed & RE-BORED STRAPS.
Note __
Location This used press is located in our Columbia, TN Warehouse
