300 Ton Blow Press • Used Blow SC2-300-84-42 Press

300

300
Ton
84″
Bed R-L
10″
Stroke
Speed: 30-70 SPM
New in 2001

1

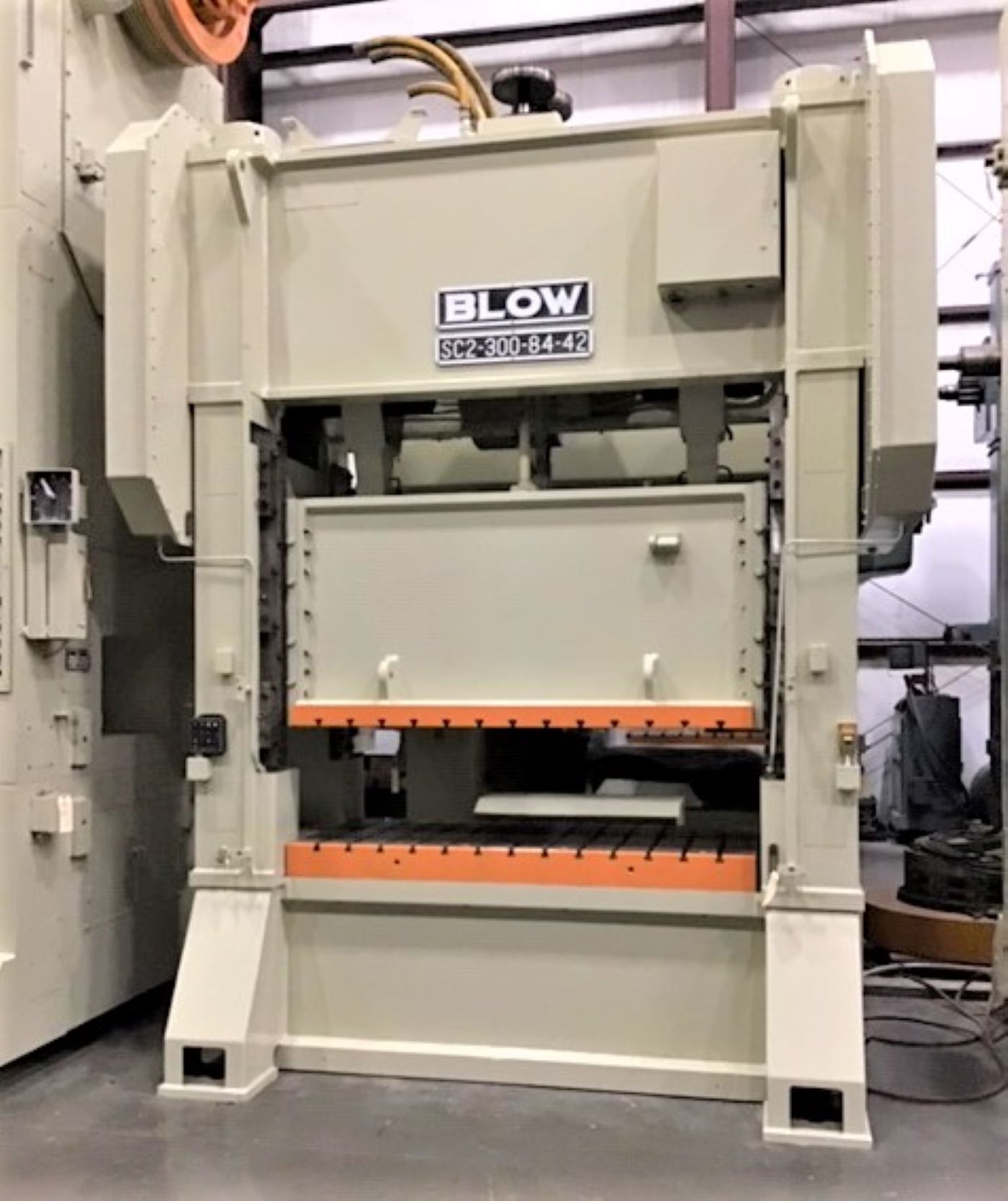

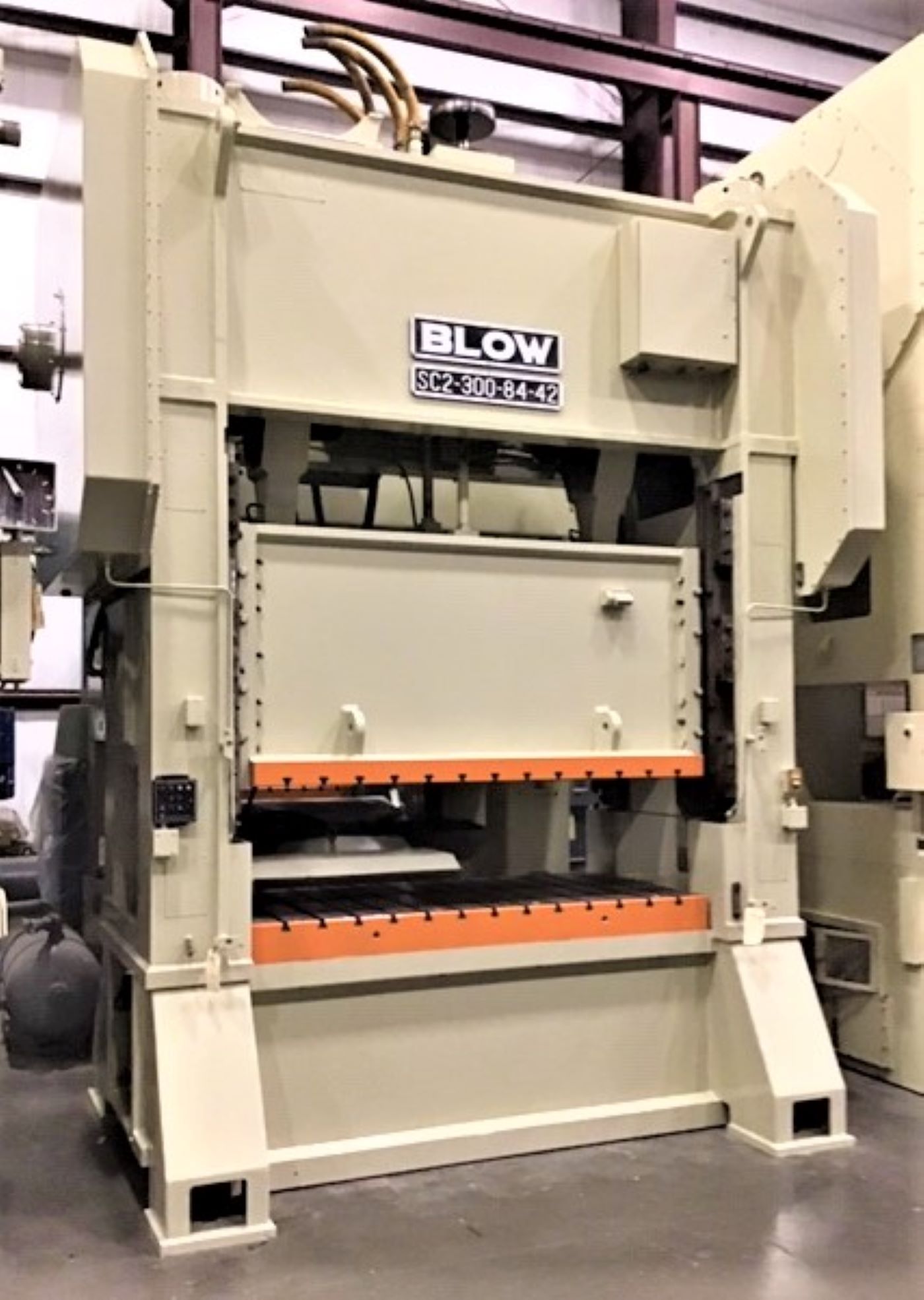

300 Ton Used Press – Straight Side Press
Model: Blow SC2-300-84-42
10″ STR, 25″ SH OB, 84X42 BED, 30-70 SPM, 10″ ADJ, VIDEO UNDER POWER, 2001

Stamping Presses for Sale
Used Blow Mechanical Press
Machine #5702
Columbia, TN Warehouse
Sale Price: $225,000

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SC2-300-84-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 2001
Machine #: 5702
Buy Now: $225,000





CAPACITY 300 TONS
STROKE 10″
MAX SHUT HEIGHT 25″ SDAU Over 6″ h bolster
BED AREA 84″ RL X 42″ FB
SPEED 30 – 70 SPM
RAM ADJUSTMENT 10″ MOTORIZED
RAM AREA 84″ RL X 42″ FB
BOLSTER PLATE 6″ H X 84 RL X 42 FB
DIST UPRIGHTS / FLOOR TO BED 88″ / 35″
WINDOW SIZE 25″ H X 26″ W
CLUTCH AIR CLUTCH/BRAKE COMBINATION
ELECTRICS 50 HP 1750 HP 240/480-3-60 MOTOR & OMNILINK II PRESS CONTROL
APPROX DIMENSIONS 16′ H X 11.5′ RL X 8′ FB
APPROX WEIGHT 106,000 LBS
Equipped With DUAL AIR COUNTERBALANCES, FLOOR STANDING, SINGLE BACK GEARED, TWIN GEAR DESIGN, AUTOMATIC RECIRCULATING LUBRICATION SYSTEM
Note __
Location This used press is located in our Columbia, TN Warehouse
