400 Ton Blow Press • Used Blow SC2-400-60-42 Press

400

400
Ton
60″
Bed R-L
14″
Stroke
Speed: 25-45 SPM
New in 1999

1

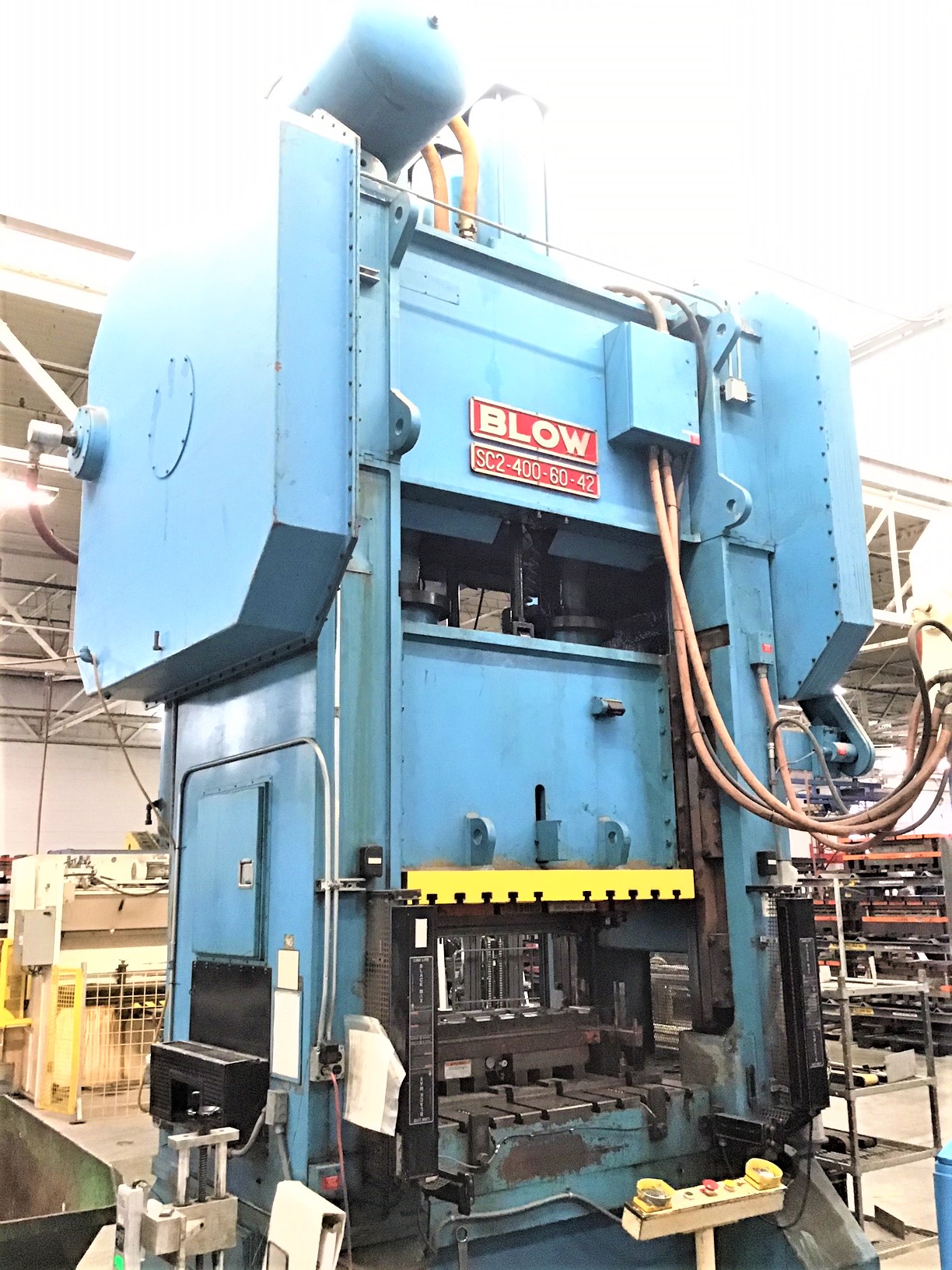

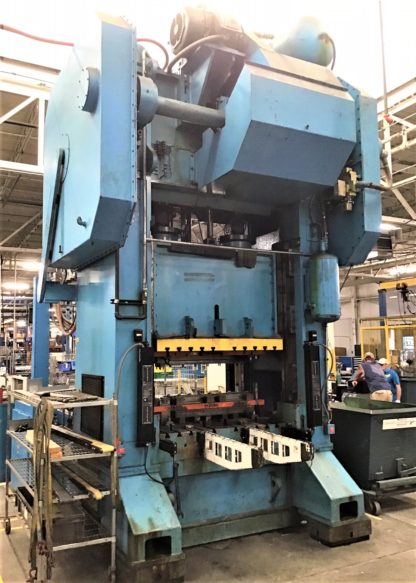

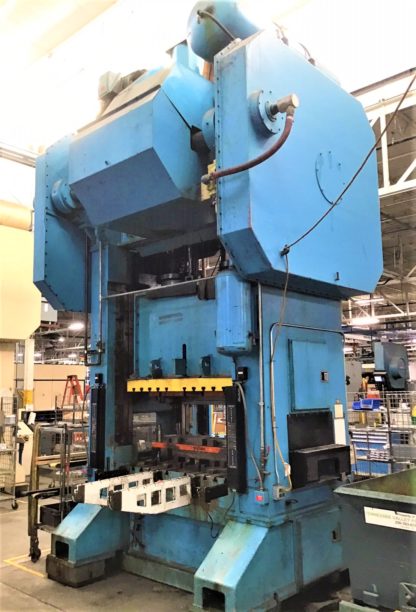

400 Ton Used Press – Straight Side Press
Model: Blow SC2-400-60-42
14″, 24″ SH – OB, 60 X 42 BED, VS 25-45 SPM,
WINDOWS, 1999.

Stamping Presses for Sale
Used Blow Mechanical Press
Machine #5879
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Blow
Model: Blow SC2-400-60-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1999
Machine #: 5879
Buy Now: $





CAPACITY: 400 TON
STROKE: 14″
SHUT HEIGHT TO BED: 24″ (SDAU – OVER BOLSTER)
BED AREA: 60″ RL X 42″ FB
SPEED: 25 – 45 SPM (VARIABLE)
RAM ADJUSTMENT: 14″ (MOTORIZED)
RAM AREA: 60″ RL X 42″ FB (T-SLOTTED)
BOLSTER SIZE: 10″ TH X 60″ RL X 42″ FB (T-SLOTTED)
WINDOW SIZE: 25″ FB X 25″ H (APPROX)
DIST UPRIGHTS / FLOOR TO BED: 61″ / 32-1/2″ (over 7-1/2″ FOOTPADS)
CLUTCH: AIR CLUTCH & BRAKE.
ELECTRICS: MOTOR & existing press control
APPROX. DIMENSIONS: 17′ H X 10′ RL X 9′ FB
APPROX. WEIGHT 80,000 LBS.
Equipped With AIR COUNTERBALANCES TIE ROD FRAME CONSTRUCTION AUTOMATIC OIL LUBRICATION SYSTEM FLOOR MOUNTED BASE OVER FOOTPADS __
Note __
Location This used press is located in our Columbia, TN Warehouse
