4,000 lbs x 18″ Wide x .187″ CWP Reel & Straightener

9

4000
Coil Capacity
18
Coil Width
0.187
Material Thickness

New in 1982

1
Used Feedline Equipment
Press Feed Lines for Sale
Complete Servo Feed Line
Model 3R18 / SMX18H

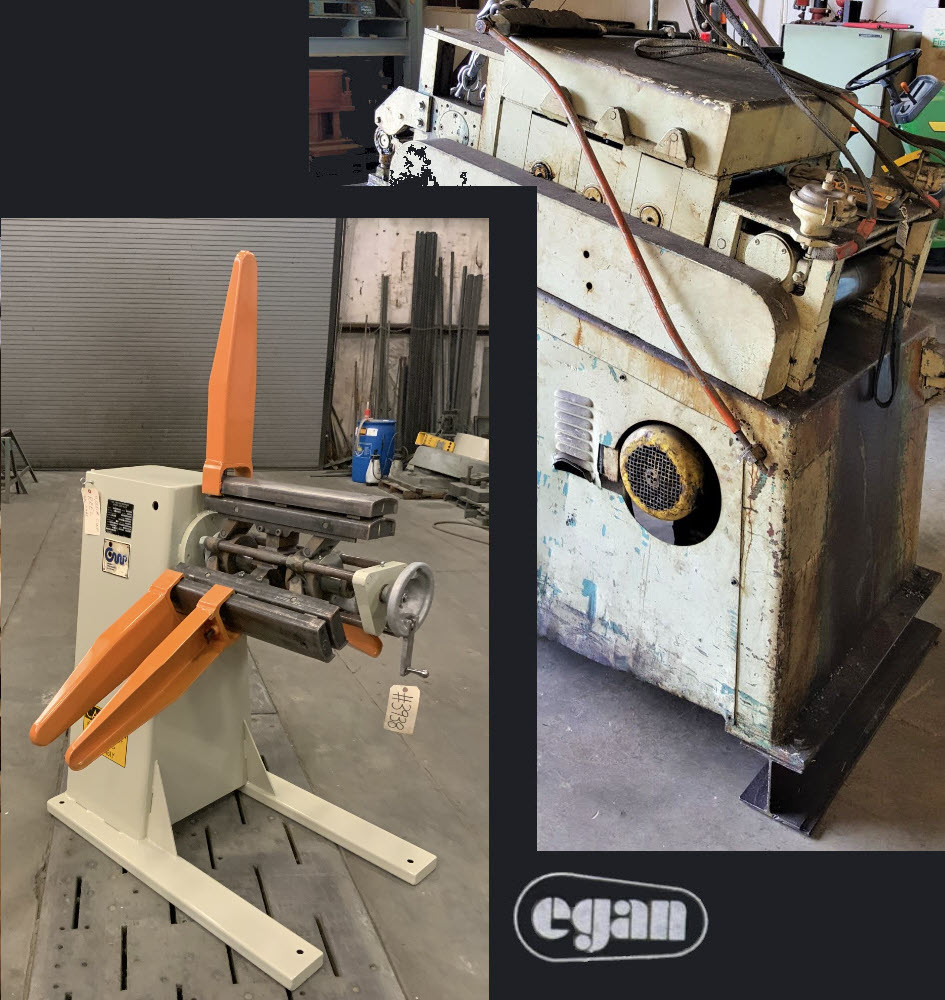

4,000 LB X 18″ W X 60″ OD. CWP REEL WITH EGAN STRAIGHTENER 18″ W X .187″ TH, PRICE CUT, VIEW UNDER POWER

Machine #3938
Columbia, TN Warehouse
Starting Price: $17500

Machine Specifications

Used Complete Servo Feed Line for Sale

Cooper Weymouth Model: 3R18 / SMX18H
Condition: Very Good
Location: Columbia, TN Warehouse #3938
Year: 1982
Buy Now: $17500





SINGLE END CWP REEL MODEL 3R18 S/N C982 (1982)
COIL CAPACITY 4,000 LBS.
STOCK WIDTH 18″
COIL OD (MAX) 60″ OD
COIL ID (RANGE) 13″-17″ ID
BRAKE AIR DISC BRAKE
APPROX. DIMENSIONS 5’6″ H X 5’6″ RL X 5′ FB
APPROX. WEIGHT 2,000 LBS.
EGAN STRAIGHTENER PRESSPARTNER
CAPACITY 18″ W X .187″ TH
NUMBER OF ROLLS 3 OVER 3 LAYOUT
STRAIGHTENING ROLLS 2.5″ DIA X 20″ W
POWERED ENTRY ROLLS 2
PASS LINE HEIGHT 51″ ENTRY / 39.5″ EXIT
ELECTRICS 5 HP 900 RPM 480V-3-60 MOTOR & CONTROLS
APPROX OVERALL DIMENSIONS 5.5′ H X 5.5′ RL X 4′ FB
APPROX WEIGHT 5,000 LBS
Equipped With REEL: (3) ARM MANDREL, (6) STOCK KEEPERS, MANUAL I.D. ADJUSTMENT, STEEL FRAME CONSTRUCTION, FLOOR MOUNTED BASE, MANUAL LUBRICATION POINTS STRAIGHTENER: VARIABLE SPEED, AIR POWERED PINCH ROLLS
Note SPECIFICATIONS SUBJECT TO CHANGE
Location Machine is located in Columbia, TN Warehouse
