Machine Specifications

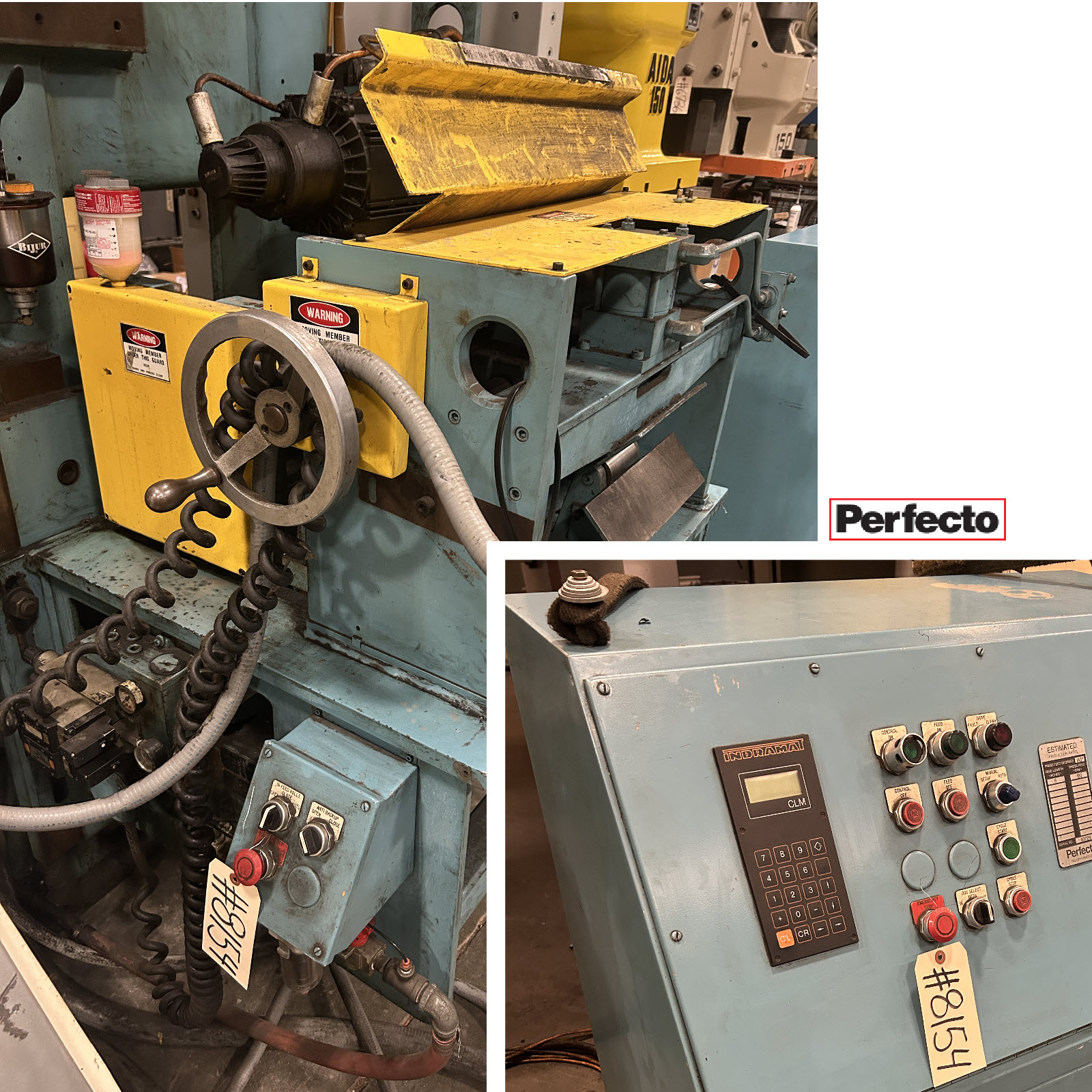

Used Servo Feeder for Sale
Perfecto Model: 300-16
Condition: Very Good
Location: Columbia, TN Warehouse #8154
Year: 1993
Buy Now: $

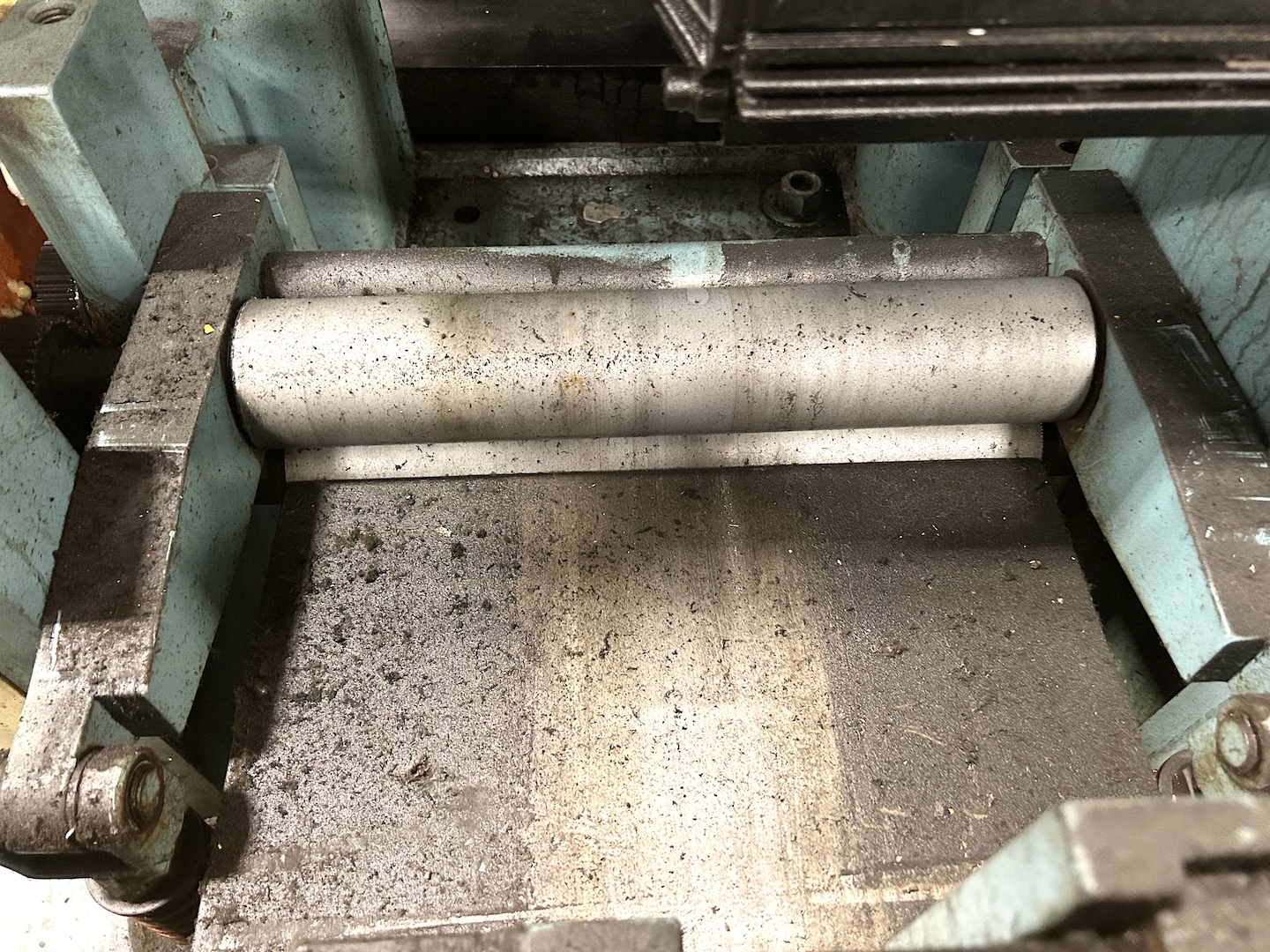

| capacity | 16″ w x .060″ thick | feed roll diameter | 3″ | number of feed rolls / layout | 1 over 1 | max thickness at full width | .060″ | max width at full thickness | 16″ | feed length capability | 0 – 99.999″ with feed length setting controlled by pushbutton panel | roll position repeatability | +/- .005″ @ 1200″ per minute | production rate (180 degree feed cycle) | 6″ @ 120 spm | voltage | 480v-3-60 | approx dimensions | feed – 52″ h x 36″ w x 48″ l control – 51″ h x 44″ rl x 27″ fb | approx weight | feed – 1,000 lbs control – 500 lbs | Equipped With | press mount, feed rolls w/chrome blast finish, roll lifters, sealed for life bearings on rollers, gears w/automatic grease lubrication, anti-back up roll assembly, & mill type stock guides | Note | __ |
|---|---|
| Location | This Used Perfecto 300-16 Servo Feeder is located in our Columbia, TN Warehouse |
