Description
New Straight Side Press • New 440 Ton Press for Sale

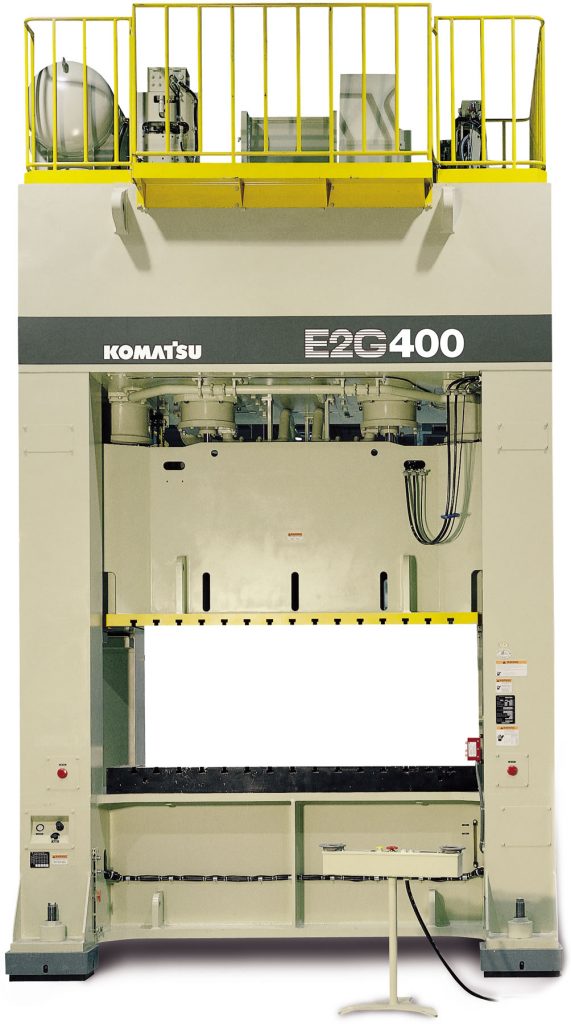

Model: Komatsu E2G400A Press
Condition: New
Location: Press Sales Catalog Either In Transit or Made to Order
Year: 2026
Machine #: 7029
Buy Now: $
| CAPACITY | 440 TONS AT .26" RATING POINT | STROKE | 10.2" | max die height | 36.2" over bolster | BED AREA | 122" X 61" (RL X Fb) | bolster Plate | 122" X 61" (RL X Fb) | RAM / SLIDE AREA | 122" X 61" (RL X Fb) | RAM / SLIDE ADJUSTMENT | 12.2" | SPEED | 30-65 SPM | WINDOW SIZE | 63" WIDE | CLUTCH | MULTIPLE DISC HYDRAULIC CLUTCH AND BRAKE | ELECTRIC MOTOR, DRIVE & GEARING | CENTER DRIVE DESIGN WITH HELICAL GEARS & SPLINED CONNECTIONS | PRESS CONTROLS | KOMATSU SIT IV - SYSTEM INTEGRATED TERMINAL CONTROLLER | APPROX. DIMENSIONS | 168" X 146" (RL X FB) X 276" HIGH | APPROX. WEIGHT | __ | Equipped With | HYDRAULIC OVERLOAD PROTECTOR, SLIDE ADJUSTMENT WITH HYDRAULIC SLIDE LOCK AND TRAVEL PROTECTION DIGITALLY DISPLAYED, DUAL PLUNGER GUIDE SYSTEM | Note | CAPACITY RATING POINT AT .260" |
|---|---|
| Location | This New Press is Located in Our Press Sales Catalog Either In Transit or Made to Order |
