Description

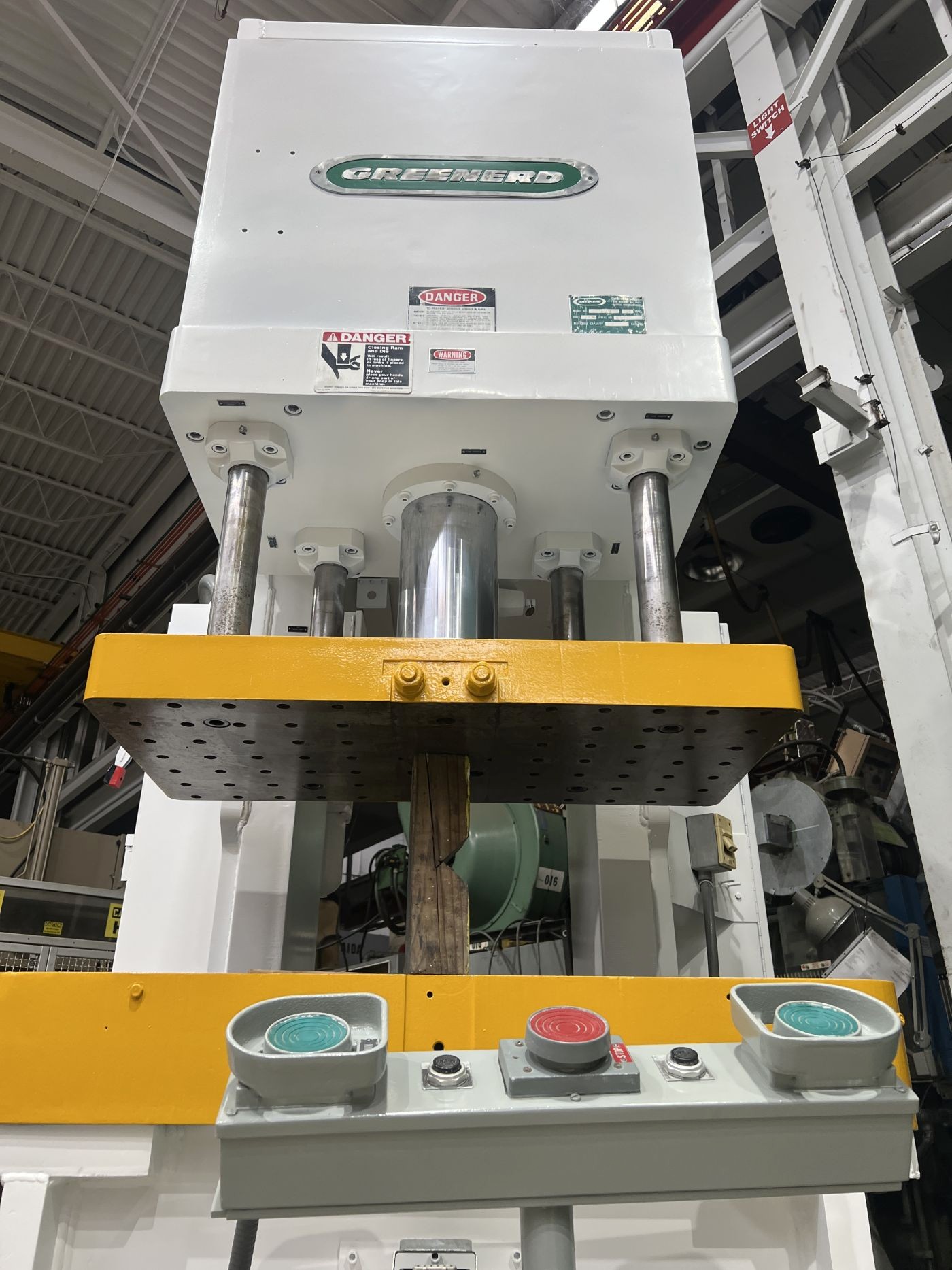

C Frame Design, Used Hydraulic Press • Used 100 Ton Press for Sale
Model: Greenerd HCA-100-60L12 Press
Condition: Excellent
Location: Jackson, MI Cooper Building
Year: 1990
Machine #: 5637
Buy Now: $

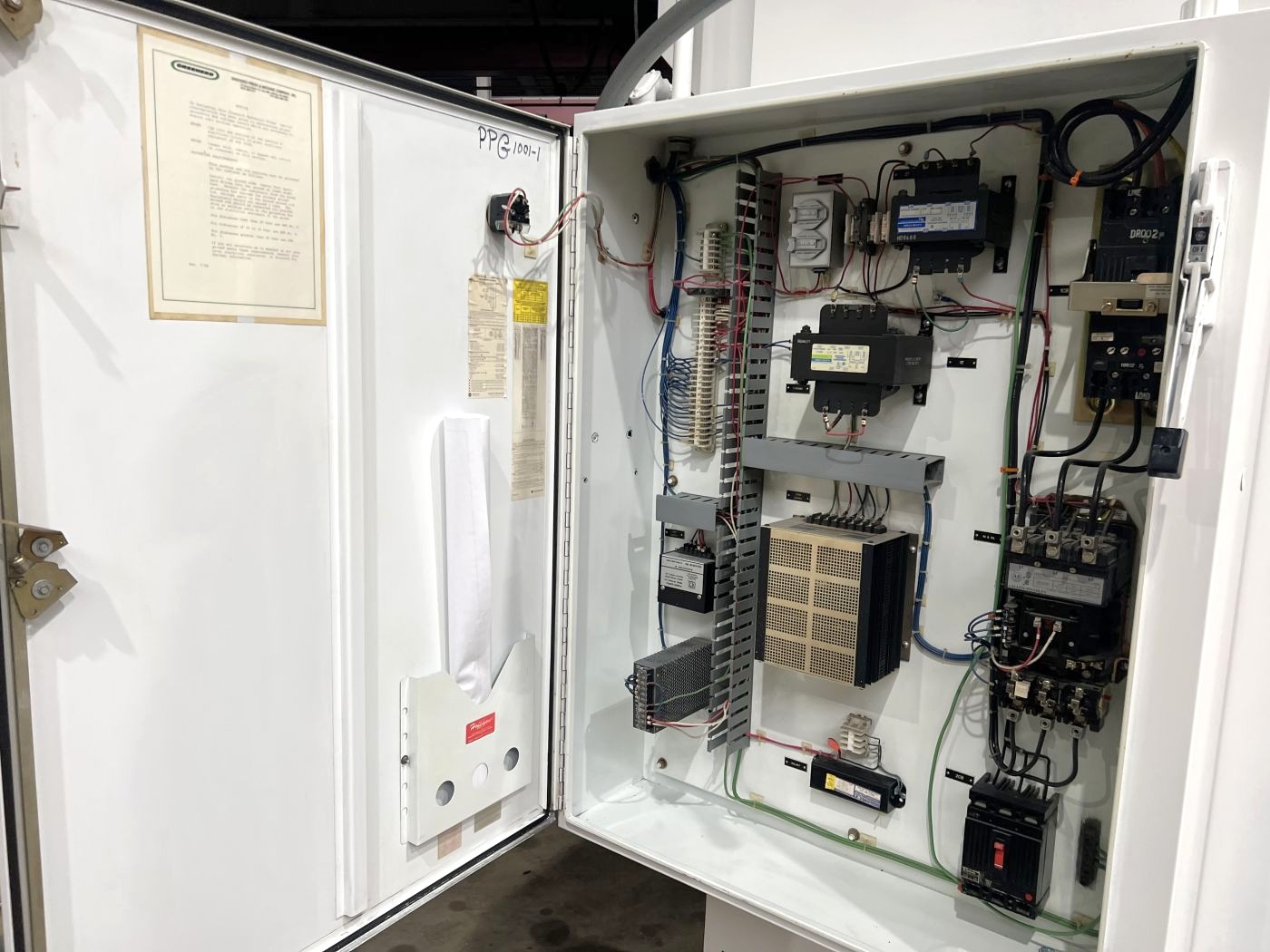

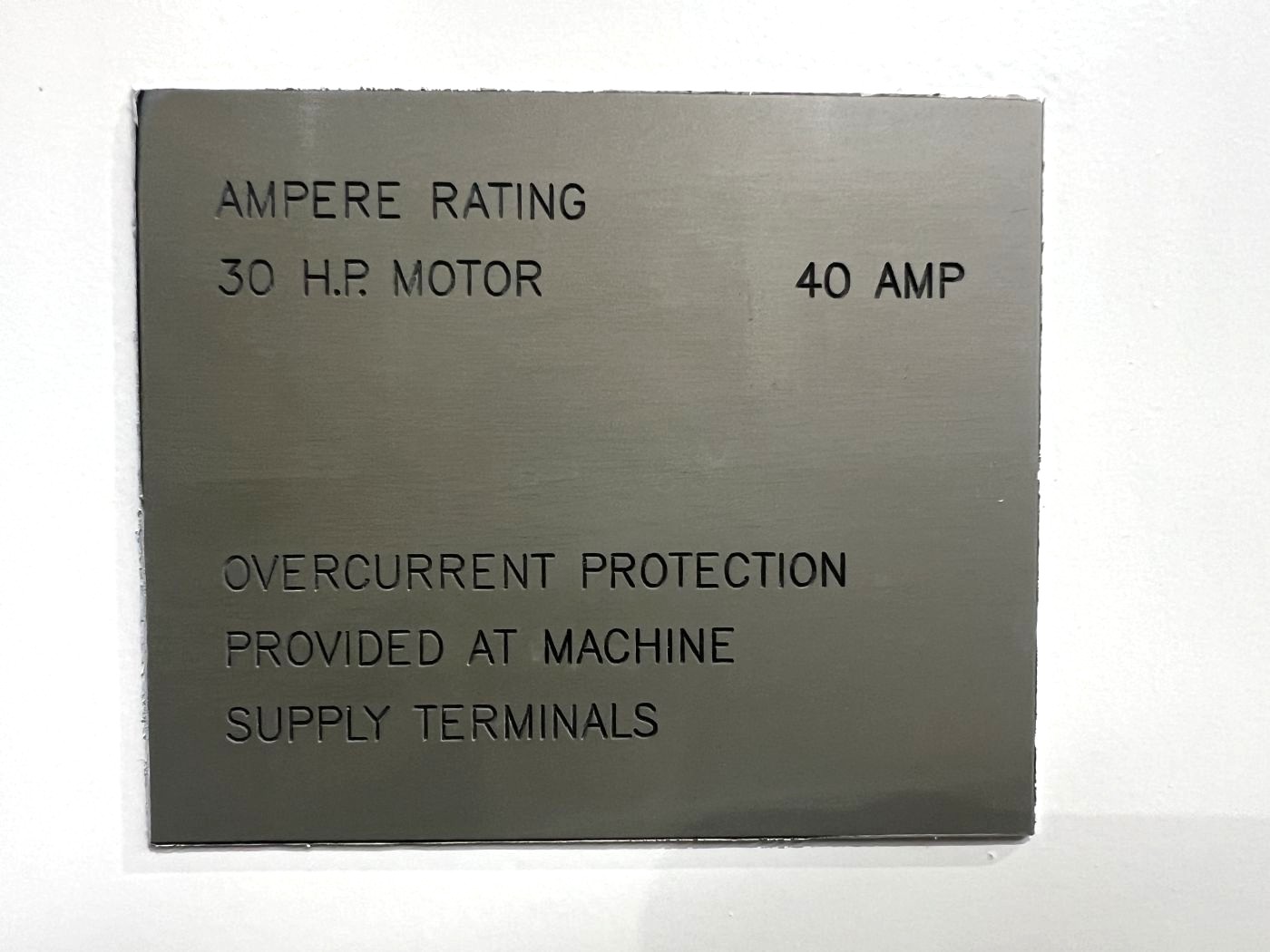

| CAPACITY | 100 TONS (at 2550 PSI) | MAX. STROKE | APPROX. 20" | MAX. DAYLIGHT TO BED | APPROX. 30" | BED AREA | 42" X 27" (RL X FB) | RAM AREA | 40" X 20" (RL X FB) | BOLSTER PLATE | 42" X 27" (RL X FB) X 6" THICK SOLID BOLSTER PLATE | CYLINDER SIZE | 10" Bore | RAM SIZE | 7" DIA. BORE | GUIDE POSTS | FOUR 2.5" DIA. GUIDES | THROAT DEPTH | 16" | FLOOR TO BED | 32" | DISTANCE BETWEEN UPRIGHTS | 24" | SPEED | 211 RAPID CLOSE / 2-32 PRESSING / 415 RETURN | HYDRAULICS | (1) Vickers 45VTB60A-286B20-282 Pump (1) Vickers 2520V12C5-11AA20-282 Pump 200 GAL Tank Heat Exchanger Model 35B3-1 (Thermal Transfer) | PRESS CONTROLS | NEW PLC CONTROLS INCLUDED WITH RECONDITIONING PROCESS | ELECTRIC MOTOR | 480V/3/60/30 HP MOTOR | JOGGLE TEMPERATURE | 325 DEG. F | APPROX. DIMENSIONS | 78" X 93" (RL X FB) X 148" HIGH | APPROX. WEIGHT | 15,000 lbs | Equipped With | heat exchanger, PRESSURE TRANSDUCERS ON both MAIN CYLINDER AND 20-Ton Cushion in base | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
