Description

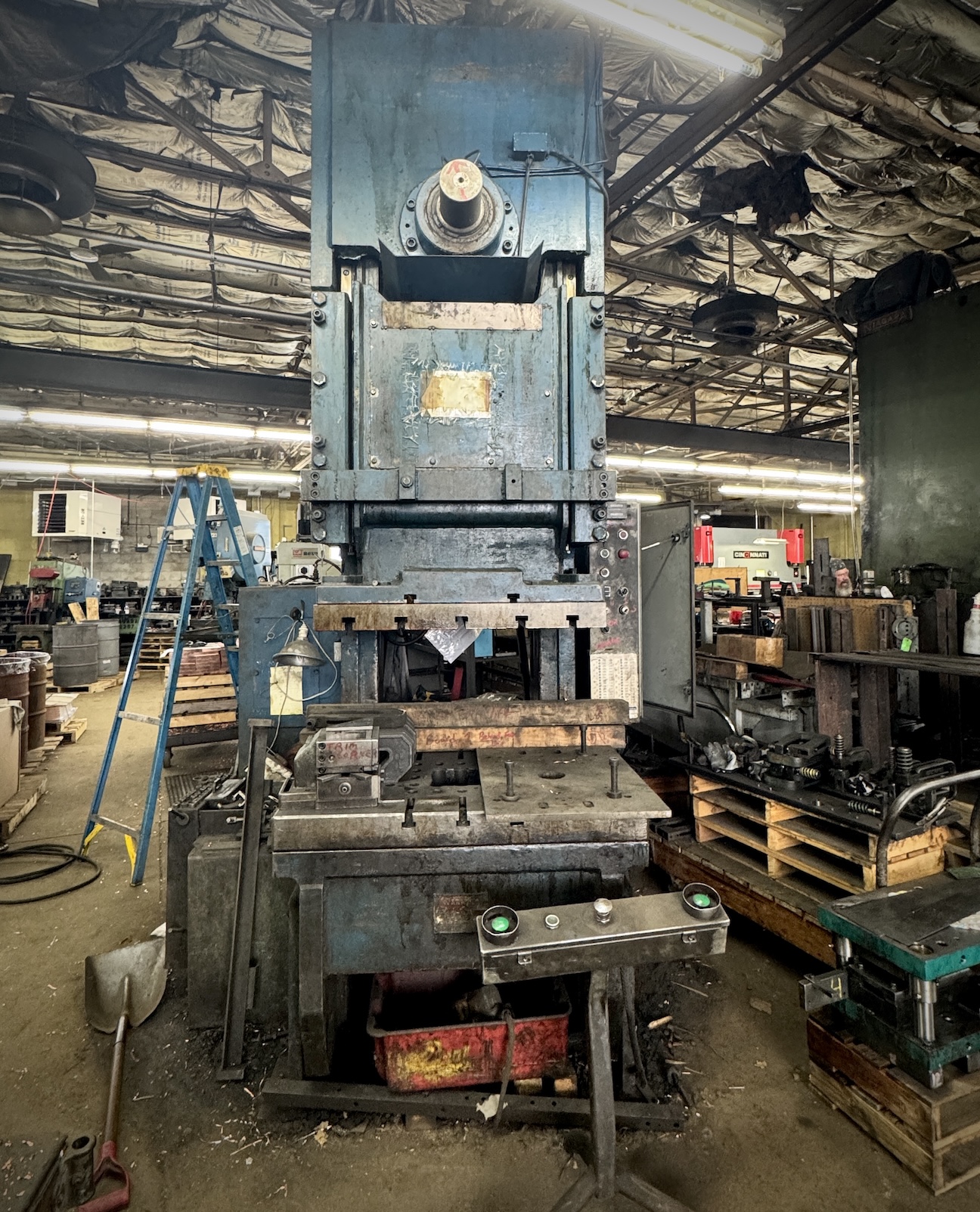

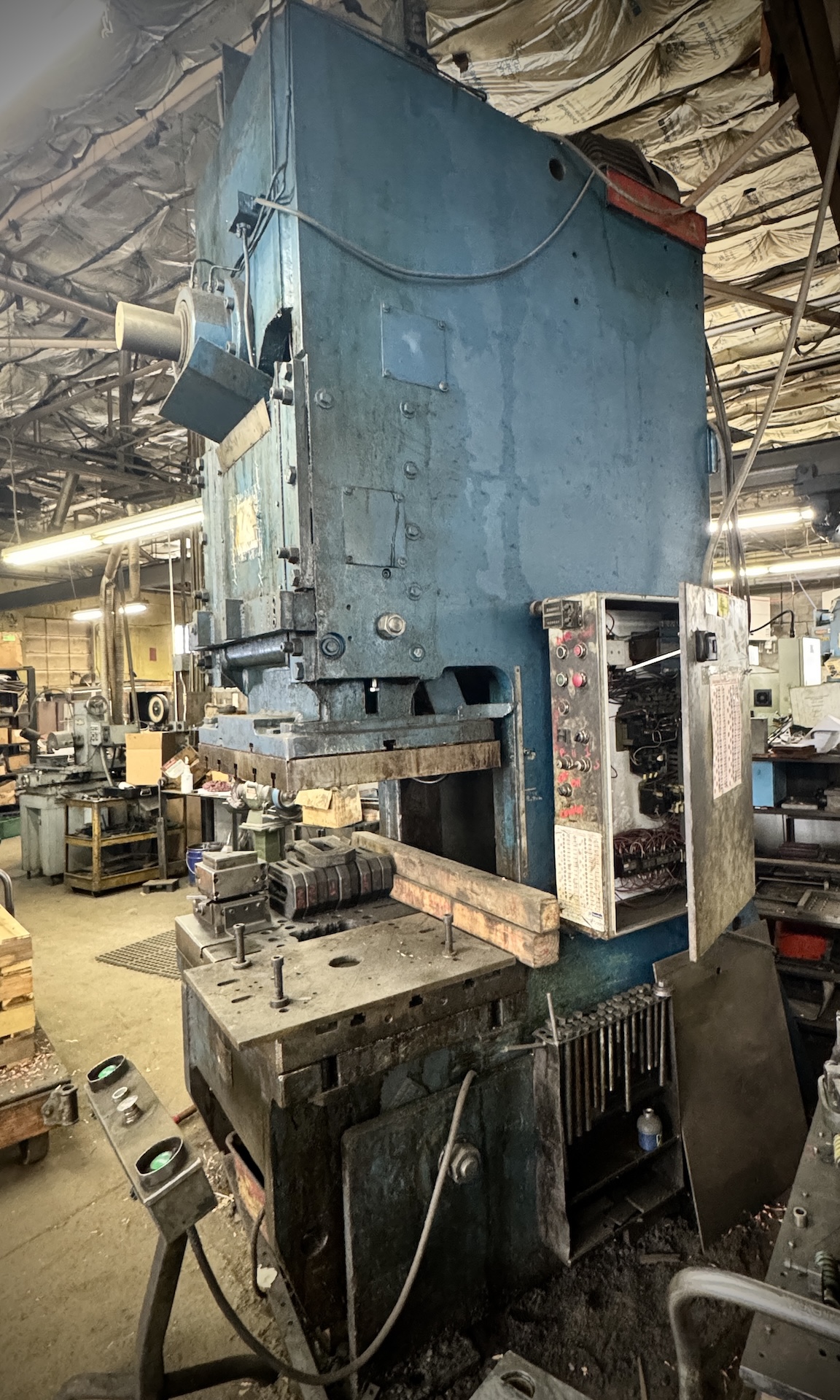

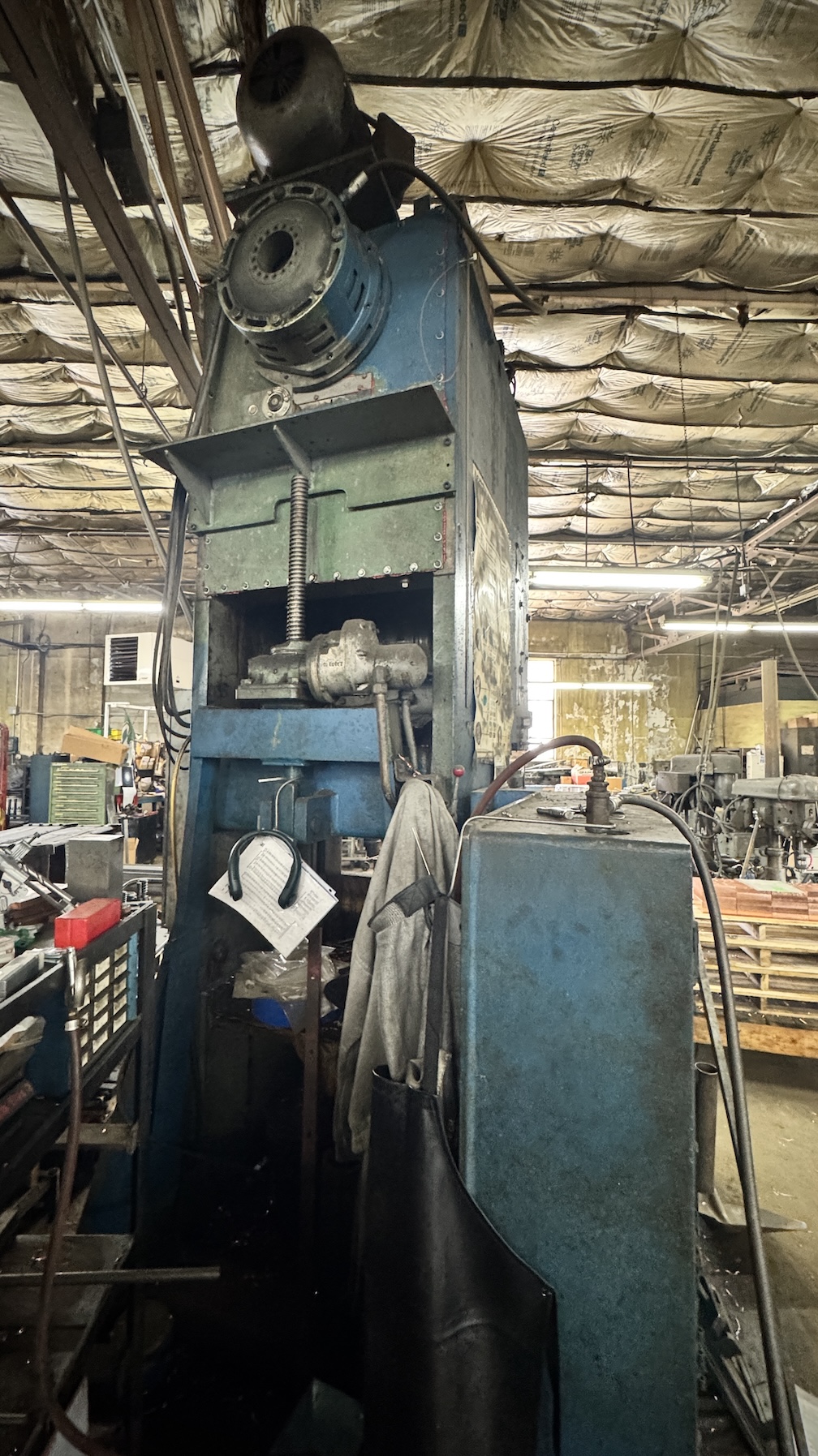

High Tonnage OBI Press • Used 110 Ton Press for Sale
Model: Niagara E-110 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1972
Machine #: 8407
Buy Now: $

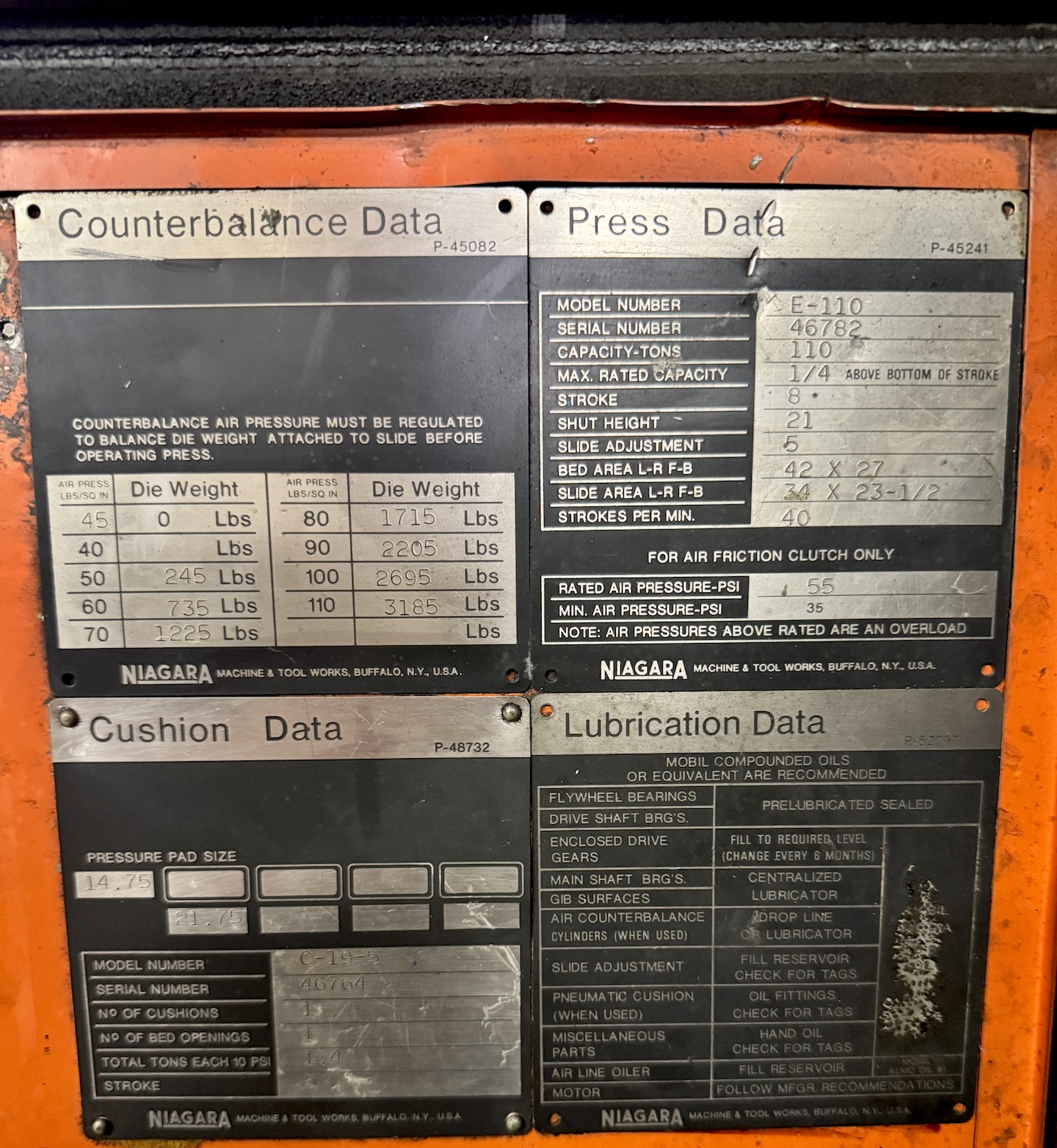

| capacity | 110 ton | stroke | 8" | max shut height to bed | 21" sdau | bed area | 42" x 27" (rl x fb) | speed | 40 spm | slide adjustment | 5" air motorized | slide area | 34" x 23.5" (rl x fb) t-slotted | bolster plate | 4" h x 42" rl x 27" fb (t-slotted) | distance between uprights | 24.5" | distance floor to bed | 34" | clutch | niagara air clutch & brake | electrics | 10 1750 rpm 240/480v-3-60 motor & niagara relay press control. will include new cieco 1100r6 press control for recond. price. | approx. dimensions | 153" h x 70" rl x 96" fb | approx. weight | 31,500 lbs. | Equipped With | six point square gibbing, laminated nonmetallic ways, wide box-type slide, rugged connection & heat-treated ball screw, power slide adjustment, self contained adjustable, low inertia steel gearing, air powered incline | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
