150 Ton Bliss Press • Used Bliss C150 Press

150

150
Ton
50″
Bed R-L
6″
Stroke
Speed: 70 SPM
New in 1

1

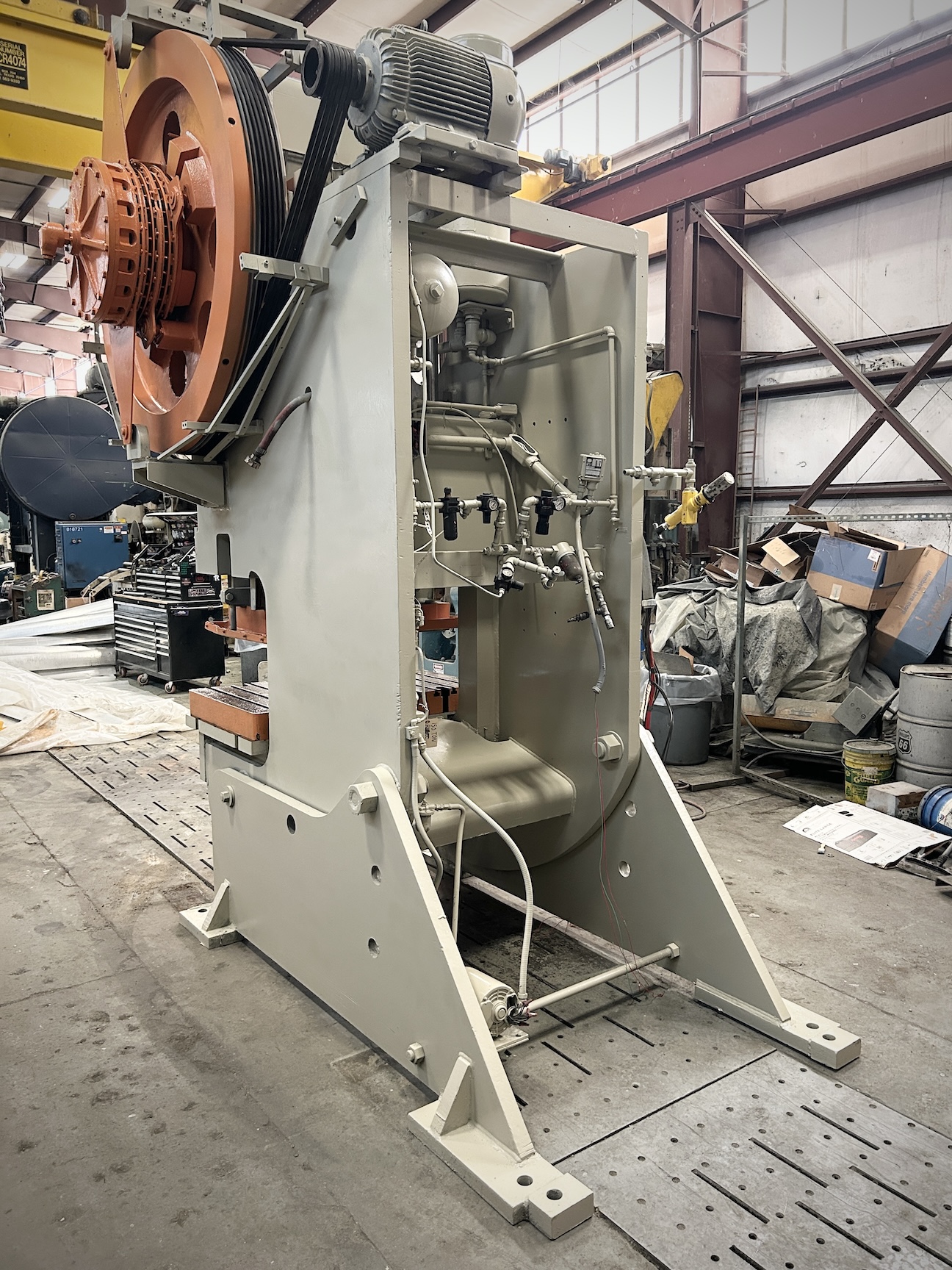

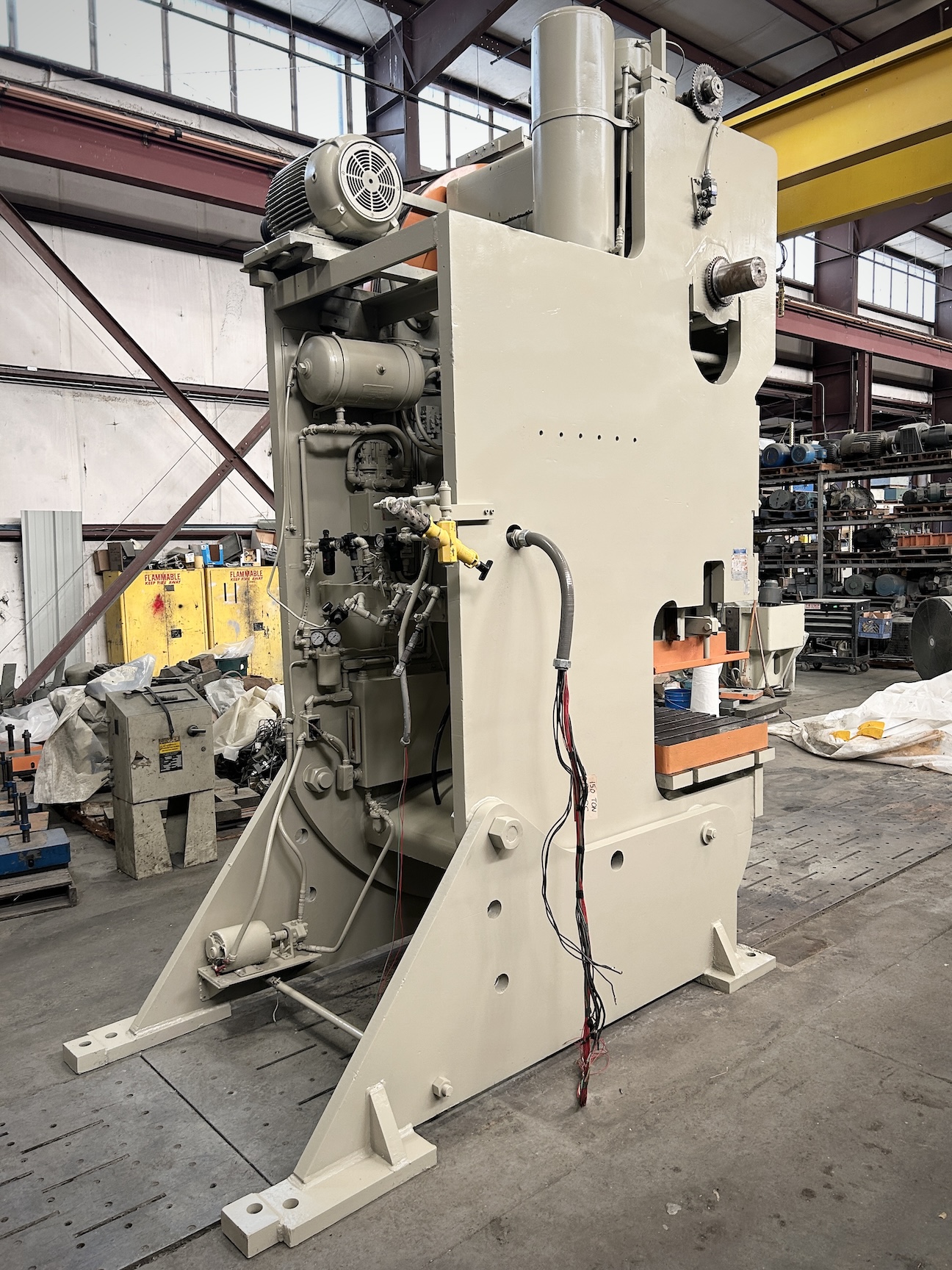

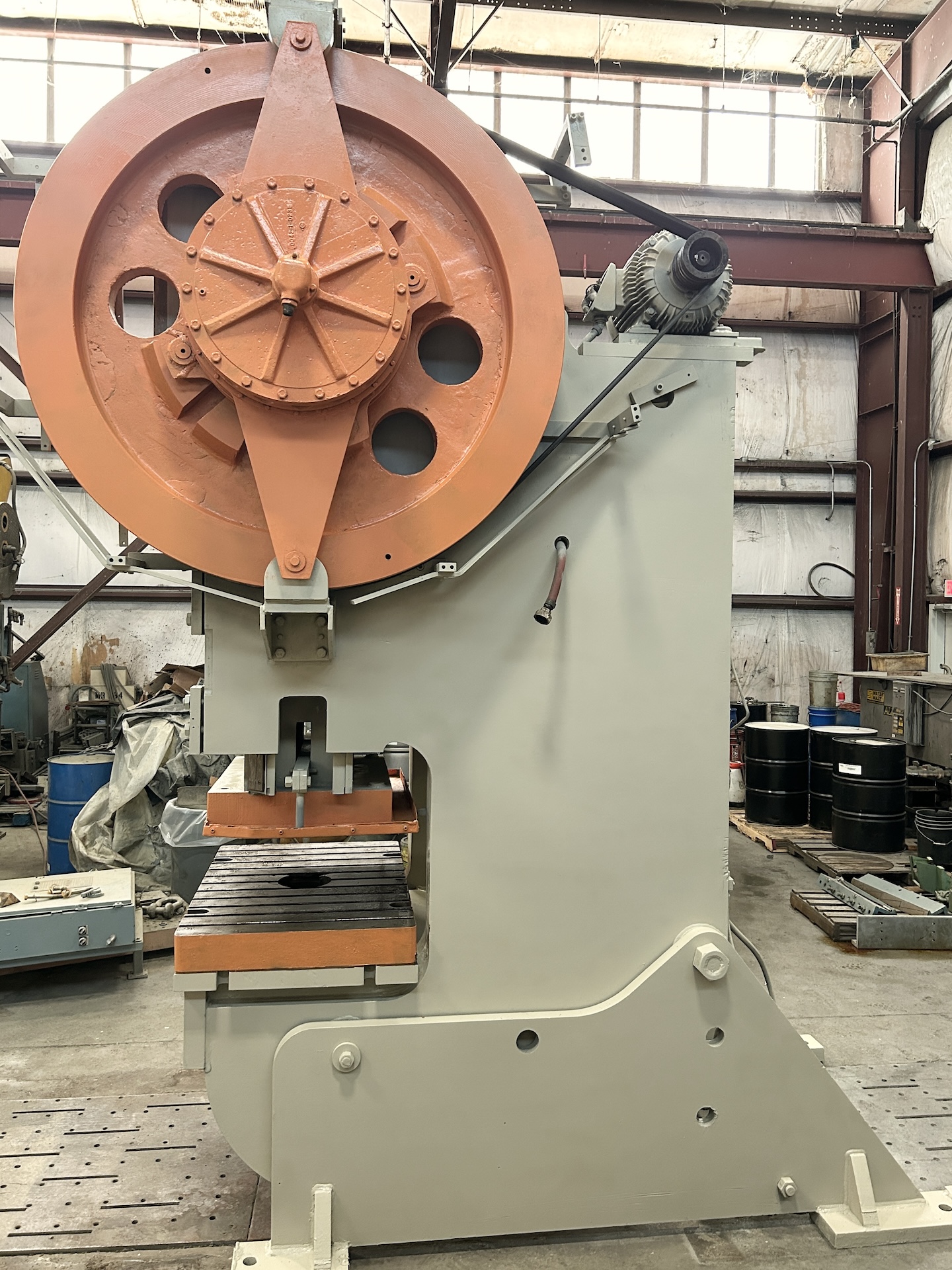

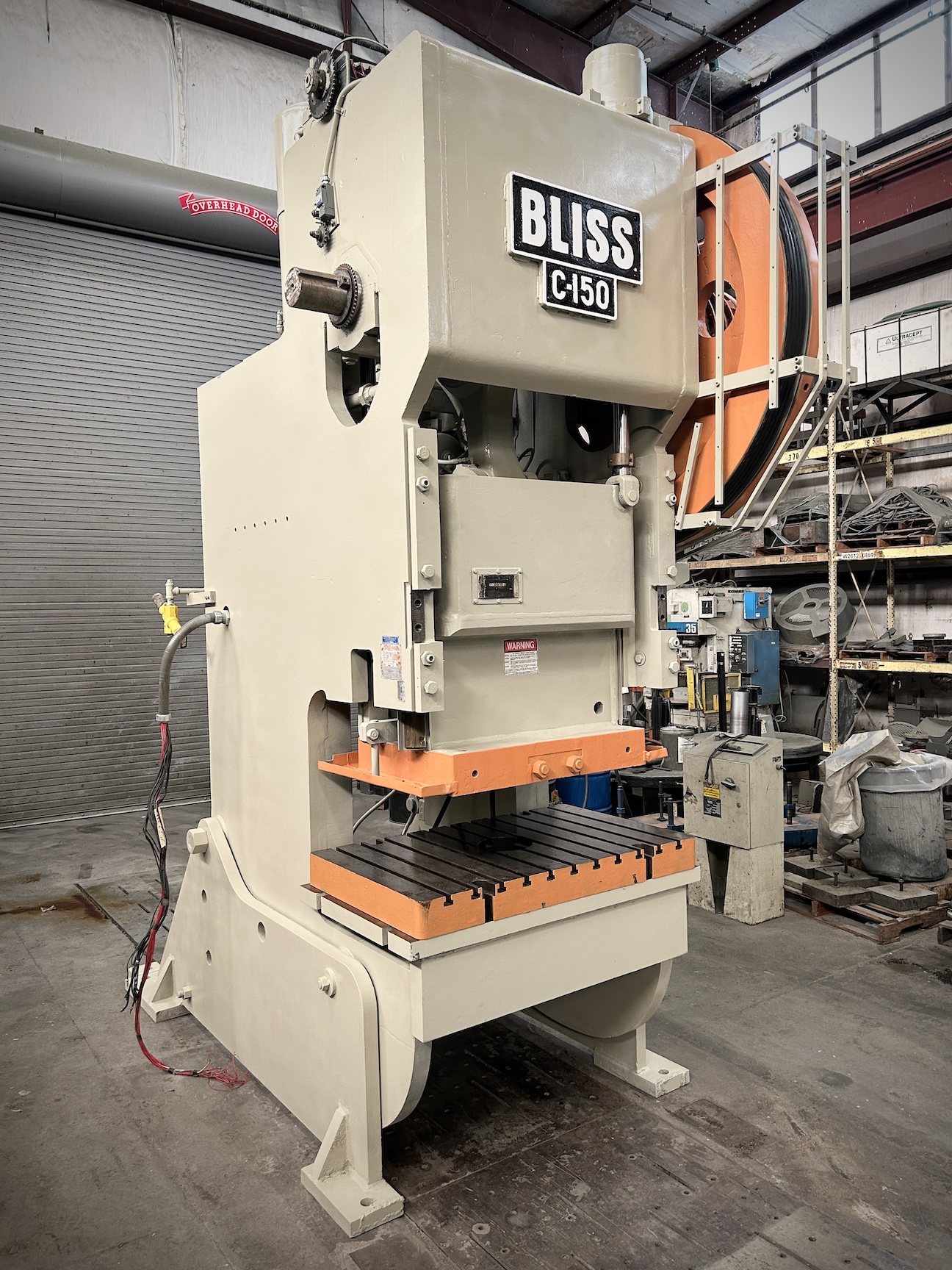

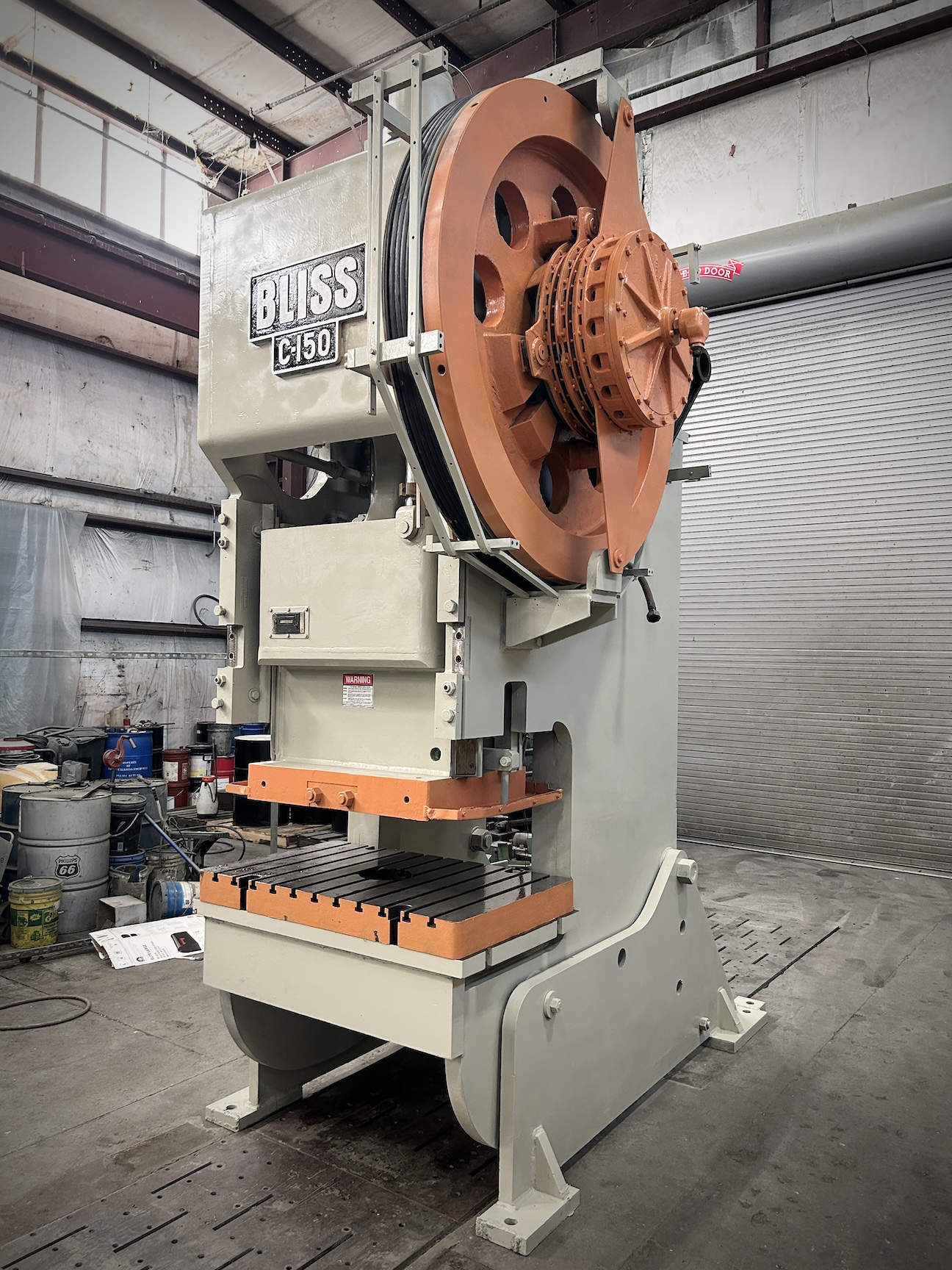

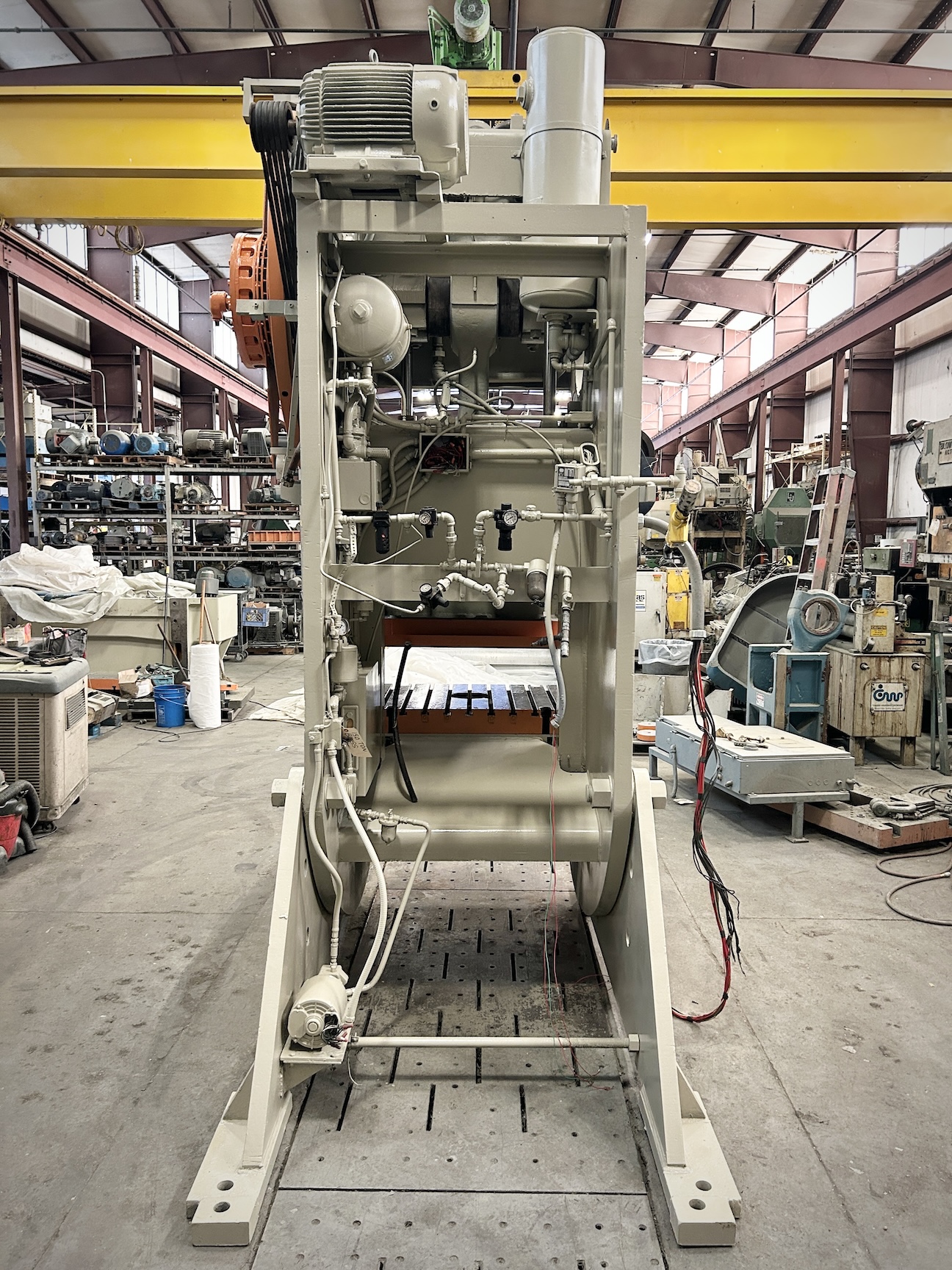

150 Ton Used Press – C-Frame Mechanical Press
Model: Bliss C150
6″ STR, 18″ SH, 50X30 BED, 70 SPM, 4.5″ ADJ

Gap Frame Presses for Sale
Used Bliss Punch Press (Mechanical)
Machine #6656
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

C-Frame Mechanical Press for Sale

Manufacturer: Bliss
Model: Bliss C-150 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1970
Machine #: 6656
Buy Now: $





CAPACITY 150 TONS
stroke 6″
max shut height to bed 18″ sdau
bed area 50″ rl x 30″ fb
speed 70 SPM (CAN ADD 35-70 VARIABLE SPEED FOR ADDITIONAL COST)
slide adjustment 4.5″ motorized
slide area 34″ rl x 24″ fb

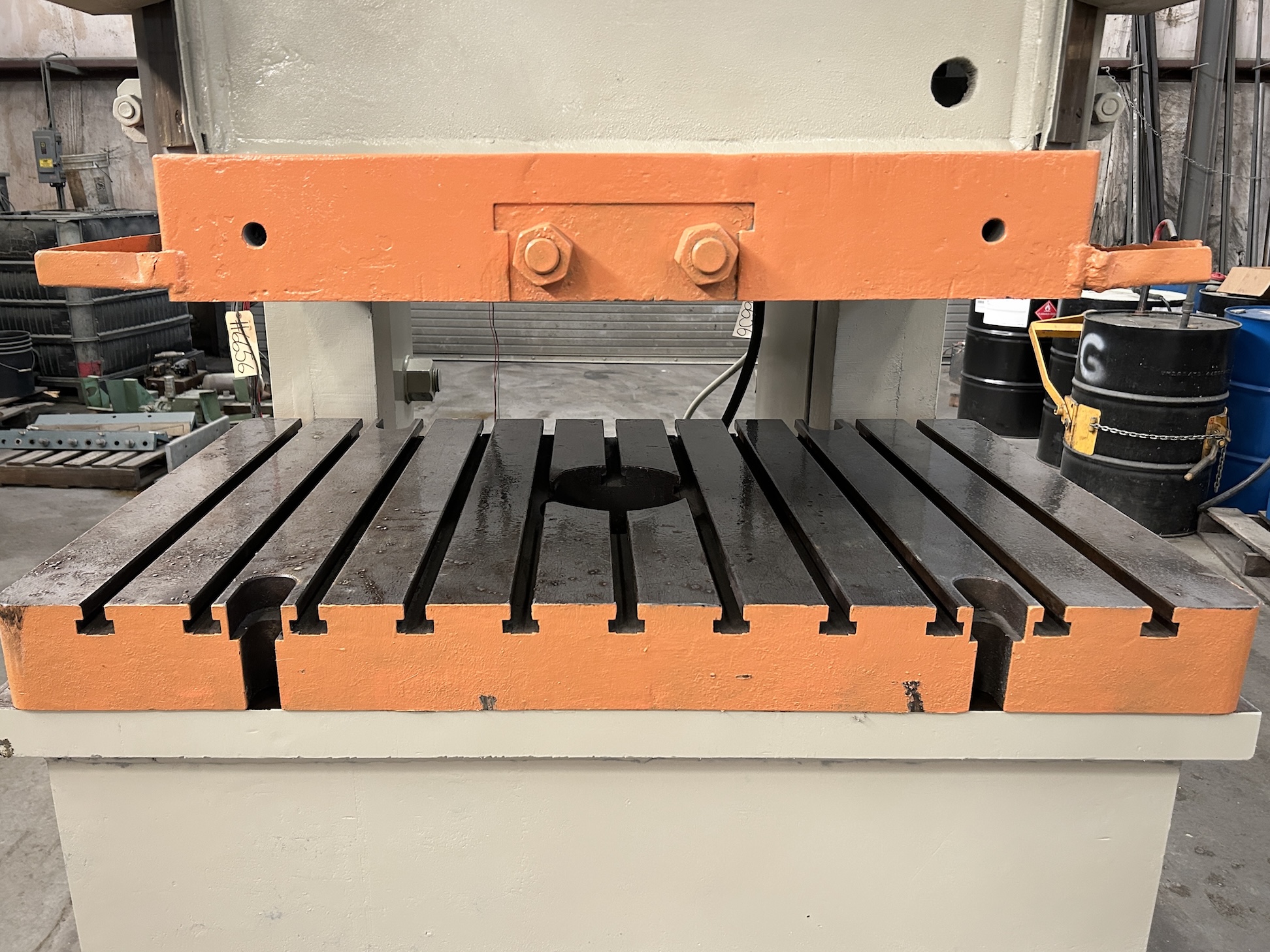

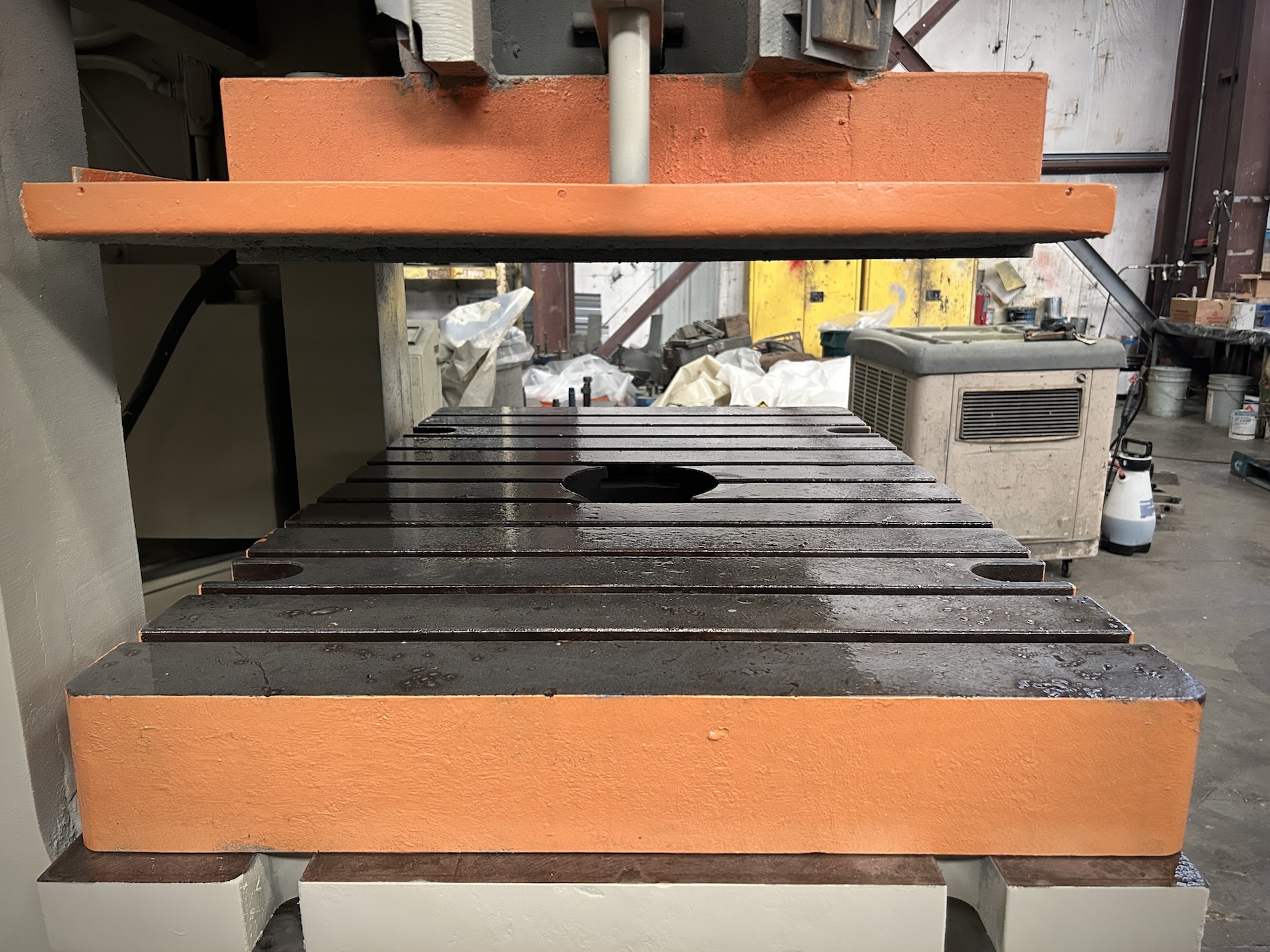

bolster plate (not pictured) 4.5″ h x 48″ rl x 30″ fb (t-slot)
distance between uprights 31″
distance floor to bed 37″

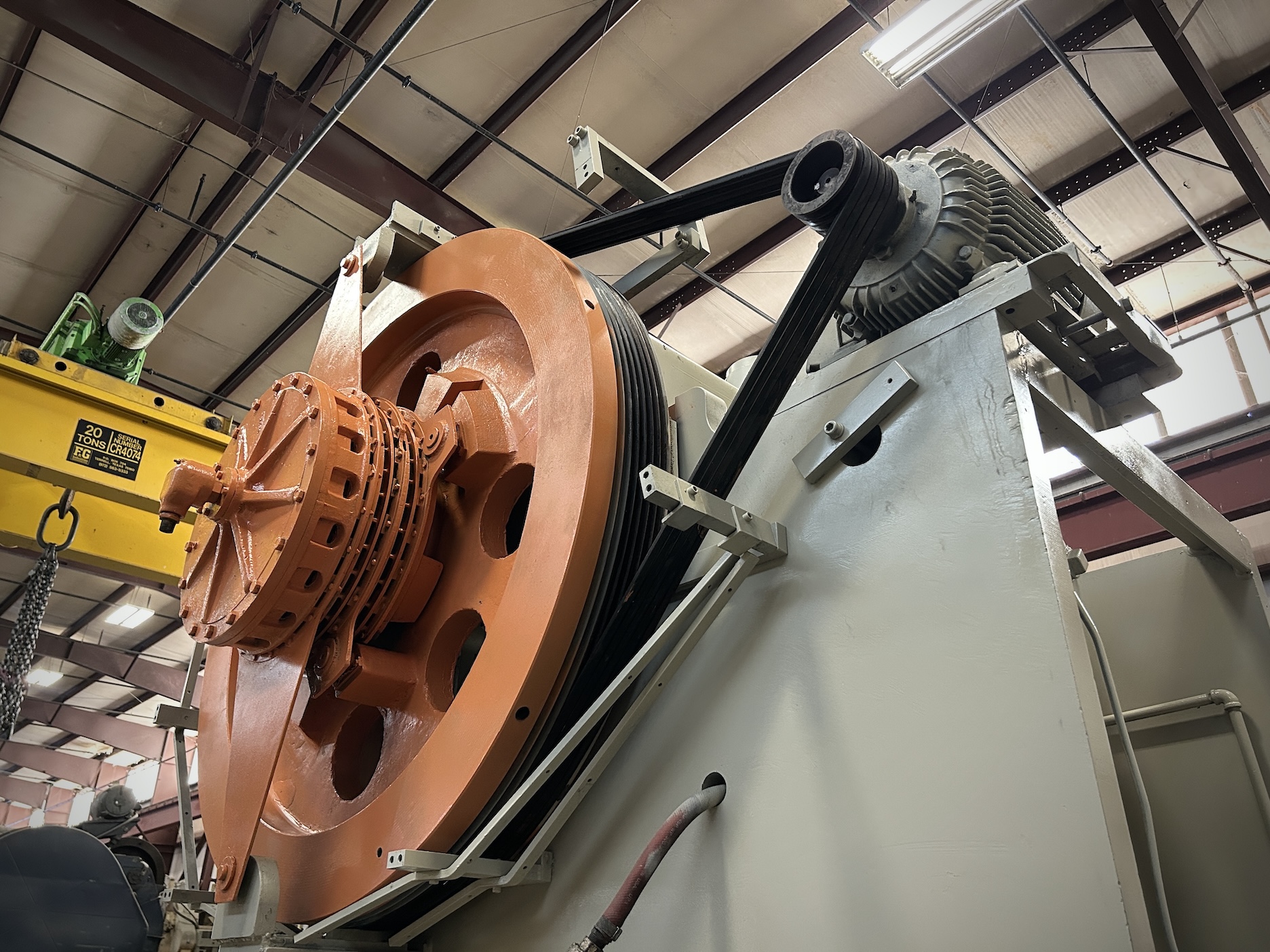

clutch bliss air clutch / brake combination

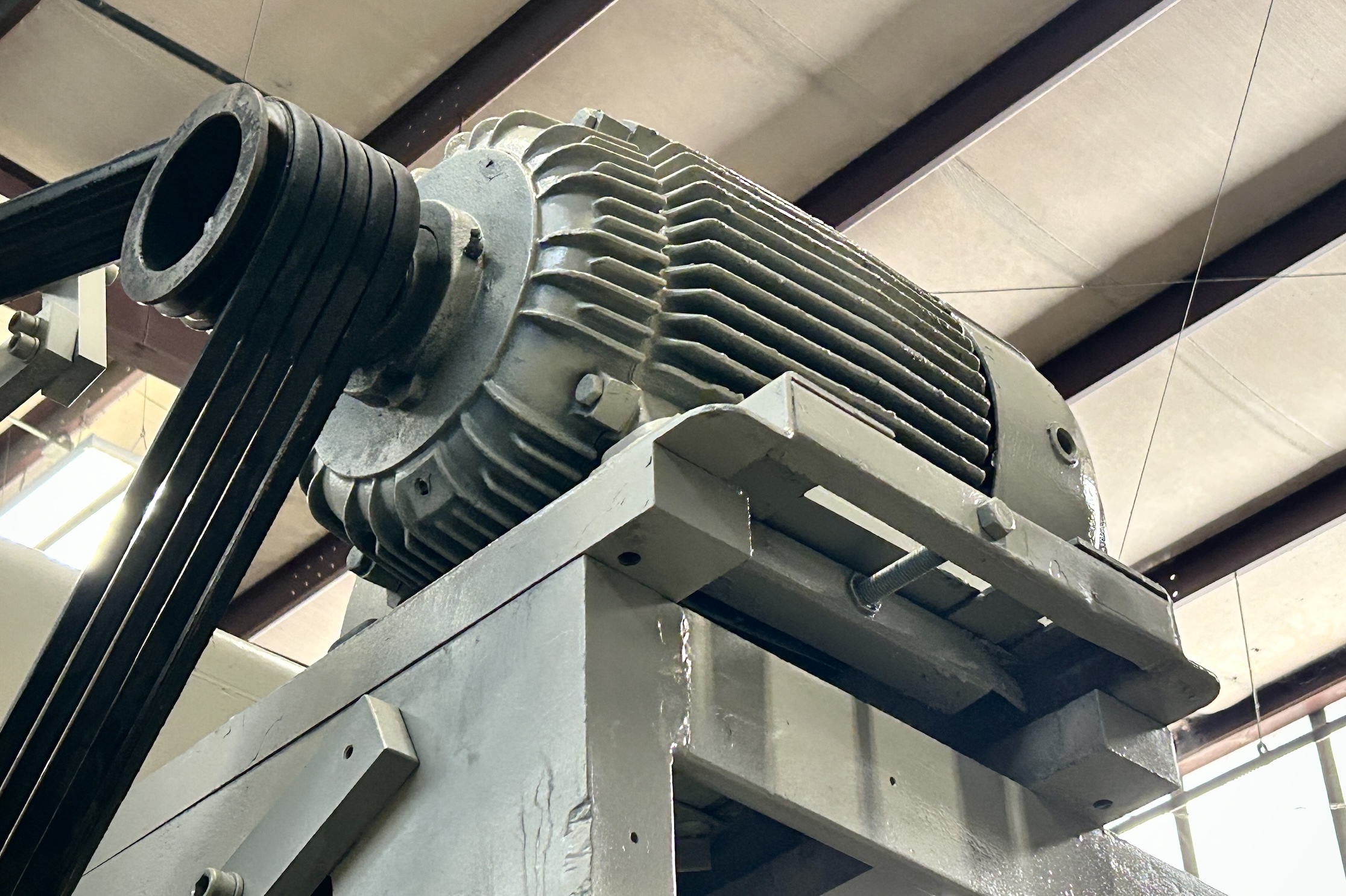

electrics 15 hp 1150 rpm 208-240/480v-3-60 motor & NEW CIECO 1100R PRESS CONTROL FOR RECONDITIONED PRICE
approx dimensions 152″ h x 76″ rl x 130″ fb
approx weight 39,000 lbs

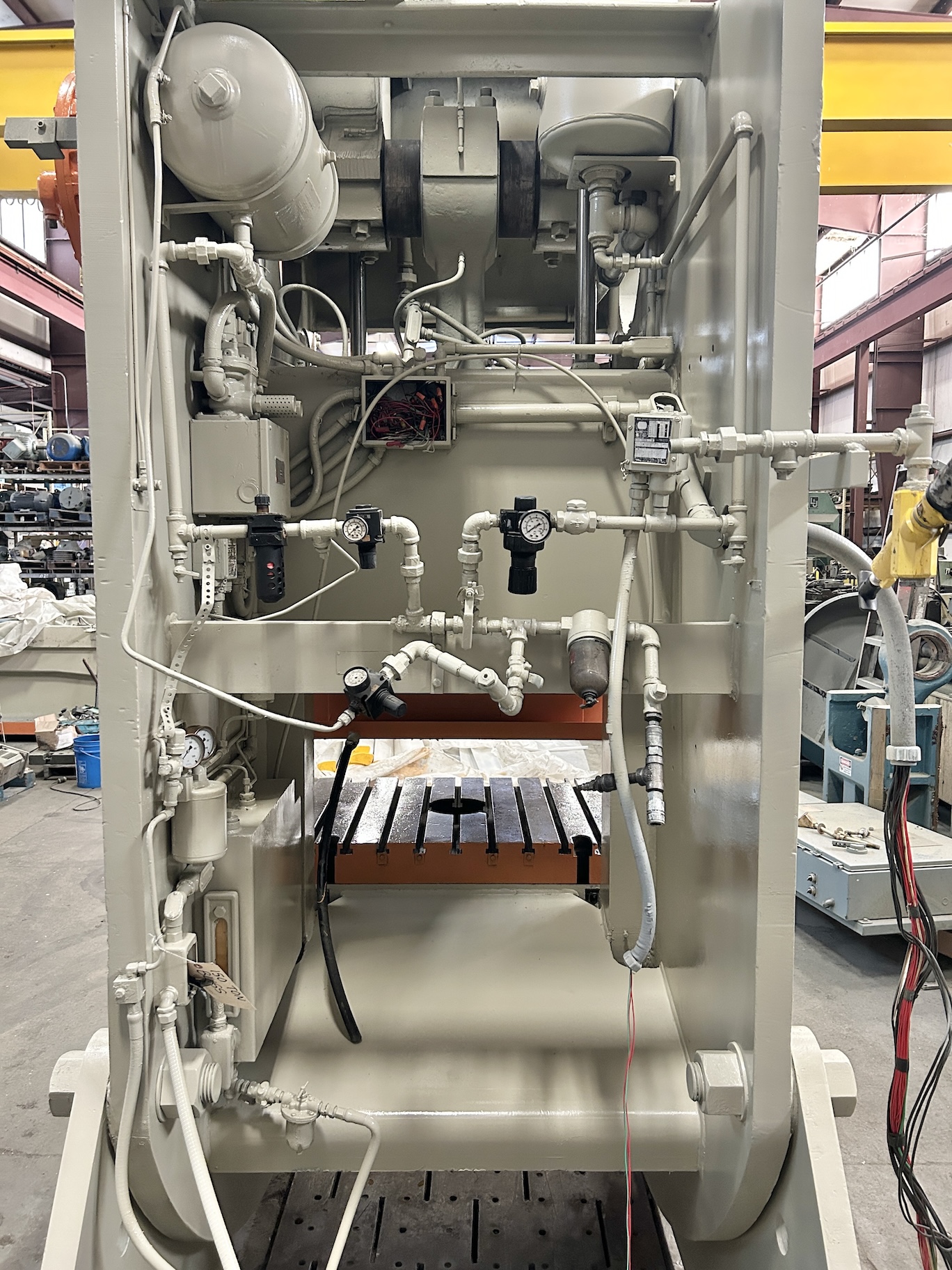

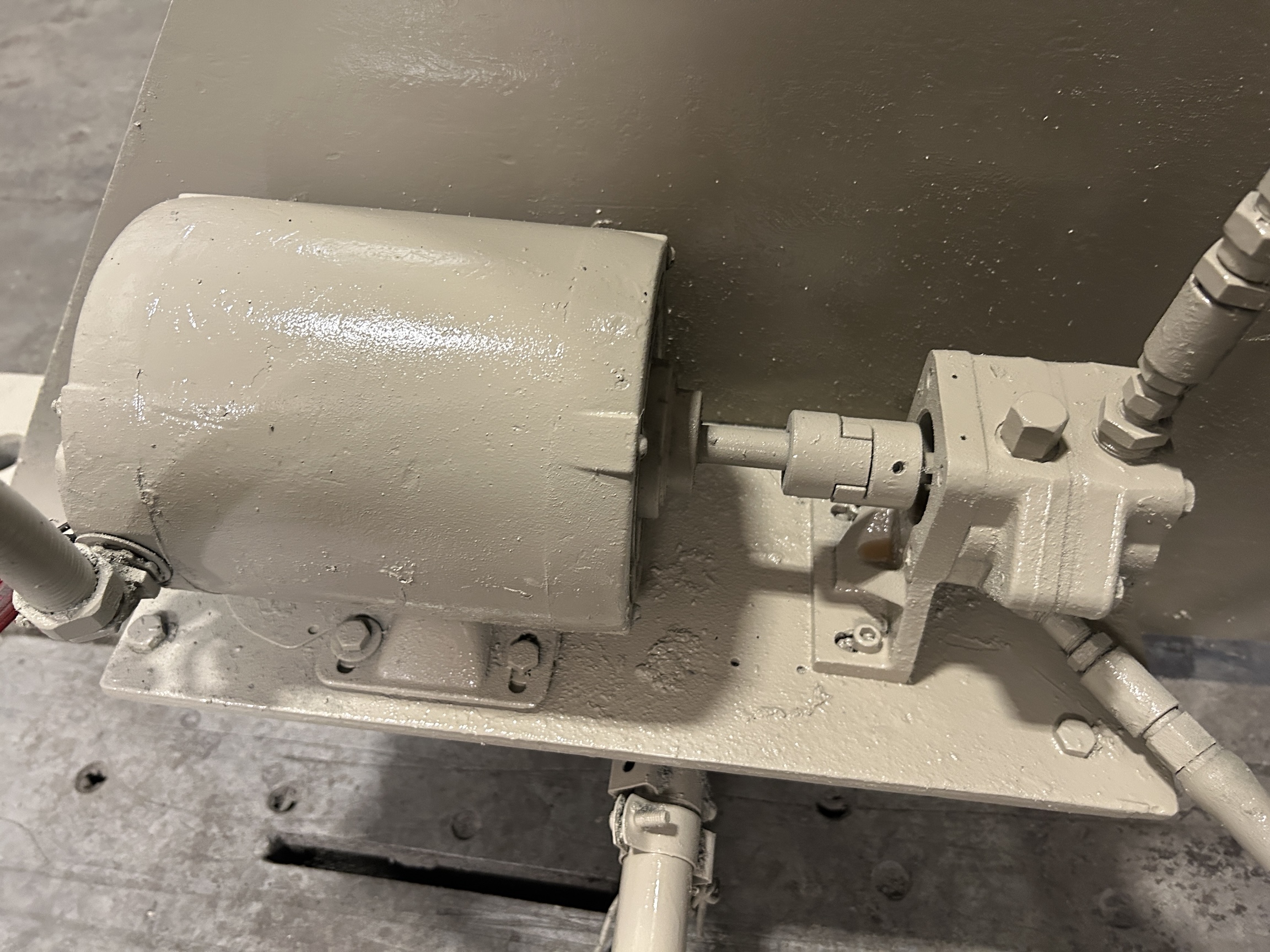

Equipped With RECIRCULATING LUBRICATION PUMP, AIR COUNTERBALANCES, FLOOR STANDING, CAST IRON FRAME
Note __
Location This used press is located in our Columbia, TN Warehouse
