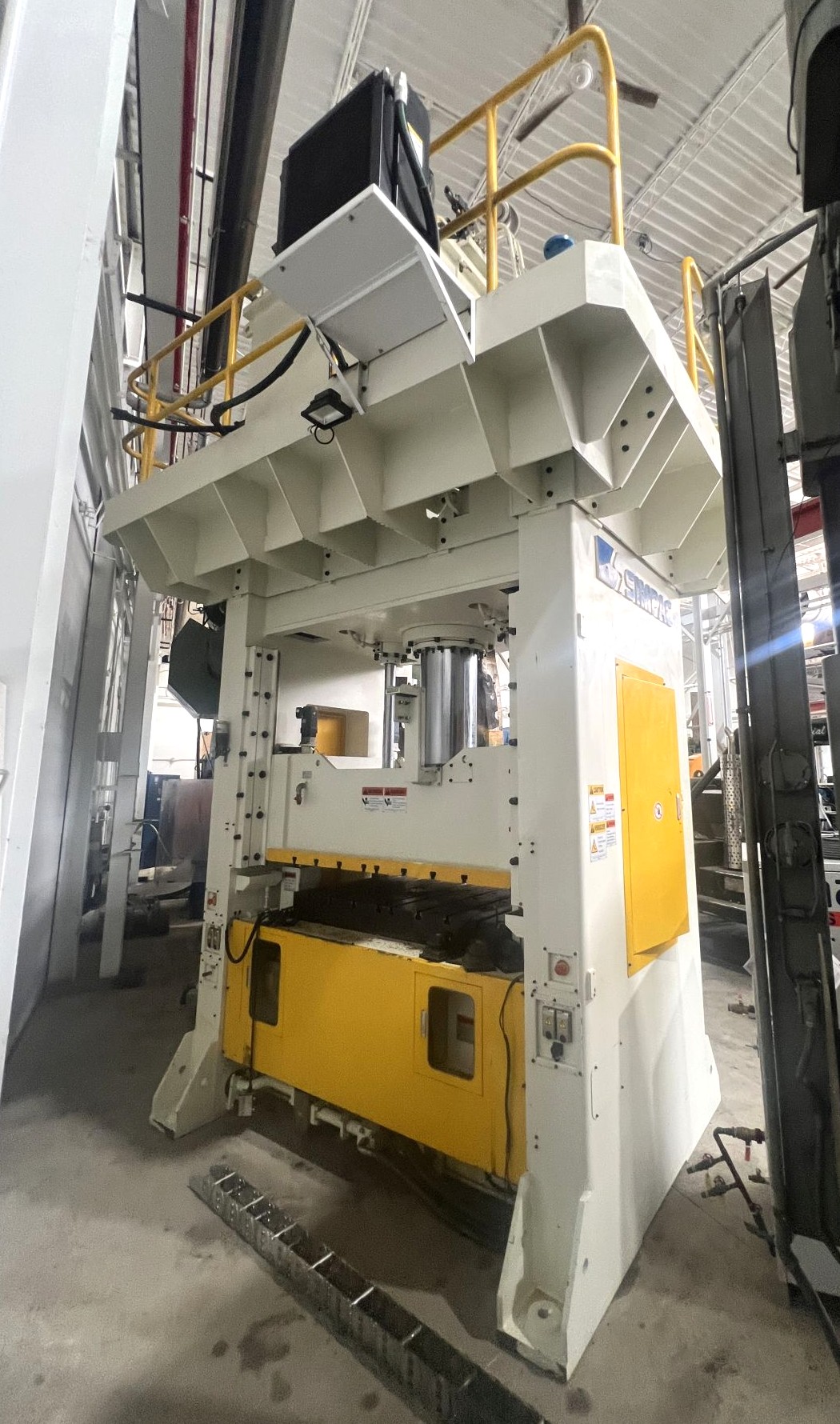

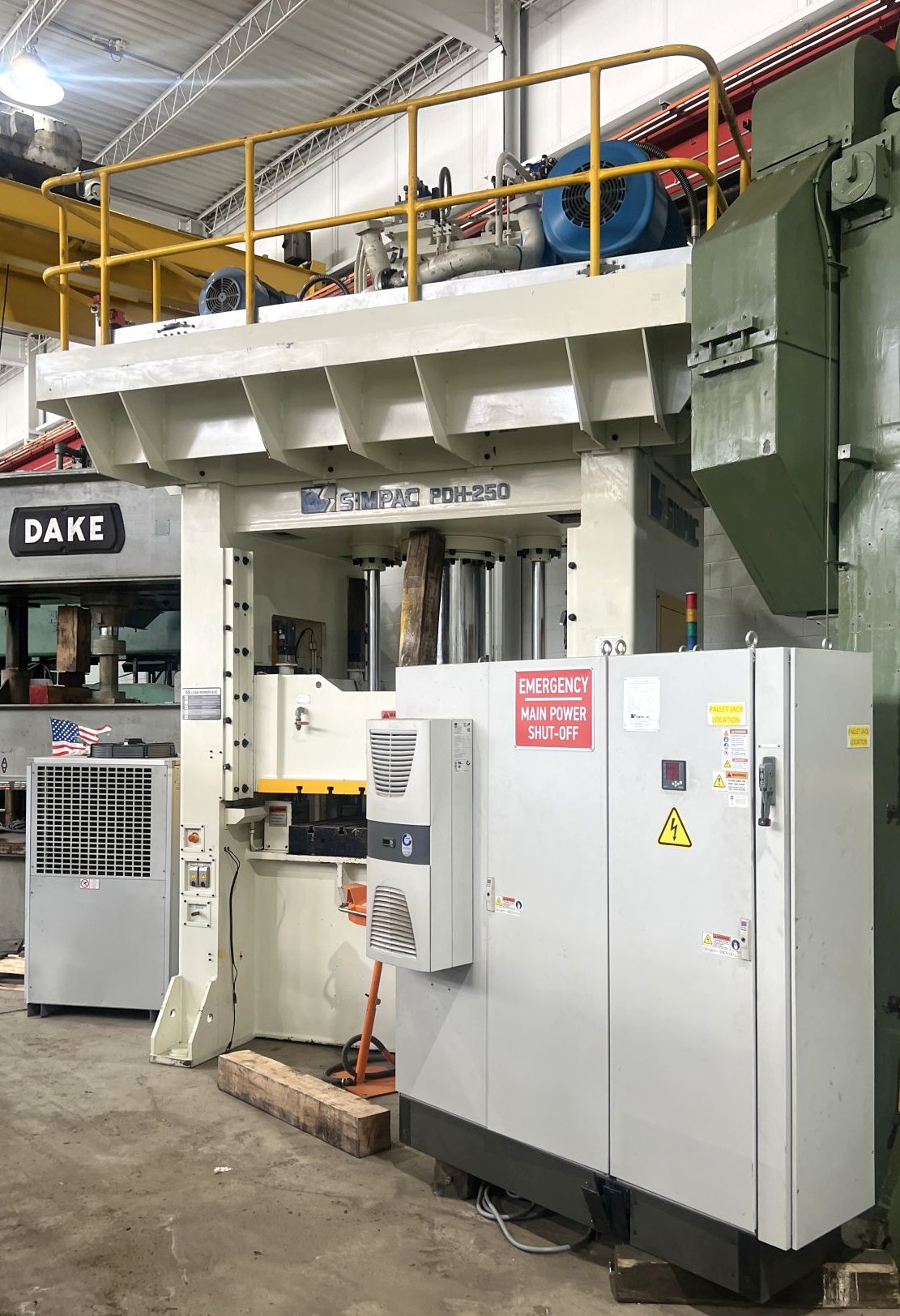

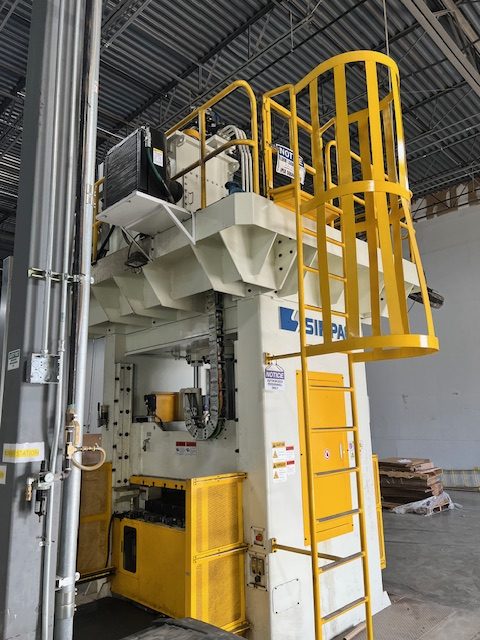

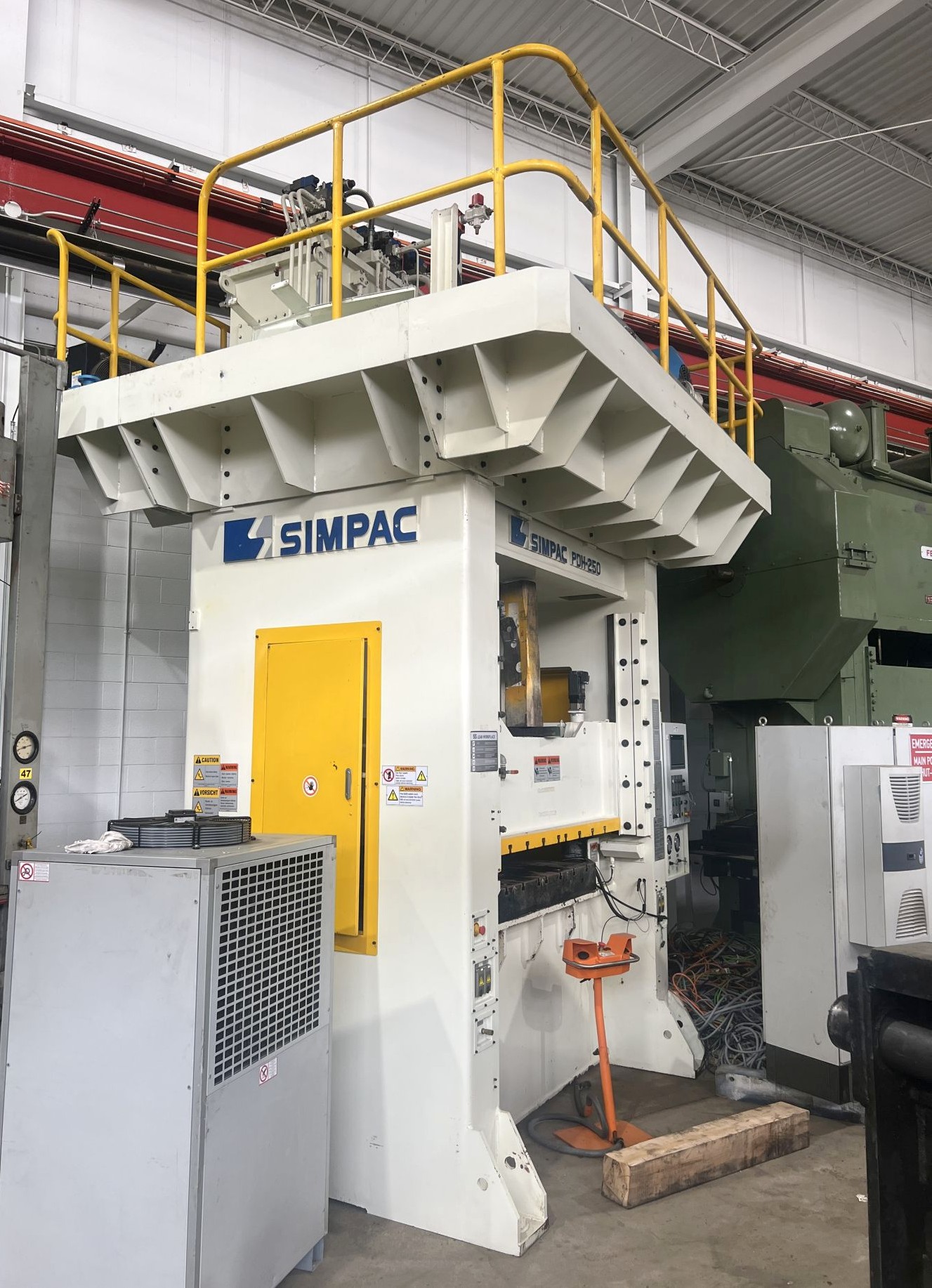

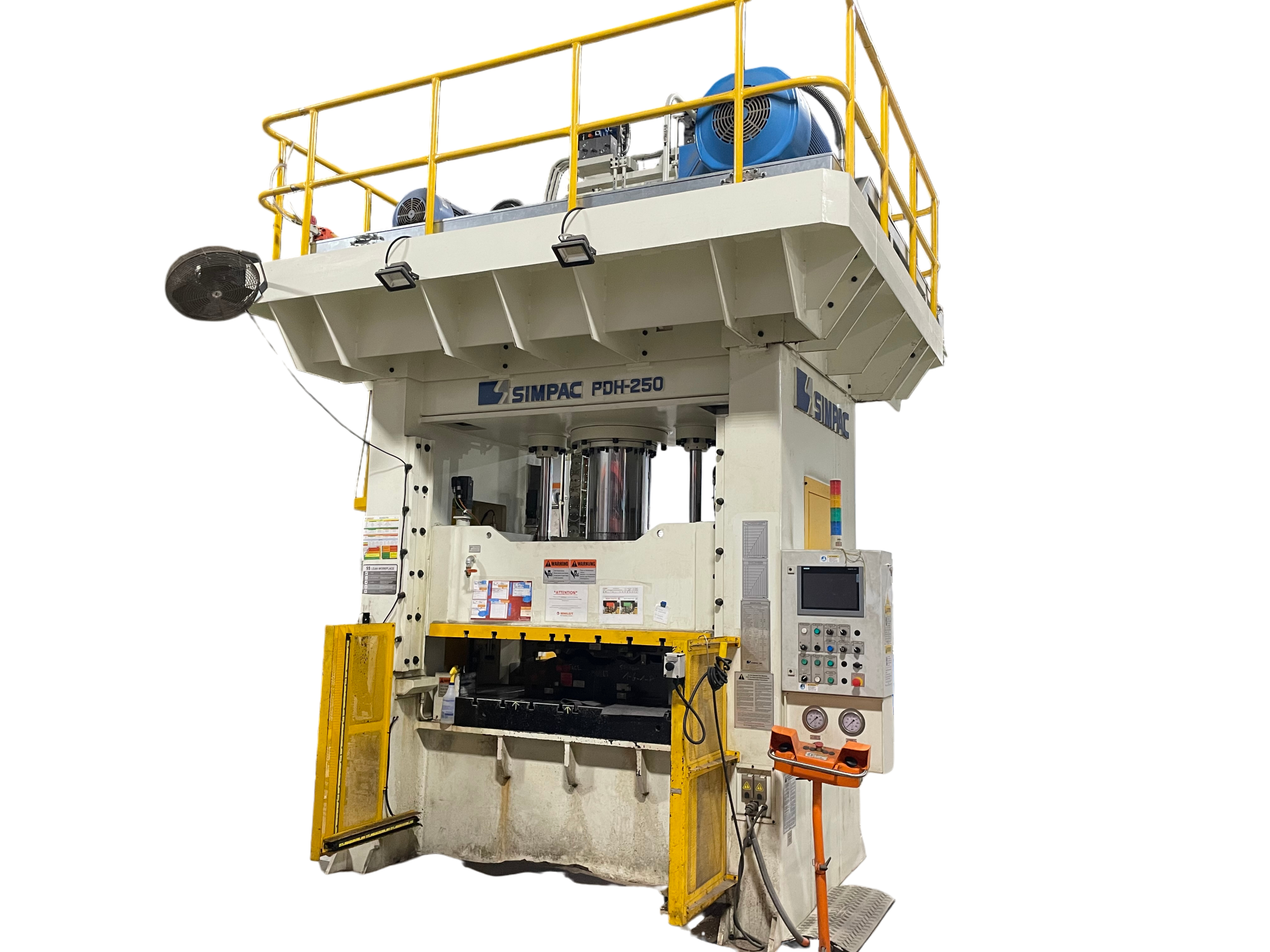

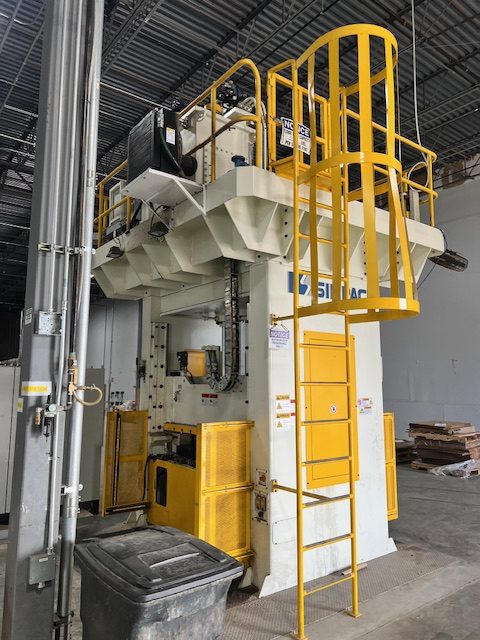

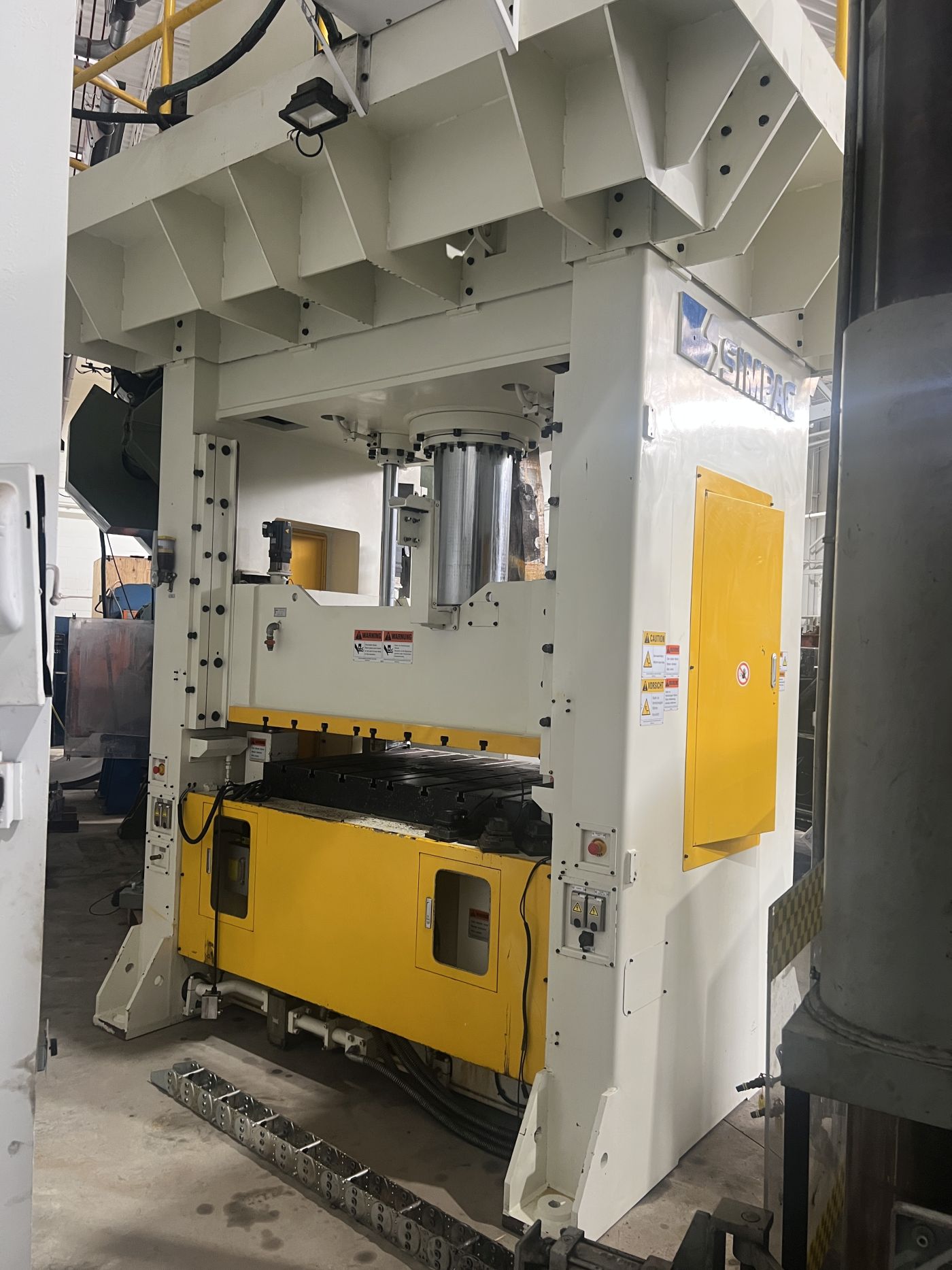

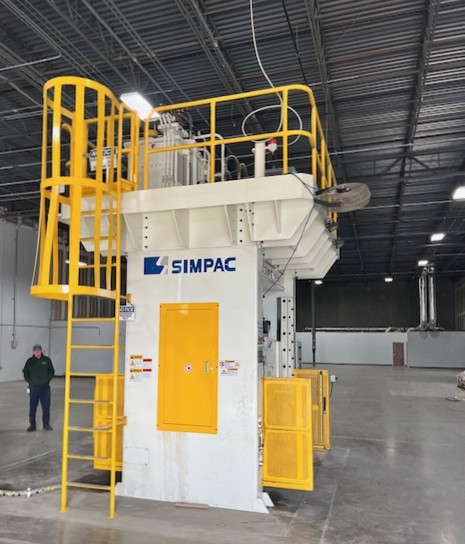

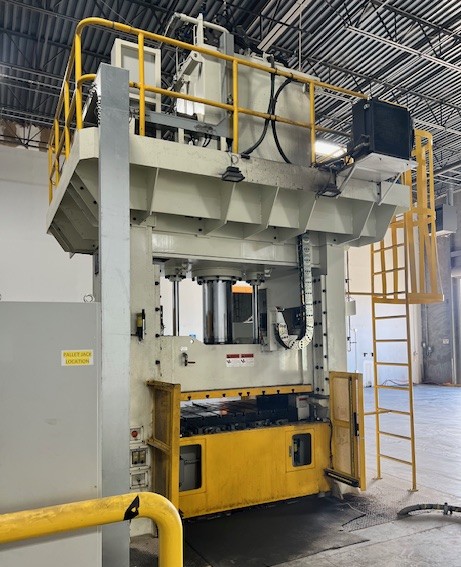

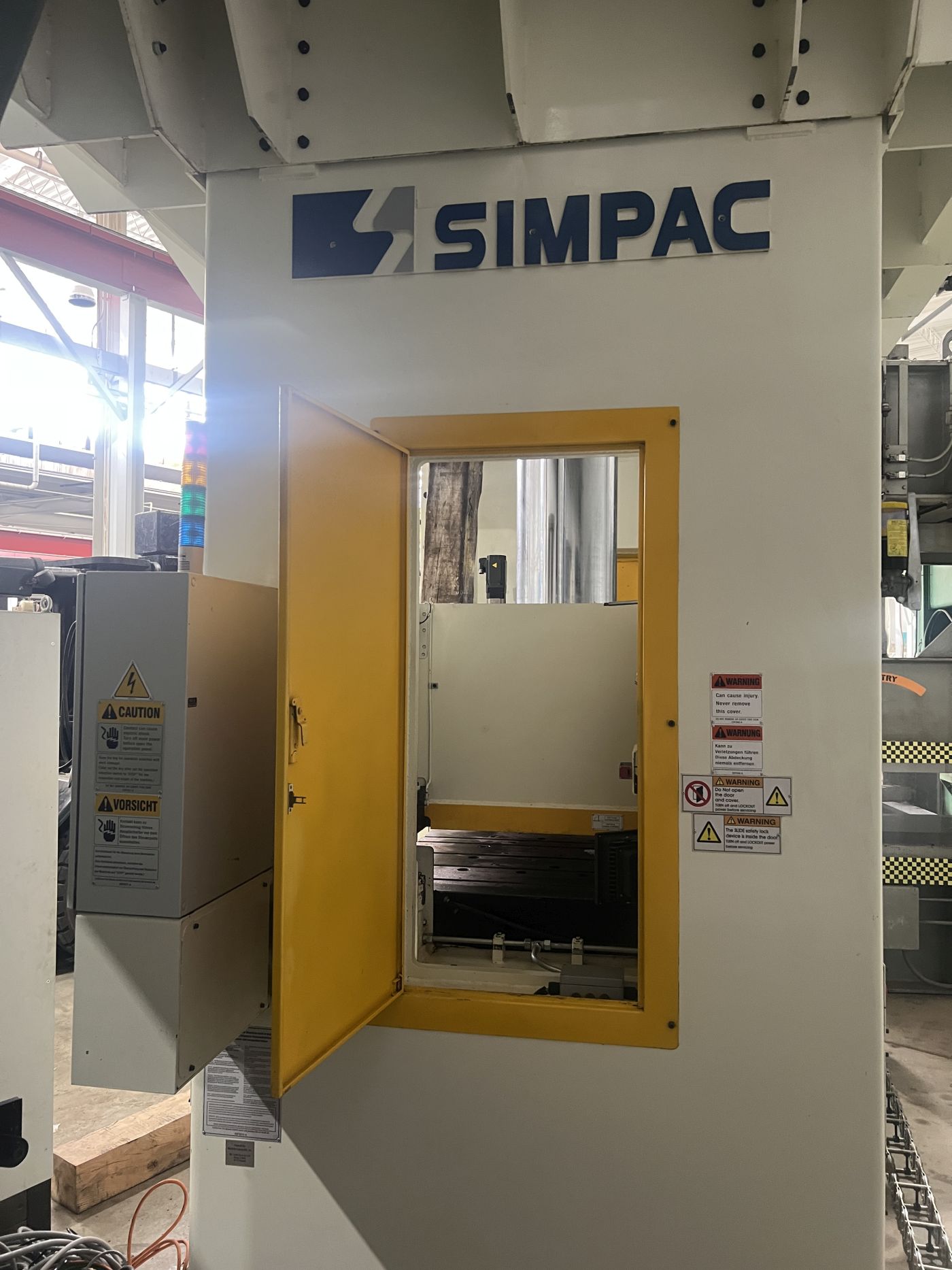

Precision Hydraulic Press • Used 250 Ton Press for Sale

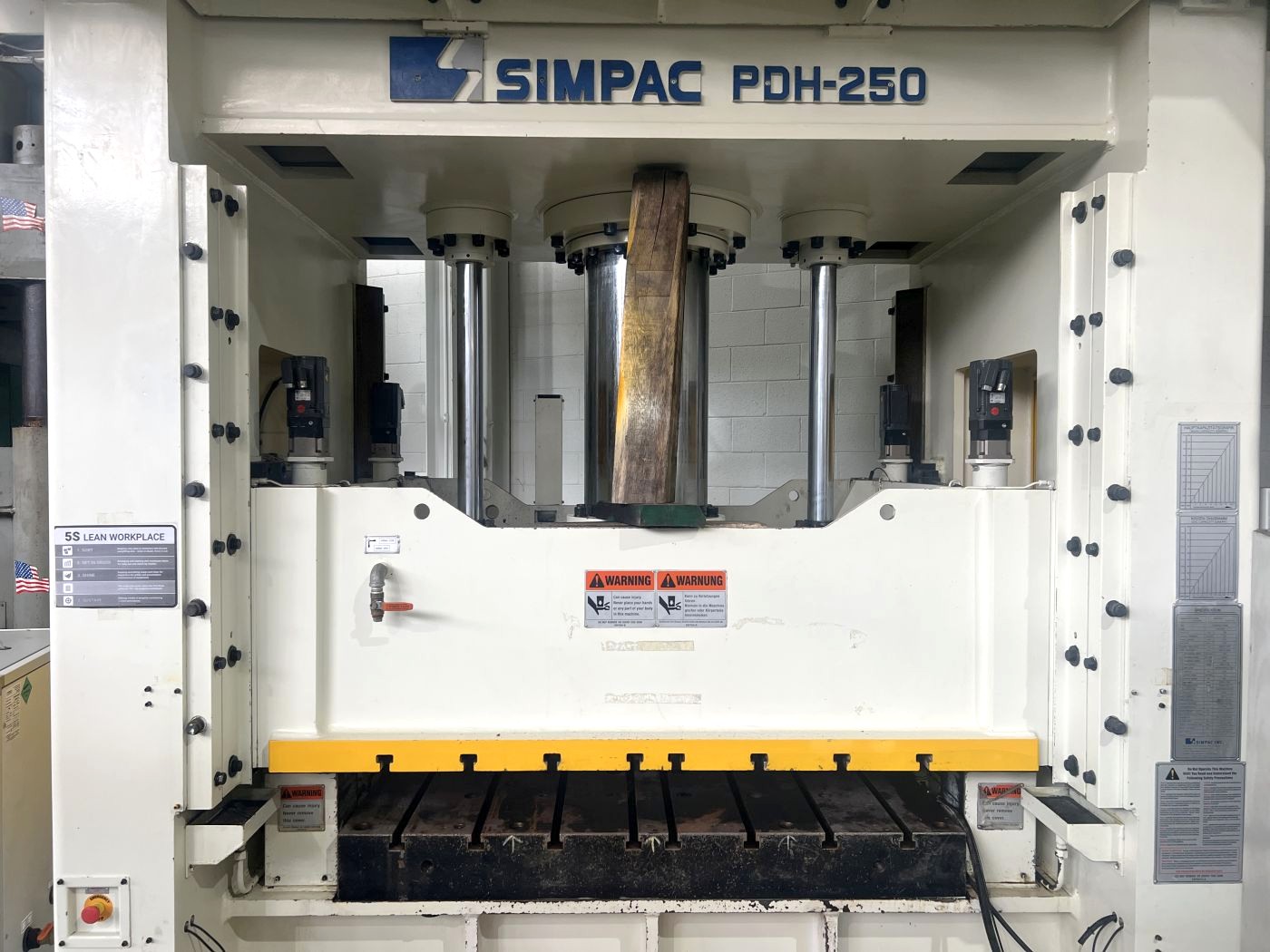

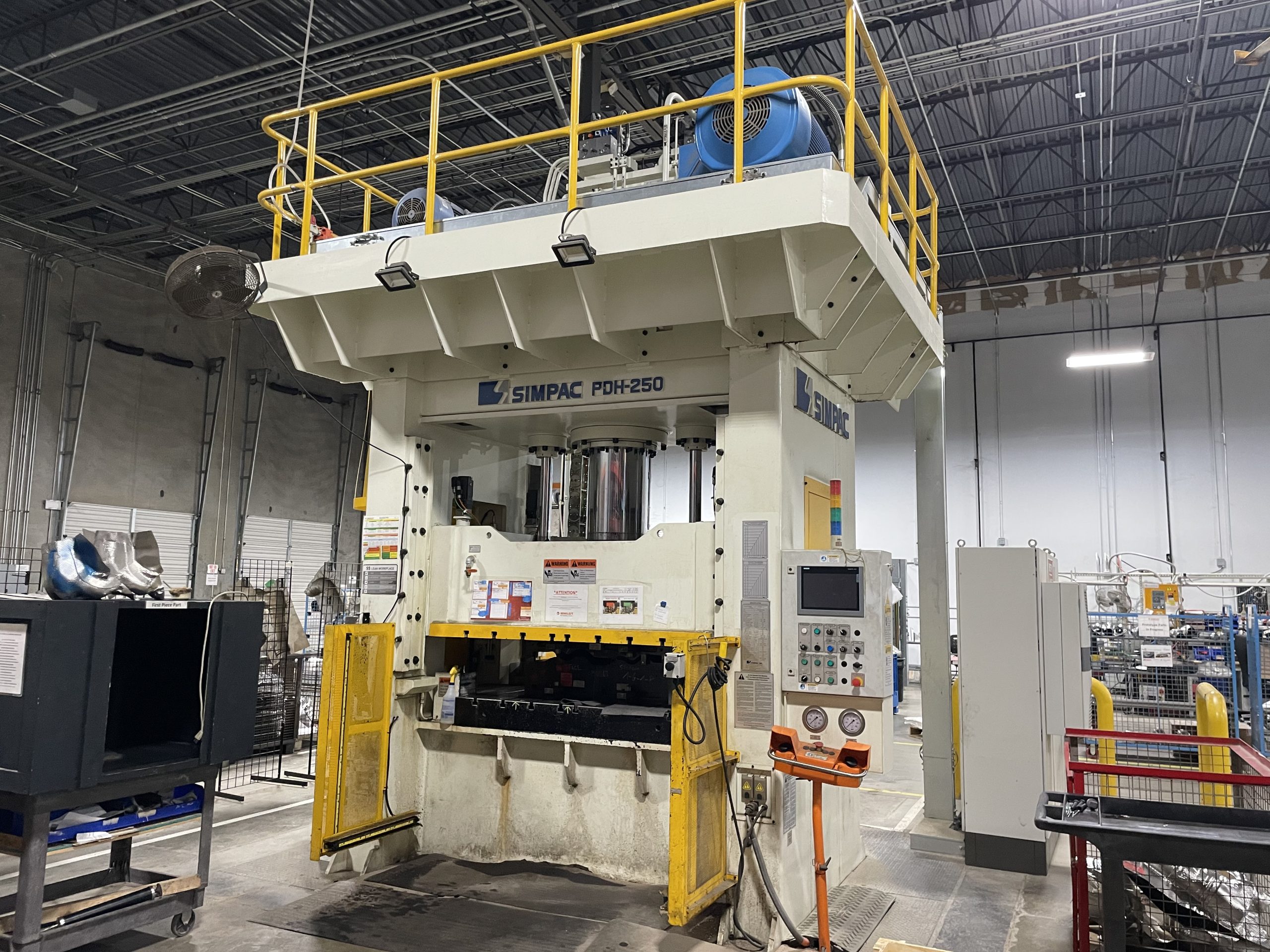

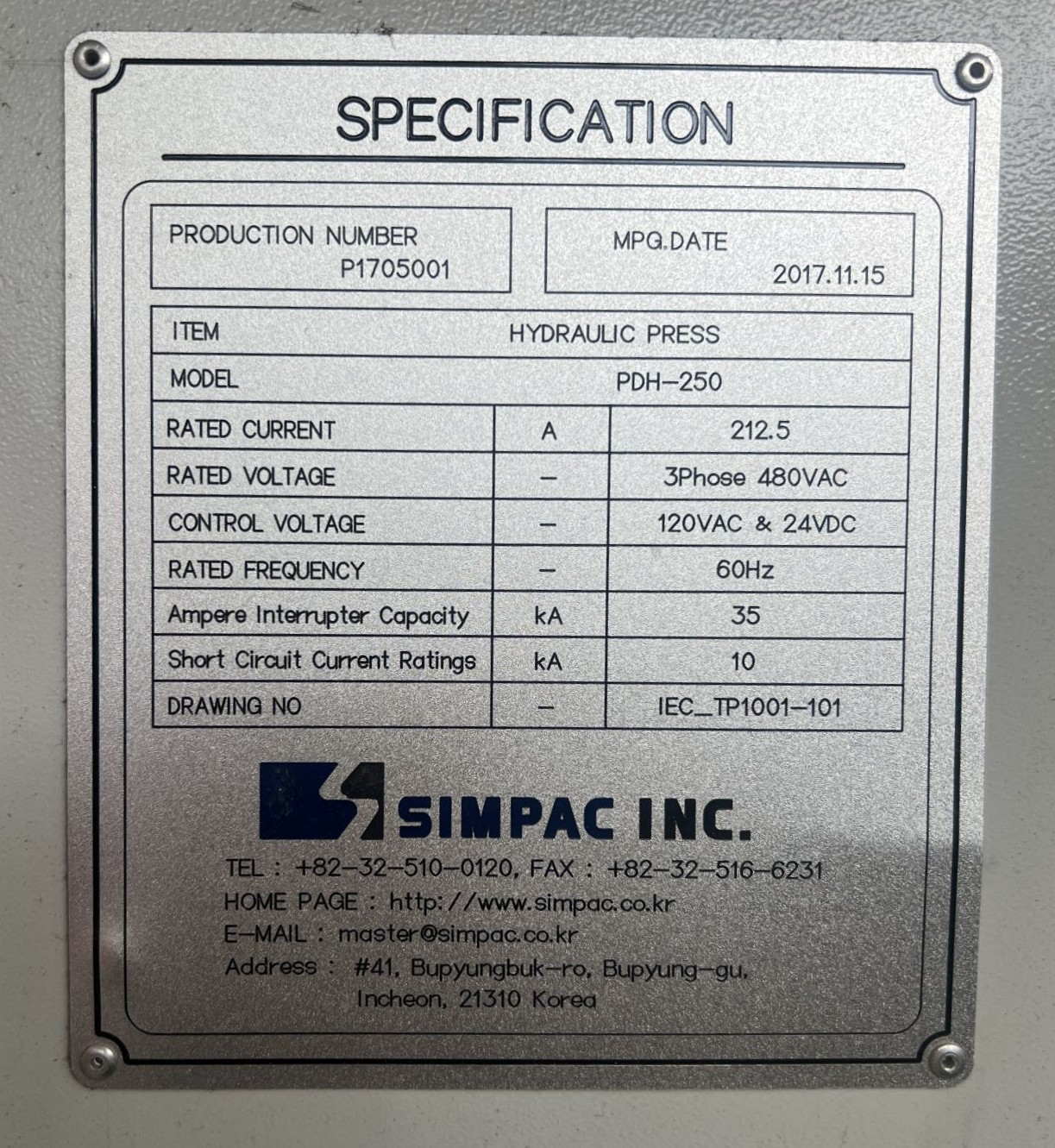

Model: Simpac PDH-250 Press
Condition: Excellent
Location: Jackson, MI Cooper Building
Year: 2017
Machine #: 8355
Buy Now: $

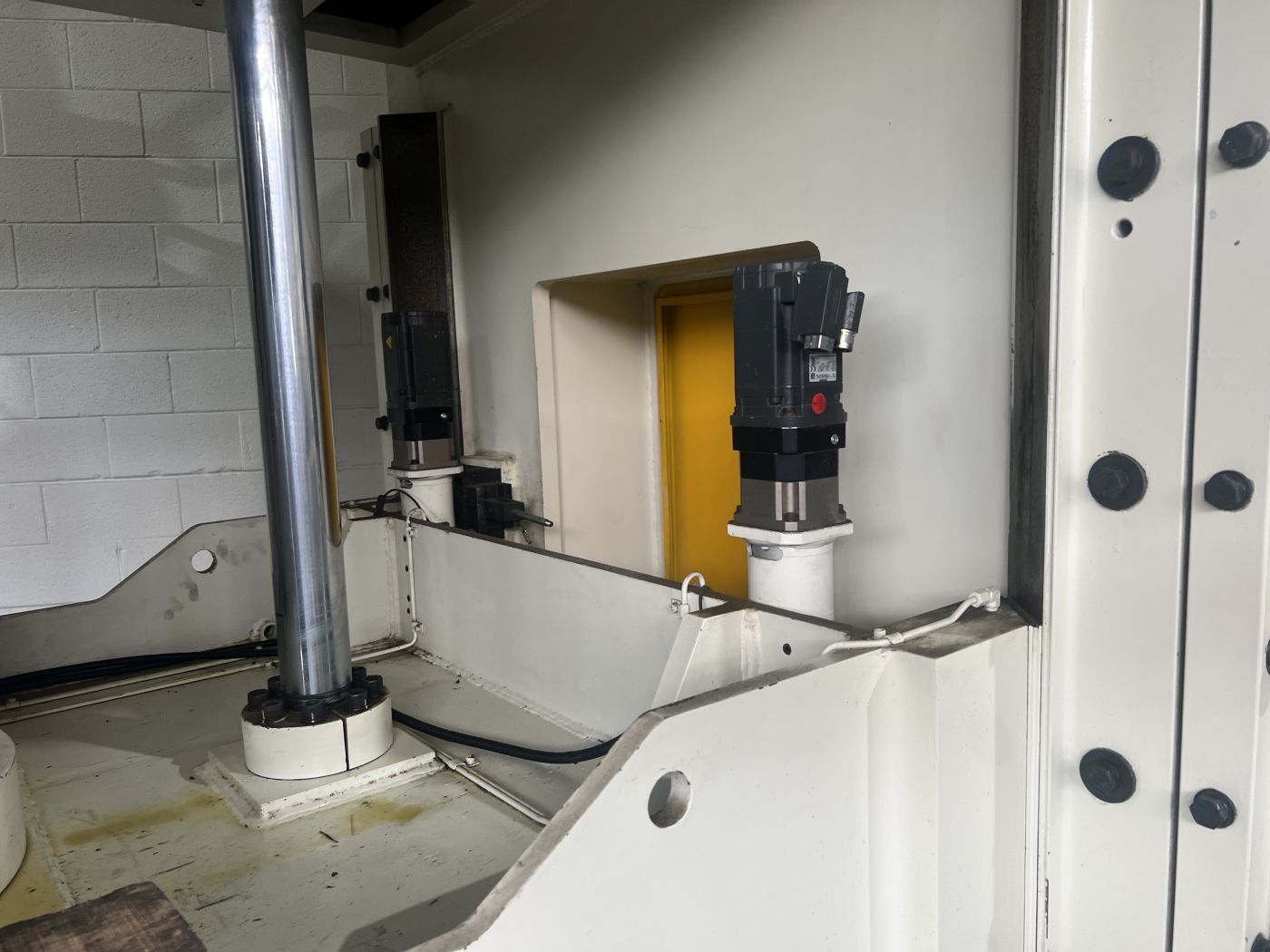

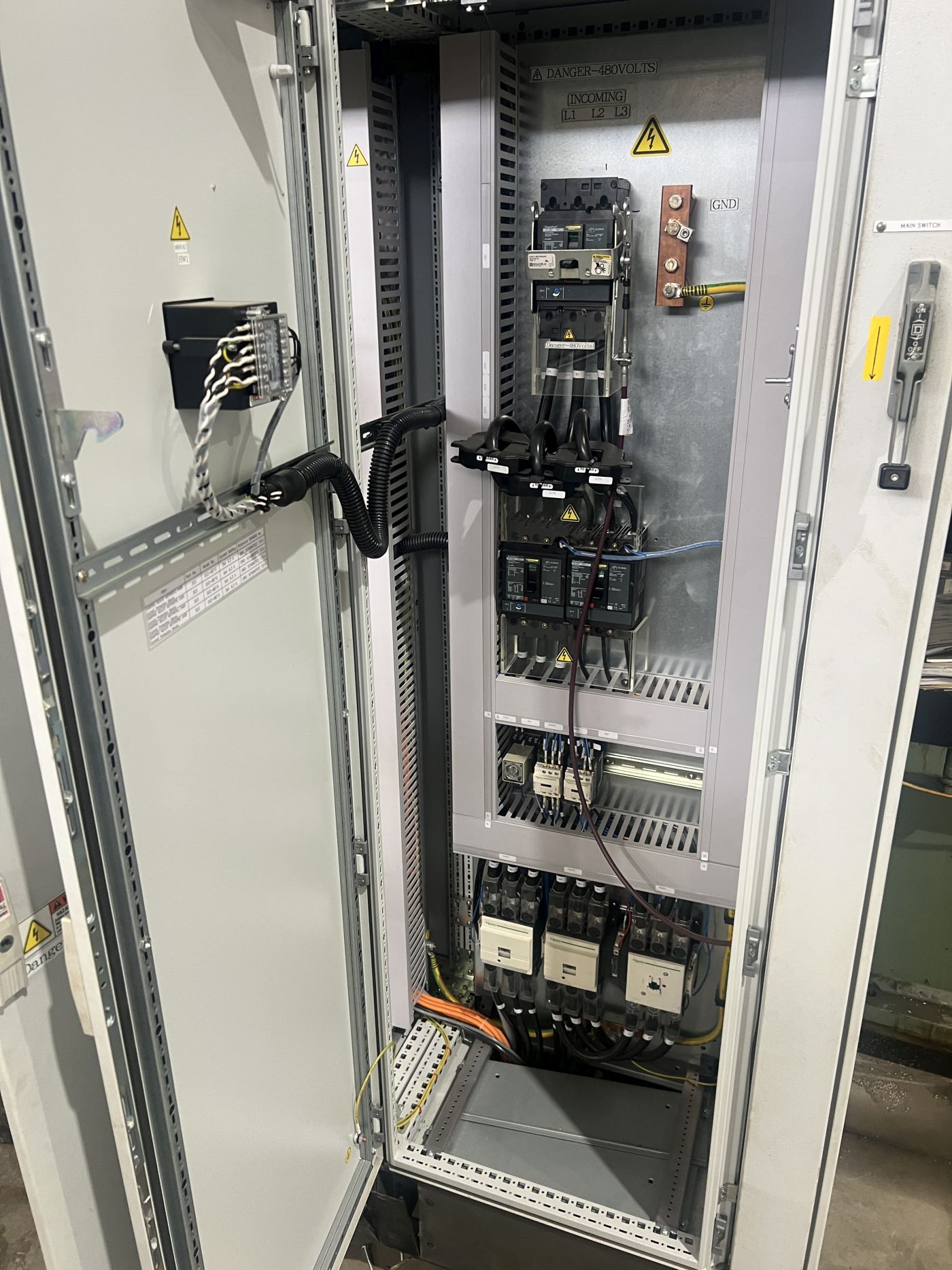

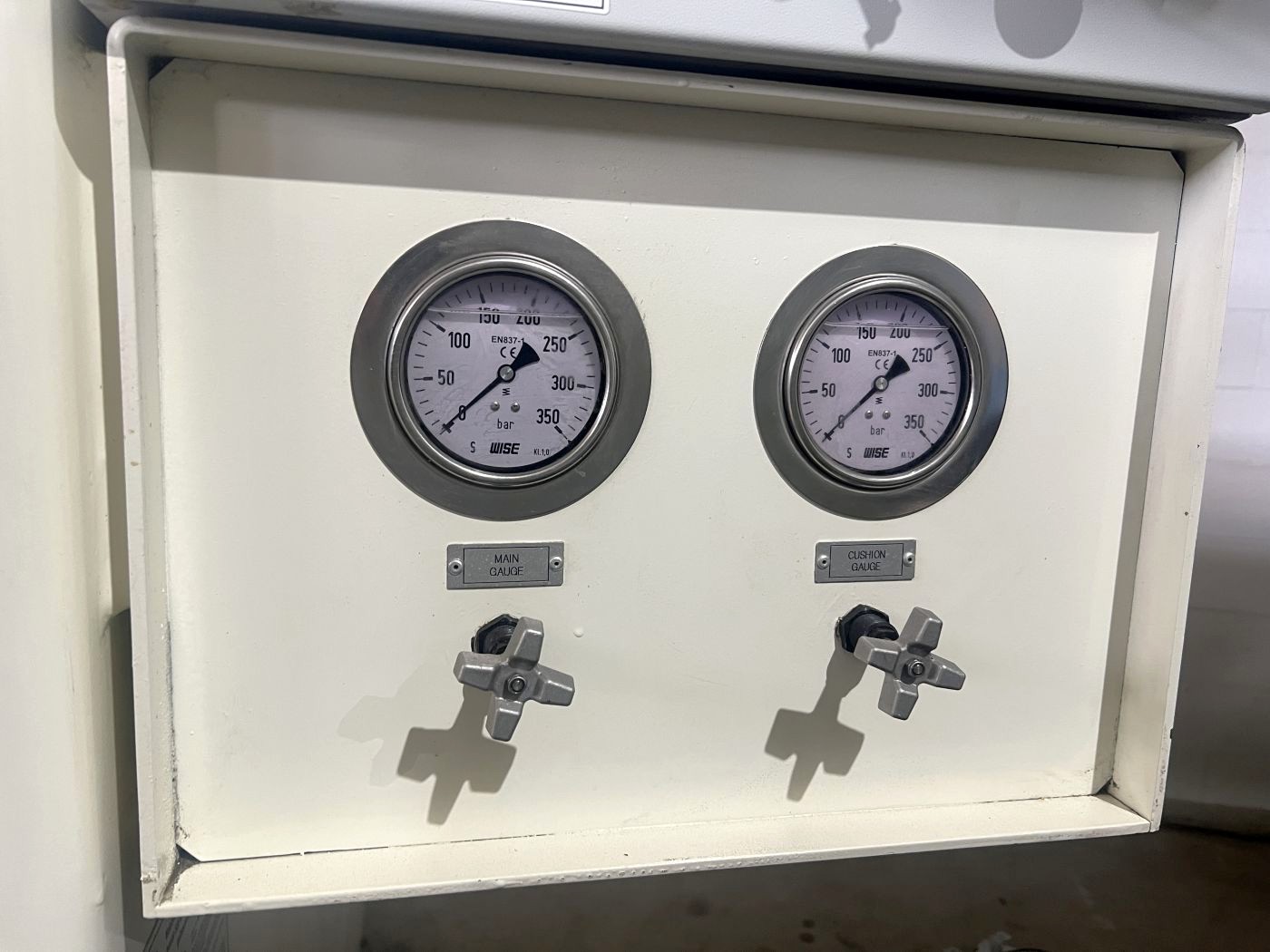

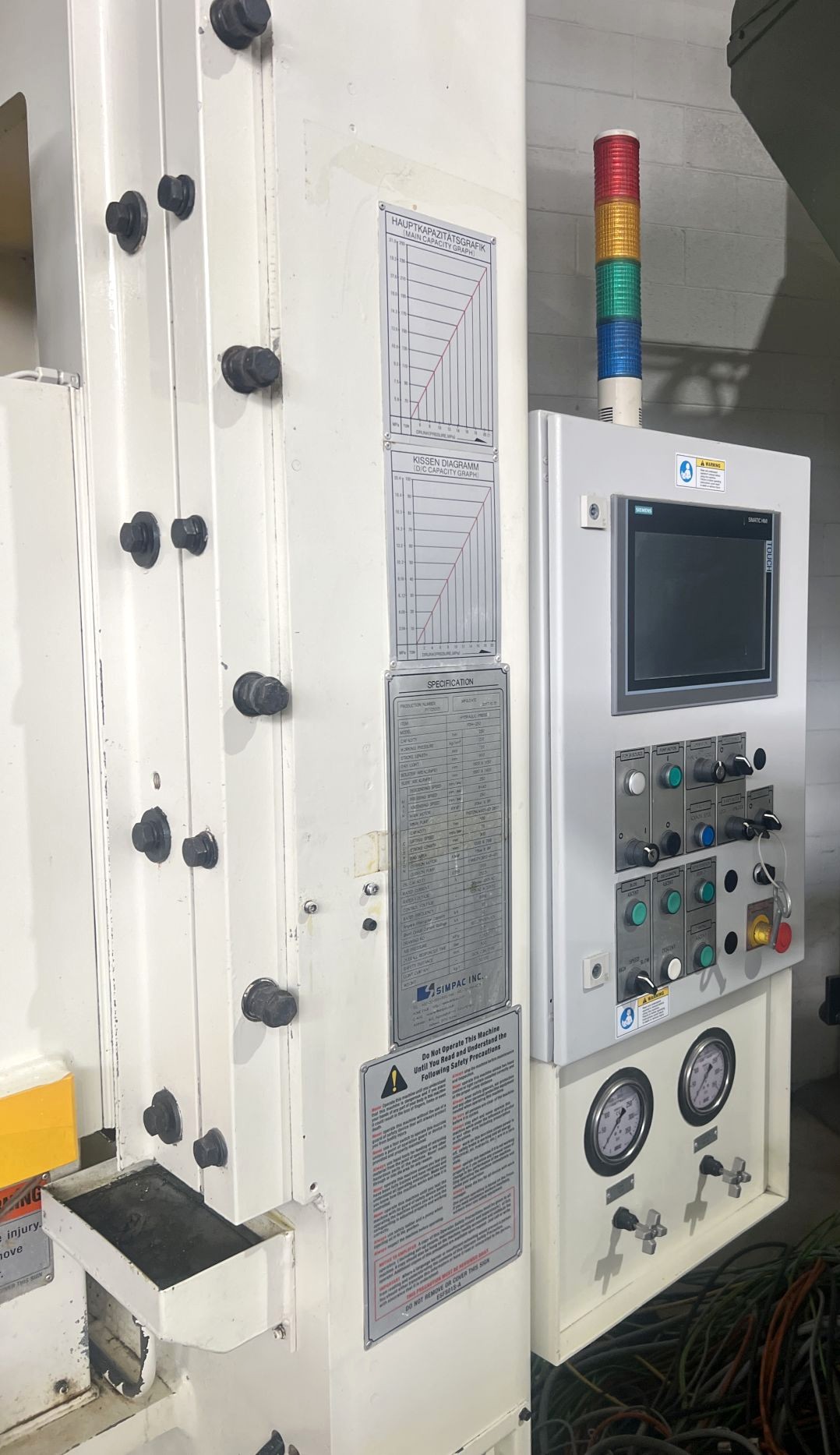

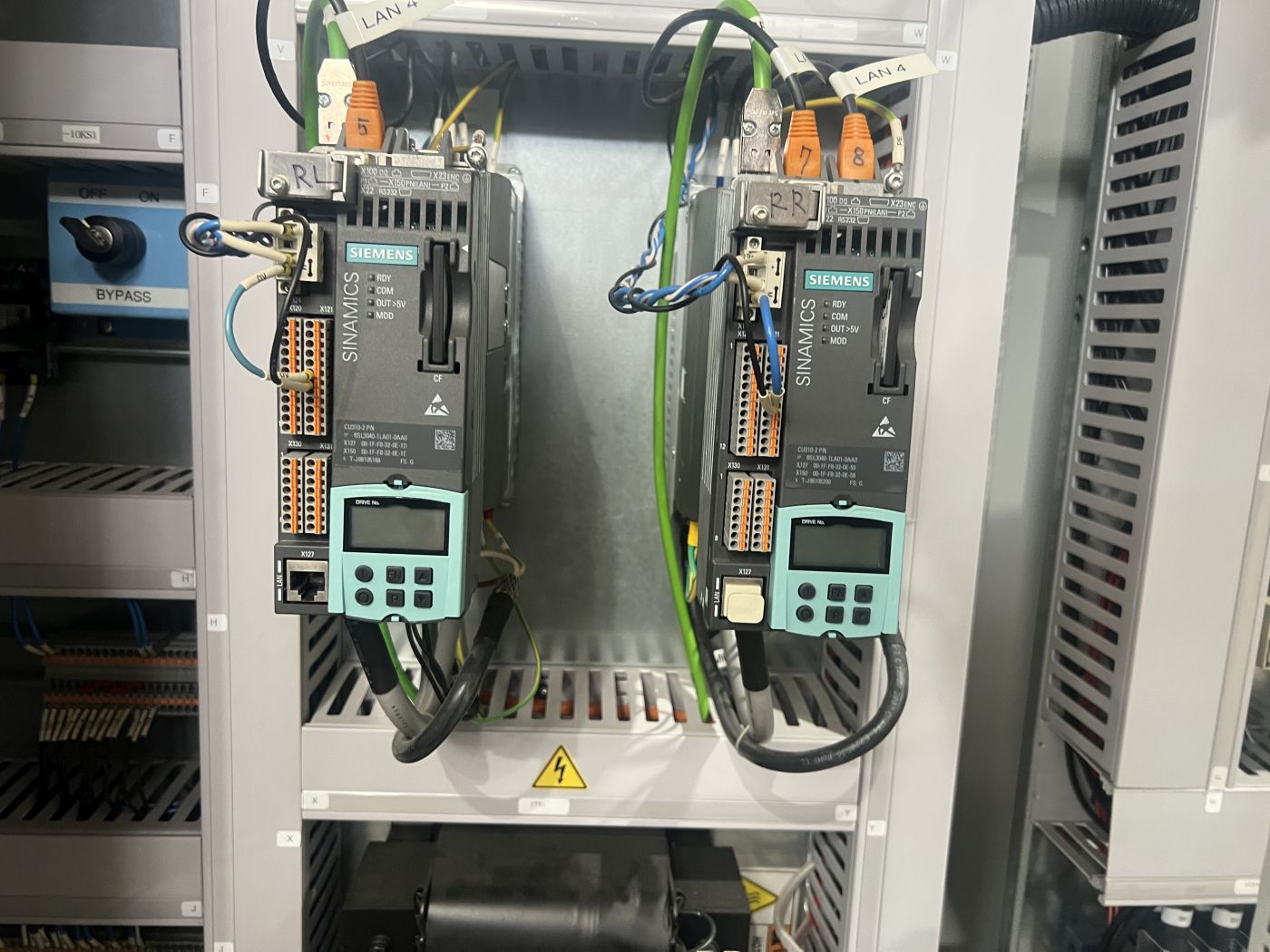

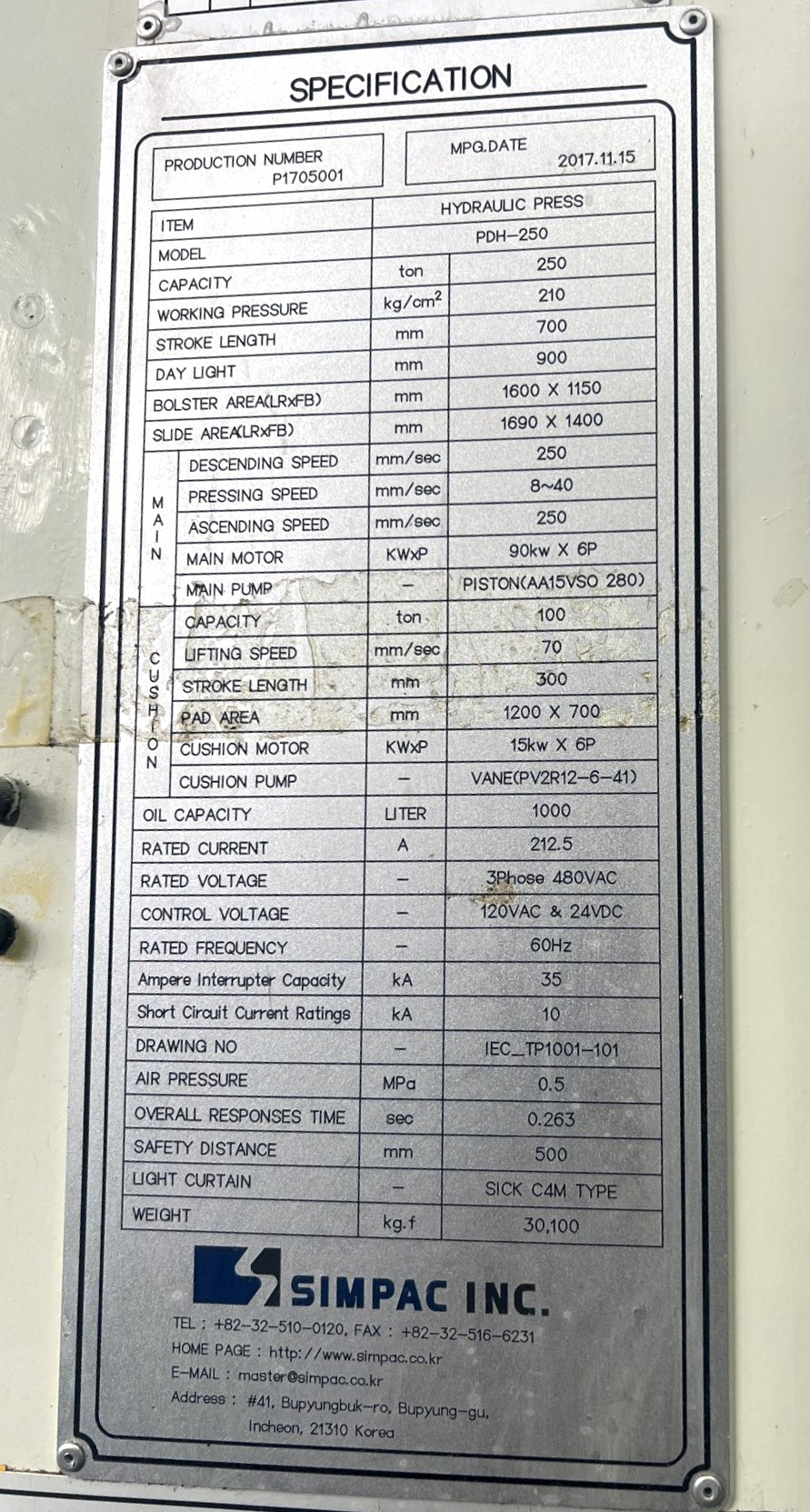

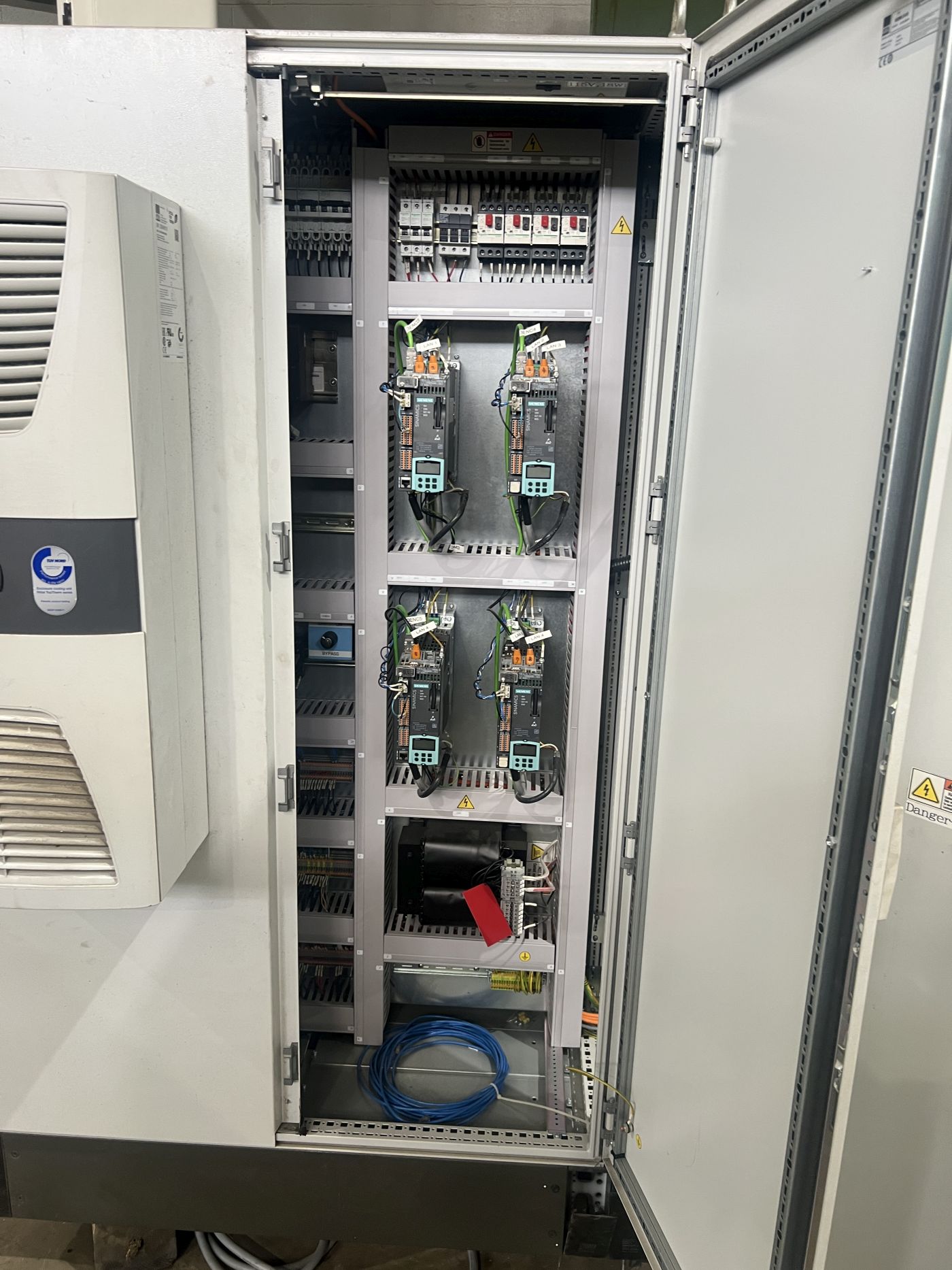

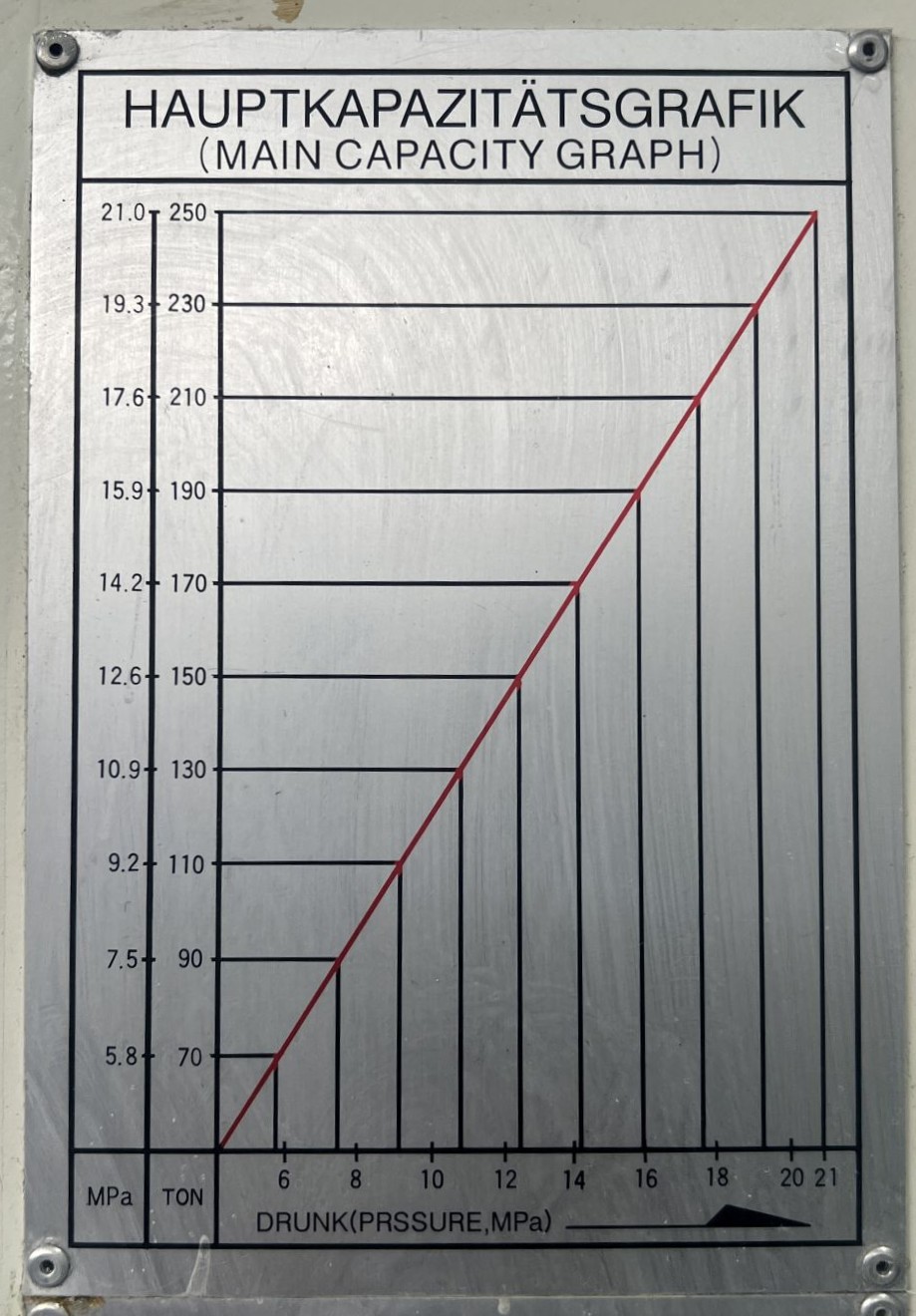

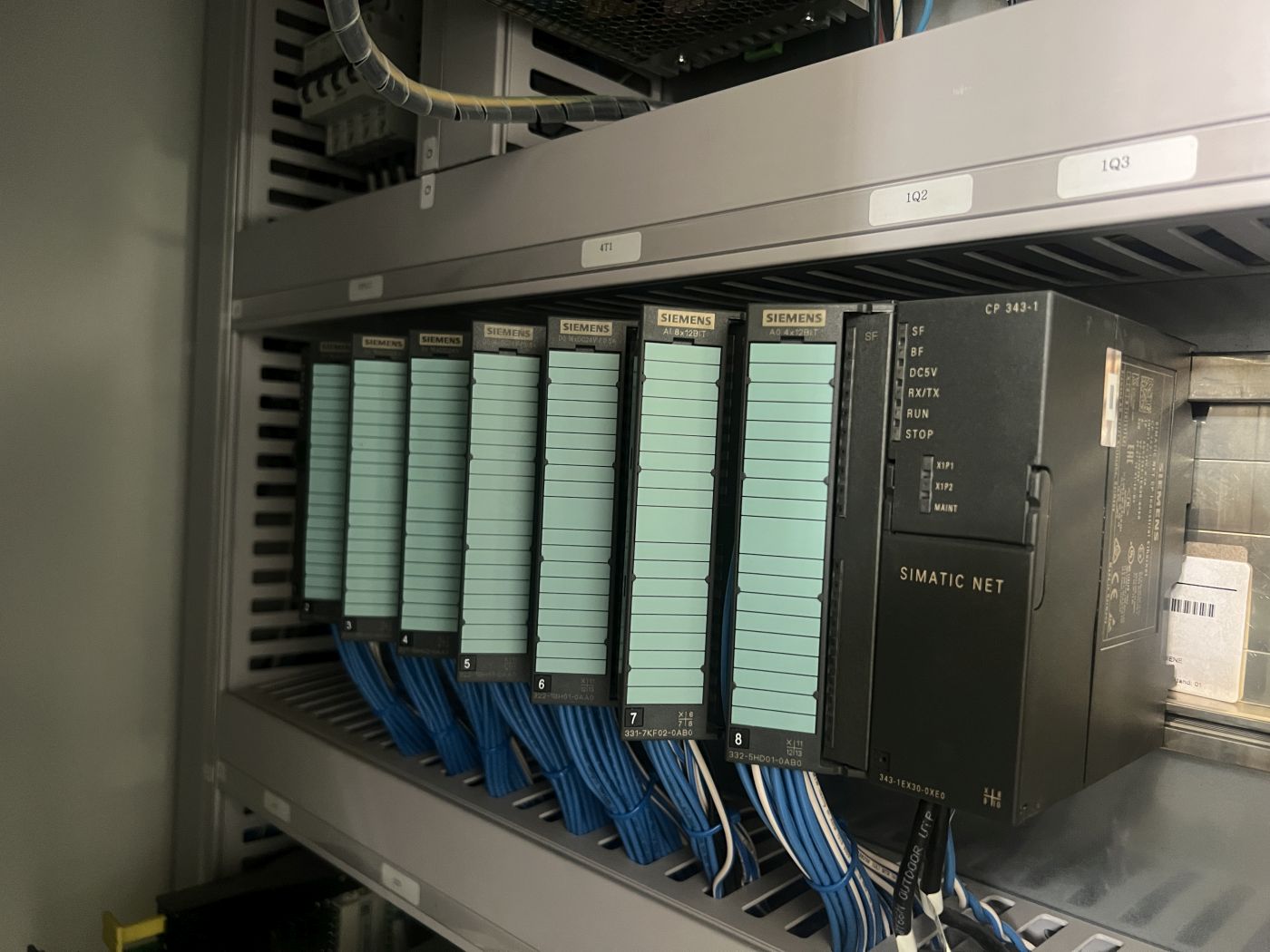

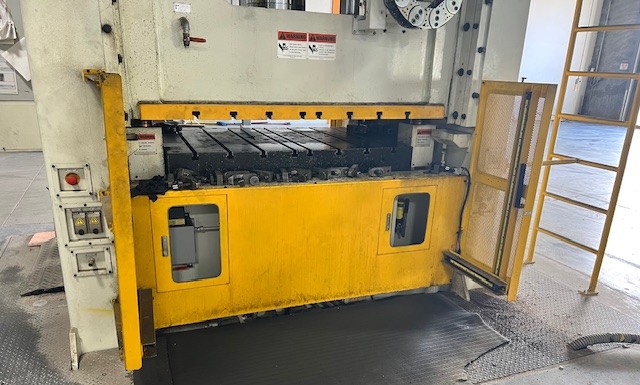

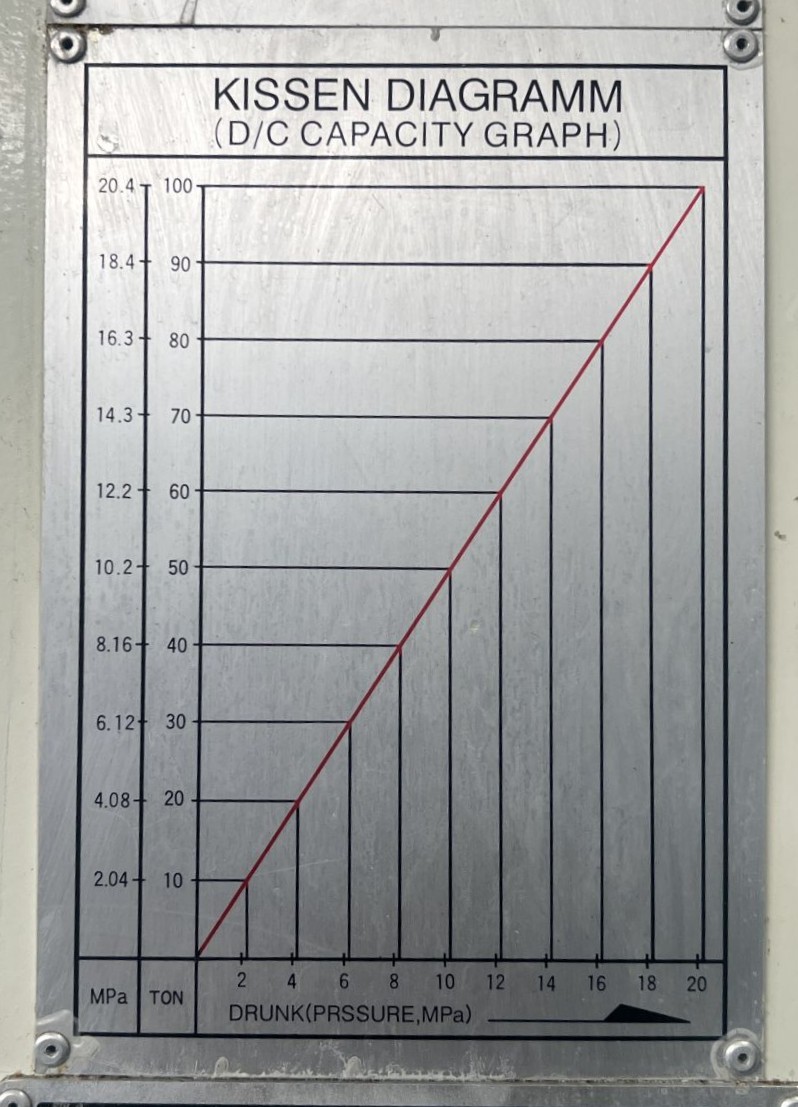

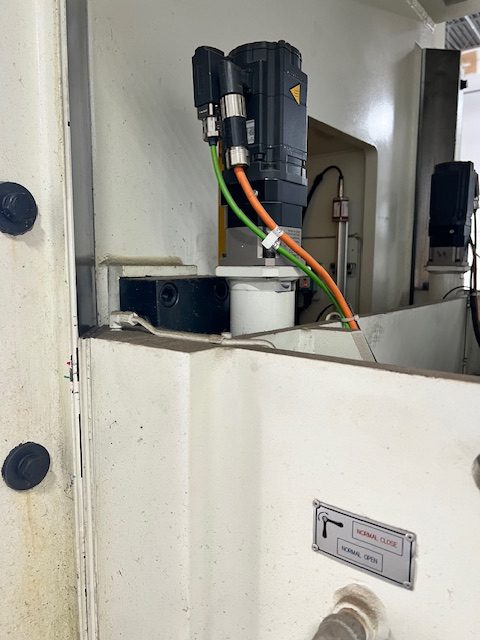

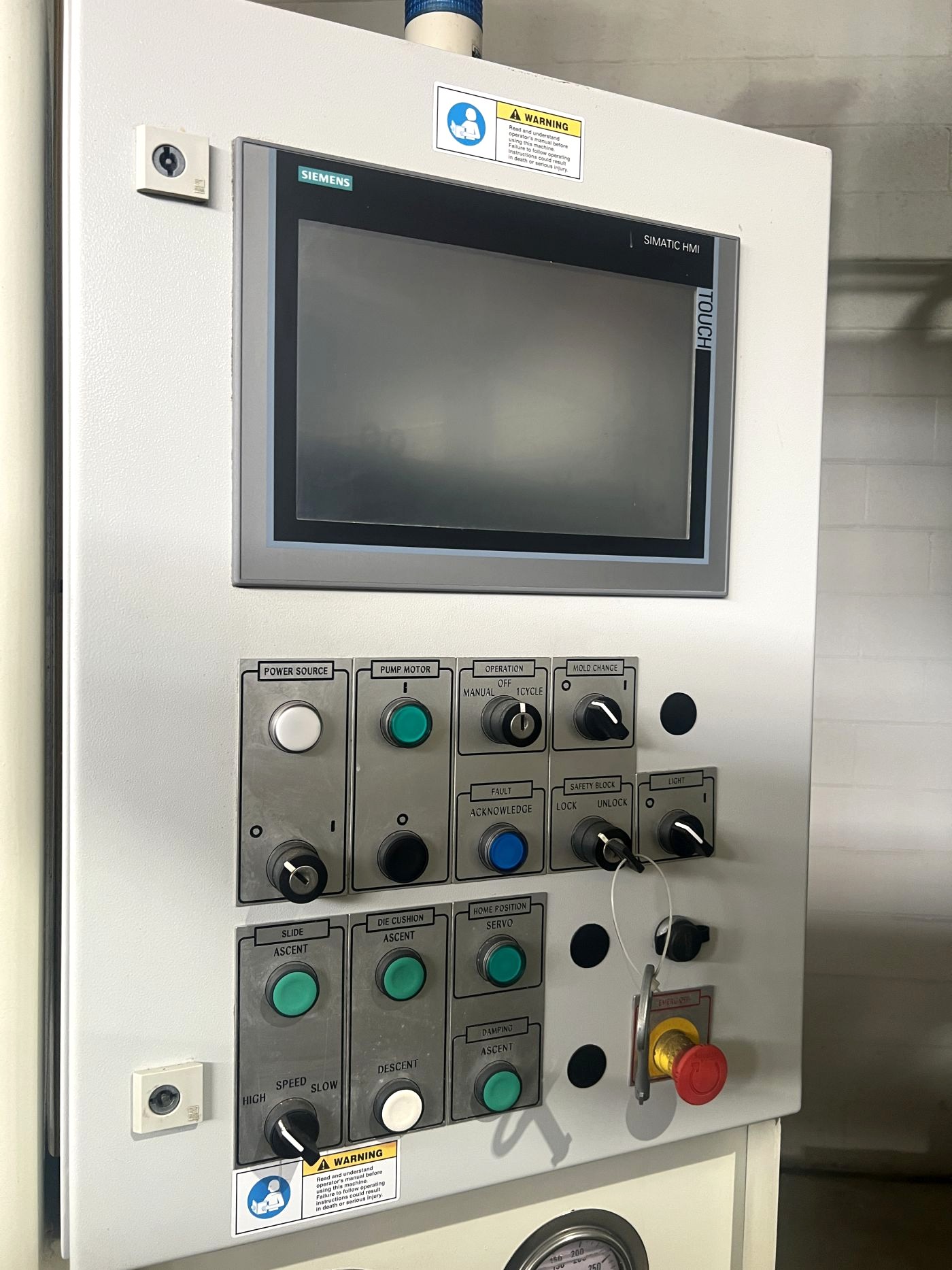

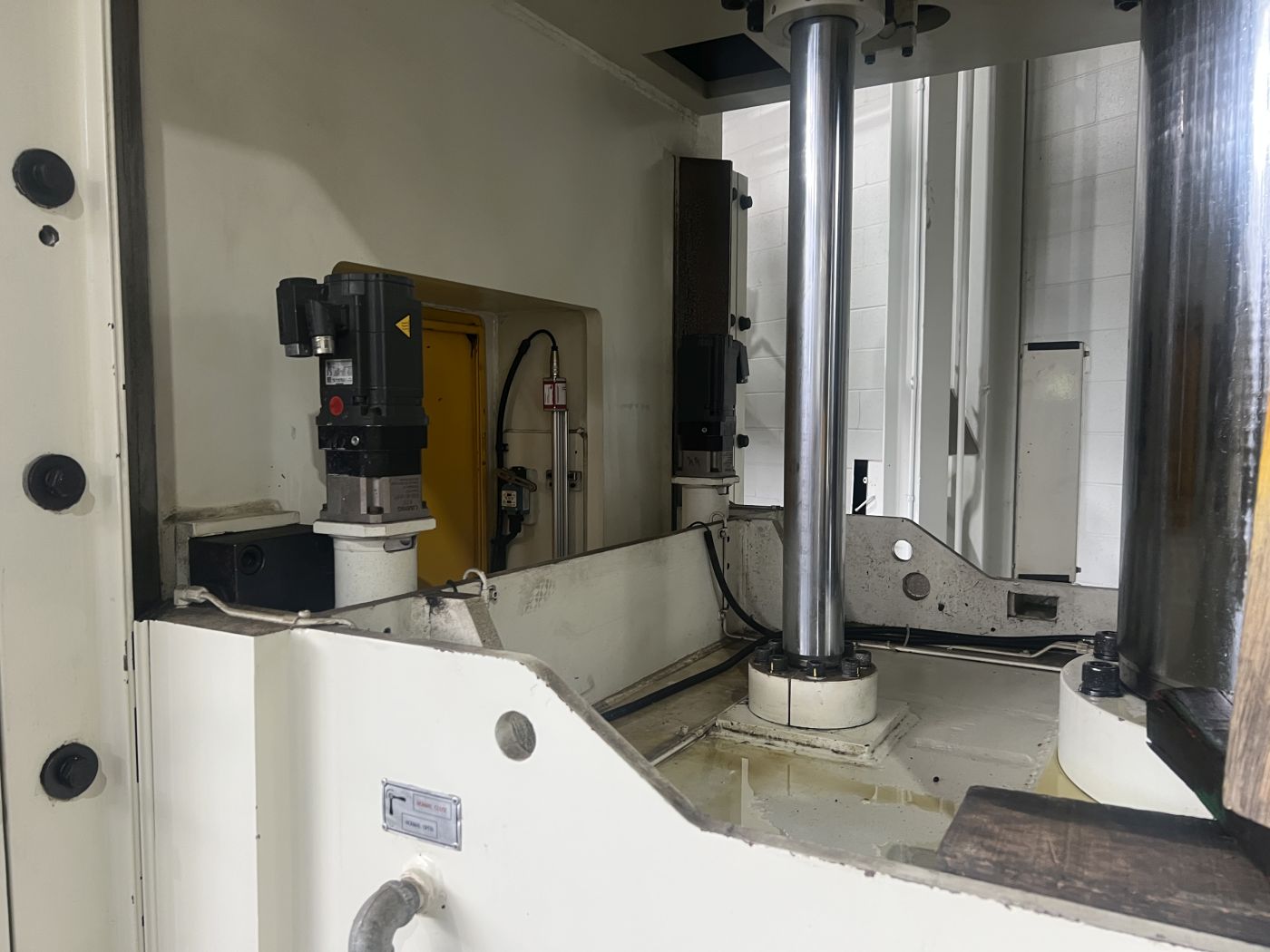

| MAX. CAPACITY | 250 US TONS AT 2,986.9 PSI | max. stroke | 27.55" | MAX. DAYLIGHT | 35.43 | BED AREA | 85" X 45.27" | RAM AREA | 66.53" X 55.11" | BOLSTER PLATE | 62.99" x 45.27" | DISTANCE BETWEEN COLUMNS | 85" | RAM SPEEDS | 590 RAPID ADVANCE / 18.9- / 590 RETURN TO TOP | FLOOR TO BED HEIGHT | 50.7" | CYLINDER SIZE | APPROX. 14.6" DIA. BORE | RAM ROD SIZE | APPROX. 12" DIA. | PRESS CONTROLS | SIEMENS CP 343-1 SIMATIC NET CONTROLLER | SIEMENS SIMATIC HMI TOUCHSCREEN | HYDRAULIC SYSTEM | REXROTH A15VSO PISTON MAIN PUMP & VANE CUSHION PUMP - 264 GALLON RESERVOIR | ELECTRIC MOTOR | 120 HP 480V-3-60 MOTOR | APPROX. DIMENSIONS | 132" X 95" (RL X FB) X 160" HIGH | APPROX. WEIGHT | 66,359 lbs. | Equipped With | 100 TON CUSHION WITH 11.81" STROKE IN BASE (47.24" X 27.55") - CUSHION PUMP (PV2R12 VANE PUMP), PRECISION SERVO-DRIVEN SLIDE BALANCING SYSTEM, DAMPER CYLINDERS TO ABSORB REVERSE TONNAGE | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
