Description

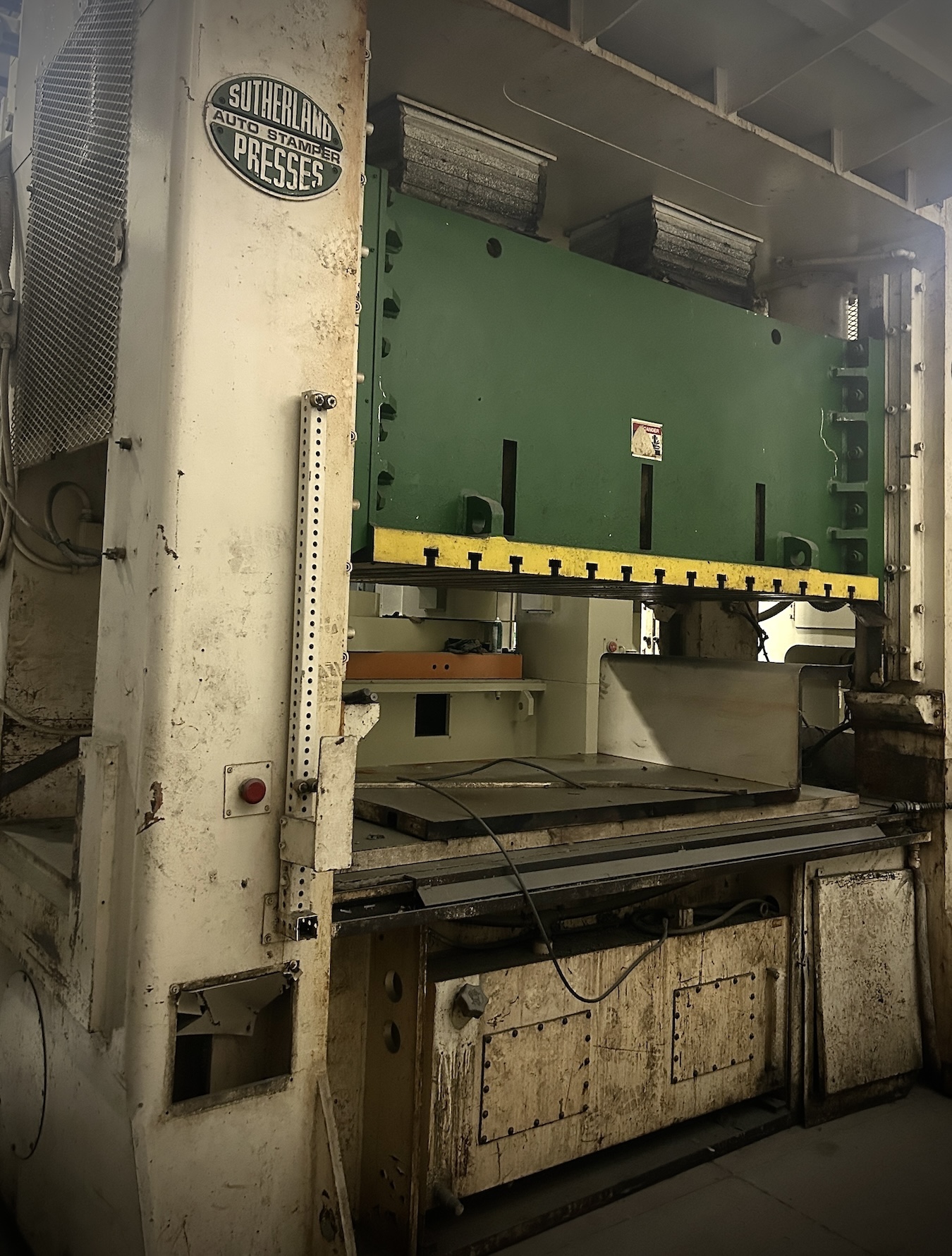

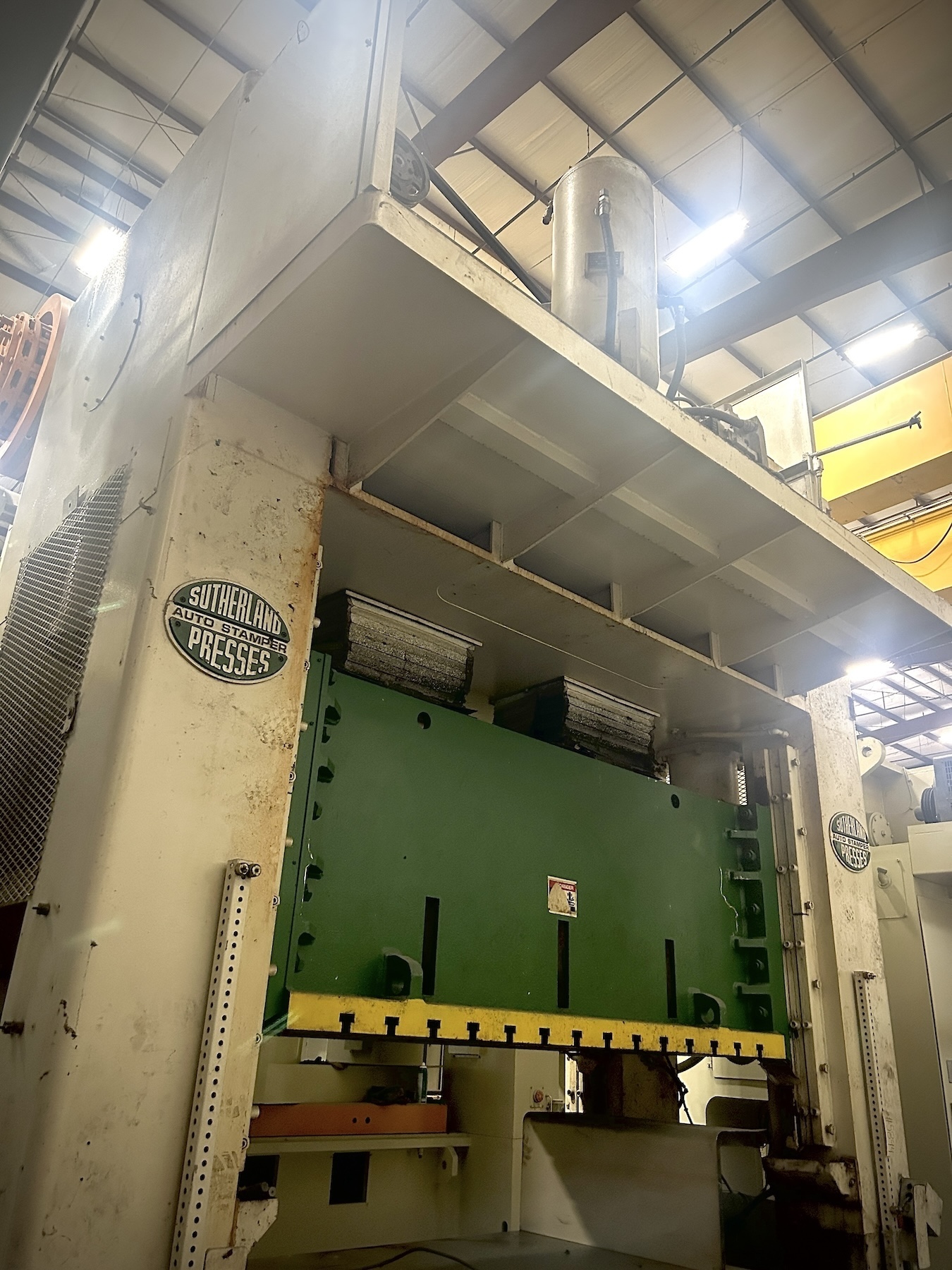

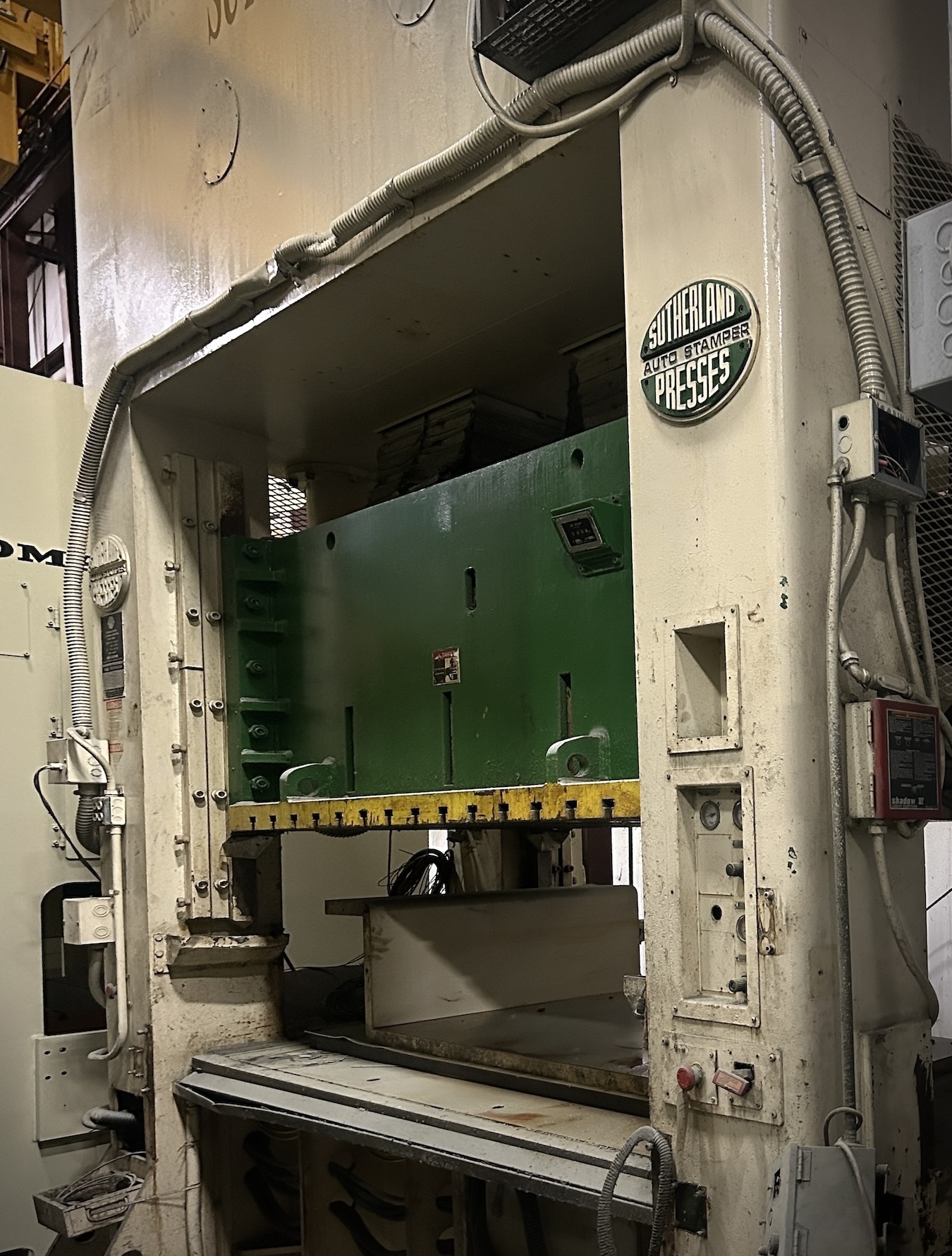

Straight Side Press • Used 275 Ton Press for Sale
- Manufacturer
- Sutherland
› - Machine #
- 5894
- Condition
- Very Good
- Location
- Columbia, TN WarehouseDirectionsMap
- Year
- 1999
- Model
- Sutherland FDP-250
Buy Now: $
| CAPACITY | 275 US TONS |
|---|---|
| STROKE | 10" |
| MAX SHUT HEIGHT | 24" SDAU OVER BOLSTER |
| BED AREA | 96" x 48" (RL X FB) |
| SPEED | 30 - 60 SPM |
| RAM ADJUSTMENT | 10" MOTORIZED |
| RAM AREA | 96" x 48 (RL X FB) T-SLOTTED |
| BOLSTER PLATE | 96" x 48" (RL X FB) T-SLOTTED |
| DIST UPRIGHTS/FLOOR TO BED | 106.5" / 41" |
| WINDOW SIZE | 31.5" WIDE x 36" HIGH |
| CLUTCH | SUTHERLAND AIR CLUTCH/BRAKE COMBINATION |
| ELECTRICS | 40 HP 1150 RPM 240/480V-3-60 MOTOR & new cieco CONTROL for recond price |
| APPROX DIMENSIONS | 156" X 108" (RL X FB) X 222" HIGH |
| APPROX WEIGHT | __ |
| Equipped With | DUAL AIR COUNTERBALANCED RAM, FLOOR STANDING, automatic recirculating oil lubrication system |
| Note | __ |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
