Description

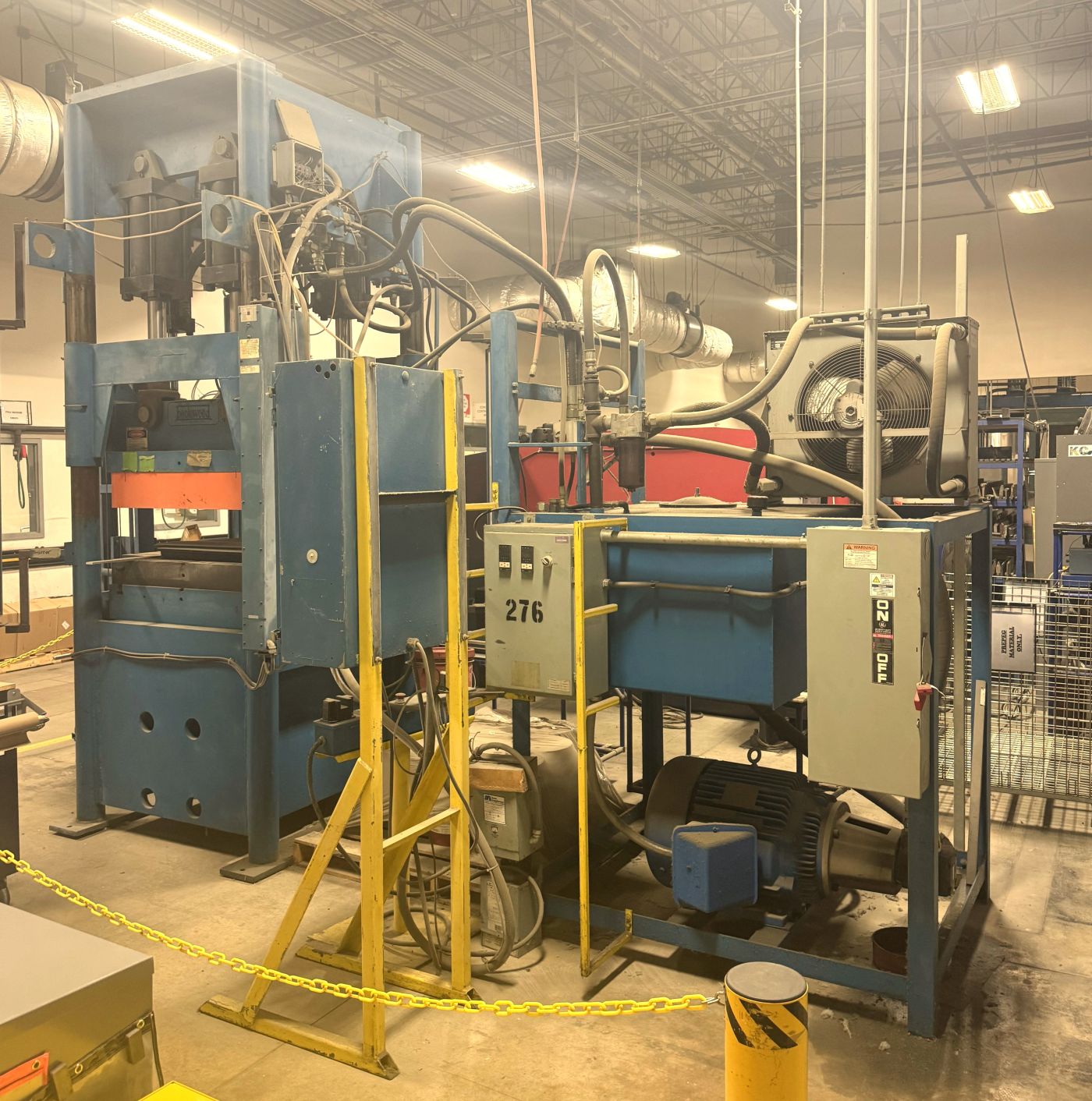

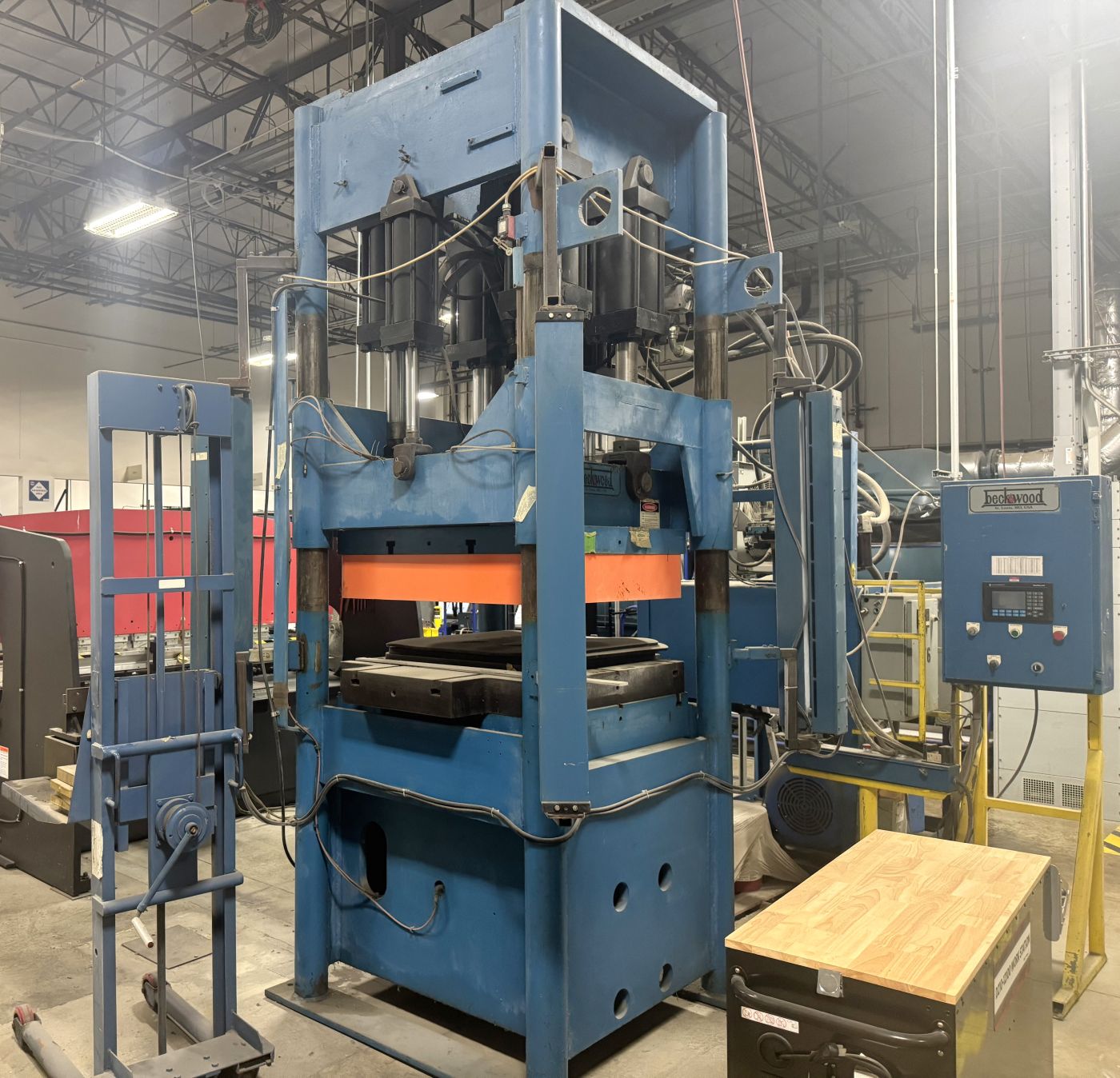

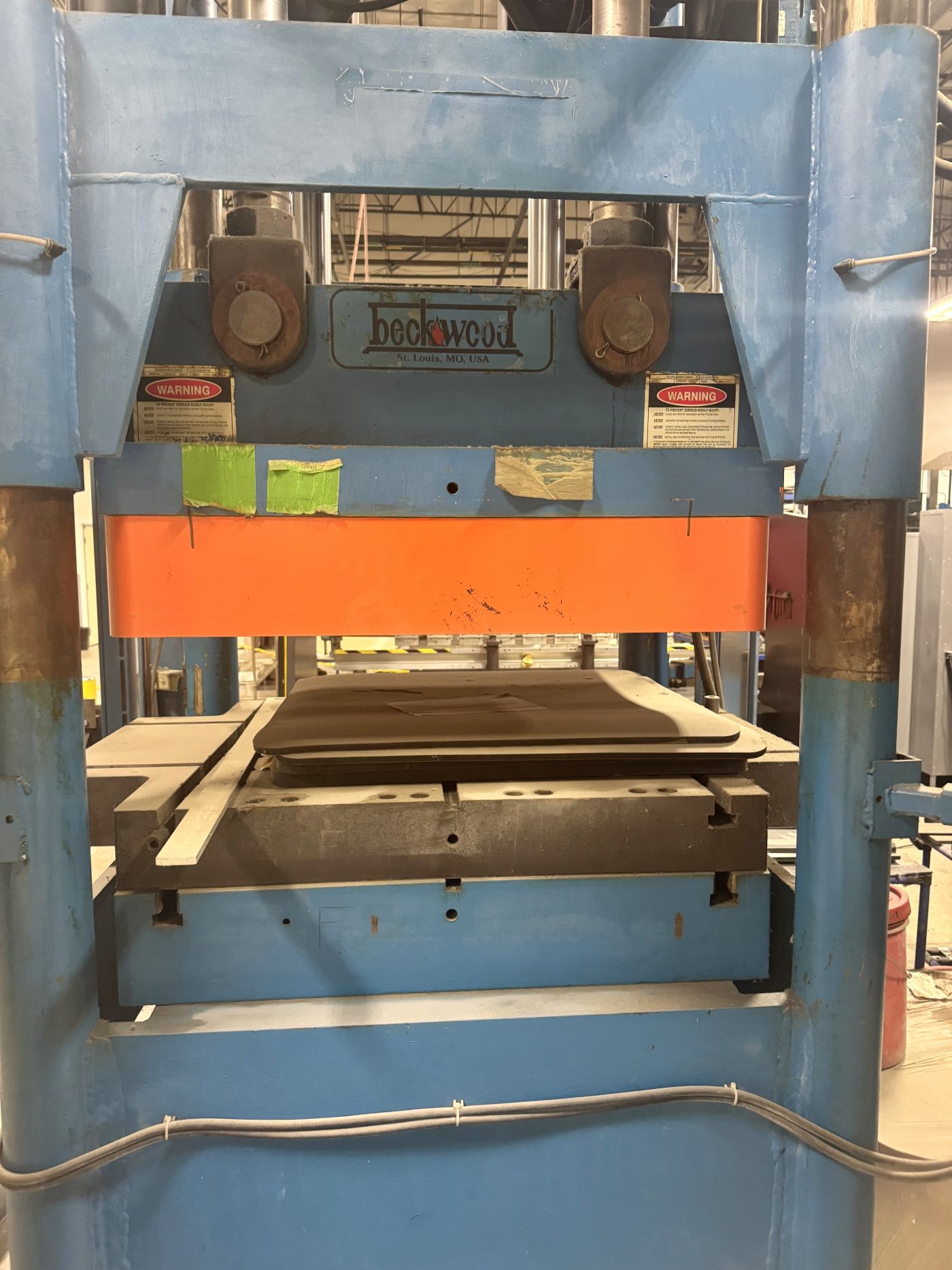

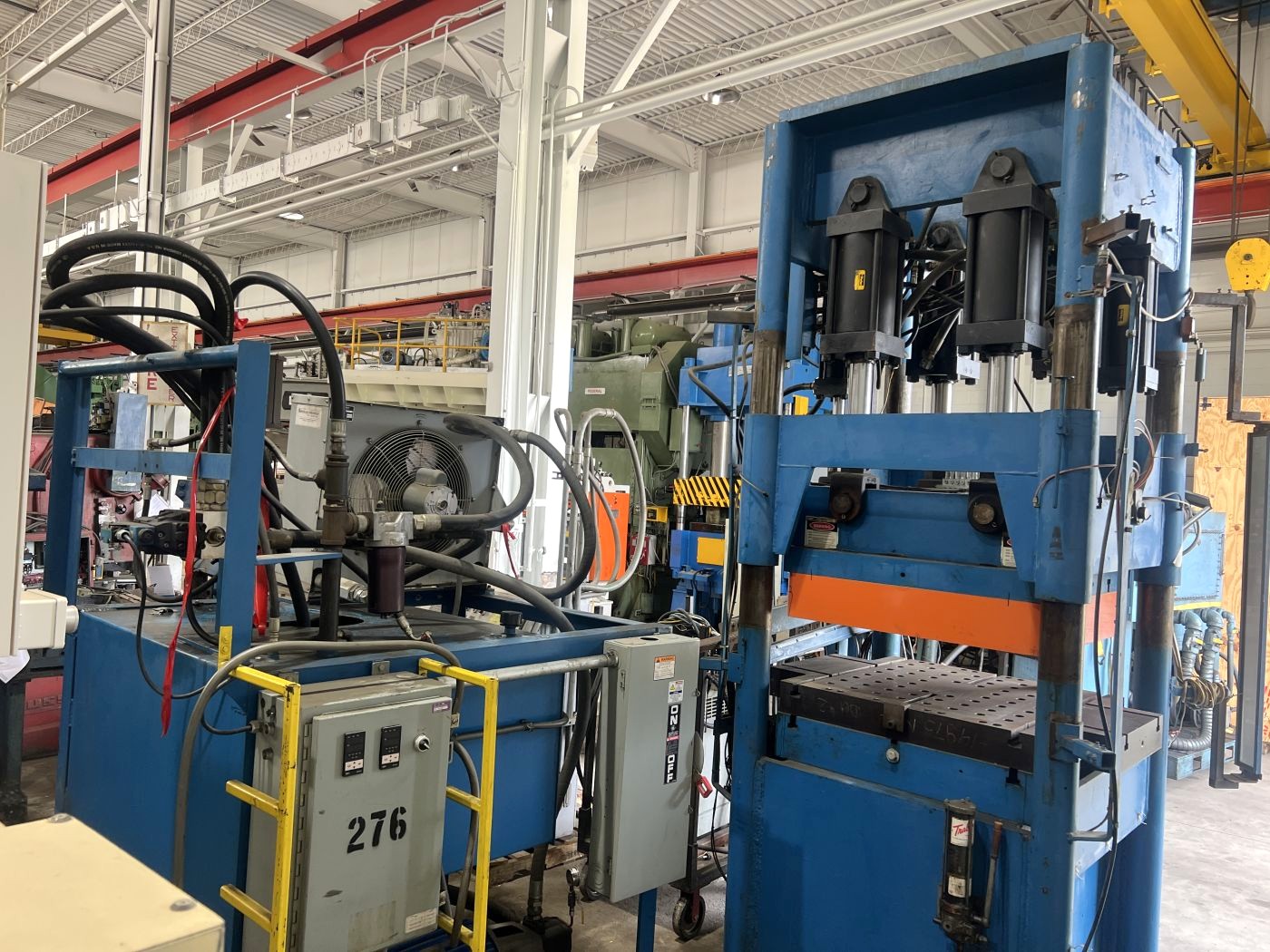

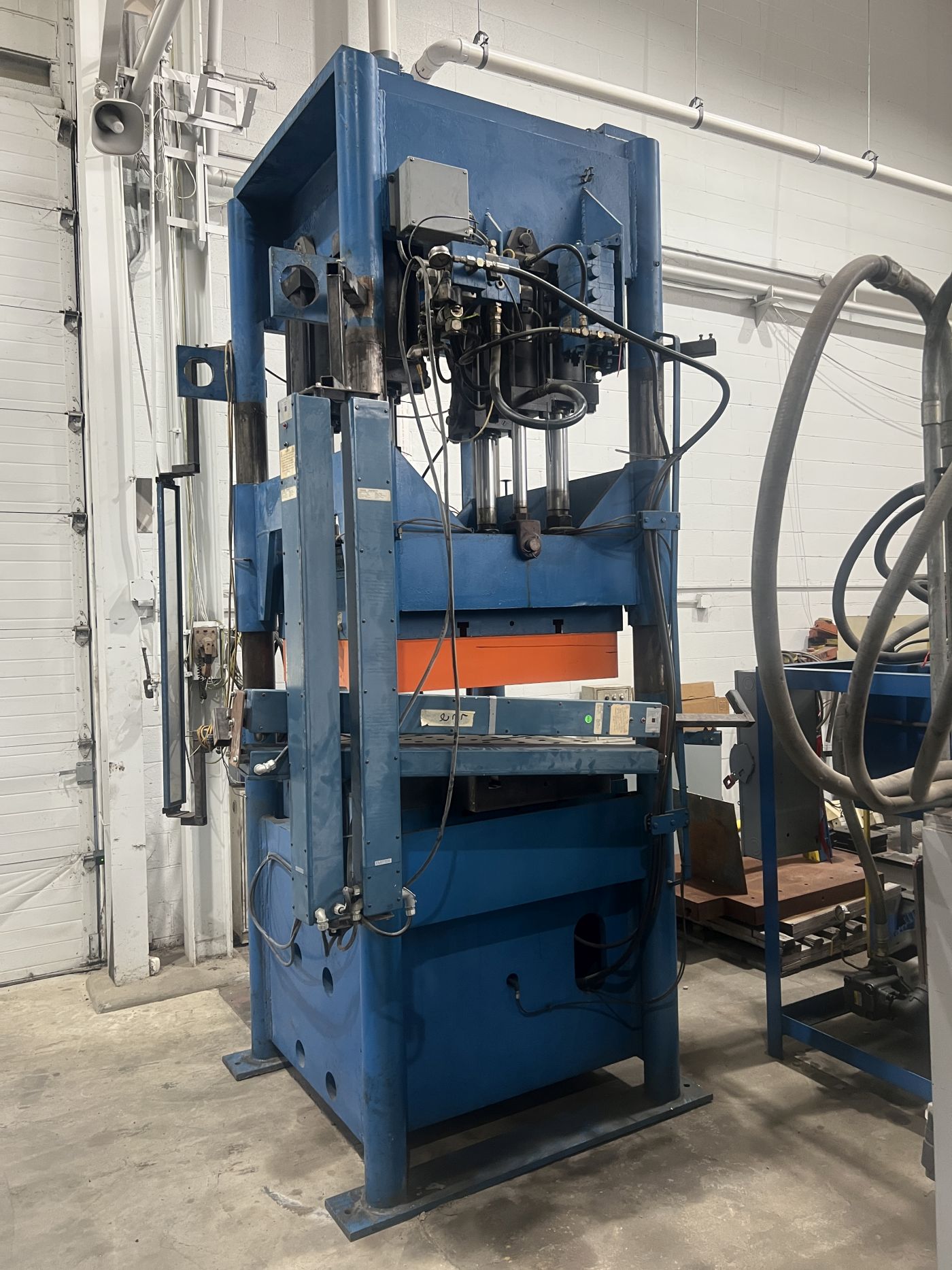

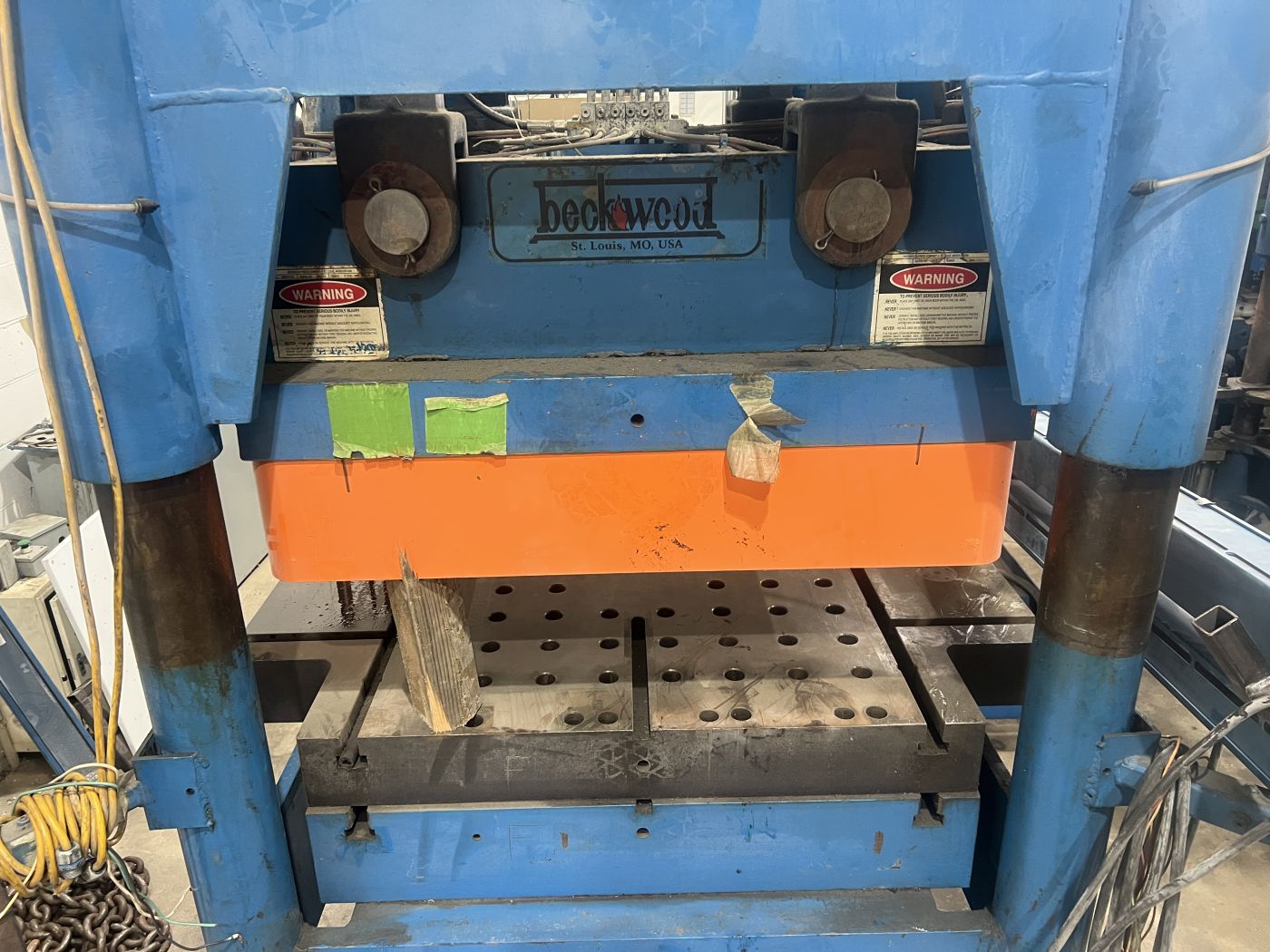

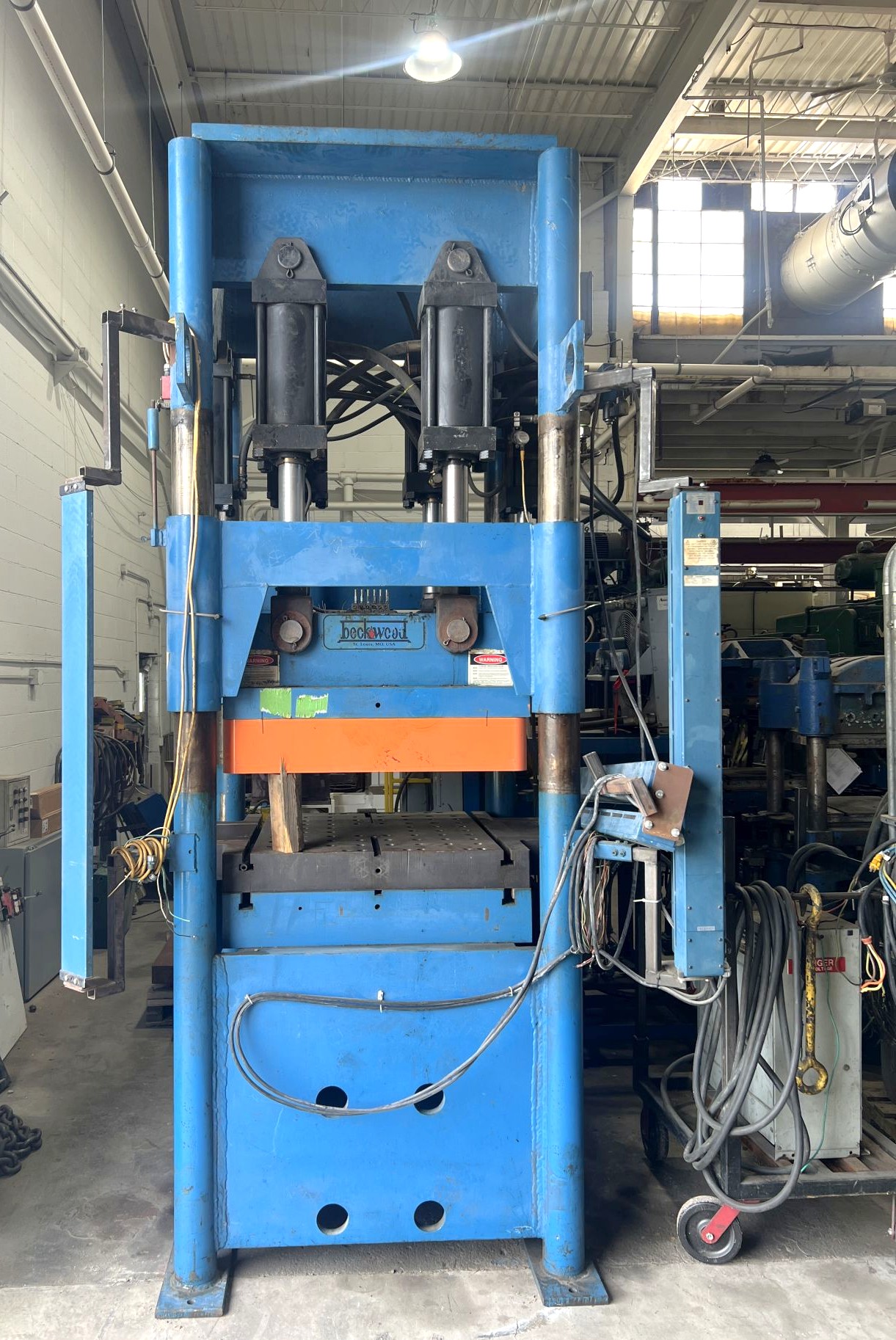

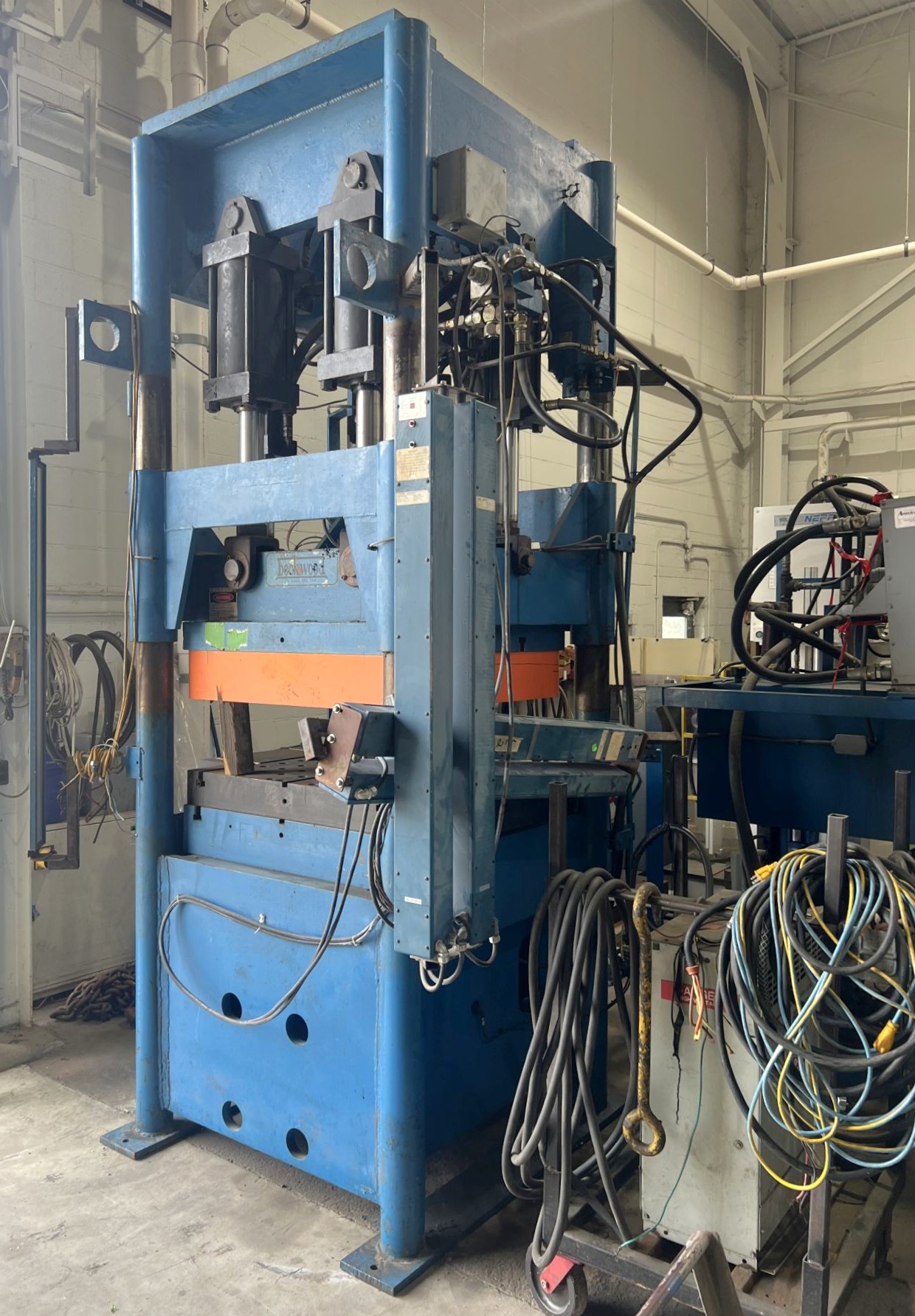

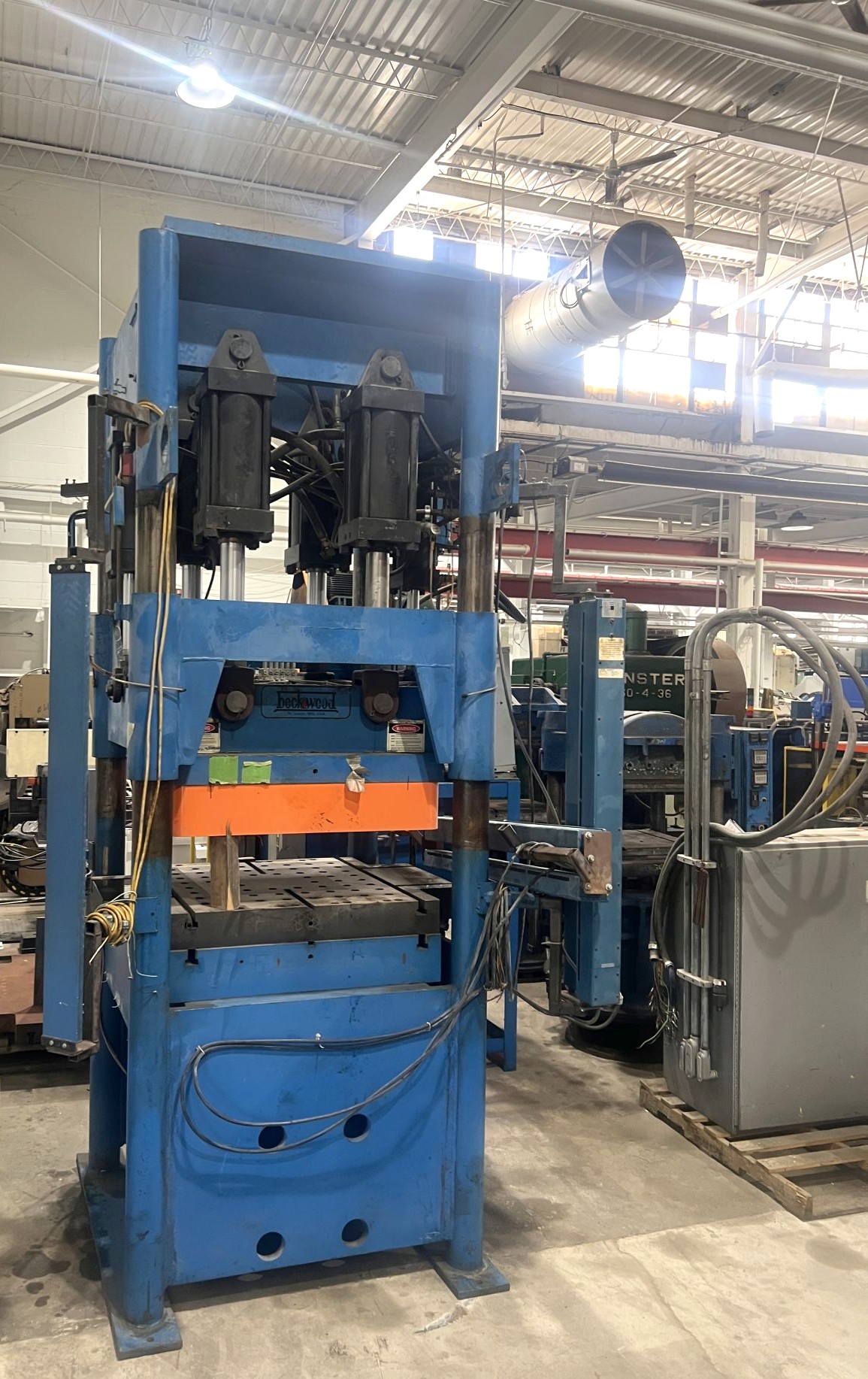

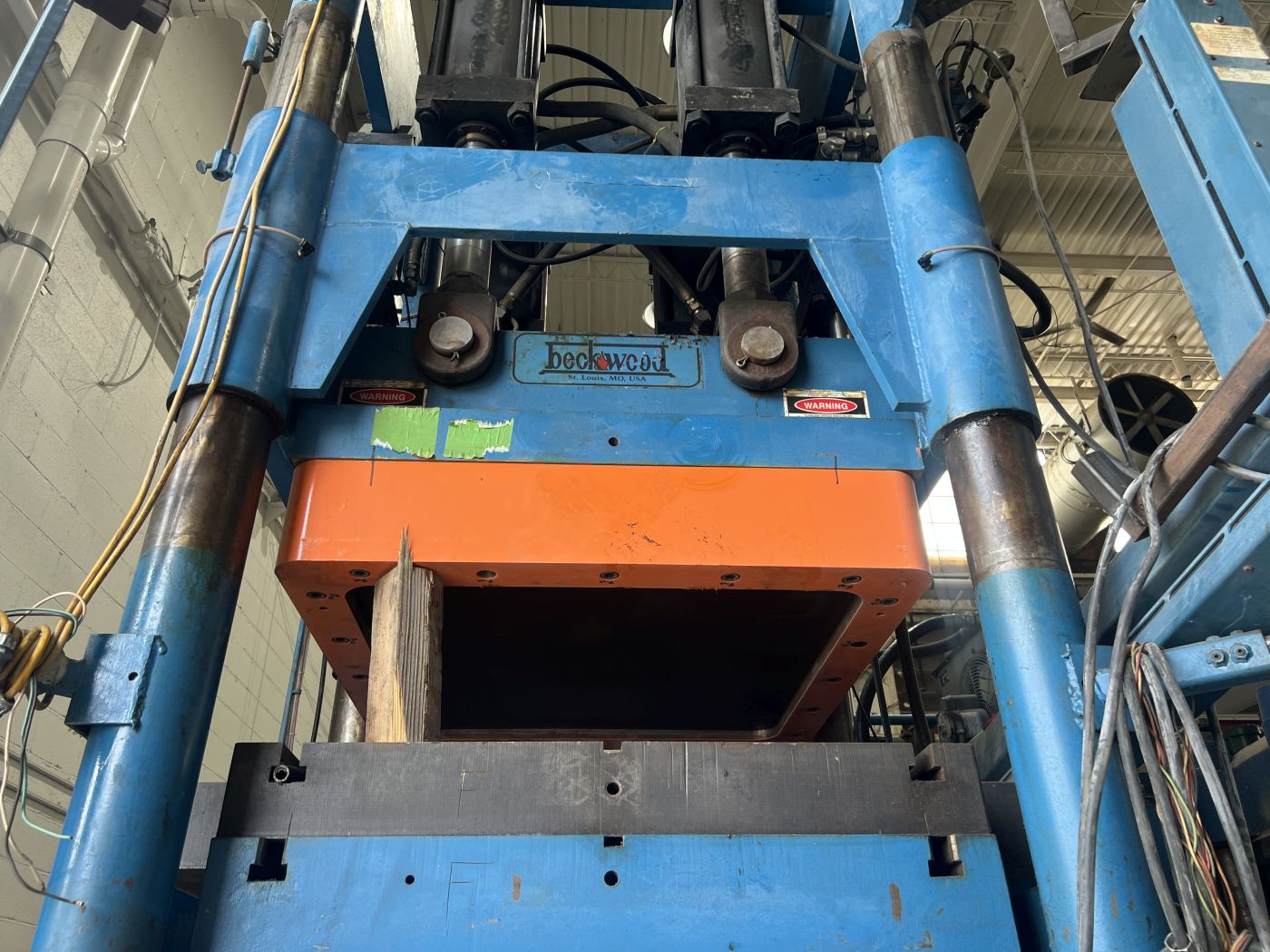

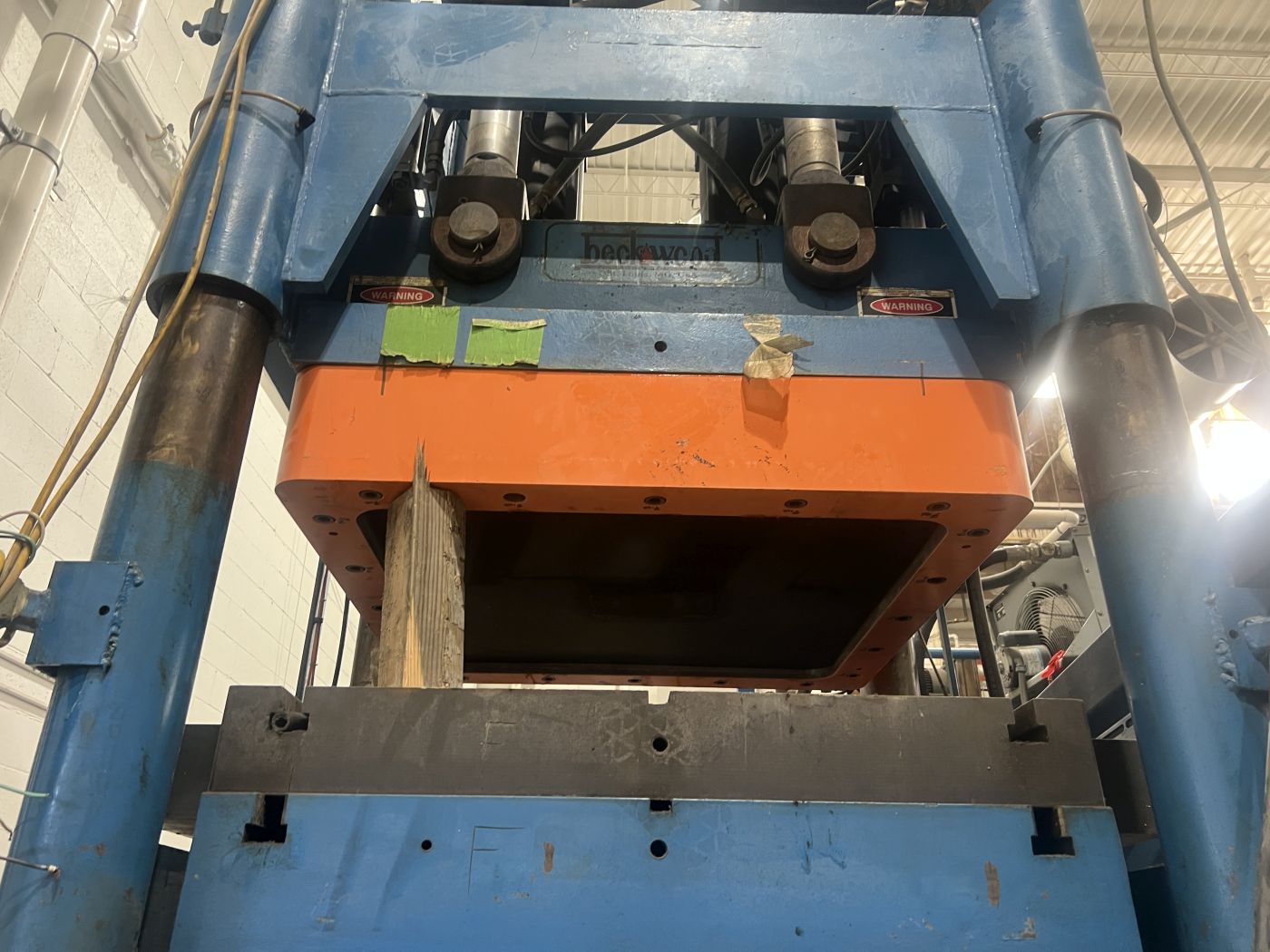

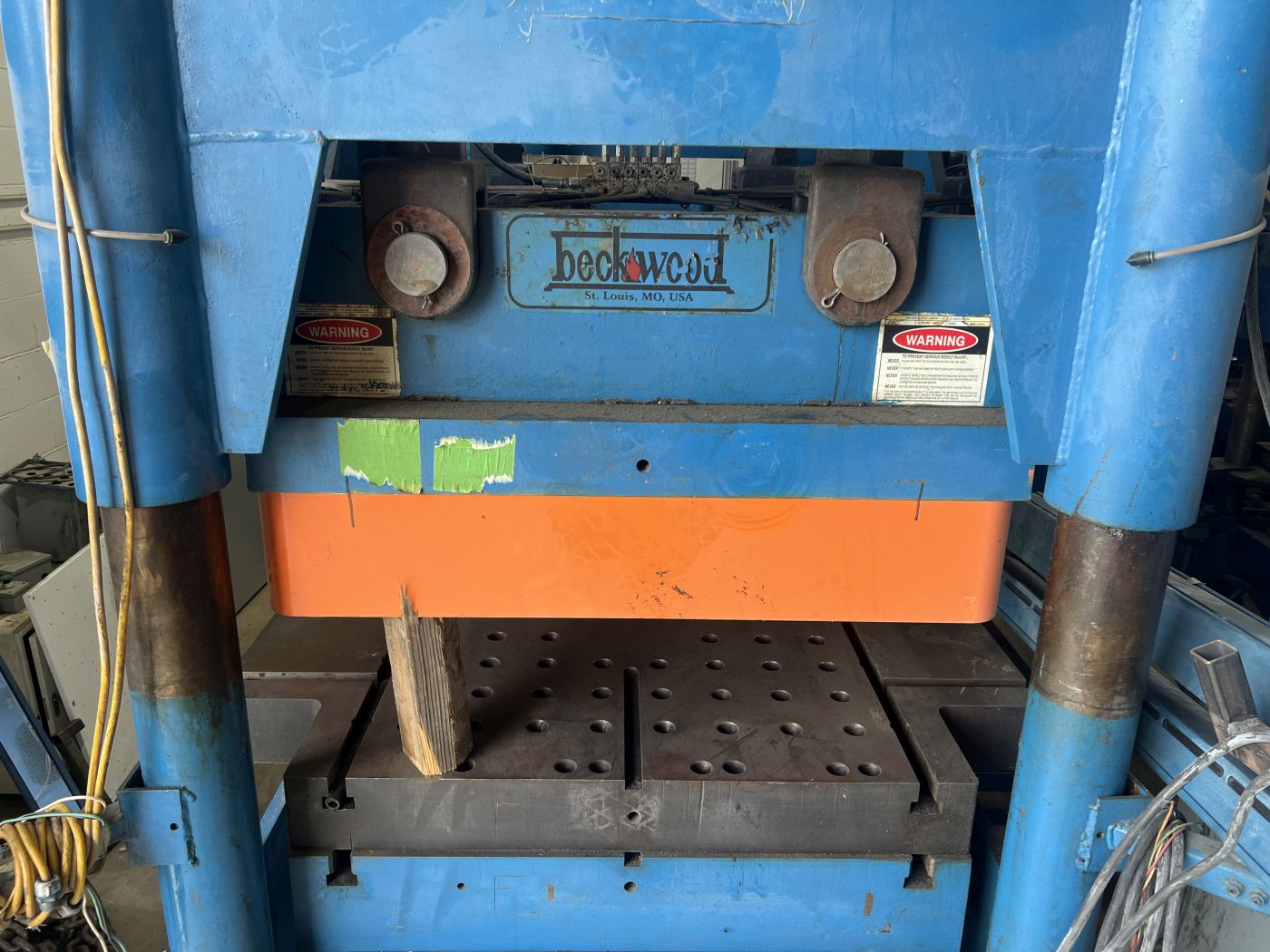

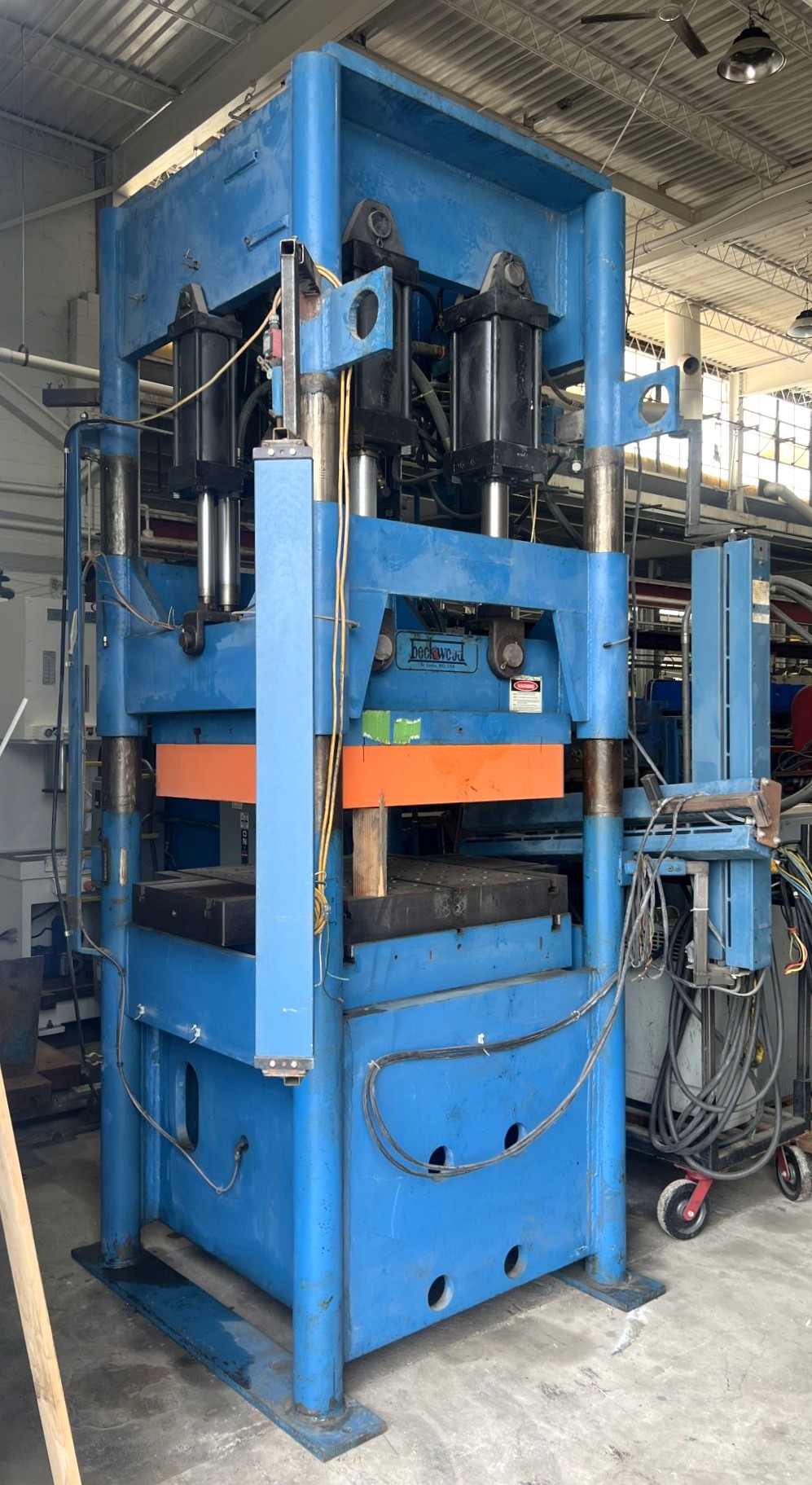

4 Column Press • Used 300 Ton Press for Sale
Model: Beckwood Down Acting Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: 1998
Machine #: 8397
Buy Now: $

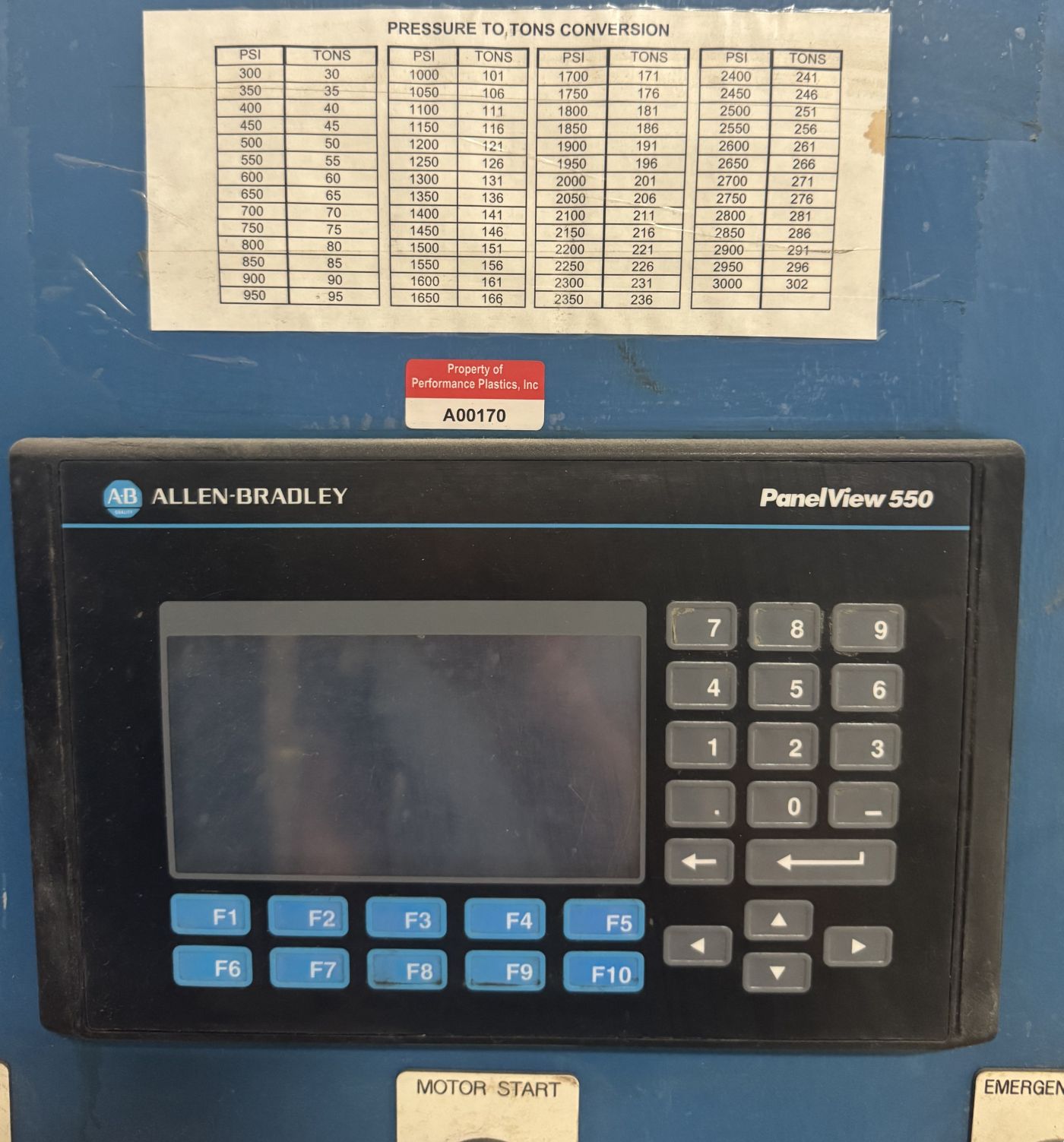

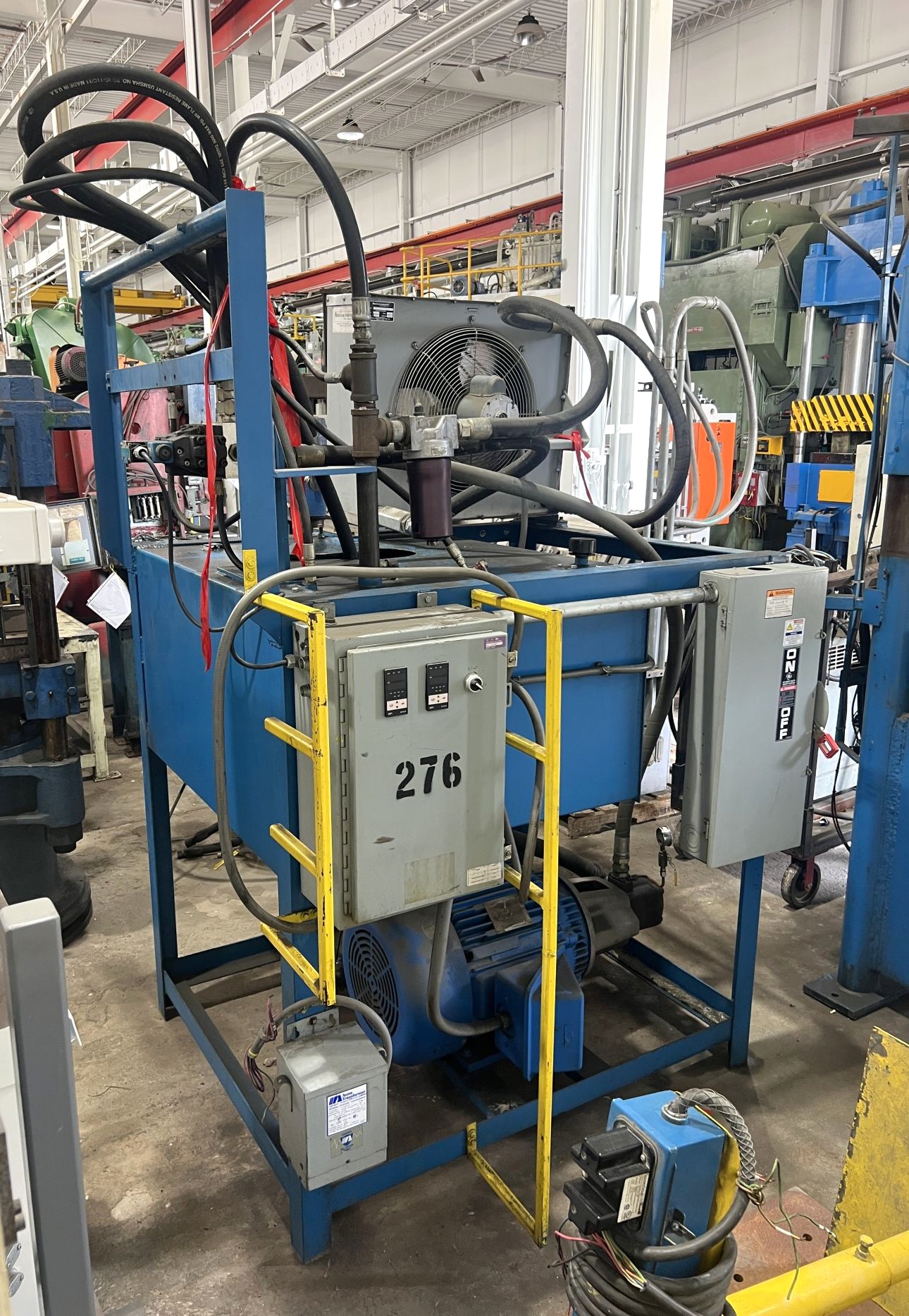

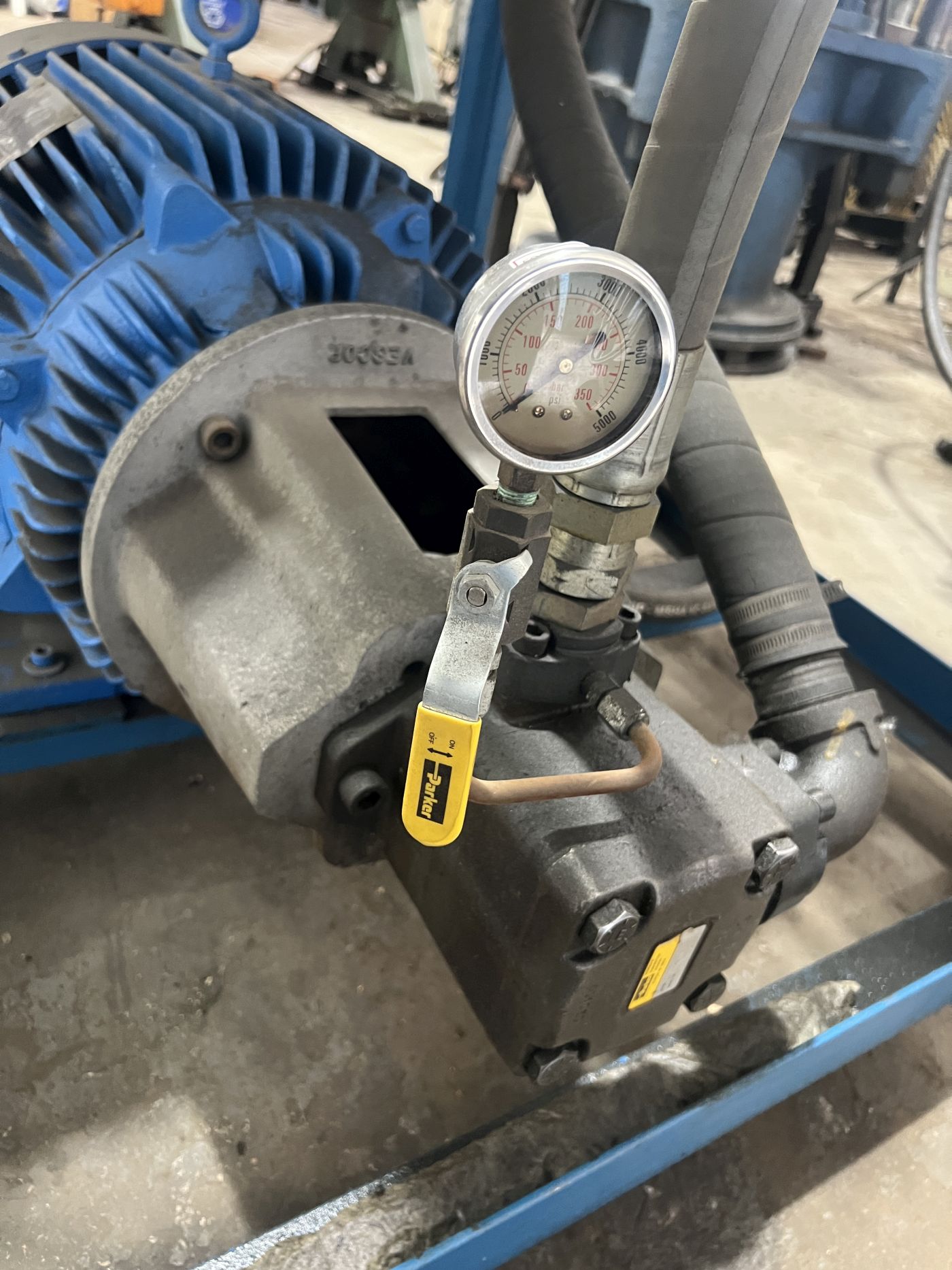

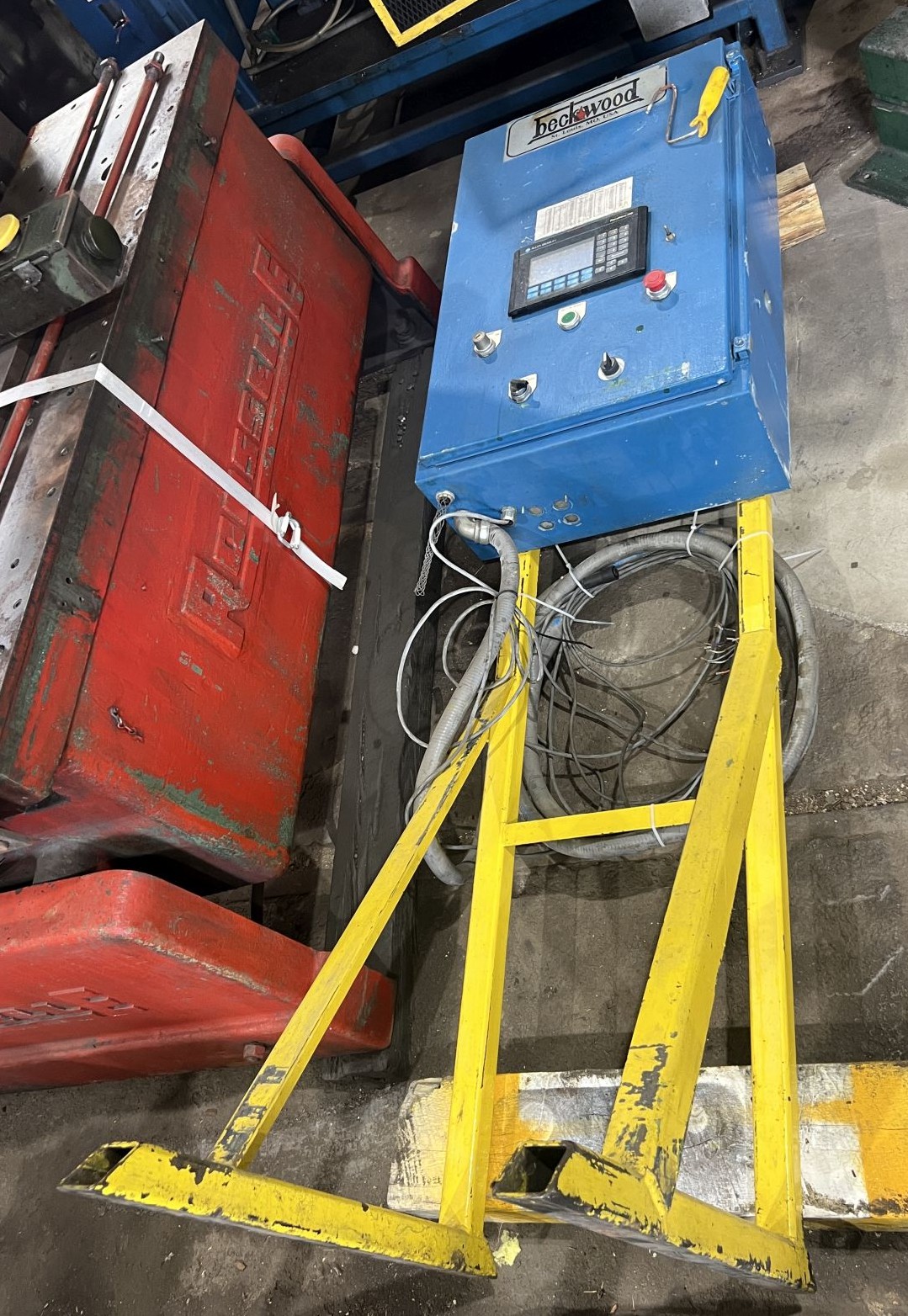

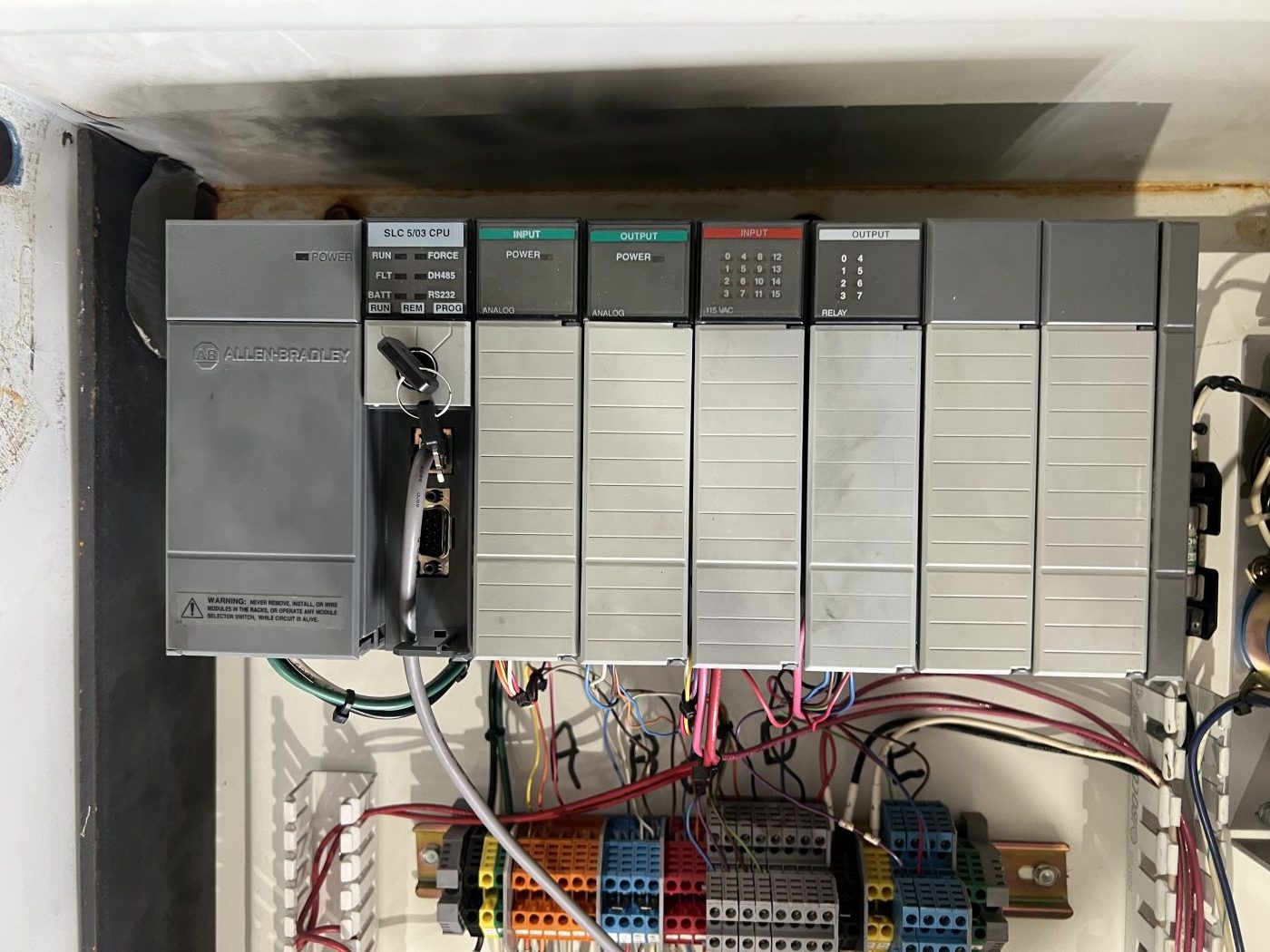

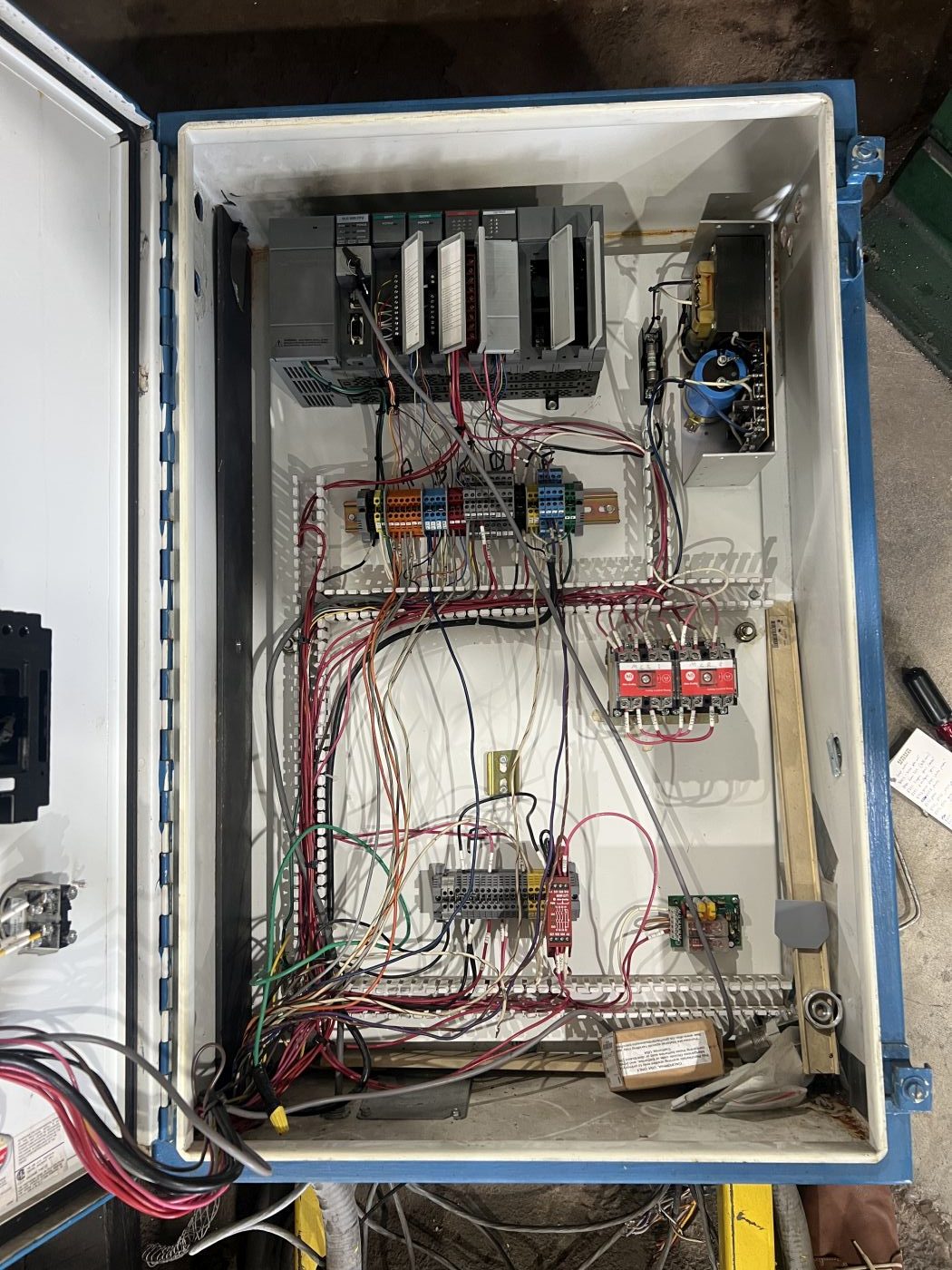

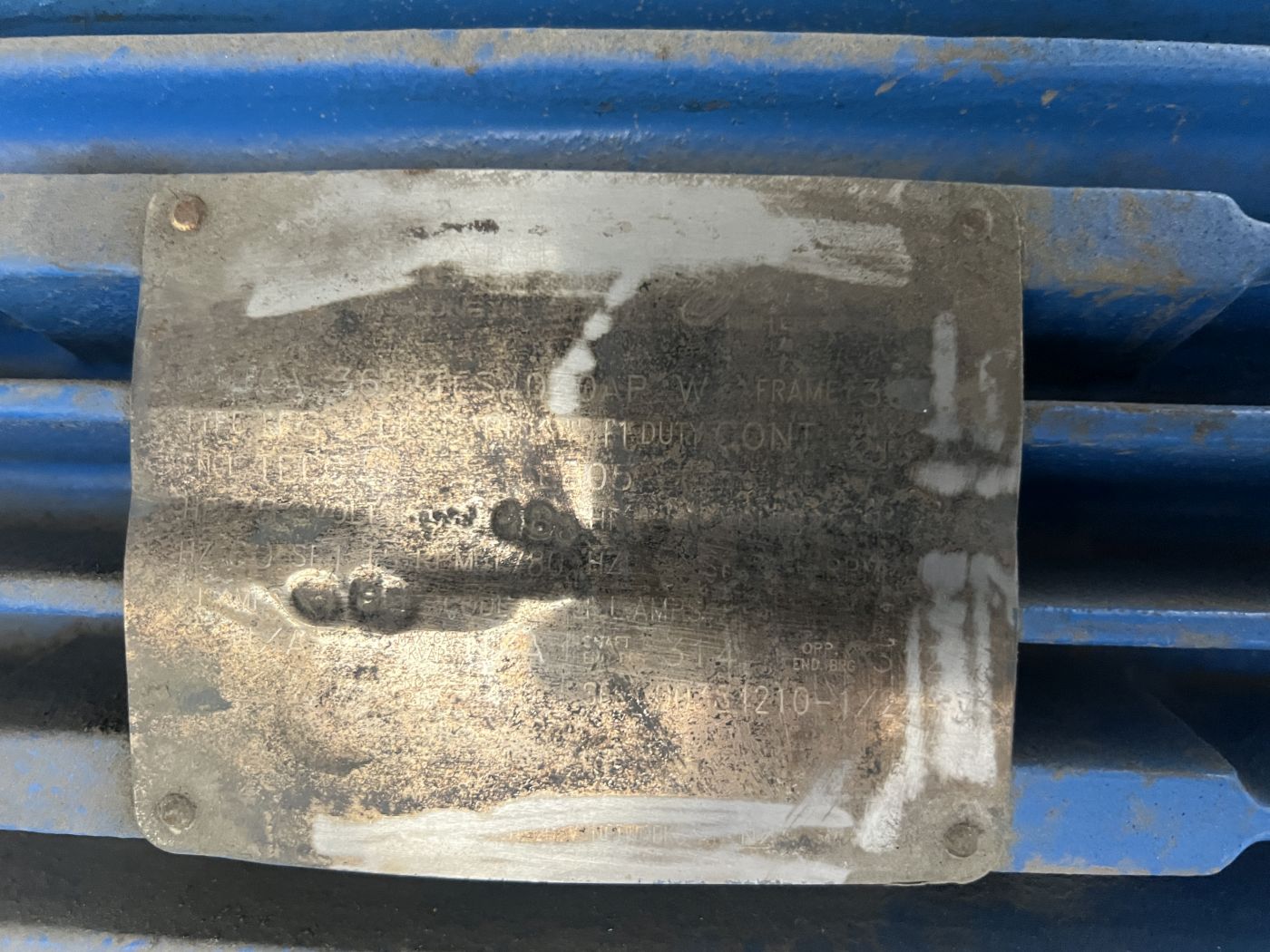

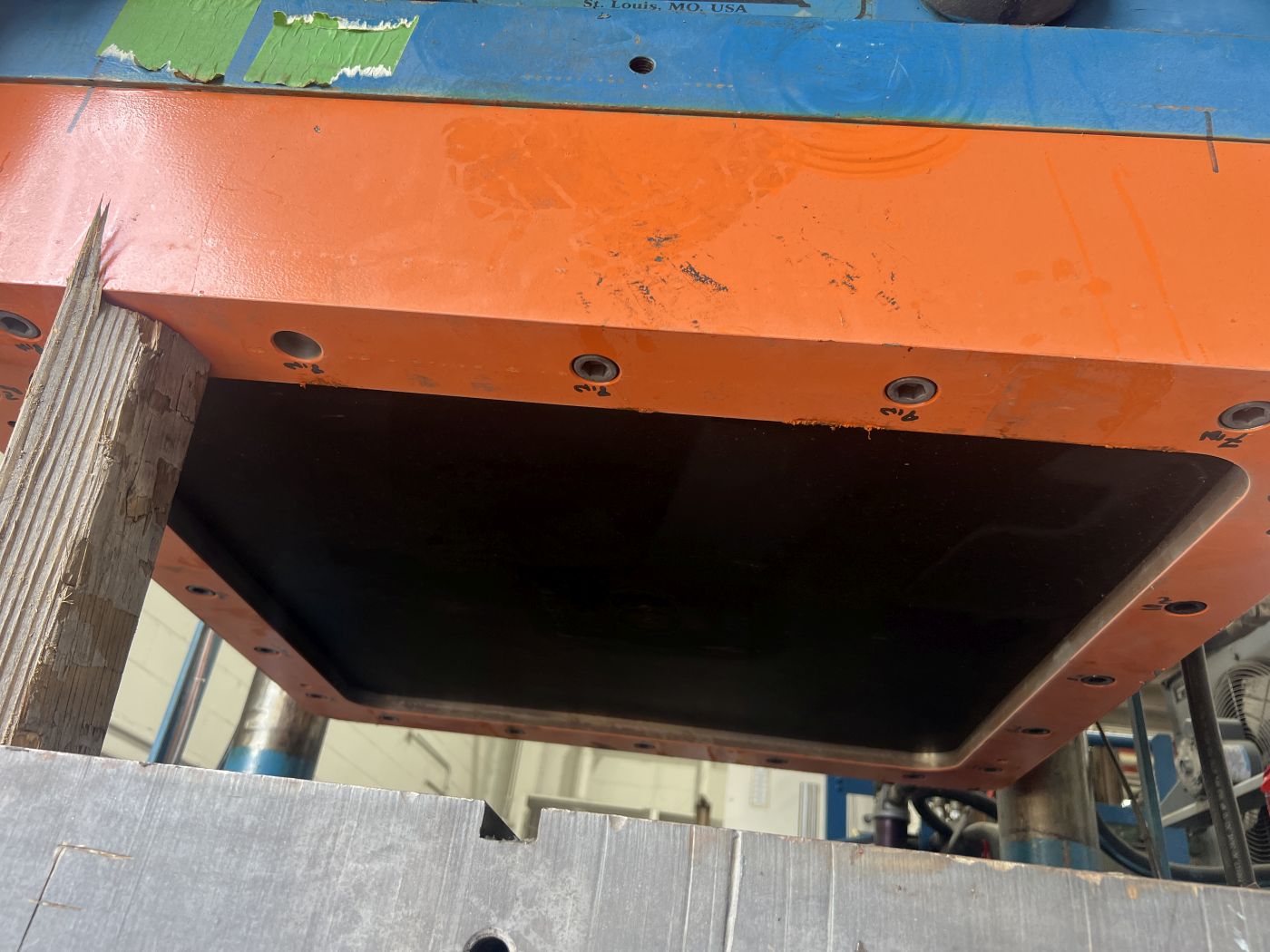

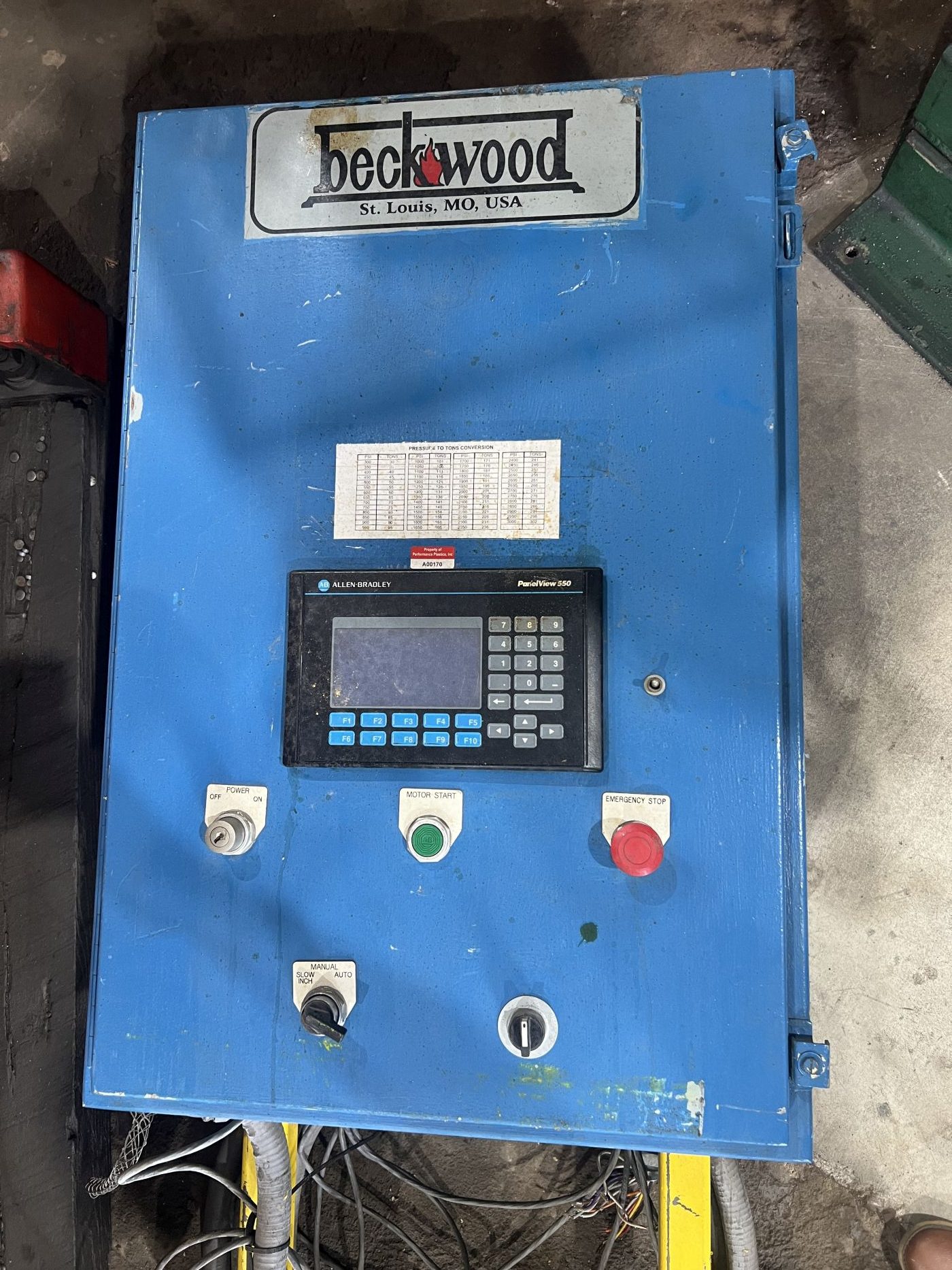

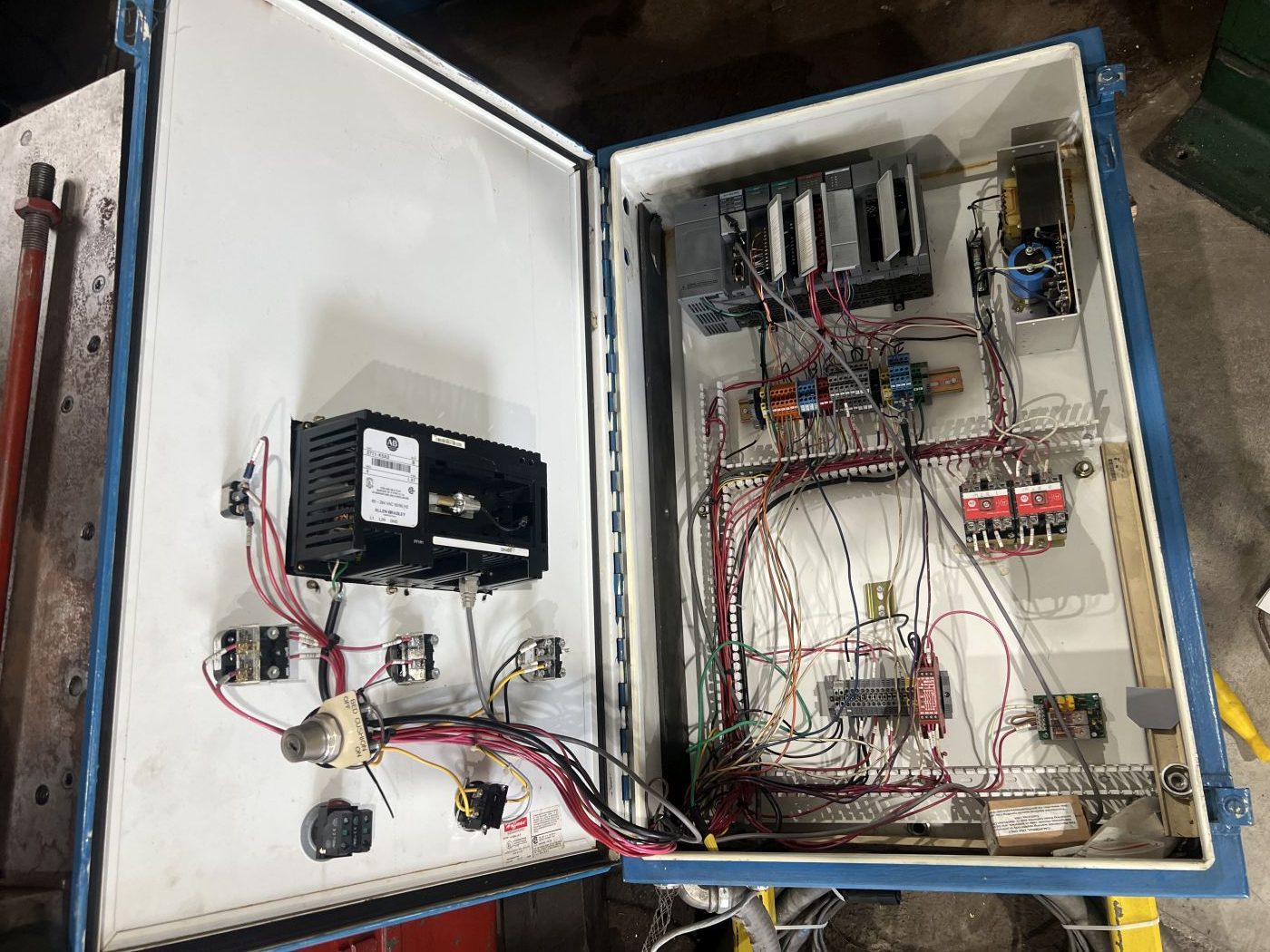

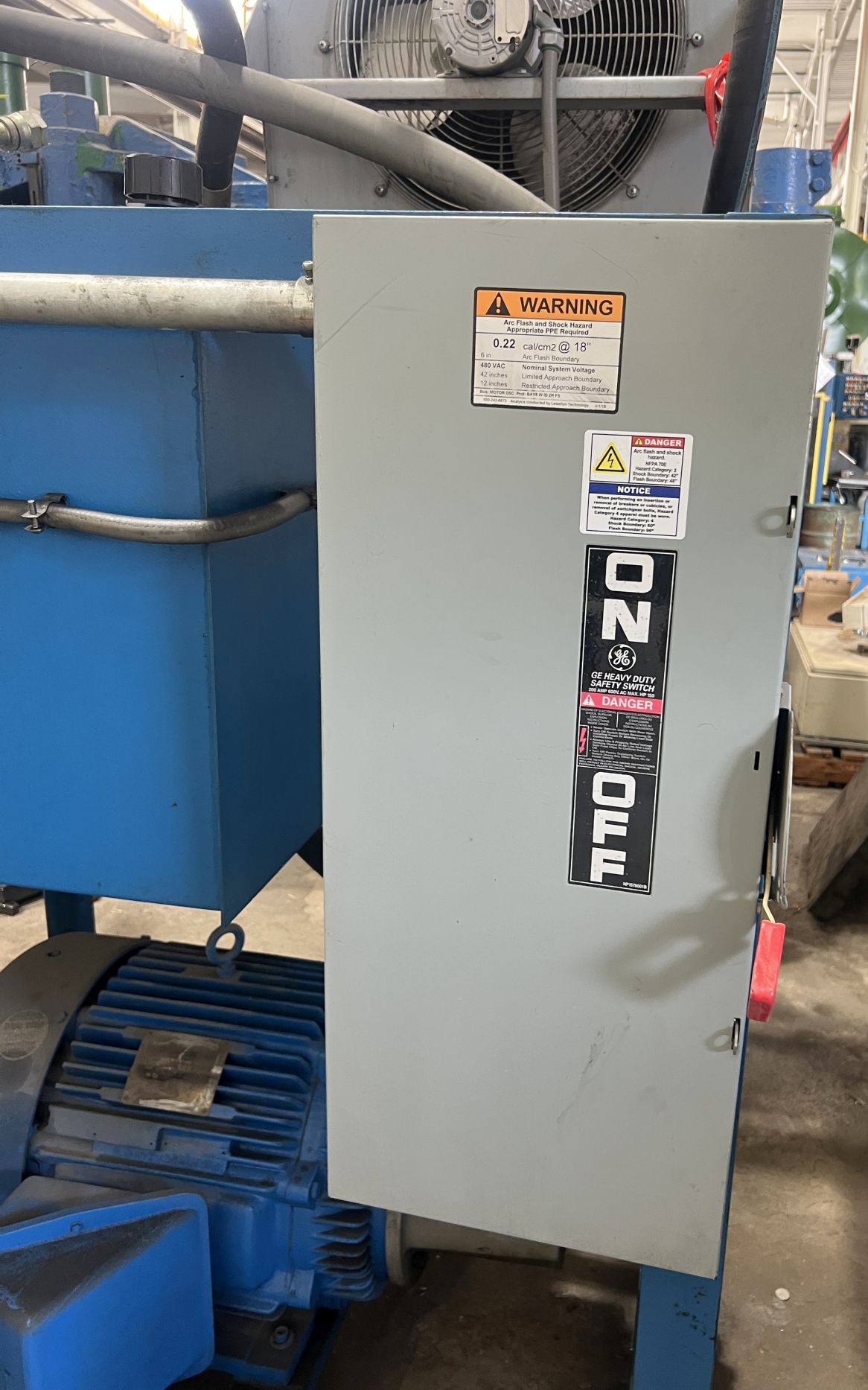

| MAX. CAPACITY | 300 TONS @ 2950 PSI / 48 TONS STRIPPING | MAX. STROKE | 12" | max. daylight to bed | 41" | bed & ram areas | 40" X 40" (RL X FB) | DISTANCE BETWEEN POSTS | 41" X 40" (RL X FB) | USABLE BED AREA | 41" X 40" (RL X FB) | BOLSTER PLATES | __ | RAM SPEEDS | 294 DOWN / 49 PRESSING / 343 RETURN - INCHES PER MINUTE | FLOOR TO BED HEIGHT | 41" | CYLINDER SIZE | (4) 8" DIA. AND (2) 5" DIA. | RAM ROD SIZE | __ | POST / 4-COLUMN SIZE | 5" DIA. | PRESS CONTROLS | ALLEN-BRADLEY SLC-5/03 PLC CONTROLLER | HYDRAULIC SYSTEM | parker hannifin #pfvh35v piston pump / 200 gallon tank | ELECTRIC MOTOR | 75 HP 460V-3-60 MOTOR | APPROX. DIMENSIONS | 72" X 60" (RL X FB) X 144" HIGH | APPROX. DIMENSIONS OF HYDRAULIC UNIT | 60" X 48" (RL X FB) X 96" HIGH | APPROX. WEIGHT | 20,000 LBS. | Equipped With | 75 TON CUSHION IN BASE WITH 8" DIA. CYLINDER AND 8" STROKE (3,000 PSI), FLOOR STANDING DESIGN | Note | VIDEO SHOWN BEFORE RECONDITIONING PROCESS |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
