Machine Specifications
Straight Side Press for Sale
Manufacturer: Niagara

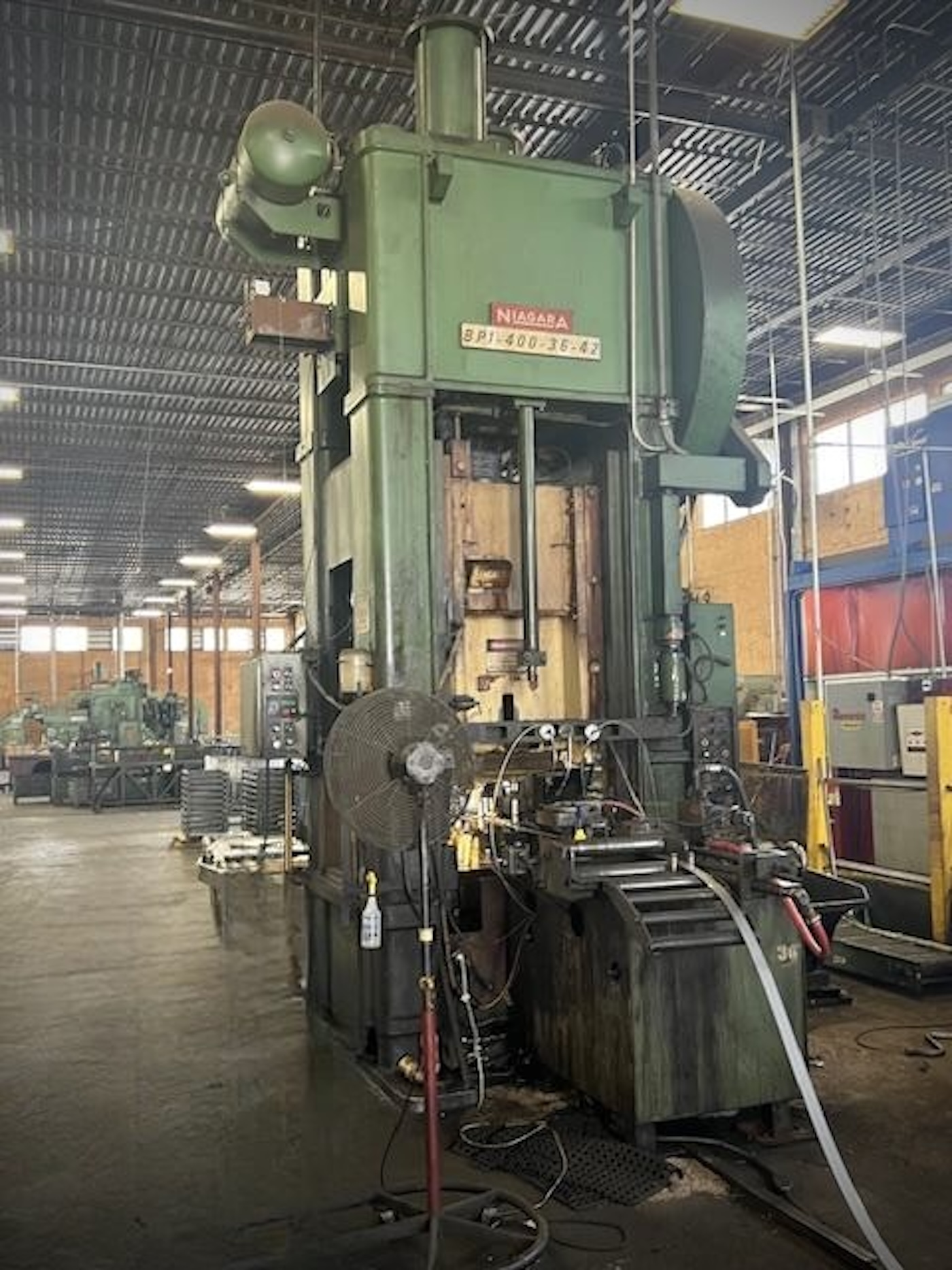

Model: Niagara BP1-400-36-42 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1981
Machine #: 8032
Buy Now: $165,000
| capacity | 400 ton | stroke | 6″ | max shut height to bed | 23″ sdau | bed area | 36″ x 42″ (RL X fb) | speed | 40 spm | slide adjustment | 10″ motorized | slide area | 36″ x 36″ (RL X FB) | bolster plate | approx 6″ h x 36″ rl x 42″ fb | distance between uprights | 37.5″ | distance floor to bed | 32″ | window size | 35″ w x 22″ h | clutch | niagara air clutch & brake | electrics | APPROX 30 HP 1150 RPM 480V-3-60 MOTOR & NIAGARA RELAY PRESS CONTROL | approx dimensions | 218″ h x 135″ rl x 111″ fb | approx weight | 76,000 lbs | Equipped With | TIE ROD FRAME, FLOOR STANDING, DUAL AIR COUNTERBALANCES, 6 POINT GIBS, SINGLE BACK GEARED | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
