300 Ton Niagara Press • Used Niagara SC2-300-120-64 Press

300

300
Ton
120″
Bed R-L
16″
Stroke
Speed: 12-30 SPM
New in 1

1

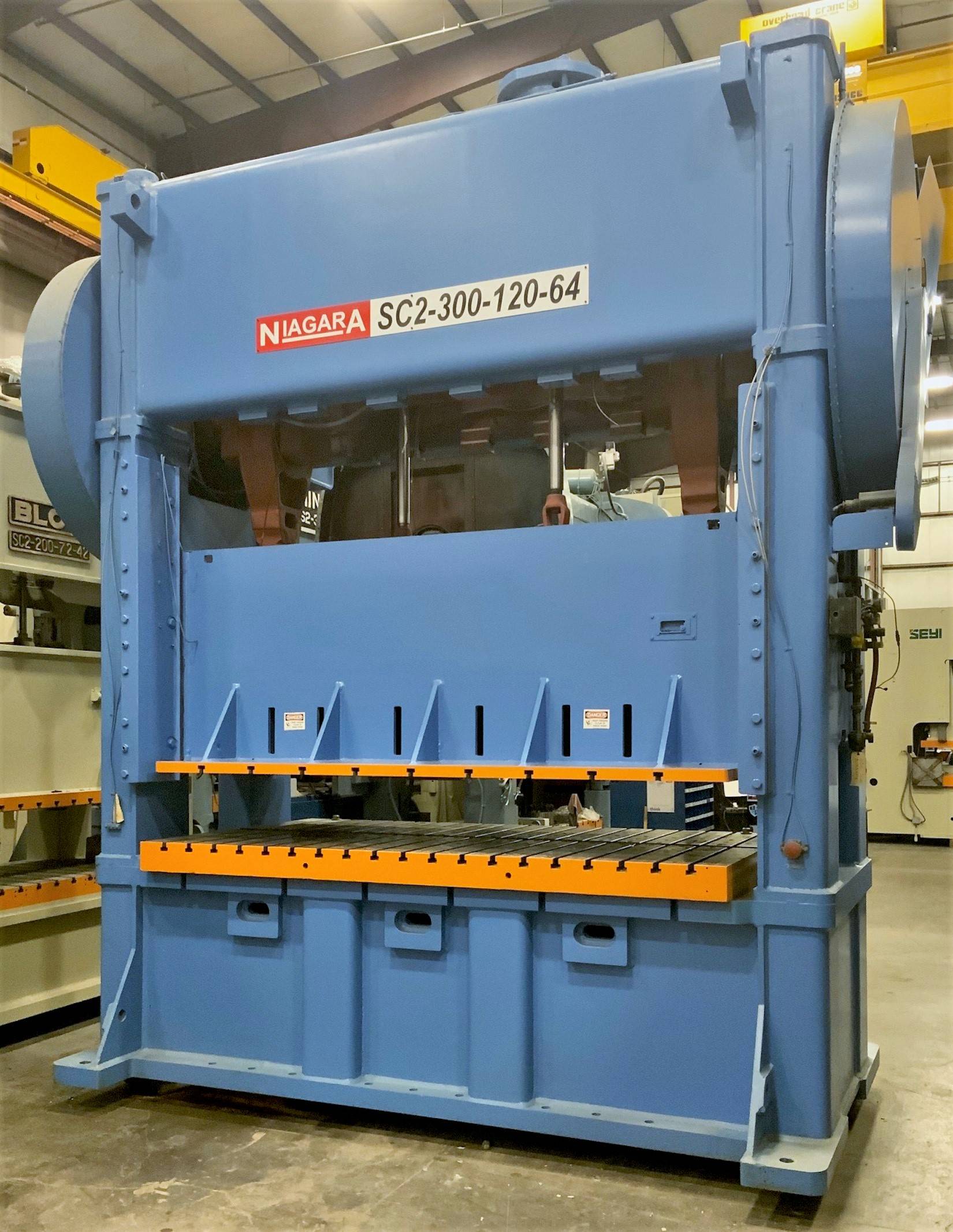

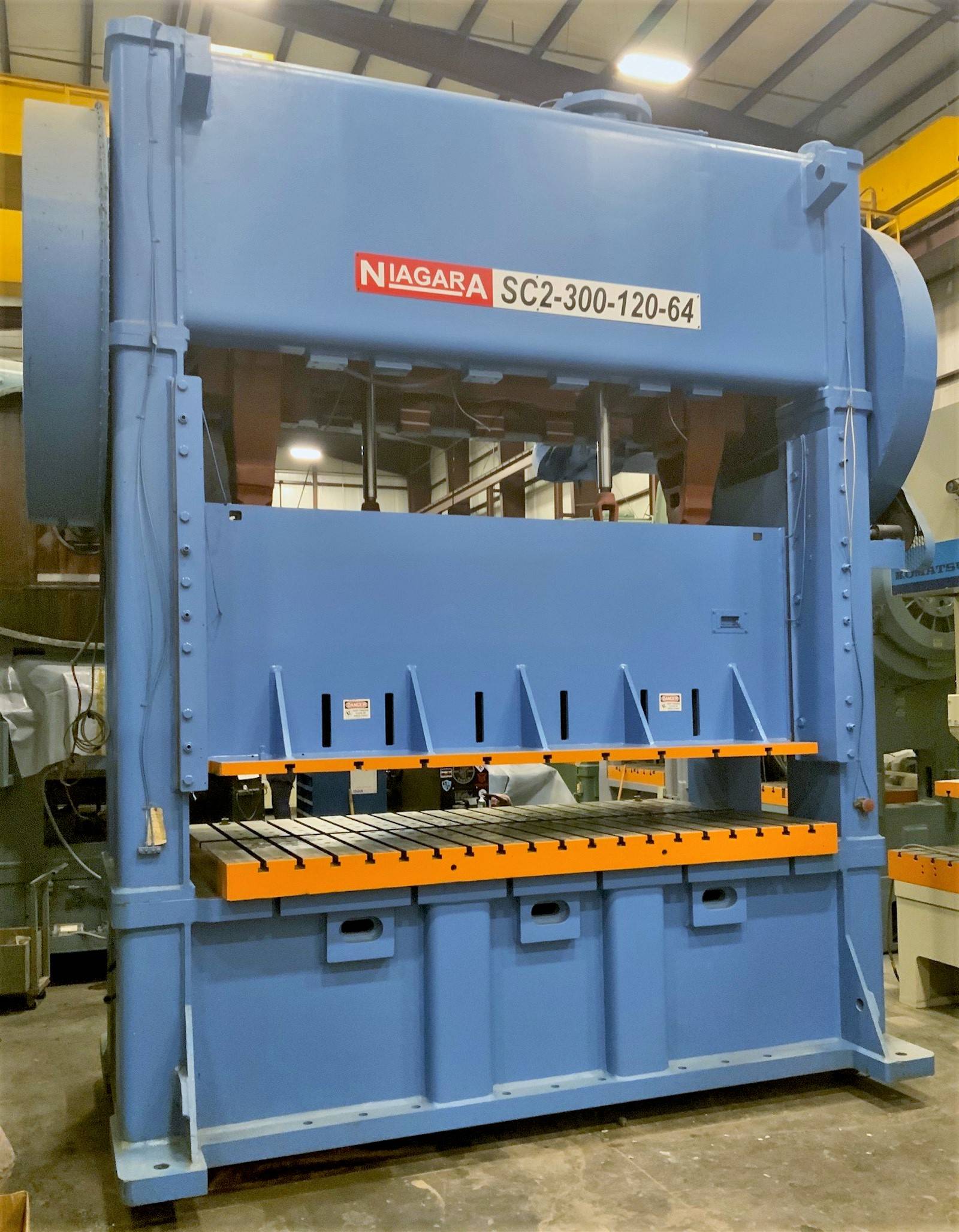

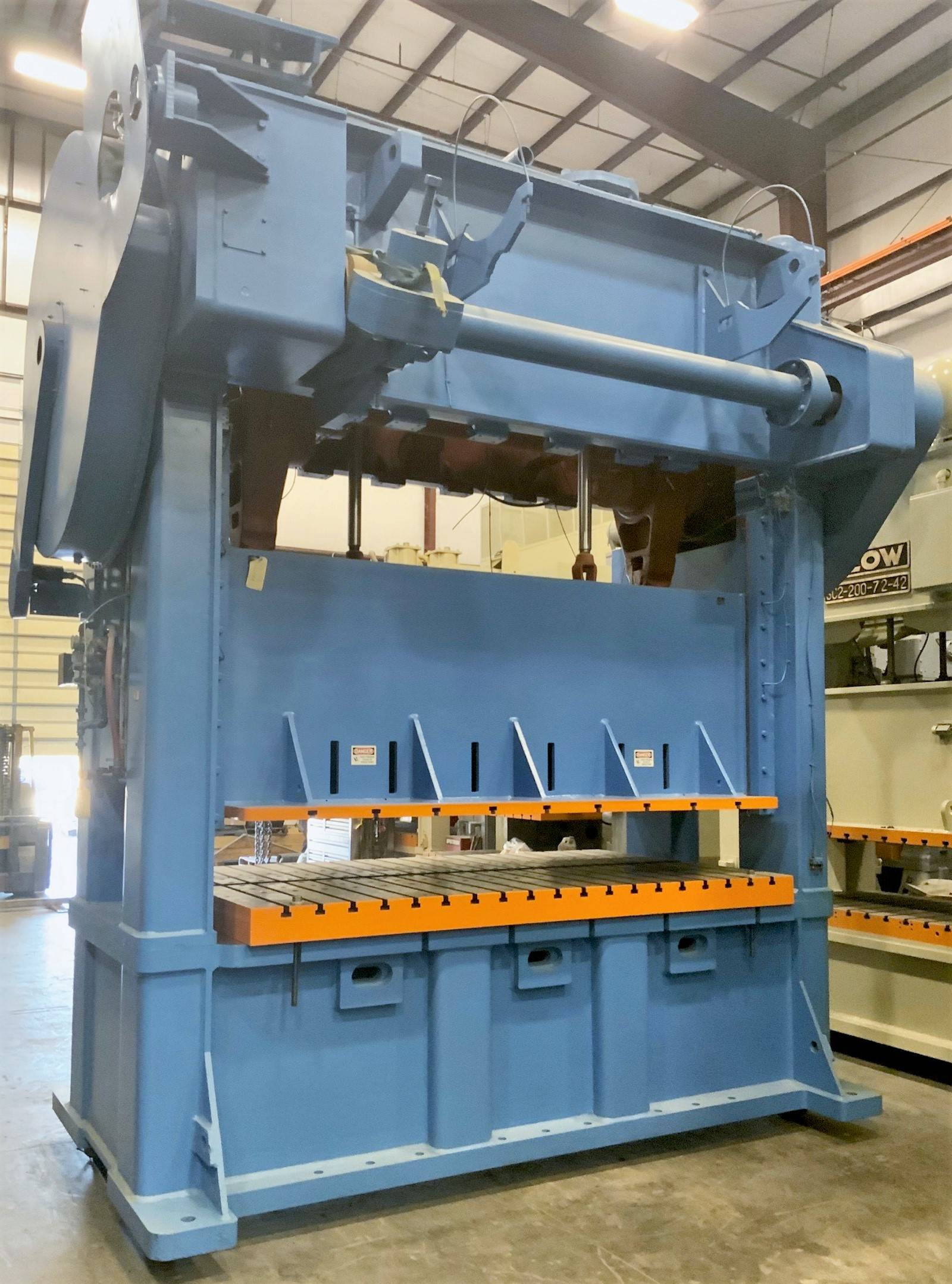

300 Ton Used Press – Straight Side Press
Model: Niagara SC2-300-120-64
16″ STR, 30″ SH, 120X64 BED, 12-30 SPM, 12″ ADJ, OMNILINK 806 CONTROL, RECONDITIONING NOW

Straight Side Double Crank Press for Sale
Used Niagara Stamping Press (Mechanical)
Machine #6136
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Straight Side Press for Sale

Manufacturer: Niagara
Model: Niagara SC2-300-120-64 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1968
Machine #: 6136
Buy Now: $





CAPACITY 300 TONS
STROKE 16″
MAX SHUT HEIGHT TO BED 30″ SDAU
BED AREA 120″ RL X 64″ FB
SPEED 12 – 30 SPM
RAM ADJUSTMENT 12″ MOTORIZED
RAM AREA 120″ RL X 60″ FB (T-SLOTTED)
BOLSTER PLATE 6″ H X 120″ RL X 68″ FB (T-SLOTTED)
DIST UPRIGHTS / FLOOR TO BED 120″ / 43″
WINDOW SIZE 23.75″ RL X 19.5″ H
CLUTCH NIAGARA AIR CLUTCH & BRAKE
ELECTRICS 30 HP 1750 RPM 480V-3-60 EDDY CURRENT MOTOR & existing OMNILINK 806 PRESS CONTROL
APPROX DIMENSIONS 221″ H X 203″ RL X 105″ FB
APPROX WEIGHT 121,000 LBS
max upper die weight 2,212 lbs
Equipped With DUAL AIR COUNTERBALANCES AUTOMATIC LUBRICATION SYSTEM TIE ROD, STEEL FRAME, KEYED CONSTRUCTION FLOOR STANDING BASE WITH 8″ FOOTPADS. SINGLE BACK GEARED DESIGN W/GEARS IN OIL rebuilt slide
Note __
Location This used press is located in our Columbia, TN Warehouse
