Description

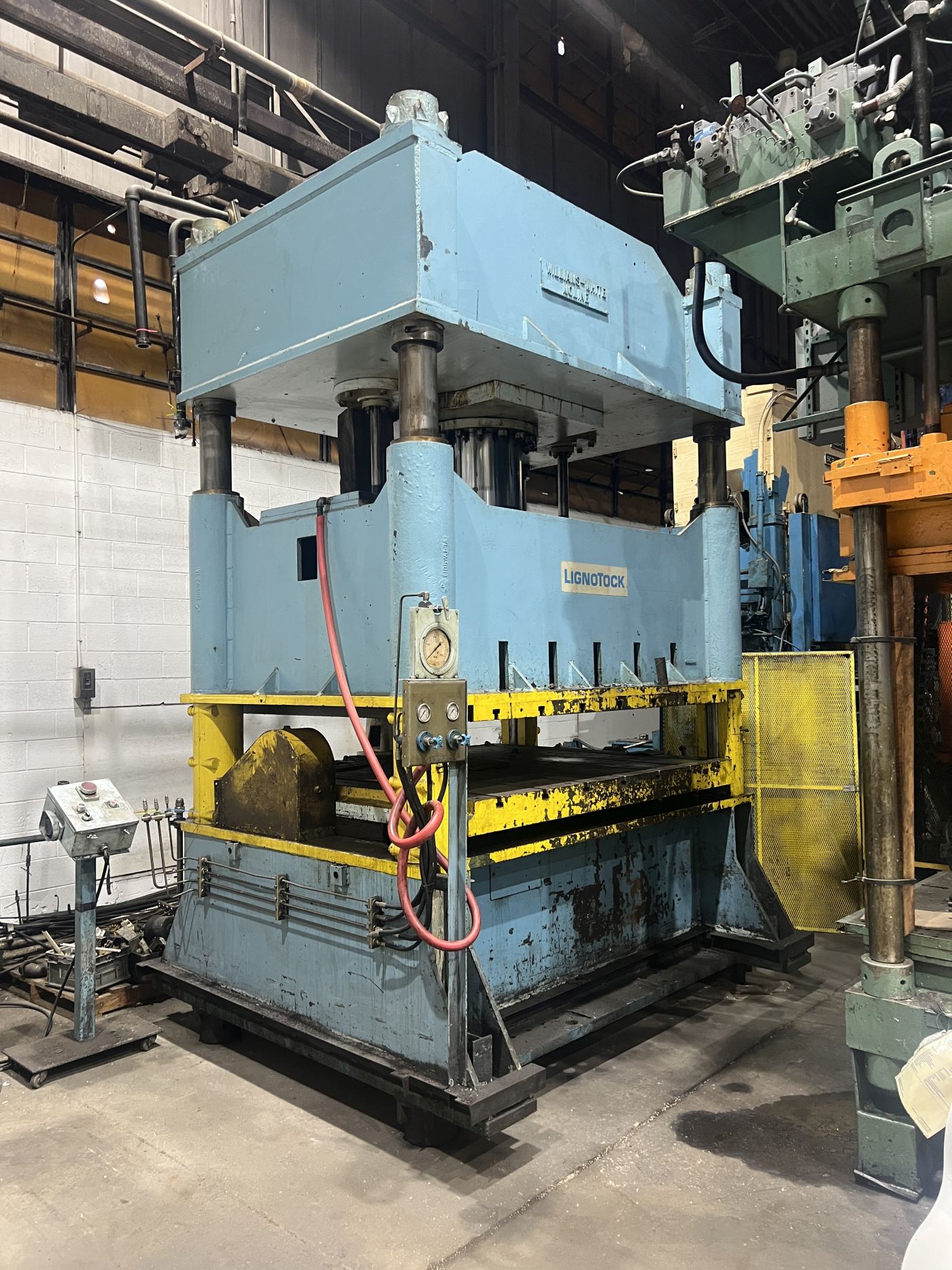

4-Post Used Hydraulic Press • Used 400 Ton Press for Sale
Model: Williams White & Company Custom Press
Condition: Very Good
Location: Jackson, MI Falahee Building
Year:
Machine #: 4697
Buy Now: $
| capacity | 400 ton @ 2600 psi (POTENTIALLY ONLY 365 TON, CONFLICTING SPECS) | Max. stroke | approx. 15" | daylight to bed | 25" TO 40" | overall bed & ram area | 106" x 72" (RL X FB) (44" floor to bed) | distance between posts | 89" x 54" (RL X FB) | usable bed area | 106" X 54" (RL X Fb) OR 89" x 72" (RL X FB) | BED BOLSTER PLATE | 84" X 72" (RL X FB) X 5.5" THICK T-SLOTTED | RAM BOLSTER PLATE | 84" X 72" (RL X FB) 3" THICK T-SLOTTED PLATE | USABLE BED AREA | 89" X 72" (RL X FB) OR 106" X 54" (RL X FB) | RAM ROD SIZE | __ | main cylinder size | 19" dia BORE.- (equipped with 2 pull back cylinders) | post size | 5.5" dia. posts | ram speeds | -- | PRESS CONTROLS | ALLEN-BRADLEY RELAY LOGIC CONTROLLER | ELECTRIC MOTOR | 25 hp 230/460-3-60 LINCOLN motor | 1760 rpm | HYDRAULICS | vickers vane pump no. 3520v30a5 | overall dimensions | 120" X 72" (RL X FB) X 192" HIGH | approx. weight | 75,000 pounds - frame only | Equipped With | (2) - hydraulic cushions in bed - approx. 60 ton capacity, 12" str, 15-1/2" rl x 45" fb pressure pads floor standing base | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Falahee Building |
