Description
Straight Side Press • Used 440 Ton Press for Sale
- Machine #
- 5749
- Condition
- Very Good
- Location
- Columbia, TN Warehouse
- Year
- 1985

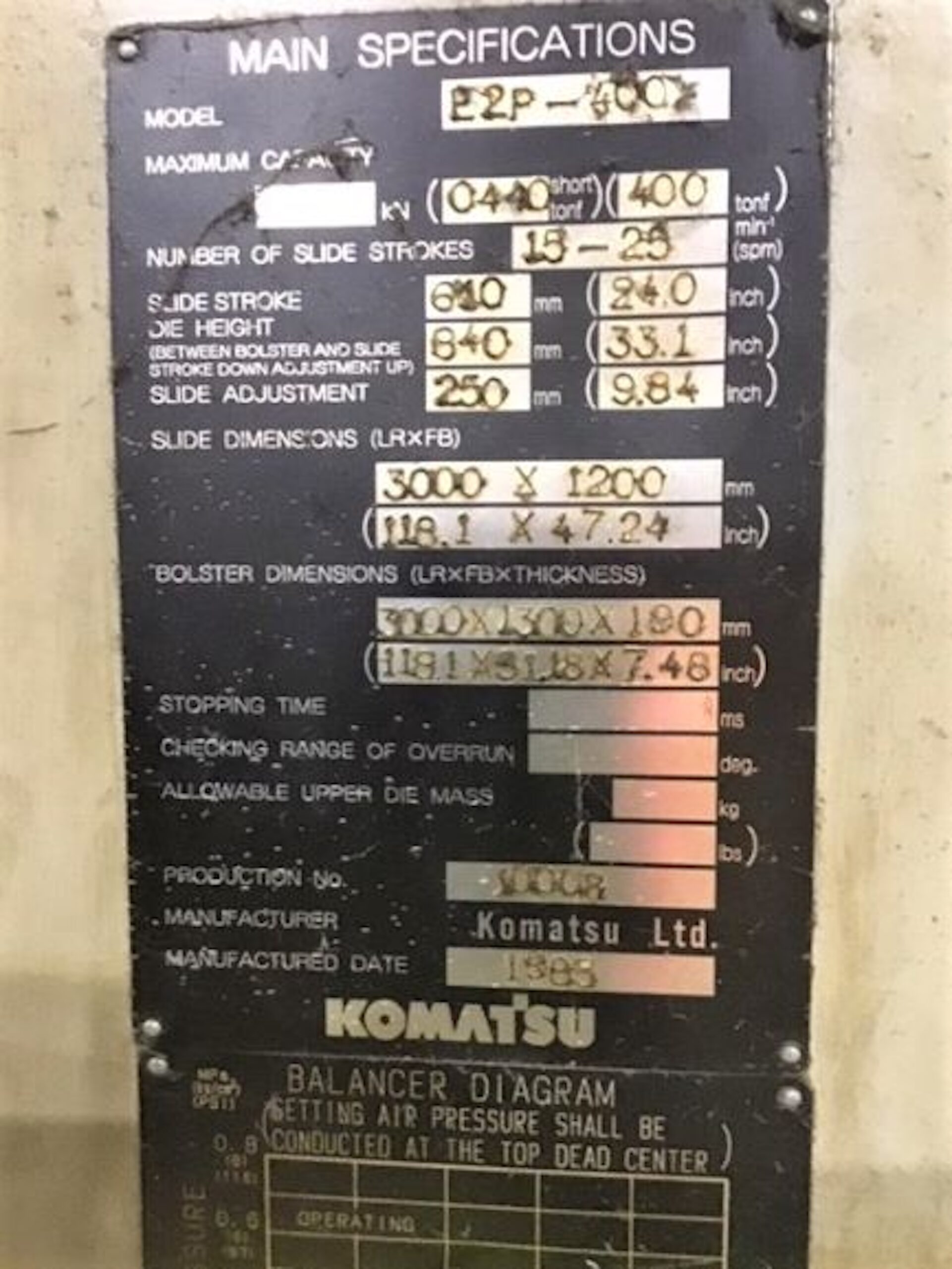

- Model
- Komatsu E2P-400
Buy Now: $
| CAPACITY | 440 TON |
|---|---|
| STROKE | 24" |
| MAX SHUT HEIGHT | 33" SDAU OVER BOLSTER |
| BED AREA | 118" X 51" (RL X FB) |
| SPEED | 15 - 25 SPM |
| RAM ADJUSTMENT | 9.84" MOTORIZED |
| RAM AREA | 118" RL X 47" FB |

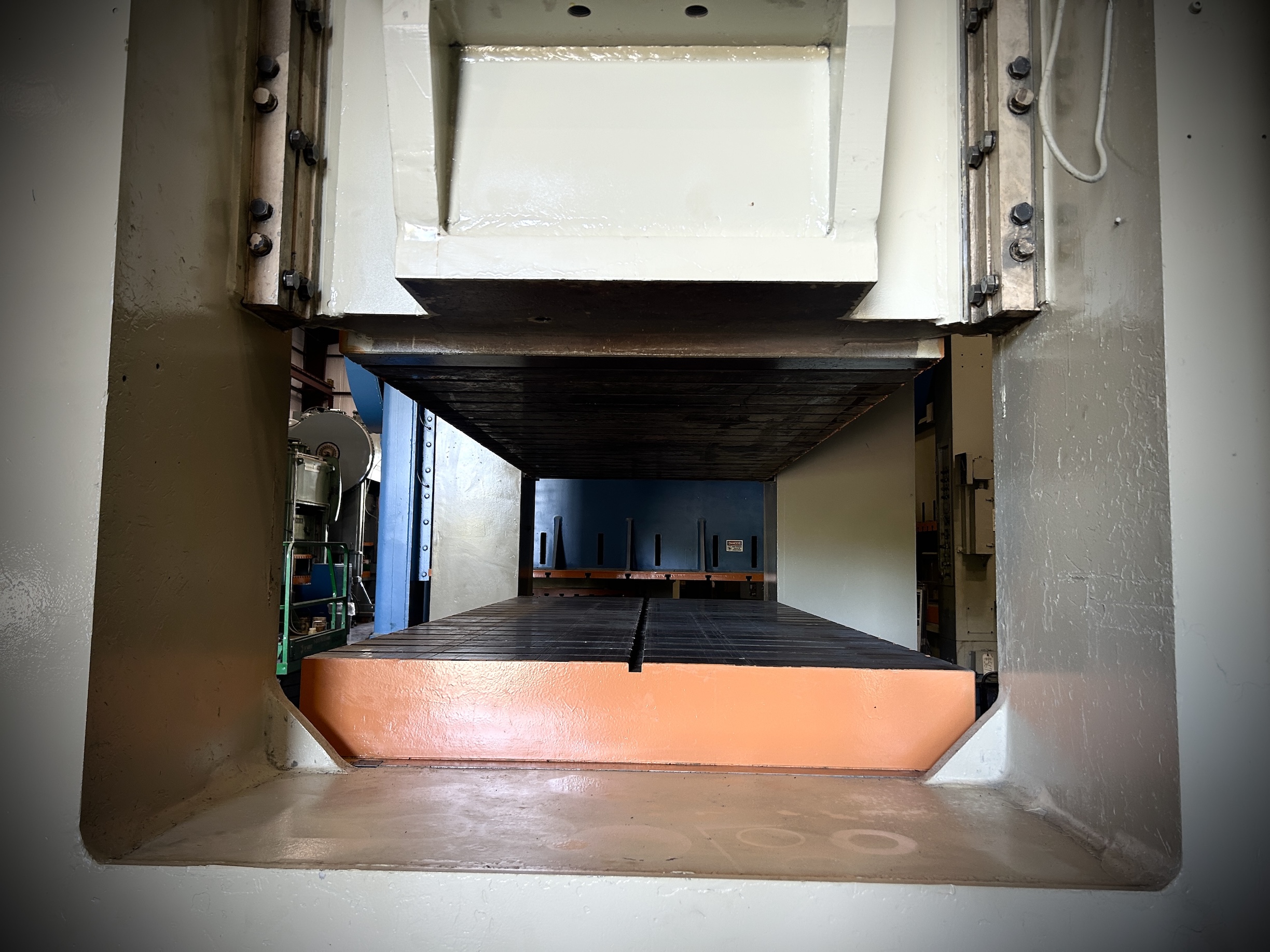

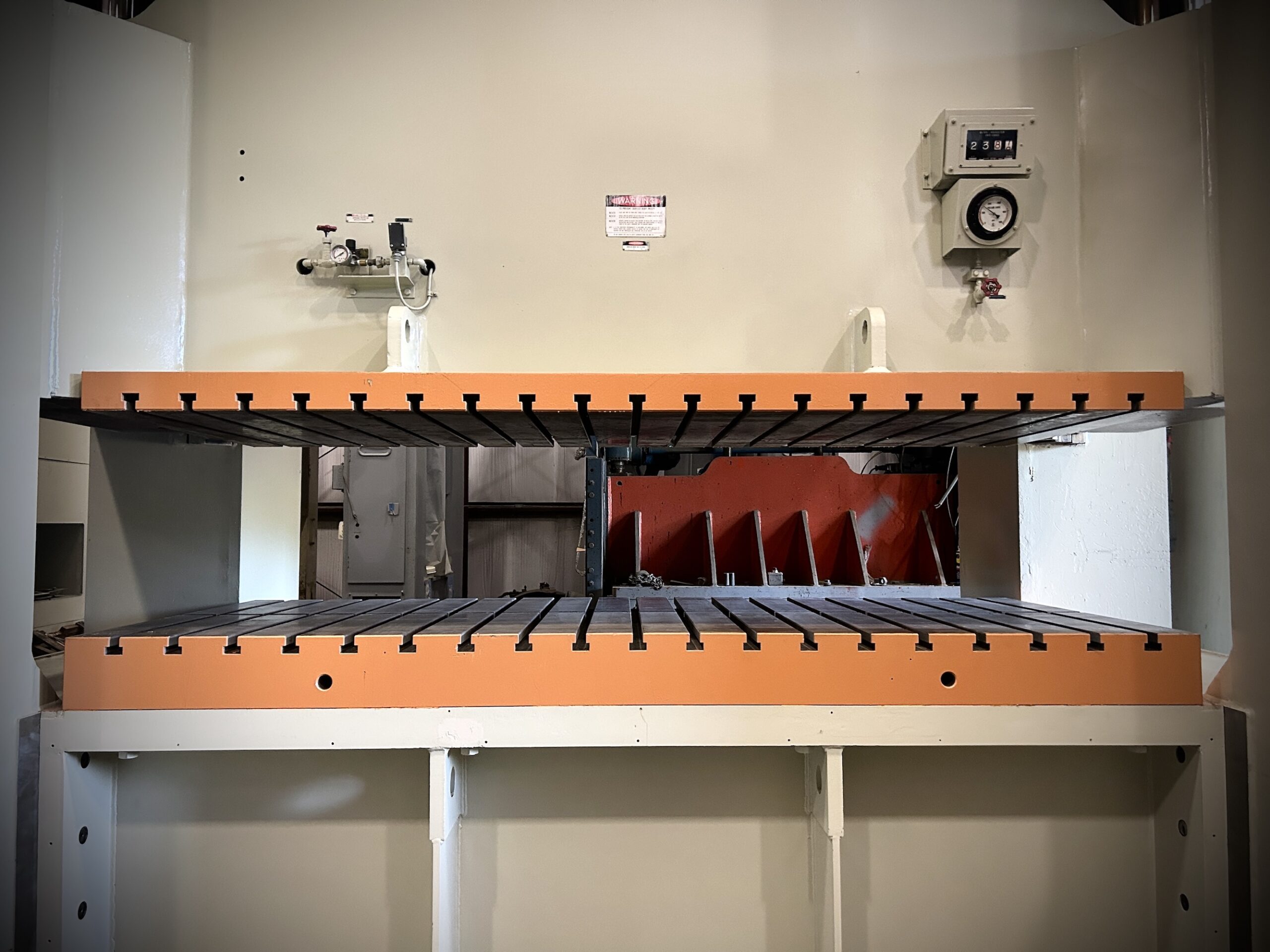

| BOLSTER PLATE | 7.5" H X 118" RL X 51" FB |
| DIST UPRIGHTS / FLOOR TO BED | 123.5" / 66" |
| WINDOW SIZE | 52" wide |
| CLUTCH | KOMATSU AIR CLUTCH / BRAKE COMBINATION |

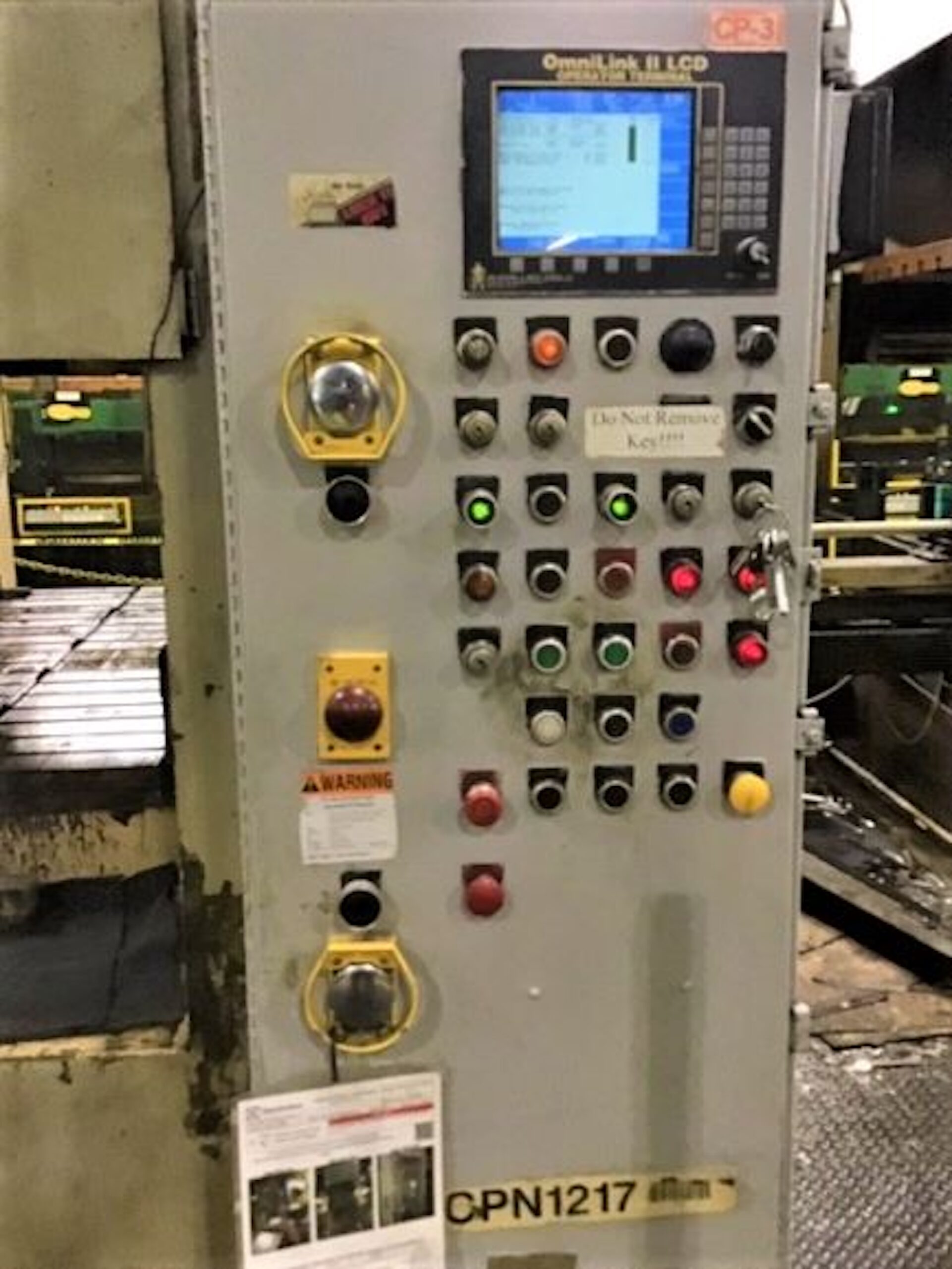

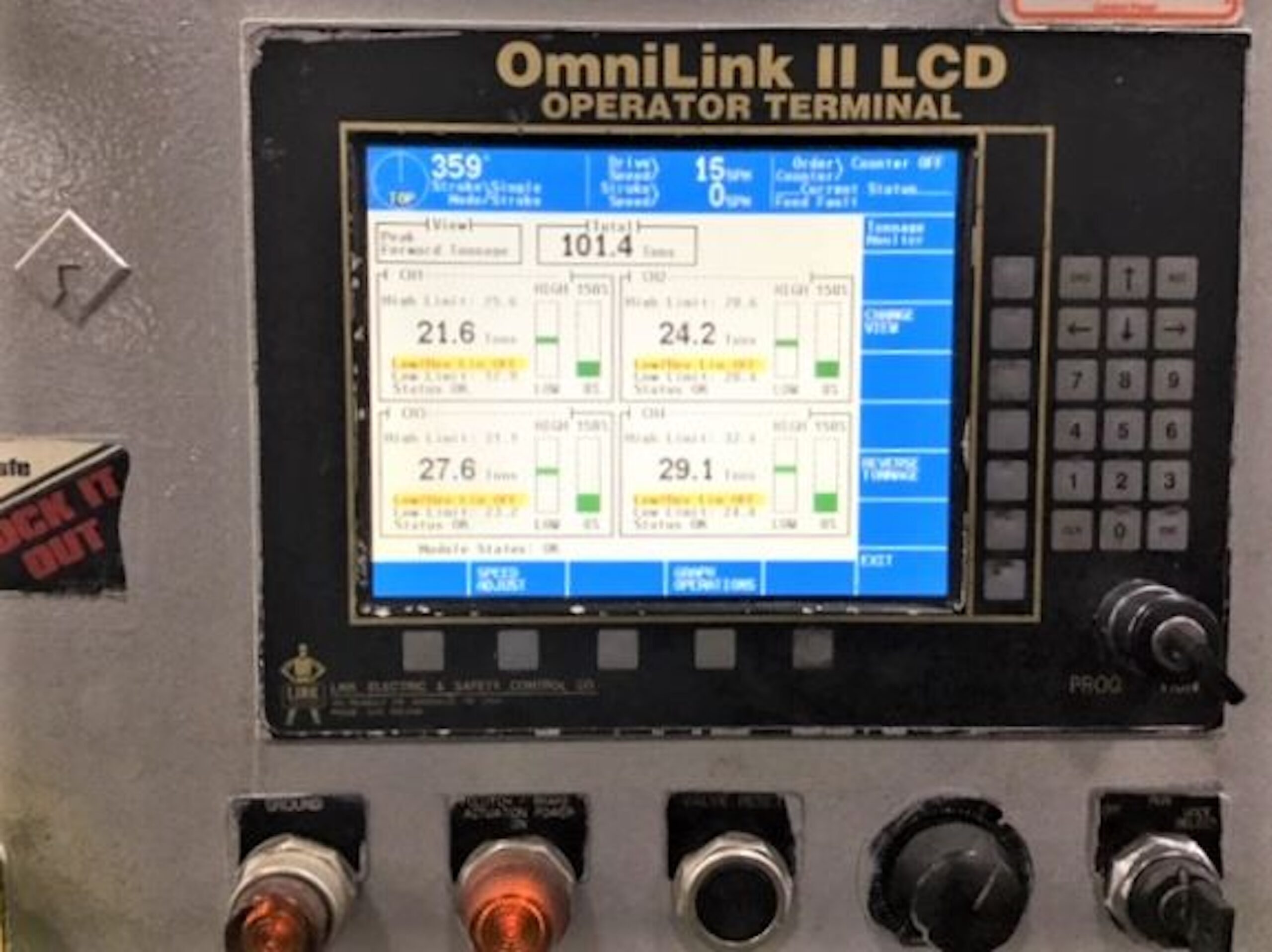

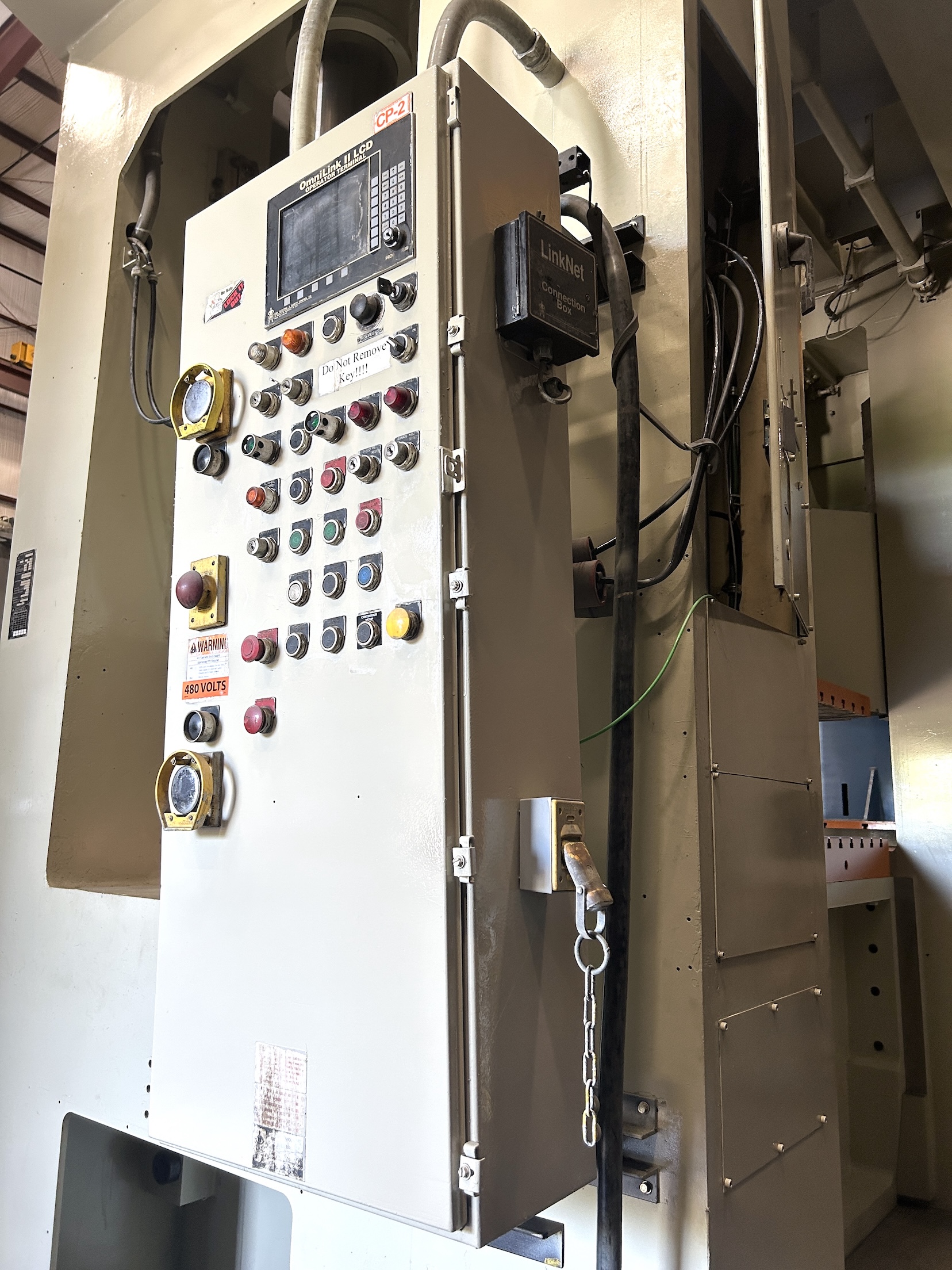

| ELECTRICS | 60 hp 1750 rpm 240/480v-3-60 eddy current drive & OMNILINK II PRESS CONTROL |
| APPROX DIMENSIONS | 232" H X 199" RL X 135" FB |
| APPROX WEIGHT | 175,000 lbs approx |
| Equipped With | AIR COUNTERBALANCE, TIE ROD frame CONSTRUCTION, ECCENTRIC SHAFT, HELICAL GEARS, CAST IRON FRAME, hydraulic overload system, lubrication system |

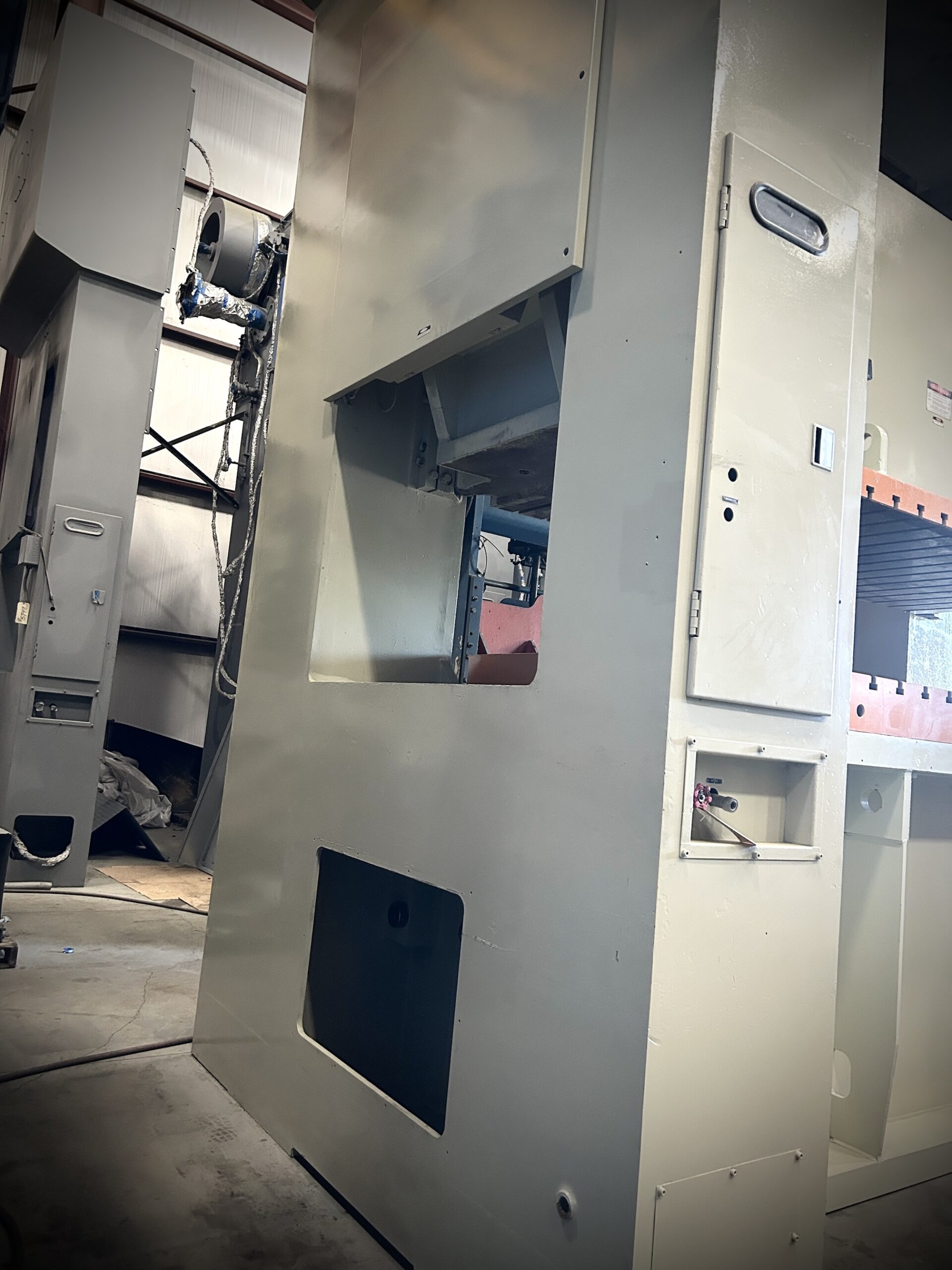

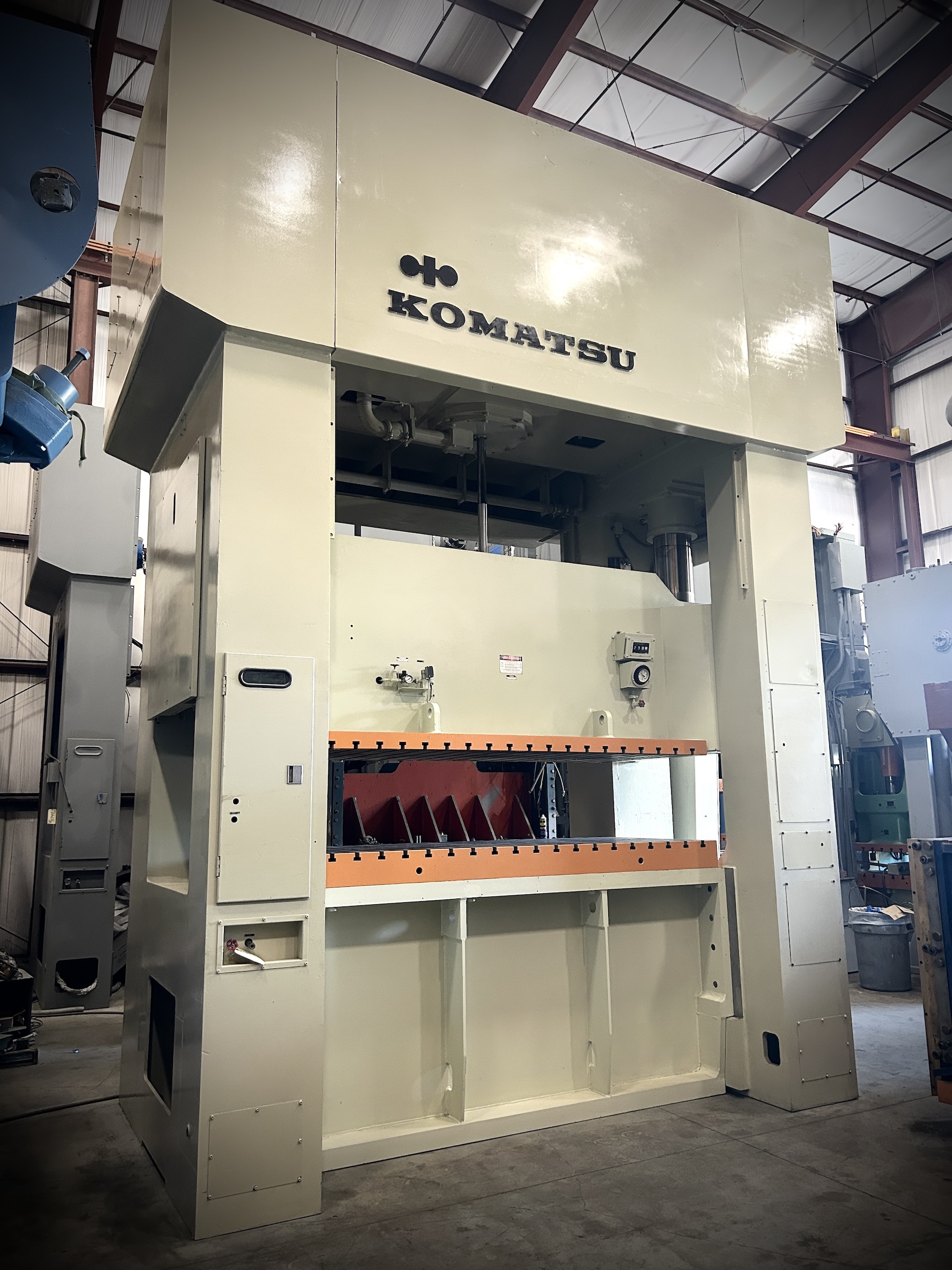

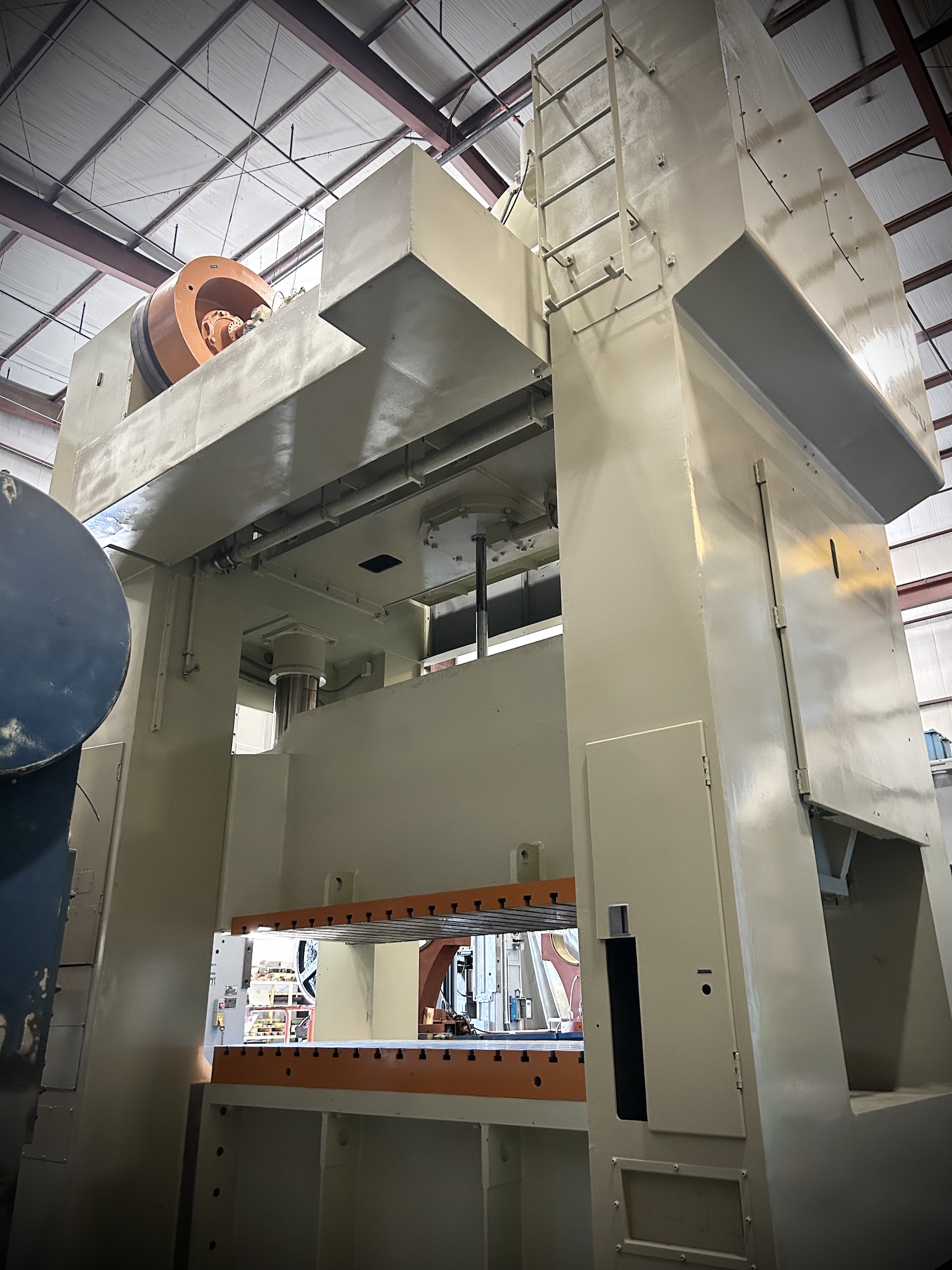

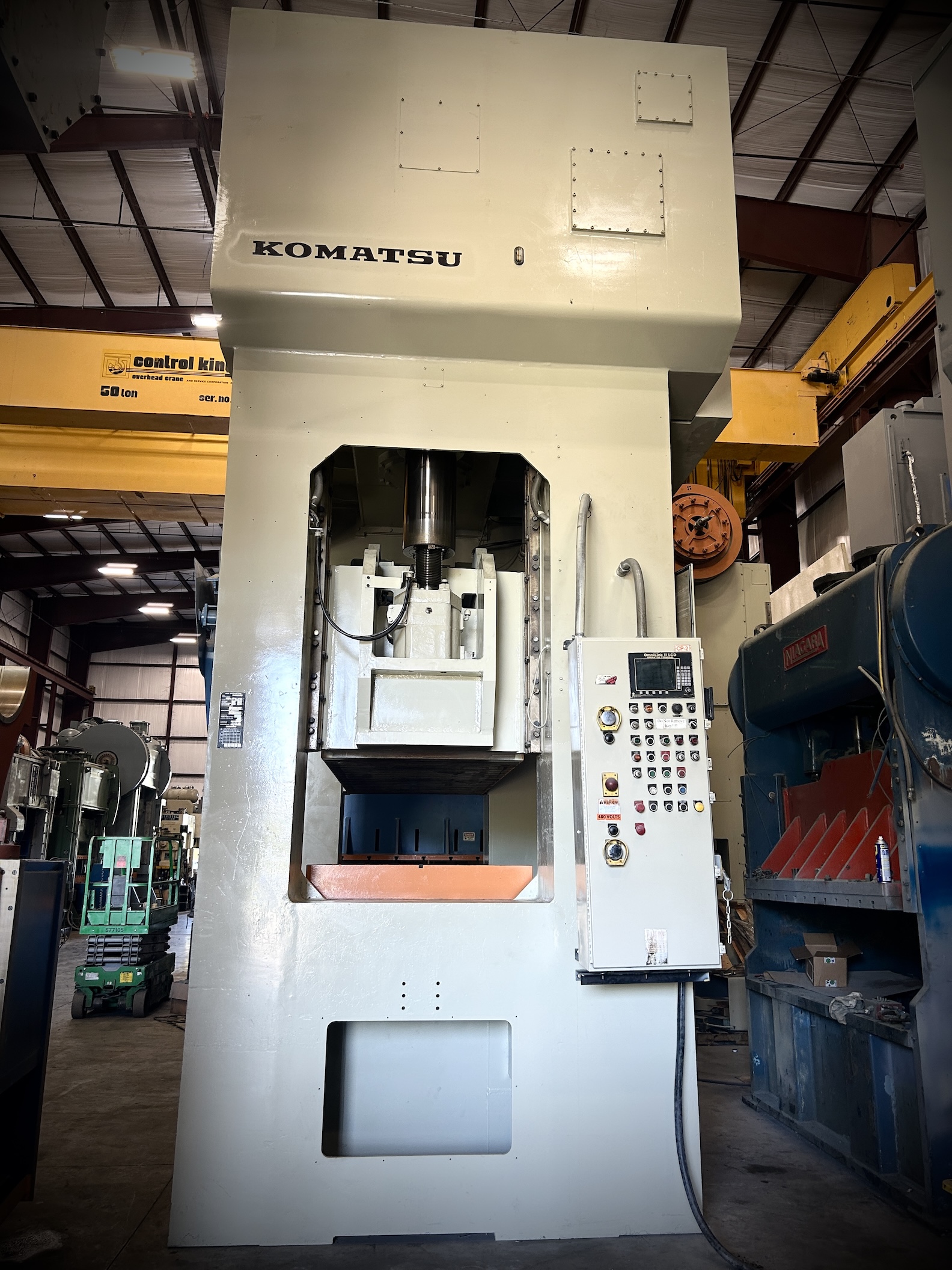

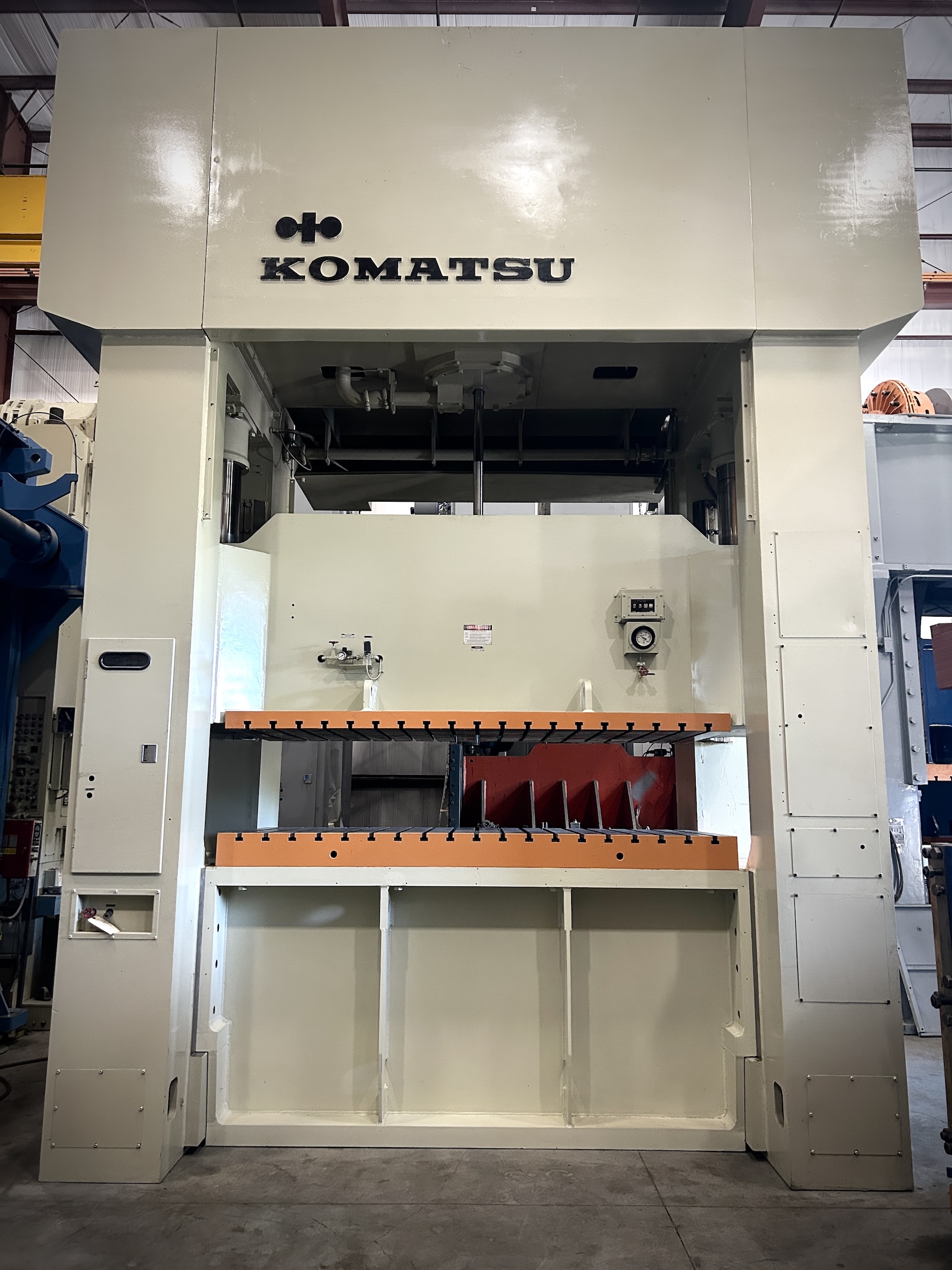

| Note | PHOTOS ARE OF SISTER PRESS #5747 |
| Location | This Used Press is Located in Our Columbia, TN Warehouse |
