Description

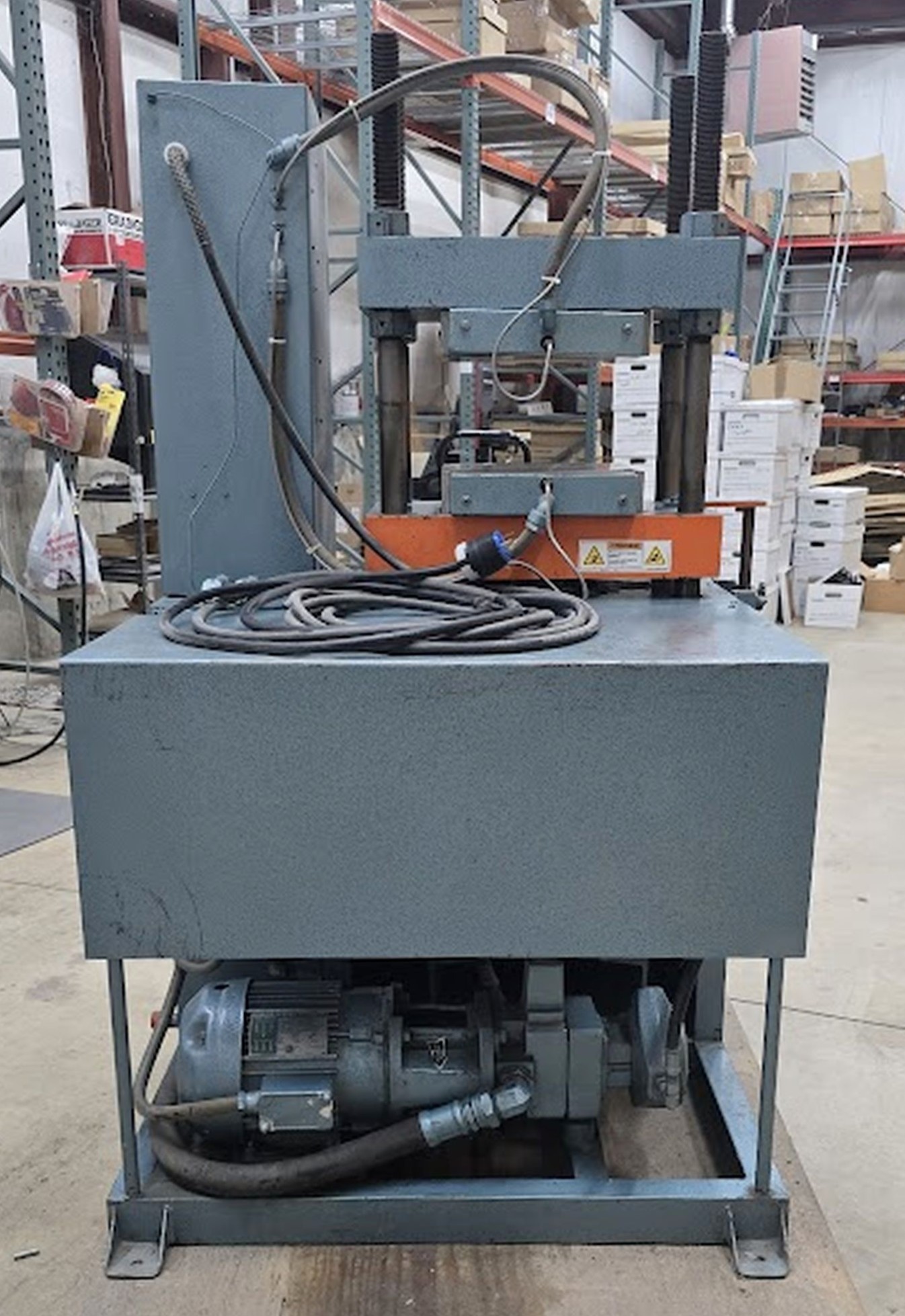

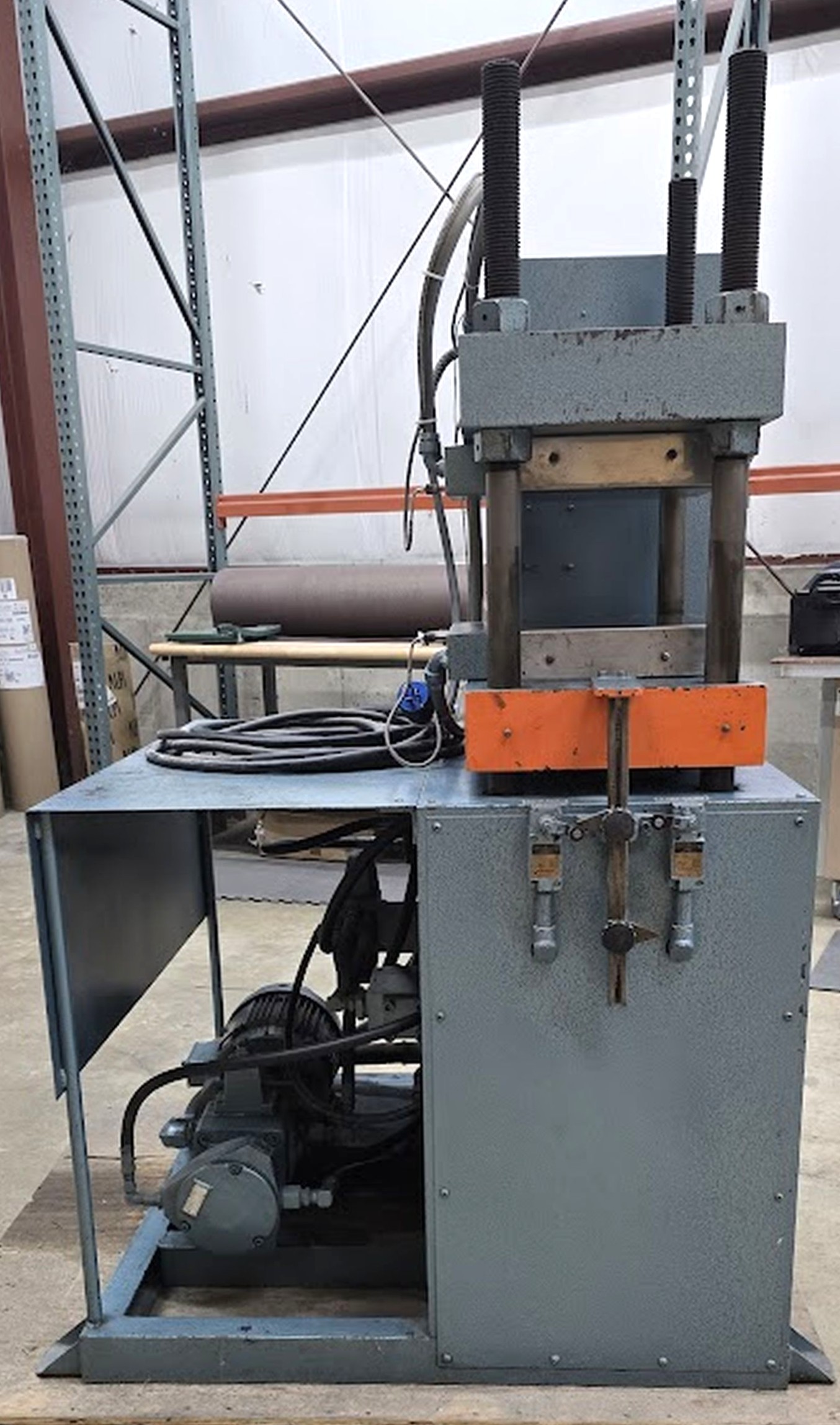

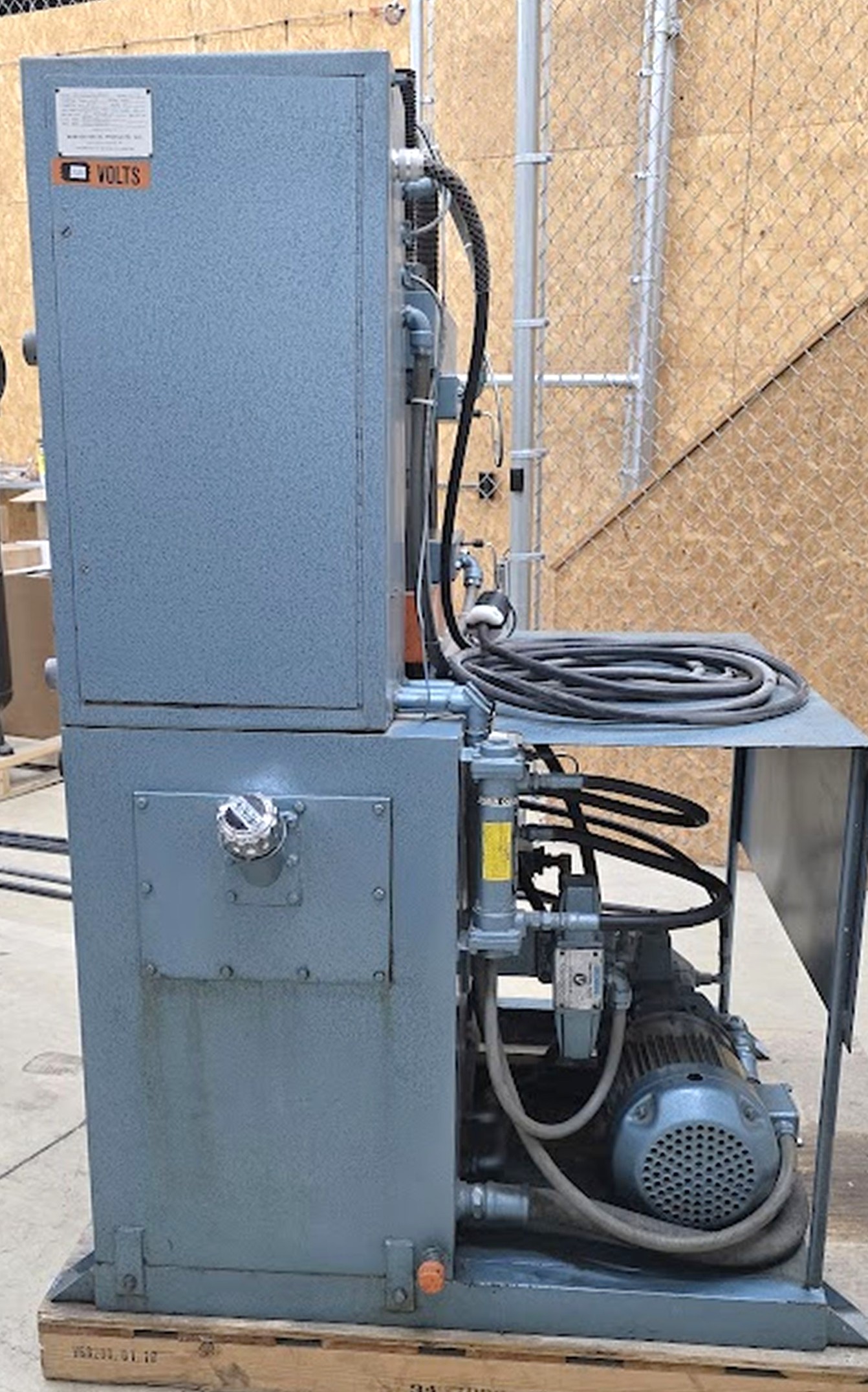

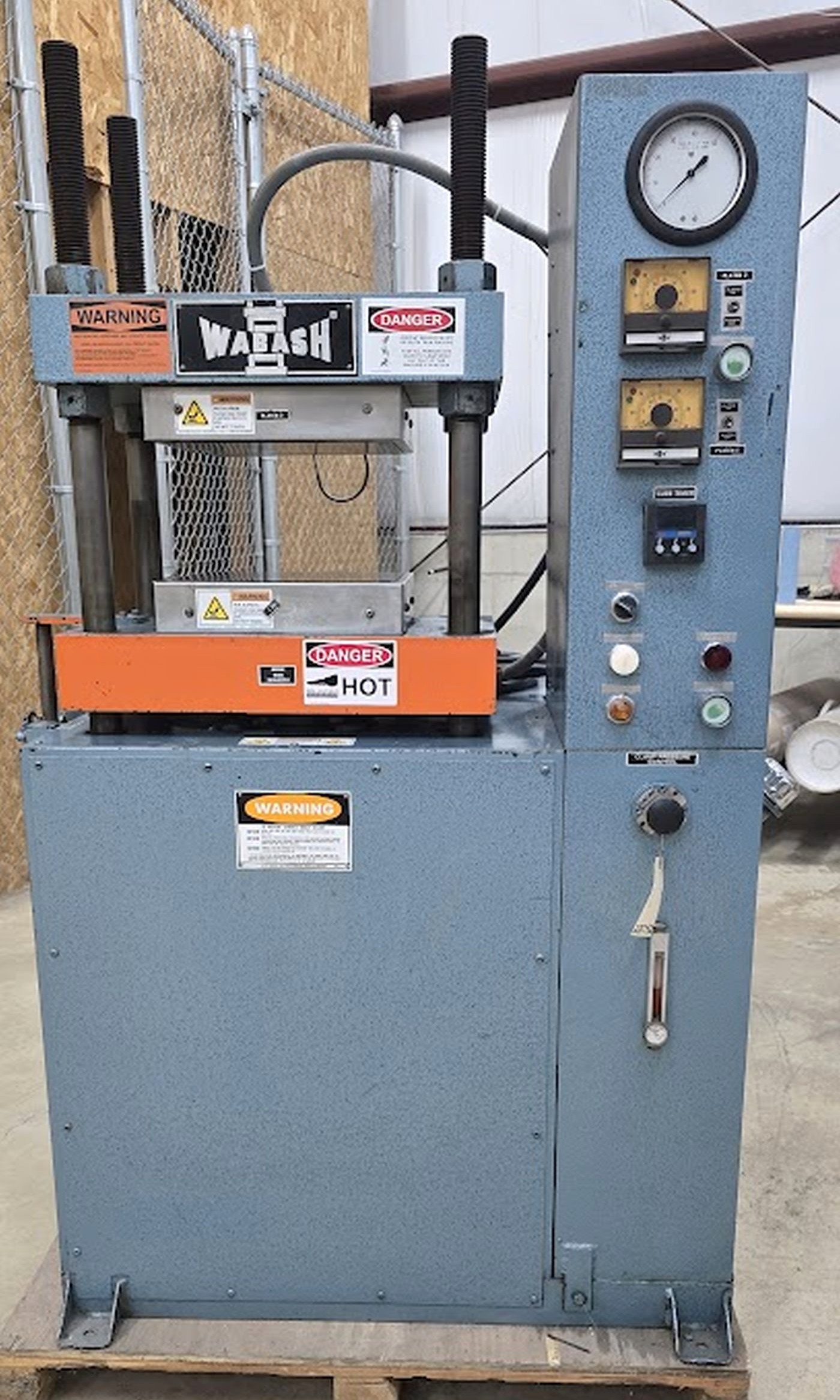

Heated Platen Hydraulic Press • Used 50 Ton Press for Sale

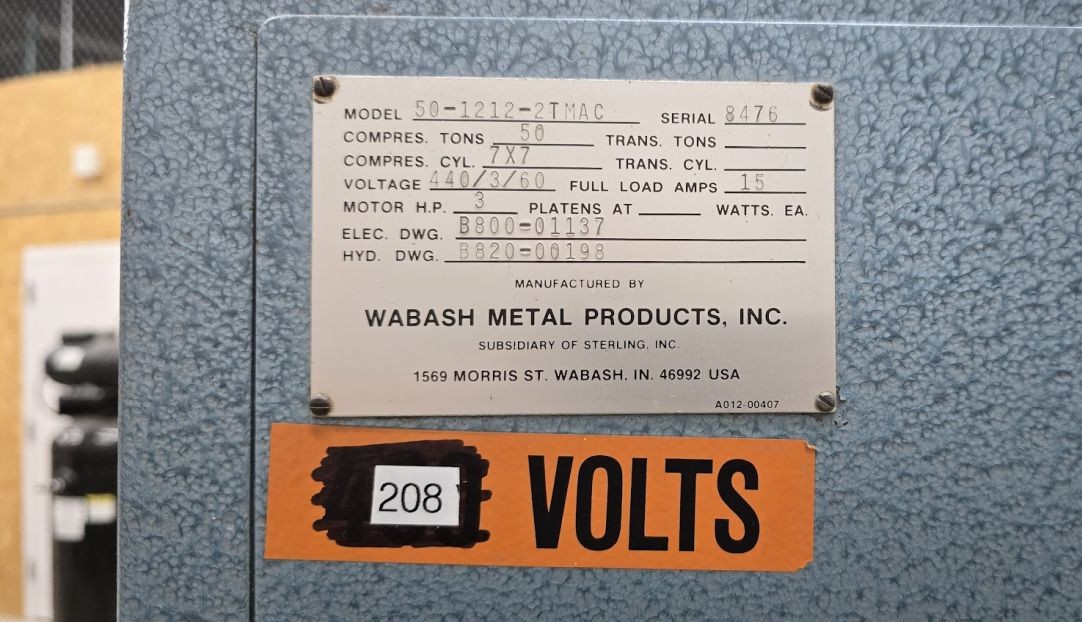

Model: Wabash 50-1212-2TMAC Press
Condition: Very Good
Location: Jackson, MI Cooper Building
Year: Year Unknown
Machine #: 8424
Buy Now: $

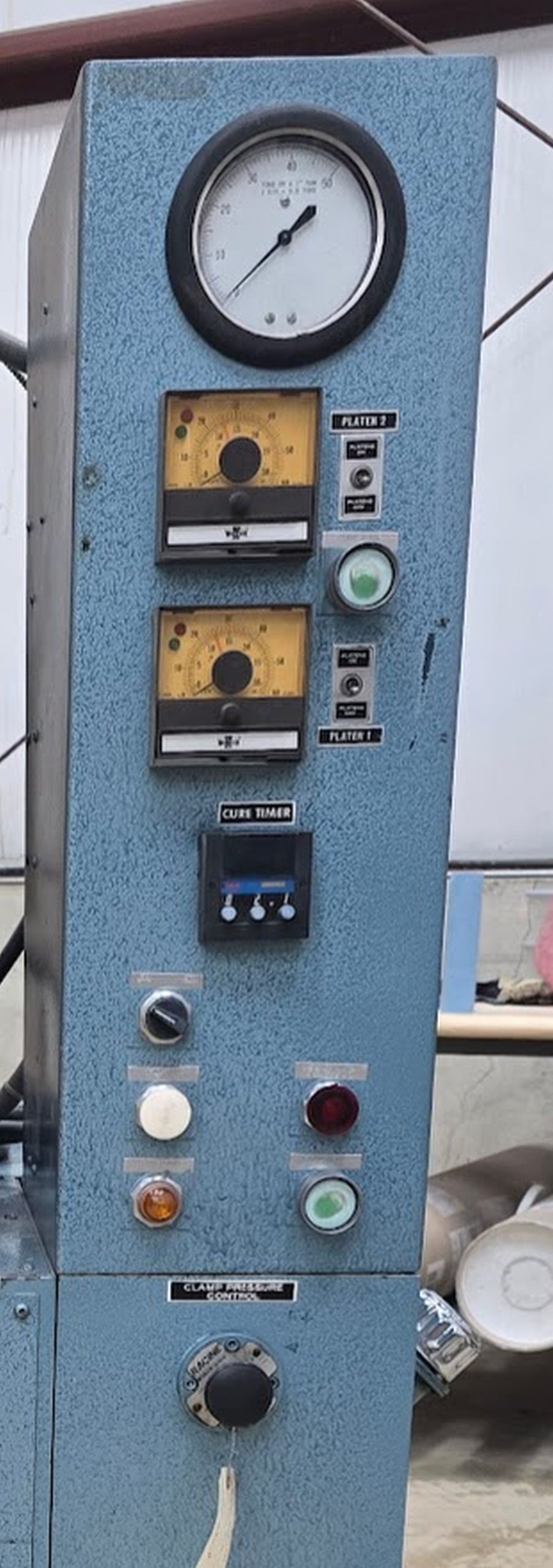

| MAX. CAPACITY | 50 TONS AT 2,650 PSI | MAX. STROKE | 7" | MAX. DAYLIGHT | 11.5" TO 21" TOTAL | OVERALL BED & RAM AREA | 23" X 15" (RL X FB) | DISTANCE BETWEEN POSTS | 17.5" X 9" (RL X FB) | USABLE BED & RAM AREA | 17" X 15" (RL X FB) | ELECTRICAL HEATED PLATENS | 12" X 12" (RL X FB) - APPROX. 600 DEG F TEMPERATURE | SPEEDS | APPROX. 60 CLOSING / 3 PRESSING / 70 RETURN - INCHES PER MINUTE | CYLINDER SIZE | 7" DIA. BORE | ROD SIZE | 3" DIA. | 4 COLUMN / POSTS SIZE | 1.75" DIA. | FLOOR TO BED HEIGHT | 39" | PRESS CONTROLS | GE Relay Logic Controls | HYDRAULIC SYSTEM / UNIT | __ | ELECTRIC MOTOR | Lincoln 3 HP 1750 RPM Motor | ELECTRICAL NOTE | PRESS WAS REWIRED FOR 208V - FULL LOAD AMPS APPROX 40 WHEN WIRED FOR 208V | APPROX. DIMENSIONS | 48" X 48" (RL X FB) X 67" HIGH | APPROX. WEIGHT | 2,600 LBS. | Equipped With | CURE TIMER PROGRAMMING | Note | __ |
|---|---|
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
