Description

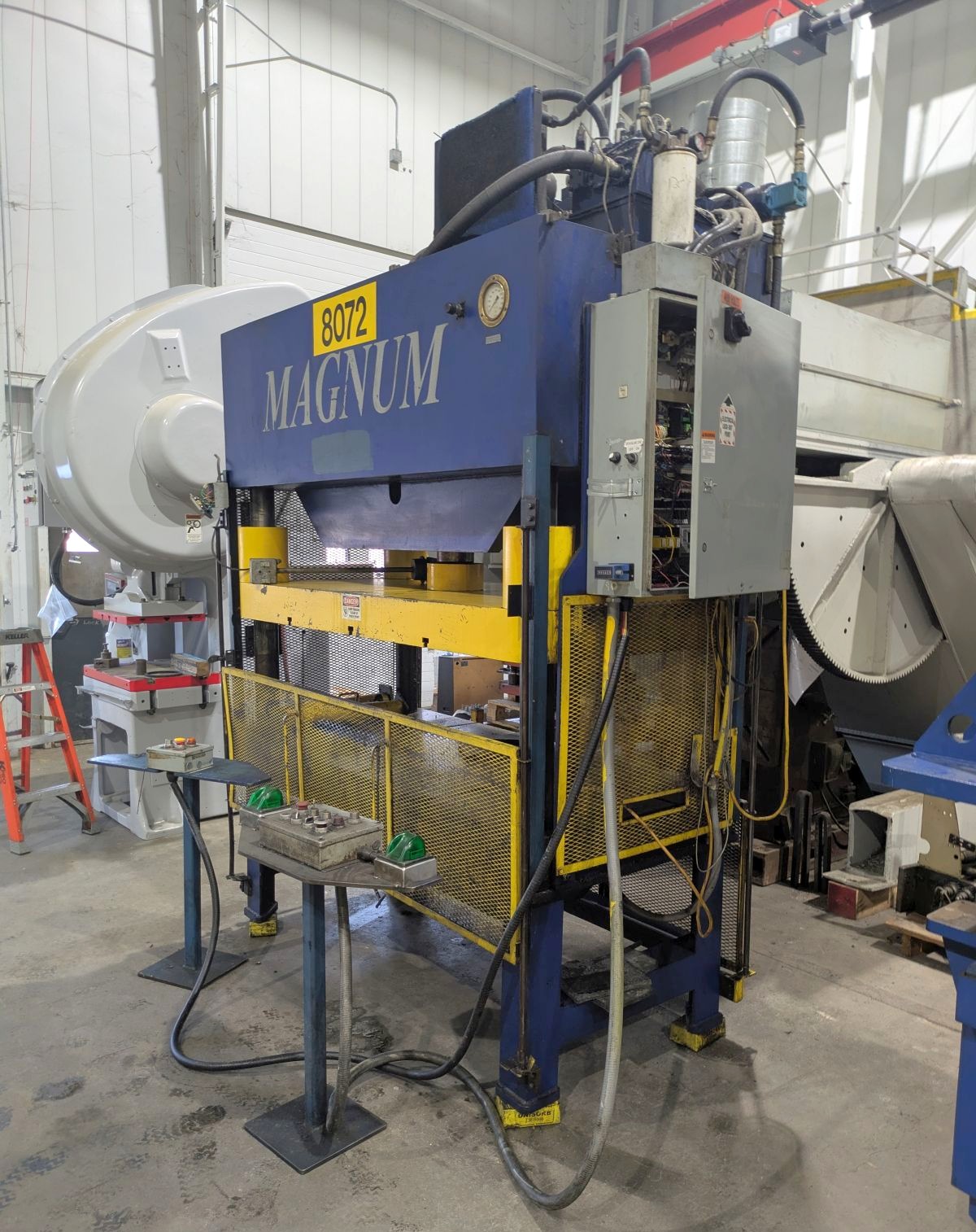

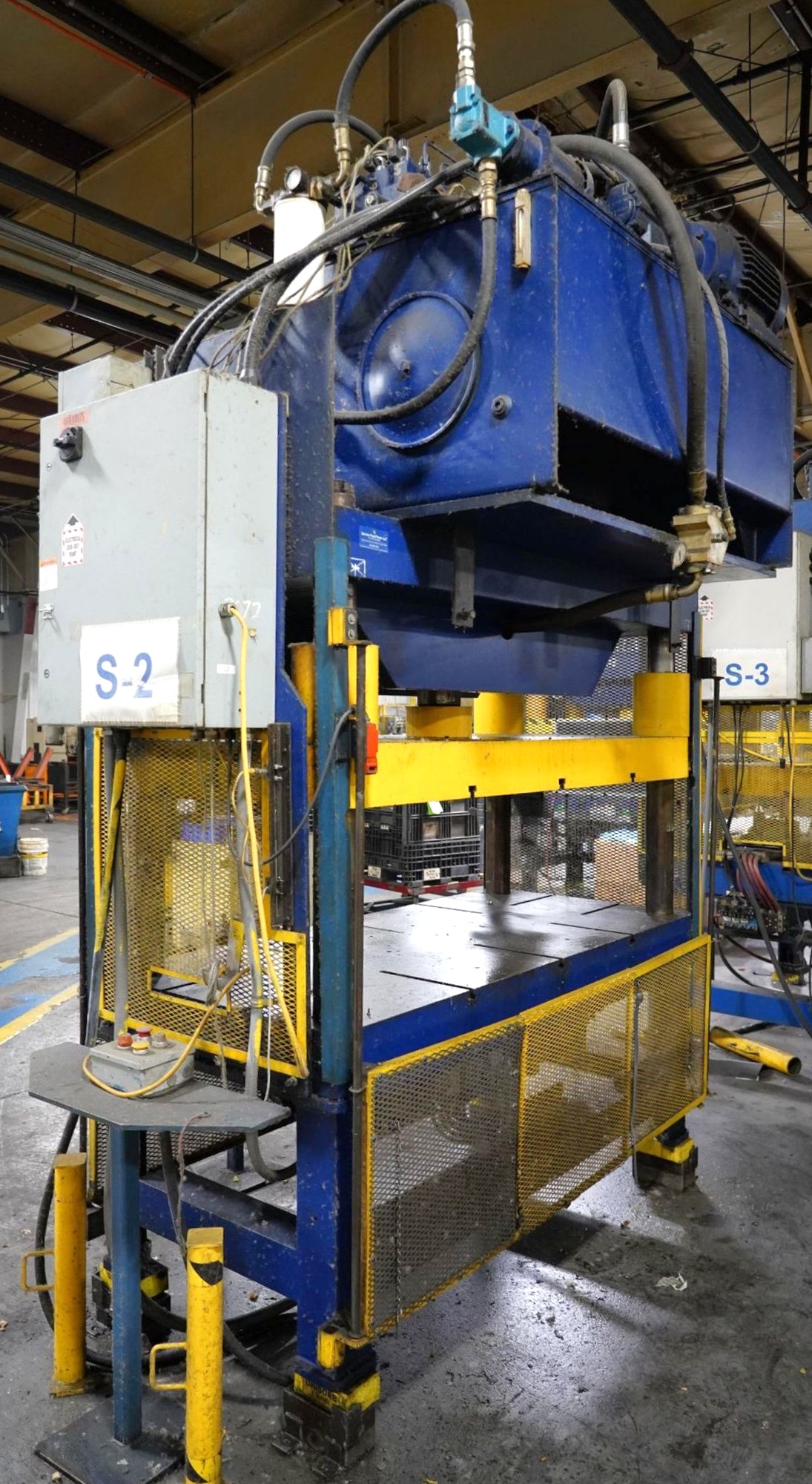

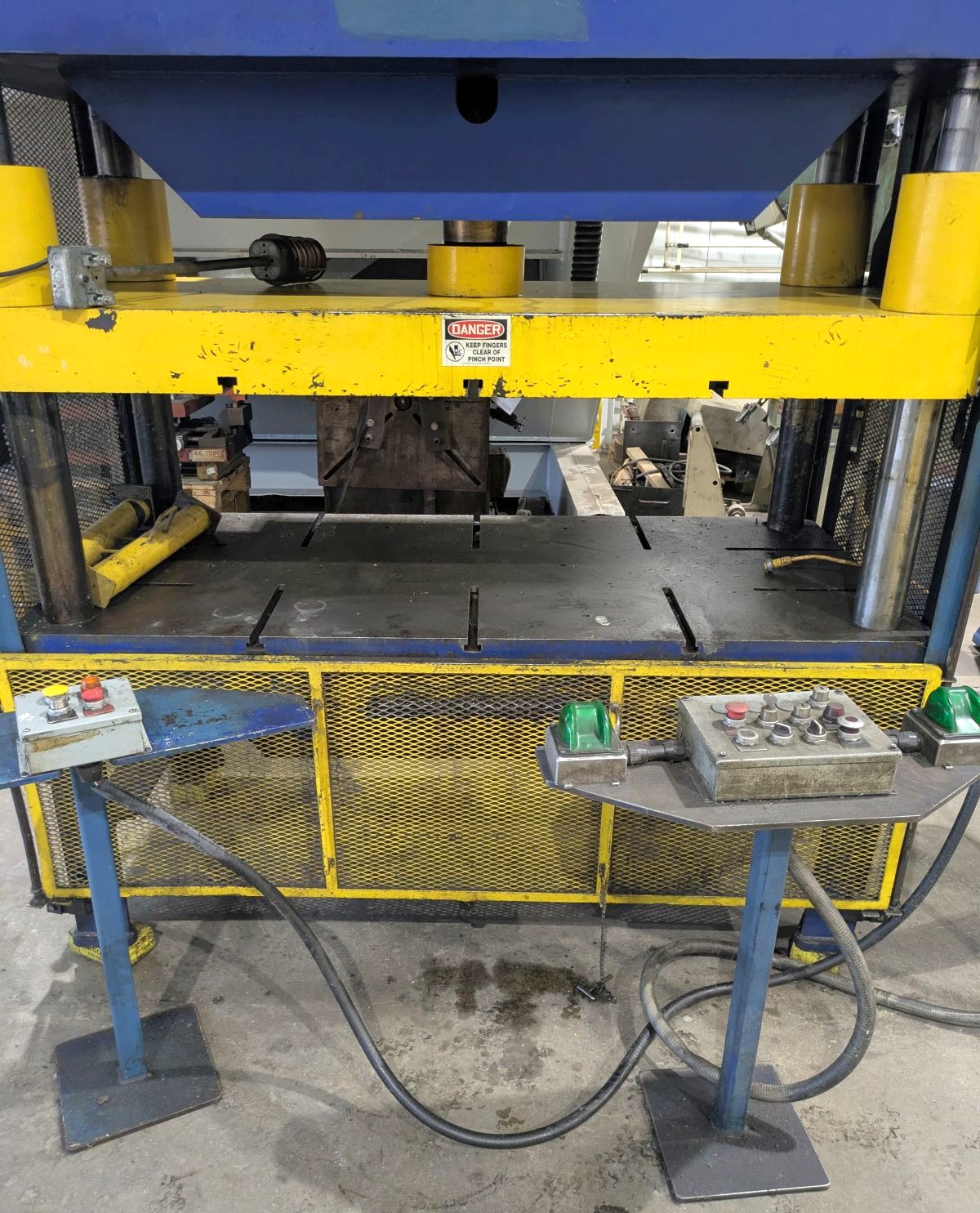

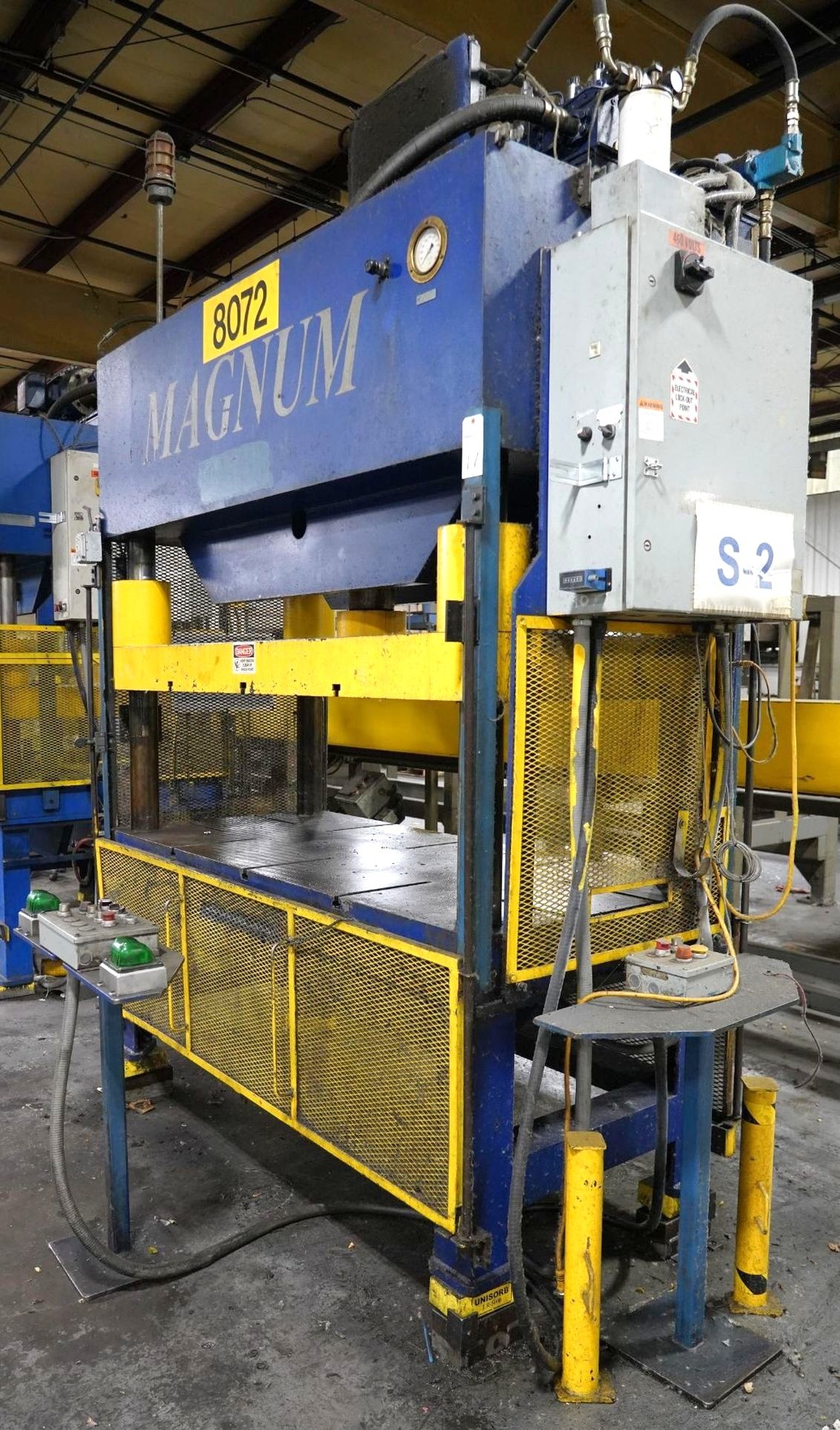

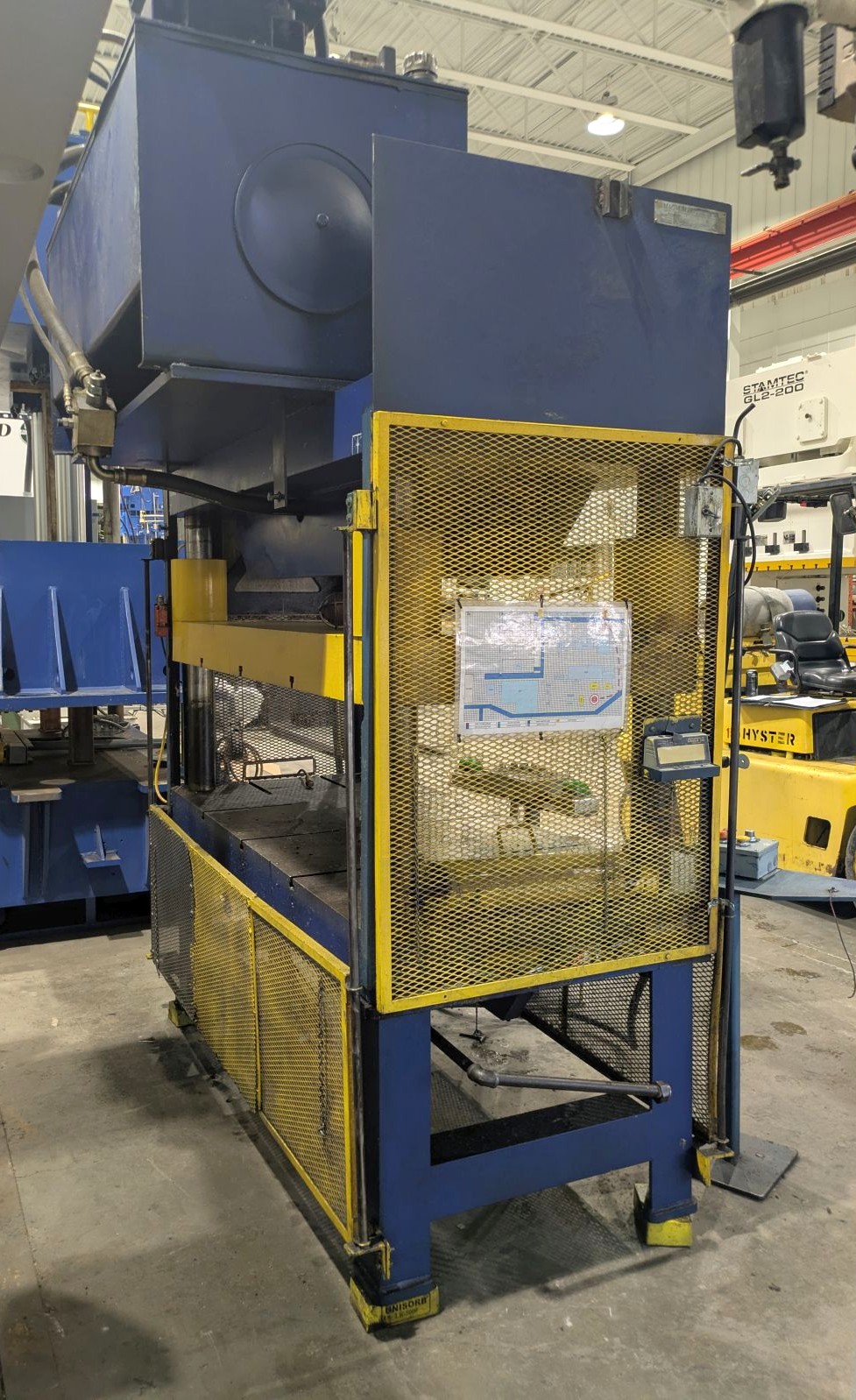

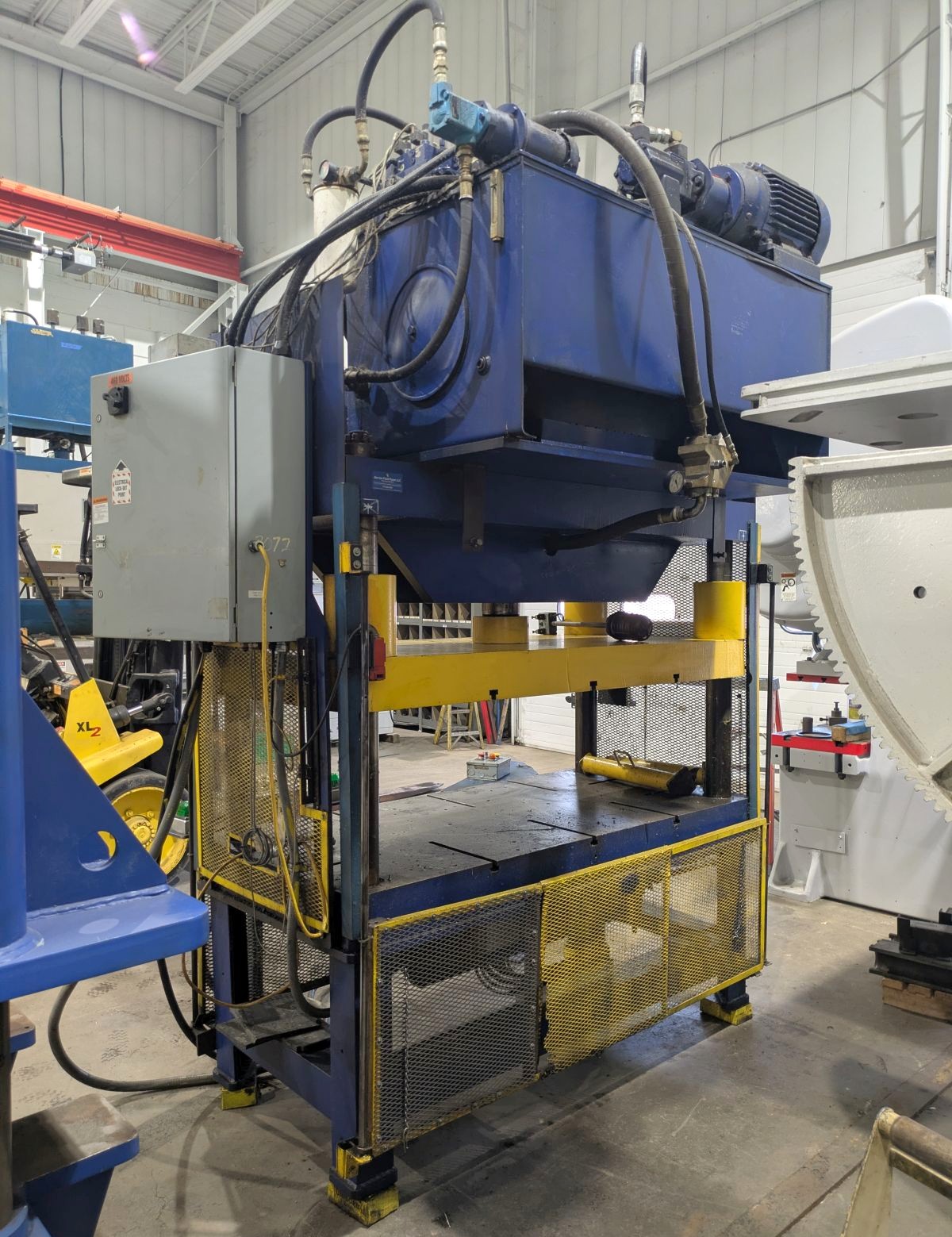

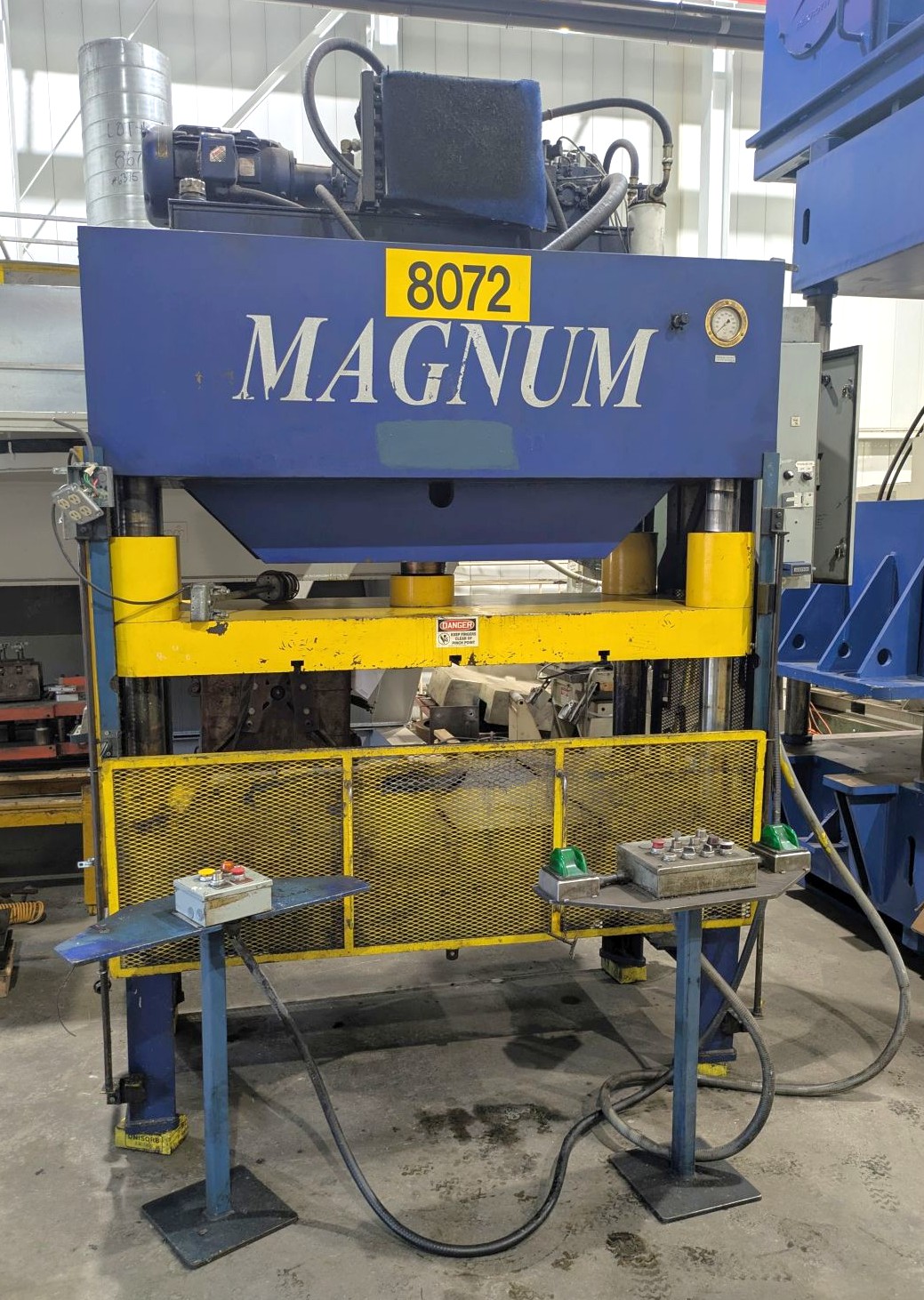

4 Column Hydraulic Press • Used 60 Ton Press for Sale
- Machine #
- 8330
- Condition
- Very Good
- Location
- Jackson, MI Cooper Building
- Year
- 2001

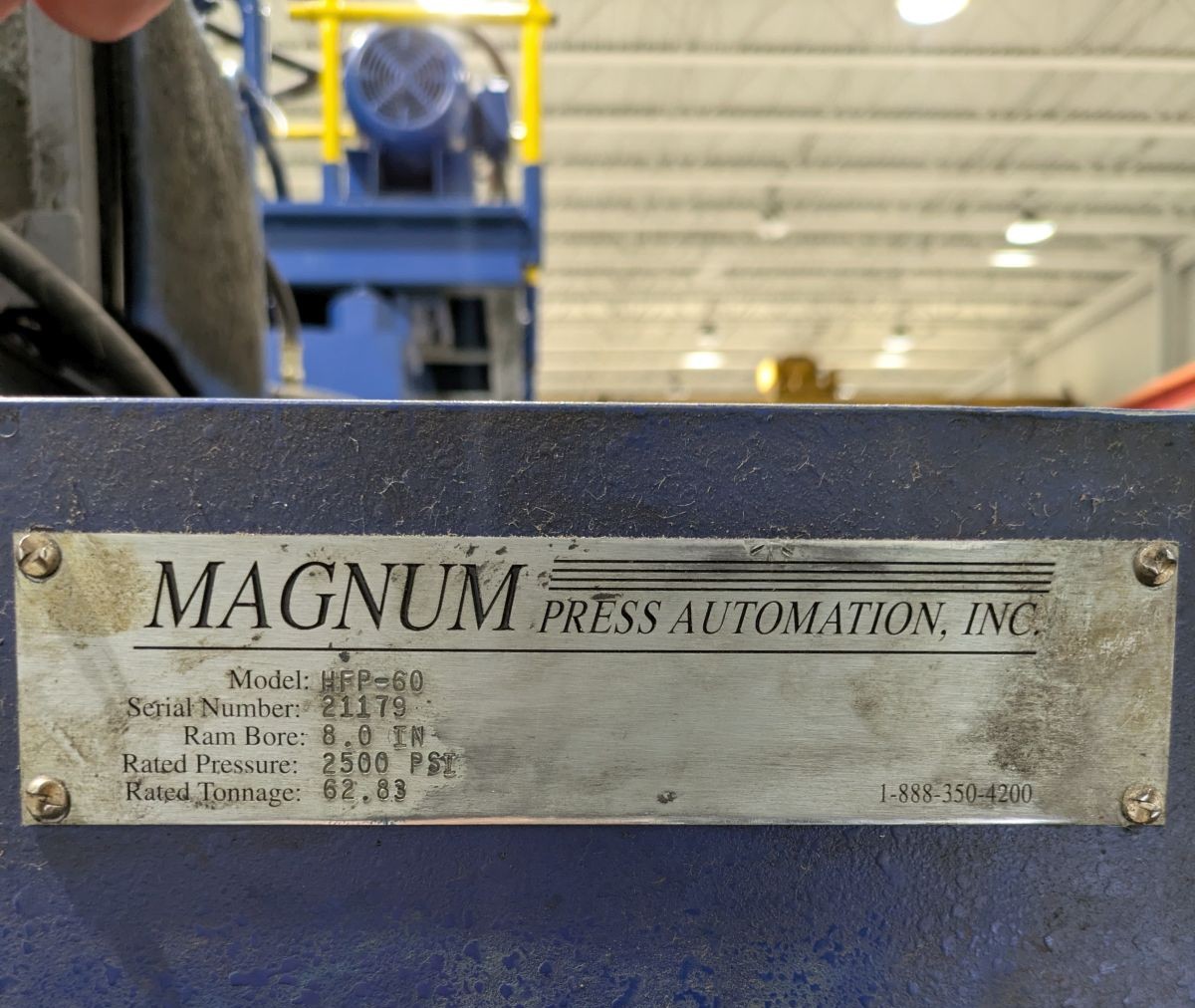

- Model
- Magnum HFP-60
Buy Now: $
| MAX. CAPACITY | 60 TONS at 2,500 PSI |
|---|---|
| MAX. STROKE | 12" |
| MAX. DAYLIGHT | 24" |

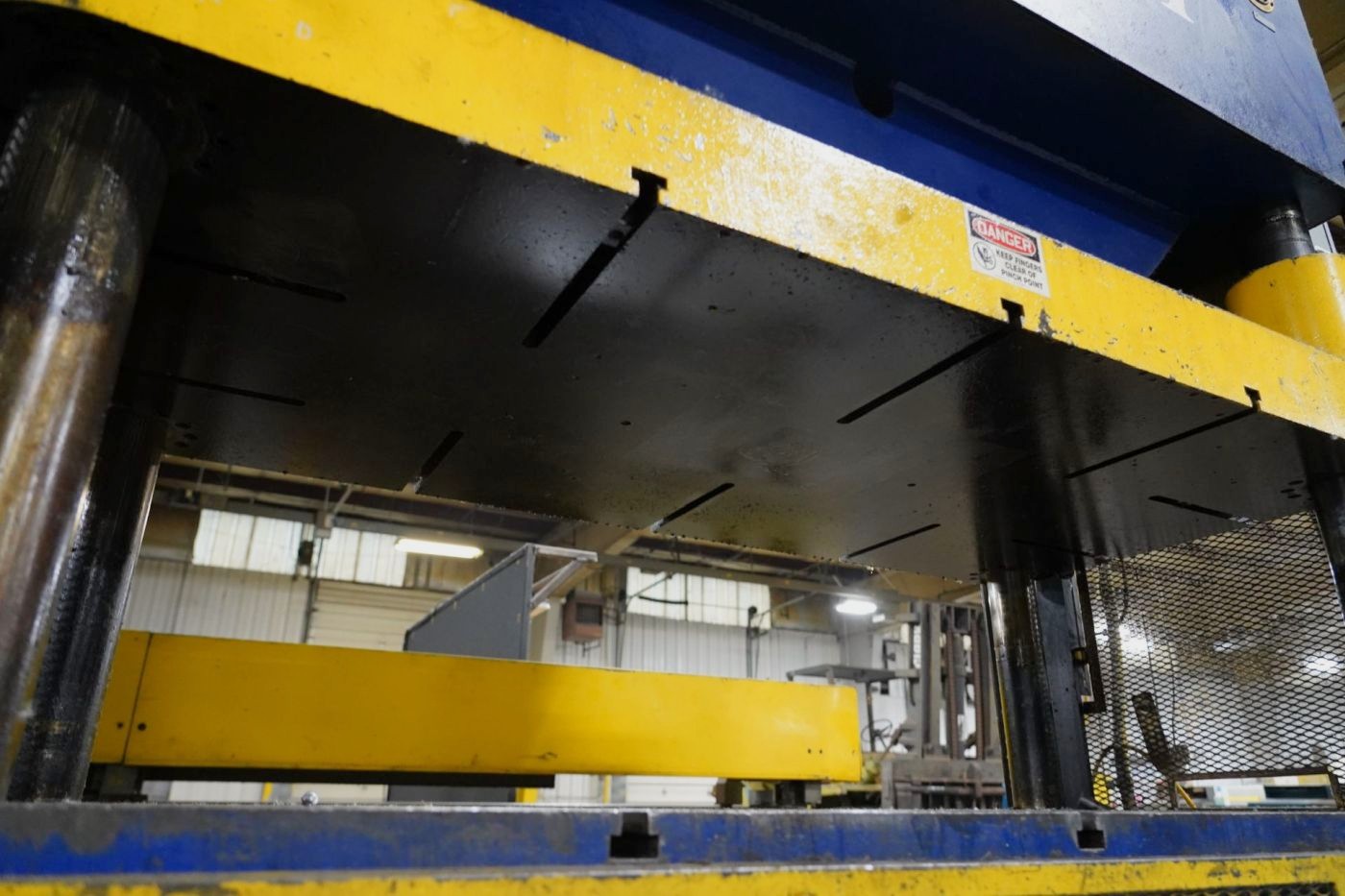

| OVERALL BED & RAM AREA | 77.5" X 36" (RL X FB) |
| DISTANCE BETWEEN POSTS | 65" X 24.5" (RL X FB) |

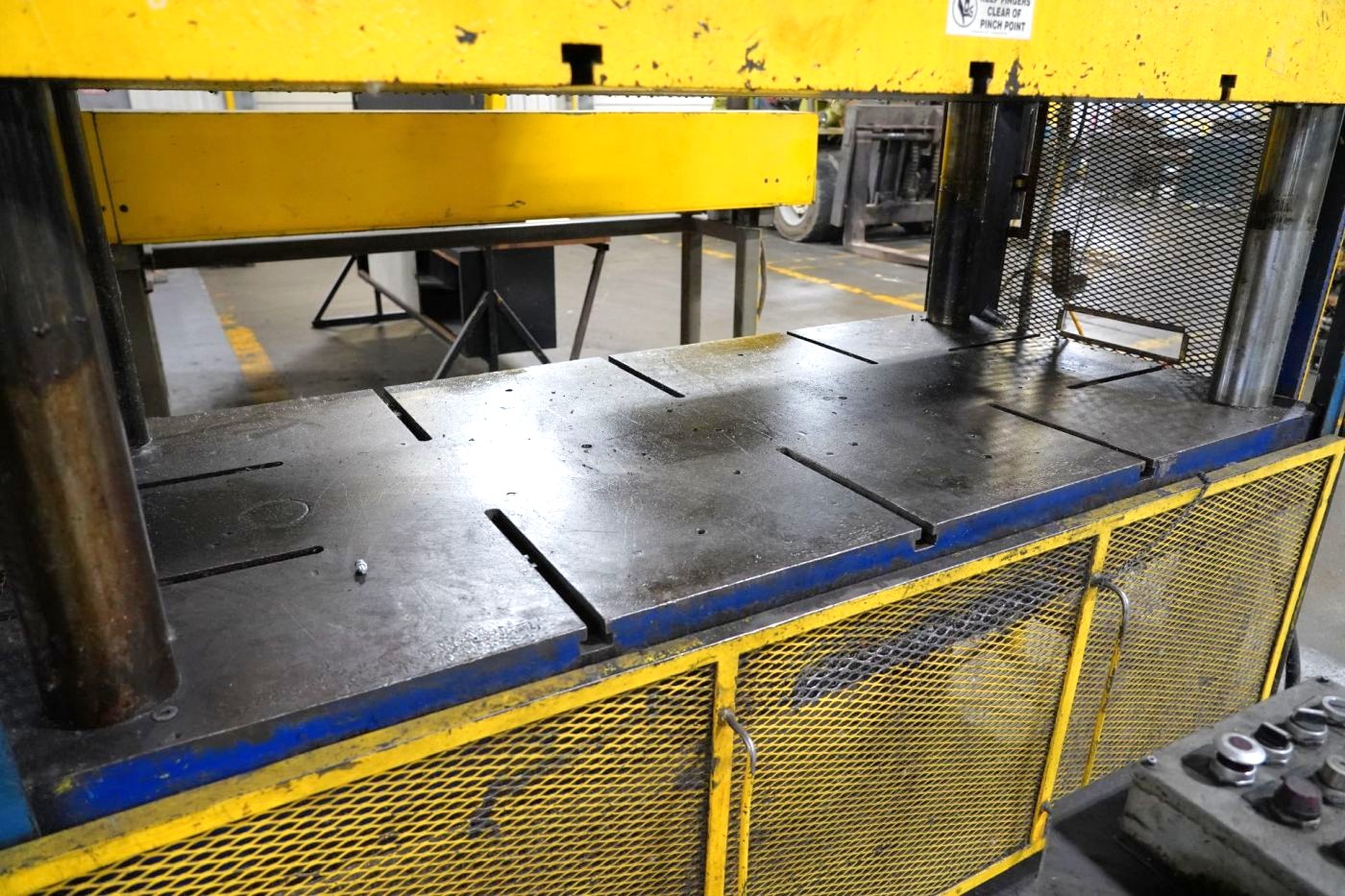

| USABLE BED AREA | 65" X 36" (RL X FB) |
| FLOOR TO BED HEIGHT | 33" |
| RAM ROD SIZE | 7" DIA. |
| CYLINDER SIZE | 8" dia. bore |
| 4 COLUMN / POSTS SIZE | 4" DIA. |

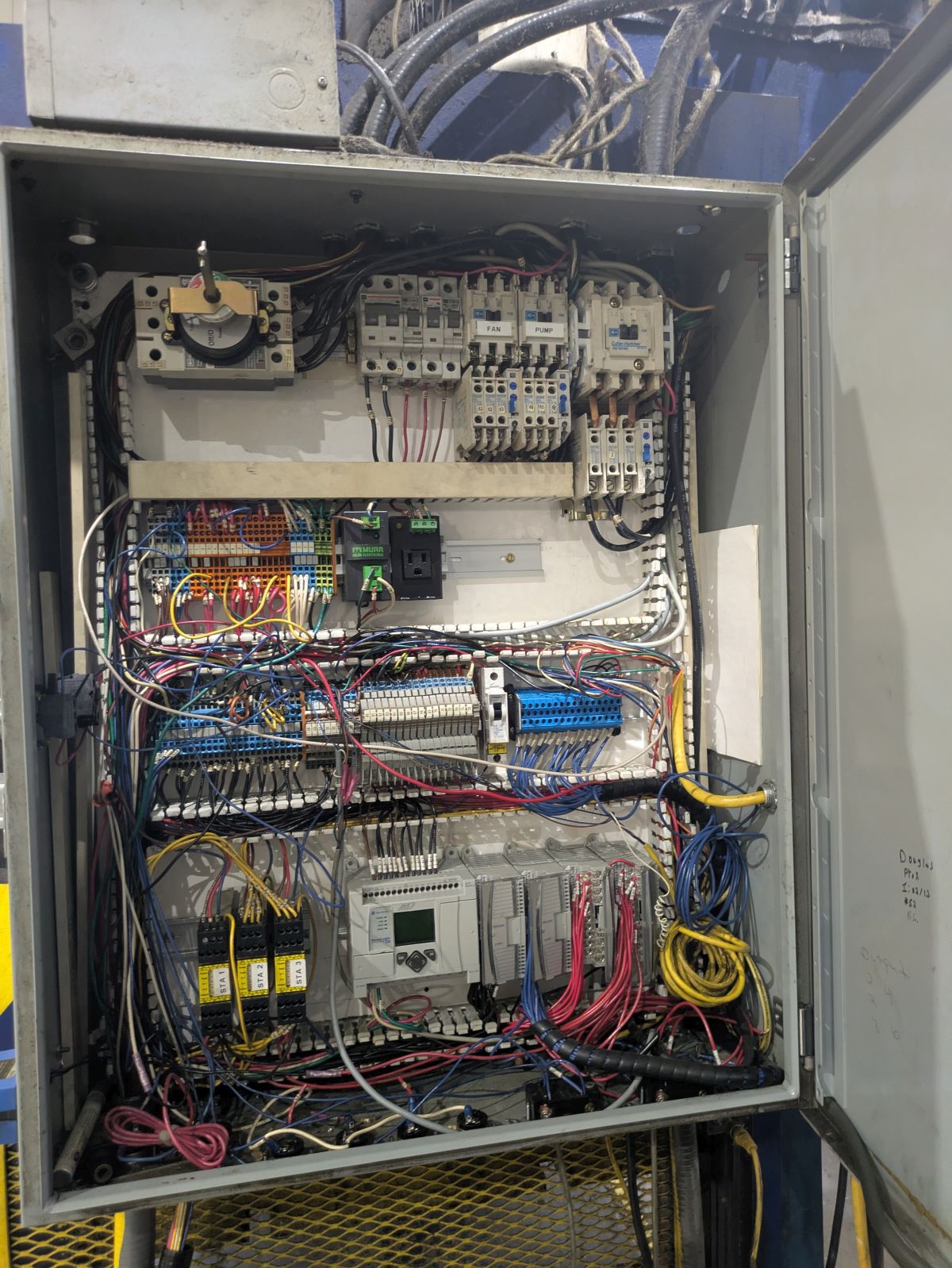

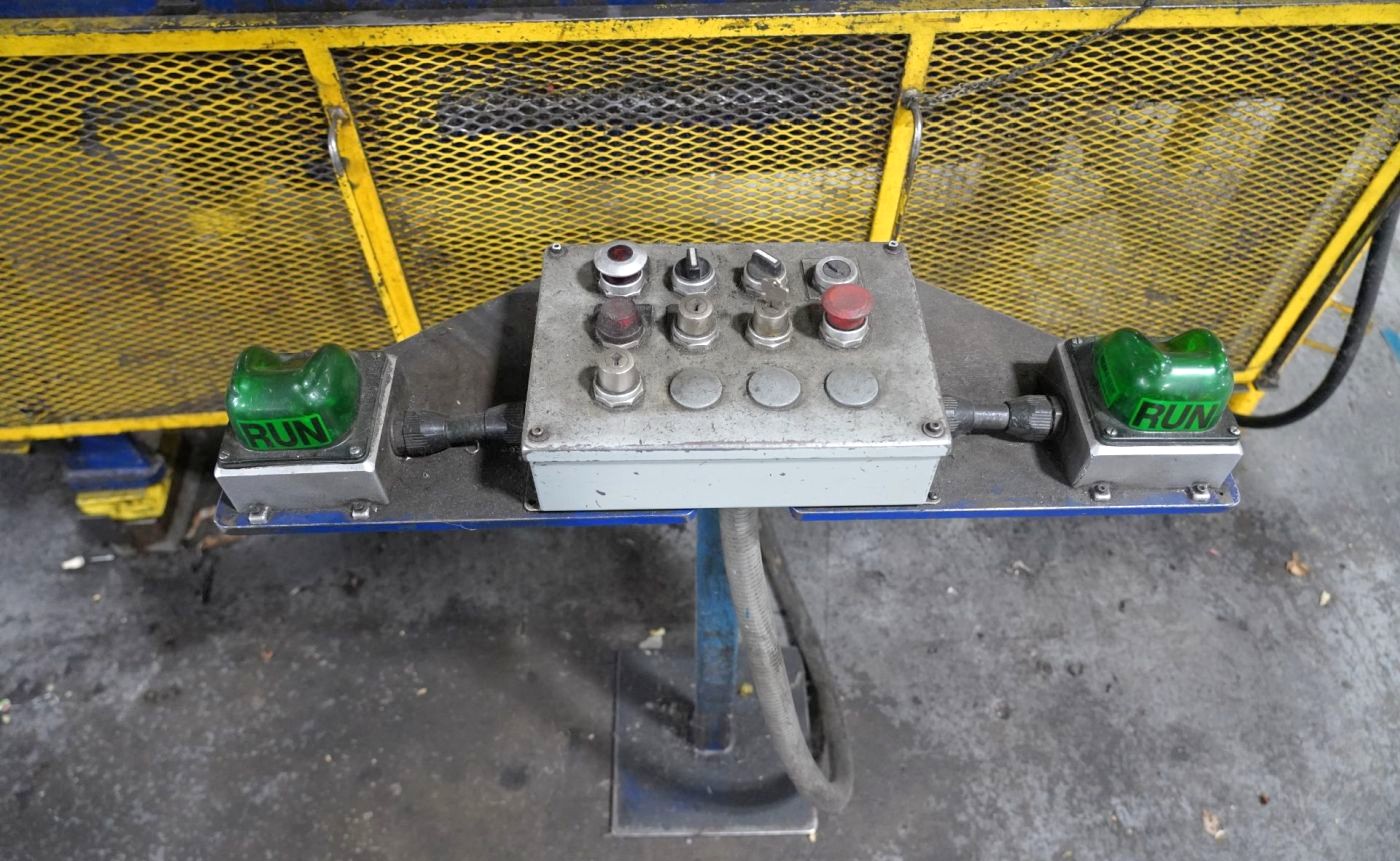

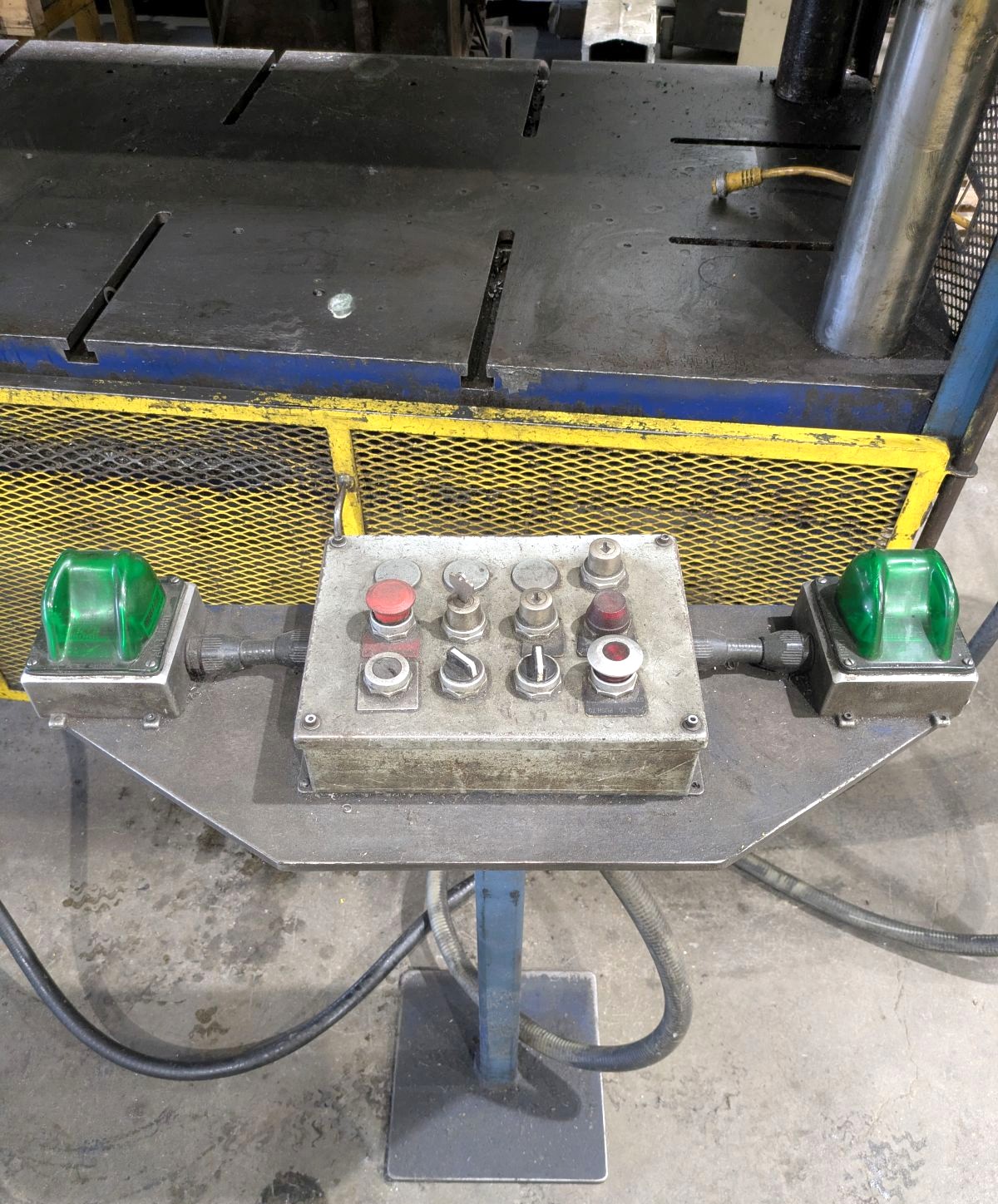

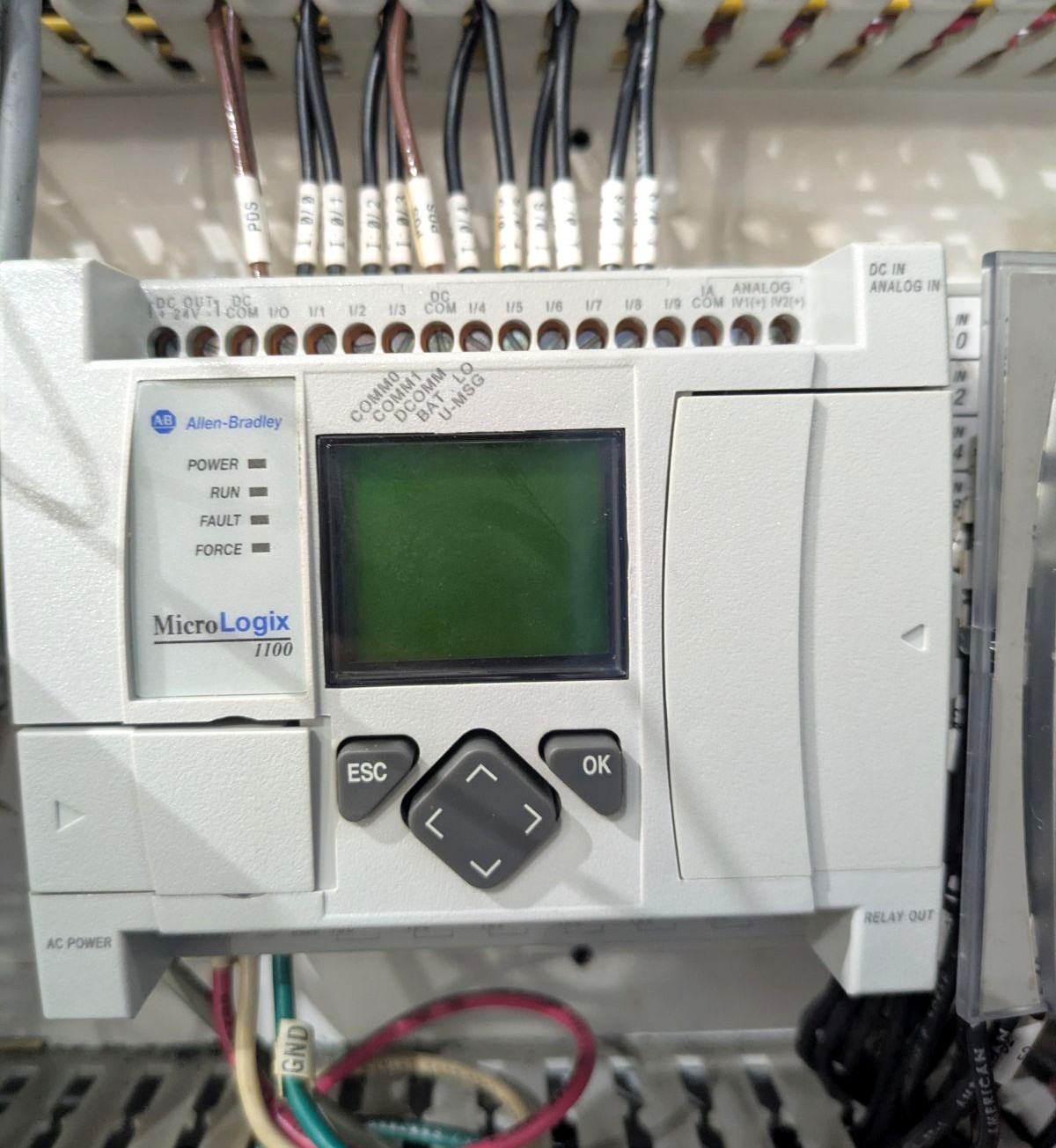

| PRESS CONTROLS | ALLEN-BRADLEY MICROLOGIX 1100 PLC CONTROLLER |

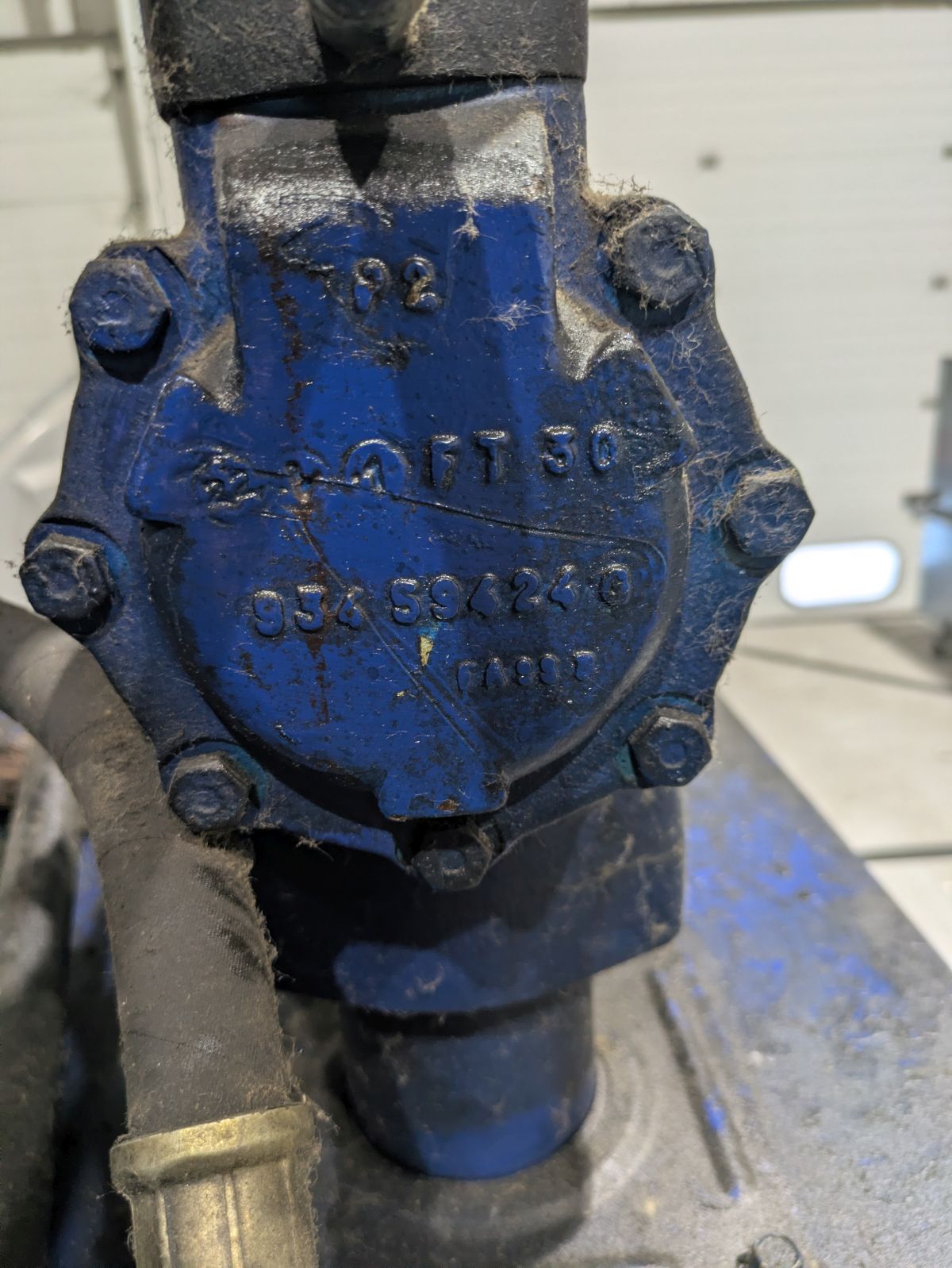

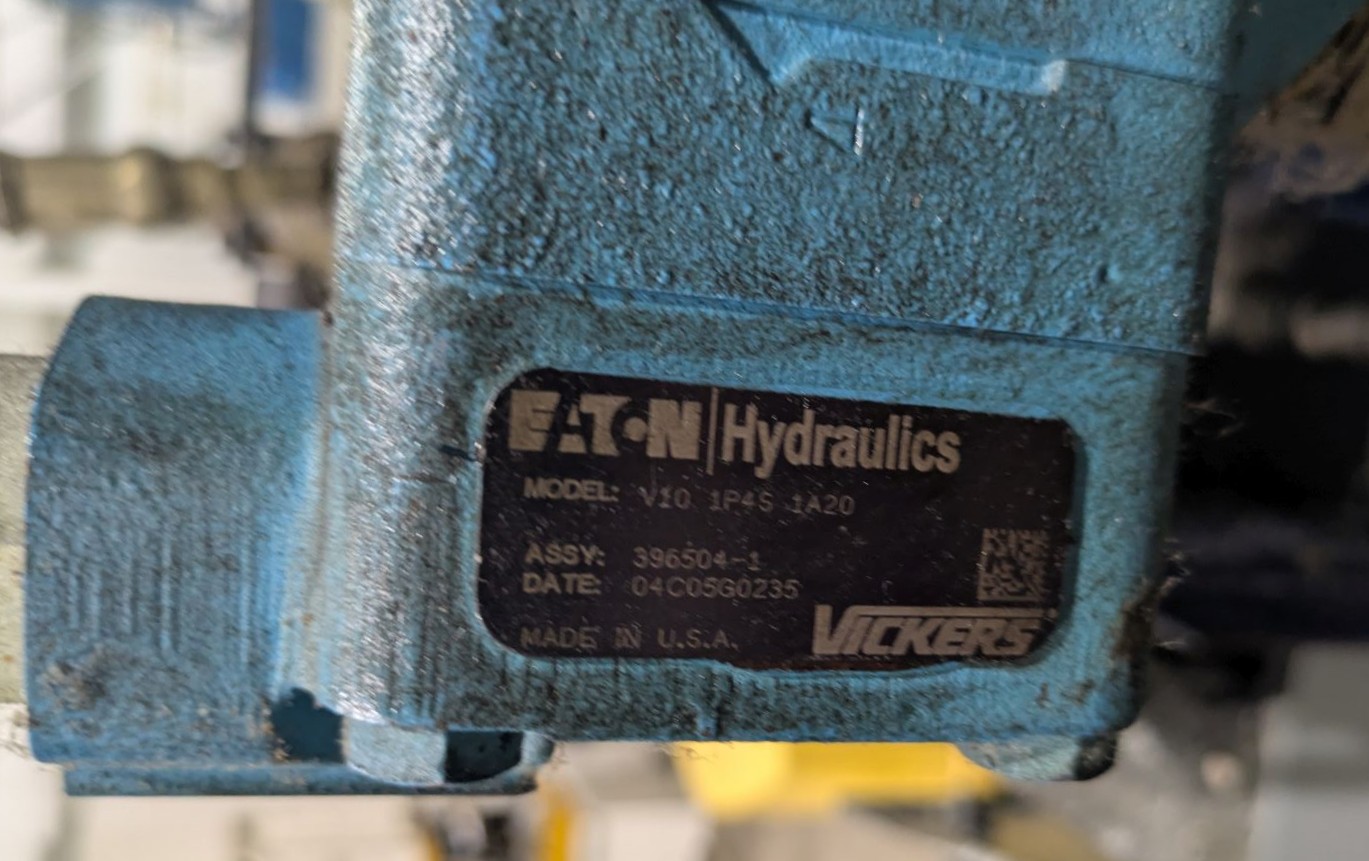

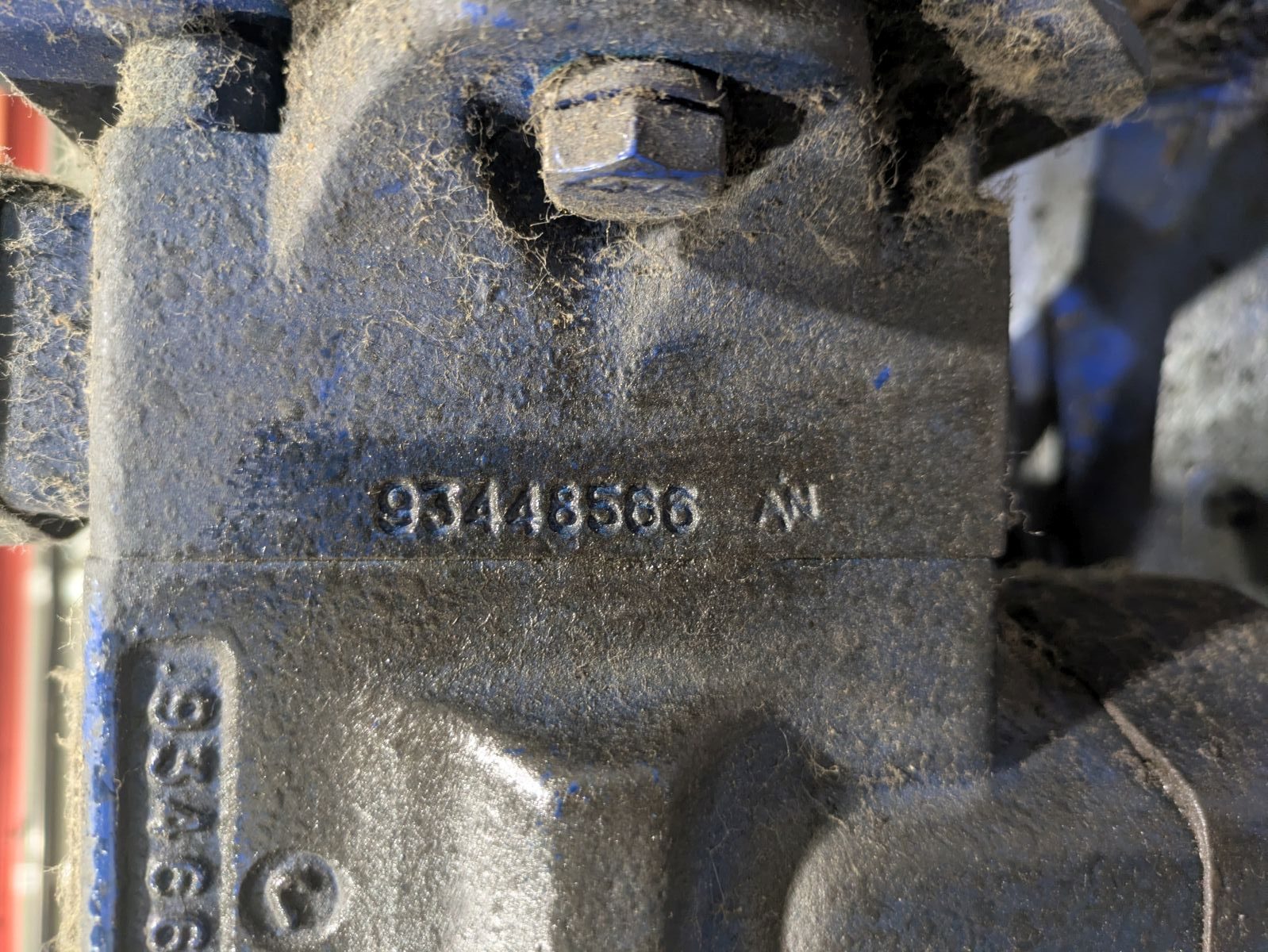

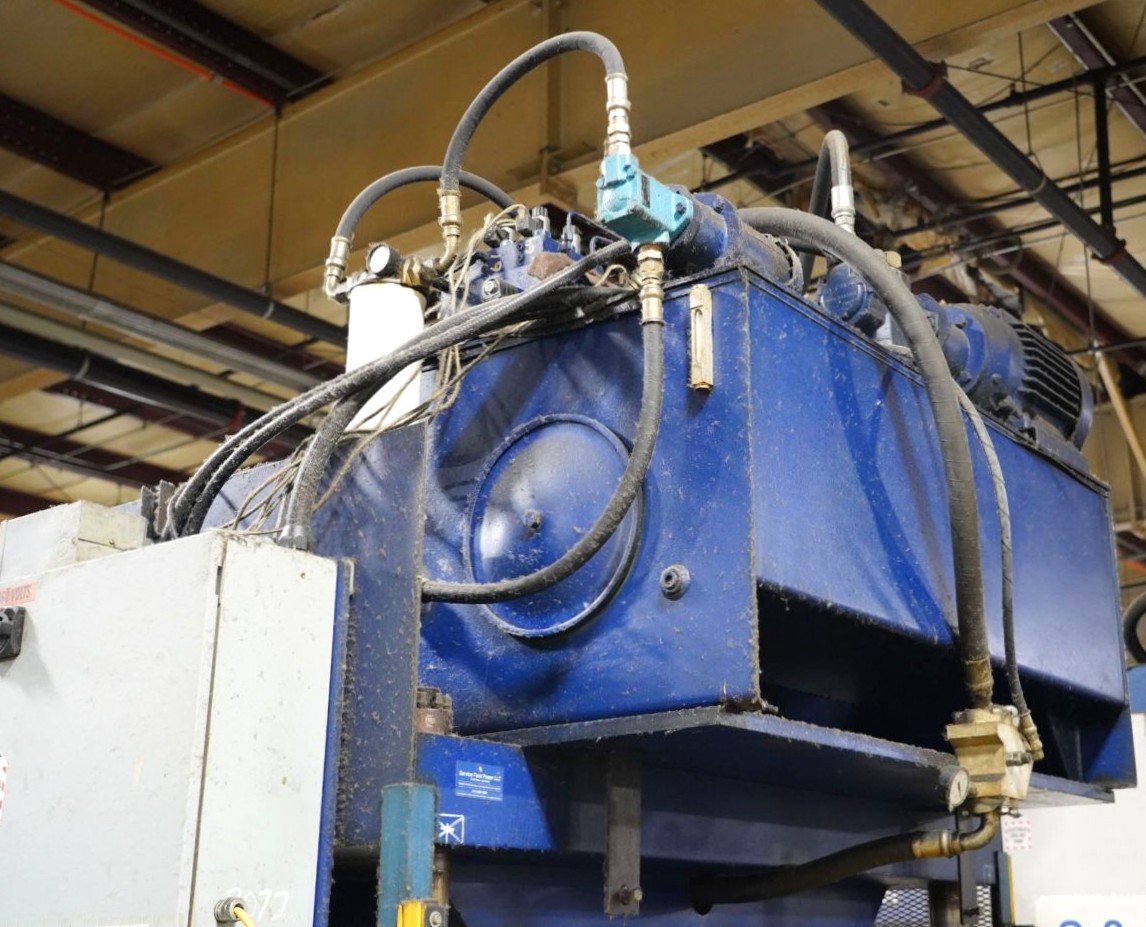

| HYDRAULIC UNIT | PARKER PUMP / VICKERS V10 1P4S 1A20 PUMP |

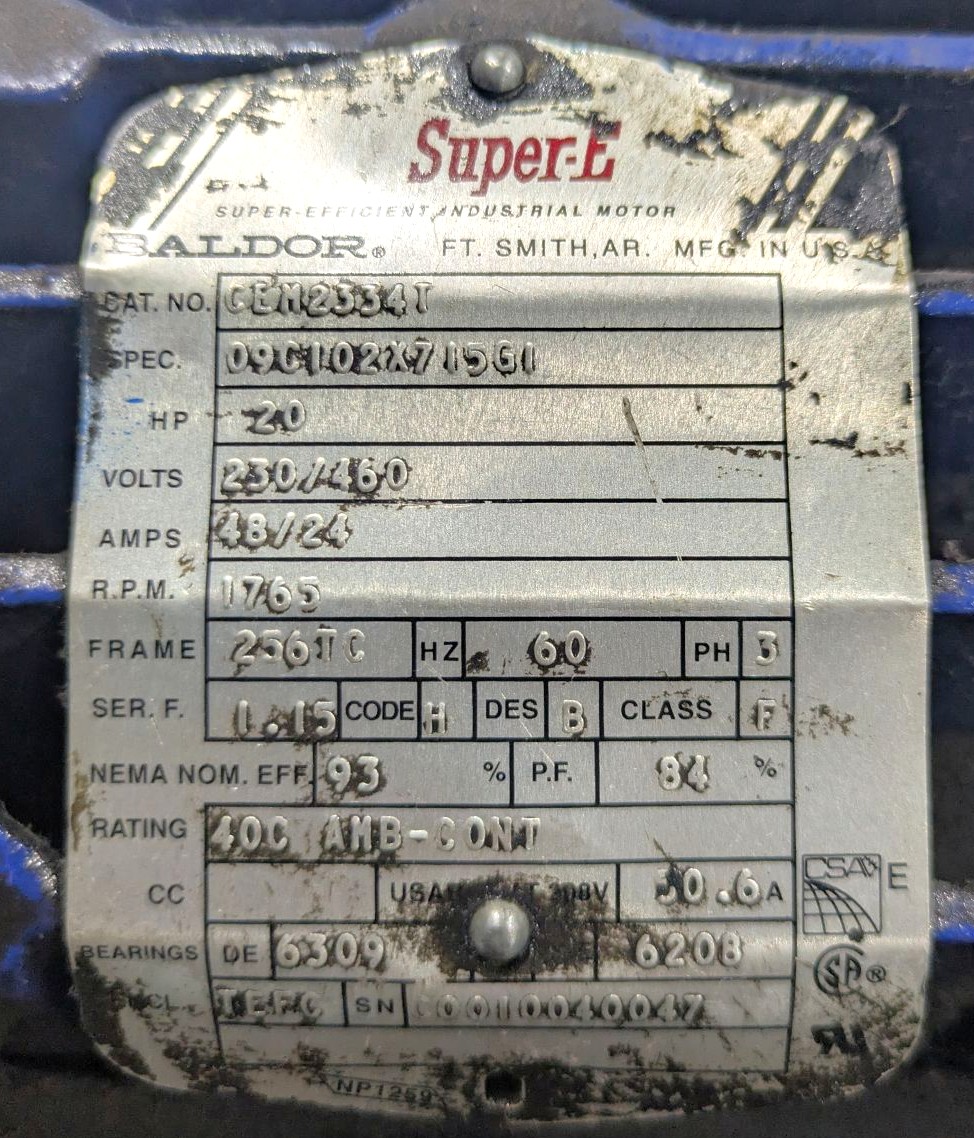

| ELECTRIC MOTOR | 20 HP 230/460V-3-60 SUPER-E MOTOR | 48 / 24 AMPS |
| APPROX. DIMENSIONS | 7'6" x 5' (RL X FB) x 12' HIGH |
| APPROX. WEIGHT | 32,000 Lbs |

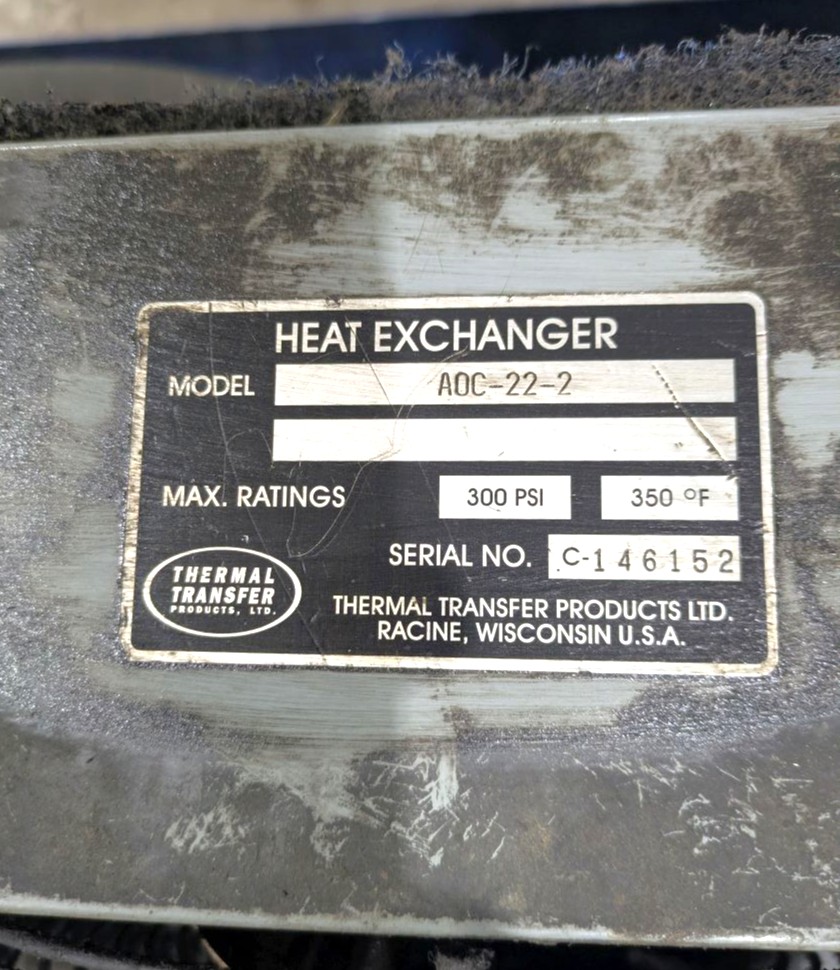

| Equipped With | FAN COOLED THERMAL TRANSFER HEAT EXCHANGER MODEL AOC-22-2 - 300 PSI, 350 DEG F. |

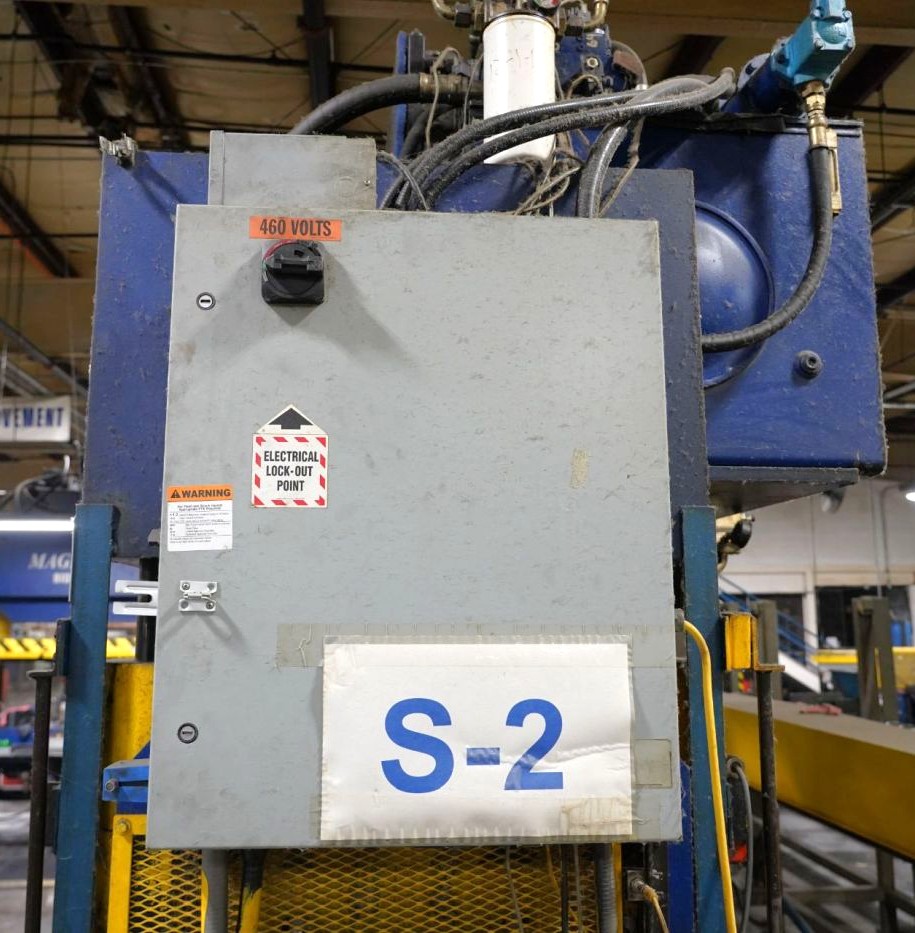

| Note | 2026: CURRENTLY WIRED FOR 460V |
| Location | This Used Press is Located in Our Jackson, MI Cooper Building |
