Description

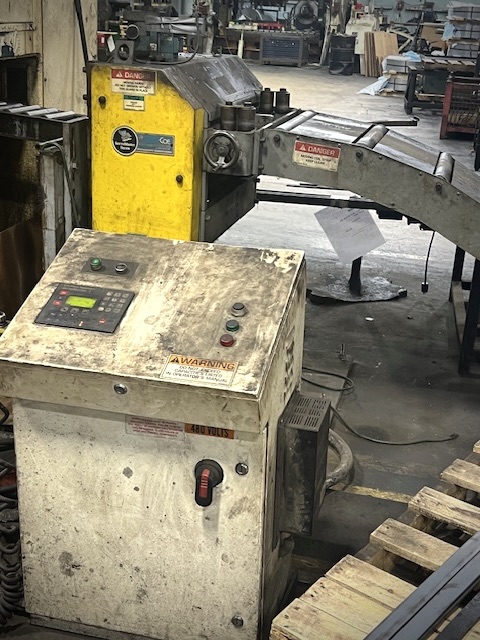

Used Servo Feed for Sale
- Manufacturer
- COE
› - Model
- COE CPRF-S424
- Condition
- Very Good
- Location
- Columbia, TN WarehouseDirectionsMap
- Year
- Year Unknown
- Machine #
- 8037
| MAX. STOCK WIDTH | 24" |
|---|---|
| max thickness at full width | .187" |
| MATERIAL CAPACITY | 10" x .250" | 24" x .187" | 24" x .020" |
| DIAMETER OF ROLLS | 4" DIA. |
| ROLL SPEED | 317 FEET PER MINUTE - 40 FEET PER SECOND ACCELERATION |
| number of feed rolls / layout | 1 over 1 |
| MOTOR PEAK TORQUE | 1,200 (IN. LBS.) |
| MAX. VELOCITY | 395 FPM |
| feed stroke length(s) | 2", 6", 12", 24", 30", 36" |
| ELECTRIC SERVO MOTOR | 480V-3-60 |
| APPROX. FEED DIMENSIONS | 44" X 60" (RL X FB) X 32" HIGH |
| APPROX. CONTROL PANEL DIMS | 20" X 28" (RL X FB) X 38" HIGH |
| APPROX. WEIGHT | 1,250 LBS. |
| Equipped With | adjustable height, width, thickness, & feed length |
| Note | __ |
| Location | This Used COE CPRF-S424 Servo Feed is located in our Columbia, TN Warehouse |
