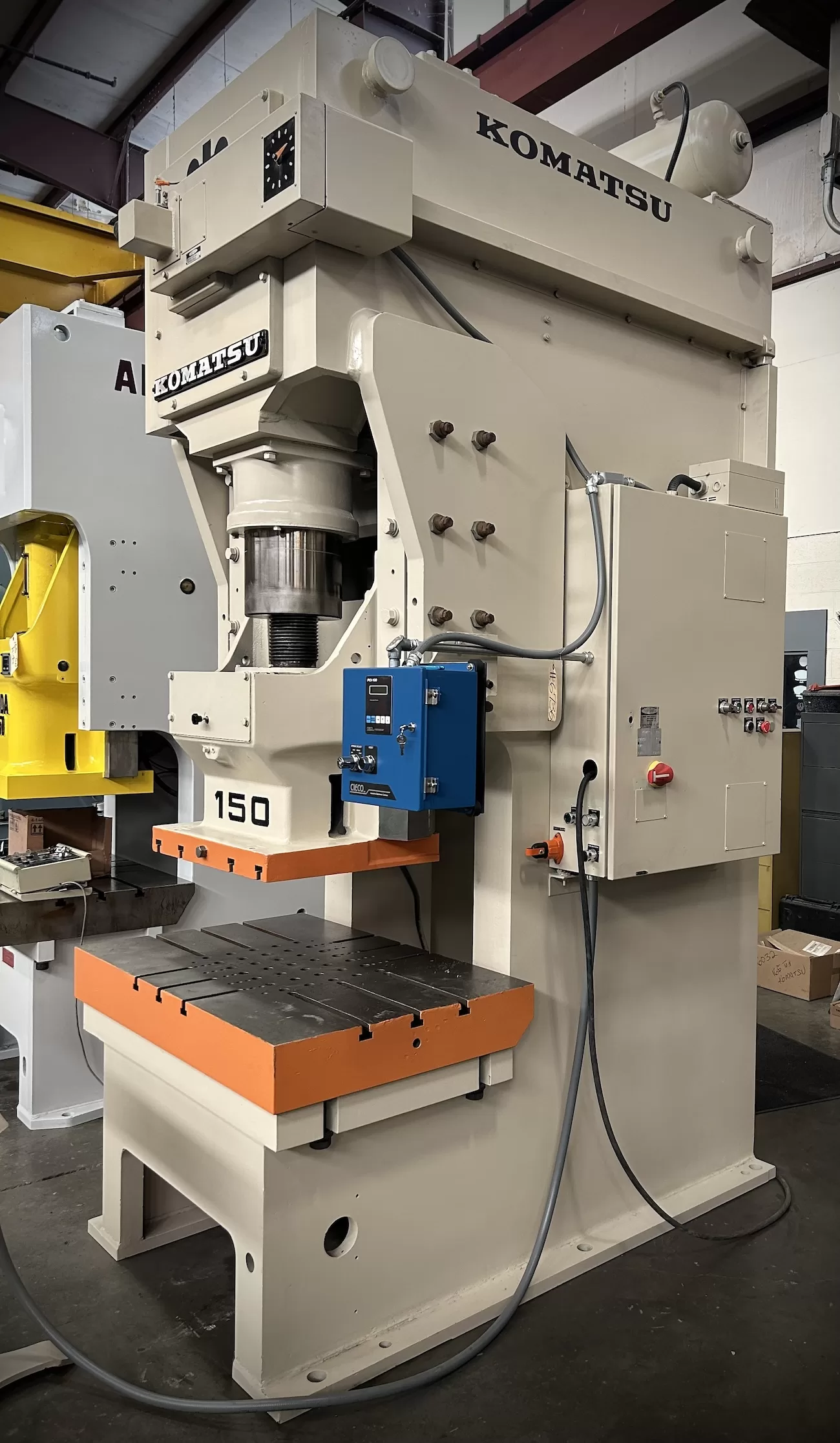

165 Ton Komatsu Press • Used Komatsu OBS150-2 Press

165

165
Ton
49.2″
Bed R-L
7.9″
Stroke
Speed: 27-55 SPM
New in 1984

New CIECO 1100R Controls with Reconditioning
165 Ton Used Press – Gap Frame Press

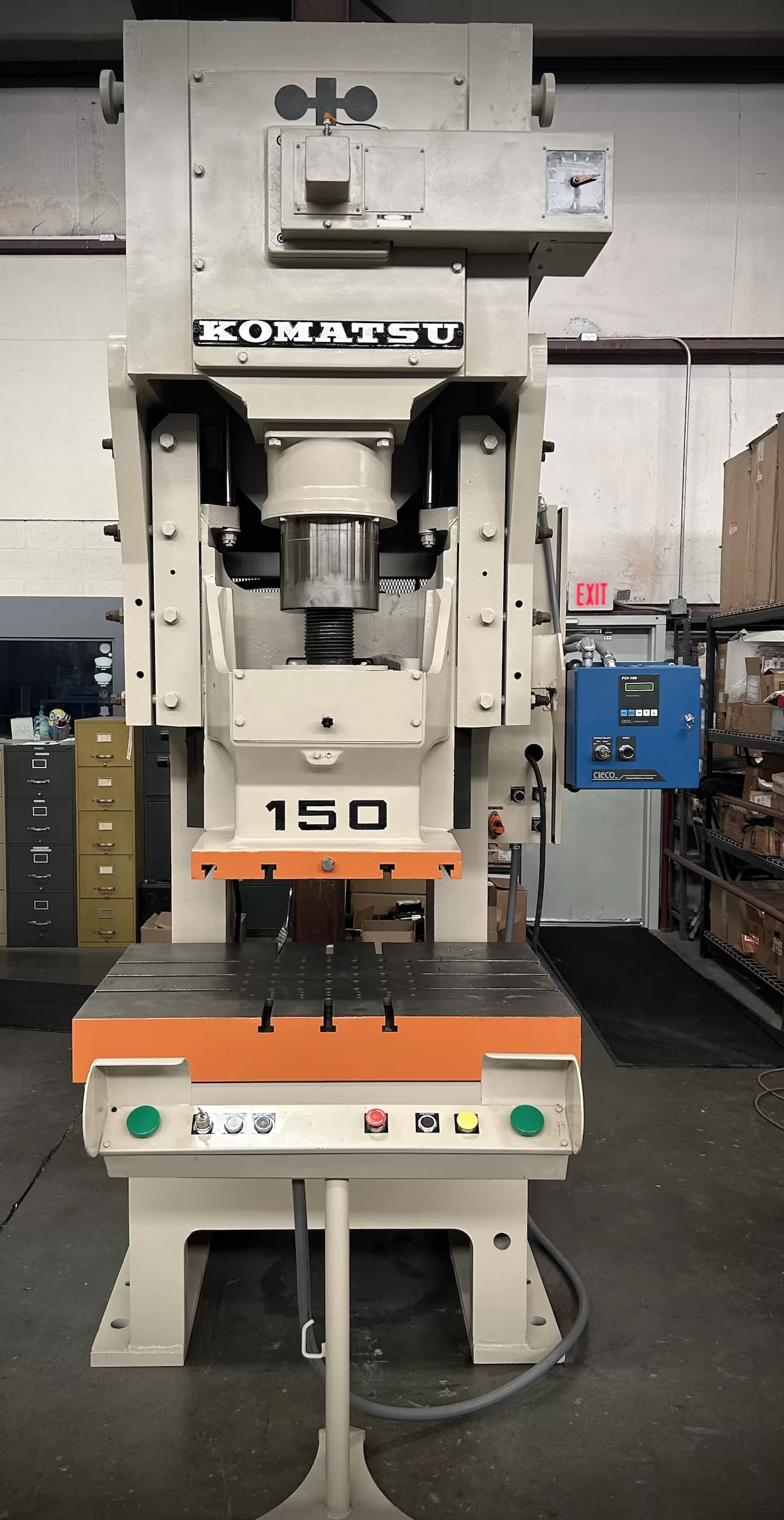

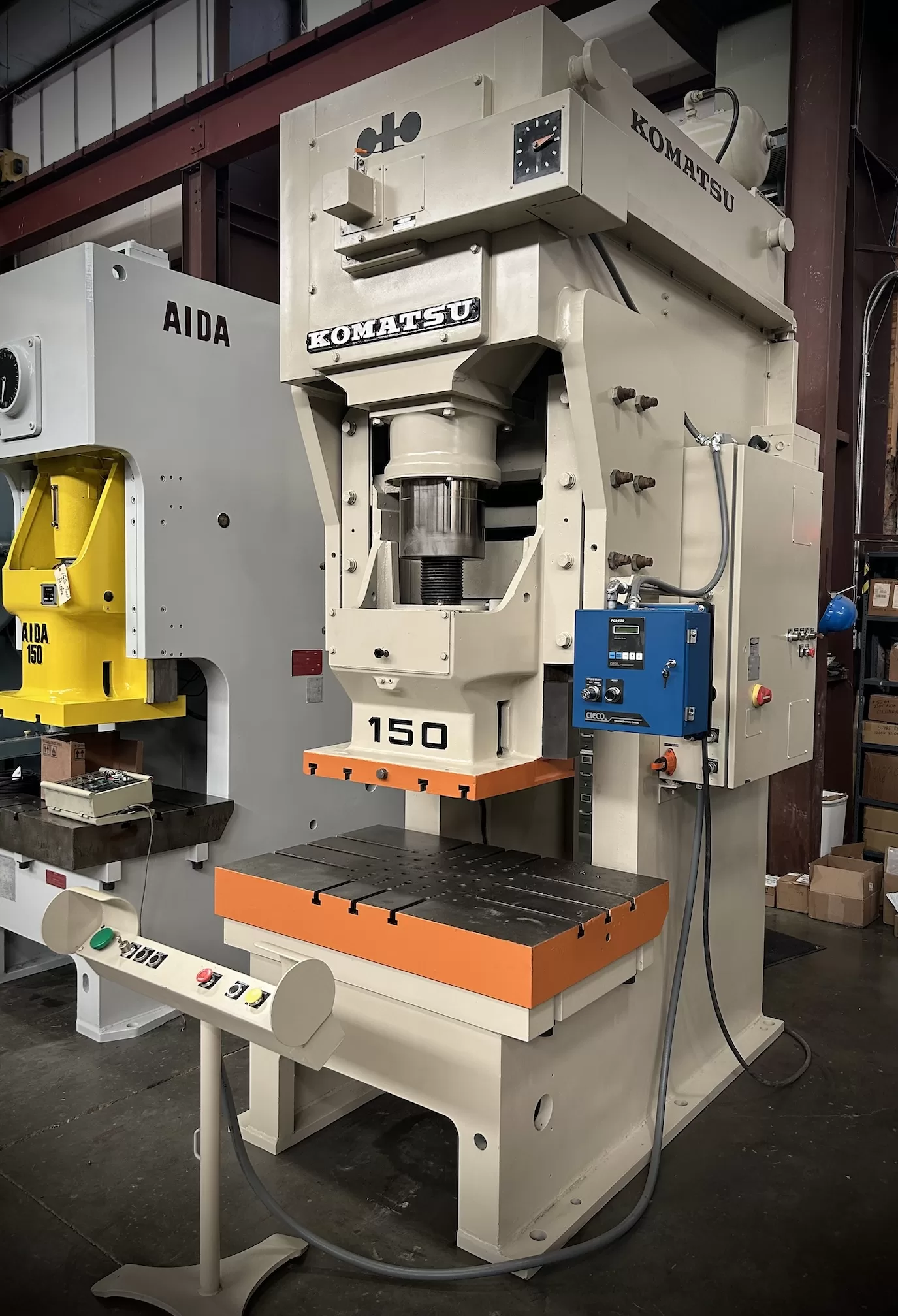

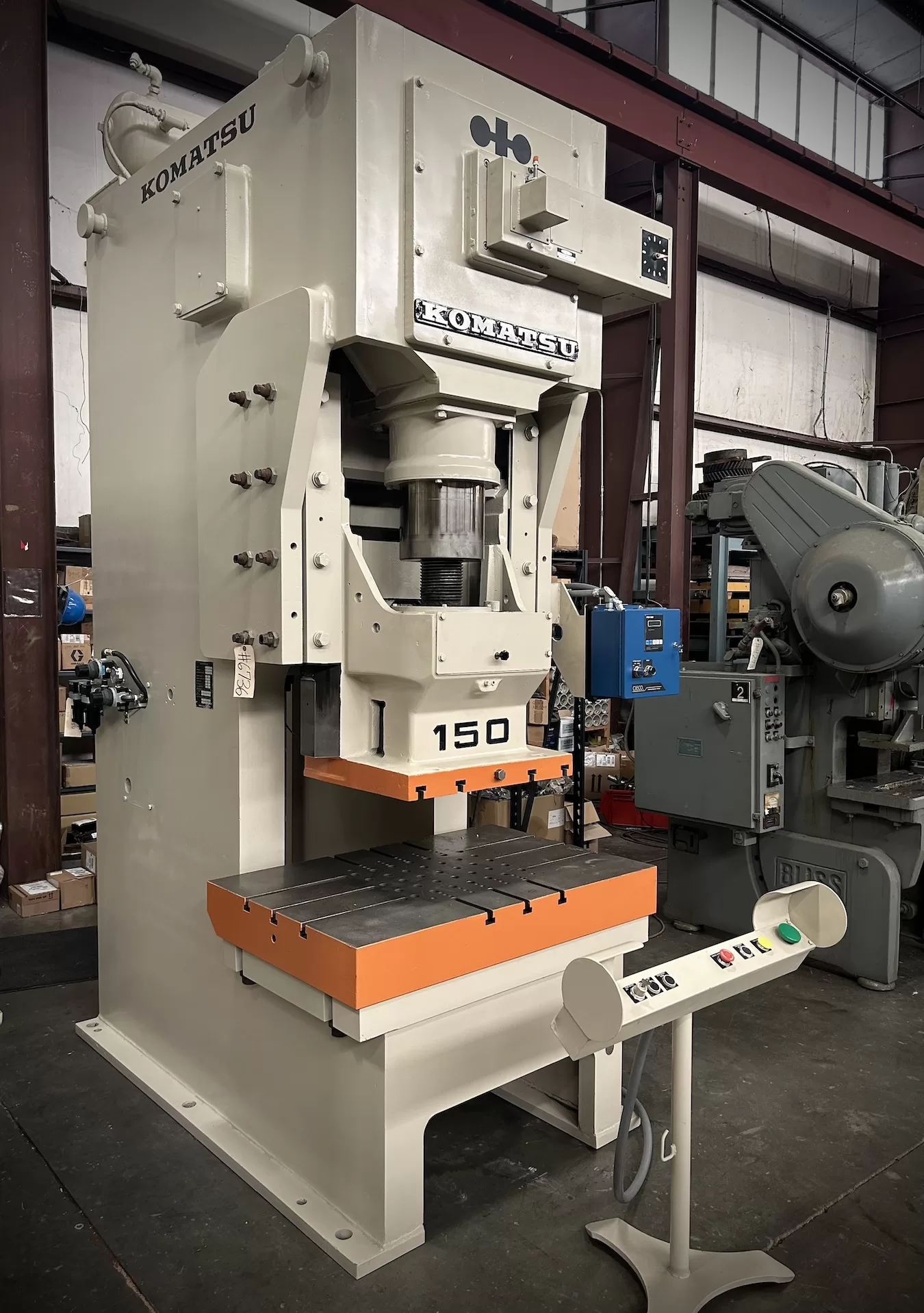

Model: Komatsu OBS150-2
7.9″ STR, 17.8″ DIE HEIGHT, 49.2X31.5 BED, 27-55 SPM, 3.9″ ADJ

Stamping Presses for Sale
Used Komatsu Mechanical Press
Machine #6736
Columbia, TN Warehouse
Sale Price: $

Machine Specifications

Gap Frame Press for Sale

Manufacturer: Komatsu
Model: Komatsu OBS150-2 Press
Condition: Very Good
Location: Columbia, TN Warehouse
Year: 1984
Machine #: 6736
Buy Now: $





capacity 165 us ton
stroke 7.9″
max die height 17.8″ sdau over 6.3″ h bolster
bed area 49.2″ rl x 31.5″ fb
speed 27 – 55 spm
slide adjustment 3.9″ motorized

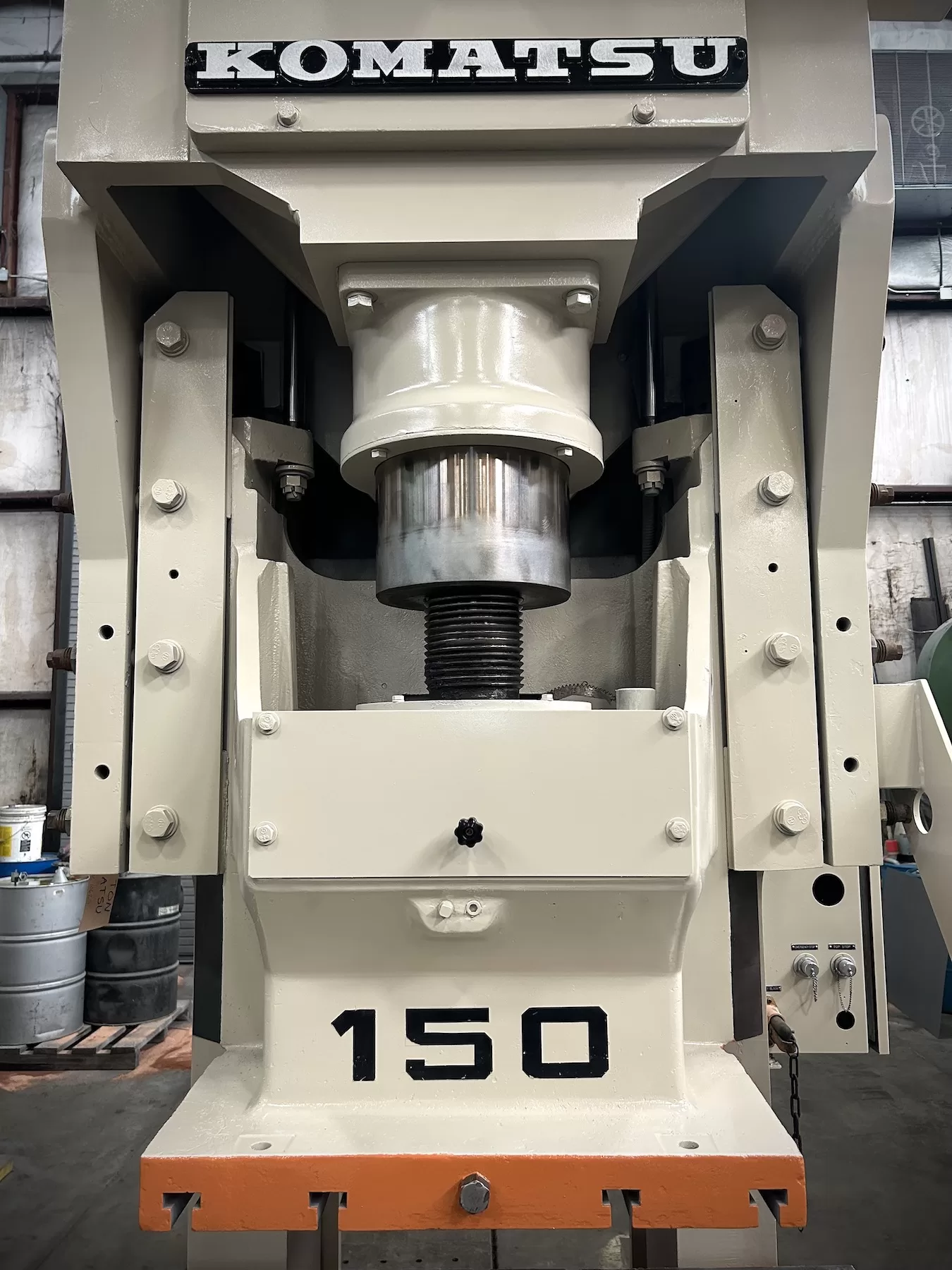

slide area 27.6″ rl x 21.7″ fb

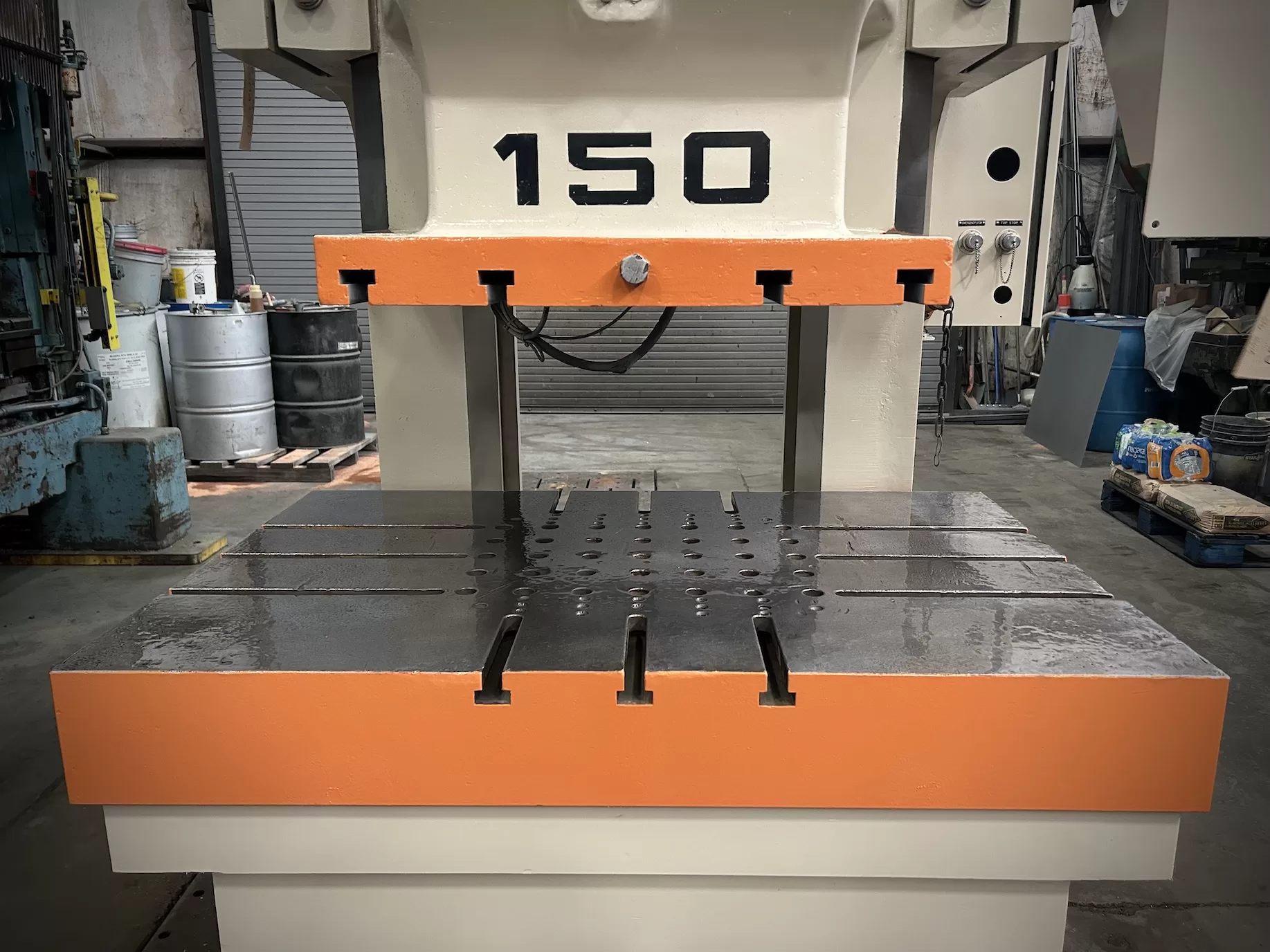

bolster plate 6.3″ h x 49.2″ rl x 31.5″ fb
distance between uprights 26″
distance floor to bed 29.5″
clutch komatsu air clutch / brake combination

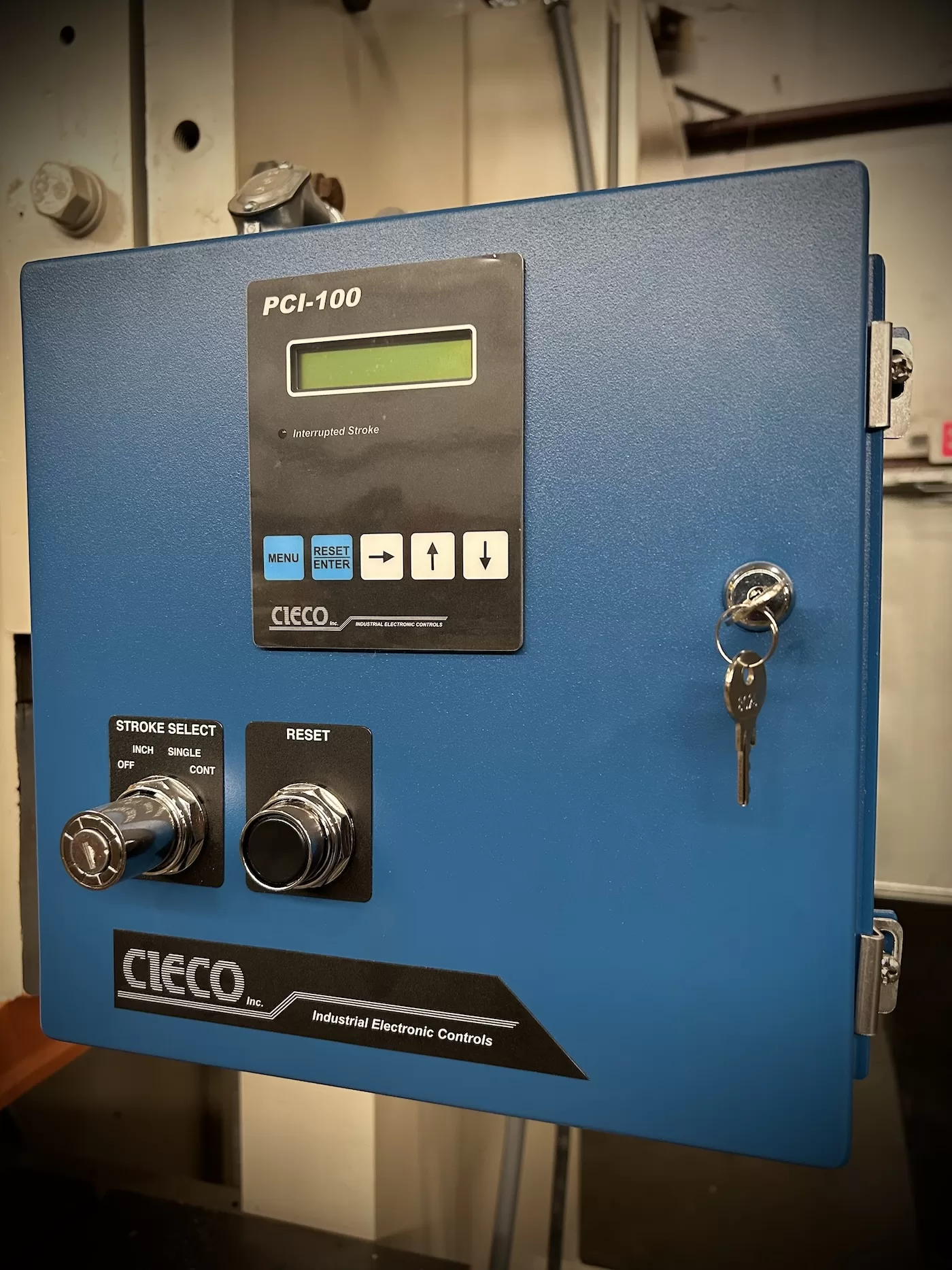

electrics 15 hp 1750 rpm 240/480v-3-60 eddy current drive & new cieco 1100r control for reconditioned price
approx dimensions 153″ h (including tank) x 54″ rl x 84″ fb
approx weight 33,000 LBS

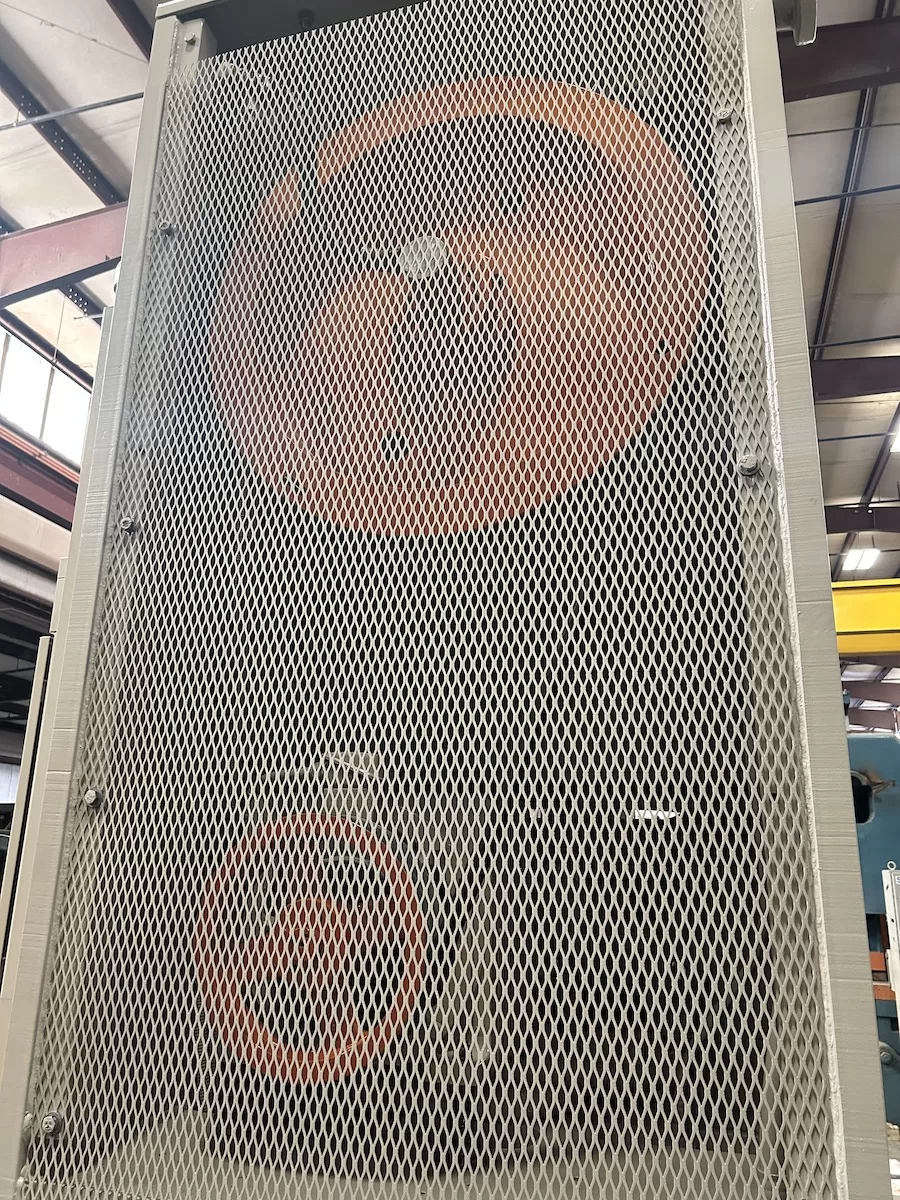

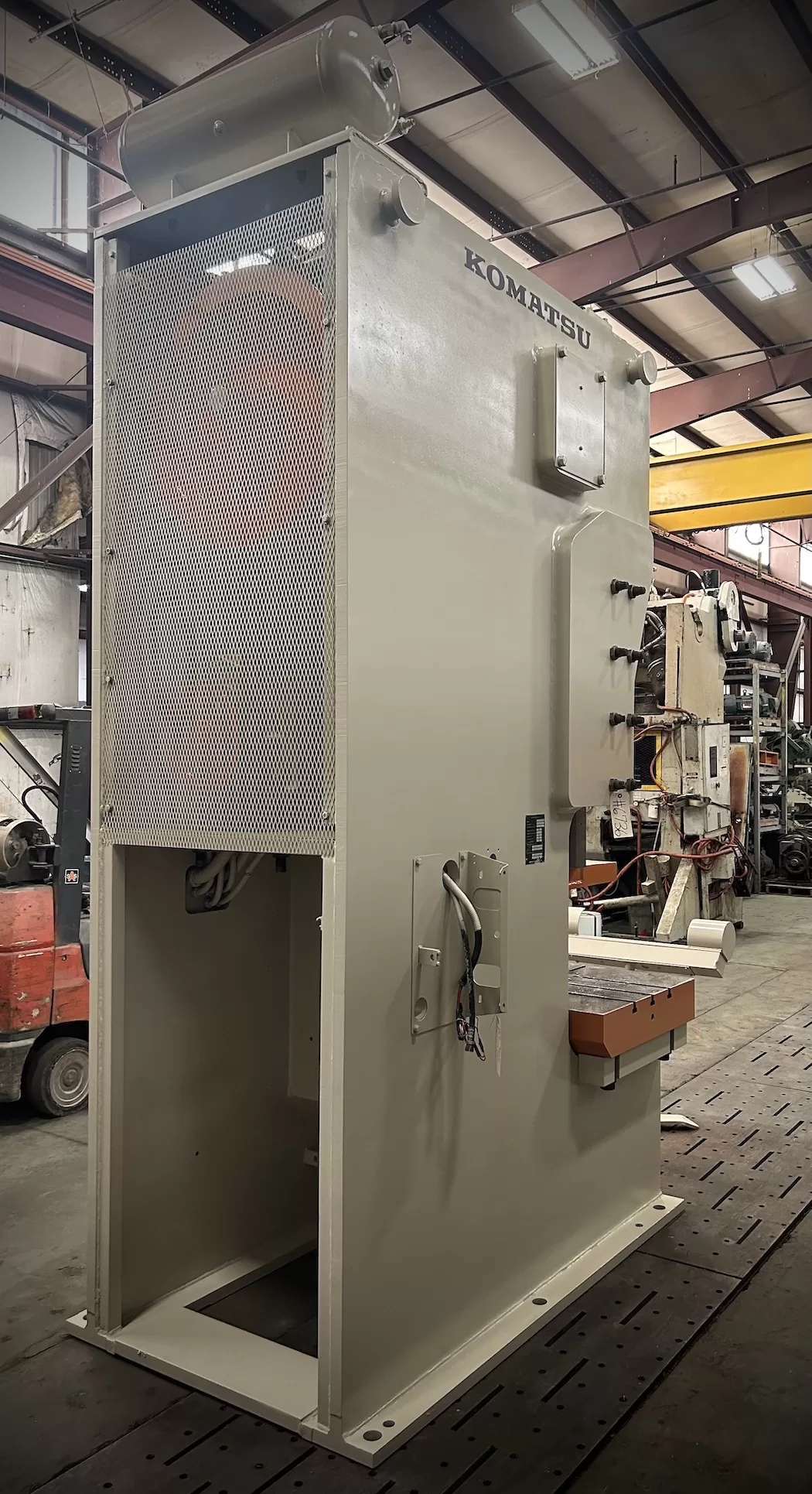

Equipped With AIR COUNTERBALANCES, FLOOR STANDING, & BACK GEARED DESIGN
Note __
Location This used press is located in our Columbia, TN Warehouse
